(199,1)

Inside warning

chime

Outside warning

chime

Operation indica-

tor on push-button

ignition switch

Status

Action

Ding

—

The battery of the access key fob is low.

Replace the battery of the access key fob.

Ding

—

Flashes in green

(15 seconds max.)

Steering lock warning:

The engine start procedure is performed, but
the steering is still locked.

While turning the steering wheel right and left
lightly, depress the brake pedal and press the
push-button ignition switch.

Ding

—

Flashes in orange

System malfunction warning:

A malfunction is detected in the power
system or steering lock.

Contact a SUBARU dealer immediately and
have the vehicle inspected.

– CONTINUED –

Warning and Indicator Lights

197

Instruments

and

Controls

(200,1)

Security Indicator Light

This indicator light shows the status of the
alarm system. It also indicates operation of
the immobilizer system.

Alarm system

It blinks to show the driver the operational
status of the alarm system. For detailed
information, refer to “Alarm System”

P143.

Immobilizer system

The security indicator light starts blinking
in the following conditions.

For models with “keyless access with
push-button start system”:

Immediately after the push-button igni-

tion switch is turned to the “OFF” position.

Immediately after the driver’s door is

opened or closed when all of the following
conditions are met.

– The push-button ignition switch is in
the “ON” or “ACC” position.
– The engine is not running.

In the event that an unauthorized key is
used (for example, the key is unregistered
or the ID code does not match), the power
is not switched to “ON” and the security
indicator light continues blinking.

For models without “keyless access
with push-button start system”:

Approximately 60 seconds after the

ignition switch is turned from the “ON”
position to the “ACC” or “LOCK” position.

Immediately after the key is pulled out.

If the indicator light does not blink in the
above conditions, it may indicate that
immobilizer system may be malfunction-
ing. Contact your nearest SUBARU dealer
immediately.

In the event that an unauthorized key (for
example, an unauthorized duplicate) is
used, the security indicator light illumi-
nates. For details about the immobilizer
system, refer to “Immobilizer”

P132.

NOTE

The security indicator light remains

off in the following conditions. It means
that the matching of the ID code is
completed and the immobilizer system
is deactivated, and it does not indicate
a malfunction.

Models with “keyless access with
push-button start system”:

– While the engine is running
– The push-button ignition switch
has been turned to the “ON” or
“ACC” position and the driver’s

door has not been opened or closed

Models without “keyless access
with push-button start system”:

– While the engine is running
– For approximately 60 seconds
after the ignition switch is turned
from the “ON” position to the “ACC”
or “LOCK” position
– When the ignition switch is in the
“ON” position

Even if a malfunction occurs, such

as the security indicator light flashes
irregularly, it will not affect the func-
tionality of the immobilizer system.

Warning and Indicator Lights

198

(201,1)

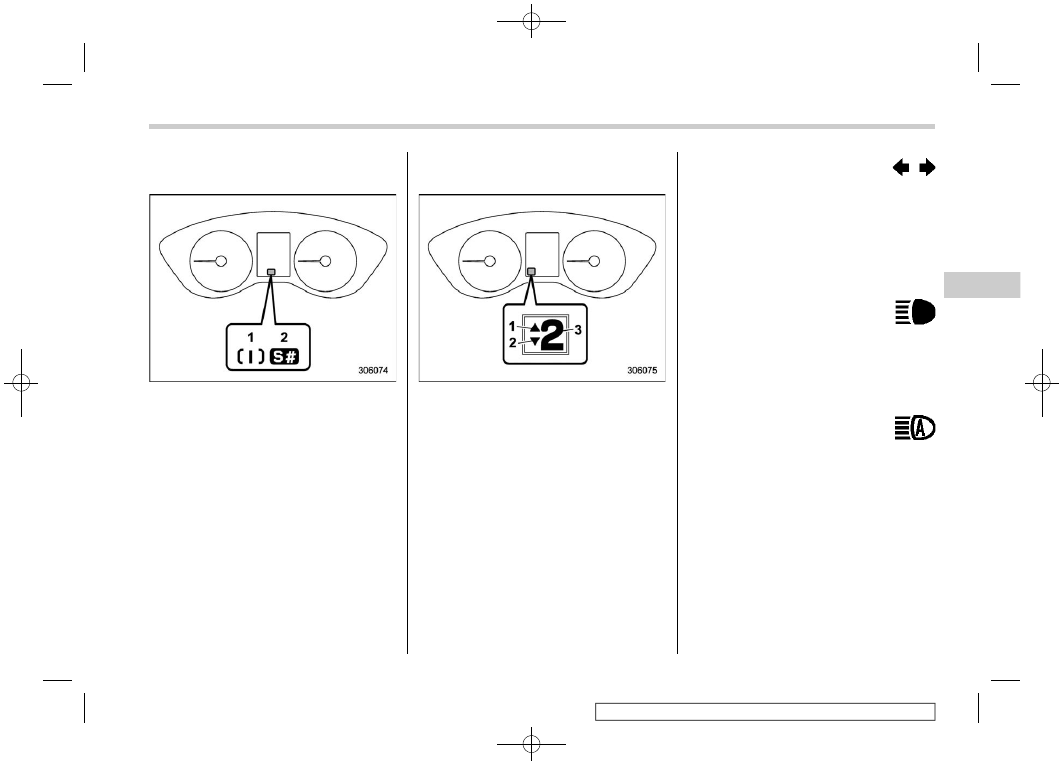

SI-DRIVE Indicator Light (If
Equipped)

SI-DRIVE indicator light

Intelligent (I) mode

Sport Sharp (S#) mode

This light indicates the current SI-DRIVE
mode.
For details of SI-DRIVE mode, refer to
“SI-DRIVE”

P356.

Select Lever/Gear Position
Indicator

Upshift indicator

Downshift indicator

Select lever/gear position indicator

The select lever position is displayed on
the indicator.

Upshift/downshift indicator

When the manual mode is selected, the
gear position indicator (which shows the
current gear selection) and the available
upshift/downshift indicator light up. Refer
to “Selection of Manual Mode”

P355.

Turn Signal Indicator
Lights

These lights show the operation of the turn
signal or lane change signal.
If the indicator lights do not blink or blink
rapidly, the turn signal bulb may be burned
out. Replace the bulb as soon as possible.
Refer to “Replacing Bulbs”

P528.

High Beam Indicator
Light

This light shows that the headlights are in
the high beam mode.
This indicator light also illuminates when
operating the headlight flasher.

High Beam Assist Indi-
cator

This indicator appears when the high
beam assist function is activated. For
details about the high beam assist func-
tion, refer to “High Beam Assist Function”

P254.

– CONTINUED –

Warning and Indicator Lights

199

Instruments

and

Controls

(202,1)

Automatic Headlight
Beam Leveler Warning
Light

This light illuminates when the automatic
headlight beam leveler does not operate
normally.
If this light illuminates while driving or does
not turn off approximately 3 seconds after
turning the ignition switch to the “ON”
position, have your vehicle inspected at
your SUBARU dealer.

LED Headlight Warning
Light

This light illuminates if the LED headlights
malfunction. Have your vehicle inspected
at a SUBARU dealer as soon as possible.

Steering Responsive
Headlight OFF Indicator
Light

This light illuminates when the Steering
Responsive Headlight function is off. For
details about the on/off setting, refer to
“Car settings”

P223.

Steering Responsive
Headlight Warning
Light

The light flashes when a malfunction
occurs in the Steering Responsive Head-
light. Refer to “Steering Responsive Head-
light (SRH)”

P258.

Headlight Indicator
Light

This indicator light illuminates under the
following conditions.

The light switch is turned to the “

” or

“

” position.

The light switch is in the “AUTO”

position and the headlights illuminate
automatically.

Front Fog Light Indica-
tor Light (If Equipped)

This indicator light illuminates while the
front fog lights are illuminated.

Auto Start Stop Warn-
ing Light (Yellow)

CAUTION

If the Auto Start Stop warning light is
illuminated in yellow, there may be a

malfunction in the Auto Start Stop
system. When starting the engine
again after the Auto Start Stop
warning light illuminates, if it is still
illuminating, have your vehicle in-
spected at a SUBARU dealer as soon
as possible.

The Auto Start Stop warning light will
illuminate in yellow if you open the engine
hood when the engine has been tempora-
rily stopped by the Auto Start Stop system.
In this case, to ensure safety, the engine
will not be automatically restarted, even if
you release the brake pedal. Use normal
operation to restart the engine.

Auto Start Stop OFF
Indicator Light

This light will illuminate when “Auto Start
Stop” is touched to prevent the Auto Start
Stop system from operating. It will turn off
when “Auto Start Stop” is touched once
more to enable operation of the Auto Start
Stop system. For details about the setting,
refer to “Auto Start Stop ON/OFF icon”

P216 (11.6-inch display models) or

“Auto Start Stop ON/OFF icon”

P242

(dual 7.0-inch display models).

Warning and Indicator Lights

200

(203,1)

CAUTION

If the Auto Start Stop OFF indicator
light does not illuminate when “Auto
Start Stop” is touched, contact a
SUBARU dealer for an inspection as
soon as possible.

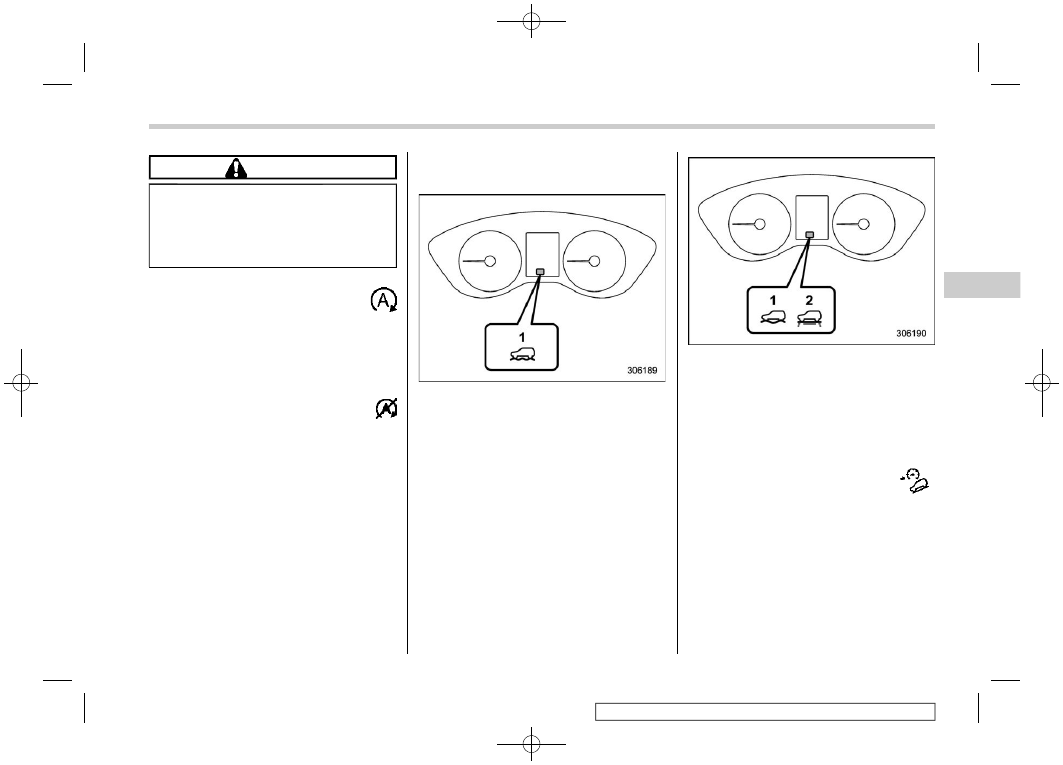

Auto Start Stop Indica-
tor Light (Green)

This indicator light illuminates when the
engine has been temporarily stopped by
the Auto Start Stop system. It will turn off
when the engine is restarted.

Auto Start Stop No
Activity Detected Indi-
cator Light

When a vehicle is stopped, the indicator
light illuminates when the operating con-
ditions of idling stop are not met. The light
will turn off when the vehicle starts driving.
Refer to “Non-operational conditions”

P377.

X-MODE Indicator (Outback/
Subaru Outback Wilderness)

X-MODE indicator (models with 1 mode)

X-MODE indicator

X-MODE indicator (models with 2 modes)

DEEP SNOW/MUD mode indicator

SNOW/DIRT mode indicator

This indicator appears while X-MODE is
activated. It will disappear when X-MODE
is deactivated. Refer to “To Activate/
Deactivate X-MODE”

P365.

Hill Descent Control
Indicator (Outback/
Subaru Outback
Wilderness)

This indicator appears while the hill des-
cent control function is in standby. It will
flash while the hill descent control function
is operating. It will disappear when the hill
descent control function is not available.

– CONTINUED –

Warning and Indicator Lights

201

Instruments

and

Controls

(204,1)

BSD/RCTA Warning In-
dicator (If Equipped)

This warning indicator appears on the
combination meter display (color LCD)
when the BSD (Blind Spot Detection) or
RCTA (Rear Cross Traffic Alert) is mal-
functioning for any reason. For further
details, refer to “BSD/RCTA Warning In-
dicator”

P394. If this indicator remains

displayed, have your vehicle inspected by
your SUBARU dealer as soon as possible.

BSD/RCTA OFF Indica-
tor (If Equipped)

This indicator appears on the combination
meter display (color LCD) when “BSD/
RCTA” is touched to deactivate the BSD
(Blind Spot Detection) and RCTA (Rear
Cross Traffic Alert), or when the BSD/
RCTA is suspended temporarily. For de-
tails, refer to “BSD/RCTA OFF Indicator”

P393.

Icy Road Surface
Warning Indicator

When the outside temperature is 37

C) or less, the icy road surface warning

indicator will illuminate to inform the driver
that the road surface may be frozen.

NOTE

The outside temperature indicator

shows the temperature in the area
around the sensor. However, the tem-
perature may not be indicated correctly
or the update may be delayed in the
following conditions.

– While parking or driving at low
speeds
– When the outside temperature
changes suddenly (example: when
going in and out of an underground
parking area or when passing
through a tunnel)
– When starting the engine after
being parked for a certain period of
time

The icy road surface warning indi-

cator should be treated only as a guide.
Be sure to check the condition of the
road surface before driving.

Once the icy road surface warning

indicator appears, it will not disappear
unless the outside temperature has
increased to 41

F (5

C) or higher.

RAB Warning Indi-
cator (If Equipped)

This indicator illuminates if the Reverse
Automatic Braking (RAB) system malfunc-
tions. Refer to “Reverse Automatic Brak-

ing (RAB) System”

P397.

RAB OFF Indicator (If
Equipped)

This indicator illuminates when the Re-
verse Automatic Braking (RAB) system is
turned OFF, or when the Reverse Auto-
matic Braking (RAB) system is suspended
temporarily. Refer to “Reverse Automatic
Braking (RAB) System”

P397.

Driver Monitoring Sys-
tem Operation Indicator
Light (Green) (If
Equipped)

This indicator illuminates when the Driver
Monitoring System is activated. Refer to
“Driver Monitoring System operation in-
dicator light (green)”

P416.

Driver Monitoring Sys-
tem Warning Light (Yel-
low) (If Equipped)

This warning light illuminates if the Driver
Monitoring System malfunctions. Have
your vehicle inspected at a SUBARU
dealer as soon as possible. Refer to
“Driver Monitoring System operation in-
dicator light (green)”

P416.

Warning and Indicator Lights

202

(205,1)

Driver Monitoring Sys-
tem OFF Indicator Light
(If Equipped)

This indicator illuminates when “Driver
Monitoring System” is touched to deacti-
vate Driver Monitoring System. Refer to
“Driver Monitoring System OFF indicator
light”

P416.

Driver Monitoring Sys-
tem Temporary Stop In-
dicator Light (If
Equipped)

This indicator illuminates when the Driver
Monitoring System is temporarily stopped.
Refer to “Driver Monitoring System tem-
porary stop indicator light”

P416.

NOTE

The Driver Monitoring System stops
temporarily in the following circum-
stances.

The temperature of the Driver Mon-

itoring System unit is high.

Sonar Audible Alarm
OFF Indicator (If
Equipped)

This indicator illuminates when the sonar
audible alarm is turned OFF. For the
setting procedure, refer to “Car settings”

P223.

3-7. Combination Meter Dis-
play (Color LCD)

WARNING

Always pay adequate attention to
safe driving when operating the
combination meter display (color
LCD) while the vehicle is in motion.
When operation of the combination
meter display (color LCD) interferes
with your ability to concentrate on
driving, stop the vehicle before
performing operations on the
screen. Also, do not concentrate on
the display while driving. Doing so
may cause you to look away from the
road and could result in an accident.

Various information will be shown on the
combination meter display (color LCD).
Also, a warning message will appear on
the display if a malfunction is detected. In
addition, several settings for the displayed
content can be performed.

– CONTINUED –

Combination Meter Display (Color LCD)

203

Instruments

and

Controls

(206,1)

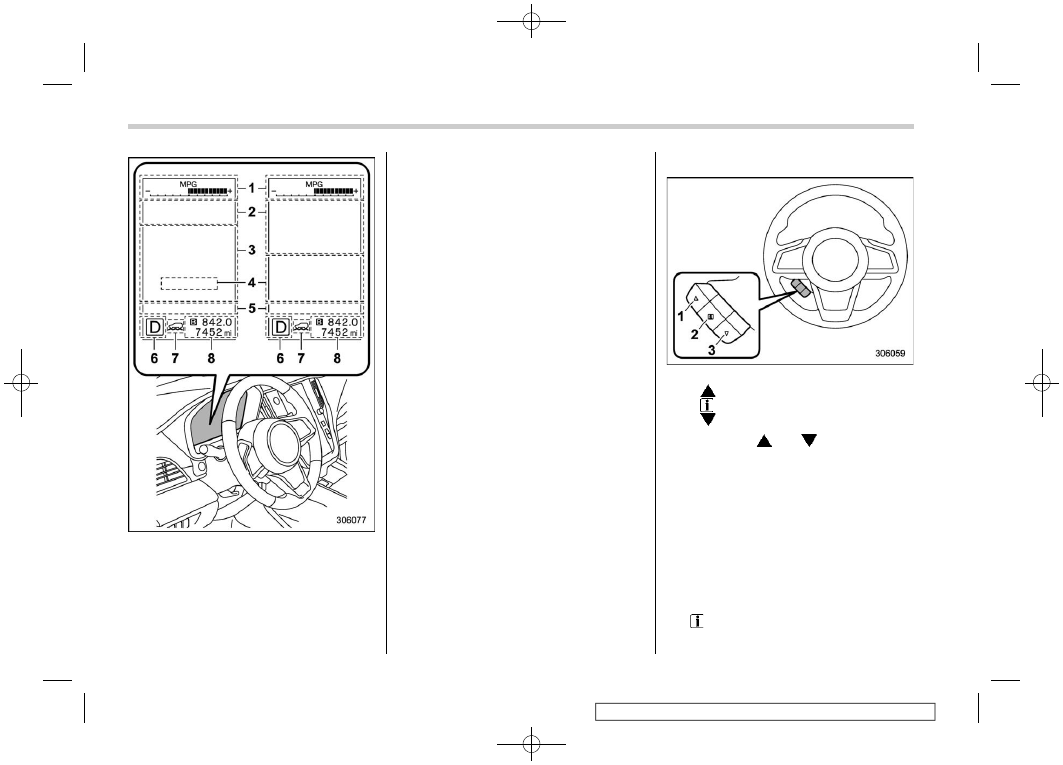

Combination meter display (color LCD)

Meter information screen (Refer to “Me-
ter Information Screen”

P205.)

Warning screen (Refer to “Warning
Screen”

P205.)/Basic screen (Refer to

“Basic Screens”

P208.)

EyeSight screen*

Digital speed screen (Refer to “Digital
Speed Screen”

P211.)

Telltale screen (Refer to “Telltale Screen”

P207.)

Select lever/gear position indicator (Re-
fer to “Select Lever/Gear Position Indi-
cator”

P199.)

X-MODE indicator (Outback/Subaru
Outback Wilderness) (Refer to
“X-MODE Indicator (Outback/Subaru
Outback Wilderness)”

P201.)

SI-DRIVE indicator (if equipped) (Refer
to “SI-DRIVE Indicator Light”

P199.)

O d o m e t e r ( R e f e r t o “ O d o m e t e r ”

P175.)/Double trip meter (Refer to

“Double Trip Meter”

P176.)

*: For details, refer to the separate EyeSight

Owner’s Manual.

Basic Operation

Control switches

1)
2)
3)

By operating

of the control

switches, the screens can be changed.

If there are some useful messages, such
as vehicle information, warning informa-
tion, etc., they will interrupt the current
screen, and appear on the display accom-
panied by a beep. If such a screen is
displayed, take proper action according to
the message shown on the screen.

The warning screen will return to the
original screen after a few seconds. While
the

information reminder is shown on

the display, it may be possible to display

Combination Meter Display (Color LCD)

204

(207,1)

the warning screen again. To recall the
message marked with

on the display,

pull the

switch on the steering wheel

toward you.

Welcome Screen (Opening
Animation) and Good-Bye
(Ending Animation) Screen

Welcome screen and Good-bye screen
are motion graphic displayed on the
combination meter display and center
information display upon entering and
exiting the vehicle.
When the driver’s door is opened and
closed after unlocking the door, the wel-
come screen (opening animation) will
appear on the combination meter display
(color LCD) for approximately 20 seconds.
When the ignition switch is turned to the
“LOCK”/“OFF” position, the combination
meter display (color LCD) gradually turns
off by showing good-bye screen (ending
animation).

NOTE

The welcome screen and the good-

bye screen may differ in the actual
words and appearance.

The basic screen will be shown

when the ignition switch is turned to
the “ON” position while the welcome
screen is displayed.

Once the welcome screen appears, it

takes a certain period of time to display
it again.

If the ignition switch is operated

after unlocking the driver’s door, the
welcome screen will not appear even
when the driver’s door is opened and
closed.

The welcome screen will disappear

when you lock the driver’s door by
using the remote keyless entry system
(all models) or the keyless access
function (if equipped) while the wel-
come screen is displayed.

The welcome screen including the

audio/navigation unit can be set to on
or off.

The welcome screen can be set to on

or off. For details, refer to “General
settings”

P219 (11.6-inch display

models) or “General settings”

P237

(dual 7.0-inch display models).

The good-bye screen can be set to

on or off. For details, refer to “General
settings”

P219 (11.6-inch display

models) or “General settings”

P237

(dual 7.0-inch display models).

Warning Screen

Example of warning

If there is a warning message or a
maintenance notification, it will appear on
combination meter display (color LCD).
Take the appropriate actions based on the
messages indicated.

Meter Information Screen

The meter information screen can be
changed. For details, refer to “General
settings”

P219 (11.6-inch display mod-

els) or “General settings”

P237 (dual

7.0-inch display models).

– CONTINUED –

Combination Meter Display (Color LCD)

205

Instruments

and

Controls

(208,1)

ECO gauge

The ECO gauge shows the difference
between the average rate of fuel con-
sumption since the trip meter was last
reset and the current rate of fuel consump-
tion.

The ECO gauge indicates the current fuel
efficiency as shown in the following chart.

Displayed unit

Needle position

“+” side

“−” side

MPG

Better

Poorer

l/100km

Poorer

Better

NOTE

The ECO gauge shows only an

approximate indication.

After resetting the trip meter, the

average rate of fuel consumption is not
shown until driving 0.6 miles (1 km).
Until that time, the ECO gauge does not
operate.

Clock and temperature

This screen displays the clock and outside
temperature.
For details about clock setting, refer to
“Clock”

P248.

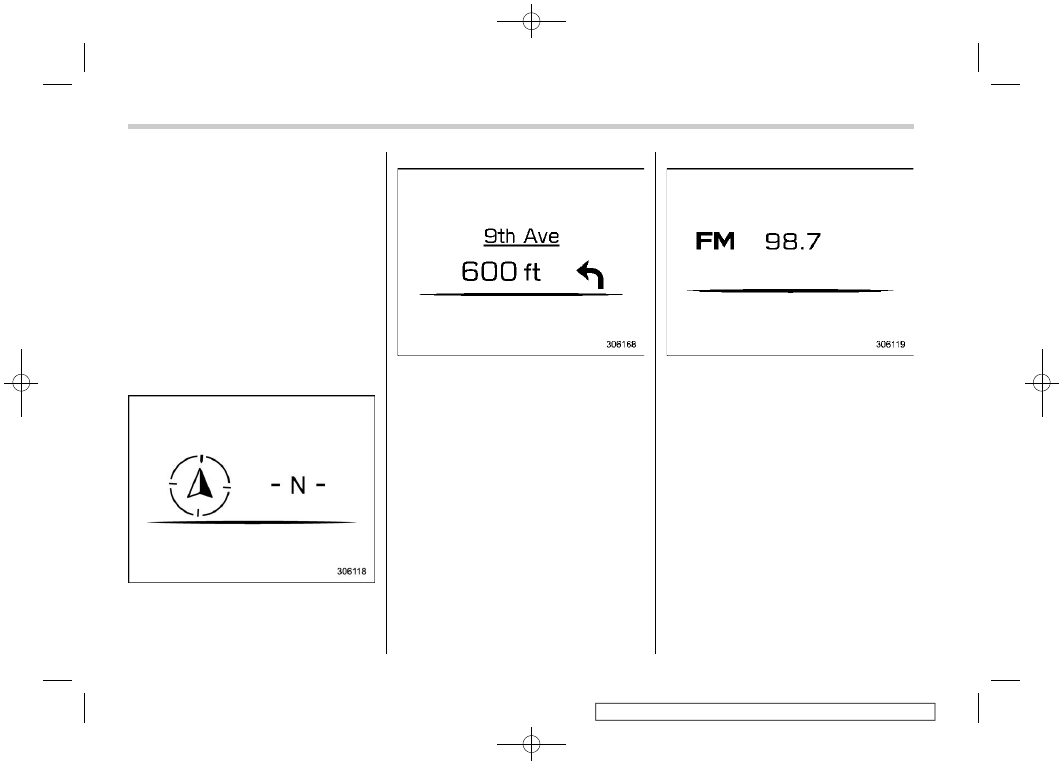

Compass (if equipped)

The direction of the vehicle is displayed.

Driving range on remaining fuel

Combination Meter Display (Color LCD)

206

(209,1)

NOTE

The driving range on the remaining fuel
is only a guide. The indicated value may
differ from the actual driving range on
the remaining fuel, so you must im-
mediately fill the tank when the low fuel
warning light illuminates.

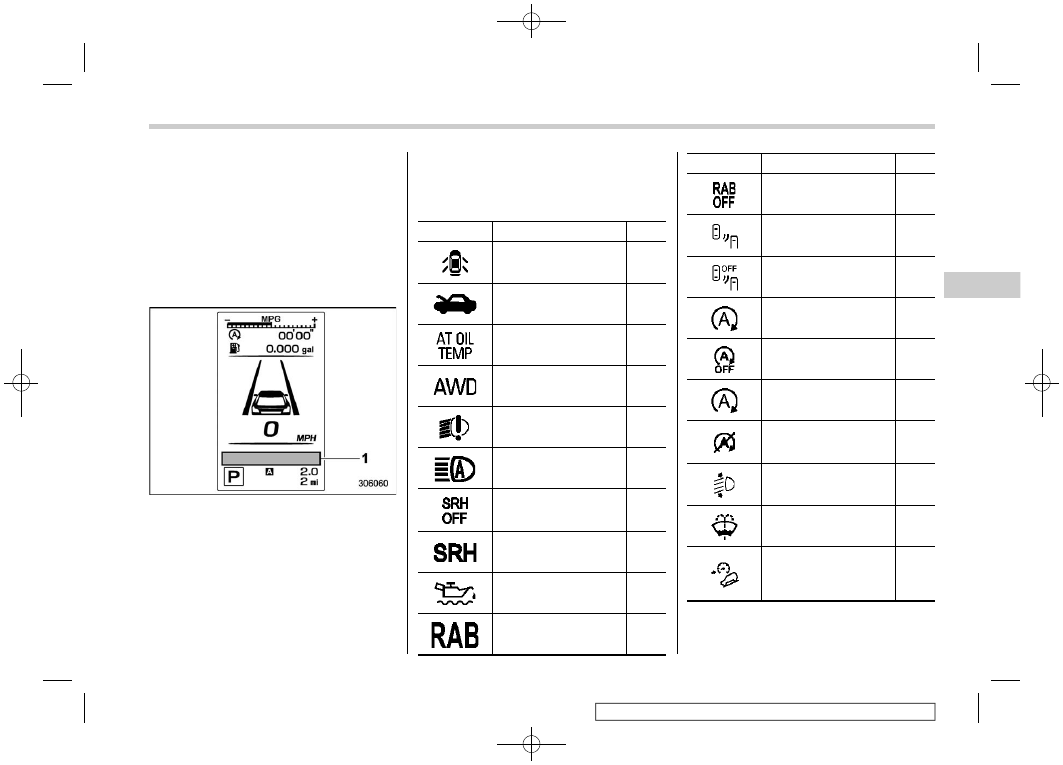

Telltale Screen

Telltale screen

When the corresponding situation occurs,
the following telltales will be displayed on
the telltale screen.

NOTE

When there is warning information

to display, it will be displayed in five
warning indicators, starting on the left

in ascending order of severity.

If there are 6 or more warning

messages to display, the indicators will
be displayed in sequential order.

Mark

Name

Page

Door open indicator
light

191

Engine hood open
warning light

191

AT OIL TEMP warning
light

186

All-Wheel Drive warn-
ing light

191

LED headlight warning
light

200

High beam assist indi-
cator light

199

Steering Responsive
Headlight OFF indicator
light

200

Steering Responsive
Headlight warning light

200

Engine low oil level
warning indicator

185

RAB warning light (if
equipped)

202

Mark

Name

Page

RAB OFF indicator (if
equipped)

202

BSD/RCTA warning in-
dicator (if equipped)

202

BSD/RCTA OFF indi-
cator (if equipped)

202

Auto Start Stop warning
light (yellow)

200

Auto Start Stop OFF
indicator light

200

Auto Start Stop indica-
tor light (green)

201

Auto Start Stop No Ac-
tivity Detected indicator
light

201

Automatic headlight
beam leveler warning
light

200

Windshield washer fluid
warning light

191

Hill descent control in-
dicator light (Outback/
Subaru Outback
Wilderness)

201

– CONTINUED –

Combination Meter Display (Color LCD)

207

Instruments

and

Controls

(210,1)

Mark

Name

Page

Driver Monitoring Sys-
tem operation indicator
light (green) (if
equipped)

202

Driver Monitoring Sys-
tem warning light (yel-
low) (if equipped)

202

Driver Monitoring Sys-
tem OFF indicator light
(if equipped)

203

Driver Monitoring Sys-
tem temporary stop in-
dicator light (if
equipped)

203

Icy road surface warn-
ing light

202

Basic Screens

By operating the

switch on the

steering wheel, you can change the screen
that is always displayed.

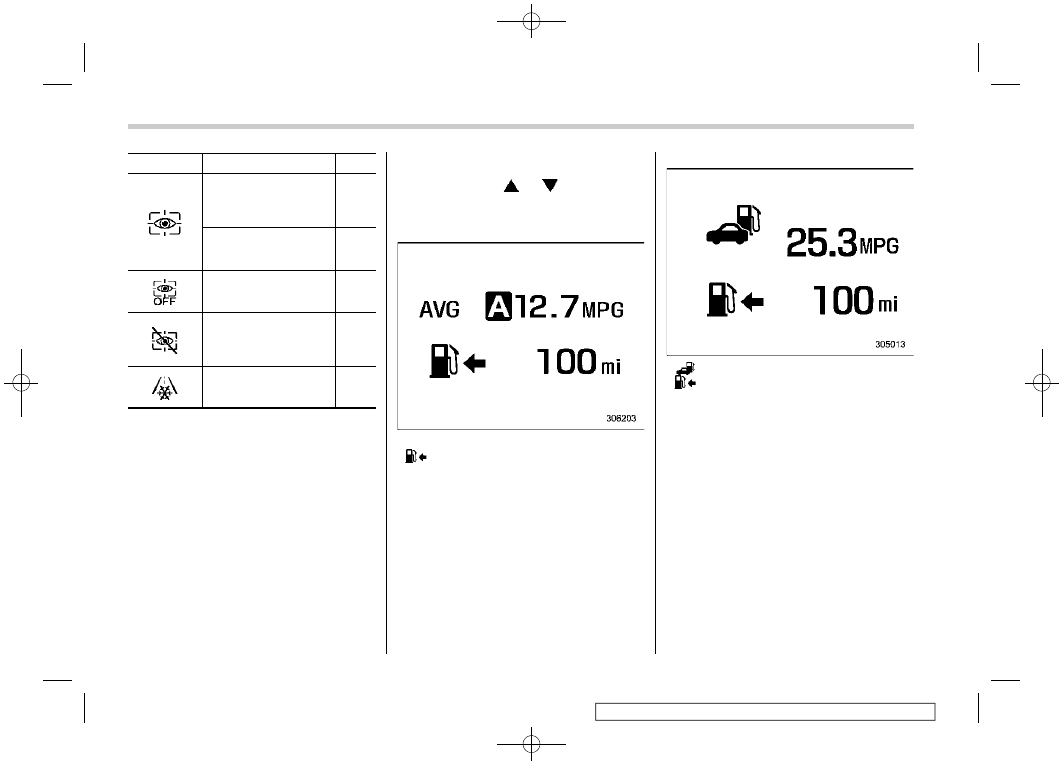

Average fuel consumption screen:

AVG: Average fuel consumption

: Driving range on remaining fuel

This screen displays the average rate of
fuel consumption since the trip meter was
last reset.

NOTE

Current fuel consumption screen:

: Current fuel consumption
: Driving range on remaining fuel

NOTE

Combination Meter Display (Color LCD)

208

(211,1)

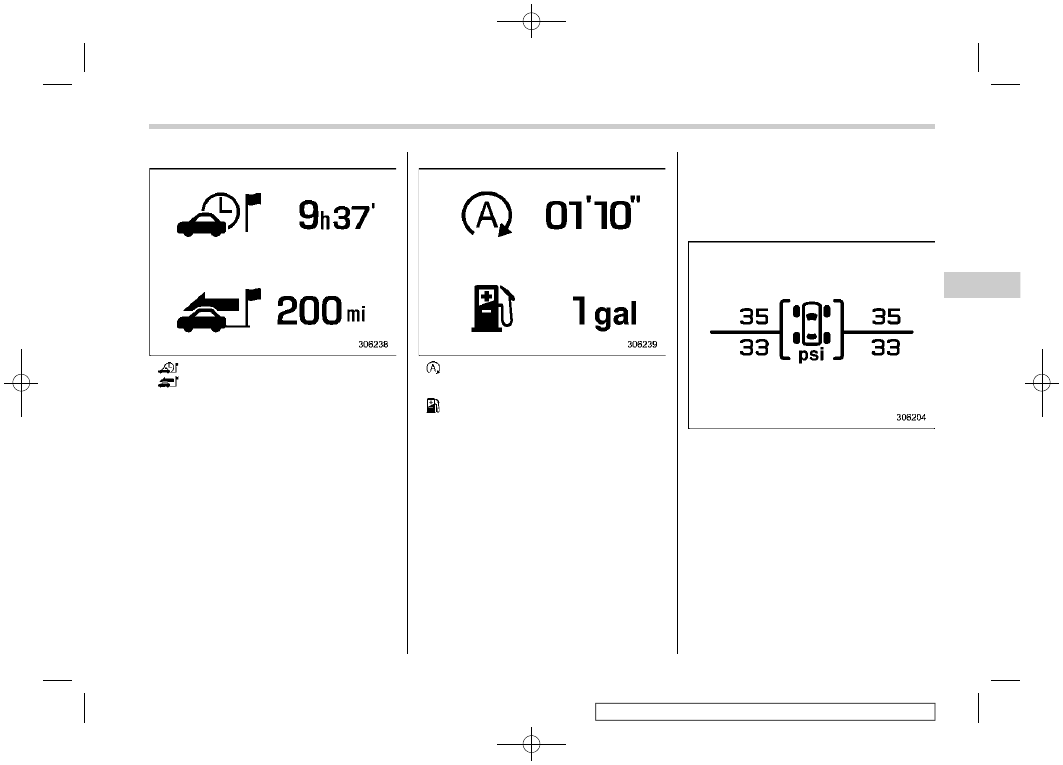

Driving information screen:

: Journey time
: Journey distance

This screen displays the journey time (the
time that has elapsed since the ignition
switch was turned to the “ON” position)
and journey distance (the distance that
has been driven since the ignition switch
was turned to the “ON” position).

Auto Start Stop screen:

: The total amount of time that the engine

was stopped by means of the Auto Start
Stop system

: The total amount of fuel saved due to the

engine being stopped by the Auto Start
Stop system

The indicated values are calculated from
the most recent reset of the currently
displayed trip meter to the current time.
The indication ranges are as follows.

Total amount of time: from 00

’

9999h59

’

Total amount of fuel saved: from 0 gal to

9999.999 gal

NOTE

When the trip meter is reset, the

corresponding accumulated time and
the amount of fuel saving are also reset.

The time spent with the engine

stopped by means of the Auto Start
Stop system is also added to the
journey time.

TPMS screen (U.S.-spec. models):

This screen displays each tire pressure.
When a tire is deflated, the deflated tire
and the tire pressure will be displayed on
the screen in yellow.

NOTE

The tire pressure values are dis-

played several minutes after driving.

You can set the tire pressure units.

For details about setting the units, refer
to “General settings”

P219 (11.6-inch

display models) or “General settings”

P237 (dual 7.0-inch display models).

– CONTINUED –

Combination Meter Display (Color LCD)

209

Instruments

and

Controls

(212,1)

Once the tire pressure monitoring

system detects the low tire pressure,
the tire pressure values will display in
yellow until the system detects the
normal tire pressure.

Immediately adjust the tire pressure

when the warning light illuminates.
When the tire pressure monitoring
system detects the adjusted tire pres-
sure, the warning light will turn off and
the tire pressure values will turn to
white.

For information about the specified

value of the air pressure, refer to
“Tires”

P546.

Compass screen (if equipped):

The direction of the vehicle is displayed.

Navigation screen (if equipped):

When the route guidance is set in the
navigation system, this item shows the
navigation route information. For details
about the navigation system, refer to the
separate navigation/audio Owner’s Man-
ual.

Audio screen:

The audio screen shows the status of
audio information. For details about the
audio system, refer to the separate navi-
gation/audio Owner’s Manual.

Combination Meter Display (Color LCD)

210

(213,1)

Clock and outside temperature screen:

This screen displays the clock and outside
temperature.
For details about clock setting, refer to
“Clock”

P248.

Digital Speed Screen

Speed limit indicator (if equipped)

Vehicle speed

This screen displays the current vehicle
speed.

3-8. Center Information Dis-
play (CID)

WARNING

Always pay attention to safe driving
when operating the center informa-
tion display while the vehicle is in
motion. When operation of the cen-
ter information display is disturbing
your awareness and ability to con-
centrate on driving, stop the vehicle
in a safe place before performing
operations on the display. Also, do
not concentrate on the display while
driving. Doing so could result in an
accident.

Features

All information is displayed on the center
information display, including vehicle set-
tings, vehicle status, navigation system (if
equipped) operation, audio operation, and
air conditioning operation.

– CONTINUED –

Center Information Display (CID)

211

Instruments

and

Controls

(214,1)

Items

Page for

11.6-inch

display

models

Page for

dual 7.0-

inch display

models

Interruption
screen

212

Vehicle status and
maintenance in-
formation

Vehicle settings

Climate control
operations

219

237

Front View Moni-
tor (if equipped)/
Rear view camera

351/383

Navigation system

Refer to the navigation/

audio Owner’s Manual.

Audio/telephone

Refer to the navigation/

audio Owner’s Manual.

EyeSight

Refer to the Owner’s

Manual supplement for

the EyeSight system.

The center information display can also be
used to set and initialize the center
information display itself.

NOTE

When the vehicle is in motion,

certain functions and selections may
not be available.

The language and units for both the

center information display and the

combination meter display (color LCD)
can be changed. For details about
language settings, refer to “General
settings”

P219 (11.6- inch display

models) or “General settings”

P237

(dual 7.0-inch display models). For de-
tails about unit settings, refer to “Car
settings”

P223 (11.6-inch display

models) or “Vehicle setting icons”

P242 (dual 7.0-inch display models).

The images displayed in this Own-

er’s Manual are sample images. The
actual image may vary depending on
the region and vehicle specifications.

Welcome Screen

NOTE

The welcome screen will disappear

when the ignition switch is turned to the
“ON” position while the welcome
screen is shown.

The welcome screen can be turned

on or off. For details, refer to “General

settings”

P219 (11.6-inch display

models) or “General settings”

P237

(dual 7.0-inch display models).

For a certain period of time after the

welcome screen has once appeared, it
may not appear again even when the
driver’s door is opened and closed.
This does not indicate a malfunction.

Good-Bye Screen

The good-bye screen will be displayed
under the following conditions.

The driver’s door is opened after the

ignition switch is put in the “OFF” position.

3 minutes have passed after the ignition

switch is put in the “OFF” position with the
driver’s door closed.

10 minutes have passed when the

hands-free phone is used after the ignition
switch is put in the “OFF” position.

The battery voltage is low when the

ignition switch is put in the “OFF” position.

Interruption Screen

Useful messages, such as reminders,
weather information (if equipped) and
traffic information (if equipped) may inter-
rupt the current screen and appear on the
display accompanied by a beep. Take the
proper action according to the message.

Center Information Display (CID)

212

Content .. 11 12 13 14 ..
