Subaru XV Crosstrek (2016 year). Instruction

! Casual speech recognization
Due to natural language speech recogni-
tion technology, this system enables re-
cognition of a command when spoken
naturally. However, the system cannot
recognize every variation of each com-
mand. In some situations, it is possible to
omit the command for the procedure and
directly state the desired operation. Not all
voice commands are displayed in the
function menu.

NOTE

If the command cannot be recognized
completely, the command input screen
will be displayed. (Search results will
be shown based on the part of the
command that was recognized.)

! Expression examples for each

function

Command

Expression examples

“Dial <phone num-

ber>

”

Phone <phone num-

ber>.

& Command list

Recognizable voice commands and their
actions are shown below.

NOTE

. Some voice commands may not be
available depending on the market,
vehicle specifications or the device
connection status.

. Frequently used commands are
listed in the following tables.

. For devices that are not installed in
the vehicle, the related commands will
not be displayed on the screen. Also,
according to conditions, other com-
mands may not be displayed on the
screen.

. The functions available may vary
according to the system installed.

. Voice recognition language can be
changed. Refer to

“Unit settings” F5-

19.

. The notations used in the com-
mands are as follows.

– <

>: Numbers, titles or

names to be spoken
– (

): There is no need to

speak the command, the voice
command system will recognize
the content.

! Basic command

Voice command

Function

Back

Go back one hierar-
chy or cancel the
voice recognition
(voice command top
screen)

Help

Ask for help with the
current task

Cancel, Close

Cancel the current
task

Yes

Display OFF

Turns the display off

Audio ON

Turns the audio sys-
tem on

Audio OFF

Turns the audio sys-
tem off

STARLINK

Switch to APPS mode

Audio/Voice command system

– CONTINUED –

5-85

Audio/Voice command system

! Commands for changing the audio

mode

Voice command

Function

Change to AM

Switch to AM mode

Change to AM1

Switch to AM mode
band 1

Change to AM2

Switch to AM mode
band 2

Change to FM

Switch to FM mode

Change to FM1

Switch to FM mode
band 1

Change to FM2

Switch to FM mode
band 2

Change to FM3

Switch to FM mode
band 3

Change to SiriusXM

Switch to XM mode

Change to BT Audio

Switch to Bluetooth
Audio mode

Change to CD

Switch to CD mode

Change to USB

Switch to USB mode

Change to iPod

Switch to iPod mode

Change to aha

Switch to aha radio
mode

Change to Pandora

Switch to Pandora
mode

Change to AUX

Switch to AUX mode

! Commands for hands-free phone

Voice command

Function

Dial Number

? <0-9,

+, *, #>

? Change

number, Dial

Places a call to the
said phone number

Dial <0-9, +, *, #>

Change number, Dial

Contacts, Phonebook

? <Name> ? <1-5>

? Dial

Make a call by using
the phonebook

Call <Name>

<1-5>

? Dial

Call History

? In-

coming call, Outgoing
call

? Next (page),

Previous (page)

<1-5>

? Dial

Make a call by using
the call history

Incoming Calls

Display the call his-
tory screen

Outgoing Calls

Display the call his-
tory screen

Redial

Places a call to the
phone number of the
latest outgoing call

Callback

Places a call to the
phone number of the
latest incoming call

Select Phone

<1-5>

Display the phone
select screen

Phone Menu

Display the hands
free top screen

! Commands for Pandora

Voice command

Function

Mark

“Like” flag

Dislike

Mark

“Dislike” flag

Skip, Next

Skip to the next song

! Commands for aha

Voice command

Function

Thumbs Up, Heart,
Like

Mark

“Like” flag

Thumbs Down, Ban,
Dislike

Mark

“Dislike” flag

Refresh, update

Refresh the selected
station to get the lat-
est information

Content Up

Playback next Con-
tent

Content Down

Playback previous
Content

5-86

! Commands for AM/FM control

Voice command

Function

Seek Up

Tunes in the higher
frequency direction

Seek Down

Tunes in the lower
frequency direction

Scan

Switch to the scan
mode

Tune to <Frequency>

Designate the fre-
quency to switch to a
specific radio station

Preset <preset num-
ber>

Designate the preset
channel to switch to
specific radio station

Tag

iTunes Tagging for
HD Radio

! Commands for SiriusXM radio con-

trol

Voice command

Function

Preset <preset num-
ber>

Designate the preset
channel to switch to
specific radio station

Scan

Switch to the scan
mode

Channel <Channel
number>

Designate the chan-
nel to switch to spe-
cific radio station

Voice command

Function

Category

? Next

(page), Previous
(page), <1-5>

? Next

(page), Previous
(page), <1-5>

Displays the category
list screen

! Commands for CD control

Voice command

Function

Track Up

Select the next track

Track Down

Select the current
track

Scan

Switch to the scan
mode

Repeat

? 1 Track

Repeat, Repeat All

Select a repeat mode

1 Track Repeat

Repeat single track

Repeat All

Repeat all tracks

Shuffle

Plays randomly

! Commands for MP3/WMA/AAC,

USB control

Voice command

Function

Track Up

Select the next track

Track Down

Select the current
track

Voice command

Function

Folder Up

Plays from the start of
the next folder

Folder Down

Plays from the start of
the previous folder

Scan

Switch to the scan
mode

Repeat

? 1 Track

Repeat, Repeat
Folder, Repeat All

Select a repeat mode

1 Track Repeat

Repeat single track

Repeat Folder

Repeat of the folder

Repeat All

Repeat all tracks

Shuffle

? Shuffle

Folder, Shuffle All

Select a random play
mode

Shuffle Folder

Plays randomly of the
folder

Shuffle All

Plays randomly

! Commands for iPod Control

Voice command

Function

Track Up

Select the next track

Track Down

Select the current
track

Repeat

? Repeat

One, Repeat All

Select a repeat mode

Repeat One

Repeat single track

Audio/Voice command system

– CONTINUED –

5-87

Audio/Voice command system

Voice command

Function

Repeat All

Repeat all tracks

Shuffle

? Shuffle

Track, Shuffle Album,
Shuffle OFF

Select a random play
mode

Shuffle Track

Shuffle all tracks

Shuffle Album

Shuffle all tracks

Shuffle OFF

Turn off shuffle

! Commands for Bluetooth audio

control

Voice command

Function

Pause

Pause play

Track Up

Select the next track

Track Down

Select the current
track

Repeat

? 1 track

Repeat, Repeat All,
Group Repeat

Select a repeat mode

1 Track Repeat

Repeat single track

Repeat All

Repeat all tracks

Group Repeat

Repeat tracks on
group

Shuffle

? Shuffle All,

Group Shuffle, Shuf-
fle OFF

Select a random play
mode

Shuffle All

Shuffle all tracks

Group Shuffle

Shuffle tracks on
group

Shuffle OFF

Turn off shuffle

5-88

What to do if...

& Troubleshooting

If there is a problem with the hands-free system or a Bluetooth device, first check the table below.

When using the hands-free system with a Bluetooth device

Symptom

Likely cause

Solution

Page

Cell

phone

This

system

The hands-free system or Bluetooth
device does not work.

The connected device may not be a
compatible Bluetooth cell phone.

For USA customers, please visit
www.subaru.com for details. Outside of the
USA customers, contact your local dealer to
arrange a demonstration in order to confirm
whether or not the device can be paired with
the vehicle.

—

The Bluetooth version of the connected
cell phone may be older than the
specified version.

Use a cell phone with Bluetooth version 1.1 or
higher (recommended: Ver. 2.1 + EDR or
higher).

5-68

*: For details, refer to the owner

’s manual that came with the cell phone.

Audio/What to do if...

– CONTINUED –

5-89

Audio/What to do if...

When registering/connecting a cell phone

Symptom

Likely cause

Solution

Page

Cell

phone

This

system

A cell phone cannot be registered.

An incorrect passcode was entered
on the cell phone.

Enter the correct passcode on the cell phone.

—

The registration operation has not
been completed on the cell phone
side.

Complete the registration operation on the cell
phone (approve registration on the phone).

—

Old registration information remains
on either this system or the cell
phone.

Delete the existing registration information from
both this system and the cell phone, then register
the cell phone you wish to connect to this system.

5-69

A Bluetooth connection cannot be
made.

Another Bluetooth device is already
connected.

Manually connect the cell phone you wish to use to
this system.

—

5-69

Bluetooth function is not enabled on
the cell phone.

Enable the Bluetooth function on the cell phone.

—

Automatic Bluetooth connection on
this system is set to off.

Set automatic Bluetooth connection on this system
to on when the ignition switch is turned to the

“ACC”

“ON” position.

—

5-69

*: For details, refer to the owner

’s manual that came with the cell phone.

5-90

When using the phonebook

Symptom

Likely cause

Solution

Page

Cell

phone

This

system

Phonebook data cannot be trans-
ferred manually.

The profile version of the connected cell
phone may not be compatible with
transferring phonebook data.

—

Transfer operation on the cell phone has
not completed.

Complete transfer operation on the cell phone
(approve transfer operation on the phone).

—

Phonebook data cannot be edited.

Editing function is not available on this
system.

—

5-79

*: For details, refer to the owner

’s manual that came with the cell phone.

Audio/What to do if...

– CONTINUED –

5-91

Audio/What to do if...

In other situations

Symptom

Likely cause

Solution

Page

Cell

phone

This

system

Even though all conceivable mea-
sures have been taken, the symptom
status does not change.

The cell phone is not close enough to
this system.

Bring the cell phone closer to this system.

—

The cell phone is the most likely cause
of the symptom.

Turn the cell phone off, remove and reinstall
the battery pack, and then restart the cell
phone.

—

Enable the cell phone

’s Bluetooth connection.

—

Stop the cell phone

’s security software and

close all applications.

—

Before using an application installed on the
cell phone, carefully check its source and how
its operation might affect this system.

—

*: For details, refer to the owner

’s manual that came with the cell phone.

5-92

Appendix

& Certification

. Bluetooth

The Bluetooth word mark and logo are
registered trademarks of Bluetooth SIG,
Inc. and any use of such marks by Clarion
Co., Ltd. is under license.

. SiriusXM Satellite Radio (if
equipped)

SiriusXM

and all related marks and

logos are trademarks of SiriusXM Radio
Inc. All rights reserved.

. Pandora (if equipped)

Pandora, the Pandora logo, and other
Pandora marks are trademarks or regis-
tered trademarks of Pandora Media, Inc.,
or its subsidiaries worldwide.
If you have any issues with the Pandora
application on your mobile phone, please
direct them to
pandora-support@pandora.com.

. iPod
“Made for iPod” and “Made for iPhone”
mean that an electronic accessory has
been designed to connect specifically to
iPod or iPhone respectively, and has been
certified by the developer to meet Apple
performance standards. Apple is not
responsible for the operation of this device
or its compliance with safety and regula-
tory standards. Please note that the use of
this accessory with iPod or iPhone may
affect wireless performance.
iPhone, iPod, iPod classic, iPod nano,
iPod touch, and iTunes are trademarks of
Apple Inc., registered in the U.S. and other
countries.

. How to get the source code using
the open source

This system implements software using
the open source. For customers who
would like to get the source code of the
software, it is available by downloading it
from the web site of Clarion Co., Ltd.
For details, refer to the following web site.

http://www.clarion.com/us/en/support/in-
dex.html

& Certification for the Hands-

free system

This device complies with Part 15 of FCC
Rules and Industry Canada licence-ex-
empt RSS standard(s). Operation is sub-
ject to the following two conditions: (1)
This device may not cause harmful inter-
ference, and (2) this device must accept
any interference received, including inter-
ference that may cause undesired opera-
tion.

Le présent appareil est conforme à la
partie 15 des règles de la FCC et CNR
d

’Industrie Canada applicables aux appa-

reils radio exempts de licence. L

’exploita-

tion est autorisée aux deux conditions
suivantes : (1) l

’appareil ne doit pas

produire de brouillage, et (2) l

’utilisateur

de l

’appareil doit accepter tout brouillage

radioélectrique subi, même si le brouillage
est susceptible d

’en compromettre le

fonctionnement.

This equipment complies with FCC/IC
radiation exposure limits set forth for an
uncontrolled environment and meets the
FCC radio frequency (RF) Exposure
Guidelines in Supplement C to OET65
and RSS-102 of the IC radio frequency

Audio/Appendix

– CONTINUED –

5-93

Audio/Appendix

(RF) Exposure rules. This equipment has
very low levels of RF energy that it
deemed to comply without maximum
permissive exposure evaluation (MPE).

Cet équipement est conforme aux limites
d

’exposition aux rayonnements énoncées

pour un environnement non contrôlé et
respecte les lignes directrices d

’exposition

aux fréquences radioélectriques de la
FCC dans le Supplément C à OET65 et
d

’exposition aux fréquences radioélectri-

ques (RF) CNR-102 de l

’IC. Cet équipe-

ment émet une énergie RF très faible qui
est considérée conforme sans évaluation
de l

’exposition maximale autorisée.

FCC CAUTION
Changes or modifications not expressly
approved by the party responsible for
compliance could void the user

’s authority

to operate the equipment.

This transmitter must not be co-located or
operated in conjunction with any other
antenna or transmitter.

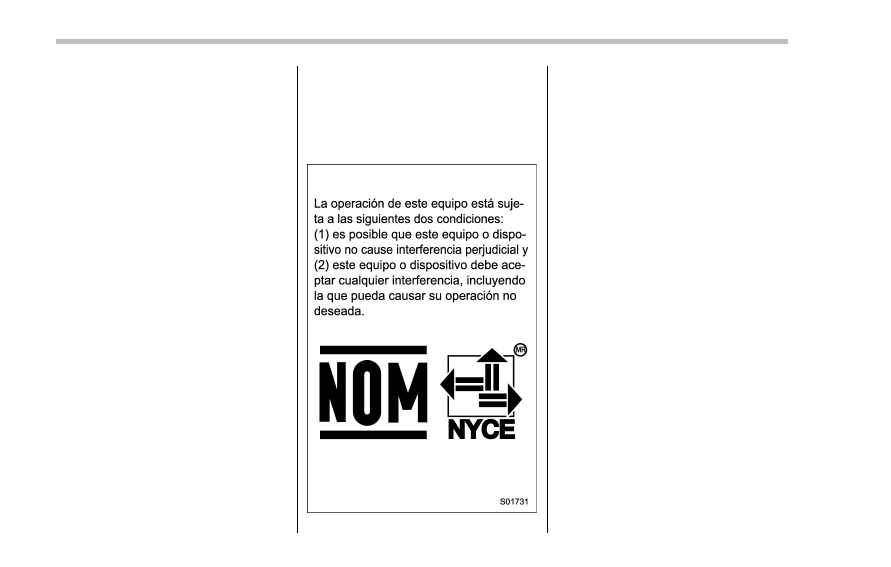

& Certification for Mexico mod-

els

. IFETEL RCPCLPF14-250

Clarion PF-3547

. IFETEL RCPCLPF14-253

Clarion PF-3688

5-94

Interior lights .......................................................

6-2

Dome light ..........................................................

6-2

Cargo area light (5-door models) .........................

6-2

Map lights ...........................................................

6-3

OFF delay timer ..................................................

6-3

Sun visors ...........................................................

6-4

Sun visor extension plate (models with the

EyeSight system) ..............................................

6-4

Vanity mirror .......................................................

6-5

Storage compartment .........................................

6-5

Glove box ...........................................................

6-6

Center console....................................................

6-6

Cup holders .........................................................

6-7

Bottle holders ......................................................

6-7

Accessory power outlets ....................................

6-8

Use with a cigarette lighter (dealer option) ...........

6-9

Ashtray (dealer option) ......................................

6-10

Floor mat (if equipped)......................................

6-11

Coat hook...........................................................

6-11

Shopping bag hook (5-door).............................

6-12

Cargo area cover (5-door

– if equipped).......... 6-12

Using the cover .................................................

6-12

To remove the cover housing .............................

6-13

Stowage of the cargo area cover ........................

6-13

To install the cover housing ...............................

6-14

Cargo tie-down hooks (5-door

– if

equipped) ........................................................

6-14

Under-floor storage compartment (if

equipped) ........................................................

6-15

Rear view camera ..............................................

6-15

How to use the rear view camera .......................

6-17

Viewing range on the screen ..............................

6-17

Help line ............................................................

6-18

Interior equipment

Interior equipment/Interior lights

Interior lights

CAUTION

When leaving your vehicle, make
sure the lights are turned off to
avoid battery discharge.

& Dome light

DOOR

OFF

The dome light switch has the following
positions.

ON: The light remains on continuously.
OFF: The light remains off.
DOOR: The dome light illuminates auto-
matically in the following cases.
. Any of the doors or the rear gate (5-
door) is opened.
. The doors or the rear gate (5-door) are
unlocked using the keyless access func-
tion (if equipped). Refer to

“Locking and

unlocking with

“keyless access” entry

function

” F2-13.

. The doors or the rear gate (5-door) are
unlocked using the remote keyless entry
transmitter.
. The ignition switch is turned from the

“ACC” position to the “LOCK”/“OFF” posi-
tion.

& Cargo area light (5-door

models)

DOOR

OFF

DOOR: The light illuminates when the rear
gate is opened. The light remains illumi-
nated for several seconds and gradually
turns off after the rear gate is closed.
OFF: The light remains off.

6-2

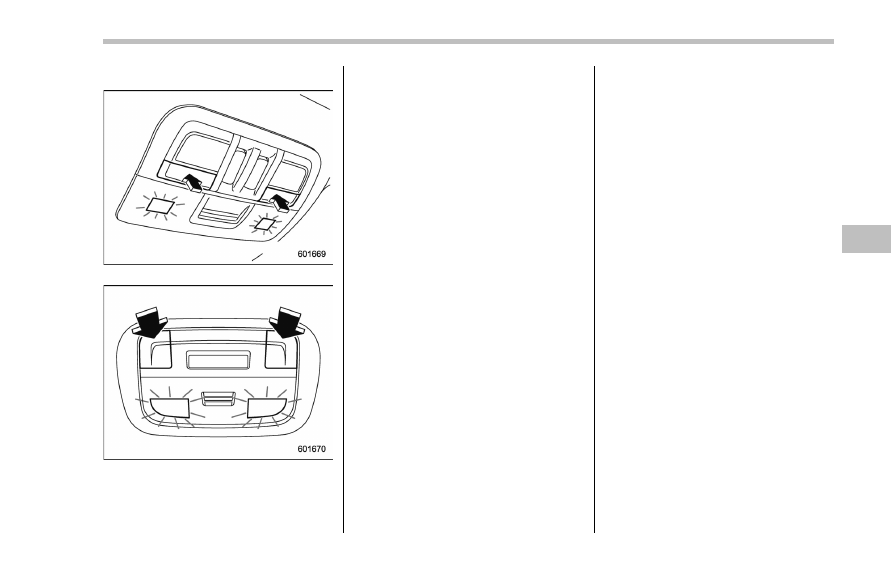

& Map lights

Type A

Type B

To turn on the map light, push the switch.
To turn it off, push the switch again.

NOTE

For the type A map lights, although the
light switches are in the ON position,
the lights are automatically turned off
after approximately 30 seconds of
illumination to prevent the vehicle
battery from discharging. For details,
refer to

“Battery drainage prevention

function

” F2-7.

! Automatic illumination (models

with moonroof)

The map lights illuminate automatically in
the following cases.
. Any of the doors other than the rear
gate is opened. (The map lights do not
illuminate when only the rear gate is
opened.)
. The doors are unlocked using the
keyless access function (if equipped).
Refer to

“Locking and unlocking with

“keyless access” entry function” F2-13.

. The doors are unlocked using the
remote keyless entry system. Refer to

“Remote keyless entry system” F2-23.

. The ignition switch is turned from the

“ACC” position to the “LOCK”/“OFF” posi-
tion.

& OFF delay timer

The following lights have an automatic
illumination function.
. dome light

. map light (type A)

. cargo area light (5-door)

After being illuminated automatically,
these lights remain on for several seconds
and then gradually turn off under the
following conditions.
. after all doors and the rear gate (5-
door) are closed (dome light)
. after all doors are closed (type A map
light)
. after the rear gate is closed (cargo area
light)

While the lights are illuminated, if any of
the following operations are performed,
the lights turn off immediately.
. The ignition switch is turned from the

“LOCK”/“OFF” position to the “ACC” or

“ON” position.

. All doors and the rear gate (5-door) are
locked using the keyless access function
(if equipped).
. All doors and the rear gate (5-door) are
locked using the remote keyless entry
system.

The setting for the period of time in which

Interior equipment/Interior lights

– CONTINUED –

6-3

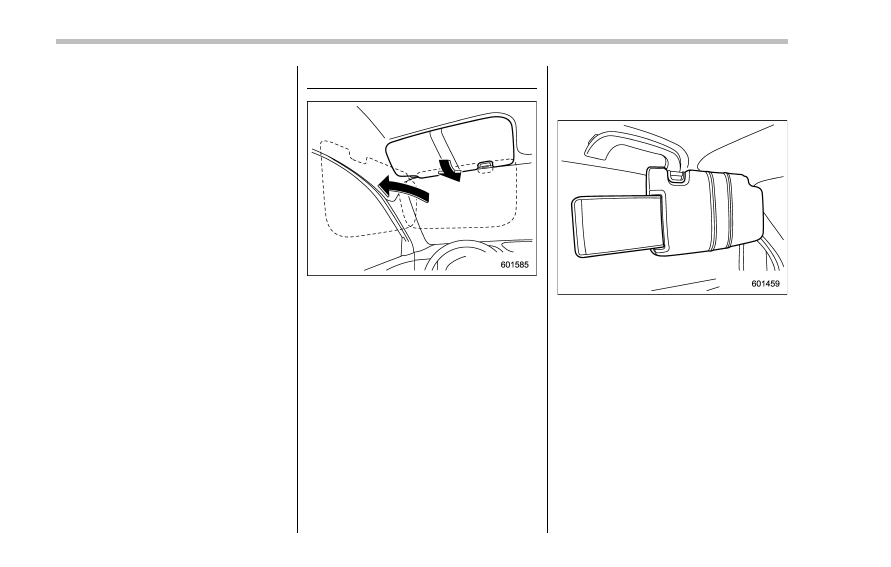

CAUTION

Do not pull out the extension plate
with the sun visor positioned over
the windshield. The extension plate
would obstruct your view of the
rearview mirror.

& Vanity mirror

CAUTION

Keep the vanity mirror cover closed
while the car is being driven to avoid
being temporarily blinded by the
glare of bright light.

To use the vanity mirror, swing down the
sun visor and open the vanity mirror cover.

Storage compartment

CAUTION

. Always keep the storage com-

partment closed while driving to
reduce the risk of injury in the
event of a sudden stop or an
accident.

. Do not store spray cans, contain-

ers with flammable or corrosive
liquids or any other dangerous
items in the storage compart-
ment.

Interior equipment/Storage compartment

– CONTINUED –

6-5

Interior equipment/Storage compartment

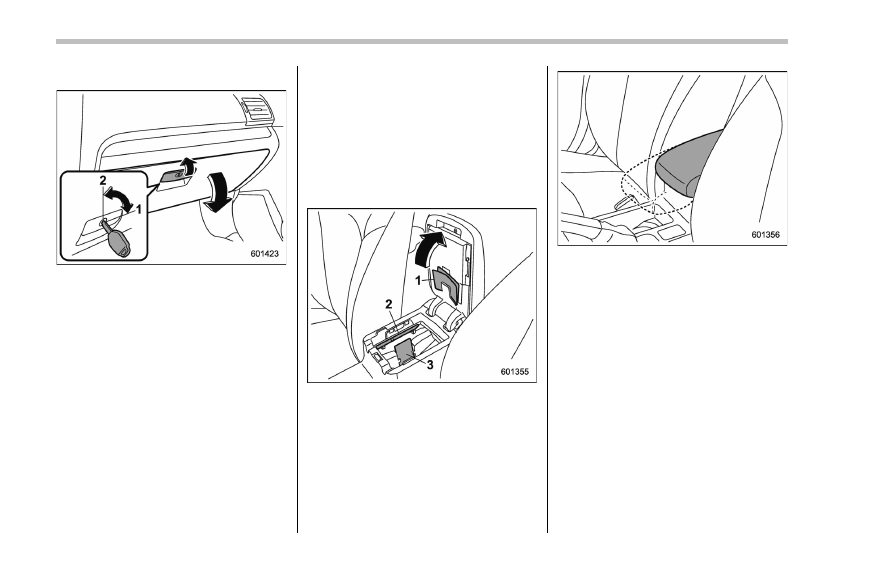

& Glove box

Lock

Unlock

To open the glove box, pull the handle. To
close it, push the lid firmly upward.

To lock the glove box, insert the key and
turn it clockwise. To unlock the glove box,
insert the key and turn it counterclockwise.

For models with

“keyless access with

push-button start system

”, use the me-

chanical key to lock or unlock the glove
box.

NOTE

The mechanical key is directional. If the
key cannot be inserted, change the
direction that the grooved side is
facing and insert it again.

& Center console

The center console box provides a sto-
rage space.

Paper holder

Pen holder

Card holder

The top of the console can be used as an
armrest.

For some models, the armrest is adjus-
table. Slide the armrest to the desired
position.

6-6

Subaru XV Crosstrek (2016 year). Instruction - part 23
