Subaru XV Crosstrek (2016 year). Instruction

& SiriusXM Satellite Radio (if

equipped)

! SiriusXM Data Service
Data service information, which is com-
prised of traffic information and weather
information, can be received via the
SiriusXM Radio.

To receive the data service information in
the vehicle, a subscription to the SiriusXM
Satellite Radio service is necessary.

Content set to use the SiriusXM data
service is reset when personal information
is initialized.

! Control screen and audio panel

Control screen

No.

Function

Perform the SXM setting. See be-
low. Refer to

“SXM setting” F5-43.

Search for a channel which the
direction of higher frequency from
current frequency. Reproduce the
channel that can receive by 5
seconds.

A list is displayed. There are three
types of lists (

“Presets”, “Categories”

“All Channels”) available.

. “Presets”: Preset channels are

displayed in a list.

. “Categories”: The channels of

the selected category are dis-
played in a list.

. “All Channels”: All selectable

channels are displayed in a list.

No.

Function

Display the contents information of a
channel receiving.

Presets list (30 channels max.) is
displayed. Refer to

“Presetting a

channel

” F5-41.

Categories list is displayed. Refer to

“Selecting a channel from the list”

F5-41.

All channels list is displayed.
The available received channels are
displayed, and you can select a
channel.

Change to the Direct Tune display.
Refer to

“Direct Tune” F5-42.

Return to the previous display.

Audio/Audio set

– CONTINUED –

5-37

Audio/Audio set

No.

Function

Return to the playback display.

Audio panel

No.

Function

Turn to adjust volume.
Press to turn the audio system on/
off.

Press to display the sound setting
screen. Refer to

“Unit settings” F5-

19.

Turn right to step up channels and
turn left to step down channels.
Press to select an audio source.
Refer to

“Selecting an audio source”

F5-18.

Press to step up/down channels.
Press and hold to step up/down
channels fast.

5-38

! How to subscribe to SiriusXM Sa-

tellite Radio

To listen to a satellite radio broadcast in
the vehicle, a subscription to the SiriusXM
Satellite Radio service is necessary.

A SiriusXM Satellite Radio is a tuner
designed exclusively to receive broad-
casts provided under a separate subscrip-
tion.

! How to subscribe

It is necessary to enter into a separate
service agreement with SiriusXM Satellite
Radio in order to receive satellite broad-
cast programming in the vehicle. Addi-
tional activation and service subscription
fees apply that are not included in the
purchase price of the vehicle and digital
satellite tuner.
For complete information on subscription
rates and terms, or to subscribe to
SiriusXM Satellite Radio:
. U.S. customers:
Refer to www.siriusxm.com or call
1-866-635-2349
. Canadian customers:
Refer to www.siriusxm.ca or call
1-877-209-0079

WARNING

. SiriusXM Satellite Radio Services

— Legal Disclaimers and Warn-
ings
– Fees and Taxes — Subscrip-

tion fee, taxes, one time acti-
vation fee, and other fees may
apply. Subscription fee is con-
sumer only. All fees and pro-
gramming subject to change.
Subscriptions subject to Cus-
tomer Agreement available at
www.siriusxm.com (U.S.) or
www.siriusxm.ca (Canada).
SiriusXM U.S. satellite and
data services are available
only in the contiguous USA
and DC. SiriusXM satellite
service is also available in
Canada: see
www.siriusxm.ca.
Explicit Language Notice

—

Channels with frequent expli-
cit language are indicated
with an

“XL” preceding the

channel name. Channel block-
ing is available for SiriusXM
Satellite Radio receivers by
notifying SiriusXM at:

. U.S. customers:
Visit www.siriusxm.com or call

1-866-635-2349
. Canadian customers:
Visit www.siriusxm.ca or call

1-877-209-0079

CAUTION

. It is prohibited to copy, decom-

pile, disassemble, reverse engi-
neer, hack, manipulate or other-
wise make available any technol-
ogy or software incorporated in
receivers compatible with the
SiriusXM Satellite Radio System
or that support the XM website,
the Online Service or any of its
c o n t e n t . F u r t h e r m o r e , t h e
AMBE

voice compression soft-

ware included in this product is
protected by intellectual property
rights including patent rights,
copyrights, and trade secrets of
Digital Voice Systems, Inc.

. Note: this applies to SiriusXM

Satellite Radio receivers only
and not XM Ready devices.

Audio/Audio set

– CONTINUED –

5-39

Audio/Audio set

NOTE

. SiriusXM Satellite Services — De-
scriptions

– Only SiriusXM Satellite Radio

brings you more of what you love,
all in one place. Get over 175
channels, including commercial-
free music, plus the best sports,
news, talk, comedy and entertain-
ment. Welcome to the world of
satellite radio. More information
about SiriusXM Satellite Radio is
available online at
www.siriusxm.com (U.S.) and
www.siriusxm.ca (Canada).

. SiriusXM Satellite Services — Sub-
scription Instructions

– For SiriusXM Services requiring
a subscription (such as SiriusXM
Satellite Radio, and some Infotain-
ment & data services), the following
paragraph shall be included.
Required SiriusXM Satellite Radio
and some Infotainment & data ser-
vices monthly subscriptions sold
separately after trial period. Sub-
scription fee is consumer only. All
fees and programming subject to
change. Subscriptions are subject
to the Customer Agreement avail-
able at www.siriusxm.com (U.S.) or
www.siriusxm.ca (Canada). Sirius,

XM and all related marks and logos
are trademarks of Sirius XM Radio
Inc. All other marks, channel names
and logos are the property of their
respective owners.
For more information, program
schedules, and to subscribe or
extend subscription after compli-
mentary trial period; more informa-
tion is available at:
. U.S. customers:
Visit www.siriusxm.com or call
1-866-635-2349
. Canadian customers:
Visit www.siriusxm.ca or call
1-877-209-0079

. SiriusXM Satellite Radio is solely
responsible for the quality, availability
and content of the satellite radio ser-
vices provided, which are subject to
the terms and conditions of the
SiriusXM Satellite Radio customer ser-
vice agreement.

. Customers should have their radio
ID ready; the radio ID can be found by
tuning to

“Ch 000” on the radio. For

details, see

“DISPLAYING THE RADIO

” below.

. All fees and programming are the
responsibility of SiriusXM Satellite
Radio and are subject to change.

! How to change the source
Select the

“Sirius XM” key on the source

select screen. Refer to

“Selecting an audio

source

” F5-18.

5-40

! Presetting a channel
1. The presets list is displayed via either
of the following procedures.

. When you touch the

tab in the

SiriusXM main screen (if the list that
was displayed the last time is Presets).
. When you select the

tab in each

list screen.

2. The current channel is stored if you
touch and hold the preset list key. You can
store up to 30 channels (A beep sounds
when a channel stored).

The playing icon is displayed for the
currently selected channel.

! Selecting a channel from the list
1. The categories list is displayed via
either of the following procedures.

. When you touch the

tab in the

SiriusXM main screen (if the list that
was displayed the last time is Cate-
gories).
. When you select the

tab in each

list screen.

2. Each channel list is displayed when
you select each category item.

Audio/Audio set

– CONTINUED –

5-41

Audio/Audio set

In addition, the following messages appear.

Display Message

Contents

“Subscription Update”

“Press OK to Continue”

An update to your SiriusXM subscription has
been received by the SiriusXM tuner. Touch
any key to continue.

“Channel XXX Not Available”

(

“XXX” refers to the selected channel number.)

This channel is not a valid SiriusXM channel.
The channel number has been entered incor-
rectly, or the channel was removed from the
SiriusXM channel lineup.

“Channel XXX Not Subscribed Call.”

“Call SiriusXM to Subscribed.”

(

“XXX” refers to the selected channel number.)

This channel is not included in your SiriusXM
subscription plan.

“Ch Locked”

“Lock Code?”

The selected channel has been locked by the
parental controls.
A prompt to enter the unlock code will appear.

“Check Antenna”

Ensure the SiriusXM antenna cable is con-
nected to the SiriusXM tuner correctly.
Check the SiriusXM antenna wire for breaks or
sharp bends.
Replace the antenna if necessary.

“No Signal”

The vehicle must be outside, and the antenna
must have a clear view of the southern sky.

NOTE

Contact SiriusXM

. Listener Care Center (U.S. customers):
1-866-635-2349

. Listener Care Centre (Canadian customers):
1-877-209-0079

! Direct Tune
1. A channel input screen is displayed
when you touch the

tab.

2. Input any number and touch the

“OK”

key, receive the channel which input.

5-42

! SXM setting
1. An option menu screen is displayed
when you touch the

tab on the lower

left side of the screen. The

“Options”

screen will appear.

Option menu screen

No.

Function

Set the lock function of each chan-
nel. Input the password is necessary
for operation.

Set the password of the lock func-
tion.

2. A password input screen is displayed
when you touch the

“Set” key of the

Channel Lock function.

Password input screen

3. When the input password is approved,
change to the lock channel selection
screen.

Lock channel selection screen

4. In the channel list, touch the channel
that should be locked.

! Displaying the Radio ID
Each SiriusXM tuner is identified with a
unique radio ID. The

“Radio ID” is required

when activating an SiriusXM Satellite
Services or when reporting a problem.
. If “Ch 000” is selected using the
AUDIO/TUNE knob, the ID code will be
displayed.
. Touch the

key. The Radio ID will be

displayed on the

“Options” screen.

Audio/Audio set

– CONTINUED –

5-43

Audio/Audio set

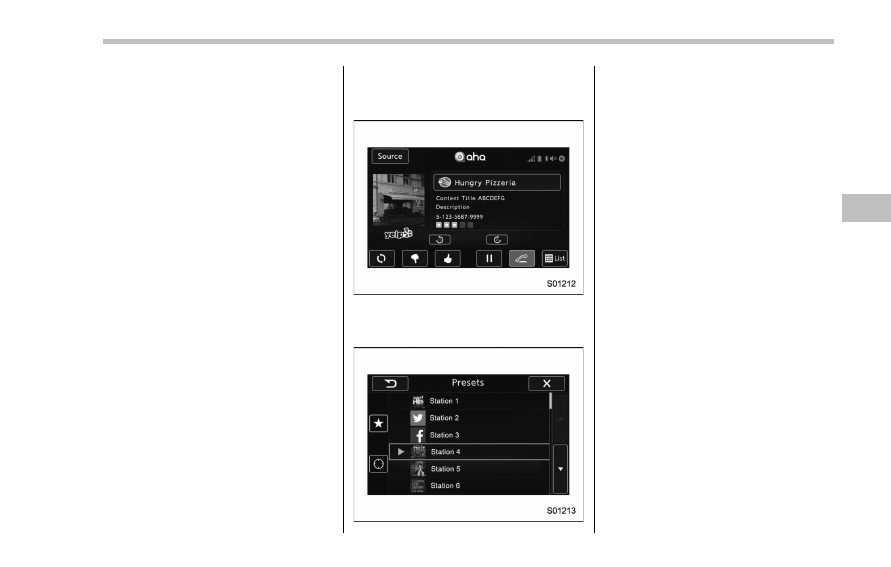

& aha

by HARMAN

aha is a cloud-based application that
connects to the system and gives you
access to your favorite web content safely
and easily. There are over 30,000 stations
spanning internet radio, personalized mu-
sic, audiobooks, Facebook, Twitter, res-
taurant and hotel searches, weather and
more. For more about aha, go to the aha
site (http://www.aharadio.com).

When connecting iPhone and iPod touch
or Android devices with the aha applica-
tion installed, you can control, view, and
hear aha content through the system.

In order to connect to this system, use a
USB port for an iPhone or iPod touch and
Bluetooth for Android devices.

In this chapter, iPhone and iPod touch or
Android devices will be referred to as a
smartphone.

WARNING

Do not connect or operate the
smartphone while driving. Doing so
may result in loss of control of your
vehicle and cause an accident or
serious injury.

CAUTION

. Do not leave your smartphone in

the car. In particular, high tem-
peratures inside the vehicle may
damage the smartphone.

. Do not push down on or apply

unnecessary pressure to the
smartphone while it is connected
as this may damage the smart-
phone or its terminal.

. Do not insert foreign objects into

the port as this may damage the
smartphone or its terminal.

5-44

! Control screen and panel

Control screen (main screen and station screen)

No.

Function

Select to display the audio source
selection screen.

Select to open the station list. Refer to

“Using aha application” F5-49.

Select to fast forward the current con-
tent item by 30 seconds.

Select to display the contents list of the
selected station.

Select to make a phone call to the
current content item.
A phone number is distributed depend-
ing on content items.
This feature is available only in these
cases.

No.

Function

The track pauses when pressed during
playback and plays back when touched
during pause.

Select to set thumbs up.

Select to set thumbs down.

Select to start the playback from the
beginning of the content in the target
station.

Select to rewind the current content
item by 15 seconds.

Select to display the preset list.

Return to the control screen.

No.

Function

Select to display the nearby list.

Audio/Audio set

– CONTINUED –

5-45

Audio/Audio set

Audio panel

No.

Function

Turn to adjust volume.
Press to turn the audio system on/off.

Press to display the sound setting
screen. Refer to

“Unit settings” F5-19.

Press to display the station operation
screen.
Press to select an audio mode.

Turn to display the next/previous con-
tent item.
Press to select an audio source. Refer
to

“Selecting an audio source” F5-18.

Press to display the next/previous con-
tent item.

NOTE

. For safety reasons, certain func-
tions are not available while your
vehicle is in motion.

. In order to maximize signal recep-
tion, performance and precision of the
smartphone, please ensure the smart-
phone is placed as close to the system
as possible, while ensuring it is stowed
and secure while driving.

. When the ignition switch is in the

“ACC” or “ON” position, the battery of
the connected iPhone/iPod touch is
charged.

. iPhone/iPod touch may not be re-
cognized when the ignition switch is in
the

“ACC” or “ON” position. In this

case, remove the iPhone/iPod touch
and reconnect it.

. The accuracy of the displayed in-
formation or the signal reception per-
formance depends on the smartphone
or the connected device, and it

’s wire-

less connection.

. Since the aha application uses sig-
nals from GPS satellites and wireless
communication lines, it may not work
properly in the following locations.

– In a tunnel

– In underground parking lots

5-46

– Outside wireless communication
range, such as some countryside
areas
– Where the wireless communica-
tion network is congested, or where
communications are restricted

. Depending on the circumstances
and environment, the signal may be
weak or not be received. In such cases,
an error may occur.

. Top 35 entries in the preset station
list on the smartphone are displayed.
When there are more than 35 entries in
the preset station list, change the order
of the entries in the list on the smart-
phone. You can change the priority of
your preset stations within the aha
application (after disconnected from
this system) to modify the station list
shown on the screen. Please see your
smartphone aha application

“Edit Pre-

sets (in Main menu)

” to modify this list.

. For operating the smartphone, see
the instruction manual that comes with
it.

. If there are multiple music files
stored on your iPhone or iPod touch,
it may take some time until playback
starts.

. Playback may be intermittent when
you switch to streaming Bluetooth
audio from aha on your smartphone

device.

. When connecting the device via
Bluetooth, the communication speed
may become slower than via USB.

! Before using aha application
In order to use the aha application on this
system, the application must be installed
on the smartphone.

! Settings required to use aha

application

. Search and download the aha applica-
tion from your smartphone app store.

– iPhone and iPod touch: Apple App
Store via iTunes
– Android device: Google Play Store

. Create an account and login to the aha
application on the smartphone.

NOTE

Please use the latest version of the aha
application.

! About app-based connected con-

tent

Requirements for using the connected
content services of the aha application
on this system.
. Latest version of the system is compa-
tible with connected content application(s)
for the smartphone, available from aha,

downloaded to your smartphone.
. A current account with a wireless
content service provider.
. A smartphone data plan: If the data
plan for your smartphone does not provide
for unlimited data usage, additional
charges from your carrier may apply for
accessing app-based connected content
via 3G, 4G, Wi-Fi or 4G LTE wireless
networks.
. Connection to the internet via 3G, 4G,
Wi-Fi or 4G LTE networks.

NOTE

. Changes to product specifications
may result in differences between the
content of the manual and features of
the product.

. Be careful not to exceed the data
usage limits for your smartphone.
Doing so will result in additional data
usage charges from your phone car-
rier.

. Access to app-based connected
content will depend on the availability
of wireless cell and/or Wi-Fi network
coverage for the purpose of allowing
your smartphone to connect to the
internet.

. Service availability may be geogra-
phically limited by region. Consult the
wireless connected content service

Audio/Audio set

– CONTINUED –

5-47

Audio/Audio set

provider for additional information.

. Ability of this product to access
connected content is subject to change
without notice and could be affected by
any of the following: compatibility
issues with future firmware versions
of the smartphone; compatibility is-
sues with future versions of the con-
nected content application(s) for the
smartphone; changes to or disconti-
nuation of the connected content ap-
plication(s) or service by its provider.

. Communication and phone call
charges for smartphones should be
paid by the wireless subscriber.

. If you lose the data in a smartphone
or other device while using it with the
system, no compensation will be given
for the lost data.

. Fuji Heavy Industries makes no
guarantee regarding the content pro-
vided by aha.

. aha may not work due to factors on
smartphones, smartphone applications
or stations. Fuji Heavy Industries is not
responsible for it.

! About the supported devices

This system supports the following de-
vices.

. For iPhone/iPod touch users

Type

Generation

Firmware

version or

iPhone

iPhone 3G

iOS 4.2.x

iPhone 3GS

iOS 6.1.x

iPhone 4

iOS 7.0.x

iPhone 4s

iOS 7.0.x

iPhone 5

iOS 7.0.x

iPhone 5c

iOS 7.0.x

iPhone 5s

iOS 7.0.x

iPod touch

iOS 3.1.x

iPod touch 2

iOS 4.2.x

iPod touch 3

iOS 5.1.x

iPod touch 4

iOS 6.1.x

iPod touch 5

iOS 7.0.x

NOTE

Note that the warranty does not apply if
an unsupported iPhone/iPod touch is
connected.

. For Android device users

Android OS

Specification

Profile

Android Ver.

2.2 or Ver.

2.3

Bluetooth

Specification

Ver. 1.1 or

higher

(Ver. 2.0 +

EDR or higher

is recom-

mended)

. aha Con-

nect Bin-
ary API
over SPP

. Digital

audio by
A2DP

NOTE

The available functions may vary de-
pending on the type of Android device.

! Connecting a smartphone
If you connect a smartphone to this
system after starting a supported aha
application on the smartphone, you can
display and operate the aha application
displayed on the smartphone on the
system screen.
1. Run the aha application on your
smartphone.
2. Connect the iPhone/iPod touch to the
USB port or connect the Android device
by utilizing the Bluetooth connection (SPP
and A2DP profile).

. For details about connecting an
iPhone/iPod touch: Refer to

“Connect-

ing and disconnecting a USB memory/
portable device

” F5-17.

. For details about registering or con-

5-48

necting an Android device: Refer to

“Registering/connecting Bluetooth

device

” F5-66.

NOTE

When iPhone/iPod touch and Android
devices are connected at the same
time, iPhone/iPod touch is prioritized.

! How to change the source
. Select the “aha” key on the source
select screen. Refer to

“Basic operation”

F5-18.

. Select the “aha” key on the APPS
screen. Refer to

“SUBARU STARLINK”

F5-26.

NOTE

When starting-up

“aha”, there are

some smartphone models for which

“aha” application does not start up
automatically.

! Using aha application
1. When the top screen is displayed,
touch the station key.

Example of the main screen

2. Select the desired station from the list.
The selected station is displayed.

NOTE

. The following operations are not
available on this system. Perform these
operations on the smartphone.

– Add/Reorder/Delete stations

– Login to Facebook/Twitter

. For the aha function, the following
touch screen gestures are not avail-
able.

– Multi-touch operation

– Double-tap

. For details on the services or the
operations, check the aha site
(http://www.aharadio.com) on the inter-
net.

. The button display will vary depend-
ing on each station or content item.

Audio/Audio set

– CONTINUED –

5-49

Audio/Audio set

& Pandora

(if equipped)

Pandora is an application for a smart-
phone. This can automatically select and
play recommended tracks.

By rating the track currently playing, tracks
that better match your preference will be
recommended.

In order to connect to this system, use a
USB port for an iPhone or iPod touch and
Bluetooth for Android devices.

Depending on differences between mod-
els or software version etc., some models
might be incompatible with this system.

This function is not available if the
Pandora application has not been in-
stalled on the smartphone.

WARNING

Do not operate the player

’s controls

or connect the smartphone while
driving. Doing so may result in loss
of control of your vehicle and cause
an accident or serious injury.

CAUTION

. Do not leave your smartphone in

the car. In particular, high tem-

peratures inside the vehicle may
damage the smartphone.

. Do not push down on or apply

unnecessary pressure to the
smartphone while it is connected
as this may damage the smart-
phone or its terminal.

. Do not insert foreign objects into

the port as this may damage the
smartphone or its terminal.

NOTE

Follow the specific operation proce-
dures for the smartphone application.

5-50

! Control screen and audio panel

No.

Function

Select to display the audio source
selection screen.

Select to open the station list. Refer to

“Station list” F5-52.

Select to skip the current track.

The track pauses when touched during
playback and plays when touched
during pause.

Select to set thumbs up.
This gives a high rating to the current
song.
All other similar songs will be played
back more frequently.

No.

Function

Select to set thumbs down.
This gives a low rating to the current
song.
All other similar songs will be played
back less frequently.
When you select thumbs down, the
current track is skipped.

During playback of a station, you can
use this key to bookmark a song or
artist. Refer to

“Registering Bookmarks”

F5-52.

Turn to adjust volume.
Press to turn the audio system on/off.

Turn clockwise to skip to the next track.
Press to select an audio source. Refer
to

“Selecting an audio source” F5-18.

Press to display the sound setting
screen. Refer to

“Unit settings” F5-19.

No.

Function

Press to skip to the next track/cover art.

! Connecting a smartphone
Connect the iPhone/iPod touch to the
USB port or connect the Android device
by using Bluetooth connection (SPP and
A2DP profile).
. For details about connecting an
iPhone/iPod touch: Refer to

“Connecting

and disconnecting a USB memory/porta-
ble device

” F5-17.

. For details about registering or con-
necting an Android device: Refer to

“Registering/connecting Bluetooth

de-

vice

” F5-66.

! How to change the source
The Pandora operation screen can be
reached by the following methods:
. Connecting a Pandora device. Refer to

“Connecting a Bluetooth device” F5-69 or

“Connecting and disconnecting a USB
memory/portable device

” F5-17.

. Select the “Pandora” key on the source
select screen. Refer to

“Selecting an audio

source

” F5-18.

. Select the “Pandora” key on the APPS
screen. Refer to

“SUBARU STARLINK”

F5-26.

Audio/Audio set

– CONTINUED –

5-51

Audio/Audio set

NOTE

When starting-up Pandora, there are
some smartphone models for which
Pandora application does not start up
automatically.

! Registering Bookmarks
You can register the music and artist now
being played in Bookmark.
1. Touch the

tab.

2. Select the desired key. The following
items are appeared on the screen.

Item

Function

Track

When selected after the Book-
mark key is pressed, the current
track is bookmarked.

Artist

When selected after the Book-
mark key is pressed, the current
artist is bookmarked.

Cancel

Select to cancel the bookmark
operation.

! Station list
You can select, add or delete a station.
When the

tab is touched on the main

screen, a station list will be displayed.

No.

Function

Select to sort the list in the chronologi-
cal order of when the Station List was
created.

Select to create a station.
The station can be created using track
names or artist names.

Select to delete a station.

Return to the control screen.

Select to sort the list based on the
alphabetical order of the station names.

! Store the station

You can register a station.
1. Touch the

tab on the Pandora

main screen.
2. Touch the

“New Station” key, and then

select the desired key.

Item

Function

From Track

Select to create a station using a
track name.

From Artist

Select to create a station using
an artist name.

Cancel

Select to cancel the operation to
add a station.

! Delete the station

You can delete a station.
1. Touch the

tab on the Pandora top

screen.
2. Touch the

“Delete Station” key, and

then the station list is appeared.
3. Select the item to delete the station. If
the confirmation screen appears and the

“OK” key is selected, the selected station
will be deleted from station list.

5-52

Subaru XV Crosstrek (2016 year). Instruction - part 20
