Subaru Tribeca (2014 year). Instruction - part 8

NOTE

. When you finish entering the eighth

digit, an electronic tone will sound for

30 seconds.
. If the interval between one push of

the switch and the next exceeds 5

seconds, an error will occur. In this

event, perform the procedure again

beginning with part 4. If an error occurs

six times, perform the procedure again

starting with part 3.
8. Before the electronic tone stops

sounding, use the power door locking

switch to reenter the transmitter code

beginning with the leftmost digit.

NOTE

If you do not start entering the number

using the lock knob before the electro-

nic tone stops sounding, an error will

occur. In this event, perform the proce-

dure again beginning with part 3.
9. When you have finished entering the

code a second time, an electronic tone will

sound for 1 second and automatic door

locking and unlocking operation will take

place once to indicate completion of

registration, provided the code entered

the second time is identical to that entered

the first time.

NOTE

If the code entered the second time is

not identical to the code entered the

first time, an error will occur. In this

event, perform the procedure again

beginning with part 5. If an error occurs

five times, perform the procedure again

starting with part 3.
10. If you wish to program another trans-

mitter code into the system (up to four

transmitter codes can be programmed into

the system), perform the procedure begin-

ning with part 4. When you have finished

programming all of the necessary trans-

mitter codes into the system, remove the

key from the ignition switch.
11. Test every registered transmitter to

confirm correct operation.

! Deleting old transmitter codes
The control unit of the remote keyless

entry system has four memory locations to

store transmitter codes, giving it the ability

to operate with up to four transmitters.

When you lose a transmitter, the lost

transmitter’s code remains in the memory.

For security reasons, lost transmitter

codes should be deleted from the mem-

ory.
To delete old transmitter codes, program

four transmitter codes into the system. If

you have only one current transmitter,

program it four times. If you have two

current transmitters, program each one

twice. If you have three current transmit-

ters, program two of them once and the

third one twice. This process will leave

only current transmitter codes in the

system’s memory.

NOTE

Make sure no one else is operating

their keyless entry system within range

of your vehicle when programming

transmitters. If someone else were to

operate their remote transmitter while

you are programming your transmit-

ters, it is possible that their transmitter

code will be programmed into your

system, allowing them unauthorized

access to your vehicle.

Keys and doors

2-15

2-16

Keys and doors

Alarm system

The alarm system helps to protect your

vehicle and valuables from theft. The horn

sounds and the turn signal lights flash if

someone attempts to break into your

vehicle.

The system can be armed and disarmed

with the remote transmitter.
The system does not operate when the

key is inserted into the ignition switch.

Your vehicle’s alarm system has been set

for activation at the time of shipment from

the factory. You can set the system for

deactivation yourself or have it done by

your SUBARU dealer.

& System operation

The alarm system will give the following

alarms when triggered.
. The vehicle’s horn will sound for 30

seconds.
. The turn signal lights will flash for 30

seconds.

If any of the doors or the rear gate remains

open after the 30-second period, the horn

will continue to sound for a maximum of 3

minutes. If any of the doors or the rear

gate is closed while the horn is sounding,

the horn will stop sounding with a delay of

up to 30 seconds.
The alarm is triggered by:
. Opening any of the doors or the rear

gate
. Physical impact to the vehicle, such as

forced entry (only vehicles with shock

sensors (dealer option))

NOTE

The alarm system can be set to trigger

the illumination of the following interior

lights.
. Dome light (illuminates only when

the dome light switch is in the “DOOR”

position)
. Map lights

The notifications regarding the dome

light and the map lights are deactivated

as the factory setting. A SUBARU

dealer can activate the system. Contact

your SUBARU dealer for details.

& Activating and deactivating

the alarm system

To change the setting of your vehicle’s

alarm system for activation or deactiva-

tion, do the following.
1. Disarm the alarm system. Refer to
“Disarming the system” F2-18.
2. Sit in the driver’s seat and shut all

doors and the rear gate.
3. Turn the ignition switch to the “ON”

position.
4. Hold down the UNLOCK side of the

driver’s power door locking switch, open

the driver’s door within the following 1

second, and wait 10 seconds without

releasing the switch. The setting will then

be changed as follows.

If the system was previously activated:
The odometer/trip meter screen displays
“AL oF” and the horn sounds twice,

indicating that the system is now deacti-

vated.

If the system was previously deacti-

vated:
The odometer/trip meter screen displays
“AL on” and the horn sounds once,

indicating that the system is now acti-

vated.

NOTE

You may have the above setting

change done by your SUBARU dealer.

& If you have accidentally trig-

gered the alarm system

! To stop the alarm
Do any of the following operations.
. Press any button on the remote trans-

mitter.
. Turn the ignition switch to the “ON”

position.

& Arming the system

! To arm the system using remote

transmitter

1. Close all windows and the moonroof.
2. Remove the key from the ignition

switch.
3. Open the doors and get out of the

vehicle.
4. Make sure that the engine hood is

locked.
5. Close all doors and the rear gate.

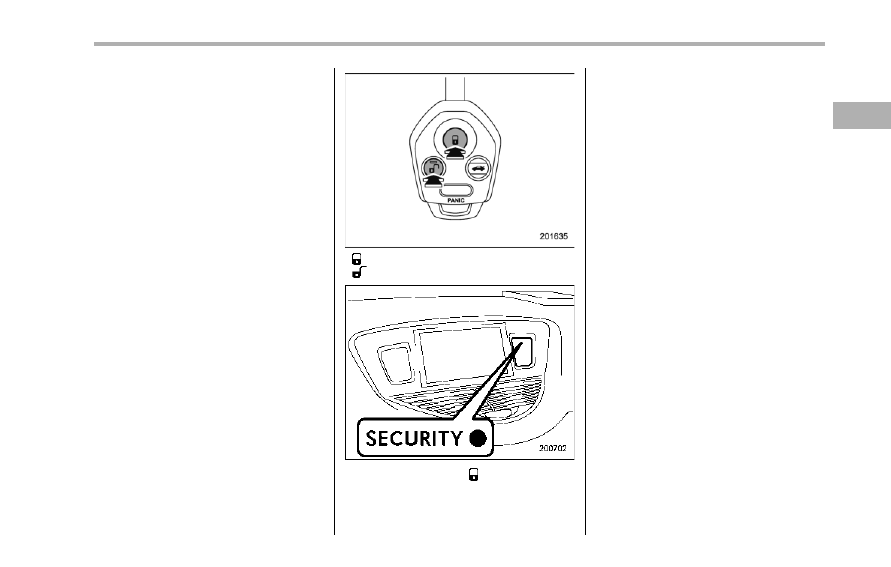

: Press to Arm the system.

: Press to Disarm the system.

6. Briefly press the “ ” button (for less

than 2 seconds). All doors and the rear

gate will lock, an electronic chirp will

sound once, the turn signal lights will flash

once and the indicator lights will start

flashing rapidly. After rapid flashing for 30

seconds (standby time), the indicator

lights will then flash slowly (twice approxi-

mately every 2 seconds), indicating that

the system has been armed for surveil-

lance.

If any of the doors or the rear gate is not

fully closed, an electronic chirp sounds

five times, the turn signal lights flash five

times to alert you that the doors or the rear

gate are not properly closed. When you

close the door, the system will automati-

cally arm and doors will automatically lock.

! To arm the system using power

door locking switches

1. Close all windows.
2. Remove the key from the ignition

switch.
3. Open the doors and get out of the

vehicle.
4. Make sure that the engine hood is

locked.
5. Close the doors and the rear gate but

leave only the driver’s door or the front

passenger’s door open.

Keys and doors

2-17

– CONTINUED –

2-18

Keys and doors

6. Push the front side (“LOCK” side) of

the power door locking switch to set the

door locks.
7. Close the door. An electronic chirp will

sound once, the turn signal lights will flash

once and the indicator lights will start

flashing rapidly. After rapid flashing for 30

seconds (standby time), the indicator

lights will then flash slowly (twice approxi-

mately every 2 seconds), indicating that

the system has been armed for surveil-

lance.

NOTE

. The system can be armed even if the

engine hood, the windows and/or

moonroof are opened. Always make

sure that they are fully closed before

arming the system.

. The 30-second standby time can be

eliminated if you prefer. Have it per-

formed by your SUBARU dealer.
. The system is in the standby mode

for a 30-second period after locking the

doors with the remote transmitter. The

security indicator light will flash at

short intervals during this period.
. If any of the following actions is

done during the standby period, the

system will not switch to the surveil-

lance state.

– Doors are unlocked using the

remote transmitter.
– Any of the doors or the rear gate

is opened.
– Ignition switch is turned to the
“ON” position.

& Disarming the system

Briefly press the “ ” button (for less than

2 seconds) on the remote transmitter. The

driver’s door will unlock, an electronic

chirp will sound twice and the turn signal

lights will flash twice. The flashing of the

security indicator light will then change

slowly (once approximately every 3 sec-

onds from twice approximately every 2

seconds), indicating that the alarm system

has been disarmed.

To unlock all other doors and the rear

gate, briefly press the “ ” button a

second time within 5 seconds.

NOTE

If the interval between the first and

second presses of the “ ” button (for

unlocking of all of the doors and the

rear gate) is extremely short, the sys-

tem may not respond.

! Emergency disarming
If you cannot disarm the system using the

transmitter (i.e. the transmitter is lost,

broken or the transmitter battery is too

weak), you can disarm the system without

using the transmitter.
The system can be disarmed if you turn

the ignition switch from the “LOCK” to the
“ON” position with a registered key.

& Valet mode

When you choose the valet mode, the

alarm system does not operate. In valet

mode, the remote transmitter is used only

for locking and unlocking the doors and

rear gate and panic activation.

To enter the valet mode, change the

setting of your vehicle’s alarm system for

deactivation mode. Refer to “Activating

and deactivating the alarm system” F2-

16. The security indicator light will con-

tinue to flash once every 3 seconds

indicating that the system is in the valet

mode.

To exit valet mode, change the setting of

your vehicle’s alarm system for activation

mode. Refer to “Activating and deactivat-

ing the alarm system” F2-16.

& Passive arming

When passive arming mode has been

programmed by the dealer, arming of the

system is automatically accomplished

without using the remote transmitter. Note

that in this mode, DOORS MUST BE

MANUALLY LOCKED.

! To enter the passive mode
If you wish to program the passive arming

mode, have it done by your SUBARU

dealer.

! Arming the system

CAUTION

In passive mode, the system will

automatically activate the alarm but

WILL NOT automatically lock the

doors. In order to lock the doors

you must either lock them as in-

dicated in step 4 below or with the

key once they have been closed.

Failure to lock the doors manually

will result in a higher security risk.

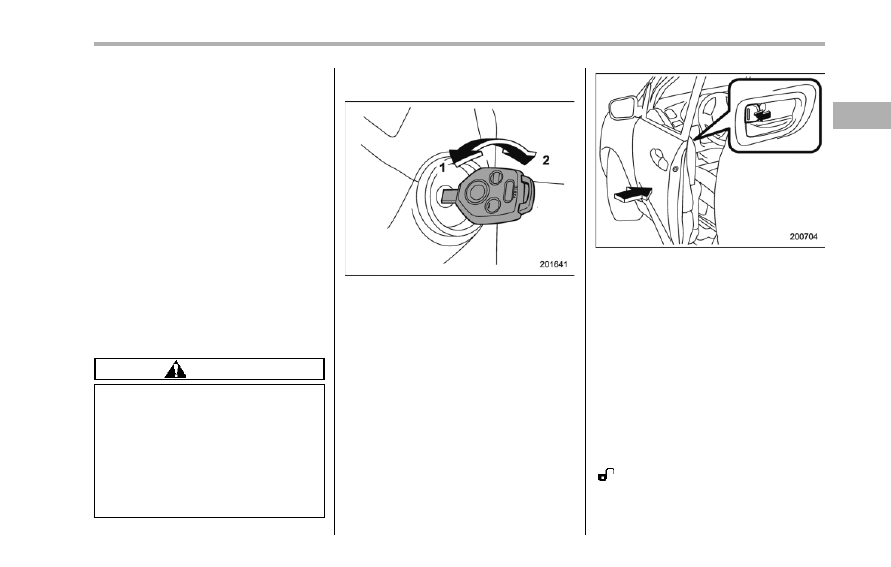

1. Turn the ignition switch to the “ON”

position.

LOCK

2. Turn the ignition switch from “ON” to
“LOCK” position and remove the key from

the ignition switch.
3. Open the doors and get out of the

vehicle.

4. Before closing the doors, lock all doors

with the inside door lock levers.
5. Close the doors. The system will

automatically arm after 1 minute.

In the passive mode, the system can also

be armed with the remote transmitter or

with the power door locking switches. If

the remote transmitter or power door

locking switch is used to lock the vehicle,

arming will take place immediately regard-

less of whether or not the passive mode

has been selected.

! Disarming the system
To disarm the system, briefly press the
“

” button on the transmitter.

Keys and doors

2-19

– CONTINUED –

2-20

Keys and doors

& Tripped sensor identification

The security indicator light flashes when

the alarm system has been triggered.

Also, the number of flashes indicates the

location of unauthorized intrusion or the

severity of impact on the vehicle.

When the ignition switch is turned to the
“ON” position, the indicator light will

illuminate for 1 second and then flash as

follows.
. When a door or rear gate was opened:

5 times
. When the ignition switch was turned to

the “ON” position by using a key not

registered with your immobilizer system: 3

times
. When a strong impact or multiple

impacts were sensed: twice (only vehicles

with shock sensors (dealer option))
. When a light impact was sensed: once

(only vehicles with shock sensors (dealer

option))

NOTE

Any of the above indicator light flash-

ing patterns will recur each time the

ignition switch is turned to the “ON”

position. Rearming the alarm system

cancels the flashing pattern of the

security indicator light.

& Shock sensors (dealer op-

tion)

The shock sensors trigger the alarm

system when they sense impacts applied

to the vehicle and when any of their

electric wires is cut. The alarm system

causes the horn to sound and the turn

signal lights to flash for a short time when

the sensed impact is weak, but it warns of

a strong impact or multiple impacts by

sounding the horn and flashing the turn

signal lights, both lasting approximately 30

seconds.
If you desire, your SUBARU dealer can

connect them and set them for activation

or deactivation.

NOTE

. The shock sensors are not always

able to sense impacts caused by break-

ing in, and cannot sense an impact that

does not cause vibration (such as

breaking the glass using a rescue

hammer).
. The shock sensors may sense vi-

bration like those shown in the follow-

ing list and trigger the alarm system.

Select the settings of the alarm system

and shock sensors appropriately de-

pending on where you usually park

your vehicle.

Example:

– Vibration from construction site
– Vibration in multistory car park
– Vibration from trains

. You can have the sensitivity of the

shock sensors adjusted to your pre-

ference by your SUBARU dealer.

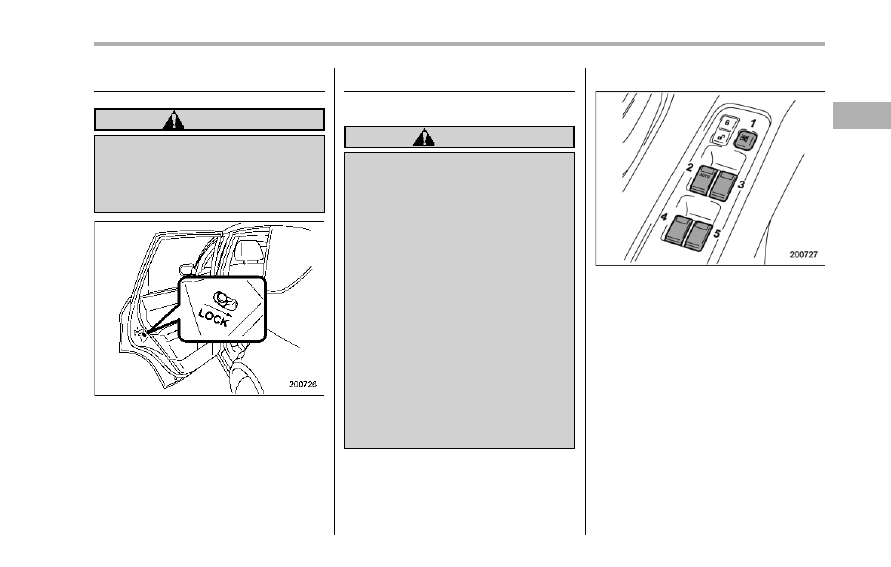

Child safety locks

WARNING

Always use the child safety lock

whenever a child rides in the rear.

Serious injury could result if a child

accidentally opened the door and

fell out.

Each rear door has a child safety lock that

prevents the door from being opened even

if the inside door handle is pulled.

When the child safety lock lever is in the

lock position, the door cannot be opened

from inside regardless of the position of

the inner door handle lock lever. The door

can only be opened from the outside.

Windows

& Power windows

WARNING

To avoid serious personal injury

caused by entrapment, always con-

form to the following instructions

without exception.
. When operating the power win-

dows, be extremely careful to

prevent anyone’s fingers, arms,

neck or head from being caught

in the window.

. Always lock the passengers’ win-

dows using the lock switch when

children are riding in the vehicle.

. Before leaving the vehicle, al-

ways remove the key from the

ignition switch for safety and

never allow an unattended child

to remain in the vehicle. Failure

to follow this procedure could

result in injury to a child operat-

ing the power window.

The power windows operate only when

the ignition switch is in the “ON” position.

! Driver’s side switches

Lock switch

For driver’s window

For front passenger’s window

For rear left window

For rear right window

All door windows can be controlled by the

power window switch cluster at the driver

side door.

Keys and doors

2-21

– CONTINUED –

2-22

Keys and doors

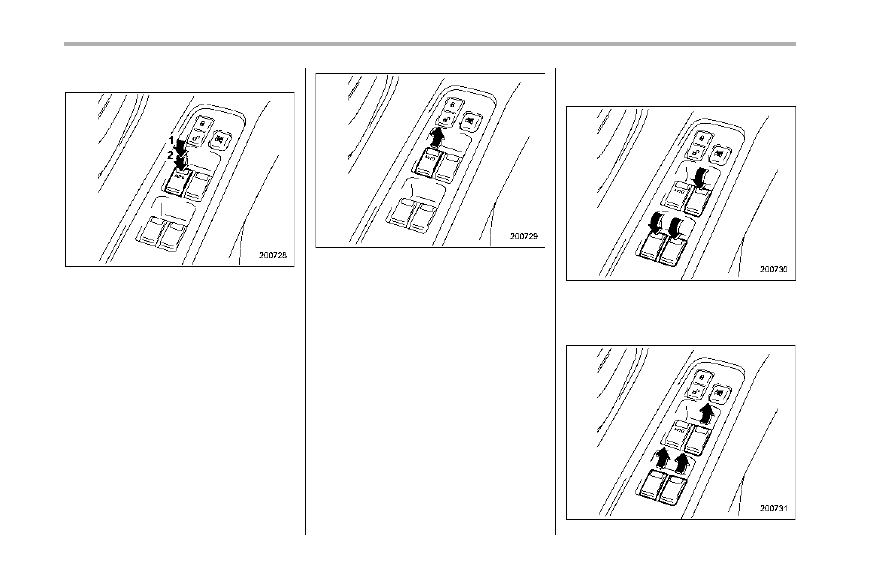

! Operating the driver’s window

Open

Automatically open

To open:
Push the switch down lightly and hold it.

The window will open as long as the

switch is held.

This switch also has a one-touch auto

down feature that allows the window to be

opened fully without holding the switch.
Push the switch down until it clicks and

release it, and the window will fully open.

To stop the window halfway, pull the

switch up lightly.

To close:
Pull the switch up lightly and hold it. The

window will close as long as the switch is

held.

! Operating the passengers’ win-

dows

To open:
Push the appropriate switch down and

hold it until the window reaches the

desired position.

To close:
Pull the switch up and hold it until the

window reaches the desired position.

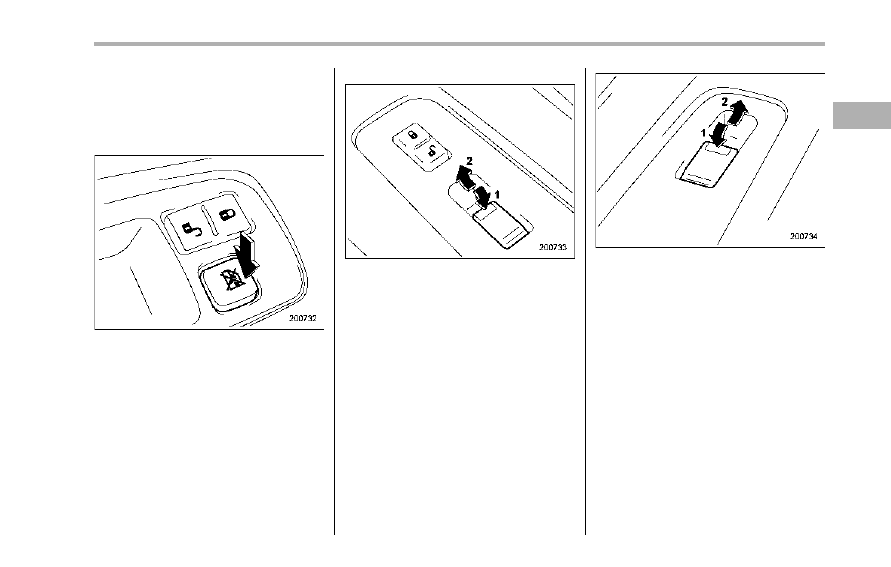

! Locking the passengers’ win-

dows

Push the lock switch. When the lock

switch is in the “LOCK” position, the

passengers’ windows cannot be opened

or closed.
Press the switch again to cancel the

passengers’ window locking.

NOTE

When the lock switch is pushed to the
“LOCK” position, the indicator lights in

the passenger’s window switches (in-

cluded in the power window switch

cluster on the driver’s door) all turn off.

! Passengers’ side switches

Front passenger’s window switch

Open

Rear passengers’ window switches

Open

To open:
Push the switch down and hold it until the

window reaches the desired position.
To close:
Pull the switch up and hold it until the

window reaches the desired position.

When the lock switch on the power

window switch cluster, located on the

driver’s side door, is in the “LOCK”

position, the passengers’ windows cannot

be operated with the passengers’

switches.

Keys and doors

2-23

2-24

Keys and doors

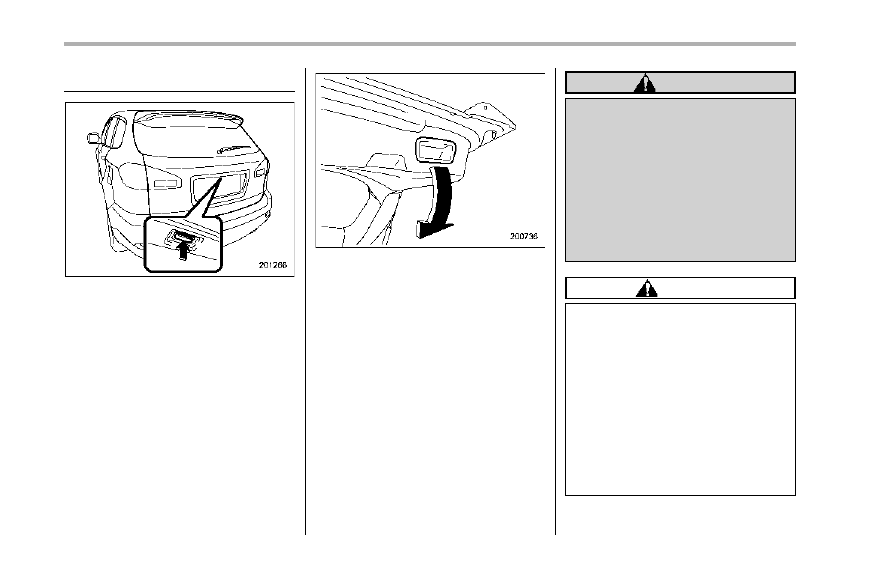

Rear gate

The rear gate can be locked and unlocked

using any of the following systems.
. Power door locking switch: Refer to
“Power door locking switches” F2-7.
. Remote keyless entry system (if

equipped): Refer to “Remote keyless entry

system” F2-8.
To open:
First unlock the rear gate lock then push

the button.

To close:
Lower the rear gate slowly and push down

firmly until the latch engages.
The rear gate can be lowered easily if you

pull it down holding the recessed grip.

WARNING

. To prevent dangerous exhaust

gas from entering the vehicle,

always keep the rear gate closed

while driving.

. Do not attempt to shut the rear

gate while holding the recessed

grip. Also avoid closing the rear

gate by pulling on the recessed

grip from inside the cargo space.

There is a danger of your hand

being caught and injured.

CAUTION

. Do not jam a plastic bag in or

place cellophane tape on the rear

gate stays or scratch the stays

while loading or unloading cargo.

That could cause leakage of gas

from the stays, which may result

in their inability to hold the rear

gate open.

. Be careful not to hit your head or

face on the rear gate when open-

ing or closing the rear gate and

when loading or unloading car-

go.

NOTE

If the rear gate cannot be unlocked due

to a discharged vehicle battery, a

malfunction in the door locking/unlock-

ing system or other causes, you can

unlock it by manually operating the

rear gate lock release lever. For the

procedure, refer to “Rear gate – if the

rear gate cannot be unlocked” F9-18.

Moonroof (if equipped)

WARNING

Never let anyone’s hands, arms,

head or any objects protrude from

the moonroof. A person could be

seriously injured if the vehicle stops

suddenly or turns sharply or if the

vehicle is involved in an accident.
To avoid serious personal injury

caused by entrapment, always con-

form to the following instructions

without exception.
. Before closing the moonroof,

make sure that no one’s hands,

arms, head or other objects will

be accidentally caught in the

moonroof.

. Before leaving the vehicle, al-

ways remove the key from the

ignition switch for safety and

never allow an unattended child

to remain in the vehicle. Failure

to follow this procedure could

result in injury to a child operat-

ing the moonroof.

. Never try to check the anti-en-

trapment function by deliberately

placing part of your body in the

moonroof.

CAUTION

. Do not sit on the edge of the open

moonroof.

. Do not operate the moonroof if

falling snow or extremely cold

conditions have caused it to

freeze shut.

. The anti-entrapment function

does not operate when the moon-

roof is being tilted down. Be sure

to confirm that it is safe to do so

before tilting the moonroof down.

The moonroof has both tilting and sliding

functions.

The moonroof operates only when the

ignition switch is in the “ON” position.

Keys and doors

2-25

– CONTINUED –

2-26

Keys and doors

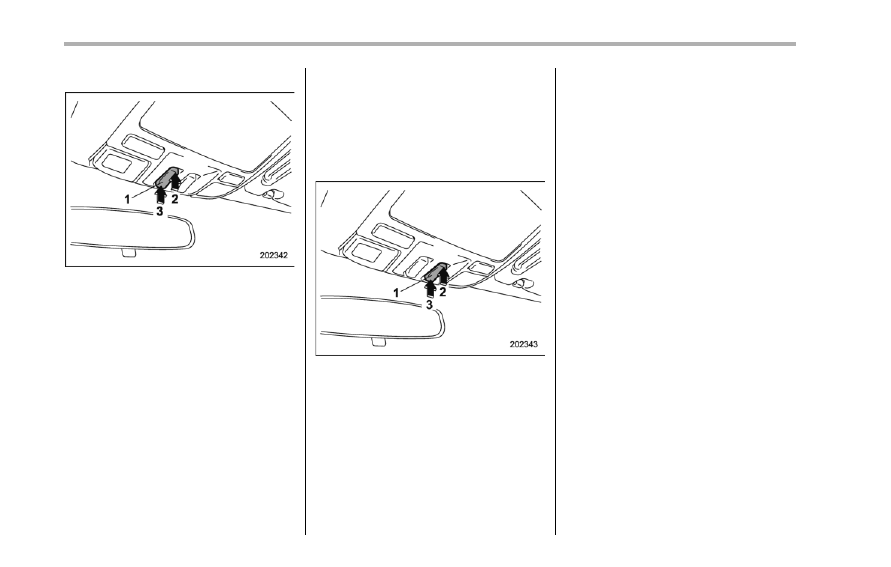

& Tilt function

Tilt switch

Raise

Lower

The tilting function will only operate when

the moonroof is fully closed.

Push the rear side of the “Tilt” switch to

raise the moonroof.
Push the front side of the “Tilt” switch to

lower the moonroof.

Release the switch after the moonroof has

been raised or has been lowered com-

pletely. Pushing the switch continuously

may cause damage to the moonroof.

NOTE

One-touch operation does not take

place when the moonroof is raised or

lowered. Push the switch continuously

to raise or lower the moonroof.

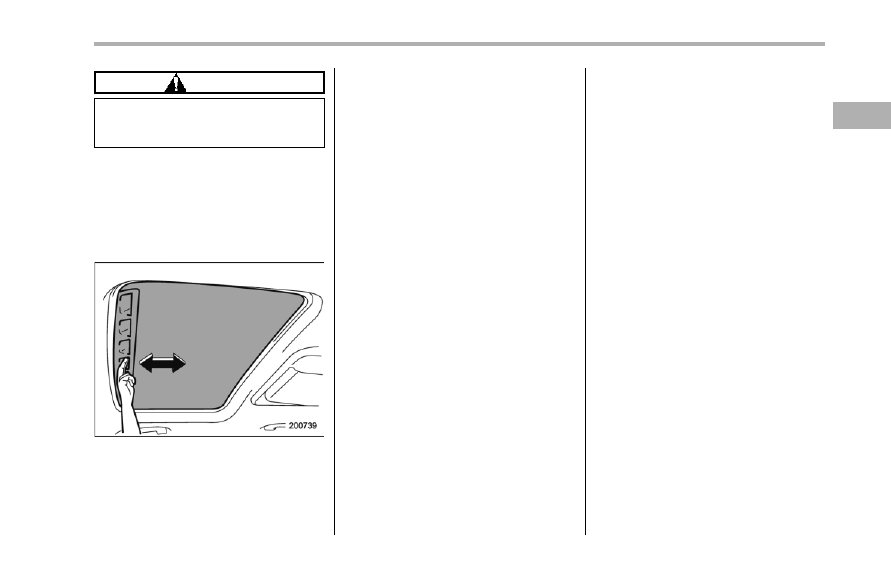

& Sliding function

Open/Close switch

Open

Push the “Open/Close” switch rearward to

open the moonroof. The sun shade will

also be opened together with the moon-

roof.
Push the “Open/Close” switch forward to

close the moonroof. The moonroof will

stop halfway. Push it again to close the

moonroof completely.

To stop the moonroof at a selected mid-

way position while opening or closing it,

momentarily push the switch to the
“OPEN” or “CLOSE” side.
After washing the vehicle or after it rains,

wipe away water on the roof prior to

opening the moonroof to prevent drops

of water from falling into the passenger

compartment.

& Anti-entrapment function

When the moonroof senses a substantial

enough object trapped between its glass

and the vehicle’s roof during closure, it

automatically moves back to either of the

following positions according to the point

at which it senses the object.
. When the moonroof senses the object

at a point between the halfway stop

position and fully closed position, it moves

back to the halfway stop position and

stops there.
. When the moonroof senses the object

at a point between the halfway stop

position and fully open position, it moves

back to the fully open position and stops

there.

The anti-entrapment function may also be

activated by a strong shock on the moon-

roof even when there is nothing trapped.

CAUTION

Never attempt to test this function

using fingers, hands or other parts

of your body.

NOTE

For the sake of safety, it is recom-

mended that you avoid driving with the

moonroof fully opened.

& Sun shade

The sun shade can be slid forward or

backward by hand while the moonroof is

closed.
If the moonroof is opened, the sun shade

also moves back.

Keys and doors

2-27

— — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —

Ignition switch .....................................................

3-3

LOCK..................................................................

3-3

Acc.....................................................................

3-4

ON......................................................................

3-4

START ................................................................

3-4

Key reminder chime ............................................

3-4

Ignition switch light .............................................

3-4

Hazard warning flasher.......................................

3-5

Meters and gauges..............................................

3-5

Combination meter illumination ...........................

3-5

Canceling the function for meter needle/gauge

movement and combination meter sequential

illumination upon turning on the ignition

switch...............................................................

3-5

Speedometer.......................................................

3-6

Odometer............................................................

3-6

Double trip meter ................................................

3-7

Tachometer .........................................................

3-7

Fuel gauge..........................................................

3-8

Temperature gauge .............................................

3-8

Warning and indicator lights ..............................

3-9

Seatbelt warning light and chime ........................ 3-10
SRS airbag system warning light ........................

3-11

Front passenger’s frontal airbag ON and OFF

indicators......................................................... 3-12

CHECK ENGINE warning light/Malfunction

indicator light................................................... 3-12

Charge warning light .......................................... 3-13
Oil pressure warning light .................................. 3-13
AT OIL TEMP warning light ................................. 3-13

Rear differential oil temperature warning

light ................................................................

3-13

Low tire pressure warning light ..........................

3-14

ABS warning light..............................................

3-15

Brake system warning light................................

3-16

Low fuel warning light .......................................

3-17

Door open warning light ....................................

3-17

Windshield washer fluid warning light ................

3-17

All-Wheel Drive warning light .............................

3-18

Vehicle Dynamics Control warning light (U.S.-

spec models and Canada-spec. models)/Vehicle

Dynamics Control operation indicator light (all

models) ...........................................................

3-18

Traction Control system OFF indicator light

(U.S.-spec models and Canada-spec.

models) ...........................................................

3-19

Vehicle Dynamics Control warning light (Latin

America-spec. models)/Traction Control OFF

indicator light (Latin America-spec. models) .....

3-19

Security indicator light.......................................

3-21

SPORT mode indicator light ...............................

3-21

Select lever/Gear position indicator ....................

3-21

Turn signal indicator lights.................................

3-21

High beam indicator light ...................................

3-22

Cruise control indicator light..............................

3-22

Cruise control set indicator light ........................

3-22

Headlight indicator light .....................................

3-22

Front fog light indicator light..............................

3-22

Clock ..................................................................

3-22

Outside temperature indicator ..........................

3-23

Low outside temperature warning ......................

3-24

Instruments and controls

Multi function display (vehicles without a

genuine SUBARU navigation system) ........... 3-24

Current fuel consumption ................................... 3-25
Average fuel consumption .................................. 3-25
Driving range on remaining fuel.......................... 3-26
Journey time...................................................... 3-27

Light control switch ........................................... 3-27

Headlights.......................................................... 3-28
High/low beam change (dimmer)......................... 3-28
Headlight flasher ................................................ 3-28
Daytime running light system ............................. 3-29

Turn signal lever ................................................ 3-29
Illumination brightness control ......................... 3-29
Headlight beam leveler (if equipped) ................ 3-30

Parking light switch...........................................

3-32

Front fog light switch ........................................

3-32

Wiper and washer..............................................

3-33

Windshield wiper and washer switches ..............

3-34

Rear window wiper and washer switch ...............

3-35

Windshield wiper deicer....................................

3-36

Rear window defogger button ..........................

3-37

Mirrors ................................................................

3-38

Type A inside mirror (if equipped) ......................

3-38

Type B inside mirror (if equipped) ......................

3-38

Type C inside mirror (if equipped) ......................

3-41

Outside mirrors .................................................

3-42

Tilt steering wheel .............................................

3-44

Horn....................................................................

3-44

Content .. 6 7 8 9 ..
