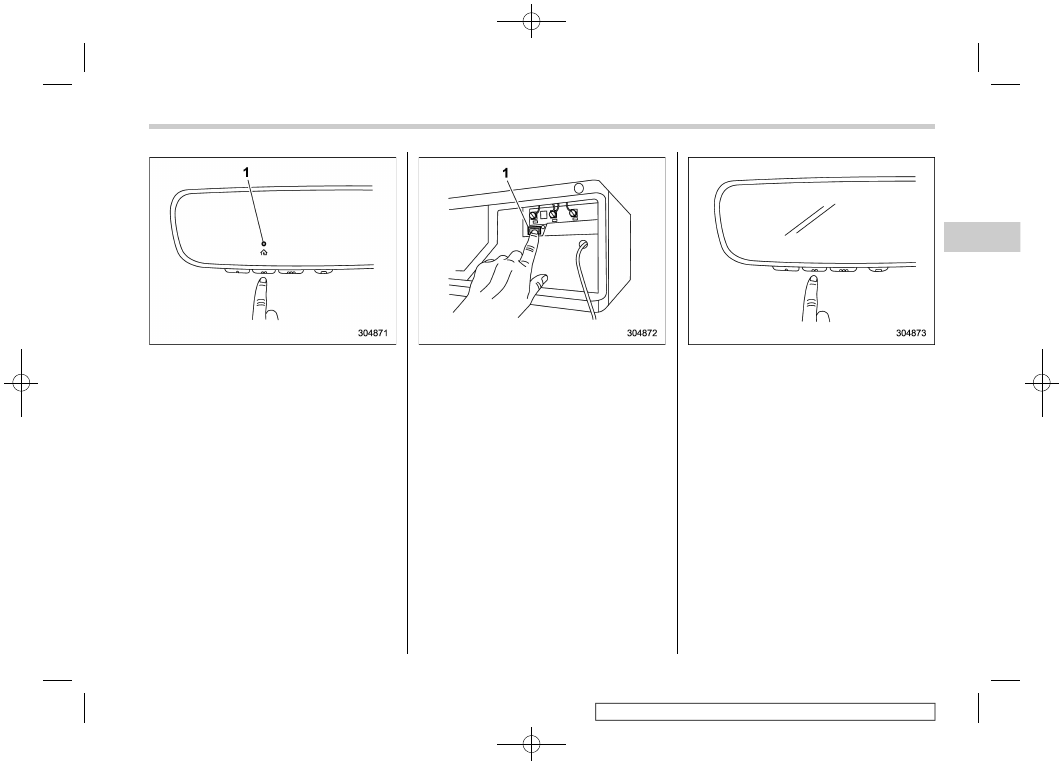

4. Press the HomeLink button that you
would like to program and observe the
indicator light.

If the indicator light remains constant

green, your device should operate
when the HomeLink button is pressed.
At this point, if your device operates,
programming is complete.
.

If the indicator light rapidly flashes

green, firmly press, hold for two sec-
onds and release the HomeLink button
up to three times to complete the
programming process. At this point if
your device operates, programming is
complete. If the device does not
operate, continue with the next step
of the programming instructions.

“Learn” button

5. At the garage door opener motor,
(security gate motor, etc.) locate the
“Learn”, “Smart”, or “Program” button. This
can usually be found where the hanging
antenna wire is attached to the motor-head
unit (see the device’s manual to identify
this button). The name and color of the
button may vary by manufacturer.

NOTE

A ladder and/or second person may
simplify the following steps.

6. Firmly press and release the “Learn”,
“Smart”, or “Program” button. You now
have 30 seconds in which to complete step
7.

7. Return to the vehicle and firmly press,
hold for two seconds and release the
HomeLink button up to three times. At this
point programming is complete and your
device should operate when the HomeLink
button is pressed and released.

– CONTINUED –

Instruments and controls/Mirrors

3-83

(232,1)

北米Model "A1350BE-A" EDITED: 2018/ 4/ 20

Status Indicators

8. If status indicator arrows appear next
to the indicator light, please refer to
“Garage Door Two-Way Communication”
F3-85.

In the event that there are still program-
ming difficulties or questions, additional
HomeLink information and programming
videos can be found at
www.HomeLink.com and
www.youtube.com/HomeLinkGentex. For
Genie and Sommer garage door openers
please go directly to the HomeLink web-
site.

Gate Operator/Canadian Pro-
gramming

Canadian radio-frequency laws require
transmitter remote signals to “time-out”
(or quit) after several seconds of transmis-
sion, which may not be long enough for
HomeLink to pick up the signal during
programming. Similar to this Canadian
law, some U.S. gate operators are de-
signed to “time-out” in the same manner.
The indicator LED on the hand-held
remote will go off when the device times
out, indicating that it has finished transmit-
ting.

If you live in Canada or you are having
difficulties programming a gate operator or
garage door opener by using the program-
ming procedures, replace “Programming a
New HomeLink Button” step 3 with the
following:

While the HomeLink indicator light is
flashing orange, press and release (“cy-
cle”) your device’s hand-held remote every
two seconds until the HomeLink indicator
light changes from orange to green. You
may now release the hand-held remote
button.

NOTE

If programming a garage door opener
or gate operator, it is advised to unplug
the device during the “cycling” process
to prevent possible overheating.

Proceed with “Programming a New
HomeLink Button” step 4 to complete.

Using HomeLink

To operate, simply press and release the
programmed HomeLink button. Activation
will now occur for the trained device (i.e.
garage door opener, gate operator, secur-
ity system, entry door lock, home/office
lighting, etc.). For convenience, the hand-
held remote of the device may also be
used at any time.

Erasing HomeLink Buttons

To erase programming from the three
buttons (individual buttons cannot be
erased but can be “reprogrammed” as
outlined below), follow the step noted:

Press and hold the two outer HomeLink
buttons for at least 10 seconds. The LED
indicator will change from continuously lit
to rapidly flashing. Release both buttons.
Do not hold for longer than 20 seconds.
HomeLink is now ready to be programmed
at any time beginning with “Programming a
New HomeLink Button” - step 1.

Instruments and controls/Mirrors

3-84

(233,1)

北米Model "A1350BE-A" EDITED: 2018/ 4/ 20

R e p r o g r a m m i n g a S i n g l e
HomeLink Button

To program a previously trained button,
follow these steps:
1. Press and hold the desired HomeLink
button. DO NOT release the button.
2. The indicator light will begin to slowly
flash orange after 20 seconds. The
HomeLink button can be released at this
point. Proceed with “Programming a New
HomeLink Button” - step 3.
3. If you do not complete the program-
ming of a new device to the button, it will
revert to the previously stored program-
ming.

Garage Door Two-Way Commu-
nication

HomeLink has the capability of commu-
nicating with your garage door opener.
HomeLink can receive and display “clos-
ing” or “opening” status messages from
compatible garage door opener systems.
At any time, HomeLink can also recall and
display the last recorded status commu-
nicated by the garage door opener to
indicate your garage door being “closed”
or “opened”.

HomeLink has the capability of receiving
this communication from the garage door
opener at a range up to 820 feet (250 m).

Range may be reduced by obstacles such
as houses or trees. You may have to slow
your vehicle speed to successfully receive
the garage door opener communication.

Programming Two-Way Commu-
nication

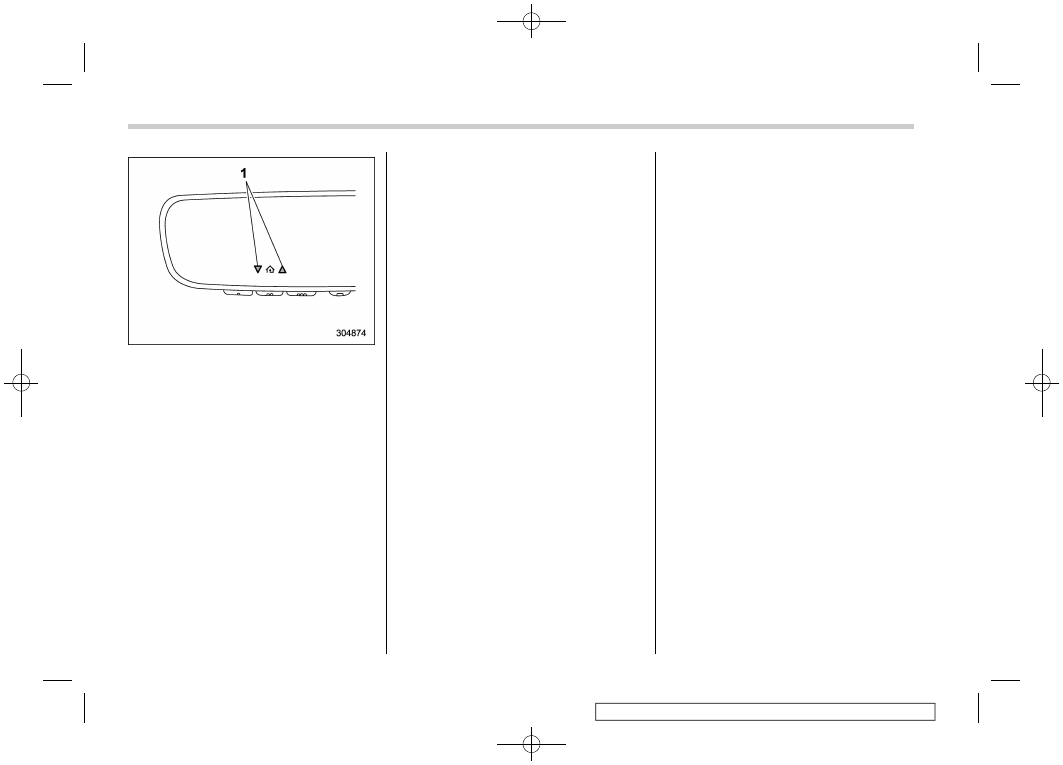

Status Indicators

Within five seconds after programming a
new HomeLink button, both of HomeLink’s
garage door status indicators will flash
rapidly green indicating that the garage
door two-way communication has been
enabled. If your garage door status in-
dicators flashed, two-way communication
programming is complete.

If the garage door status indicators do not
flash, additional HomeLink information
and programming videos can be found

online at www.HomeLink.com and
www.youtube.com/HomeLinkGentex.

Using Two-Way Communication

Status Indicators

Recall and display (at any time) the last
recorded garage door status message
communicated to HomeLink by simulta-
neously pressing HomeLink buttons 1 and
2 for two seconds. HomeLink will display
the last recorded status for three seconds.

– CONTINUED –

Instruments and controls/Mirrors

3-85

(234,1)

北米Model "A1350BE-A" EDITED: 2018/ 4/ 20

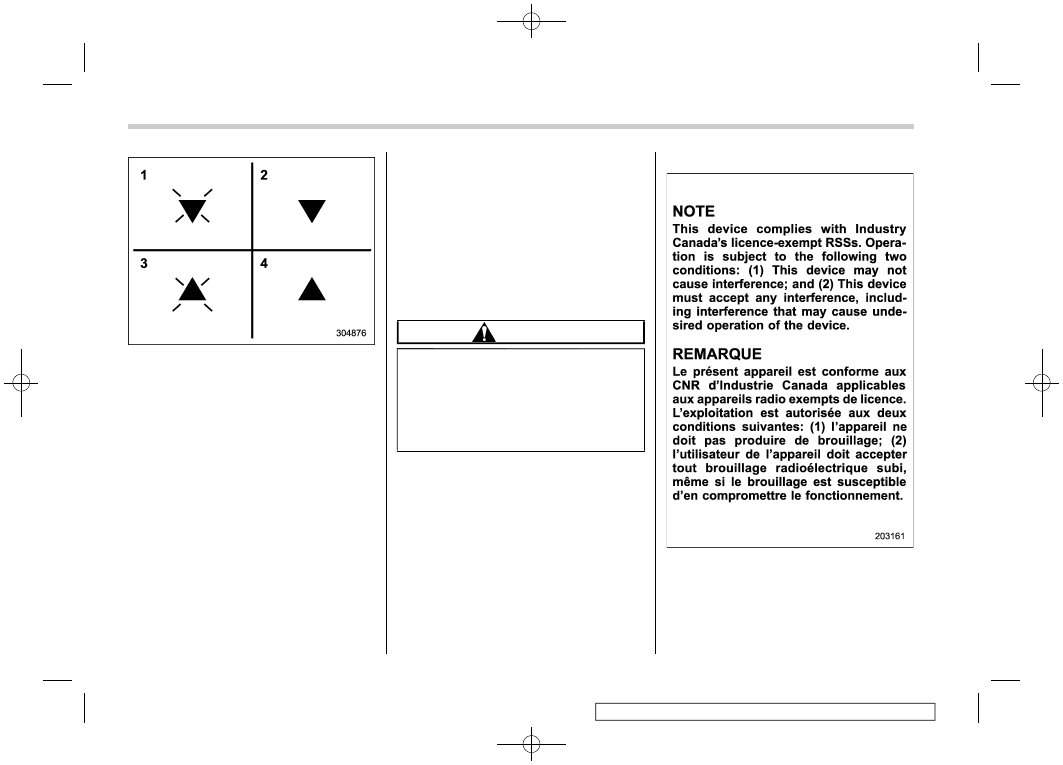

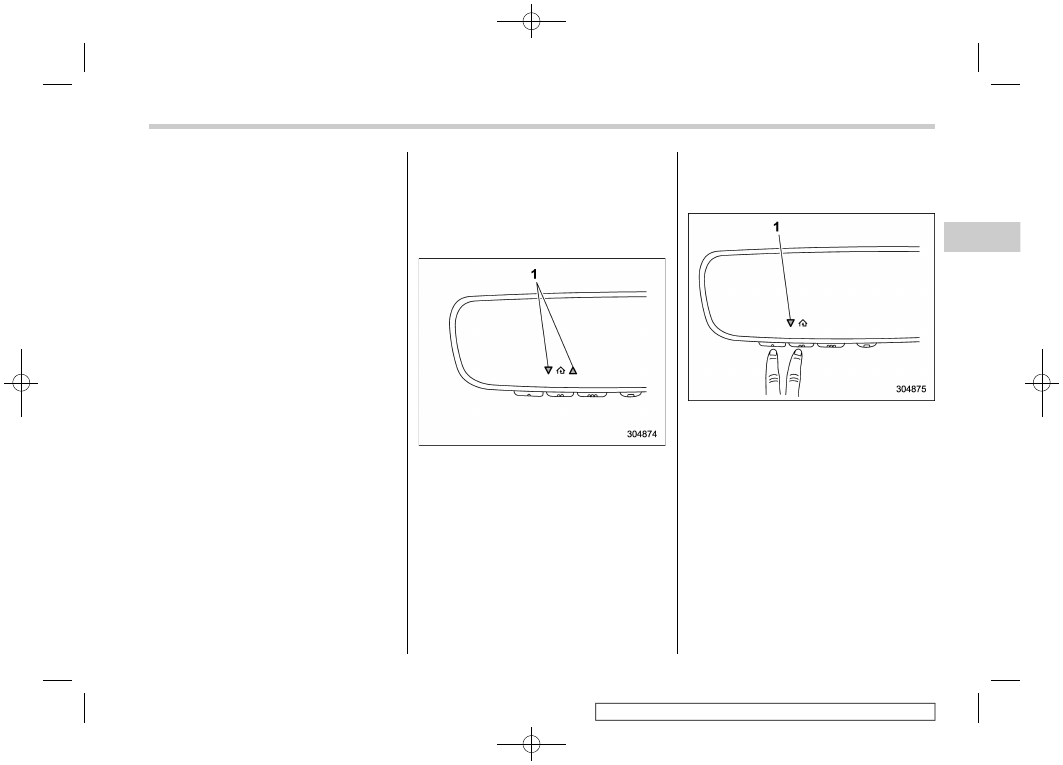

Garage Door Opener CLOSING (Blinking
Orange)

Garage Door Opener CLOSED (Solid
Green)

Garage Door Opener OPENING (Blink-
ing Orange)

Garage Door Opener OPENED (Solid
Green)

If two-way communication programming is
successful, HomeLink will display the
status of your garage door opener with
arrow indicators.

Certification

In the event that there are still program-
ming difficulties or questions, additional
HomeLink information and programming
videos can be found at
www.HomeLink.com,
www.youtube.com/HomeLinkGentex, or
by calling the toll-free HomeLink-hotline
at 1-800-355-3515.
.

U.S.-spec. models

CAUTION

FCC WARNING

Changes or modifications not ex-
pressly approved by the party re-
sponsible for compliance could void
the user’s authority to operate the
equipment.

This device complies with part 15 of the
FCC Rules. Operation is subject to the
following two conditions: (1) This de-
vice may not cause harmful interfer-
ence, and (2) this device must accept
any interference received, including
interference that may cause undesired
operation.

Canada-spec. models

HomeLink

and the HomeLink

house are

registered trademarks of Gentex Corpora-
tion.

Instruments and controls/Mirrors

3-86

(235,1)

北米Model "A1350BE-A" EDITED: 2018/ 4/ 20

WARNING

W h e n

p r o g r a m m i n g

t h e

HomeLink

Wireless Control Sys-

tem, you may be operating a
garage door opener or other
device. Make sure that people
and objects are out of the way of
the garage door or other device
to prevent potential harm or da-
mage.

Do not use the HomeLink

Wire-

less Control System with a gar-
age door opener that lacks the
safety stop and reverse feature
as required by applicable safety
standards. A garage door opener
which cannot detect an object,
signaling the door to stop and
reverse, does not meet these
safety standards. Using a garage
door opener without these fea-
tures increases risk of serious
injury or death. For more infor-
mation, consult the HomeLink

website at www.homelink.com or
call 1-800-355-3515.

Outside mirrors

Convex mirror (passenger side)

WARNING

Objects look smaller in a convex
mirror and farther away than when
viewed in a flat mirror. Do not use the
convex mirror to judge the distance
of vehicles behind you when chan-
ging lanes. Use the inside mirror (or
glance backwards) to determine the
actual size and distance of objects
that you view in convex mirror.

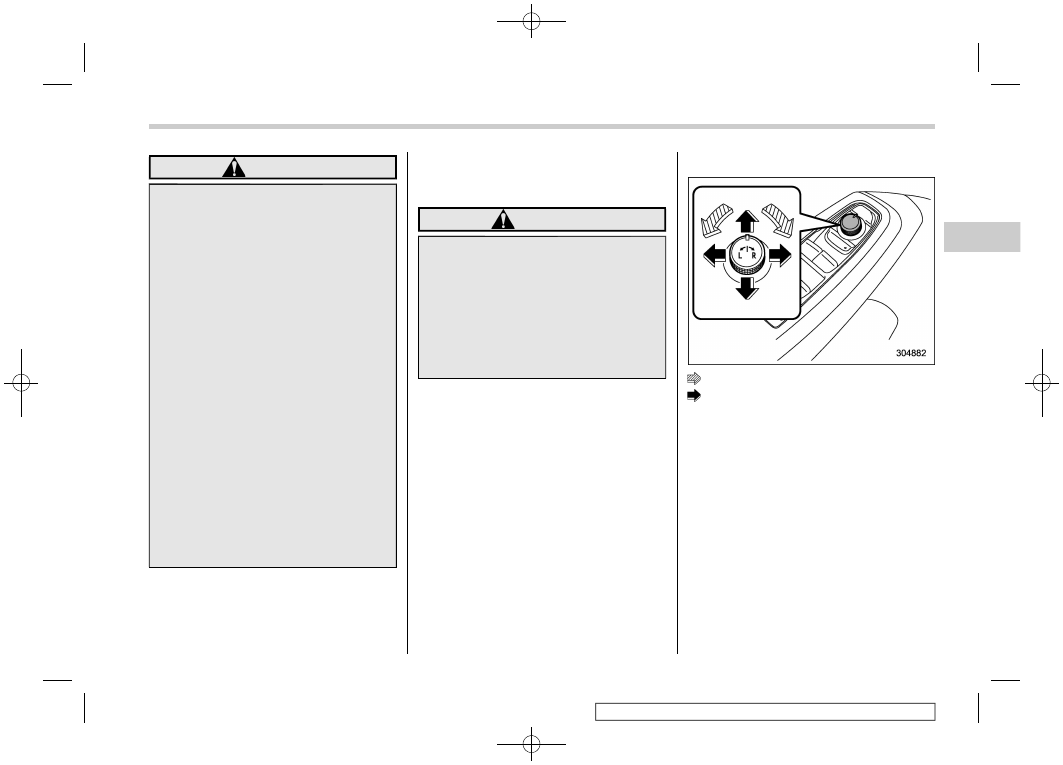

Remote control mirror switch

: Select side to adjust
: Direction control

The remote control mirrors operate only
when the ignition switch is in the “ON” or
“ACC” position.
1. Turn the control switch to the side that
you want to adjust. “L” is for the left mirror,
“R” is for the right mirror.
2. Move the control switch in the direction
you want to move the mirror.
3. Return the control switch to the neutral
position to prevent unintentional opera-
tion.

The mirrors can also be adjusted manu-
ally.

Instruments and controls/Mirrors

3-87

(236,1)

北米Model "A1350BE-A" EDITED: 2018/ 4/ 20

Defogger and deicer
(if equipped)

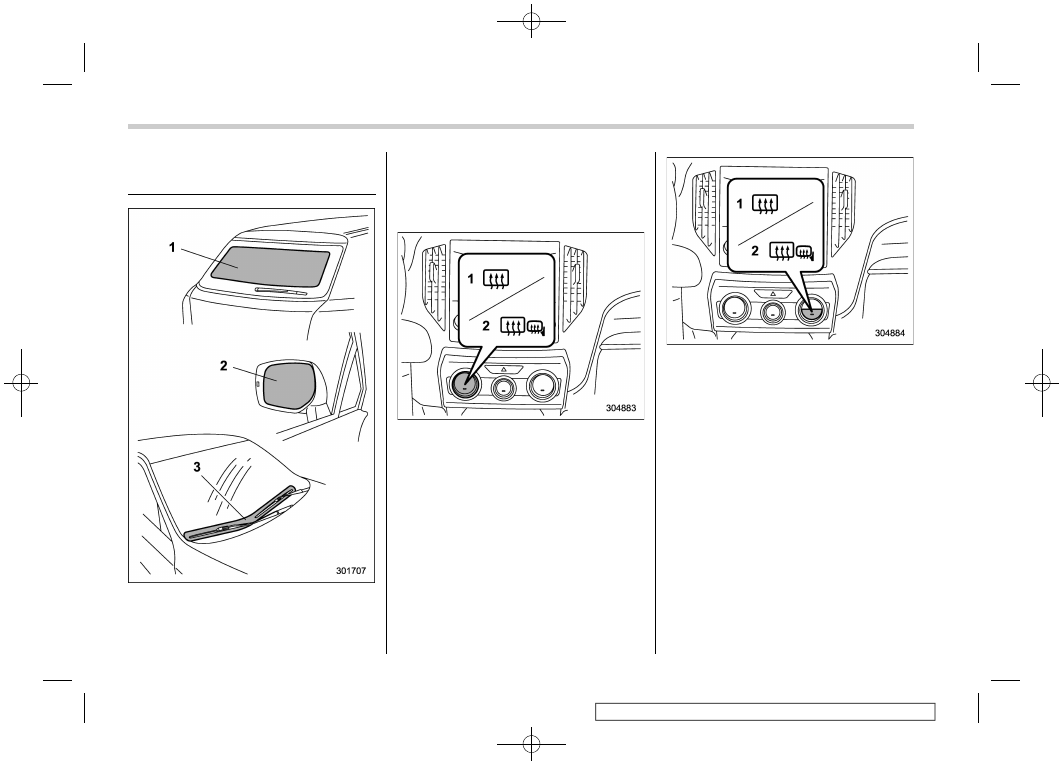

Rear window defogger

Outside mirror defogger (if equipped)

Windshield wiper deicer (if equipped)

The vehicle is equipped with the defogger
and the deicer (if equipped) system. The
defogger and deicer system is activated
only when the ignition switch is in the “ON”
position.

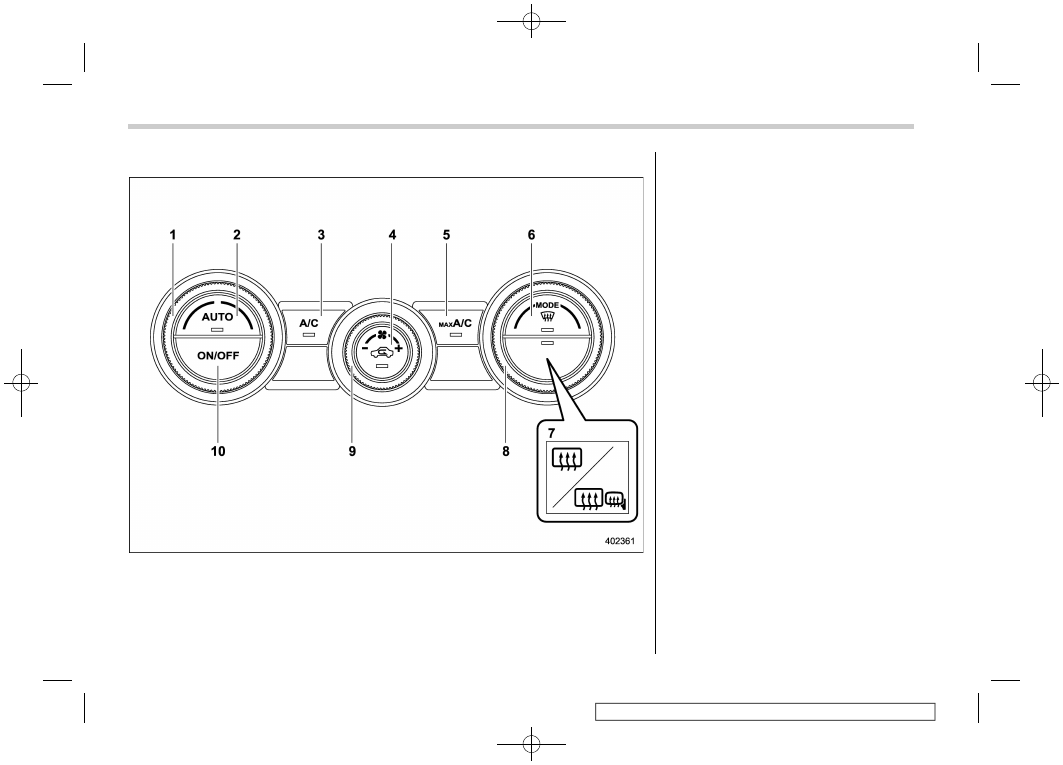

Climate control system type A
1)

Models without outside mirror defogger

Models with outside mirror defogger

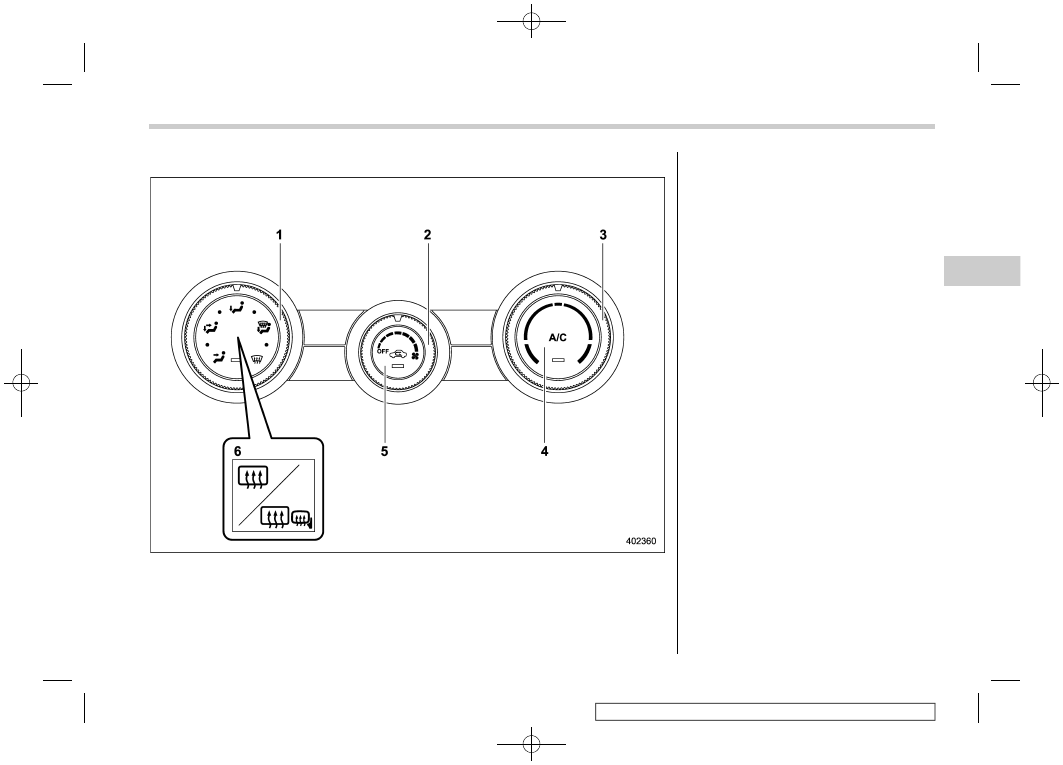

Climate control system type B and C
1)

Models without outside mirror defogger

Models with outside mirror defogger

To activate simultaneously the rear win-
dow defogger, outside mirror defogger (if
equipped) and windshield wiper deicer (if
equipped), press the control switch that is
located on the climate control panel. The
indicator light on the control switch illumi-
nates while the defogger and deicer
system is activated.

To turn them off, press the control switch
again. They also turn off when the ignition
switch is turned to the “ACC” or “LOCK”/
“OFF” position.

The defogger and deicer system will
automatically shut off after approximately
15 minutes. If the rear window and the

Instruments and controls/Defogger and deicer

3-88

(237,1)

北米Model "A1350BE-A" EDITED: 2018/ 4/ 20

outside mirrors have been cleared and the
windshield blade rubbers have been
deiced completely before that time, press
the control switch to turn them off.

For climate control system (type B and
C), it is possible for the defogger and
deicer system to be set to continuous
operation mode by a SUBARU dealer.
Consult your SUBARU dealer for details.

Also, for models with a combination meter
display (color LCD), it is possible to set the
defogger and deicer system for the con-
tinuous operation mode. For details, refer
to “Vehicle Setting” F3-40.

CAUTION

To prevent the battery from being

discharged, do not operate the
defogger and deicer system con-
tinuously for any longer than
necessary.

Do not use sharp instruments or

window cleaner containing abra-
sives to clean the inner surface of
the rear window. They may da-
mage the conductors printed on
the window.

NOTE

Turn on the defogger and deicer

system if the wipers are frozen to the
windshield.
.

If the windshield is covered with

snow, remove the snow so that the
windshield wiper deicer works effec-
tively.
.

While the defogger and deicer sys-

tem is in the continuous operation
mode:

– If the vehicle speed remains at 9
mph (15 km/h) or lower for 15
minutes, the windshield wiper dei-
cer system automatically stops op-
erating. However, the rear window
defogger system and outside mirror
defogger system maintain continu-
ous operation in this condition.
– If the vehicle battery voltage
drops below the permissible level,
continuous operation of the defog-
ger system and deicer system is
canceled and the system stops
operating.

Tilt/telescopic steering wheel

WARNING

Do not adjust the steering wheel

tilt/telescopic position while driv-
ing. This may cause loss of
vehicle control and result in per-
sonal injury.

If the lever cannot be raised to the

fixed position, adjust the steering
wheel again. It is dangerous to
drive without locking the steering
wheel. This may cause loss of
vehicle control and result in per-
sonal injury.

– CONTINUED –

Instruments and controls/Tilt/telescopic steering wheel

3-89

(238,1)

北米Model "A1350BE-A" EDITED: 2018/ 4/ 20

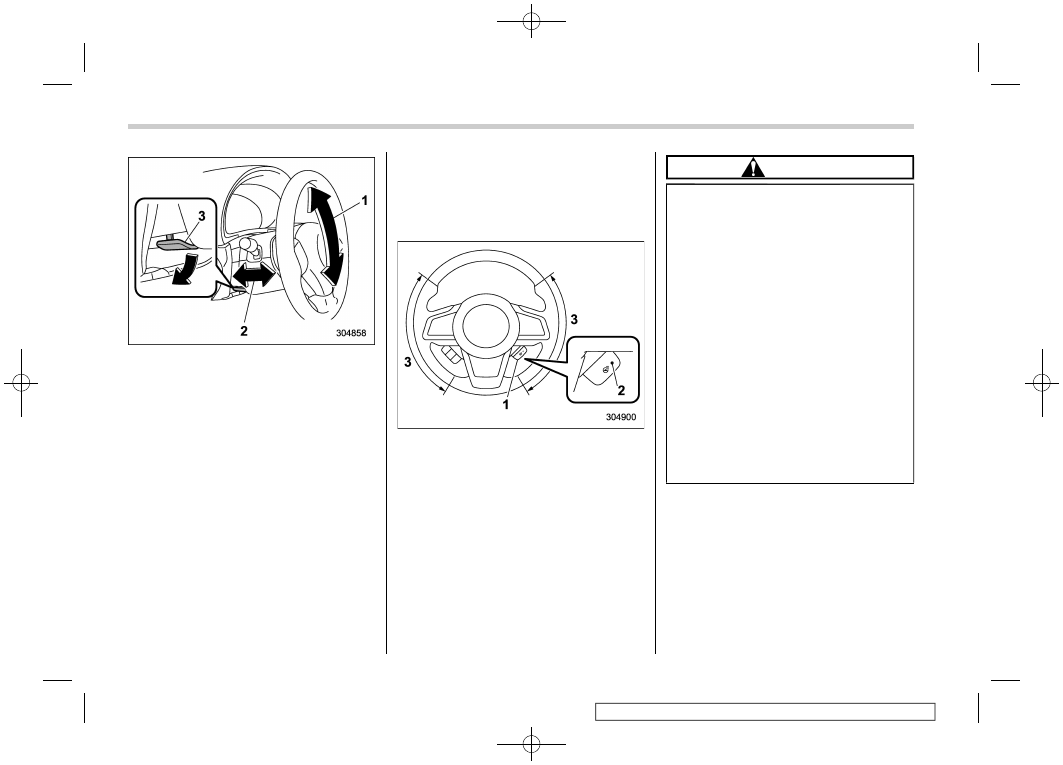

Tilt adjustment

Telescopic adjustment

Tilt/telescopic lock lever

1. Adjust the seat position. Refer to “Front
seats” F1-5.
2. Pull the tilt/telescopic lock lever down.
3. Move the steering wheel to the desired
level.
4. Pull the lever up to lock the steering
wheel in place.
5. Make sure that the steering wheel is
securely locked by moving it up and down,
and forward and backward.

Heated Steering Wheel sys-
tem (if equipped)

The Heated Steering Wheel system
warms the steering wheel at the constant
temperature.

Heated Steering Wheel switch

Indicator light

Heated area

To turn on the Heated Steering Wheel
system, pull the Heated Steering Wheel
switch when the ignition switch is in the
“ON” or “ACC” position. Then the steering
wheel will be warmed and the indicator
light on the switch will illuminate.
To turn off the Heated Steering Wheel
system, pull the switch again. Then the
indicator light will turn off.

CAUTION

Use the Heated Steering Wheel

system with the engine running.
Otherwise, the battery voltage
may drop below the permissible
level and it may not be possible to
start the engine.

There is a possibility that people

with delicate skin may suffer
slight burns even at low tempera-
tures if they use the Heated
Steering Wheel for a long period
of time. When using the Heated
Steering Wheel, always be sure to
warn the persons concerned.

Do not cover the Heated Steering

Wheel with an object such as a
steering wheel cover. Doing so
may cause the Heated Steering
Wheel to overheat.

Instruments and controls/Tilt/telescopic steering wheel

3-90

(239,1)

北米Model "A1350BE-A" EDITED: 2018/ 4/ 20

NOTE

If the surface temperature of the

steering wheel is approximately above
1048F (408C) when the Heated Steering
Wheel system is turned on, the system
will not heat the steering wheel. Then,
the indicator light will continue to
illuminate.
.

The Heated Steering Wheel system

will automatically turn off approxi-
mately 30 minutes after the Heated
Steering Wheel system has been
turned on.

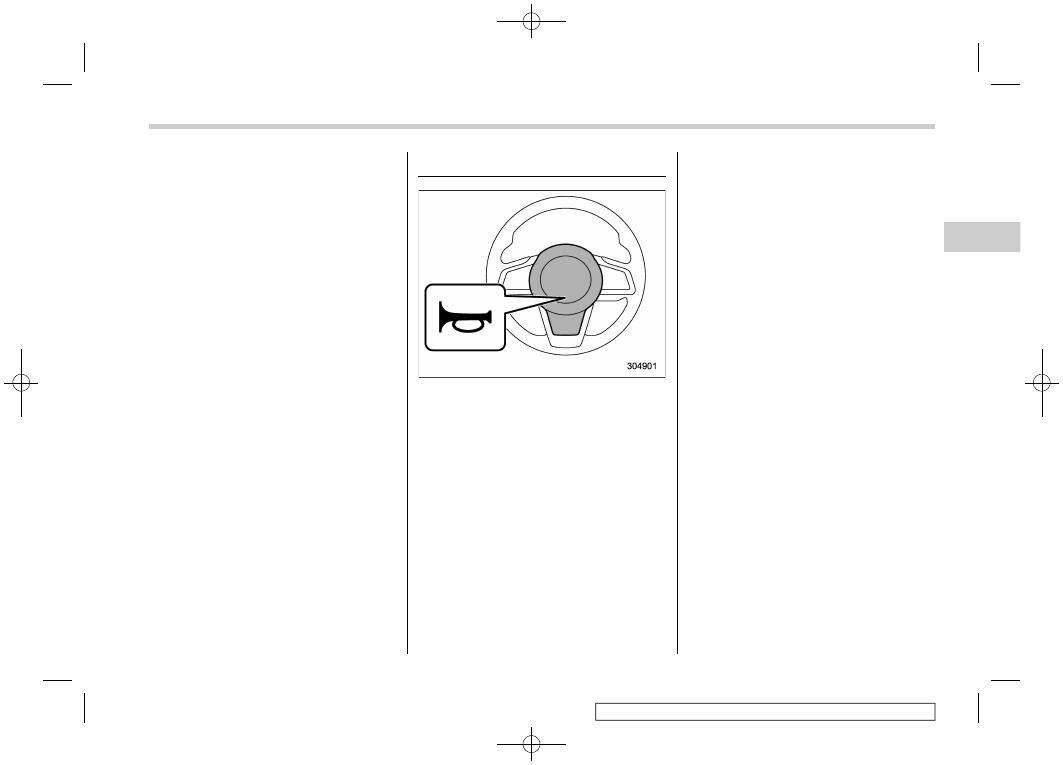

Horn

To sound the horn, push the horn pad.

Instruments and controls/Horn

3-91

(2,1)

Model "ALL_MODEL_MEMO" EDITED: 2017/ 11/ 6

Left Page

— — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —

(241,1)

北米Model "A1350BE-A" EDITED: 2018/ 4/ 20

Ventilator control .................................................... 4-2

Center ventilators .................................................. 4-2
Side ventilators...................................................... 4-2

Climate control panel ............................................. 4-2

Type A ................................................................... 4-3
Type B ................................................................... 4-4
Type C ................................................................... 4-5

Automatic climate control operation

(type B and C) ...................................................... 4-6

Sensors ................................................................. 4-7

Manual climate control operation .......................... 4-7

Airflow mode selection........................................... 4-7
MAX A/C mode (for type B and C) .......................... 4-8
Temperature control ............................................... 4-9
Fan speed control .................................................. 4-9
Air conditioner control ........................................... 4-9
Air inlet selection................................................... 4-9
To turn off the climate control system ................... 4-10

Defrosting.............................................................. 4-10
Operating tips for heater and air conditioner .....4-11

Cleaning ventilation grille ..................................... 4-11
Efficient cooling after parking in direct sunlight .... 4-11
Lubrication oil circulation in the refrigerant

circuit................................................................ 4-11

Checking air conditioning system before summer

season .............................................................. 4-11

Cooling and dehumidifying in high humidity and

low temperature weather conditions................... 4-11

Air conditioner compressor shut-off when engine

is heavily loaded................................................ 4-11

Refrigerant for your climate control system .......... 4-12

Air filtration system.............................................. 4-12

Replacing a cabin air filter .................................... 4-12

Climate control

(242,1)

北米Model "A1350BE-A" EDITED: 2018/ 4/ 20

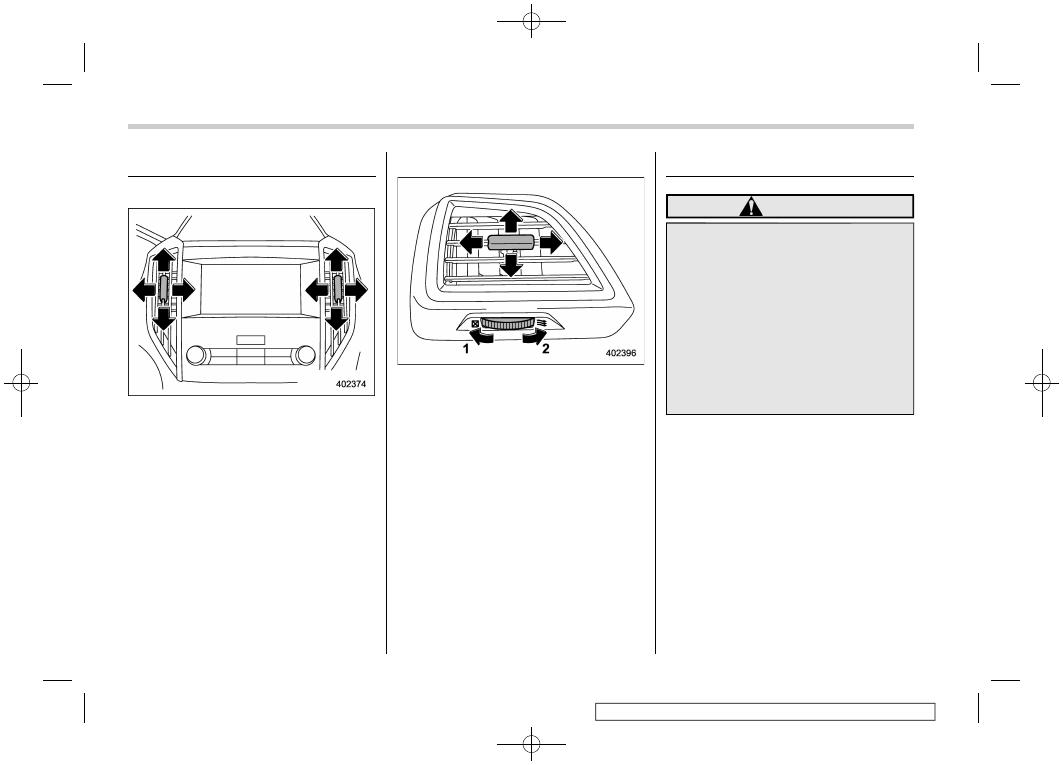

Ventilator control

Center ventilators

To adjust the airflow direction, move the
tab. To close the ventilator, move the tab all
the way down.

Side ventilators

Side ventilators
1)

Open

To adjust the flow direction, move the tab.

Climate control panel

WARNING

The cooling function operates

only when the engine is running.

Do not leave children or adults

who would normally require the
support of others alone in your
vehicle. Pets should not be left
alone either. On hot, sunny days,
temperatures in a closed vehicle
could quickly become high en-
ough to cause severe or possibly
fatal injuries to people or ani-
mals.

Climate control/Ventilator control

4-2

(243,1)

北米Model "A1350BE-A" EDITED: 2018/ 4/ 20

Type A

Airflow mode selection dial (Refer to
“Airflow mode selection” F4-7.)

Fan speed control dial (Refer to “Fan
speed control” F4-9.)

Temperature control dial (Refer to “Tem-
perature control” F4-9.)

Air conditioner button (Refer to “Air
conditioner control” F4-9.)

Air inlet selection button (Refer to “Air
inlet selection” F4-9.)

Rear window defogger button and mirror
heater button (if equipped) (Refer to
“Defogger and deicer” F3-88.)

– CONTINUED –

Climate control/Climate control panel

4-3

(244,1)

北米Model "A1350BE-A" EDITED: 2018/ 4/ 20

Type B

Temperature control dial (Refer to “Auto-
matic climate control operation (type B
and C)” F4-6 and/or “Temperature con-
trol” F4-9.)

AUTO button (Refer to “Automatic cli-
mate control operation (type B and C)”
F4-6.)

Air conditioner button (Refer to “Air
conditioner control” F4-9.)

Air inlet selection button (Refer to “Air
inlet selection” F4-9.)

MAX A/C button (Refer to “MAX A/C
mode (for type B and C)” F4-8.)

Defroster button (Refer to “Defrosting”
F4-10.)

Rear window defogger button and mirror
heater button (if equipped) (Refer to
“Defogger and deicer” F3-88.)

Airflow mode selection dial (Refer to
“Airflow mode selection” F4-7.)

Fan speed control dial (Refer to “Fan
speed control” F4-9.)

10) ON/OFF button (Refer to “Automatic

climate control operation (type B and
C)” F4-6.)

NOTE

The climate control screen is displayed
on the multi-function display (color
LCD). Refer to “Climate control screen”
F3-49.

Climate control/Climate control panel

4-4

(245,1)

北米Model "A1350BE-A" EDITED: 2018/ 4/ 20

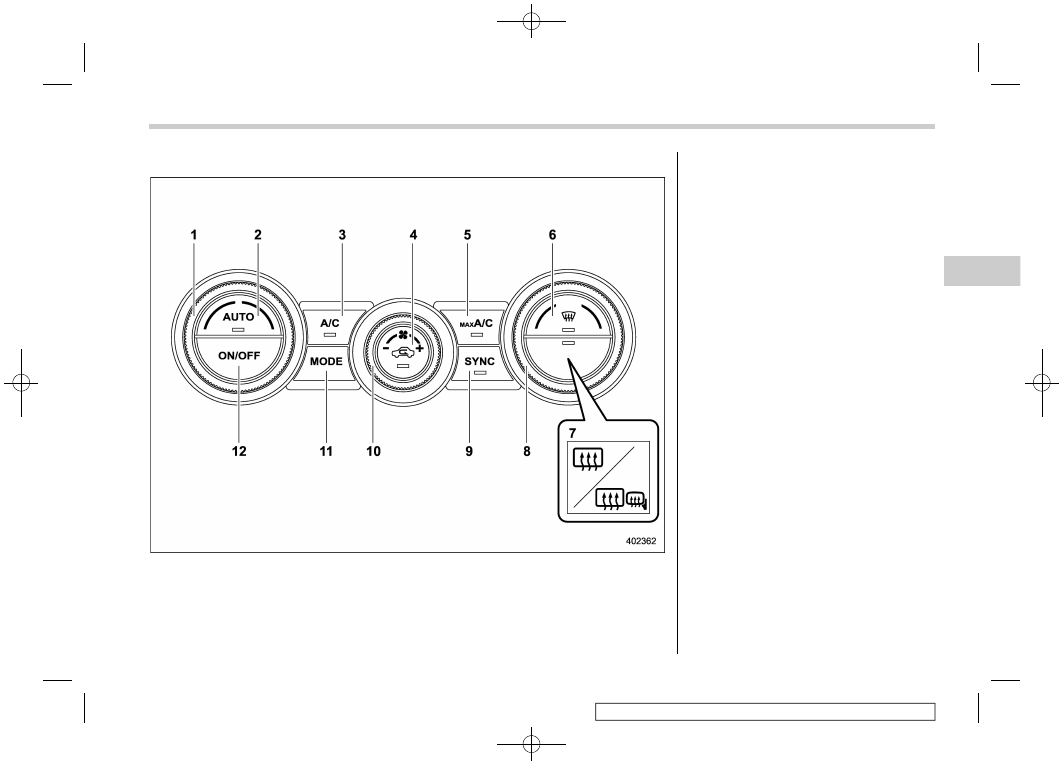

Type C

Driver’s side temperature control dial
(Refer to “Automatic climate control
operation (type B and C)” F4-6 and/or
“Temperature control” F4-9.)

AUTO button (Refer to “Automatic cli-
mate control operation (type B and C)”
F4-6.)

Air conditioner button (Refer to “Air
conditioner control” F4-9.)

Air inlet selection button (Refer to “Air
inlet selection” F4-9.)

MAX A/C button (Refer to “MAX A/C
mode (for type B and C)” F4-8.)

Defroster button (Refer to “Defrosting”
F4-10.)

Rear window defogger button and mirror
heater button (if equipped) (Refer to
“Defogger and deicer” F3-88.)

Passenger’s side temperature control
dial (Refer to “Temperature control” F4-
9.)

SYNC button (Refer to “SYNC mode
(type C)” F4-9.)

10) Fan speed control dial (Refer to “Fan

speed control” F4-9.)

11) Airflow mode selection button (Refer to

“Airflow mode selection” F4-7.)

12) ON/OFF button (Refer to “Automatic

climate control operation (type B and
C)” F4-6.)

– CONTINUED –

Climate control/Climate control panel

4-5

(246,1)

北米Model "A1350BE-A" EDITED: 2018/ 4/ 20

NOTE

The climate control screen is displayed
on the multi-function display (color
LCD). Refer to “Climate control screen”
F3-49.

Automatic climate control
operation (type B and C)

When this mode is selected, the fan speed,
airflow distribution, air-inlet control, and air
conditioner compressor operation are
automatically controlled. To activate this
mode, perform the following.
1. Press the AUTO button. The indicator
light “FULL AUTO” on the multi-function
display (color LCD) illuminates.
2. Set the preferred temperature using
the temperature control dial.

NOTE

Operate the automatic climate con-

trol system when the engine is running.
.

Even when cooling is not necessary,

the air conditioner compressor will
automatically turn on if the temperature
is set much lower than the current
outlet air temperature. Even in this
case, the “A/C” indicator light on the
control panel illuminates.
.

The controllable temperature range

may vary depending on the regional
specifications of the vehicle.
.

If you operate any of the buttons on

the control panel other than the ON/
OFF button, rear window defogger
button, SYNC button and temperature
control dial(s) during FULL AUTO mode

operation, the “FULL” indicator light on
the multi-function display (color LCD)
will turn off and the “AUTO” indicator
light will remain illuminated. You can
then manually control the system as
desired using the button you operated.
To change the system back to the FULL
AUTO mode, press the AUTO button.

To turn off the climate control system,
press the ON/OFF button. Then the air
inlet selection will be set to the following.
.

When the air inlet selection is set to

auto mode: Outside air circulation
.

When the air inlet selection is set to

manual mode: No change

Climate control/Automatic climate control operation (type B and C)

4-6

Subaru Impreza (2019 year). Instruction - part 15
