Information screen

Press the INFO button on the steering wheel to switch the item displayed on the information screen.

Content

Description

Page

Electric components operating status screen

Displays the operating status of the electric components and equipment.

3-52

Prevention safety screen

Displays the status of your vehicle.

3-52

EyeSight screen*

Displays the operating status of EyeSight.

3-53

Favorite screen

Displays up to 3 optional items.

3-53

Weather information screen*

Displays weather information.

3-54

Traffic information*

/Navigation*

screen

Displays information linked with the navigation system.

3-54

Audio screen

Displays audio system information.

3-55

Fuel consumption screen

Displays fuel consumption information.

3-55

Clock screen

Displays the clock.

3-55

Guidance screen

Moves to the setting screen.

3-56

*1: Models with the EyeSight system
*2: Models with SiriusXM Satellite Radio
*3: Models with navigation system

– CONTINUED –

Instruments and controls/Multi-function display (color LCD)

3-51

(200,1)

北米Model "A1350BE-A" EDITED: 2018/ 4/ 20

Electric components operation
screen

Lane Departure/Sway Warning indica-
tor*

Pre-Collision Braking System indicator*

Stop lights

Reverse Automatic Braking (RAB)*

BSD/RCTA*

Headlights*

Front fog lights*

Turn signals

Auto on/off headlights*

*1: If equipped
*2: The daytime running lights are not dis-
played.

This screen displays the electric compo-
nents operation status of the vehicle.

NOTE

Indicators do not display for func-

tions that are not equipped to the
vehicle.
.

The indicators of functions that are

not operating are displayed in grey.
.

For models with auto on/off head-

lights; If the multi-function display
(color LCD) unit, battery, or fuse is
removed, the Auto on/off headlights
indicator turns off on the multi-function
display (color LCD). After reinstalling
the removed multi-function display
(color LCD) unit, battery, or fuse to the
vehicle, the Auto on/off headlights
indicator will appear once more if the
light control switch is turned to the
“AUTO” position.
.

The exterior lights indicators on the

screen still illuminate even when the
bulbs are burned out. The indicators do
not notify the driver that the bulbs are
burned out.

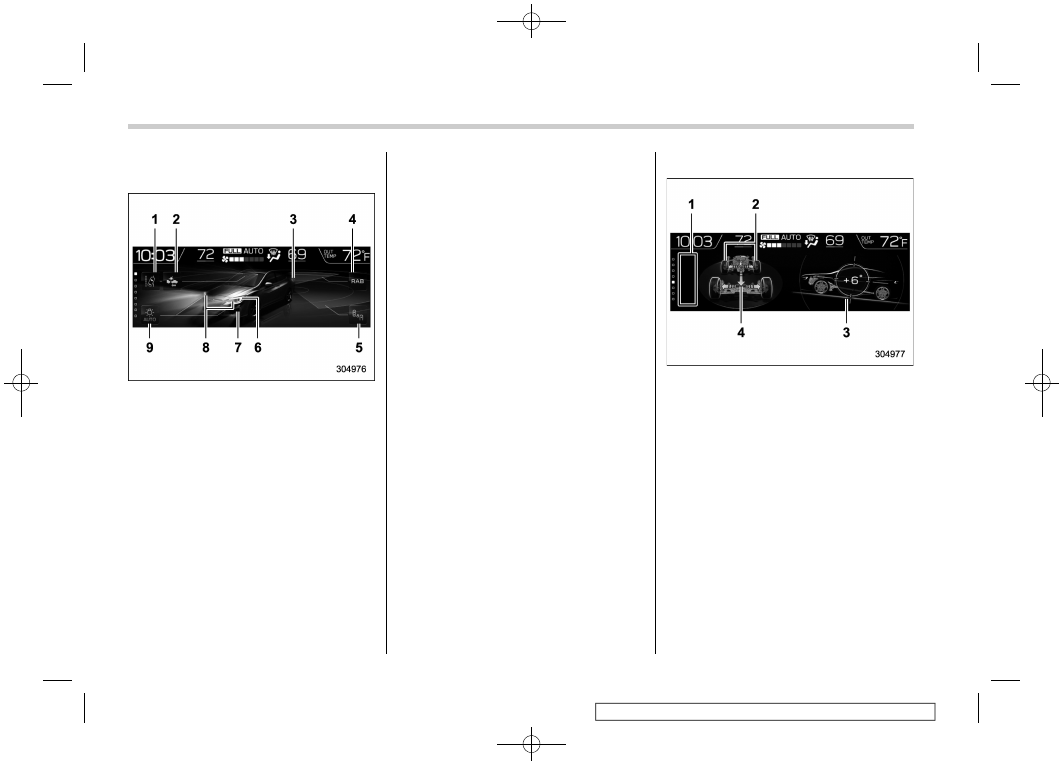

Prevention safety screen

Telltale screen

Steering angle

Vehicle posture

Running condition

This screen displays the driving status of
the vehicle and the operation status func-
tions. For functions that are operating, the
indicator will illuminate or flash.

NOTE

The vehicle posture indication may
differ from the actual vehicle posture.

Instruments and controls/Multi-function display (color LCD)

3-52

(201,1)

北米Model "A1350BE-A" EDITED: 2018/ 4/ 20

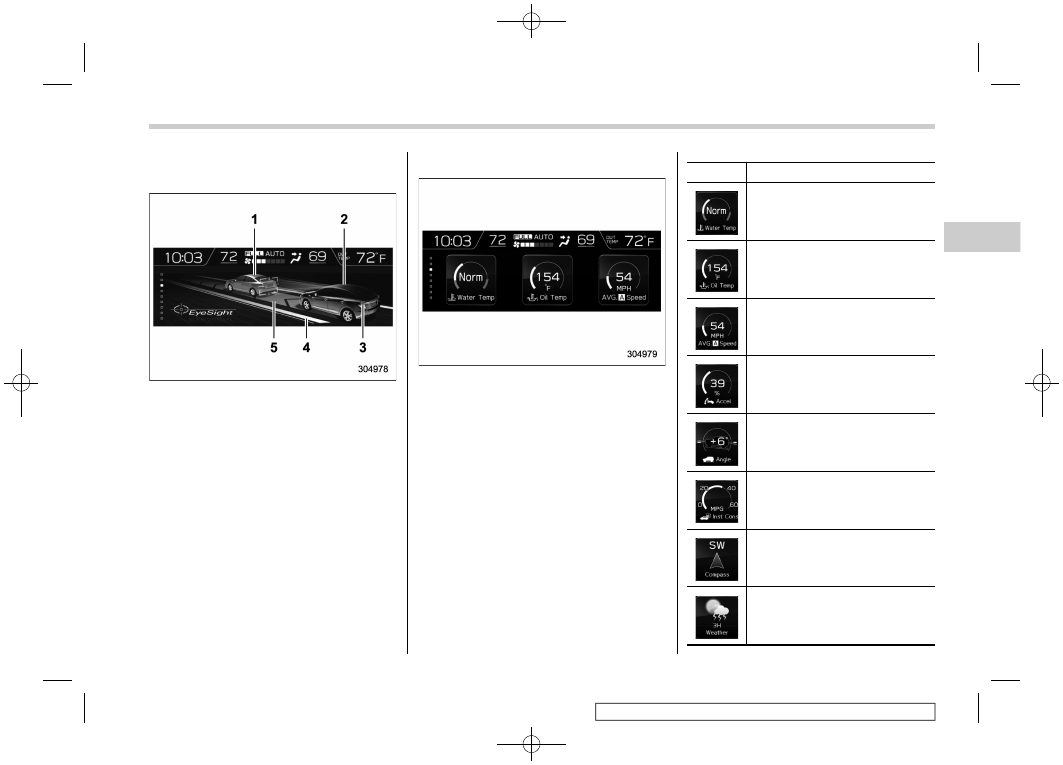

EyeSight screen (models with the
EyeSight system)

Lead vehicle indicator

Your own vehicle indicator

Stop lights

Road line indicator

Lane indicator

This screen displays the status of the
EyeSight system. The lead vehicle indica-
tor moves forward and backward depend-
ing on the distance with the vehicle in front.
For details, refer to the Owner’s Manual
supplement for the EyeSight system.

Favorite screen

Favorite screen (display example)

This screen displays up to three optional
pieces of information that can be selected
from the following items.

Item

Details

The engine coolant temperature is
displayed.

The engine oil temperature is
displayed.

The average vehicle speed is
displayed.

The accelerator opening ratio is
displayed.

The vehicle posture is displayed.

The current rate of fuel consump-
tion is displayed.

The direction of the vehicle is
displayed.*

The weather information is dis-
played.*

– CONTINUED –

Instruments and controls/Multi-function display (color LCD)

3-53

(202,1)

北米Model "A1350BE-A" EDITED: 2018/ 4/ 20

Item

Details

The posted speed limit of the road
you are currently driving on is
displayed.*

The calendar is displayed.

Nothing is displayed.

*1: If equipped
*2: Models with SiriusXM Satellite Radio

NOTE

Some displayed items may be not
displayed depending on the model
and specifications.

The items shown in the favorite screen can
be changed. For details, refer to “Favorite
setting” F3-59.

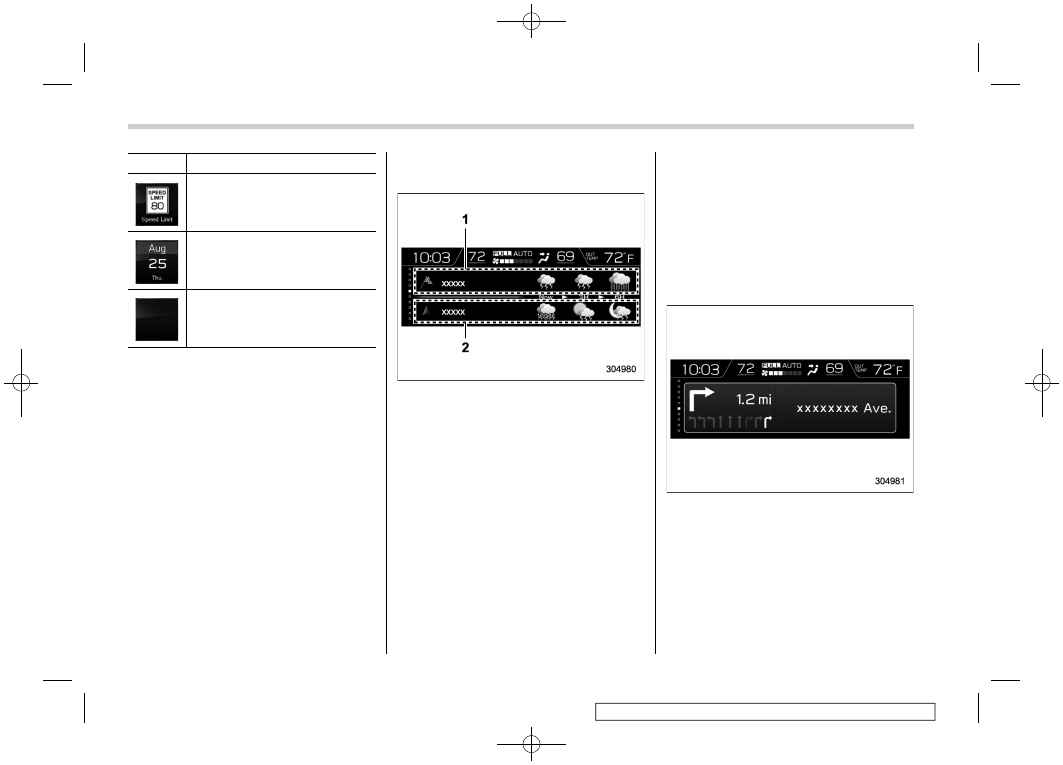

Weather information screen (if
equipped)

Weather information for the destination.*

Weather information for the current loca-
tion.

*: Only when a destination is set in the
navigation system

The weather information is displayed on
the screen.

NOTE

When all of the following conditions

are satisfied, weather information is
displayed.

– The vehicle is equipped with an
audio and navigation system for
SiriusXM satellite radio.
– You have a current SiriusXM
satellite radio subscription.

The weather forecast for the set

destination remains displayed until a
new destination is set or until you reach
the destination.
.

Depending on the reception timing

of XM, the display of weather informa-
tion may be delayed.

Navigation screen (models with
navigation system)

The navigation system information to the
destination is displayed on the screen.

NOTE

When a destination is not set in the
navigation system, the compass orien-
tation, name, route sign and speed limit
of the road the vehicle is traveling on
remain displayed on the screen.

Instruments and controls/Multi-function display (color LCD)

3-54

(203,1)

北米Model "A1350BE-A" EDITED: 2018/ 4/ 20

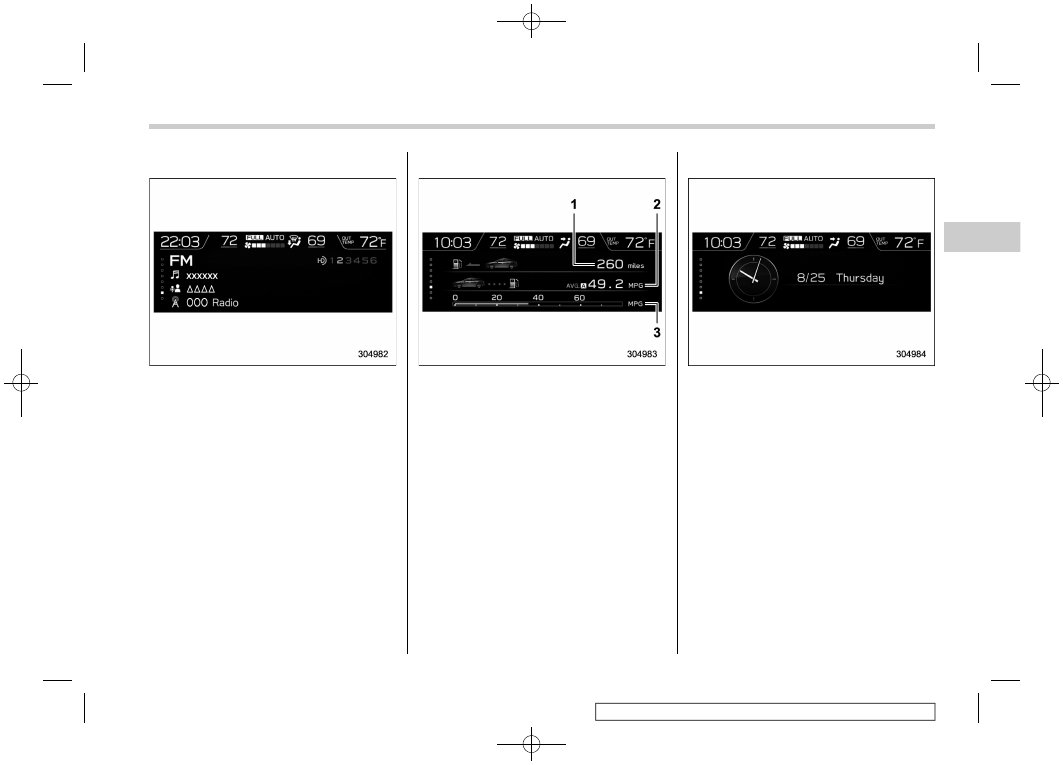

Audio screen

The screen of the currently selected audio
source is displayed.
For details about how to use the audio set,
refer to the separate navigation/audio
Owner’s Manual.

Fuel consumption screen

Driving range on remaining fuel

Average fuel consumption corresponding
to the driving distance of each trip meter

Current fuel consumption

The fuel consumption information is dis-
played on the screen.

NOTE

The driving range on remaining fuel is
only a guide. The indicated value may
differ from the actual driving range on
remaining fuel, so you must immedi-
ately fill the tank when the low fuel
warning light illuminates.

Clock/date screen

The time and date are displayed.
You can adjust the time and date. For
details, refer to “Clock” F3-61.

– CONTINUED –

Instruments and controls/Multi-function display (color LCD)

3-55

(204,1)

北米Model "A1350BE-A" EDITED: 2018/ 4/ 20

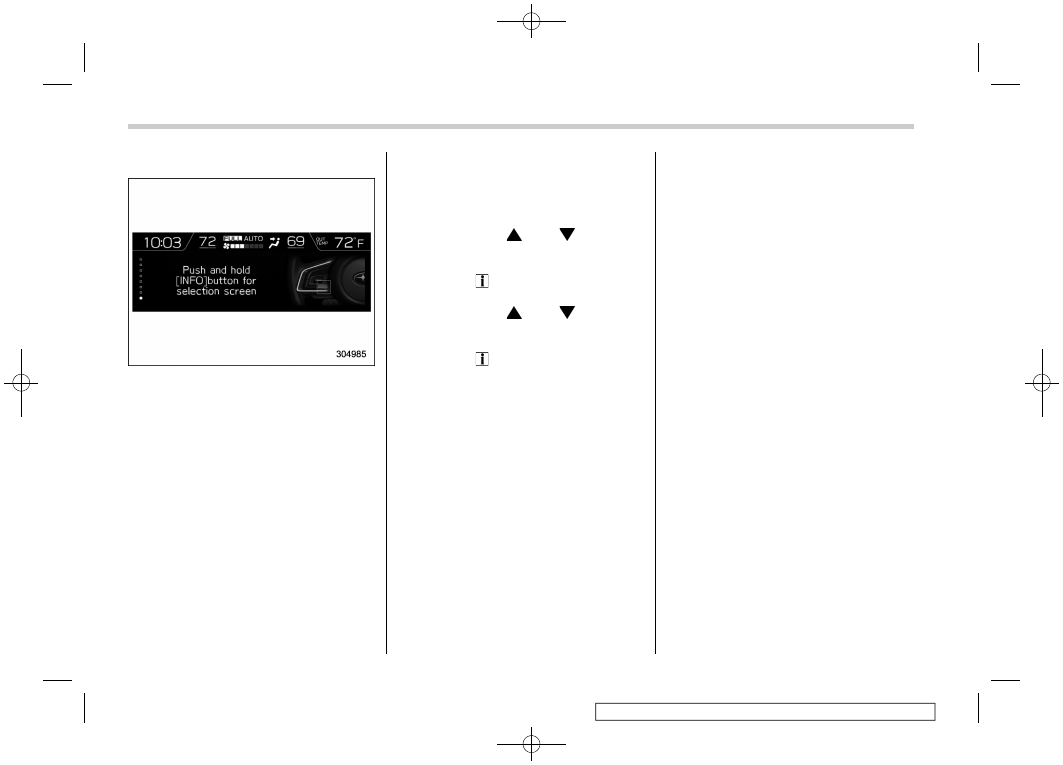

Guidance screen

When the INFO button on the steering
wheel is pressed and held on this screen,
the setting screen can be displayed.
For details, refer to “Setting screen” F3-
56.

NOTE

When the combination meter display
(color LCD) is displaying the menu
screen entering screen, the system will
not move to the setting screen even if
the INFO button is pressed and held.

Setting screen

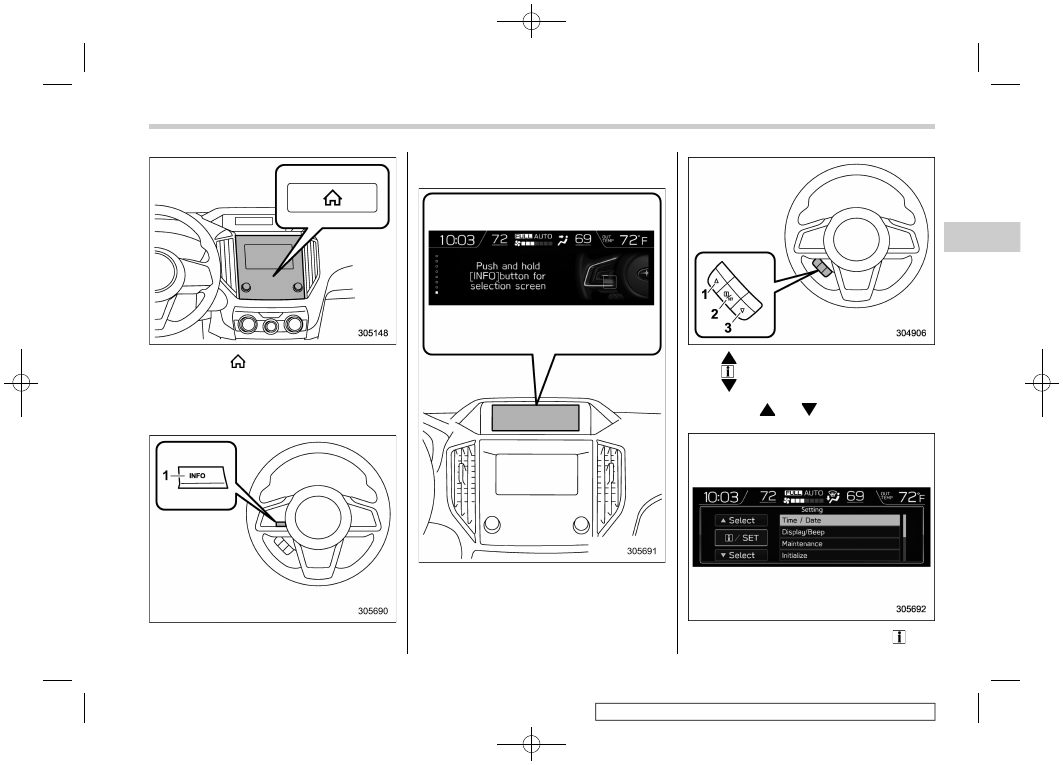

1. Press and hold the INFO button on the
guidance screen. The top menu is dis-
played.
2. Operate the “

” or “

” switch to

select the preferred menu from the top
menu.
3. Pull the “

/SET” switch to enter the

selected menu.
4. Operate the “

” or “

” switch to

select the preferred menu from the 2nd
menu.
5. Pull the “

/SET” switch to enter the

selected menu.

Instruments and controls/Multi-function display (color LCD)

3-56

(205,1)

北米Model "A1350BE-A" EDITED: 2018/ 4/ 20

The menu list is as follows.

Top menu

2nd menu

Description

Page

Time/Date

Time/Date*

Set and adjust the time and date. 12h or 24h format can be selected.

3-58

Birthday

Set a birthday.

3-58

Anniversary

Set an anniversary day.

3-58

Go Back

Return to the 1st menu.

—

Display/Beep

Screen Off*

Turn the screen on or off.

Yes or No

3-58

Favorite

Set and customize the triple meter.

3-59

Bypass Screen

Set the bypass screen for each item.

On or Off

3-59

Beep

Adjust the beep sound volume.

High, Low or Off

3-59

Go Back

Return to the 1st menu.

—

Maintenance

Engine Oil

Set and adjust the oil maintenance notification date.

3-60

Oil Filter

Set and adjust the oil filter maintenance notification date.

3-60

Tires

Set and adjust the tire maintenance notification date.

3-60

Maintenance Schedule

Set and adjust the vehicle maintenance notification date.

3-60

ON/OFF

Turn on or off the self-check screen that is
activated when the ignition switch is turned to the
“ON” position.

On or Off

3-60

Clear All Settings

Clear all settings for maintenance items.

Yes or No

3-60

Go Back

Return to the 1st menu.

—

Initialize

—

Reset all settings to the default settings.

Yes or No

3-61

Go Back

—

Return to the setting screen.

—

*: You can also set this while driving.

– CONTINUED –

Instruments and controls/Multi-function display (color LCD)

3-57

(206,1)

北米Model "A1350BE-A" EDITED: 2018/ 4/ 20

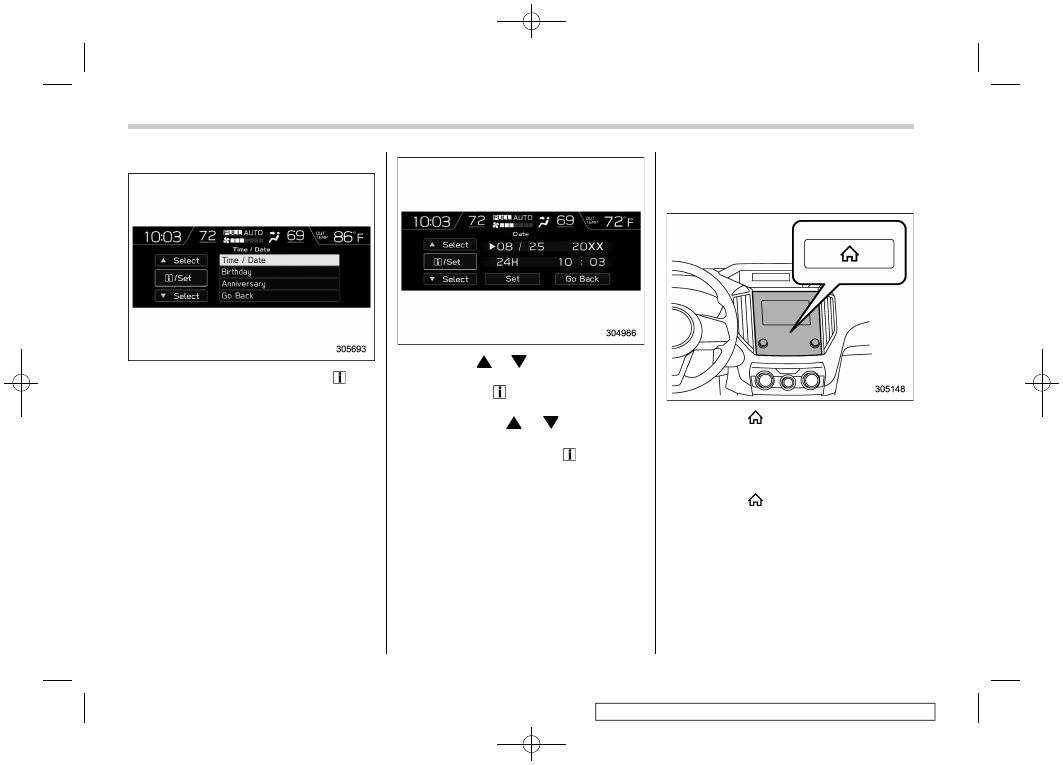

Date and time settings

You can set the date, time and 12h or 24h
format settings.

Current date and time setting

For details about clock setting, refer to
“Clock” F3-61.

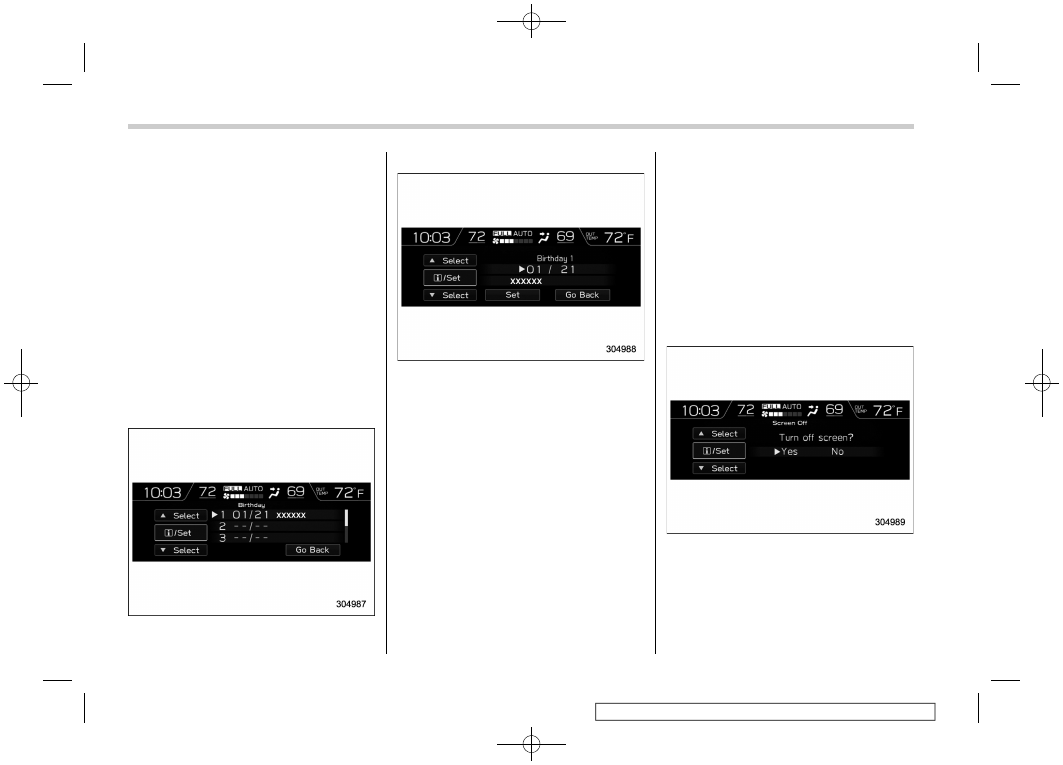

Birthday setting

If a birthday or anniversary is approaching,
a message will be displayed when the
ignition switch is turned to the “ON”
position. This function can be set to on or
off. For details, refer to “Bypass screen
setting” F3-59.
1. Select “Birthday” from the 2nd menu in
the setting screen. Refer to “Setting
screen” F3-56.

2. Select from the list the number that you

want to register.

3. Enter the date and the text by using the
control switches.
4. Select “Set” to exit settings. Select “Go
Back” to return to the previous screen
without applying the setting changes.

NOTE

You can store a maximum of 5 birth-
days.

Anniversary setting

1. The procedure for setting an anniver-
sary is the same as “Birthday setting” F3-
58, except that in step 1 “Anniversary” is
selected.

NOTE

You can store a maximum of 5 anniver-
saries.

Display/Beep settings

You can set the display settings and
volume settings.

Screen OFF setting

1. Select “Screen Off” from the 2nd menu
in setting screen. Refer to “Setting screen”
F3-56.

2. Select “Yes” to turn off the screen.
Select “No” to return to the previous
screen.

Restoring the screen
When the INFO button is operated after

Instruments and controls/Multi-function display (color LCD)

3-58

(207,1)

北米Model "A1350BE-A" EDITED: 2018/ 4/ 20

the ignition switch is turned to the “ON” or
“ACC” position, the screen will be restored.
The screen will be restored with the basic
screen that was displayed when the
screen was turned off.

NOTE

While the screen is off, the screen
switches to the climate control screen
only when the climate control system is
operated.

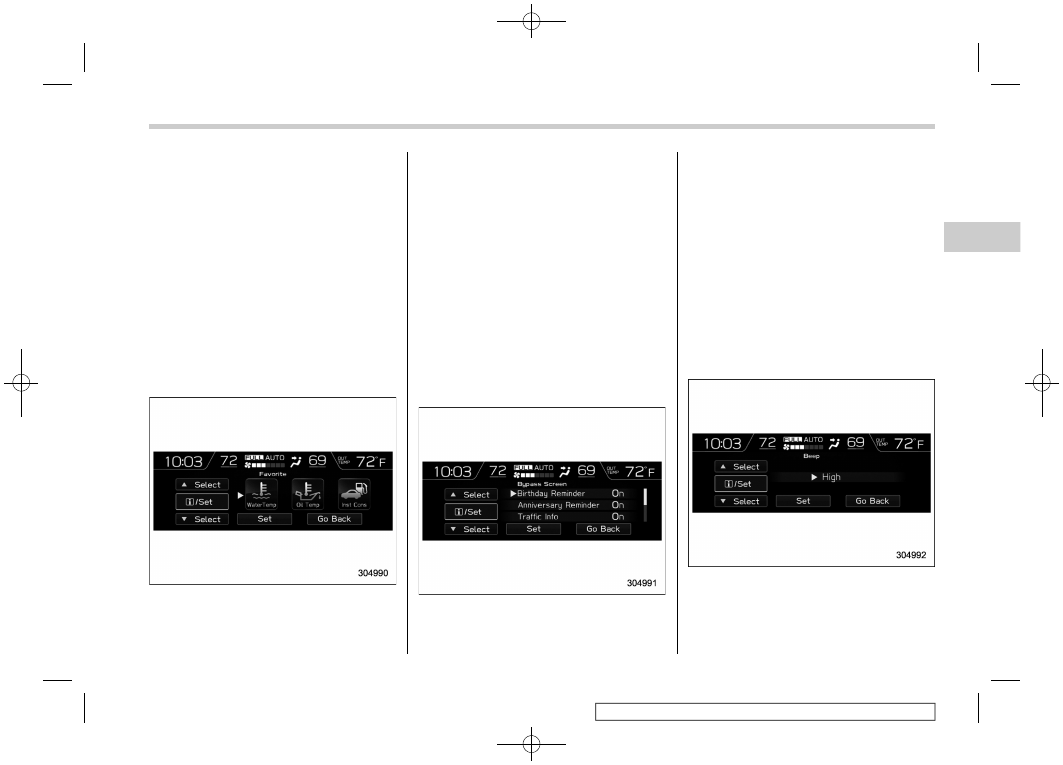

Favorite setting

1. Select the “Favorite” from the 2nd
menu in setting screen. Refer to “Setting
screen” F3-56.

2. Set the desired items by using the
control switches. For details about items,
refer to “Favorite screen” F3-53.

3. Select “Set” to exit settings. Select “Go
Back” to return to the previous screen
without applying the setting changes.

NOTE

You can display a maximum of the 3

items.
.

The same item cannot be selected

for the left, center or right location.
.

Weather information for 3 hours

later or 6 hours later can be displayed.

Bypass screen setting

1. Select “Bypass Screen” from the 2nd
menu in the setting screen. Refer to
“Setting screen” F3-56.

2. Select “On” or “Off” to turn the display
of items on or off by using the control

switches.
3. Select “Set” to exit settings. Select “Go
Back” to return to the previous screen
without applying the setting changes.

NOTE

Traffic information setting is only dis-
played for the audio unit with SiriusXM
satellite radio.

Beep setting

1. Select “Beep” from the 2nd menu in the
setting screen. Refer to “Setting screen”
F3-56.

2. Set the beep volume by using the
control switches.
3. Select “Set” to exit settings. Select “Go
Back” to return to the previous screen

– CONTINUED –

Instruments and controls/Multi-function display (color LCD)

3-59

(208,1)

北米Model "A1350BE-A" EDITED: 2018/ 4/ 20

without applying the setting changes.

Maintenance settings

You can set maintenance reminders.

Engine oil setting

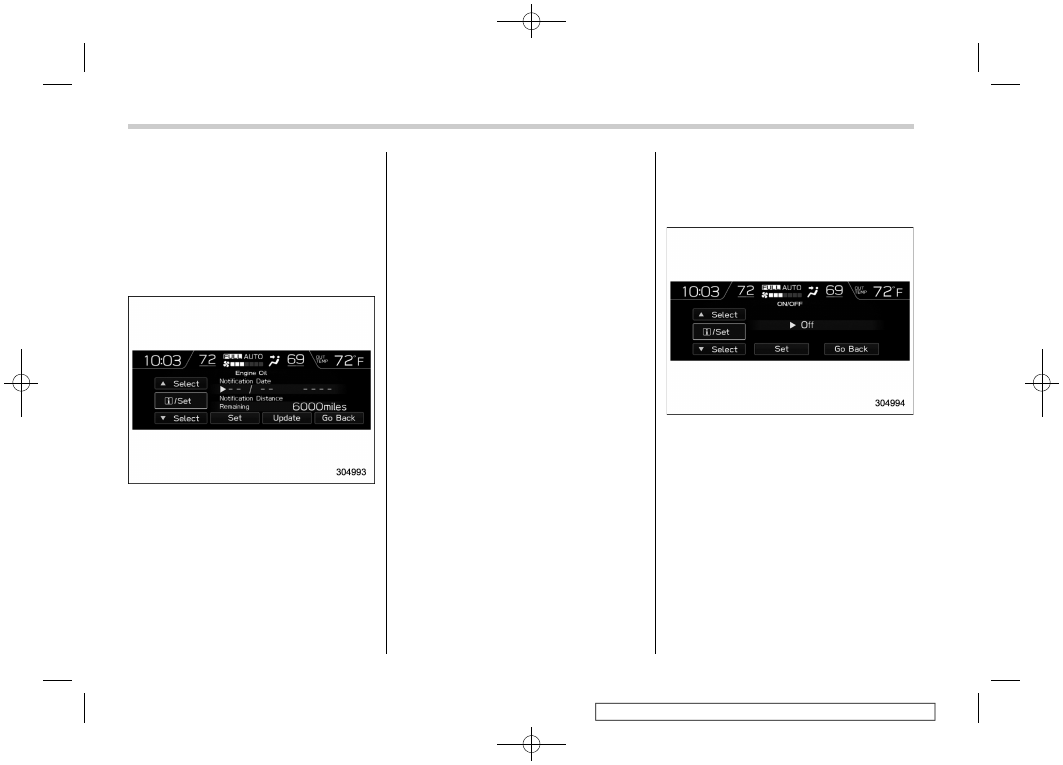

1. Select “Engine Oil” from the 2nd menu
in the setting screen. Refer to “Setting
screen” F3-56.

2. Set the date and distance of the
reminder by using the control switches.
3. Select “Set” to exit settings. Select
“Update” to change the notification dis-
tance to the default value. Select “Go
Back” to return to the previous screen
without applying the setting changes.

NOTE

The reminder will be displayed by

either date or distance in accordance
with the setting.
.

Even when either “Day” or “Dis-

tance” are displayed as “_ _” a pop-up
screen will appear.
.

The reminder will be displayed until

either of the following conditions is
satisfied.

– The period of time passed after
the registered notification date is 15
days or more.
– The total distance driven after the
registered notification distance is
approximately 311 miles (500 km) or
more.

Oil filter setting

The setting procedure is the same as
“Engine oil setting” F3-60, but select the
“Oil Filter” item in step 1.

Tires setting

The setting procedure is the same as
“Engine oil setting” F3-60, but select the
“Tires” item in step 1.

Maintenance schedule setting

The setting procedure is the same as
“Engine oil setting” F3-60, but select the
“Maintenance Schedule” item in step 1.

On/Off setting

1. Select “On/Off” from the 2nd menu on
the setting screen. Refer to “Setting
screen” F3-56.

2. Select “On” or “Off” to turn the opening
screen on or off by using the control
switches.
3. Select “Set” to exit settings. Select “Go
Back” to return to the previous screen
without applying the setting changes.

Clear setting

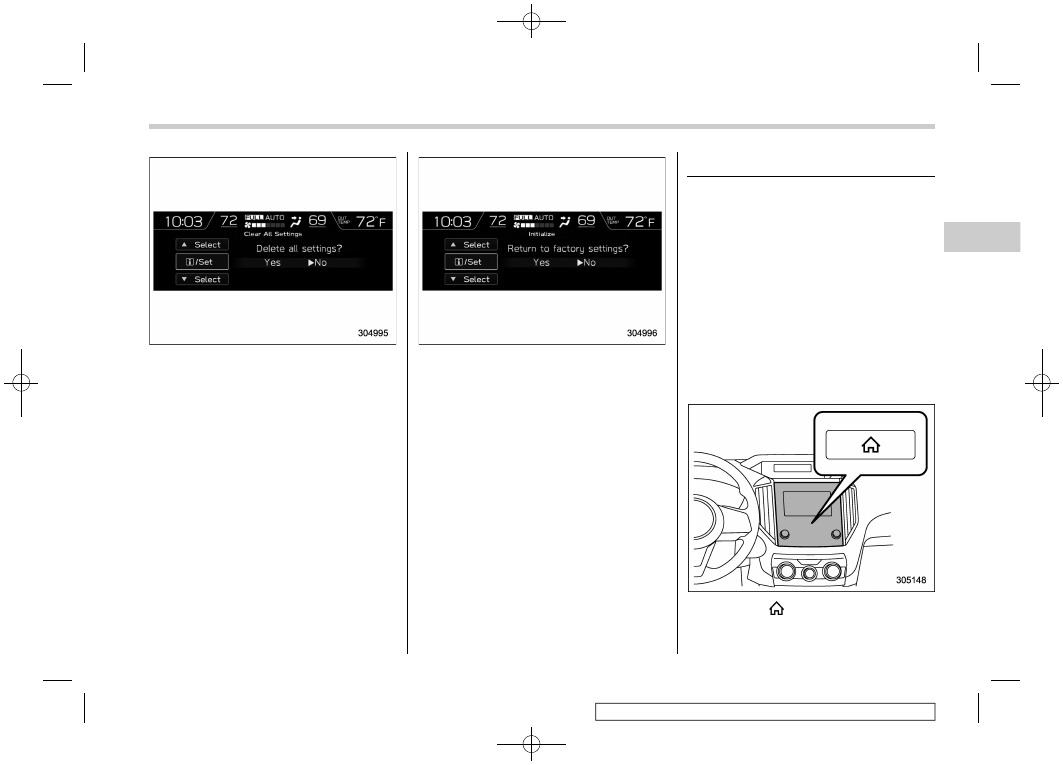

1. Select “Clear All Settings” from the 2nd
menu on the setting screen. Refer to
“Setting screen” F3-56.

Instruments and controls/Multi-function display (color LCD)

3-60

(209,1)

北米Model "A1350BE-A" EDITED: 2018/ 4/ 20

2. Select “Yes” or “No” by using the
control switches.

Initialize

You can initialize the items that have been
set to your preference.
1. Select “Initialize” from the 2nd menu on
the setting screen. Refer to “Setting
screen” F3-56.

2. Select “Yes” or “No” by using the
control switches.

How to get the source code
using the open source

Free/Open Source Software Information

This product contains Free/Open Source
Software (FOSS).
The license information and/or the source
code of such FOSS can be found at the
following URL.

http://www.globaldenso.com/en/open-
source/ivi/subaru/

Clock

For models with a SUBARU genuine
navigation and/or audio system, the clock
can be adjusted using either auto mode or
manual mode.
.

Auto mode: automatic clock adjustment

Manual mode: manual clock adjust-

ment

Setting the clock manually

Type A multi-function display (black
and white)

1. Turn the ignition switch to “ON”.

2. Press the

button.

3. Select “Settings”.

– CONTINUED –

Instruments and controls/Clock

3-61

(210,1)

北米Model "A1350BE-A" EDITED: 2018/ 4/ 20

4. Select “Vehicle”.
5. Select “Clock adjustment” and then
select “Manual”.

6. Press the “+” button or the “−” button
beside the clock.

Setting 12-hour or 24-hour dis-
play

The clock can be set to 12-hour or 24-hour
display. Perform the following procedure to
switch the display format.
1. Turn the ignition switch in the “LOCK”/
“OFF” position.
2. Press and hold the “−” button located
near the clock display for approximately 5
seconds. The clock display will then start
to flash.
3. While the clock display is flashing,
press and hold the “+” button for approxi-
mately 2 seconds. The clock format will
then change.
4. The clock display will continue to flash
for approximately 3 seconds to indicate
that the clock display has been changed.

Type B multi-function display (color
LCD)

NOTE

When the combination meter display
(color LCD) is displaying the menu
screen entering screen, the system will
not move to the selection screen even if
the “INFO” button is pressed and held.
Before adjusting the clock, be sure to
change the combination meter display
(color LCD) to a screen other than the
menu screen entering screen.

1. Turn the ignition switch to “ON”.

Instruments and controls/Clock

3-62

(211,1)

北米Model "A1350BE-A" EDITED: 2018/ 4/ 20

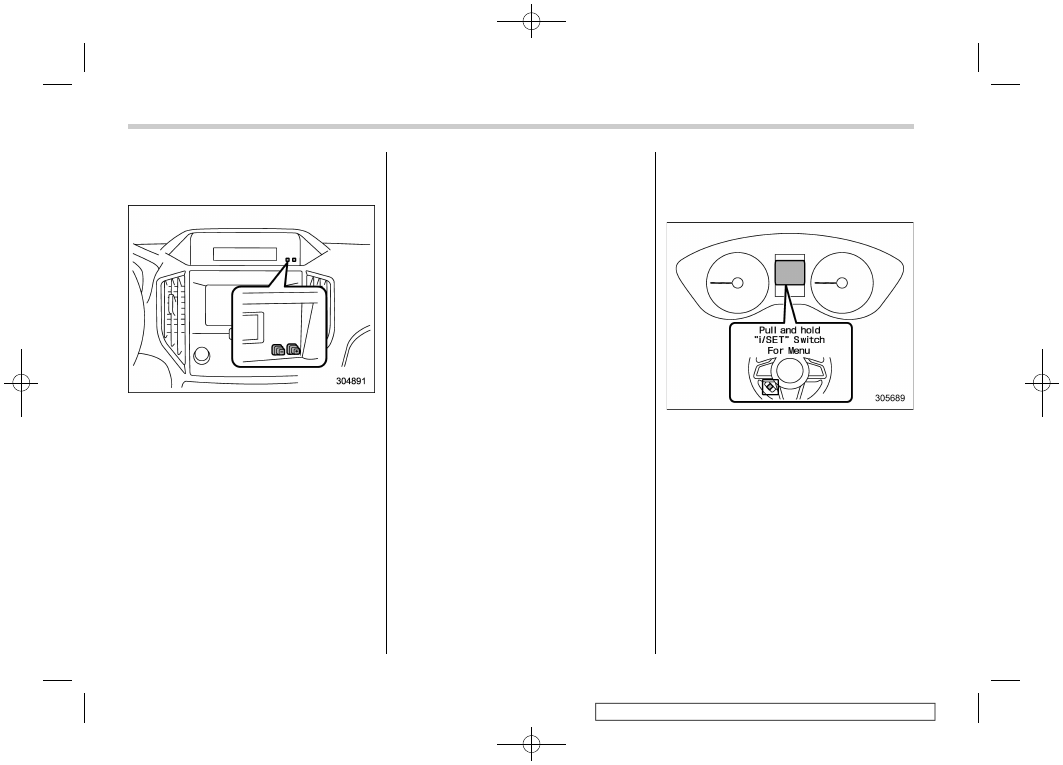

2. Press the

button.

3. Select “Settings”.
4. Select “Vehicle”.
5. Select “Clock adjustment” and then
select “Manual”.

“INFO” button

6. Press the “INFO” button on the steer-
ing wheel to display the guidance screen.

7. While displaying the guidance screen,
press and hold the “INFO” button on the
steering wheel. The screen goes to the
selection screen.

1)
2)

/SET

8. Pull the “

” or “

” switch to select the

item.

9. Select “Time/Date” and pull the

/SET

– CONTINUED –

Instruments and controls/Clock

3-63

(212,1)

北米Model "A1350BE-A" EDITED: 2018/ 4/ 20

switch.

10. Select “Time/Date” and pull the

/SET

switch.

NOTE

If “Clock adjustment” is not in manual
mode, “Time/Date” cannot be selected.
Be sure to perform steps 2 through 5.

11. Pull the “

”, “

” switches to scroll

through to the items you can set.

(1) Use the

/ SET switch to choose

the item you would like to change.
(2) Pull the “

”, “

” switches to

adjust the items.

12. Select “Set” and pull the

/SET switch

to complete the clock setting.
Select “Go Back” to return to the previous
screen without saving settings.

NOTE

The Birthday/Anniversary and mainte-
nance reminder system function are
based on the time and date on the
multifunction display (color LCD).

Setting the clock automati-
cally

1. Turn the ignition switch to “ON”.

2. Press the

button.

3. Select “Settings”.
4. Select “Vehicle”.
5. Select “Clock adjustment” and then
select “Auto”.
6. Press the

button again to complete

the setting.

Models with navigation system

The clock will be set automatically where a
GPS signal is available.

Instruments and controls/Clock

3-64

(213,1)

北米Model "A1350BE-A" EDITED: 2018/ 4/ 20

Models without navigation system

The clock will be set and adjusted auto-
matically when a smartphone is connected
via Bluetooth

for transferring phonebook

data.
1. Register the smartphone to the audio
system. For details, refer to “Bluetooth
SETTINGS” in the supplemental Owner’s
Manual for the audio/navigation system.
2. Transfer phonebook data to the sys-
tem. For details, refer to “Bluetooth SET-
TINGS” in the supplemental Owner’s
Manual for the audio/navigation system.
The clock will be adjusted automatically.

NOTE

Depending on the model of smart-
phone, the settings of the connected
smartphone may need to be changed.
(ex: For iOS or other models, notifica-
tion settings may need to be activated.)
For details, check the instructions on
connecting smartphones.

Regulatory information

The Bluetooth

word mark and logos are

registered trademarks owned by Bluetooth
SIG, Inc.

Light control switch

Precautions and tips

CAUTION

Use of any lights for a long period

of time while the engine is not
running can cause the battery to
discharge.

Before leaving the vehicle, make

sure that the lights are turned off.
If the vehicle is left unattended
for a long time with the lights
illuminated, the battery may be
discharged.

Models with “keyless access with
push-button start system”:
The light control switch operates when the
push-button ignition switch is in the “ACC”
or “ON” position.
Regardless of the position of the light
control switch, the illuminated lights are
turned off when the push-button ignition
switch is turned off.

Models without “keyless access with
push-button start system”:
The light control switch operates when the
key is inserted in the ignition switch.
Regardless of the position of the light

control switch, the illuminated lights are
turned off when the key is removed from
the ignition switch.

NOTE

The light control switch can be oper-
ated (except auto on/off headlights),
even under the following conditions.
.

when the push-button ignition

switch is turned off (models with “key-
less access with push-button start
system”)
.

when the key is not inserted into the

ignition switch (models without “key-
less access with push-button start
system”)

When opening the driver’s door with
the headlights illuminated under such
conditions, the chirp sound will inform
the driver that the lights are illuminated.

– CONTINUED –

Instruments and controls/Light control switch

3-65

(214,1)

北米Model "A1350BE-A" EDITED: 2018/ 4/ 20

Headlights

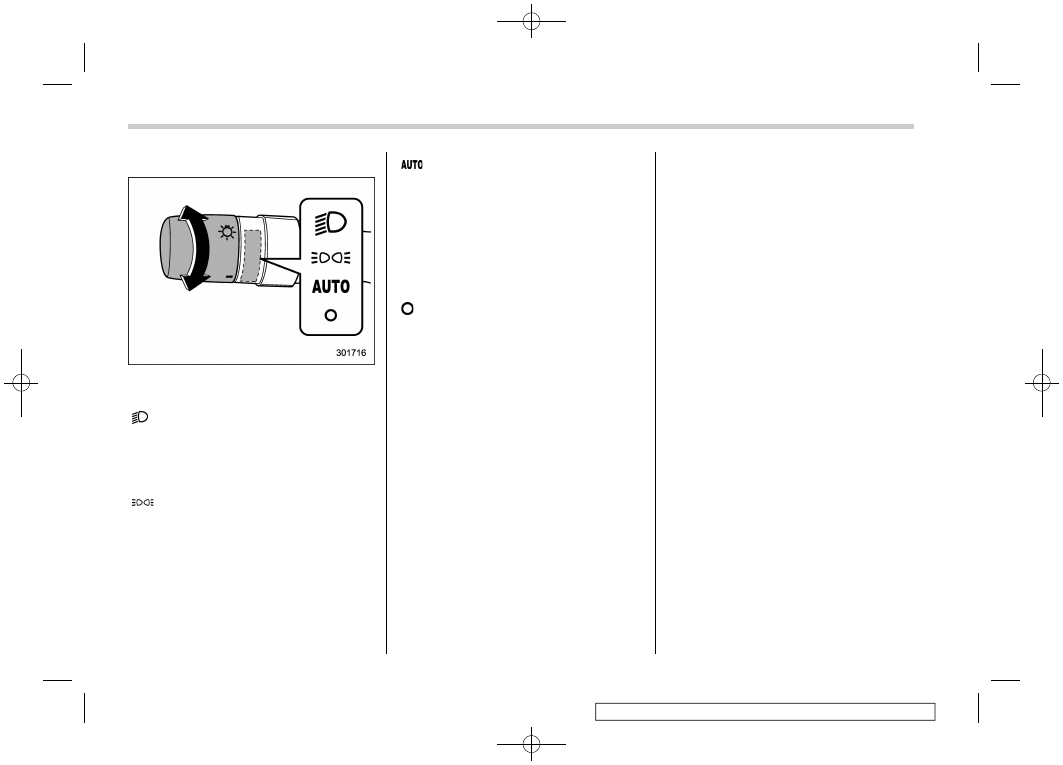

To turn on the headlights, turn the knob on
the end of the turn signal lever.

“

” position

Instrument panel illumination, headlights,
parking lights, front side marker lights, rear
side marker lights, tail lights and license
plate lights are on.

“

” position

Instrument panel illumination, parking
lights, front side marker lights, rear side
marker lights, tail lights and license plate
lights are on.

“

” position: auto on/off headlights (if

equipped)
When the ignition switch is in the “ON”
position, the instrument panel illumination,
headlights, parking lights, front side mar-
ker lights, rear side marker lights, tail lights
and license plate lights are automatically
on or off depending on the level of the
ambient light.

“ ” position
The headlights are all off.

NOTE

The sensitivity of the auto on/off head-
lights can be changed by a SUBARU
dealer. Consult your SUBARU dealer
for details. Also, for models with a
combination meter display (color
LCD), the setting can be changed using
the display. For details, refer to “Vehicle
Setting” F3-40.

Auto-on/off wiper-linked headlights
(models with auto on/off headlights)

While the light control switch is in the
“AUTO” position, the headlights will auto-
matically turn on when the windshield
wipers operate several times. The head-
lights will automatically turn off when the
wipers stop.

NOTE

The ON/OFF setting of this function can
be changed by a SUBARU dealer.
Consult your SUBARU dealer for de-
tails.

Welcome lighting function (if
equipped)

The welcome lighting function turns on the
low beam headlight for smooth approach-
ing to or exiting from the vehicle at night or
in a dark place.

The function is activated while all of the
following conditions are met.
.

The light control switch is in the “AUTO”

position
.

It is dark enough to turn on the auto on/

off headlights

When approaching:
While the welcome lighting function is
activated, the low beam headlights will
automatically illuminate when unlocking
the doors and the rear gate (5-door
models) by using the remote keyless entry
system.

The low beam headlights will remain
illuminated for 30 seconds

and then turn

off. However, if any of the following
operations is done, the low beam head-

Instruments and controls/Light control switch

3-66

Subaru Impreza (2019 year). Instruction - part 13
