Basic operation

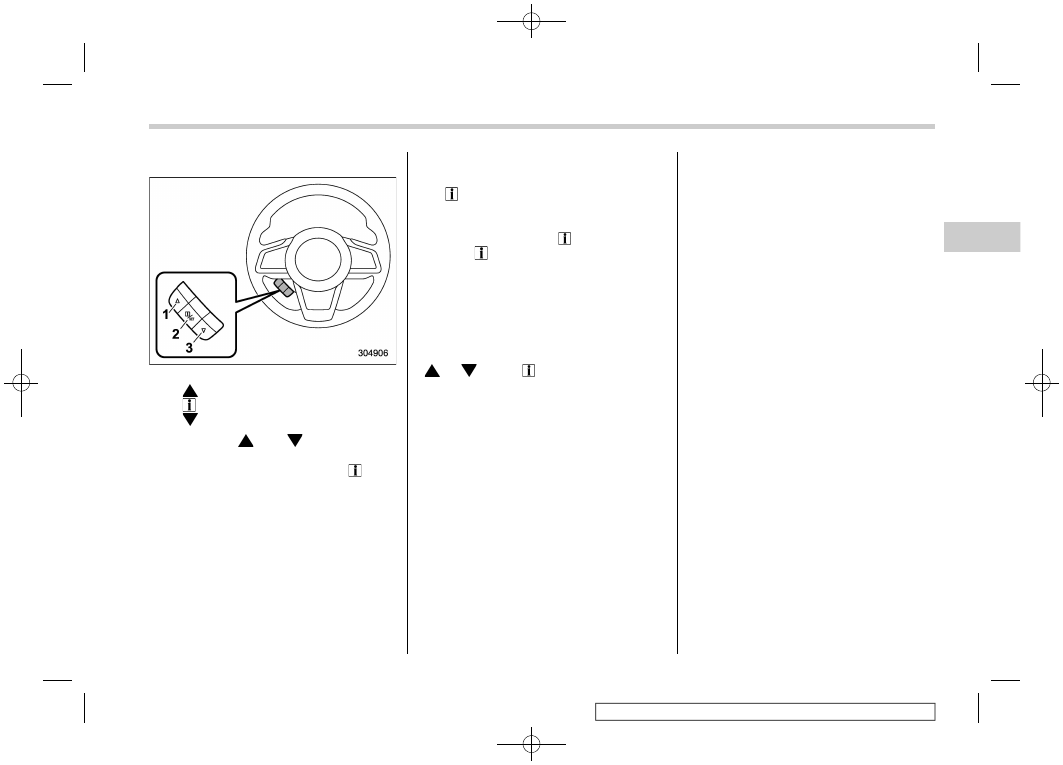

Control switch
1)

(Up)

/SET (enter)

(Down)

By operating “

” or “

” of the control

switch, the screens and selection items
can be switched. When the “

/SET”

switch is pulled toward you, the item can
be selected and set.

If there are some useful messages, such
as vehicle information, warning informa-
tion, etc., they will interrupt the current
screen, and appear on the display accom-
panied by a beep. If such a screen is
displayed, take proper action according to
the message shown on the screen.

The warning screen will return to the
original screen after a few seconds. While
the “

” information reminder is shown on

the display, it may be possible to display
the warning screen again. To recall the
message marked with “

” on the display,

pull the “ /SET” switch on the steering
wheel toward you.

NOTE

When the multi-function display (color
LCD) is set to the setting screen, the
combination meter display (color LCD)
cannot be controlled pressing on the
“

”, “

” and “

/SET” on the control

switch.

Welcome screen (opening
animation) and Good-bye
screen (ending animation)

When the driver’s door is opened and
closed after unlocking the door, the wel-
come screen (opening animation) will
appear on the combination meter display
(color LCD) for approximately 20 seconds.
When the ignition switch is turned to the
“LOCK”/“OFF” position, the combination
meter display (color LCD) gradually turns
off with showing the Good-bye screen
(ending animation).

NOTE

The welcome screen and the good-

bye screen may differ in the actual
words and appearance.
.

Once the welcome screen appears, it

takes a certain period of time to display
it again.
.

If the ignition switch is operated

after unlocking the driver’s door, the
welcome screen will not appear even
when the driver’s door is opened and
closed.
.

The welcome screen will disappear

when you lock the driver’s door by
using the remote keyless entry system
(all models) or the keyless access
function (if equipped) while the wel-
come screen is displayed.
.

The welcome screen including the

multi-function display (color LCD) (if
equipped) and the audio/navigation
unit can be set to on or off. For details,
refer to “Welcome Screen” F3-39.

– CONTINUED –

Instruments and controls/Combination meter display (color LCD)

3-35

(184,1)

北米Model "A1350BE-A" EDITED: 2018/ 4/ 20

Warning screen

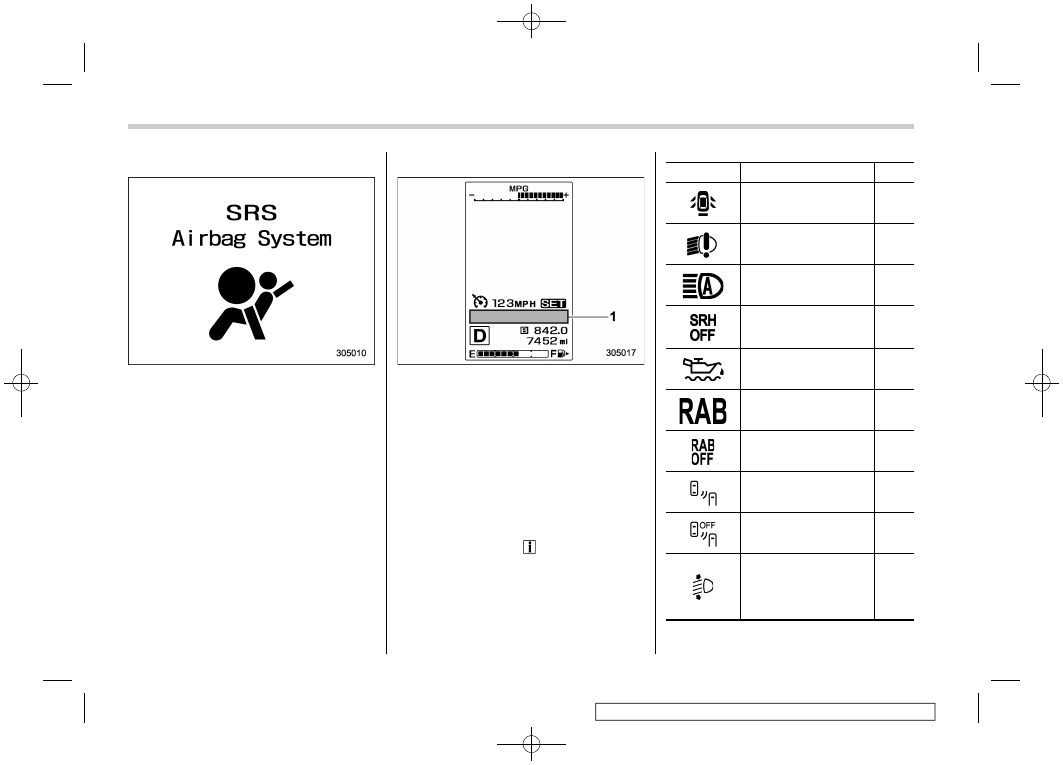

Example of warning

If there is a warning message or a
maintenance notification, it will appear on
this screen. Take the appropriate actions
based on the messages indicated.

Telltale screen

Telltale screen

When the corresponding situation occurs,
the following telltales will be displayed on
the telltale screen.

NOTE

When there is warning information to
display, it will be displayed in five
warning indicators, starting on the left
in ascending order of severity. If there
are six or more warning information
displayed, pull the “

/SET” switch and

check the item.

Mark

Name

Page

Door open indicator

3-22

LED headlight warning
indicator (if equipped)

3-32

High beam assist indi-
cator (if equipped)

3-31

Steering Responsive
Headlight warning light
(if equipped)

3-32

Engine low oil level
warning indicator

3-18

RAB warning indicator
(if equipped)

3-33

RAB OFF indicator (if
equipped)

3-33

BSD/RCTA warning in-
dicator (if equipped)

3-33

BSD/RCTA OFF indi-
cator (if equipped)

3-33

Automatic headlight
beam leveler system
malfunction warning
(models with LED
headlights)

3-32

Instruments and controls/Combination meter display (color LCD)

3-36

(185,1)

北米Model "A1350BE-A" EDITED: 2018/ 4/ 20

Mark

Name

Page

Steering responsive fog
lights OFF indicator (if
equipped)

3-33

Windshield washer fluid
warning light

3-19

Icy road surface warn-
ing indicator

3-33

Basic screens

By operating the “

” or “

” switch on the

steering wheel, you can change the screen
that is always displayed.

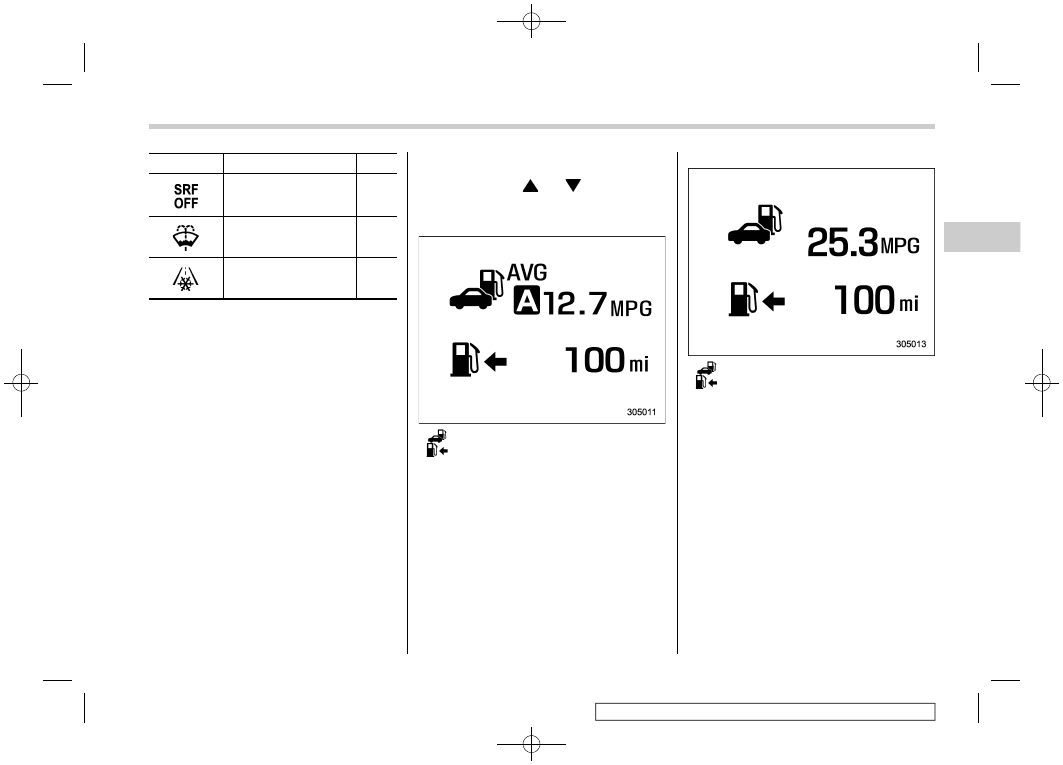

Average fuel consumption screen:

: Average fuel consumption
: Driving range on remaining fuel

This screen displays the average rate of
fuel consumption since the trip meter was
last reset.

NOTE

The driving range on remaining fuel is
only a guide. The indicated value may
differ from the actual driving range on
remaining fuel, so you must immedi-
ately fill the tank when the low fuel
warning light illuminates.

Current fuel consumption screen:

: Current fuel consumption
: Driving range on remaining fuel

This screen displays the rate of fuel
consumption at the present moment.

NOTE

– CONTINUED –

Instruments and controls/Combination meter display (color LCD)

3-37

(186,1)

北米Model "A1350BE-A" EDITED: 2018/ 4/ 20

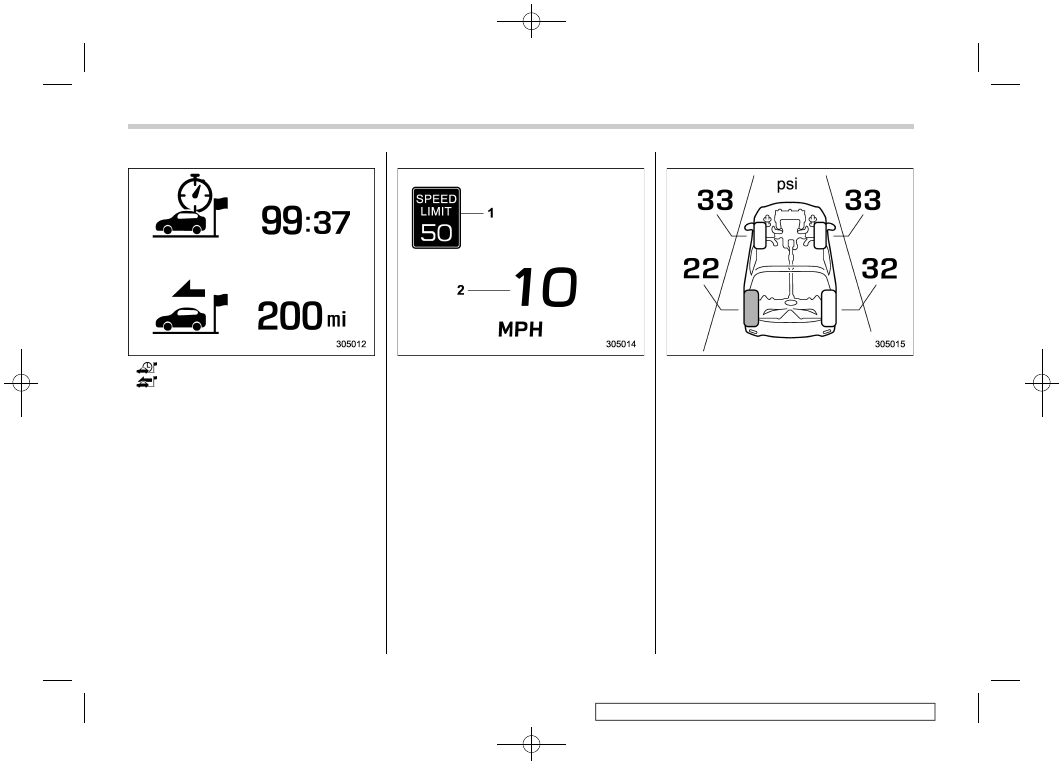

Driving information screen:

: Journey time
: Journey distance

This screen displays the journey time (the
time that has elapsed since the ignition
switch was turned to the “ON” position)
and journey distance (the distance that
has been driven since the ignition switch
was turned to the “ON” position).

Digital speed screen:

Speed limit (if equipped)

Vehicle speed

This screen displays the current vehicle
speed.

TPMS screen (U.S.-spec. models):

This screen displays each tire pressure.
When a tire is deflated, the deflated tire
and the tire pressure will be displayed on
the screen in yellow.

NOTE

The tire pressure values are displayed
several minutes after driving.

Instruments and controls/Combination meter display (color LCD)

3-38

(187,1)

北米Model "A1350BE-A" EDITED: 2018/ 4/ 20

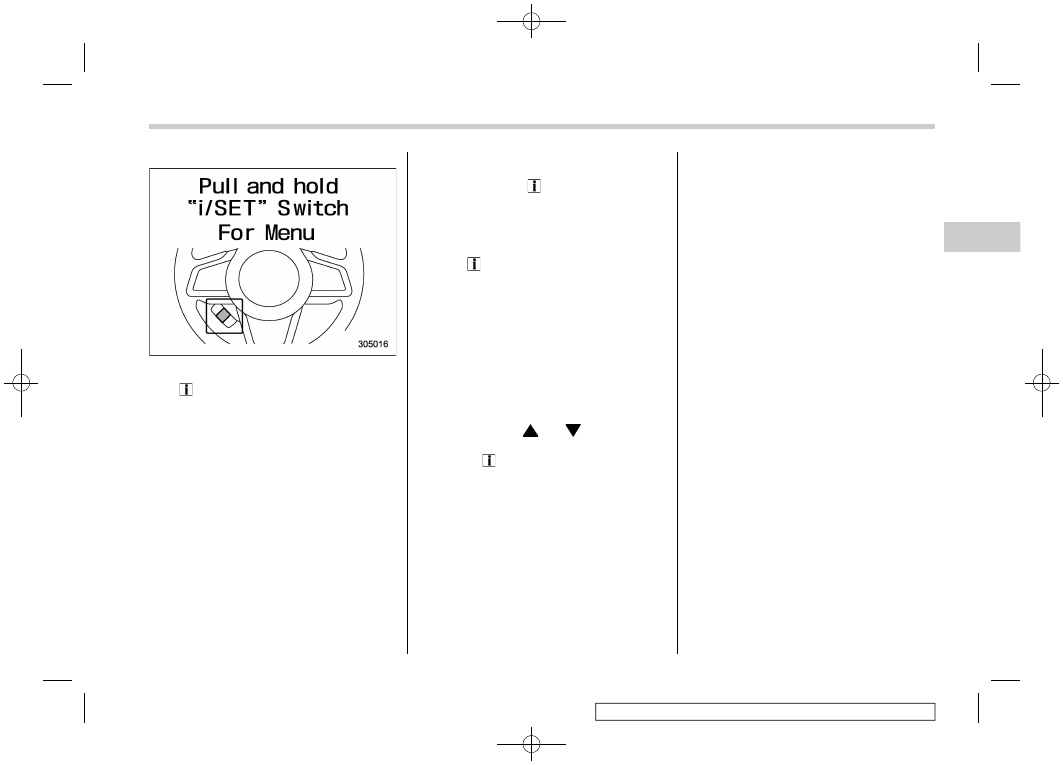

Menu screen entering screen:

While this screen is selected, pull and hold
the “

/SET” switch to enter the menu

screen.

Menu screens

Pull and hold the “

/SET” switch to enter

the menu screens when all of the following
conditions are satisfied.
.

The menu screen entering screen is

selected.
.

The “

” information reminder is off.

NOTE

While driving, the setting items

available on the combination meter
display (color LCD) are limited.
.

For function settings and adjust-

ments on the combination meter dis-
play, refer to “Function settings and
adjustments on the combination meter
display (color LCD)” F25.

By operating the “

” or “

” switch on the

steering wheel, you can select the menu.
Pull the “

/SET” switch to enter the

selected menu.

NOTE

If you enter the “Go Back” menu, the
system will return to the previous
screen.

Screen Settings

After entering the “Screen Settings” menu,
select one of the following menus.

Welcome Screen

The combination meter display (color
LCD), multi-function display (color LCD),
and audio/navigation unit of welcome
screen can be activated or deactivated.

Good-bye Screen

The good-bye screen can be activated or
deactivated.

Gauge Initial Movement

The movement of the meter needles and
gauge needles that occurs when the
ignition switch is turned to the “ON”
position can be activated or deactivated.

– CONTINUED –

Instruments and controls/Combination meter display (color LCD)

3-39

(188,1)

北米Model "A1350BE-A" EDITED: 2018/ 4/ 20

Units

Changes the units displayed in the combi-
nation meter display (color LCD), the type
A multi-function display (black and white)
and the type B multi-function display (color
LCD).

Tire Pressure Units (if equipped)

Changes the units displayed in the Tire
Pressure Monitoring system.

Languages

Changes the language displayed in the
combination meter display (color LCD)
and the multi-function display (color LCD).

Warning Volume (if equipped)

Sets the EyeSight warning volume, the
BSD/RCTA warning volume and the RAB
warning volume.

EyeSight (models with the EyeSight
system)

NOTE

Refer to the Owner’s Manual supple-
ment for the EyeSight system.

RAB (models with the EyeSight
system)

The Sonar Audible Alarm can be set to on
or off.

NOTE

For details about the Reverse Auto-
matic Braking system, refer to “Re-
verse Automatic Braking System” F7-
59.

Sonar Audible Alarm

When the Reverse Automatic Braking
system is in operation, the warning sound
to notify that an obstacle is detected in the
rear can be activated or deactivated.

Vehicle Setting

After entering the “Vehicle Setting” menu,
select one of the following menus.

Keyless Entry System

Sets the settings used when the keyless
access function was operated.
.

Audible Signal (if equipped)

Sets the electronic chirp that sounds when
the door is locked or unlocked.
.

Hazard Warning Flasher

Sets the operation of the hazard warning
flasher that blinks when the door is locked
or unlocked.

Security Relocking (if equipped)

The automatic locking operation period
can be set or customized. Select the
preferred seconds to customize the opera-
tion period.
.

Driver Door Unlock (if equipped)

Select only the driver’s door to unlock or all
doors to unlock simultaneously when the
driver’s door is unlocked.
.

Rear Gate/Trunk Unlock (if equipped)

Select only the rear gate to unlock or all
doors to unlock simultaneously when
accessing from the cargo area.

Defogger

Sets and customizes the operation of the
defogger.

Interior Light

Sets and customizes the interior light off
delay timer.

Auto Light Sensor (if equipped)

Sets and customizes the sensitivity of the
auto light sensor.

Welcome Lighting (if equipped)

Sets the leaving time and approaching
time.

Instruments and controls/Combination meter display (color LCD)

3-40

(189,1)

北米Model "A1350BE-A" EDITED: 2018/ 4/ 20

Approaching time set

Sets the illumination time of the headlights
that illuminate when you approach the
vehicle.
.

Leaving time set

Sets the time until the headlights turn off
when you have moved away from the
vehicle.

One-touch lane changer

Sets the one-touch lane changer on/off.

Default Settings

Select “Yes” to use the menu screen to
restore customized settings to the factory
default settings. Select “No” to return to the
previous screen without restoring to the
factory default settings.

Multi-function display (black
and white)

NOTE

For models with multi-function display
(color LCD), refer to “Multi-function
display (color LCD)” F3-46.

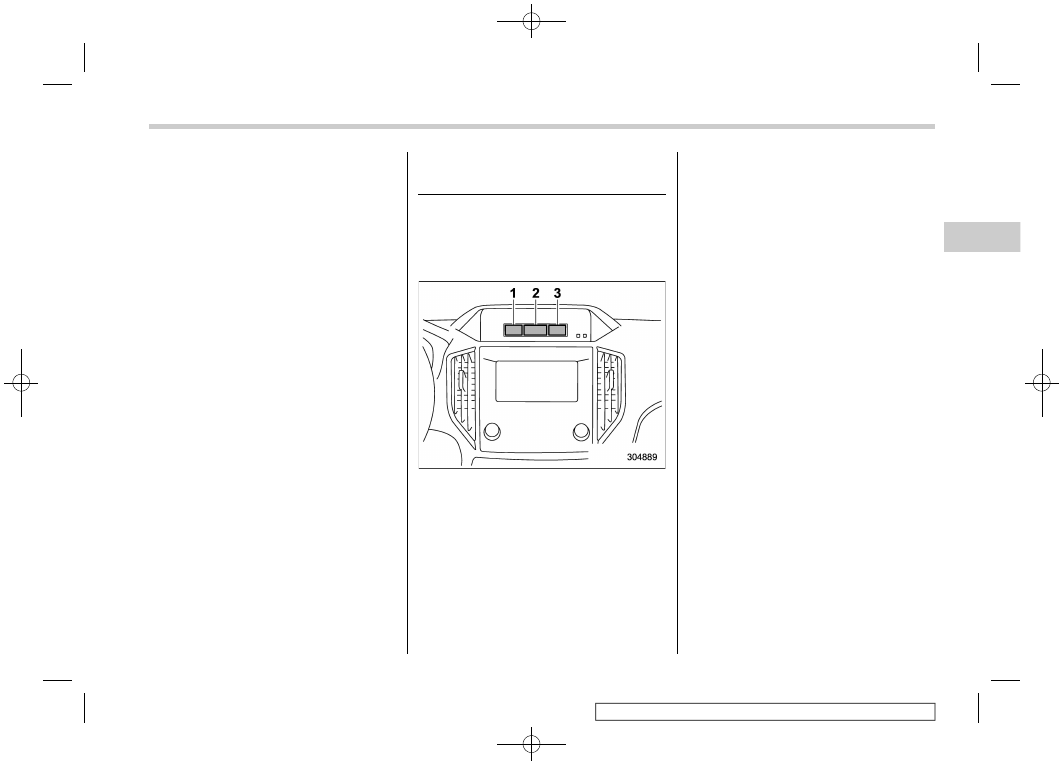

Outside temperature indicator

Driving information display

Clock

With the ignition switch in the “ACC”
position, the clock appears on the display.

With the ignition switch in the “ON” posi-
tion, the outside temperature indicator,
driving information display and clock all
appear on the display.

NOTE

The indicated values vary in accor-
dance with changes in the vehicle’s
running conditions. Also, the indicated
values may differ slightly from the
actual values and should thus be
treated only as a guide.

Driving information display

NOTE

You can set the units for both the multi-
function display (black and white) and
the combination meter at the same
time. For details about setting the
language and units, refer to “Type A
combination meter” F3-11 or “Menu
screens” F3-39.

– CONTINUED –

Instruments and controls/Multi-function display (black and white)

3-41

(190,1)

北米Model "A1350BE-A" EDITED: 2018/ 4/ 20

How to change the information dis-
play

INFO button

Pressing the INFO button on the steering
wheel switches the display in the following
sequence.

*: models without combination meter dis-
play (color LCD)

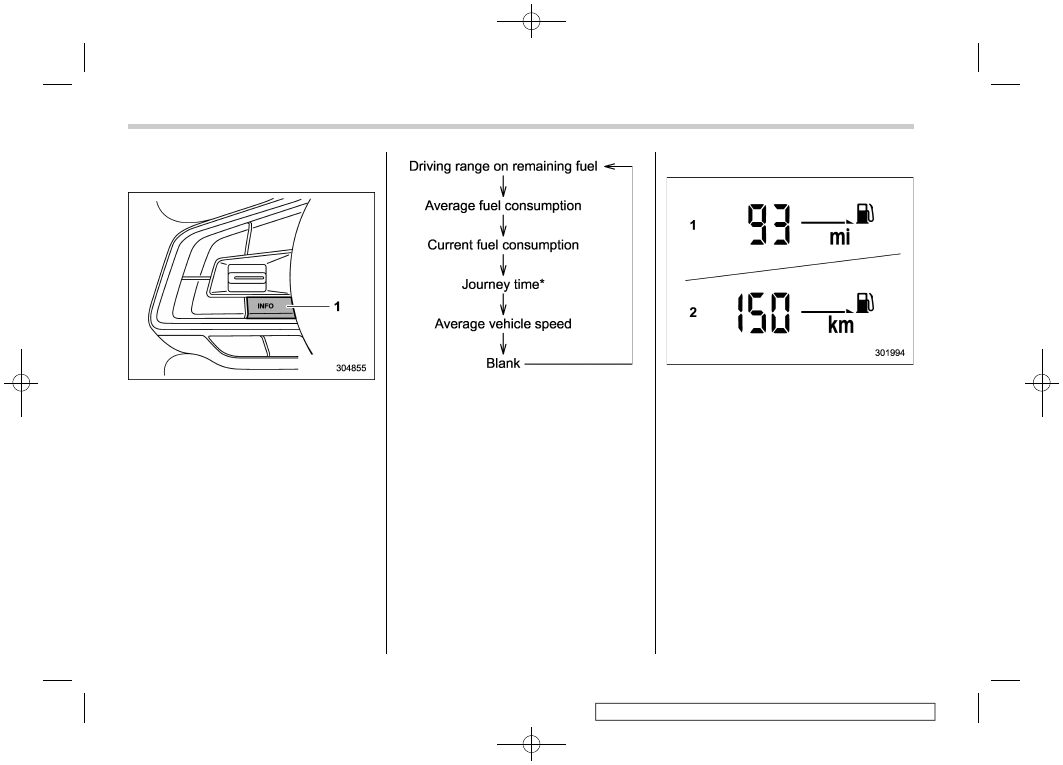

Driving range on remaining fuel

When setting the displayed unit as MPH

When setting the displayed unit as km/h

The driving range indicates the distance
that can be driven taking into account the
amount of fuel remaining in the tank and
the average rate of fuel consumption.

Instruments and controls/Multi-function display (black and white)

3-42

(191,1)

北米Model "A1350BE-A" EDITED: 2018/ 4/ 20

When setting the displayed unit as MPH

When setting the displayed unit as km/h

If the driving range is shown as “

”, there

is only a tiny amount of fuel left in the tank.

NOTE

Average fuel consumption

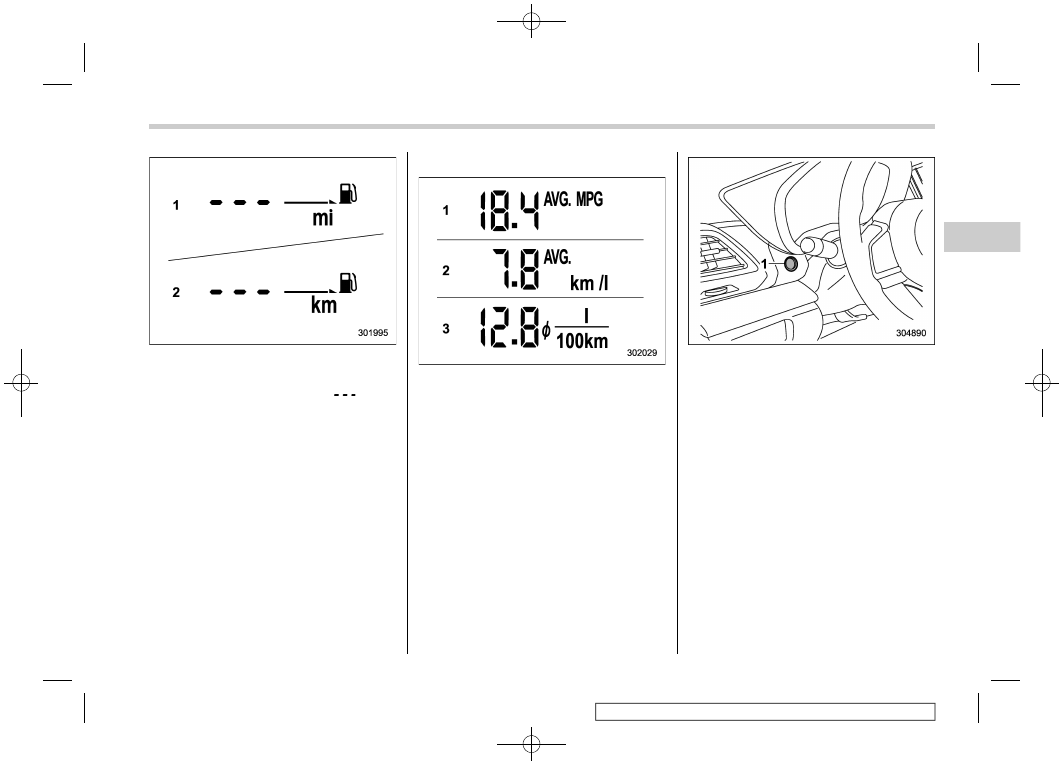

Displays the driving range per gallon of
fuel

Displays the driving range per liter of fuel

Displays the fuel consumption per 100
km

This display shows the average rate of fuel
consumption since the trip meter was last
reset.

TRIP RESET switch

Press the TRIP RESET switch to switch
between the displays for the average fuel
consumption that corresponds to the A trip
meter mileage and the average fuel con-
sumption that corresponds to the B trip
meter mileage.
When the trip meter displays is reset, the
corresponding average fuel consumption
value is also reset.

NOTE

When the trip meter display is reset,

the average fuel consumption corre-
sponding to that trip meter display is
not shown until the vehicle has subse-
quently covered a distance of 1 mile (or
1 km).

– CONTINUED –

Instruments and controls/Multi-function display (black and white)

3-43

(192,1)

北米Model "A1350BE-A" EDITED: 2018/ 4/ 20

The units for measuring average fuel

consumption cannot be changed.

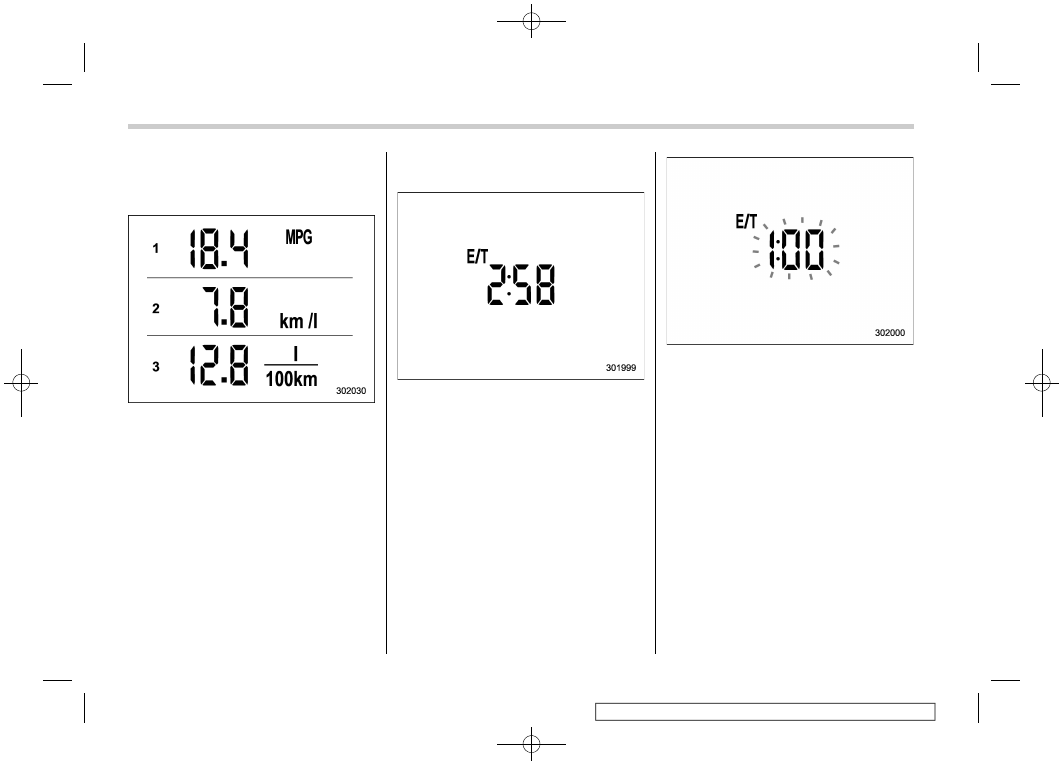

Current fuel consumption

Displays the driving range per gallon of
fuel

Displays the driving range per liter of fuel

Displays the fuel consumption per 100
km

This indication shows the rate of fuel
consumption at the present moment.

Journey time (models without com-
bination meter display (color LCD))

The journey time shows the time that has
elapsed since the ignition switch was
turned to the “ON” position.

The journey time indication flashes each
time a complete hour has elapsed. If the
display is giving a reading other than the
journey time, the display switches to the
journey time, flashes for 5 seconds, and
returns to its original reading each time a
complete hour has elapsed.

NOTE

The journey time is reset when the
ignition switch is turned to the “ACC”
or “LOCK”/“OFF” position.

Instruments and controls/Multi-function display (black and white)

3-44

(193,1)

北米Model "A1350BE-A" EDITED: 2018/ 4/ 20

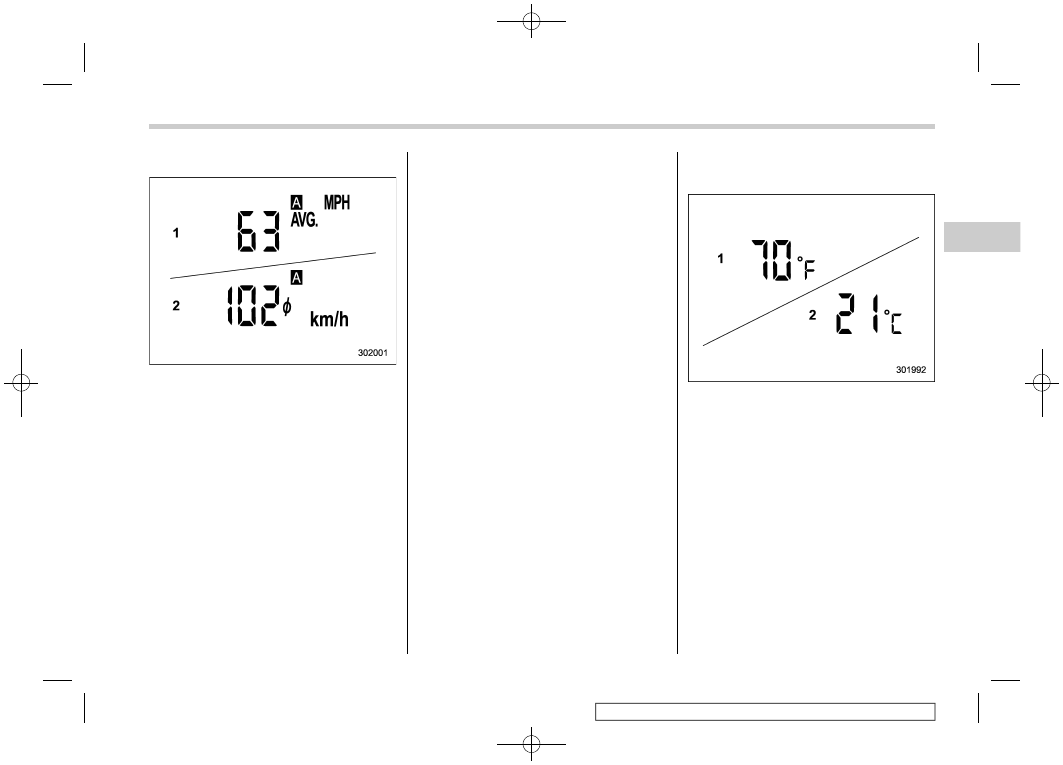

Average vehicle speed

When units in miles is selected

When units in km is selected

This display shows the average vehicle
speed since the trip meter was last reset.
Pressing the TRIP RESET switch toggles
the display between the average vehicle
speed corresponding to the A trip meter
display and the average vehicle speed
corresponding to the B trip meter display.
When either of the trip meter displays is
reset, the corresponding average vehicle
speed value is also reset.

NOTE

When either trip meter display is reset,
the average vehicle speed correspond-
ing to that trip meter display is not
shown until the vehicle has subse-
quently covered a distance of 1 mile
(or 1 km).

Turn off display of driving informa-
tion display

Select the blank space in the menu to exit
the driving information display selection.

NOTE

The average fuel consumption and

average vehicle speed are calculated
even while the driving information dis-
play is not displayed.
.

Even if you turn off the driving

information display, the display will
automatically turn on when the battery
voltage is disconnected and then re-
connected for battery replacement or
fuse replacement.

Outside temperature indica-
tor

U.S.-spec. models

Except U.S.-spec. models

The outside temperature indicator shows.

NOTE

The outside temperature indicator

shows the temperature around the
sensor. Therefore, the temperature in-
dication may differ from the actual
outside air temperature.
.

The temperature unit cannot be

changed.

– CONTINUED –

Instruments and controls/Multi-function display (black and white)

3-45

(194,1)

北米Model "A1350BE-A" EDITED: 2018/ 4/ 20

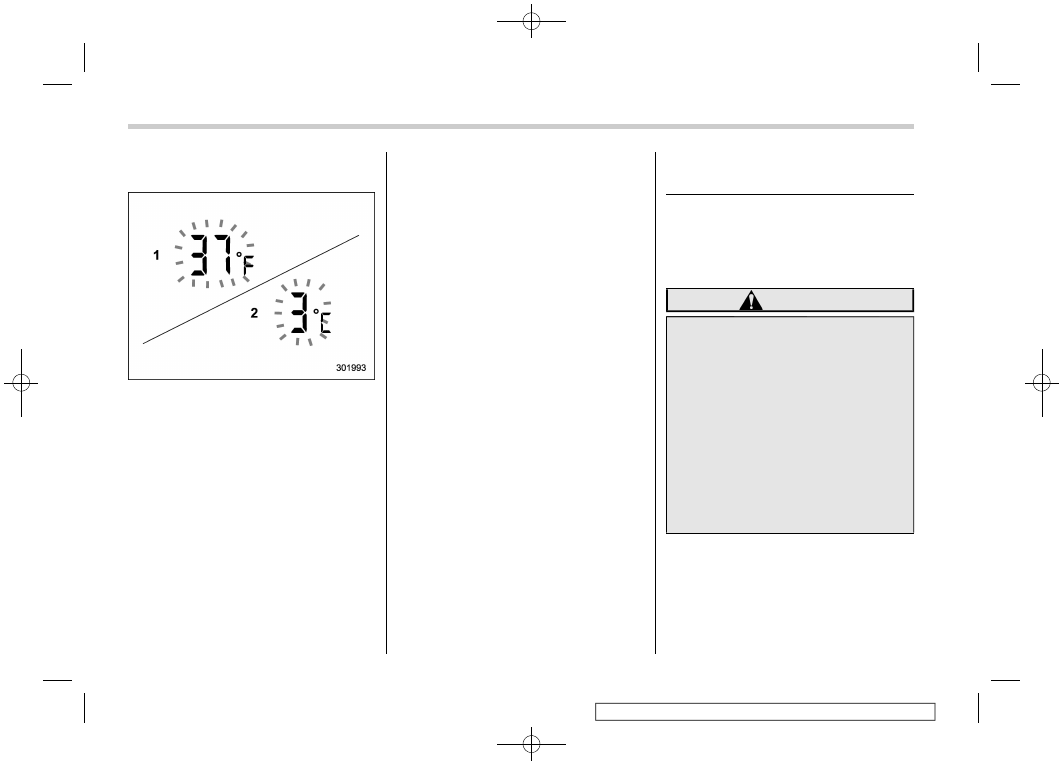

Road surface freeze warning indi-
cation

U.S.-spec. models

Except U.S.-spec. models

When the outside temperature drops to a
certain temperature or lower, the tempera-
ture indication flashes for 5 seconds to
show that the road surface may be frozen.
If the display is already indicating that the
outside temperature is low when the
ignition switch is turned to the “ON”
position, the indication does not flash.

NOTE

The outside temperature indication
may differ from the actual outside
temperature. The road surface freeze
warning indication should be treated
only as a guide. Be sure to check the
condition of the road surface before
driving.

Clock

For details about clock setting, refer to
“Clock” F3-61.

Multi-function display (color
LCD) (if equipped)

NOTE

For models with multi-function display
(black and white), refer to “Multi-func-
tion display (black and white)” F3-41.

WARNING

Always pay adequate attention to
safe driving when operating the
multi-function display (color LCD)
while the vehicle is in motion. When
operation of the multi-function dis-
play (color LCD) is disturbing your
awareness and ability to concen-
trate on driving, stop the vehicle in
a safe place before performing op-
erations on the screen. Also, do not
concentrate on the display while
driving. Doing so may cause you to
look away from the road and could
result in an accident.

Instruments and controls/Multi-function display (color LCD)

3-46

(195,1)

北米Model "A1350BE-A" EDITED: 2018/ 4/ 20

Features

The multi-function display (color LCD) has
the following functions.

Description

Page

Displays useful messages, such
as notification, etc.

3-48

Displays basic screens (e.g. fuel
consumption screen, etc.)

3-49

Sets and adjusts maintenance
notification

3-60

Also, the multi-function display (color LCD)
can also be used to set and initialize the
multi-function display (color LCD) itself.

NOTE

When the vehicle is in motion,

certain functions and selections may
not be available.
.

You can set the language and units

for both the multi-function display
(color LCD) and the combination meter
at the same time. For details about
setting the language and units, refer to
“Menu screens” F3-39.
.

The images displayed in this Own-

er’s Manual are sample images. The
actual image may vary depending on
the market and vehicle specifications.

Welcome screen

When the driver’s door is opened and
closed, the welcome screen will appear for
a short time.

NOTE

The welcome screen will disappear

when the ignition switch is turned to the
“ON” position while the welcome
screen is displayed.
.

The welcome screen can be set to on

or off. For details, refer to “Screen
Settings” F3-39.
.

For a certain period of time after the

welcome screen has once appeared, it
may not appear again even when the
driver’s door is opened and closed
again. This does not indicate a mal-
function.

Self-check screen

NOTE

When the setting is “On”, the self check
screen appears. For details about this
setting, refer to “On/Off setting” F3-60.

When the ignition switch is turned to the
“ON” position, the vehicle self-check will
be performed. The screens corresponding
to the following items will appear one after
another for several seconds each.

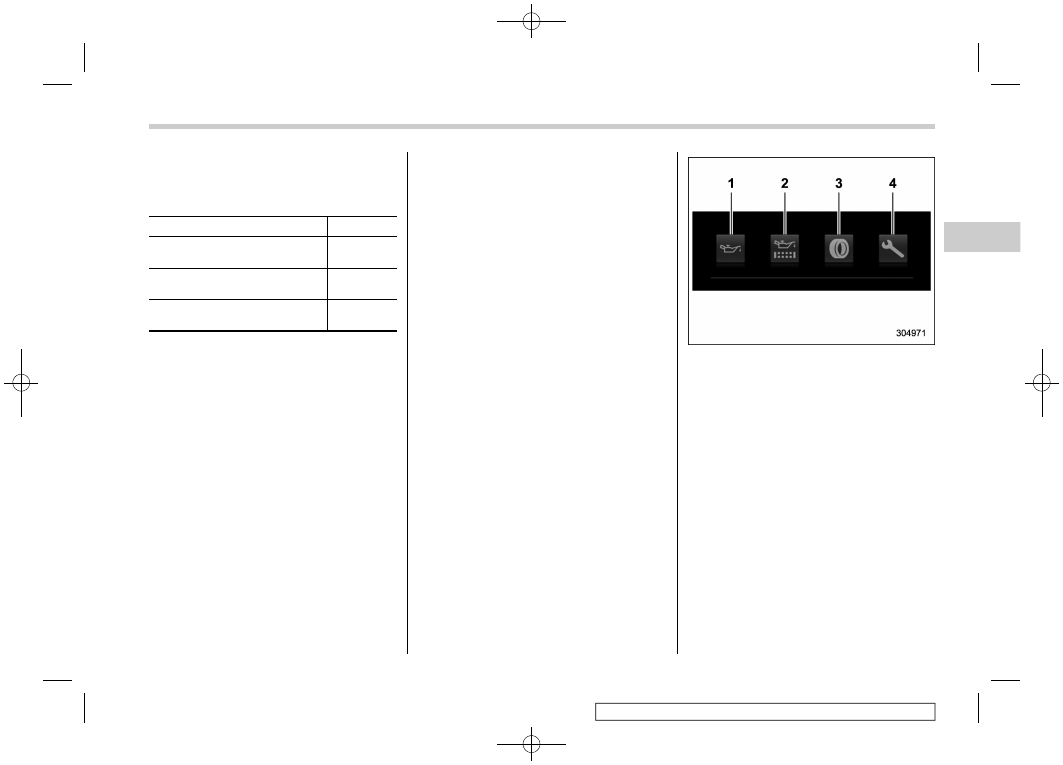

Engine oil: Checks the interval of engine
oil replacement.

Oil filter: Checks the interval of oil filter
replacement.

Tires: Checks the interval of tire rotation.

Inspection and maintenance: Checks the
interval of inspection and maintenance.

When the checks are performed, the color
of the icon corresponding to the checked
item will change.
If there is a notification, the message will
be displayed. Take the appropriate actions
based on the message indicated.
After the self-check is completed, today’s
date, the stored birthday or the stored
anniversary is displayed.

– CONTINUED –

Instruments and controls/Multi-function display (color LCD)

3-47

(196,1)

北米Model "A1350BE-A" EDITED: 2018/ 4/ 20

NOTE

After performing the maintenance,

change the setting of the correspond-
ing maintenance item. For details, refer
to “Maintenance settings” F3-60.
.

The maintenance notification screen

will be displayed under either of the
following conditions.

– The period of time remaining until
the registered notification date is 15
days or less.
– The total driving distance remain-
ing until the registered notification
distance is approximately 311 miles
(500 km) or less.

The maintenance notification screen

will be displayed until either of the
following conditions is satisfied.

– The period of time passed after
the registered notification date is 15
days or more.
– The total distance driven after the
registered notification distance is
approximately 311 miles (500 km) or
more.

Interruption screen

Example

Useful messages, such as reminder in-
formation, weather information (if
equipped) and traffic information (if
equipped) may interrupt the current screen
and appear on the display accompanied
by a beep. Take proper action according to
the message.

The interruption screen will return to the
original screen after a few seconds. Also,
you can press the INFO button to skip the
interruption screen.

Basic operation

Control switch
1)

INFO button

2)
3)

/SET

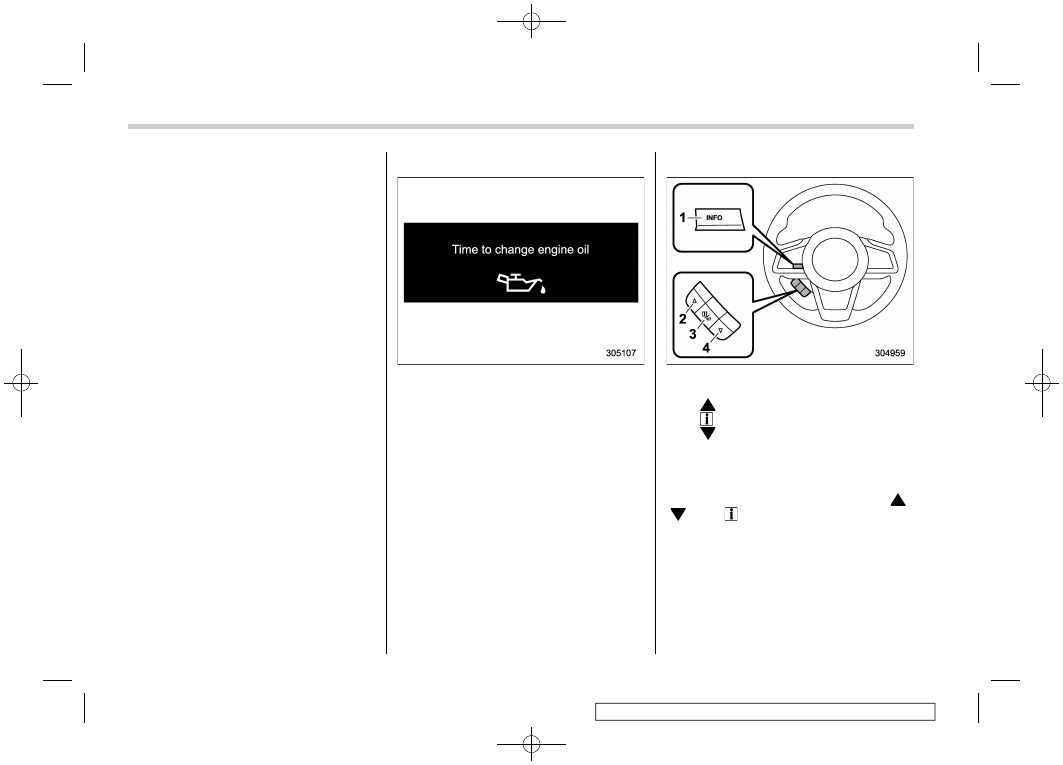

Press the INFO button on the steering
wheel to switch the item displayed on the
basic screen. You can operate the items
on the setting screen by using the “

”,

“

” and “

/SET” switches.

Instruments and controls/Multi-function display (color LCD)

3-48

(197,1)

北米Model "A1350BE-A" EDITED: 2018/ 4/ 20

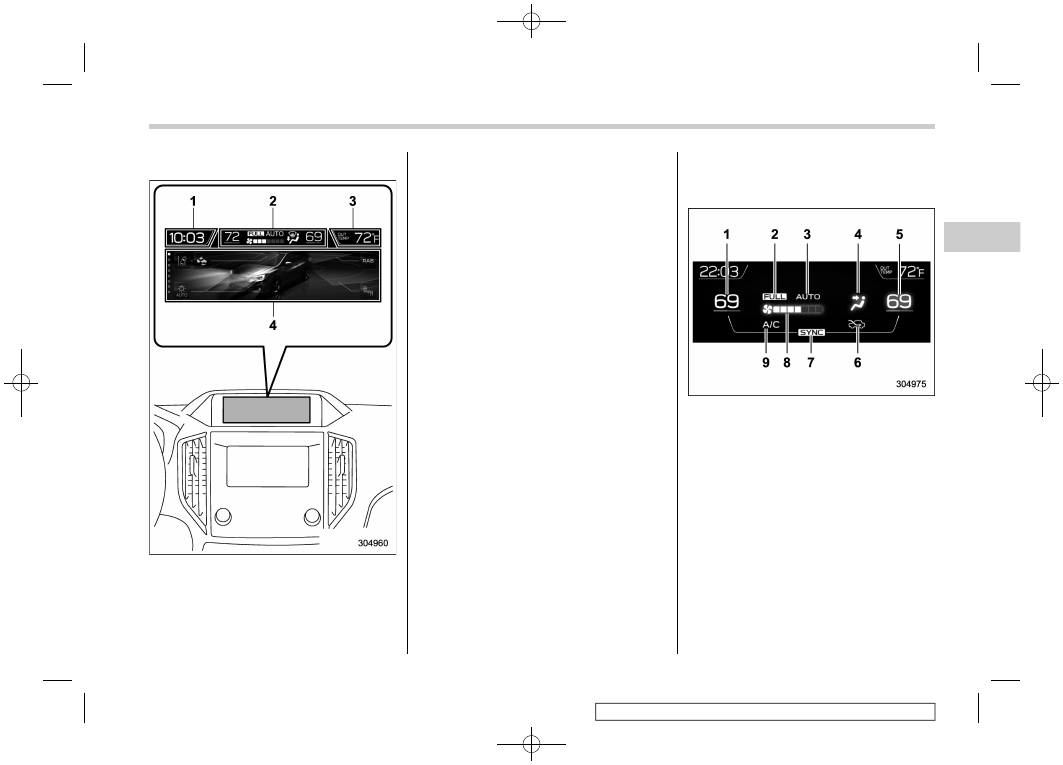

Basic screens

Clock

Climate control (if equipped)*

Outside temperature

Information screen

*: This is not displayed on the multi-function

display (color LCD) when the ignition switch
is in the “ACC” position.

While the ignition switch is in the “ACC” or
“ON” position, the basic screen will be
displayed.

Outside temperature indicator

The outside temperature is displayed on
the multi-function display (color LCD).

NOTE

The outside temperature indicator

shows the temperature around the
sensor. Therefore, the temperature in-
dication may differ from the actual
outside air temperature.
.

The temperature unit cannot be

changed.

Climate control screen (if equipped)

The climate control status is displayed on
the multi-function display (color LCD).

Climate control screen
1)

Set temperature indicator (left-hand side)

FULL AUTO indicator

AUTO indicator

Airflow mode indicator

Set temperature indicator (right-hand
side)*

Air inlet selection indicator

SYNC indicator*

Fan speed indicator

Air conditioner ON indicator

*1: Models with the SYNC function only

– CONTINUED –

Instruments and controls/Multi-function display (color LCD)

3-49

(198,1)

北米Model "A1350BE-A" EDITED: 2018/ 4/ 20

When operating the climate control sys-
tem, the basic screen switches to the
climate control screen. For details about
climate control operation, refer to “Climate
control panel” F4-2.

Clock

The clock can be displayed in either 12-
hour display or 24-hour display. For details
about the setting, refer to“Clock” F3-61.

Instruments and controls/Multi-function display (color LCD)

3-50

Content .. 10 11 12 13 ..
