Subaru BRZ (2019 year). Instruction

246

2-4. Using other driving systems

BRZ_U

■

Accelerating after setting the vehicle speed

●

The vehicle can be accelerated normally. After acceleration, the set
speed resumes.

●

Even without canceling the cruise control, the set speed can be
increased by first accelerating the vehicle to the desired speed and then
pushing the lever down to set the new speed.

■

Automatic cruise control cancelation

Cruise control will stop maintaining the vehicle speed in any of the following
situations.

●

Actual vehicle speed is below approximately 20 mph (30 km/h).

●

Vehicle stability control (VSC) is activated.

■

The system may be malfunctioning when

In the following situations, the system may be malfunctioning. Have the vehi-
cle inspected by your SUBARU dealer.

●

The cruise control indicator light comes on in yellow.

●

The cruise control indicator does not come on even when the “ON-OFF”
button is pressed while the engine is running.

247

2-4. Using other driving systems

Wh
en driv

BRZ_U

WARNING

■

When using the cruise control

Always set the speed appropriately according to the speed limit, traffic flow,
road conditions, and other conditions.

■

Cruise control precaution (vehicles with an automatic transmission)

You can cancel the cruise control by shifting the select lever into the N posi-
tion. However, do not shift the lever into the N position while driving except in
case of emergency. If the select lever is shifted into the N position, the
engine brake will no longer work. This could result in an accident.

■

To avoid operating the cruise control by mistake

Switch the cruise control off using the “ON-OFF” button when not in use.

■

Situations unsuitable for cruise control

Do not use cruise control in any of the following situations.
Doing so may result in loss of control and could cause an accident resulting
in death or serious injury.

●

In heavy traffic

●

On roads with sharp bends

●

On winding roads

●

On slippery roads, such as those covered with rain, ice or snow

●

On steep hills
Vehicle speed may exceed the set speed when driving down a steep hill.

●

During emergency towing

248

2-4. Using other driving systems

BRZ_U

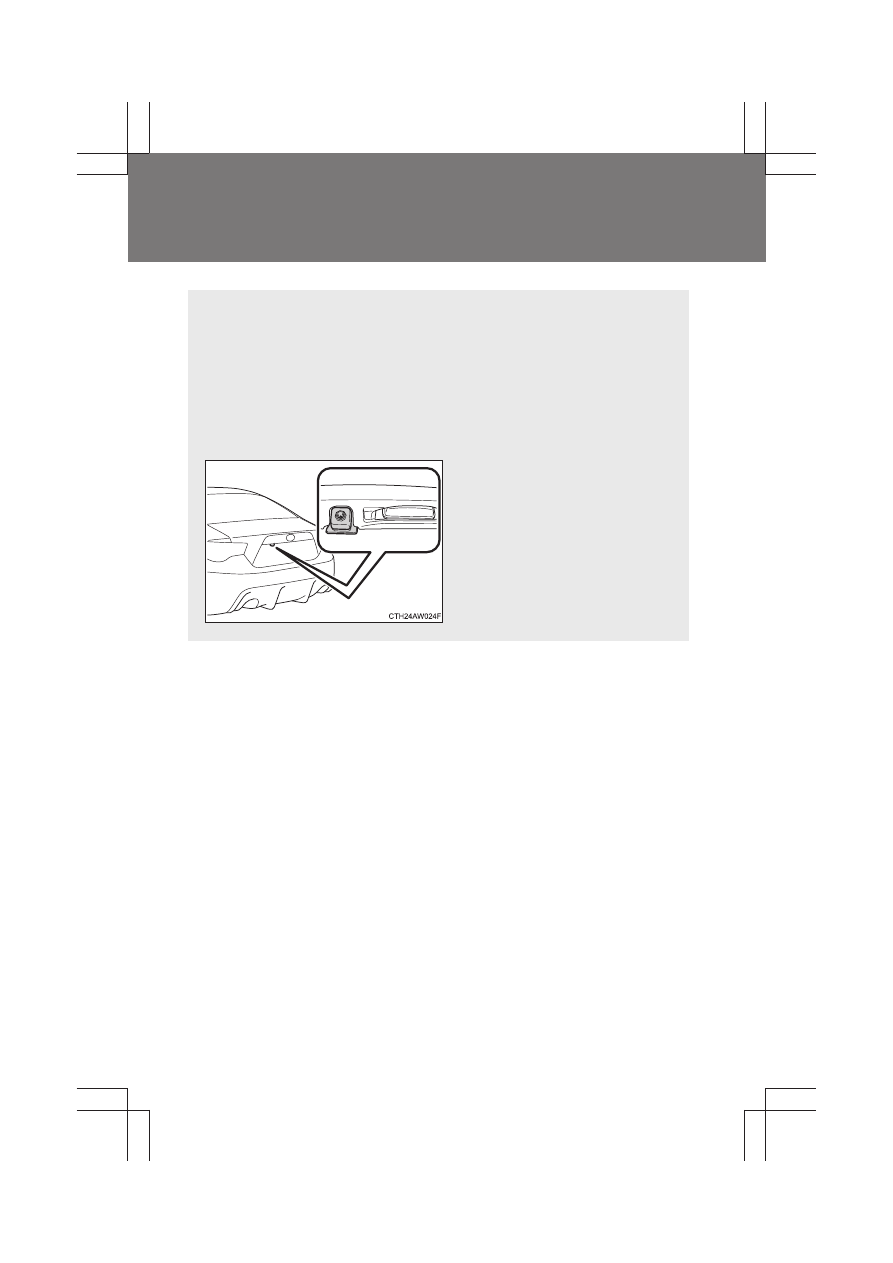

Rear view camera

The rear view camera is installed to the trunk lid and displays a rear
view image on the audio/navigation monitor when the engine switch
is in the “ON” position (vehicles without a keyless access with push
button start system) or the push-button ignition switch is in “ON”
mode (vehicles with a keyless access with push button start system)
and the select lever (vehicles with an automatic transmission) or
shift lever (vehicles with a manual transmission) is set to “R”.

249

2-4. Using other driving systems

Wh
en driv

BRZ_U

How to use the rear view camera

Perform the following to display a rear view image on the rear view
camera.

Turn the engine switch to the “ON” position (vehicles without a
keyless access with push button start system) or turn the
push-button ignition switch to “ON” mode (vehicles with a key-
less access with push button start system).
Shift the select lever (vehicles with an automatic transmis-
sion) or shift lever (vehicles with a manual transmission) to
“R”.

In the following situations, the screen will return to the image that
was displayed before the lever was shifted to “R”.

• Vehicles with an automatic transmission: When several seconds

have passed since the select lever was shifted to a position other
than “P” or “R” (off delay function).

• Vehicles with an automatic transmission: When the select lever is

shifted to “P”.

• Vehicles with a manual transmission: When several seconds have

passed since the shift lever was shifted to a position other than
“R” (off delay function).

• When the vehicle speed is 5 mph (8 km/h) or more.

STEP

250

2-4. Using other driving systems

BRZ_U

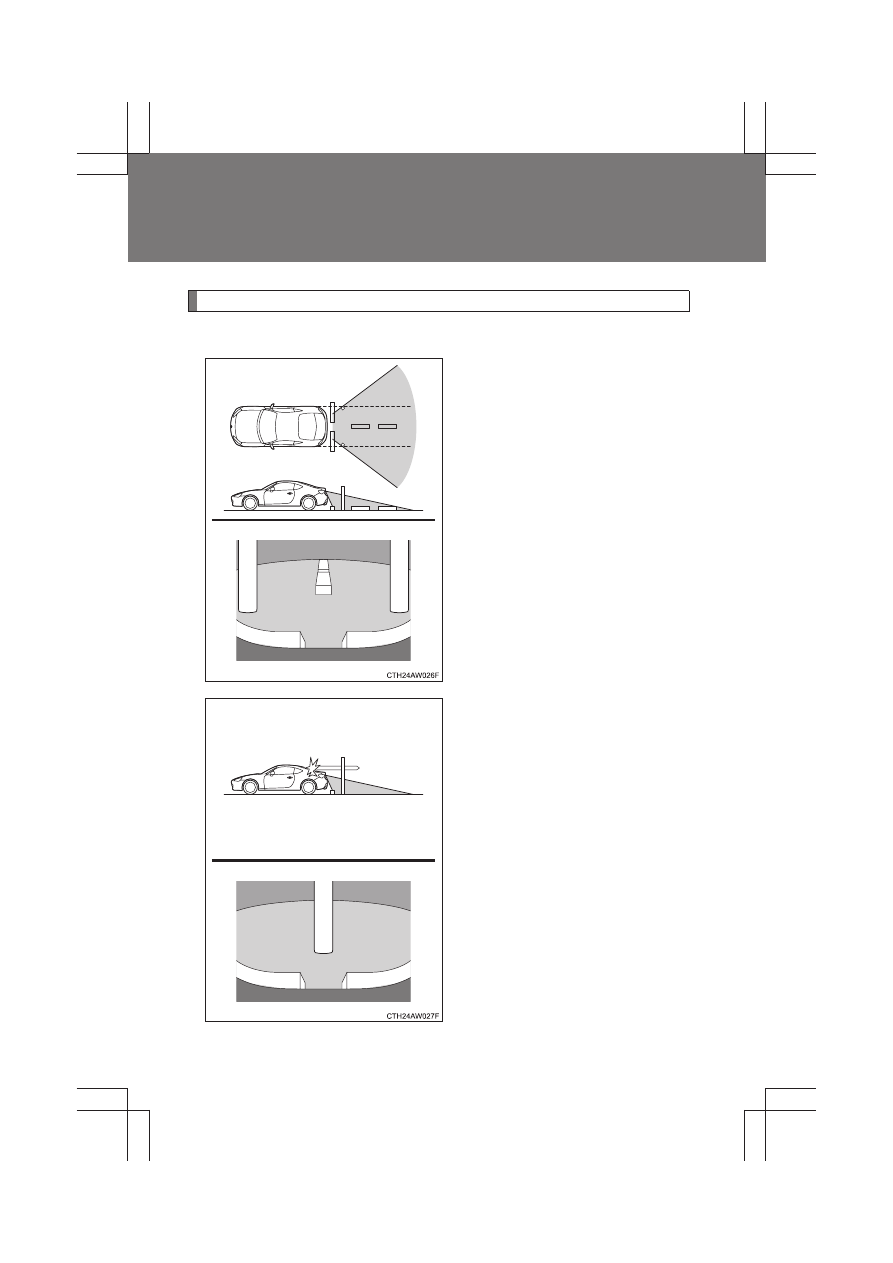

Displayed area

■

Displayed area on the screen

● The area behind the rear

bumper can be displayed.
Areas on both the left and right
side of the rear bumper and
areas just under the rear
bumper cannot be displayed.

● The distance of the image dis-

played on the screen will look
shorter than the actual dis-
tance.

● Areas above where the rear

view camera is installed can-
not be displayed.

● If there is an object behind the

vehicle with a long protrusion
on its upper part, such as a
sign pole, the protruding part
will not be displayed on the
screen.

251

2-4. Using other driving systems

Wh
en driv

BRZ_U

■

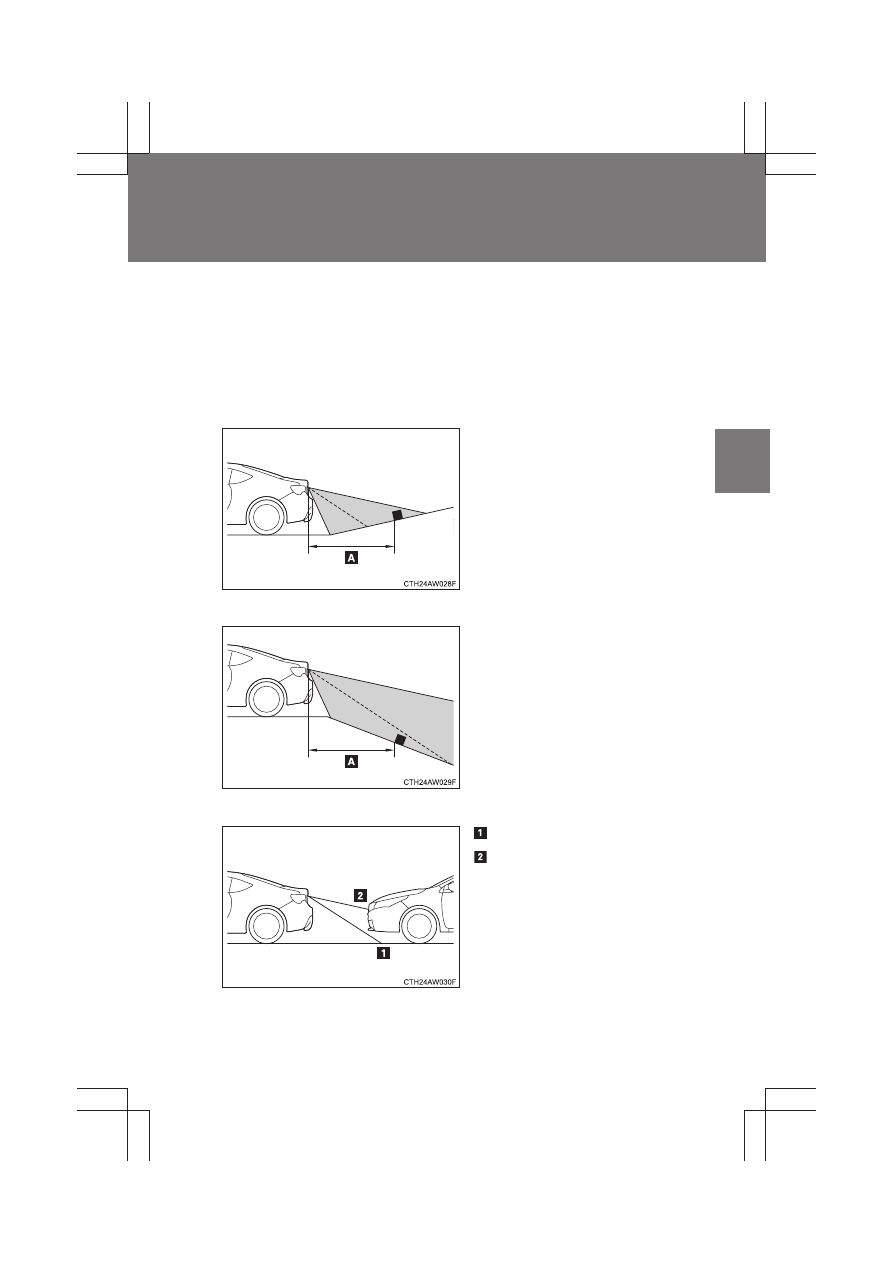

Distance from the ground on the screen
The distance markers show the distance from an object on level
ground when the vehicle is unloaded. Depending on the loading
condition and road condition, the distance shown on the screen
may be different from the actual distance.

When there is an upward slope behind the vehicle

“A”: 3 ft. (1 m)

The distance on the screen will
look farther than the actual dis-
tance.

When there is a downward slope behind the vehicle

“A”: 3 ft. (1 m)

The distance on the screen will
look closer than the actual dis-
tance.

■

Distance markers

3 ft. (1 m) line
10 ft. (3 m) line

The distance markers show the
distance from points on the road.
If there is a car or other object
close to the rear of the vehicle,
the distance will not be displayed
correctly.

252

2-4. Using other driving systems

BRZ_U

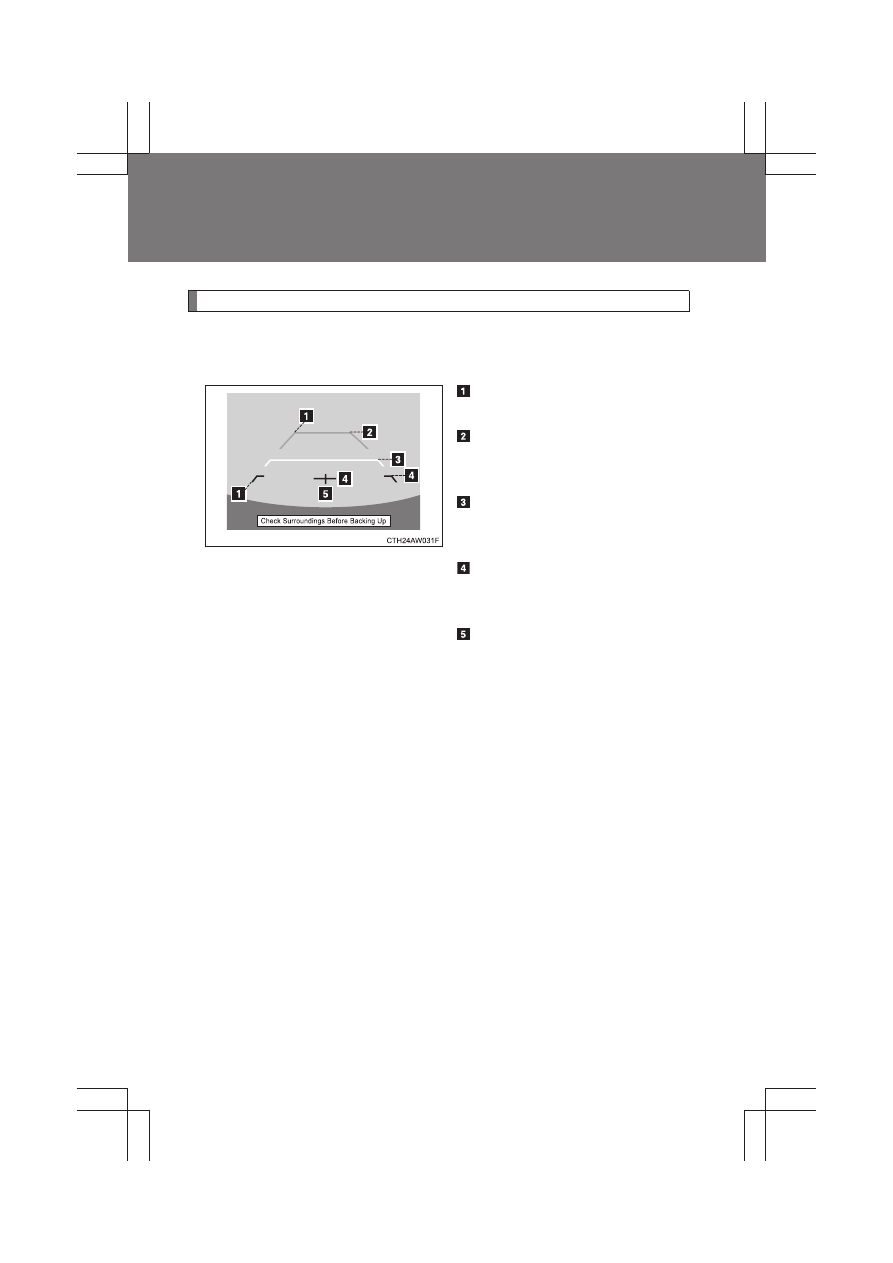

Help lines

The help lines (distance markers and vehicle width lines) are a guide
to help you realize the actual distance of points on the screen.

Vehicle width lines (oblique
vertical lines)
Approximately 10 ft. (3 m)
from the bumper (green hori-
zontal line)
Approximately 3 ft. (1 m) from
the bumper (yellow horizontal
line)
Approximately 1.5 ft. (0.5 m)
from the bumper (red horizon-
tal line)
Vehicle centerline
When the select lever (vehi-
cles with an automatic trans-
mission) or shift lever
(vehicles with a manual trans-
mission) is shifted to “R”, the
screen will display the help
lines together with the rear
view image.

253

2-4. Using other driving systems

Wh
en driv

BRZ_U

■

Rear view camera display

●

On vehicles with a genuine SUBARU navigation system, the rear view
camera display will be prioritized over other displays. To display another
display, shift the select lever (vehicles with an automatic transmission) or
shift lever (vehicles with a manual transmission) to a position other than
“R”.

●

Images from the rear view camera will be displayed horizontally reversed
as is the case with the vehicle’s rear view mirror or a side view mirror.

●

Images on the screen may look different depending on the number of
passengers and loading conditions.

●

When the vehicle is on an incline or decline, distances displayed on the
screen may look different than the actual distance.

●

When the vehicle is loaded, the distance on the screen will look farther
than the actual distance, as is the case when approaching an upward
incline.

●

The color of objects on the screen may be different from the actual color
of the objects.

●

Be sure to check your surroundings when “Check Surroundings Before
Backing Up” is displayed.

●

If you shift to “R” shortly after turning the engine switch to the “ON” posi-
tion (vehicles without a keyless access with push button start system) or
the push-button ignition switch to “ON” mode (vehicles with a keyless
access with push button start system), “Check Surroundings Before
Backing Up” may not be displayed. Wait several seconds or more after
turning the engine switch to the “ON” position (vehicles without a keyless
access with push button start system) or the push-button ignition switch
to “ON” mode (vehicles with a keyless access with push button start sys-
tem) before shifting to the “R” range. The warning message can then be
displayed.

254

2-4. Using other driving systems

BRZ_U

●

Strong light shined on the rear view camera lens may develop white light
stripes around the light source. This is not a malfunction.

●

Under fluorescent lighting, the display may flicker. However, this is not a
malfunction.

●

It may be difficult to see the image from the rear view camera in the fol-
lowing situations. This is not a malfunction.

• When the vehicle is in a dark area (at night, in a tunnel, etc.).
• When the vehicle is in an extremely hot or cold place.
• When foreign matter (such as raindrops, snow, dirt, etc.) that disturbs

the view of the rear view camera is stuck to the lens of the rear view
camera.

• When strong lights shine directly into the camera lens (in this case, ver-

tical lines may be displayed on the screen).

■

Taking care of the rear view camera

●

Do not clean the rear view camera with alcohol, benzine or paint thinner.
Otherwise, discoloration may occur. To remove contamination, wipe the
rear view camera with a cloth moistened with a diluted neutral detergent
and then wipe it with a soft, dry cloth.

●

When waxing the vehicle, be careful not to apply wax to the rear view
camera. If wax contacts the rear view camera, remove it with a clean
cloth moistened with a diluted neutral detergent.

●

The camera lens has hard coating to help prevent scratches. However,
when washing the vehicle or cleaning the camera lens, be careful not to
scratch the camera lens. Do not use a washing brush directly on the
camera lens as the displayed image may be adversely affected.

255

2-4. Using other driving systems

Wh
en driv

BRZ_U

WARNING

■

When using the rear view camera

●

Since the rear view camera uses a wide-angle lens, the image on the
screen will be different from the actual view in terms of distance.

●

Since the range of the image displayed on the screen is limited, you
should always check the area behind the vehicle and the surrounding area
with your eyes and mirrors, and move backward at a slow speed. Moving
backward only by checking the rear view image from the rear view camera
could lead to an accident.

●

Do not disassemble or modify the rear view camera, switch or wiring. If
smoke comes from any of the parts or you smell a strange odor, stop using
the rear view camera immediately. Contact your SUBARU dealer for an
inspection. Continued use may result in accident, fire or electric shock.

●

Do not expose the rear view camera or wiring to an open flame as damage
or a fire may occur.

●

Do not use the system if the trunk is open.

256

2-4. Using other driving systems

BRZ_U

CAUTION

■

How to use the rear view camera

●

When washing your vehicle with a high-pressure washer, do not allow the
water to contact the rear view camera directly. Entry of water into the cam-
era lens may result in condensation on the lens, malfunction, fire or elec-
tric shock.

●

Since the rear view camera is a precision device, do not subject it to
strong impacts. Otherwise, malfunction, fire or electric shock may occur.

●

If mud or snow sticks to or is frozen on the rear view camera, very carefully
remove it. Otherwise, damage to the rear view camera may cause a fire or
electric shock. Pour water or lukewarm water over the rear view camera to
remove mud and ice, and wipe it with a soft, dry cloth.

●

When replacing a fuse, be sure to use a fuse with the specified rating. Use
of a fuse with a different rating may result in a malfunction.

●

If the rear view camera is used for a long time while the engine is not run-
ning, the battery may become completely discharged.

257

2-4. Using other driving systems

Wh
en driv

BRZ_U

Driving assist systems

To help enhance driving safety and performance, the following sys-
tems operate automatically in response to various driving situations.
Be aware, however, that these systems are supplementary and
should not be relied upon too heavily when operating the vehicle.

■

ABS (Anti-lock Brake System)

Helps to prevent wheel lock when the brakes are applied suddenly, or if
the brakes are applied while driving on a slippery road surface

■

Brake assist

Generates an increased level of braking force after the brake pedal is
depressed when the system detects a panic stop situation

■

Vehicle stability control (VSC)

Helps the driver to control skidding when swerving suddenly or turning
on slippery road surfaces

■

TRAC (Traction Control)

Helps to maintain drive power and prevent the drive wheels from spin-
ning when starting the vehicle or accelerating on slippery roads.
The TRAC system is also equipped with the brake LSD function.

■

Hill start assist

→P. 264

■

Electric power steering

Employs an electric motor to reduce the amount of effort needed to turn
the steering wheel

258

2-4. Using other driving systems

BRZ_U

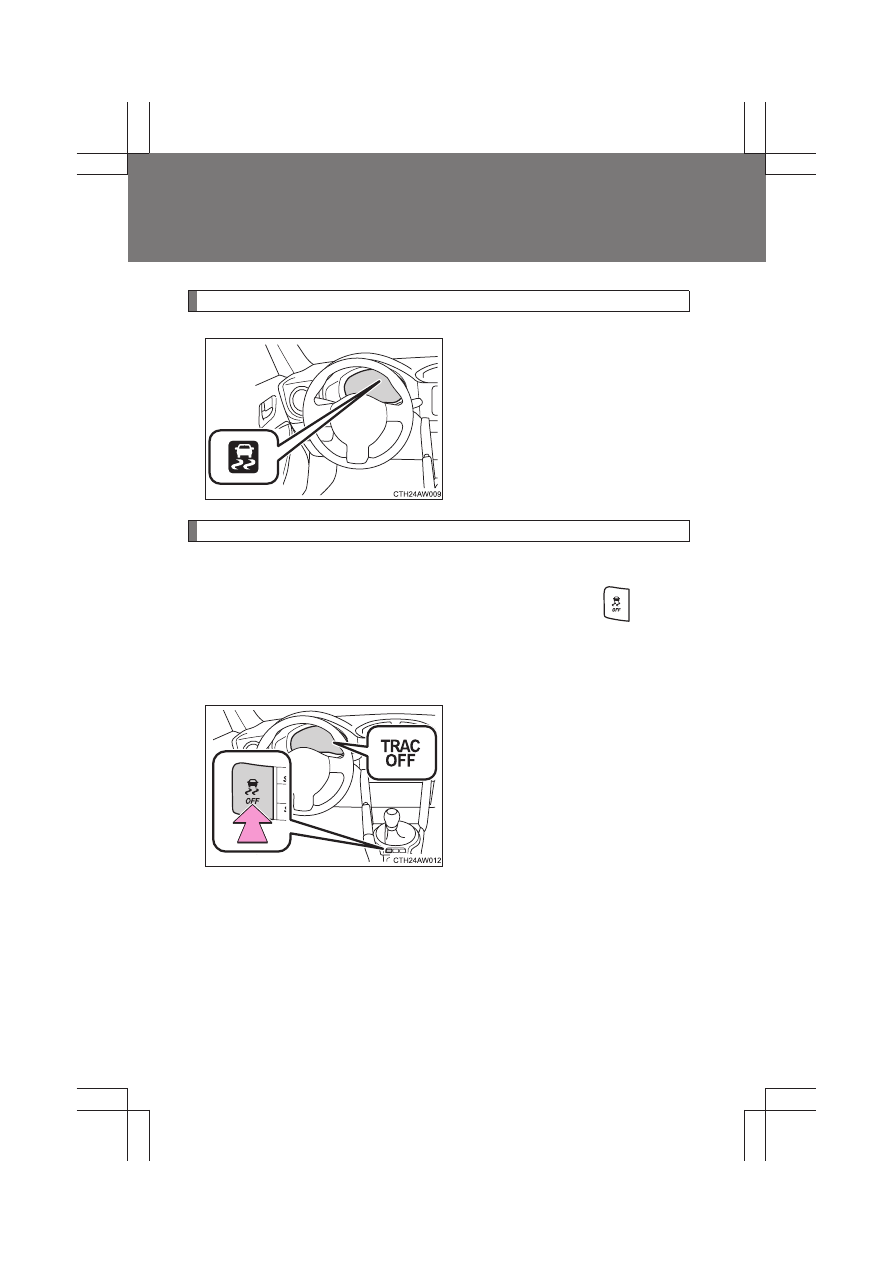

When the TRAC/Vehicle stability control (VSC) systems are operating

The slip indicator light will flash
while the TRAC (brake LSD
function)/Vehicle stability control
(VSC) systems are operating.

Disabling the TRAC system

If the vehicle gets stuck in mud, dirt or snow, the TRAC system may

reduce power from the engine to the wheels. Pressing

to turn

the system off may make it easier for you to rock the vehicle in order
to free it.
In this case, the brake LSD function remains on.

To turn the TRAC system off,
quickly press and release the
button.

The Traction Control System OFF
indicator light will come on.

Press the button again to turn the
system back on.

259

2-4. Using other driving systems

Wh
en driv

BRZ_U

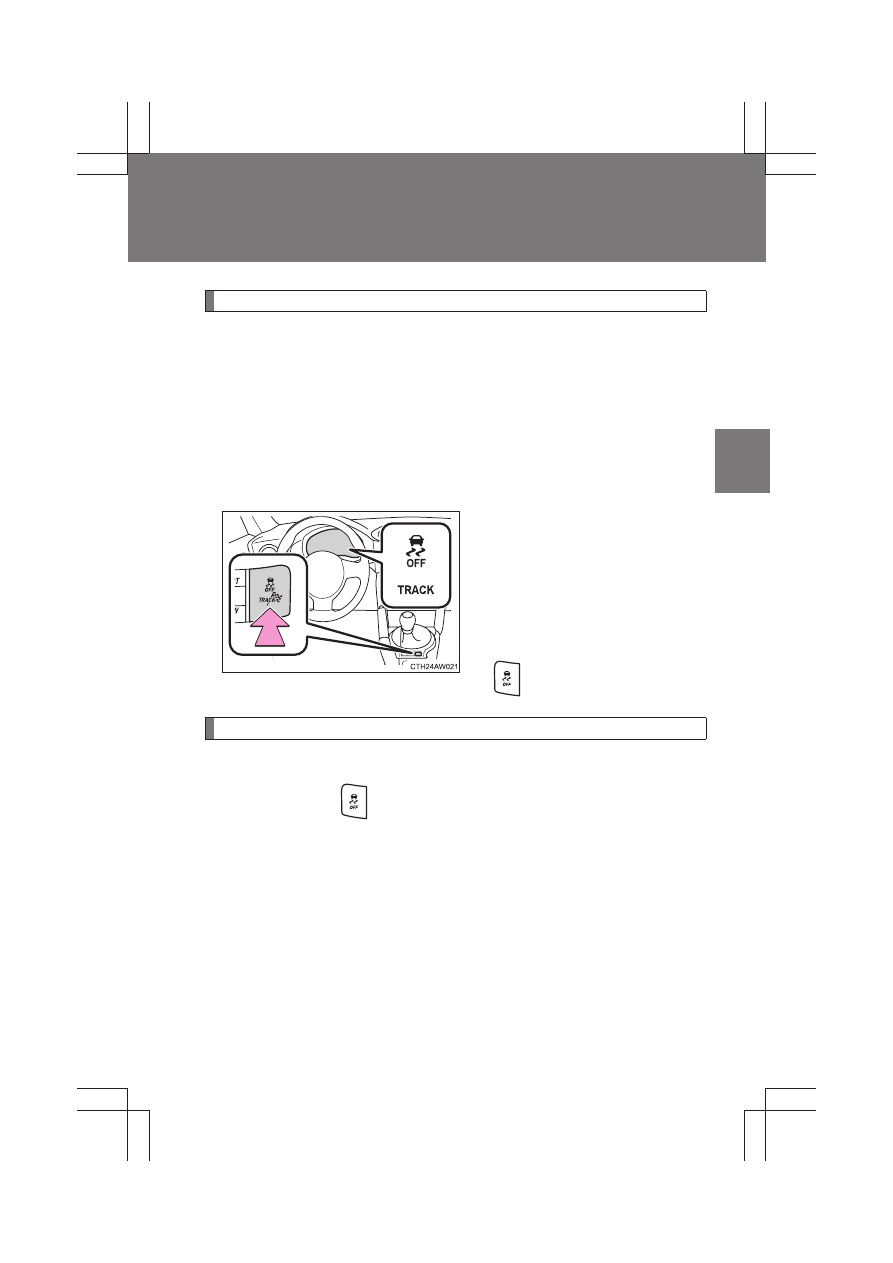

“TRACK” mode

Your vehicle is equipped with two types of control modes to accom-
modate various driving preferences. The control modes can be
selected with the “TRACK” switch. Normal mode allows secure and
smooth normal driving. When the switch is pressed and held for 1
second or more, “TRACK” mode is activated. Control characteristics
such as the Vehicle stability control (VSC) and TRAC are adjusted to
afford maneuverability closer to what a driver may desire, while a
sense of security is retained.

“TRACK” mode/Normal mode

The “TRACK” indicator and Vehi-
cle stability control (VSC) off indi-
cator come on when in “TRACK”
mode.

To change back to normal mode
while in “TRACK” mode, press

or the “TRACK” switch.

Turning off both TRAC and Vehicle stability control (VSC) systems

To turn the TRAC and Vehicle stability control (VSC) systems off,

press and hold

for more than 3 seconds while the vehicle is

stopped.

The Traction Control System OFF indicator light and the Vehicle sta-
bility control (VSC) off indicator light will come on.
However, on vehicles with an automatic transmission, the brake LSD
function will remain on.

Press the button again to turn the systems back on.

260

2-4. Using other driving systems

BRZ_U

Selecting TRAC mode and Vehicle stability control (VSC) mode

Modes can be selected to suit your driving conditions as follows:

Vehicles with an automatic transmission

Vehicles with a manual transmission

Driving

conditions

TRAC

modes

Vehicle sta-

bility control

(VSC) modes

Brake LSD

function

Indicator lights

Normal

roads

Normal

mode

Normal

mode

Normal

mode



Rough

roads

Off

Normal

mode

Normal

mode

Sport

driving

“TRACK”

mode

“TRACK”

mode

“TRACK”

mode

Off

“TRACK”

mode

Off

261

2-4. Using other driving systems

Wh
en driv

BRZ_U

■

Automatic reactivation of TRAC and Vehicle stability control (VSC) sys-
tems

After turning the TRAC and Vehicle stability control (VSC) systems off, the
systems will be automatically reactivated in the following situations:

●

Vehicles without a keyless access with push button start system: When
the engine switch is turned to “LOCK” position

●

Vehicles with a keyless access with push button start system: When the
push-button ignition switch is turned off

●

If only the TRAC system is turned off, the TRAC will turn on when vehicle
speed is more than approximately 31 mph (50 km/h).
If both the TRAC and Vehicle stability control (VSC) systems are turned
off, automatic reactivation will not occur when vehicle speed increases.

■

Automatic deactivation of “TRACK” mode

Vehicles without a keyless access with push button start system
When the engine switch is turned to “LOCK” position after driving in
“TRACK” mode, the mode is automatically deactivated.

Vehicles with a keyless access with push button start system
When the push-button ignition switch is turned off after driving in “TRACK”
mode, the mode is automatically deactivated.

■

Sounds and vibrations caused by the ABS, brake assist, TRAC and
Vehicle stability control (VSC) systems

●

A sound may be heard from the engine compartment when the brake
pedal is depressed repeatedly, when the engine is started or just after the
vehicle begins to move. This sound does not indicate that a malfunction
has occurred in any of these systems.

●

Any of the following conditions may occur when the above systems are
operating. None of these indicates that a malfunction has occurred.

• Vibrations may be felt through the vehicle body and steering.
• A motor sound may be heard after the vehicle comes to a stop.
• The brake pedal may pulsate slightly after the ABS is activated.
• The brake pedal may move down slightly after the ABS is activated.

Subaru BRZ (2019 year). Instruction - part 16
