2-2. Instrument cluster

BRZ_U

Tachometer indicator needle movement function when starting
the vehicle

When the engine switch is turned to “ON” position, the tachometer
indicator needle points to the highest value once and then quickly
returns.

■

Changing between activated/deactivated

Press the “ODO/TRIP” switch repeatedly until the setting
screen is displayed. (

→P. 212)

Each time the switch is pressed and held, the function
changes between activated/deactivated.

“S-on”: Activated

“S-oFF”: Deactivated

Setting the shift position indicator and shift-up indicator
(vehicles with a manual transmission)

Displaying of the shift position indicator and shift-up indicator can be
turned on/off.

Press the “ODO/TRIP” switch repeatedly until the setting
screen is displayed. (

→P. 212)

Each time the switch is pressed and held, the display changes
between on/off.

“G-on”: Display on

“G-oFF”: Display off

STEP

215

2-2. Instrument cluster

Wh
en driv

BRZ_U

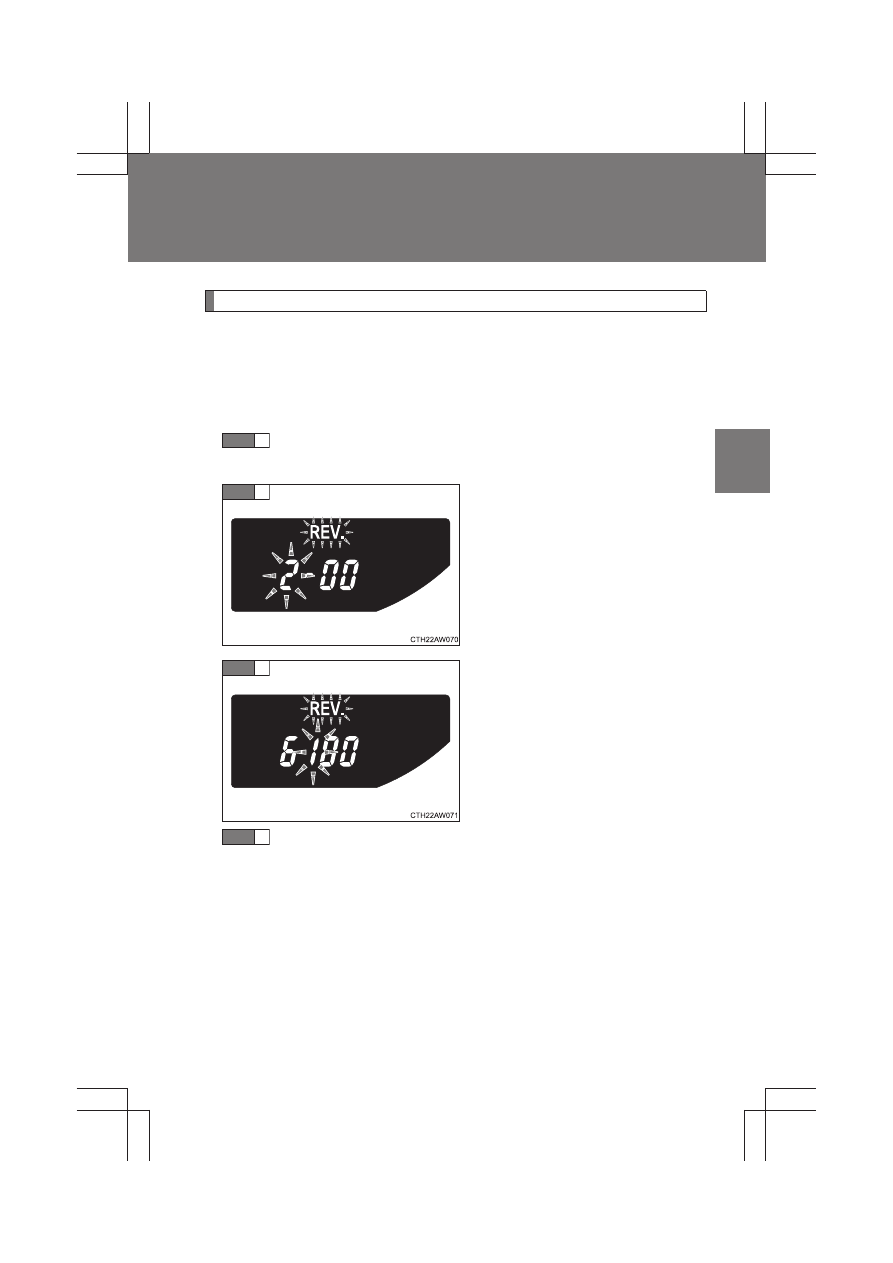

Setting the REV indicator

■

Changing the REV indicator settings
The engine speed at which the REV indicator turns on at and
whether a buzzer sounds or not when the light turns on can be set.

Engine speed setting range: From 2000 to 7400 rpm (r/min)

Press the “DISP” switch repeatedly until the setting screen is
displayed. (

→P. 213)

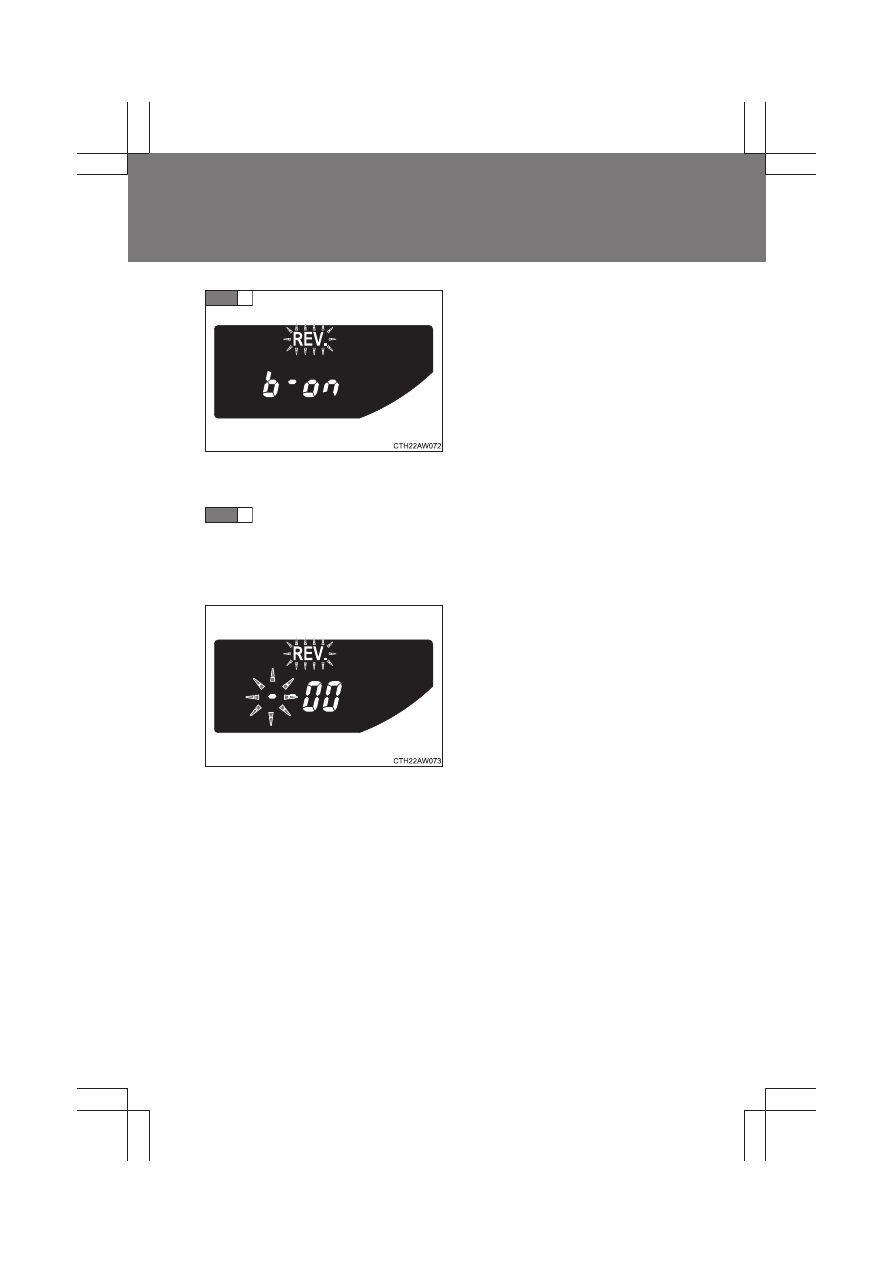

Press and hold the “DISP”
switch.

“REV.” and the thousandth place
flash. After flashing, the number
changes each time the button is
pressed and held.

Press the “DISP” switch.

The hundredth place flashes.
After flashing, the number
changes each time the button is
pressed and held.

Press the “DISP” switch.

A buzzer sounds once, and setting of the engine speed value is
complete.

STEP

216

2-2. Instrument cluster

BRZ_U

Press and hold the “DISP”
switch.

Each time the “DISP” switch is
pressed and held, the buzzer
changes between activated and
deactivated.
“b-on”: Buzzer activated
“b-oFF”: Buzzer deactivated
When the setting changes from
“b-oFF” to “b-on”, the buzzer
sounds 3 times.

Press the “DISP” switch.

When the buzzer sounds, all settings have been completed. The set-
tings are displayed.

■

Deactivating the REV indicator settings

After setting the thousandth
place to “-”, press the “DISP”
switch once.

STEP

217

2-2. Instrument cluster

Wh
en driv

BRZ_U

■

Outside temperature display

●

In the following situations, the correct outside temperature may not be
displayed.

• When the vehicle is very hot, such as when under the sun.
• When the vehicle is idling or being driven at low speeds such as in a

traffic jam or when the engine is stopped and then restarted immedi-
ately afterward.

• When the actual outside temperature is outside of the indicator range.

●

If “

− −” is displayed for approximately 1 minute or more or if the outside

temperature is not displayed, the system may be malfunctioning. Have
the vehicle inspected by your SUBARU dealer.

WARNING

■

The information display at low temperatures

Allow the interior of the vehicle to warm up before using the liquid crystal
information display. At extremely low temperatures, the information display
monitor may respond slowly, and display changes may be delayed.
For example, there is a lag between the driver's shifting and the new shift
position number appearing on the display. In this case, wait until the display
changes and take care not to downshift again, causing rapid and excessive
engine braking and possibly an accident resulting in death or serious injury.

218

2-2. Instrument cluster

BRZ_U

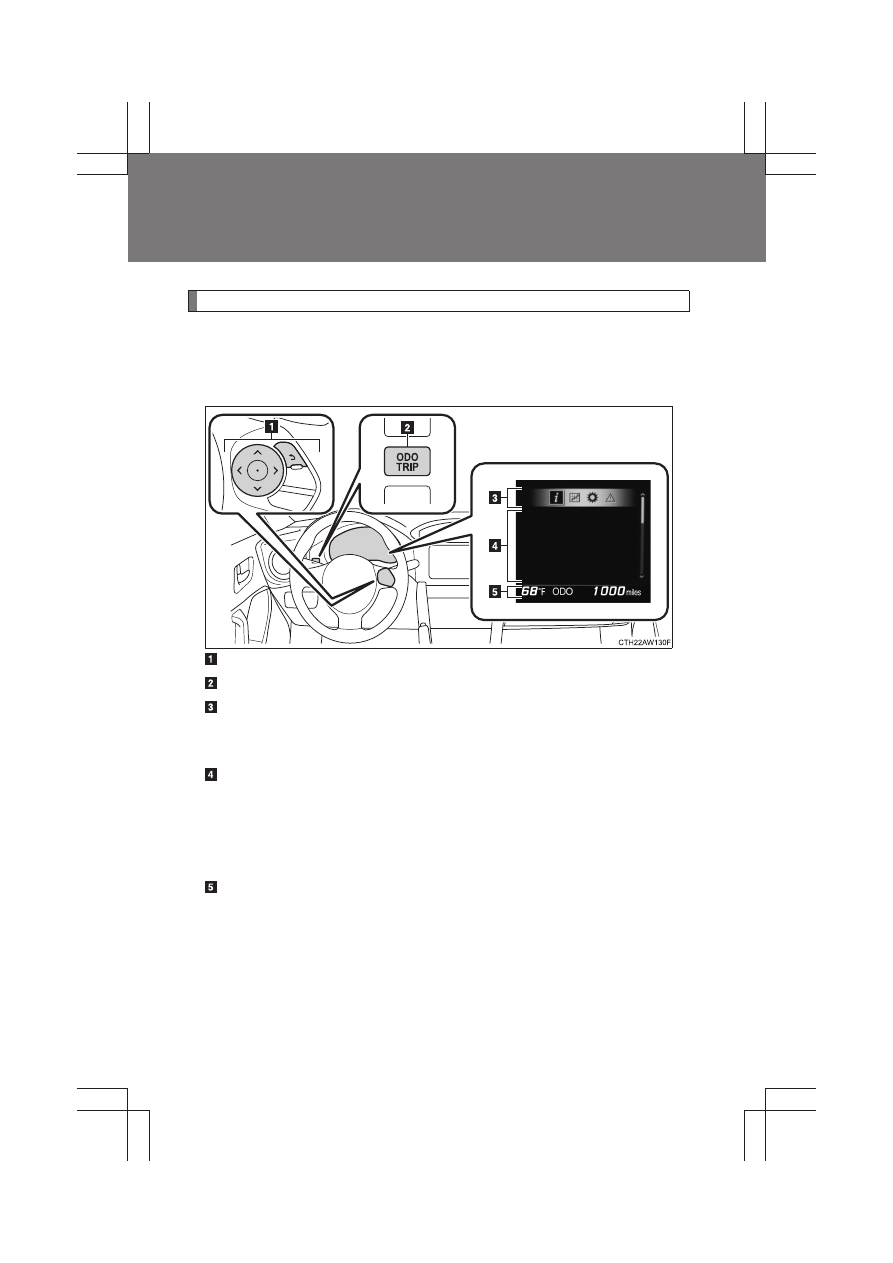

Multi-information display (color display)

Summary of functions

The multi-information display presents the driver with a variety of driv-
ing-related data, such as the current outside temperature. The multi-
information display can also be used to change the meter settings.

Meter control switches (

→P. 219)

“ODO/TRIP” switch (

→P. 219)

Menu icons (

→P. 220)

The menu icon bar will be displayed momentarily when the meter control
switch is used to change the displayed content.

Content display area

A variety of information can be displayed by selecting a menu icon. Addi-
tionally, a warning message will be displayed in some situations.

• Menu icon content (

→P. 220)

• Warning message (

→P. 229, 434)

Odometer/trip meter display area (

→P. 230)

Displays the following items:

• Odometer/trip meter
• Outside temperature

219

2-2. Instrument cluster

Wh
en driv

BRZ_U

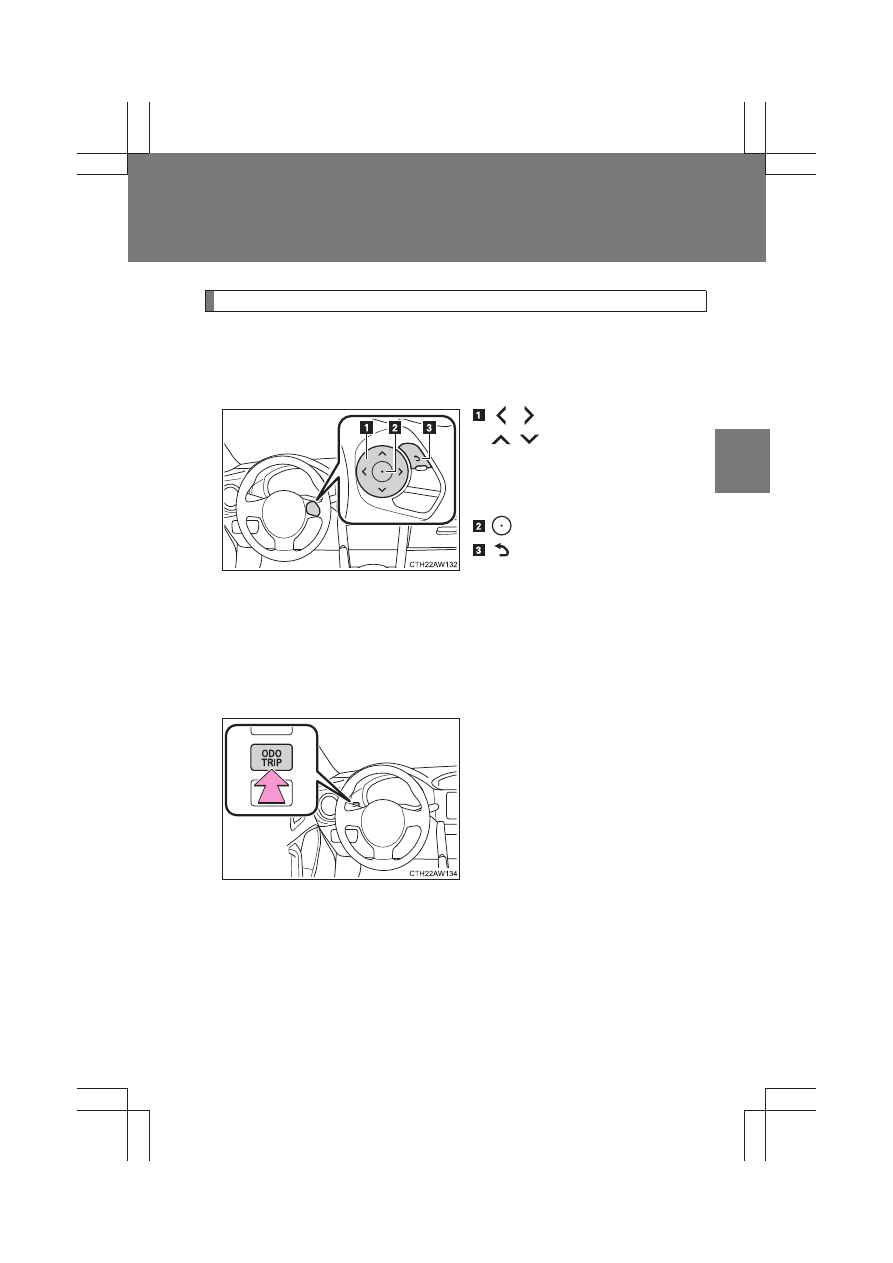

Using the multi-information display

■

Using the content display area

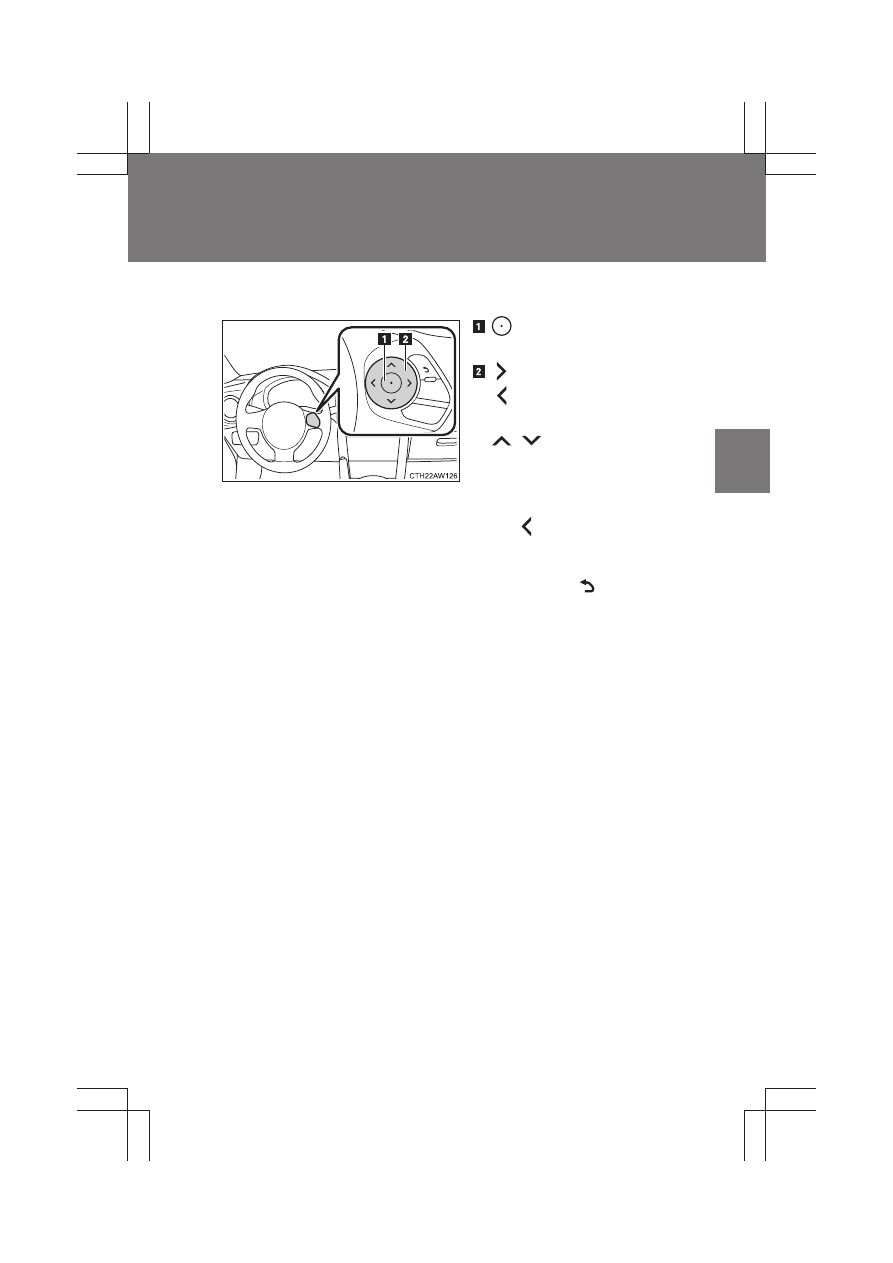

The content display area is operated using the meter control
switches.

: Select menu icons

: Change displayed

content, scroll up/
down the screen
and move the cursor

Enter

Return to the previ-
ous screen

For information pertaining to the content of each menu icon, refer to
the explanation of each item under the heading of the relevant menu
icon.

■

Using the odometer/trip meter display area

Items in this area are operated using the “ODO/TRIP” switch.

Press: Change displayed item

Each time the switch is pressed,
the displayed item changes in the
order of odometer

→ trip meter A

→ trip meter B.

Press and hold: Reset

Display the desired trip meter and
press and hold the switch to reset
the trip meter.

220

2-2. Instrument cluster

BRZ_U

Menu icons

Select a menu icon to display its content.

Drive information (

→P. 221)

Select to display various drive data.

Exclusive content for BRZ (

→P. 224)

Select to display the G-force display, stopwatch, and other useful
functions for sporty driving.

Settings display (

→P. 228)

Select to change the meter display settings.

Warning message display (

→P. 229, 434)

Select to display warning messages and measures to be taken if a
malfunction is detected.

221

2-2. Instrument cluster

Wh
en driv

BRZ_U

Drive information (

)

■

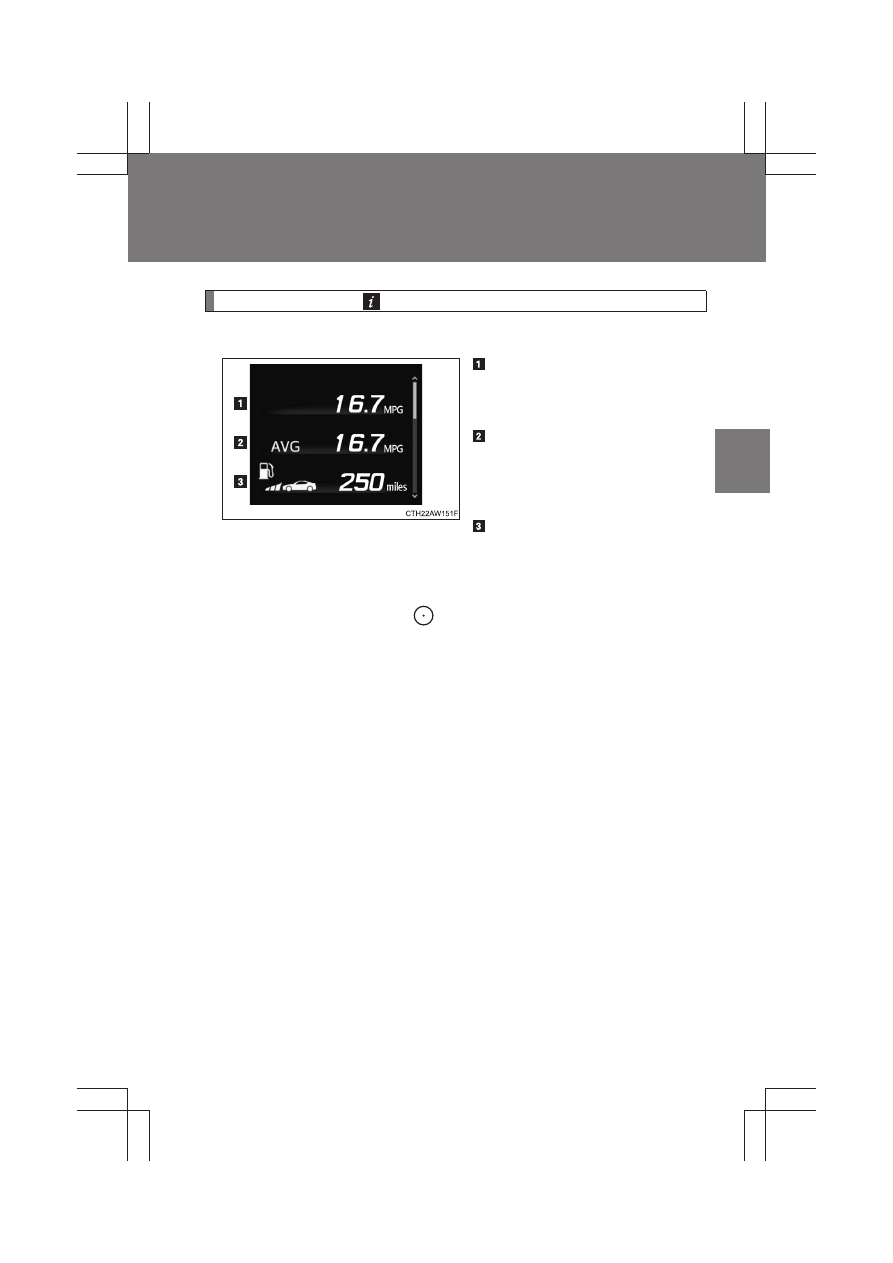

Drive information (page 1)

Current fuel consumption

Displays the current rate of fuel
consumption.

Average fuel consumption

Displays the average fuel con-
sumption since the function was
reset.

Driving range

Displays the estimated maximum
distance that can be driven with
the quantity of fuel remaining.

● Pressing and holding

will reset the average fuel consump-

tion.

● Use the displayed fuel consumption as a reference.
● This distance is computed based on your average fuel con-

sumption. As a result, the actual distance that can be driven may
differ from that displayed.

● When only a small amount of fuel is added to the tank, the dis-

play may not be updated.
When refueling, turn the push-button ignition switch off. If the
vehicle is refueled without turning the push-button ignition switch
off, the display may not be updated.

222

2-2. Instrument cluster

BRZ_U

■

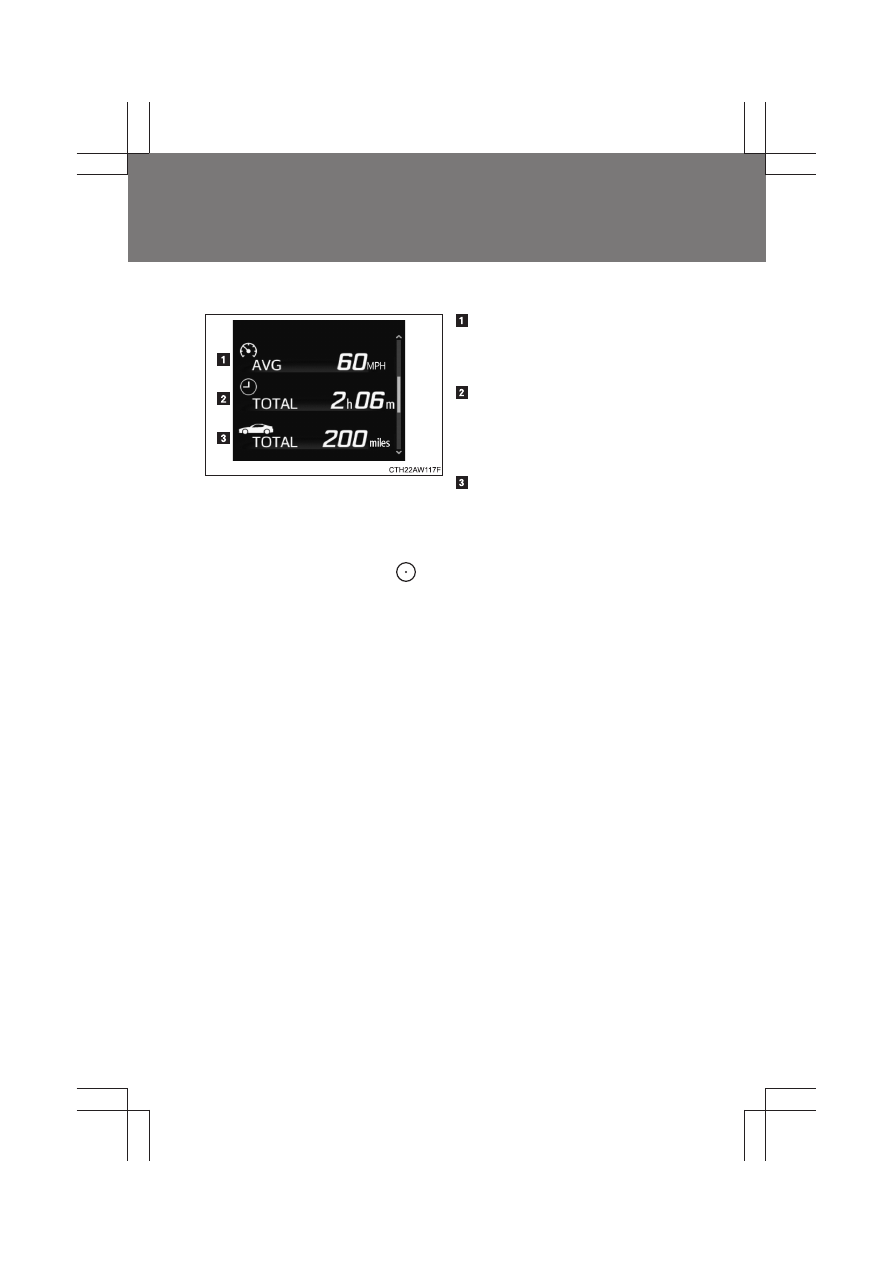

Drive information (page 2)

Average vehicle speed

Displays the average vehicle
speed since display was reset.

Driving time

Displays the cumulative time the
vehicle has been driven since dis-
play was reset.

Driving distance

Displays the cumulative distance
the vehicle has been driven since
display was reset.

● Pressing and holding

will reset the average vehicle speed/

driving time/driving distance.

223

2-2. Instrument cluster

Wh
en driv

BRZ_U

■

Drive information (page 3)

Engine coolant temperature
gauge

Displays the engine coolant tem-
perature.
If the engine coolant temperature
gauge needle/indicator enters the
red zone, a buzzer will sound and
a warning message will be dis-
played.

Engine oil temperature gauge

Displays the engine oil tempera-
ture.

Voltmeter

Displays the charging voltage.

As voltage displayed may
be different from the actual
battery voltage, use the volt-
meter as a guideline.

● Pressing and holding

will turn the range value display on the

engine coolant temperature gauge display on/off.

224

2-2. Instrument cluster

BRZ_U

Exclusive content for BRZ (

)

■

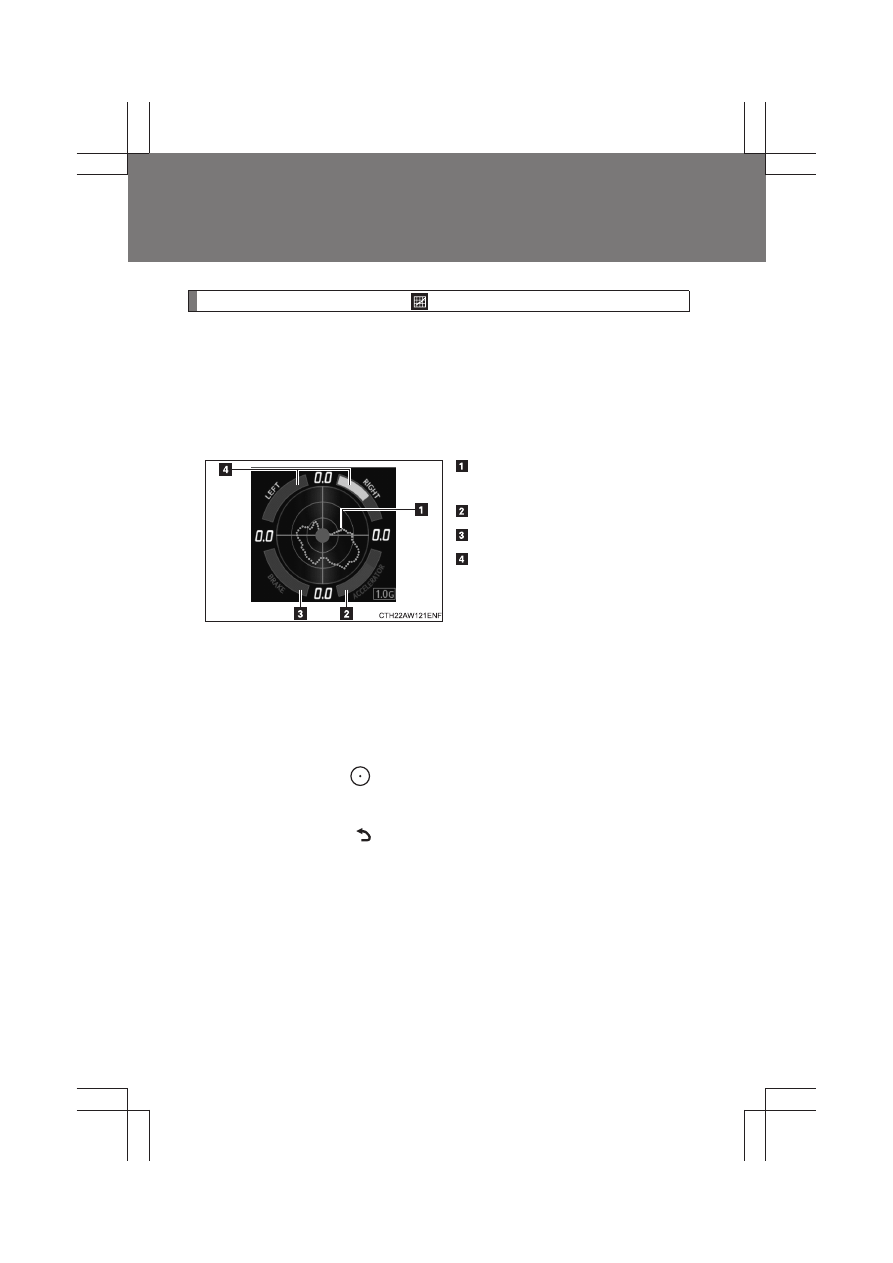

G-force

Displays lateral G-forces on the vehicle

Also displays, around the periphery of the G-force display, the left and
right steering amount, accelerator pedal input, and brake fluid pres-
sure

Record of the maximum G-
forces
Accelerator pedal input
Brake fluid pressure
Steering amount

If the steering wheel is turned
completely to the left or right, the
bottom side of the gauge on the
corresponding side will be illumi-
nated in red.

This display is intended for use as a guideline. Depending on factors such
as the road surface condition, temperature and vehicle speed, the display
may not show the actual condition of the vehicle.

● Resetting the record of maximum G-forces

Press and hold

to reset the record.

● Changing the acceleration G-force display range

Press and hold

to change the range of the acceleration G-

force display between 1.0 G and 0.5 G.

● Screen displayed while driving

While driving, the G-force screen will automatically be changed
to the power and torque curve display. To display the G-force
screen, stop the vehicle in a safe place.

225

2-2. Instrument cluster

Wh
en driv

BRZ_U

■

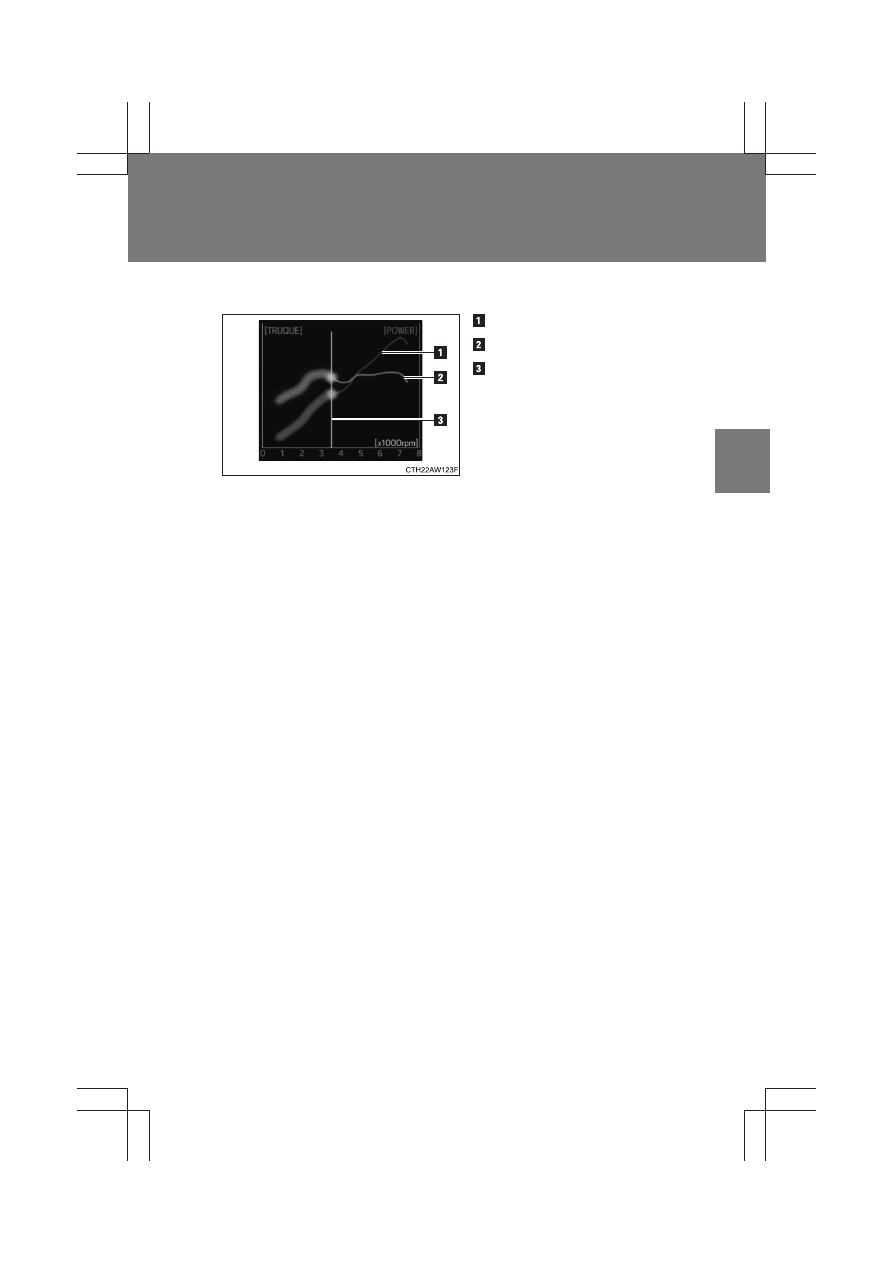

Power and torque curve

Power output
Torque
Current engine speed

The vertical bar will slide laterally
according to the current engine
speed.

This chart is intended for reference only and does not show the actual
engine torque or output.

226

2-2. Instrument cluster

BRZ_U

■

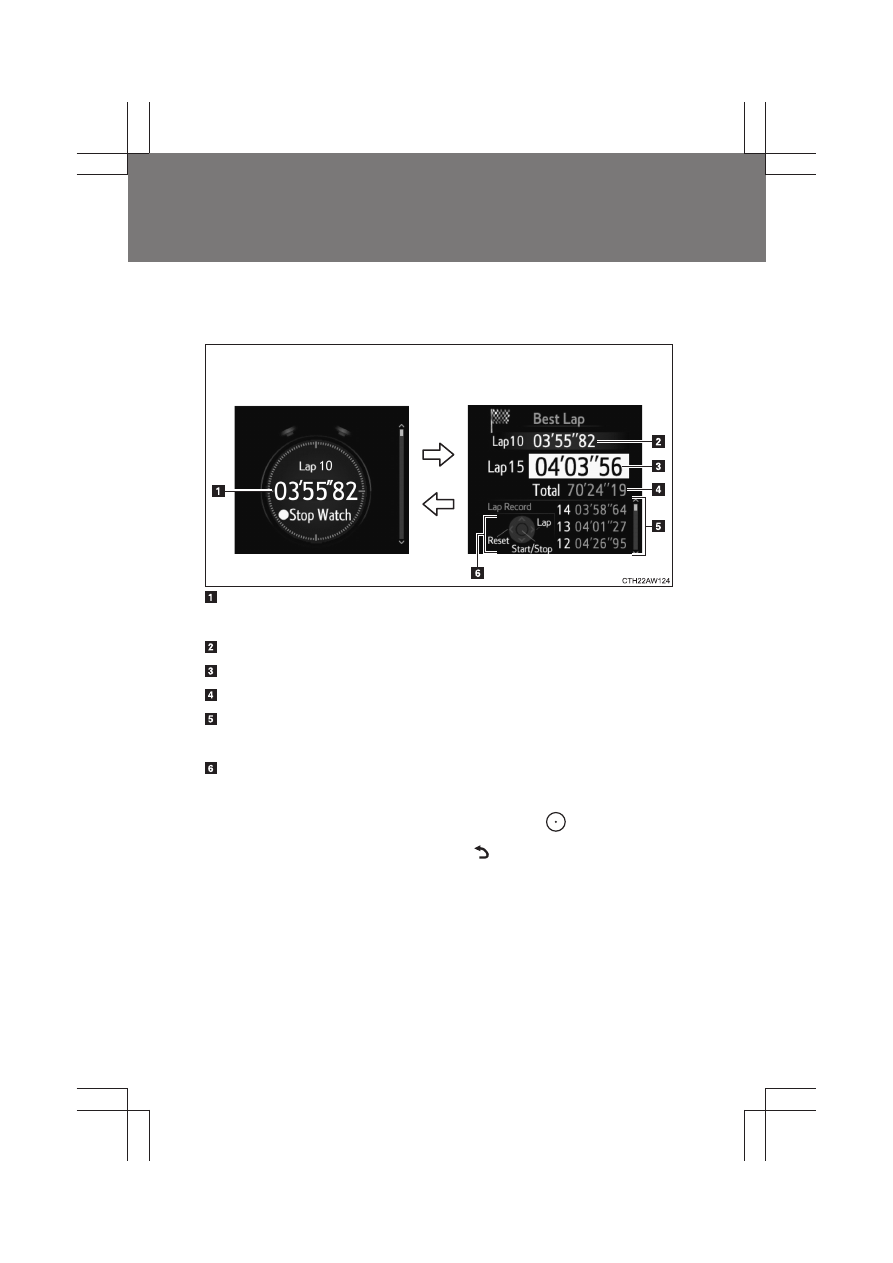

Stopwatch

Measures and displays current lap time and previous lap times

Fastest lap time (top screen)

When the timer is reset, “

− −’− −”− −” will be displayed.

Fastest lap time (measurement screen)
Current lap time
Total lap time
Past lap times

Records of the 50 most recent lap times will be displayed.

Meter control switch operation guide

● Changing between the stopwatch screens

To change to the measurement screen: Press

To change to the top screen: Press

Top screen

Measurement screen

227

2-2. Instrument cluster

Wh
en driv

BRZ_U

● Operating the measurement screen

Start/stop measure-
ment

Mark off one lap

Reset measured lap
times

: Scroll through the

lap times

● Resetting measured lap times

After stopping the measurement, press

● To display other content while the stopwatch is operating

If the measurement screen is displayed, press

to display the

top screen. Then operate the meter control switches to display
other content. While other items are displayed, the measurement
will continue but the stopwatch cannot be operated.

228

2-2. Instrument cluster

BRZ_U

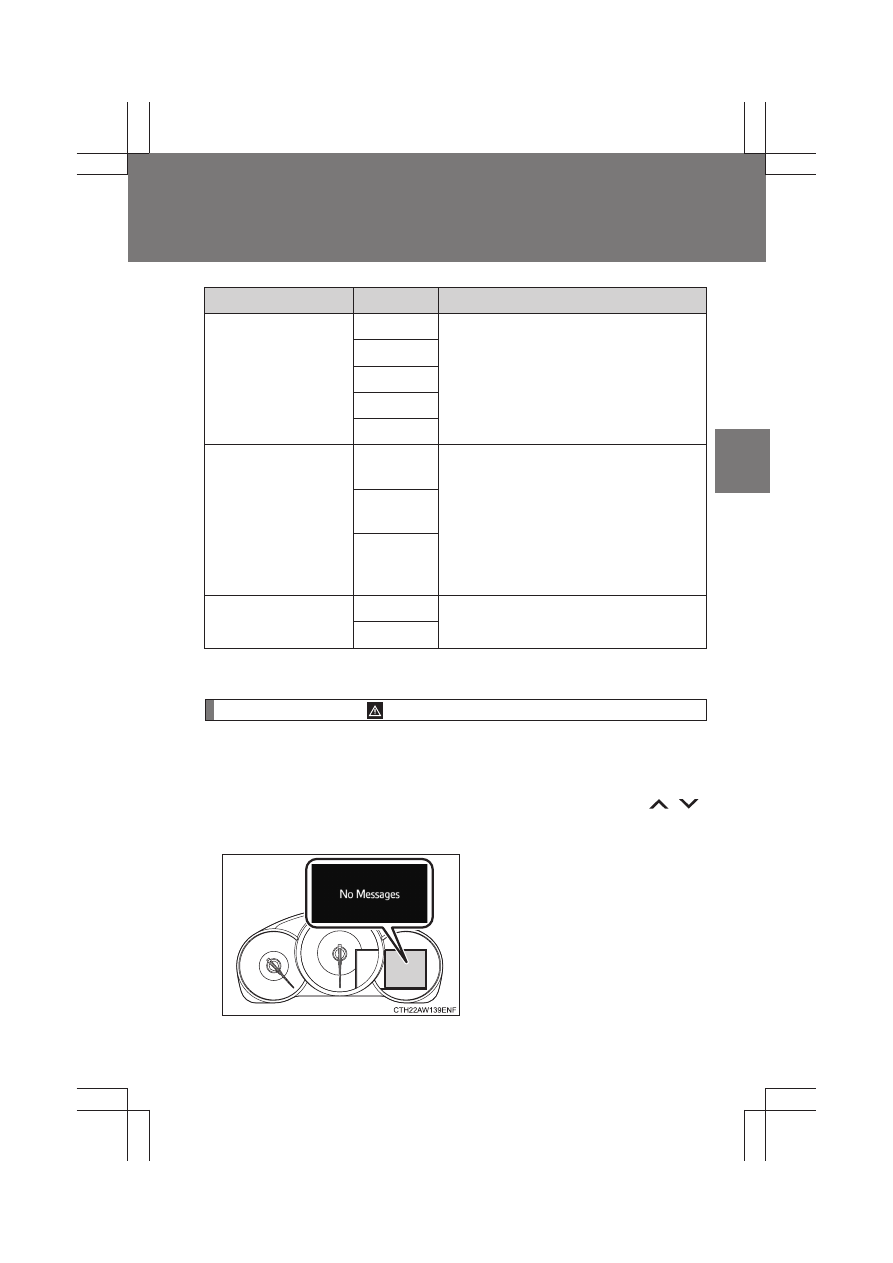

Settings display (

)

Use the meter control switches on the steering wheel to change set-
tings.

Press

select .

Operate the switches to select a desired item.

Press

to change the setting and then

press

to confirm the change.

Item

Settings

Details

Welcome screen

Select to enable/disable the welcome
screen and tachometer indicator nee-
dle movement function when the push-
button ignition switch is turned to “ON”
mode.

Off

REV.

RPM

--00 rpm
(OFF) ~
7400 rpm

Select to enable/disable the REV indi-
cator and set the engine speed at
which the REV indicator will be illumi-
nated.
To disable, select “--” for the engine
speed (--00 rpm)
Selectable engine speed range: 2000
to 7400 rpm

Buzzer

Select to enable/disable the sounding
of a buzzer when the REV indicator is
illuminated. This setting can be
changed only when the REV indicator
is enabled.

Off

GSI (vehicles with a
manual transmis-
sion)

Select to enable/disable the shift posi-
tion indicator and shift-up indicator.
(

→P. 193)

Off

STEP

229

2-2. Instrument cluster

Wh
en driv

BRZ_U

*: If equipped

Warning message (

)

Select to display warning messages related to situations such as a
vehicle malfunction.

● If there is more than one message to be displayed, press

to change the display.

● If there are no warning mes-

sages to be displayed, a mes-
sage indicating so will be
displayed.

Language

English

Select to change the language dis-
played.

French

Spanish

Russian*

Chinese*

Units

km, km/h,
km/l

Select to change the units of measure
displayed.

km, km/h,
l/100km

miles,
MPH,
MPG

Initialization

Yes

Select to reset the meter display set-
tings to the default setting.

Item

Settings

Details

Subaru BRZ (2019 year). Instruction - part 14
