Subaru Ascent (2019 year). Instruction

(355,1)

北米Model "A3200BE-A" EDITED: 2018/ 3/ 5

Electronic parking brake system
warning

CAUTION

If the brake system warning light
turns on, the electronic parking
brake system may be malfunction-
ing. Immediately stop your vehicle in
the nearest safe location and con-
tact your SUBARU dealer.

If a malfunction occurs in the electronic
parking brake system, the brake system
warning light turns on. Refer to “Electronic
parking brake light” FP180.

Parking tips

When parking your vehicle, always per-
form the following items.
.

Apply the parking brake firmly.

Put the select lever in the “P” position.

Never rely on the mechanical friction of the
transmission alone to hold the vehicle.

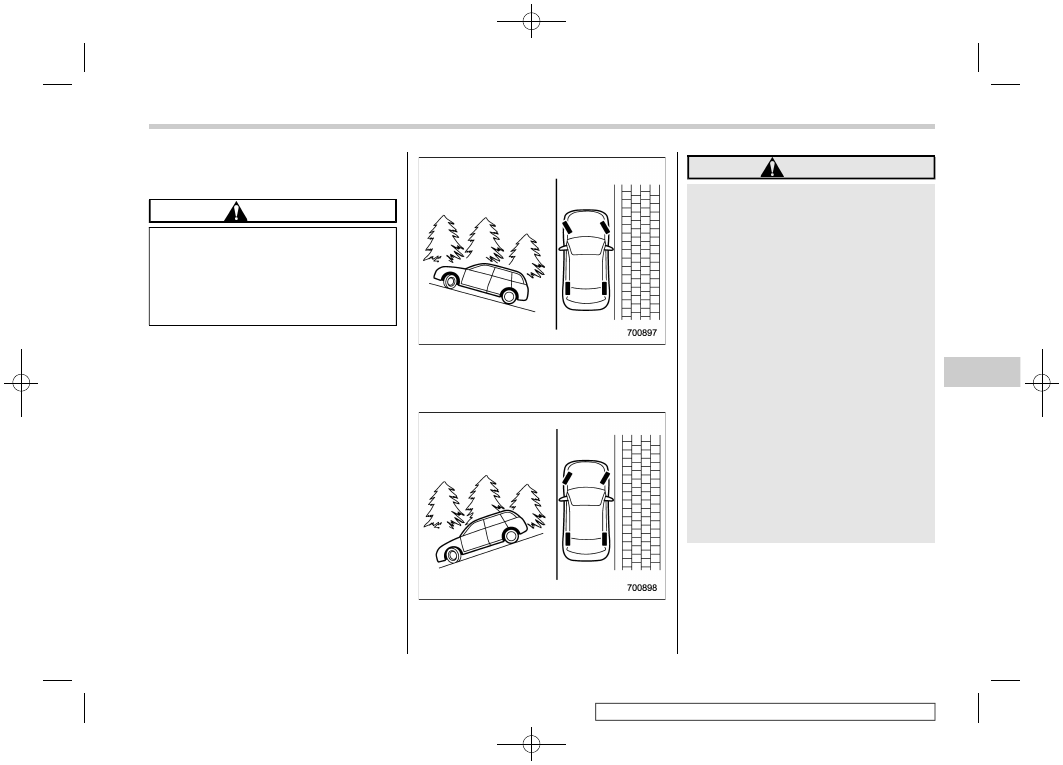

When parking on a hill, always turn the
steering wheel. When the vehicle is
headed up the hill, the front wheels should
be turned away from the curb.

When facing downhill, the front wheels
should be turned into the curb.

WARNING

Never leave unattended children

or pets in the vehicle. They could
accidentally injure themselves or
others through inadvertent op-
eration of the vehicle. Also, on
hot or sunny days, the tempera-
ture in a closed vehicle could
quickly become high enough to
cause severe or possibly fatal
injuries to people.

Do not park the vehicle over

flammable materials such as dry
grass, waste paper or rags, as
they may burn easily if they come
near hot engine or exhaust sys-
tem parts.

Be sure to stop the engine if you

take a nap in the vehicle. If engine
exhaust gas enters the passen-
ger compartment, occupants in
the vehicle could die from carbon
monoxide (CO) contained in the
exhaust gas.

– CONTINUED –

Parking your vehicle

353

Starting

and

operating

(356,1)

北米Model "A3200BE-A" EDITED: 2018/ 3/ 5

CAUTION

If your vehicle has a bumper

under guard (optional), pay atten-
tion to blocks and other obstruc-
tions on the ground when park-
ing. The underspoiler could be
damaged by contact with them.

The braking power of the parking

brake may not be sufficient when
s t r o n g e r b r a k i n g p o w e r i s
needed (e.g., when parking on a
steep slope while towing a trai-
ler).

7-16. Hill start assist system

WARNING

The Hill start assist system is a

device only for helping the driver
to START the vehicle on an uphill
grade. To prevent accidents
when the vehicle is parked on a
slope, be sure to firmly set the
parking brake. When setting the
parking brake, make sure that the
vehicle remains stationary when
the brake pedal is released.

Do not turn the ignition switch to

the “LOCK”/“OFF” position while
the Hill start assist system is
operating. The Hill start assist
system will be deactivated and
may lead to an accident.

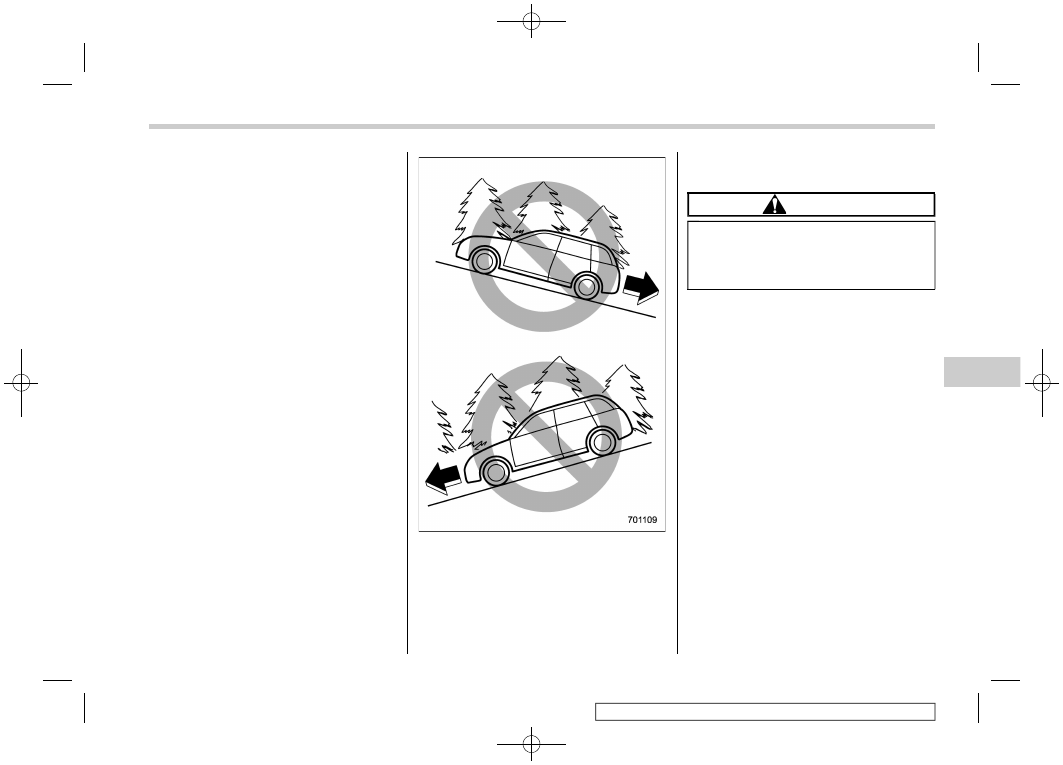

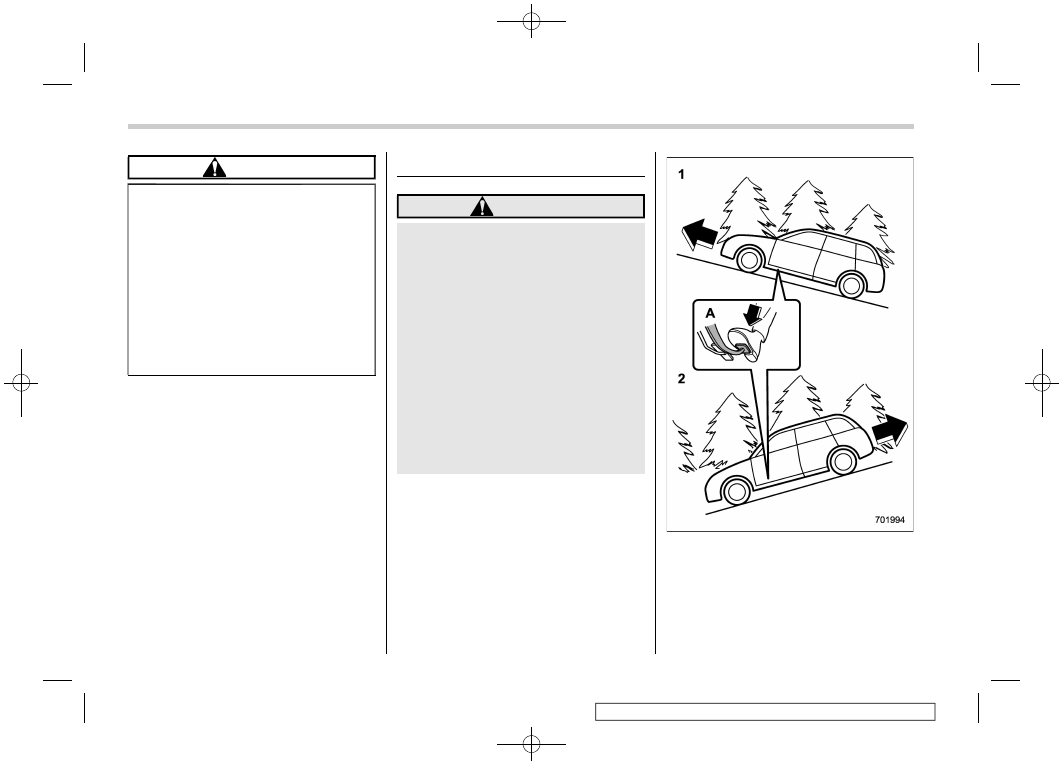

The Hill start assist system is a device to
make the following vehicle operations
easier.

Starting forward facing uphill

Starting backward facing downhill

Brake pedal

When the vehicle has stopped with the
brake pedal depressed, the Hill start assist
system operates under the following con-

Hill start assist system

354

(357,1)

北米Model "A3200BE-A" EDITED: 2018/ 3/ 5

ditions.
Braking power is maintained temporarily
(for approximately 2 seconds) by the Hill
start assist system after the brake pedal is
released. The driver is therefore able to
start the vehicle in the same way as on a
level grade, just using the accelerator
pedal.

If the braking power of the Hill start assist
system is insufficient after the brake pedal
is released, apply more braking power by
depressing the brake pedal again.

The Hill start assist system may not
operate on slight grades. Also, the Hill
start assist system does not operate in the
following cases.

When starting backward facing uphill

When starting forward facing downhill

While the parking brake is applied

While the ignition switch is in the “ACC”

or “LOCK”/“OFF” position

When using the Hill start assist system, a

braking effect may be felt even after the
brake pedal has been released.

CAUTION

The braking power of the Hill start
assist system may not be sufficient
when strong braking power is
needed (e.g., when towing a trailer).

NOTE

A slight jolt may be felt when the
vehicle begins to move forward after
being reversed.

Hill start assist system

355

Starting

and

operating

(358,1)

北米Model "A3200BE-A" EDITED: 2018/ 3/ 5

7-17. BSD/RCTA (if equipped)

The BSD/RCTA consists of rear radar with
Blind Spot Detection and Rear Cross
Traffic Alert.

These functions enable the system to
detect objects or vehicles to the rear,
drawing attention to the driver when
changing a lane or when driving in reverse.

WARNING

The driver is responsible for driving
safely. Always be sure to check the
surroundings when changing lanes
or reversing the vehicle.

The system is designed to assist the
driver to change lanes or reverse
safely by monitoring the rear and
side areas of the vehicle. However,
you cannot rely on this system alone
in assuring the safety during a lane
change or reversing. Overconfi-
dence in this system could result in
an accident and lead to serious
injury or death. Since the system
operation has various limitations,
the flashing or illumination of the
BSD/RCTA approach indicator light
may be delayed or it may not operate
at all even when a vehicle is present

in a neighboring lane or approach-
ing from either side.

The driver is responsible for paying
attention to the rear and side areas
of the vehicle.

System features

BSD/RCTA consists of the following func-
tions.
.

To detect a vehicle in a blind spot on an

adjacent lane or a vehicle approaching at
high speeds (Blind Spot Detection)
.

To detect a vehicle approaching from

the right or left while reversing the vehicle
(Rear Cross Traffic Alert)

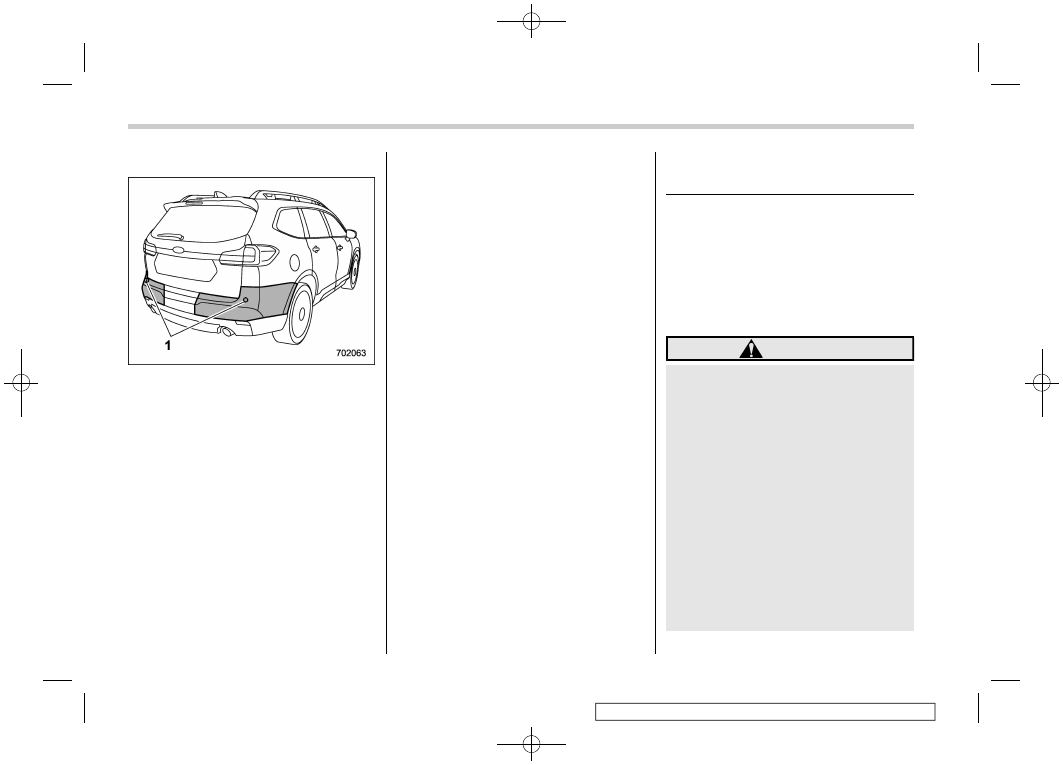

The system uses radar sensors for the
above functions.

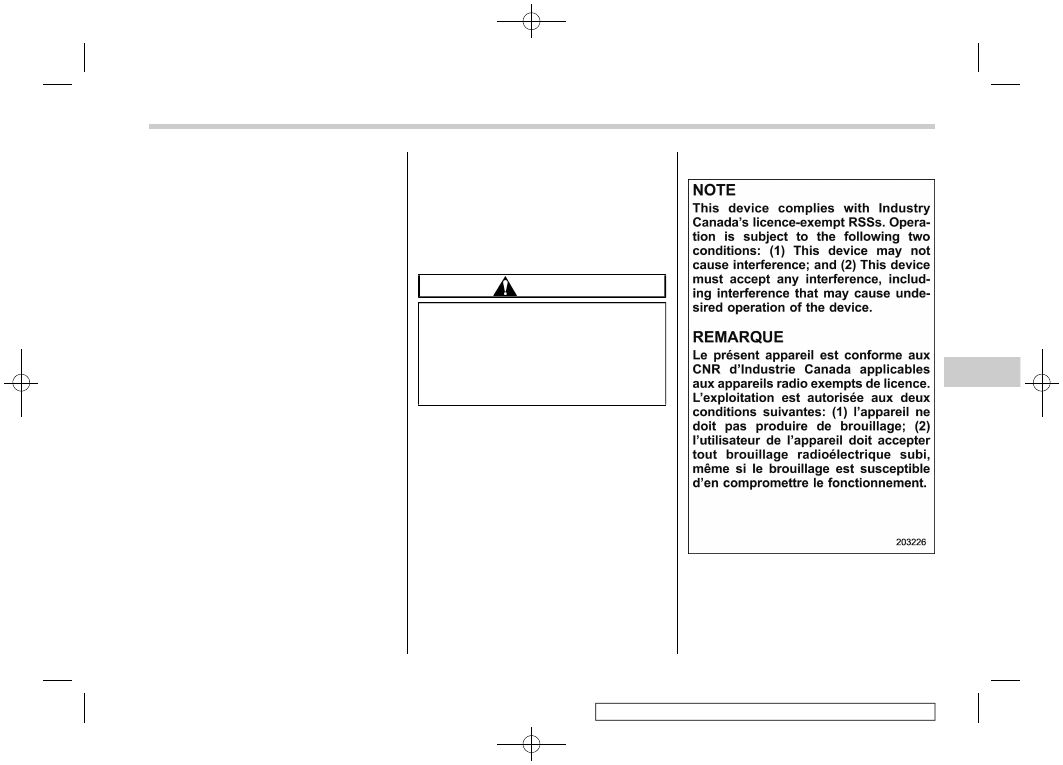

NOTE

The BSD/RCTA radar sensor has been
certified by the radio wave related laws
of the U.S. and Canada. When driving in
other countries, certification of the
country where the vehicle is driven
must be obtained. For certification in
the U.S. and Canada, refer to “Certifica-
tion for the BSD/RCTA” FP363.

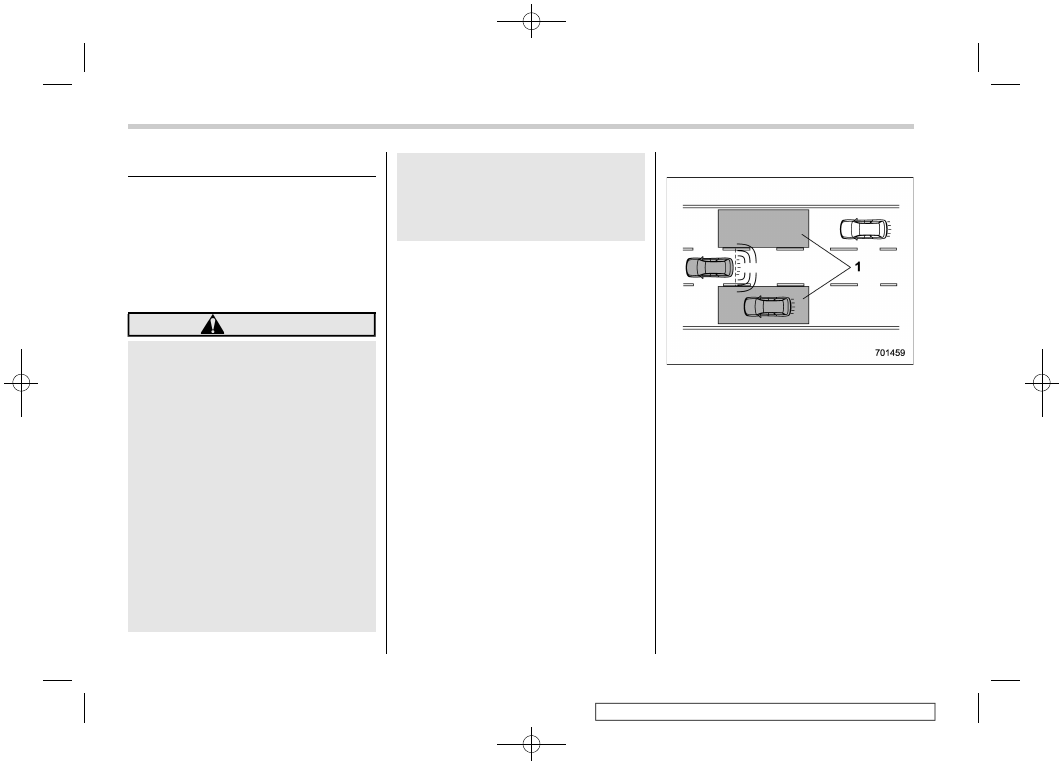

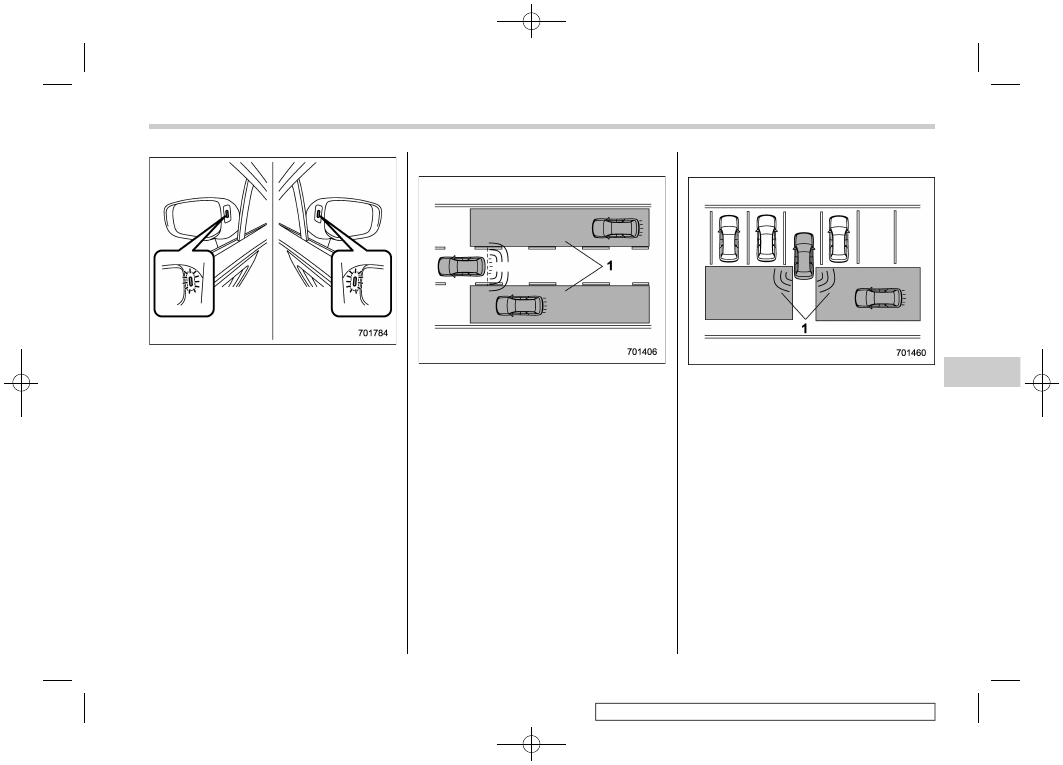

Blind Spot Detection (BSD)

Operating range

The system warns the driver of dangers as
follows.
.

If the system detects a vehicle in the

blind spot, the BSD/RCTA approach in-
dicator light(s) on the outside mirror(s) will
illuminate.

BSD/RCTA

356

(359,1)

北米Model "A3200BE-A" EDITED: 2018/ 3/ 5

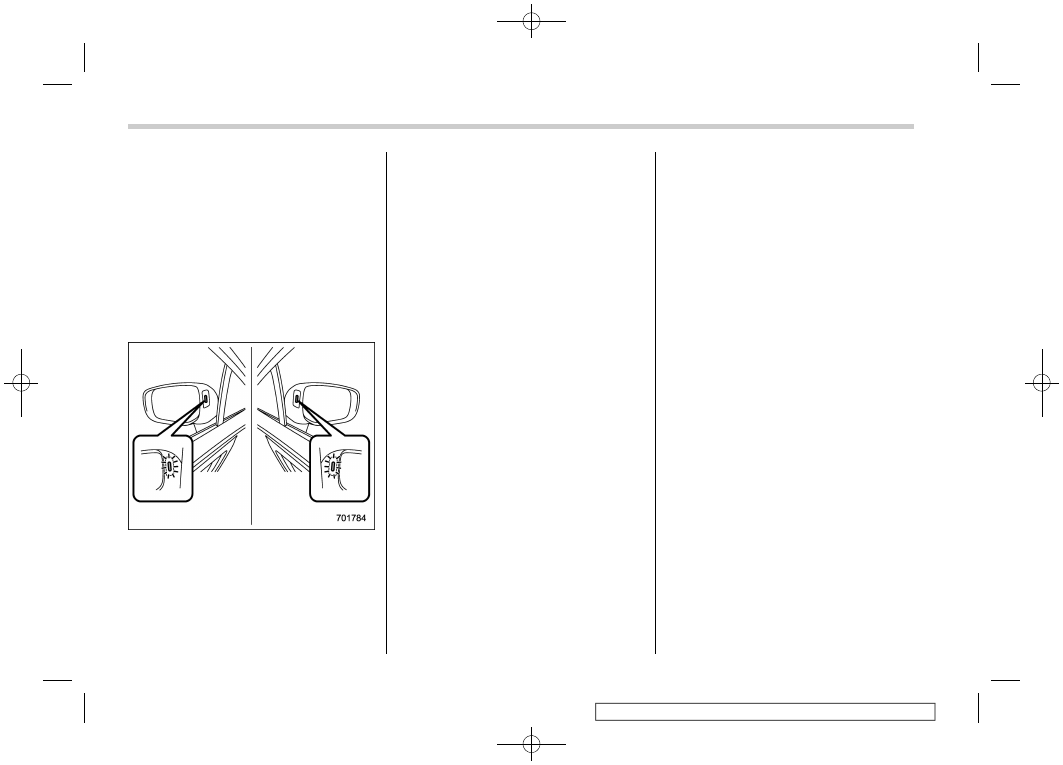

BSD/RCTA approach indicator light

If the driver operates the turn signal

lever in the direction which the BSD/RCTA
approach indicator light is illuminating, the
corresponding BSD/RCTA approach indi-
cator light will flash.

Lane Change Assist (LCA)

Operating range

The system warns the driver of dangers as
follows.
.

If the system detects a vehicle ap-

proaching at a high speed in the neighbor-
ing lanes, the BSD/RCTA approach indi-
cator light(s) on the outside mirror(s) will
illuminate.
.

If the driver operates the turn signal

lever in the direction which the BSD/RCTA
approach indicator light is illuminating, the
corresponding BSD/RCTA approach indi-
cator light will flash.

Rear Cross Traffic Alert (RCTA)

Operating range

The system notifies the driver of another
vehicle approaching from either side when
driving in reverse. This feature helps the
driver check the rear and side areas of the
vehicle when moving backward.

If the system detects a vehicle approach-
ing from either side while moving back-
ward, it warns the driver of dangers in the
following way.
.

The BSD/RCTA approach indicator

light(s) on the outside mirror(s) flashes.
.

A warning buzzer sounds.

An icon appears on the rear view

camera screen (audio/navigation monitor)

– CONTINUED –

BSD/RCTA

357

Starting

and

operating

(360,1)

北米Model "A3200BE-A" EDITED: 2018/ 3/ 5

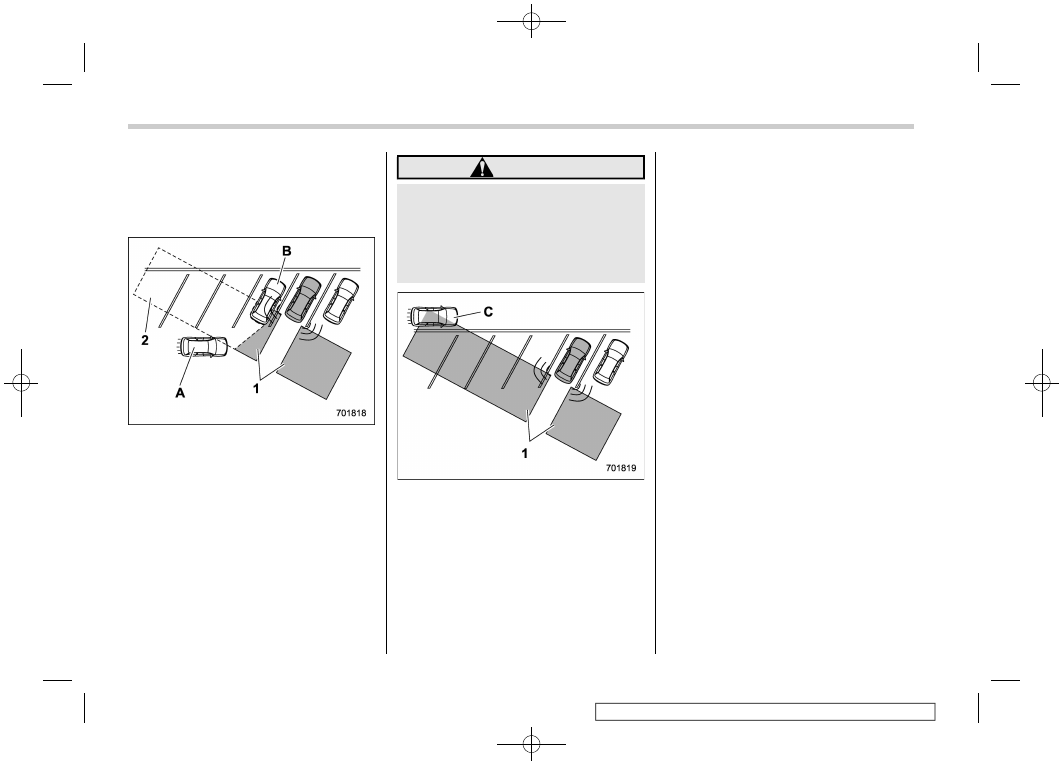

Limitations of the detectability of
RCTA

Since the detectability of RCTA is limited,
the RCTA may not operate properly in
angled parking.

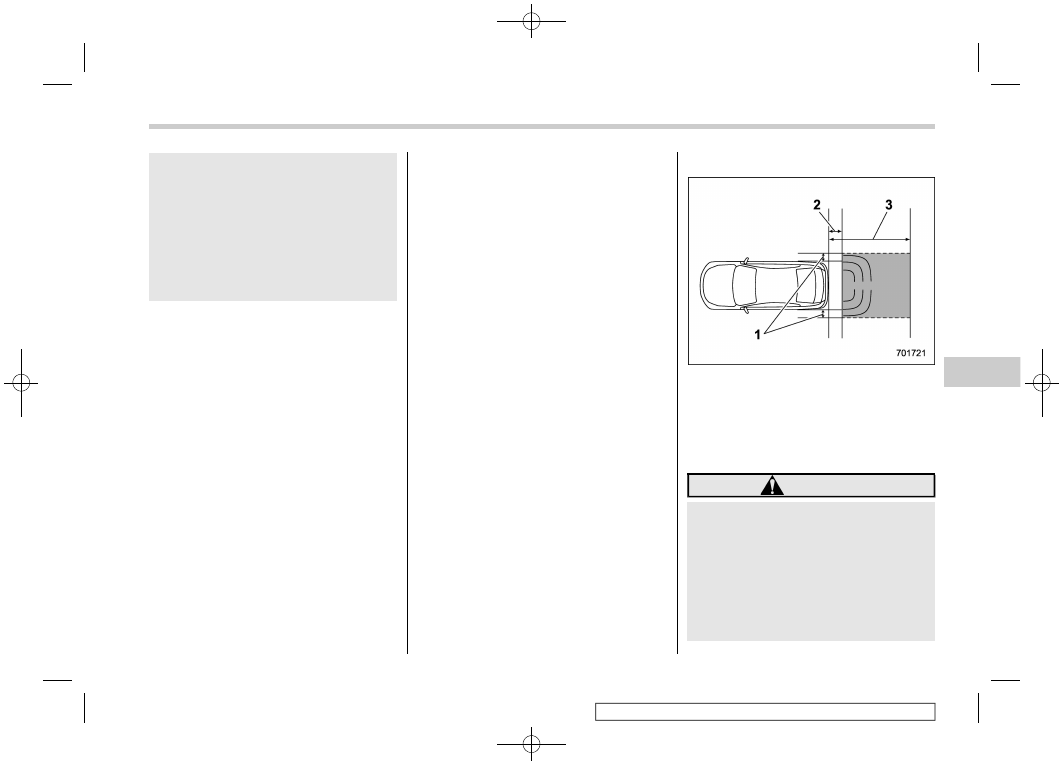

Example 1
1)

The detection range of the radar sensors

Area out of detection range of the radar
sensors

Vehicle that may not be detected

Parked vehicle

WARNING

An approaching vehicle (A) may not
be detected because the detection
range is limited by the parked vehi-
cle (B). Always be sure to check the
surroundings when reversing the
vehicle.

Example 2
1)

The detection range of the radar sensors

Vehicle that may be detected

NOTE

The system may detect that a vehicle
(C) is passing in front of your vehicle.
Always be sure to check the surround-
ings when reversing the vehicle.

System operation

Operating conditions

The BSD/RCTA will operate when all of the
following conditions are met.
.

The ignition switch is in the “ON”

position.
.

The BSD/RCTA warning indicator and

BSD/RCTA OFF indicator are turned off.
.

The vehicle is driven at speeds above 7

mph (12 km/h) (except when reversing).
.

The select lever is in the “R” position

(RCTA only).

The BSD/RCTA will not operate in the
following situations.
.

The BSD/RCTA OFF indicator is on.

The vehicle speed is below 7 mph (12

km/h) even when the BSD/RCTA OFF
indicator remains off (except when rever-
sing).

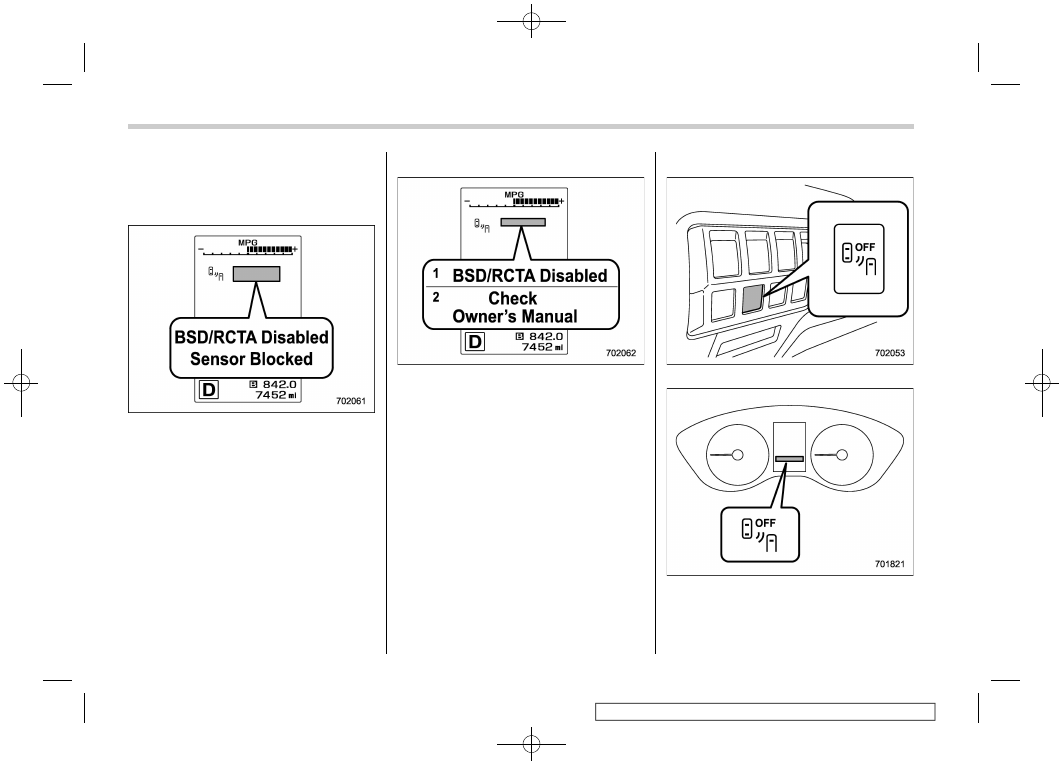

NOTE

In the following case, the BSD/RCTA

will stop operating and the BSD/RCTA
warning indicator will appear. If the
BSD/RCTA warning indicator appears,
have your vehicle inspected at a
SUBARU dealer as soon as possible.

– When a malfunction occurs in the
system, including the BSD/RCTA
approach indicator light

BSD/RCTA

358

(361,1)

北米Model "A3200BE-A" EDITED: 2018/ 3/ 5

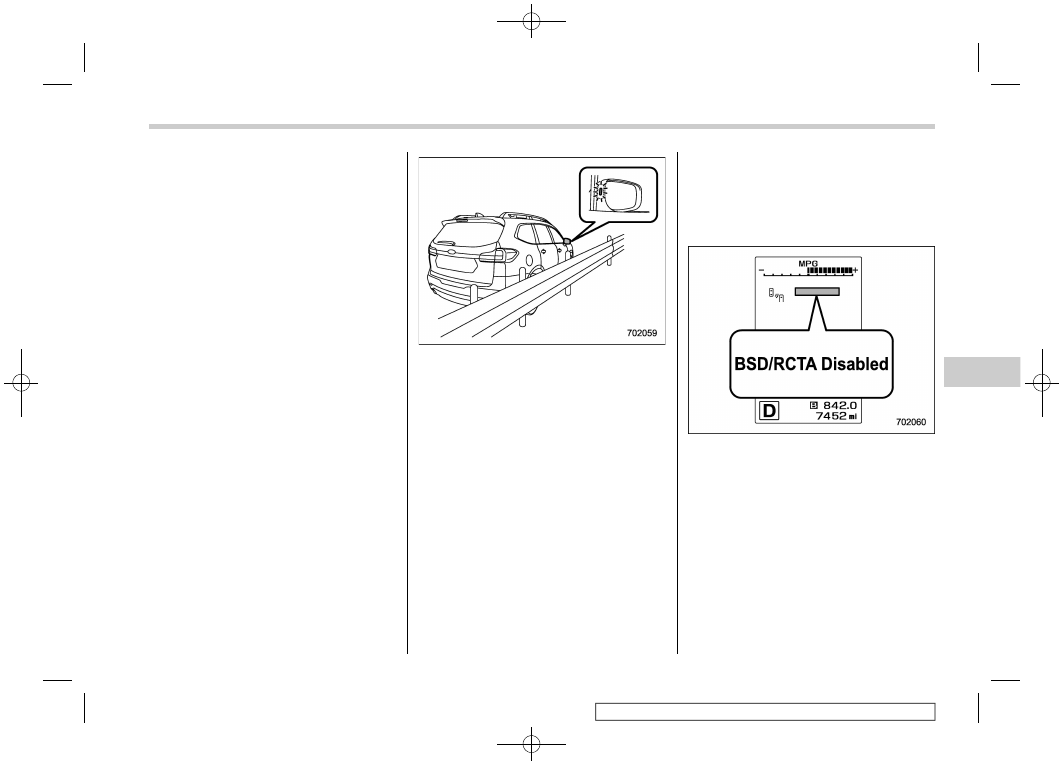

In the following cases, the BSD/

RCTA will temporarily stop operating
(or may stop operating) and the BSD/
RCTA warning indicator will appear.

– When the radar sensor becomes
significantly misaligned (If the or-
ientation of the radar sensor is
shifted for any reason, readjust-
ment is required. Have the sensor
adjusted at a SUBARU dealer.)
– When a large amount of snow or
ice sticks to the rear bumper sur-
face around the radar sensors
– When the vehicle is driven on a
snow-covered road or in an envir-
onment in which there are no ob-
jects around (such as in a desert) for
a long time
– When the temperature around the
radar sensors increased exces-
sively due to long driving on uphill
grades in summer, etc.
– When the temperature around the
radar sensors becomes extremely
low
– When the vehicle battery voltage
lowers
– When the vehicle battery be-
comes overvoltage

When the above conditions are cor-
rected, the BSD/RCTA will resume op-

eration and the BSD/RCTA warning
indicator will disappear. However, if
the BSD/RCTA warning indicator has
appeared for a prolonged time, have the
system inspected at a SUBARU dealer
as soon as possible.
.

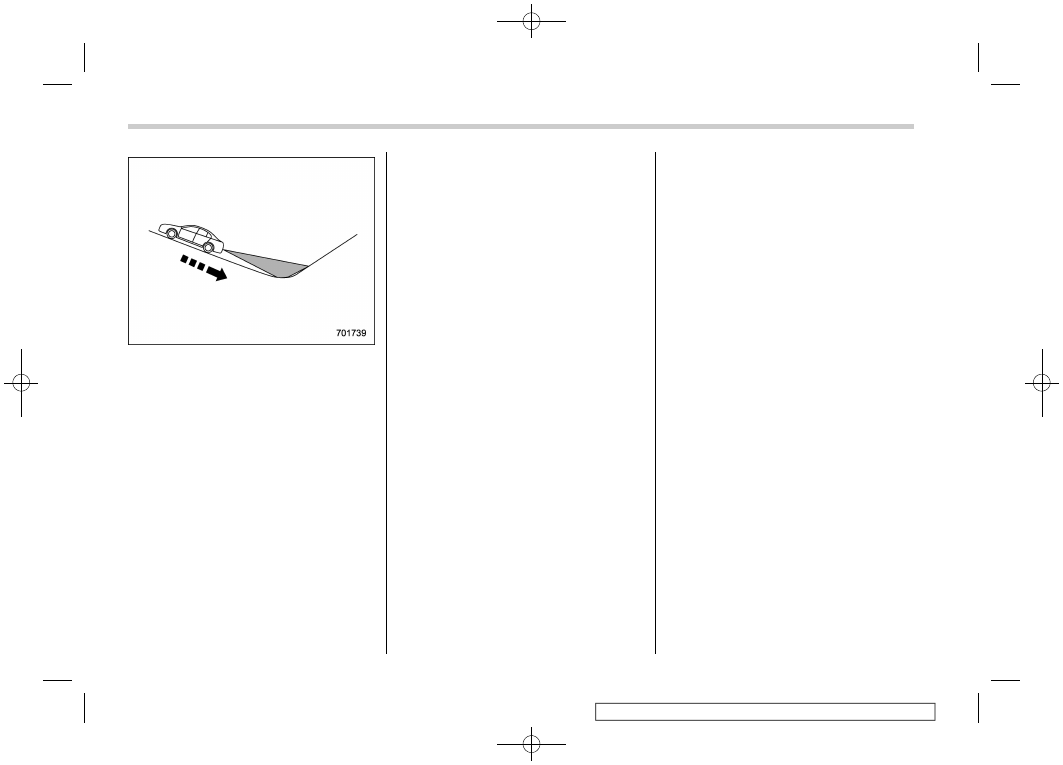

The detectability of the radar sen-

sors is restricted. The BSD/RCTA de-
tection may be impaired and the system
may not operate properly under the
following conditions.

– When the rear bumper around the
radar sensors is distorted
– When ice, snow or mud adheres
to the rear bumper surface around
the radar sensors
– When stickers, etc. are affixed on
the areas of the radar sensors on
the rear bumper
– During adverse weather condi-
tions such as rain, snow or fog
– When driving on wet roads such
as snow-covered roads or through
puddles

The radar sensors may not detect or

may have difficulty detecting the fol-
lowing.

– Small motorcycles, bicycles, pe-
destrians, stationary objects on the
road or road side, etc.
– Vehicles with body shapes that
the radar may not reflect (vehicles

with a low body height such as
sports cars or a trailer with no
cargo)
– Vehicles that are not approaching
your vehicle even though they are in
the detection area (either on a
neighboring lane to the rear or be-
side your vehicle when reversing)
(The system determines the pre-
sence of approaching vehicles
based on data detected by the radar
sensors.)
– Vehicles traveling at significantly
different speeds
– Vehicles driving parallel to your
vehicle at almost the same speed
for a prolonged time
– Oncoming vehicles
– Vehicles in a lane beyond the
neighboring lane
– Vehicles travelling at a signifi-
cantly lower speed that you are
trying to overtake

On a road with extremely narrow

lanes, the system may detect vehicles
driving in a lane next to the neighboring
lane.
.

When the 8-inch audio/navigation

system is performing a software up-
date, the RCTA warning icons may not
be displayed on the audio/navigation
screen until the update is complete.

– CONTINUED –

BSD/RCTA

359

Starting

and

operating

(362,1)

北米Model "A3200BE-A" EDITED: 2018/ 3/ 5

BSD/RCTA approach indica-
tor light/warning buzzer

When the BSD/RCTA is active, the BSD/
RCTA approach indicator light will operate
to alert the driver when there are vehicles
in the neighboring lanes. When reversing
the vehicle, the BSD/RCTA approach
indicator light and warning buzzer will
operate to alert the driver that a vehicle is
approaching from the left or right side.

BSD/RCTA approach indicator light

It is mounted in each side of the outside
mirrors.
The indicator light will illuminate when a
vehicle approaching from behind is de-
tected.
The indicator light will flash to warn the

driver of dangers under the following
conditions.
.

While the indicator light illuminates, if

you operate the turn signal lever toward
the side in which this light turned on.
.

When reversing the vehicle while the

system detects a vehicle approaching
from either side.

BSD/RCTA approach indicator
light dimming function

When the headlights are turned on, the
brightness of the BSD/RCTA approach
indicator light will be reduced.

NOTE

You may have difficulty recognizing

the BSD/RCTA approach indicator light
under the following conditions.

– When affected by direct sunlight
– When affected by the headlight
beams from the vehicles behind

While the illumination brightness

control dial is in the fully upward
position, even if the headlights are
turned on, the brightness of the BSD/
RCTA approach indicator light will not
be reduced. For details about the
illumination brightness control dial,
refer to “Illumination brightness con-
trol” FP171.

BSD/RCTA approach warning buz-
zer (only when reversing)

A warning buzzer sounds along with
flashing of the BSD/RCTA approach in-
dicator light to warn the driver of dangers.

The setting of the warning buzzer volume
can be changed by operating the combi-
nation meter display (color LCD). For
details, refer to “Menu screens” FP197.

Safety tips regarding the BSD/RCTA
approach indicator light/warning
buzzer

In the following cases, operation of the

BSD/RCTA approach indicator light and
the warning buzzer may be delayed or the
system may fail to issue these warnings.

– When a vehicle moves to the neigh-
boring lane from a lane next to the
neighboring lane
– When driving on a steep incline or
on repeated sharp uphill and downhill
grades
– When going beyond a pass
– When both your vehicle and a
vehicle driving on a neighboring lane
are driving on the far side of each lane.
– When several narrowly-spaced ve-
hicles are approaching in a row
– In low radius bends (tight bends or
when making turns at an intersection)

BSD/RCTA

360

(363,1)

北米Model "A3200BE-A" EDITED: 2018/ 3/ 5

– When there is a difference in height
between your lane and the neighboring
lane
– Immediately after the BSD/RCTA is
activated by pressing the BSD/RCTA
OFF switch
– Immediately after the select lever is
shifted to the “R” position
– When extremely heavy cargo is
loaded in the cargo area

During reversing, operation of the BSD/

RCTA approach indicator light and the
warning buzzer may be delayed or the
system may fail to issue these warnings
under the following conditions.

– When backing out of an angled
parking space
– When a large-sized vehicle is
parked next to your vehicle (That
vehicle prevents the propagation of
radar waves.)
– When reversing on sloped roads
– When reversing at a high speed

The BSD/RCTA approach indicator

light may illuminate when driving close to
solid objects on the road or road side (such
as guardrails, tunnels or sidewalls).
.

The BSD/RCTA approach indicator

light may flash when turning at an inter-
section in urban areas or a multilane
intersection.
.

The BSD/RCTA approach indicator

light may flash and the warning buzzer
may sound if a building or a wall exists in
the reversing direction.
.

In the following cases, the system may

detect a vehicle driving two lanes away
from your vehicle.

– When you are driving on the near
side of its lane from the corresponding
vehicle
– When the vehicle driving two lanes

away is driving on the near side of its
lane from your vehicle

BSD/RCTA warning indicator

System temporary stop indicator

This indicator appears when the system is
used under the following conditions.
.

Extremely high or low temperatures

When abnormal voltage exists for the

vehicle battery
.

When the radar sensor is significantly

misaligned

Once the above conditions are corrected,
the system will recover from the temporary
stop condition and the indicator will dis-
appear. If the indicator remains displayed

– CONTINUED –

BSD/RCTA

361

Starting

and

operating

(364,1)

北米Model "A3200BE-A" EDITED: 2018/ 3/ 5

for a prolonged time, have the system
inspected at a SUBARU dealer.

System temporary stop indicator
due to reduced radar sensitivity

System temporary stop indicator due to
reduced radar sensitivity

This indicator appears when the detect-
ability of the radar sensors is reduced.
Once the condition is corrected, the
system will recover from the temporary
stop condition and the indicator will dis-
appear. If the indicator remains displayed
for a prolonged time, have the system
inspected at a SUBARU dealer.

System malfunction indicator

System malfunction indicator
1)

At first, this message will appear

Then this message will appear

This indicator appears when a malfunction
occurs in the system. Contact a SUBARU
dealer and have the system inspected.

BSD/RCTA OFF switch

BSD/RCTA OFF indicator

If the BSD/RCTA OFF switch is pressed,
the BSD/RCTA OFF indicator appears on
the combination meter, and the BSD/

BSD/RCTA

362

(365,1)

北米Model "A3200BE-A" EDITED: 2018/ 3/ 5

RCTA is deactivated.
Press the switch again to activate the BSD/
RCTA. The BSD/RCTA OFF indicator will
disappear.
When this occurs, the BSD/RCTA ap-
proach indicator light on the side of the
rearview mirror illuminates for a few
seconds and then turns off.

NOTE

In the following cases, the system

may not operate properly due to
blocked radar waves. Press the BSD/
RCTA OFF switch to deactivate the
system.

– When towing a trailer
– When a bicycle carrier or other
carrier item is fitted to the rear of the
vehicle
– When using a chassis dynam-
ometer or free roller device, etc.
– When running the engine and
making the wheels rotate while
lifting up the vehicle

If the ignition switch is turned to the

“LOCK”/“OFF” position, the last known
status of the system is maintained. For
example, if the ignition switch is turned
to the “LOCK”/“OFF” position with the
BSD/RCTA deactivated, the BSD/RCTA
will remain deactivated the next time
the ignition switch is turned to the “ON”

position.

Certification for the BSD/
RCTA

U.S.-spec. models

FCC ID: OAYSRR3A

CAUTION

FCC WARNING

Changes or modifications not ex-
pressly approved by the party re-
sponsible for compliance could void
the user’s authority to operate the
equipment.

NOTE

This device complies with part 15 of the
FCC Rules. Operation is subject to the
following two conditions: (1) This de-
vice may not cause harmful interfer-
ence, and (2) this device must accept
any interference received, including
interference that may cause undesired
operation.

Canada-spec. models

– CONTINUED –

BSD/RCTA

363

Starting

and

operating

(366,1)

北米Model "A3200BE-A" EDITED: 2018/ 3/ 5

Handling of radar sensors

Sensors

The radar sensors, one on each side of the
vehicle, are mounted inside the rear
bumper.
To ensure correct operation of the BSD/
RCTA, observe the following precautions.
.

Always keep the bumper surface near

the radar sensors clean.
.

Do not affix any stickers or other items

on the bumper surface near the radar
sensors.
.

Do not modify the bumper near the

radar sensors.
.

Do not paint the bumper near the radar

sensors.
.

Do not expose the bumper near the

radar sensors to strong impacts. If a

sensor becomes misaligned, a system
malfunction may occur, including the in-
ability to detect vehicles entering the
detection areas. If any strong shock is
applied to the bumper, be sure to contact
your SUBARU dealer for inspection.
.

Do not disassemble the radar sensors.

NOTE

If the radar sensors require repair or
replacement, or the bumper area
around the radar sensors requires
repair, paintwork or replacement, con-
tact your SUBARU dealer for assis-
tance.

7-18. Reverse Automatic
Braking System (if equipped)

Reverse Automatic Braking is a system
designed to help avoid collisions or reduce
collision damage when reversing the
vehicle. If a wall or an obstacle is detected
in the reversing direction, the system will
notify the driver with a warning sound and
may activate the vehicle’s brakes auto-
matically.

WARNING

Reverse Automatic Braking is not

a system intended to replace the
driver’s responsibility to check
surrounding areas for vehicles or
obstacles to avoid a collision.

The driver is responsible for driv-

ing safely. Always be sure to
check the surroundings visually
when reversing the vehicle.

There are some cases in which

the vehicle cannot avoid colli-
sion, because the system opera-
tion has limitations. The warning
sound or automatic braking may
be delayed or may not operate at
all even when an obstacle is
present.

Reverse Automatic Braking System

364

(367,1)

北米Model "A3200BE-A" EDITED: 2018/ 3/ 5

The system is not designed to

detect people (including chil-
dren), animals or other moving
objects.

Depending on the vehicle condi-

tion or the surrounding environ-
ment, the sonar sensor’s ability
to detect objects may be compro-
mised.

NOTE

The Reverse Automatic Braking Sys-
tem records and stores the following
data when automatic braking operates.
It does not record conversations, per-
sonal information or other audio data.
.

Distance from the object

Vehicle speed

Accelerator pedal operation status

Brake pedal operation status

Select lever position

Outside temperature

The sensitivity setting of the sonar

sensors

SUBARU and third parties contracted
by SUBARU may acquire and use the
recorded data for the purpose of vehi-
c l e r e s e a r c h a n d d e v e l o p m e n t .
SUBARU and third parties contracted
by SUBARU will not disclose or provide

the acquired data to any other third
party except under the following con-
ditions.
.

The vehicle owner has given his/her

consent.
.

The disclosure/provision is based

on a court order or other legally en-
forceable request.
.

Data that has been modified so that

the user and vehicle cannot be identi-
fied is provided to a research institution
for statistical processing or similar
purposes.

Reverse Automatic Braking
System overview

The system detects objects using sonar
sensors installed in the rear bumper.
.

If the system determines a possible

collision with an object in the reversing
direction, automatic deceleration will be
activated. Also, beeping sounds will acti-
vate.
.

If the vehicle is further reversed, auto-

matic hard braking will be applied and a
continuous beeping sound will activate.

Detecting range

Detecting range (width): Approximately 6
in (15 cm) outside of the vehicle width

Range that the system cannot detect:
Approximately 20 in (50 cm) behind the
rear of the vehicle

Detecting range (length): Approximately
5 ft (1.5 m) from the rear of the vehicle

WARNING

If your vehicle is trapped on a rail-
road crossing and you are trying to
escape by reversing through the
crossing gate, the system may re-
cognize the crossing gate as an
obstacle and the brake may activate.
In this case, remain calm and either
continue to depress the accelerator
pedal or cancel the system. To

– CONTINUED –

Reverse Automatic Braking System

365

Starting

and

operating

(368,1)

北米Model "A3200BE-A" EDITED: 2018/ 3/ 5

cancel the system, refer to “Cancel-
ing the Reverse Automatic Braking
system operation” FP372.

Operating conditions

The Reverse Automatic Braking system
will operate when all of the following
conditions are met.

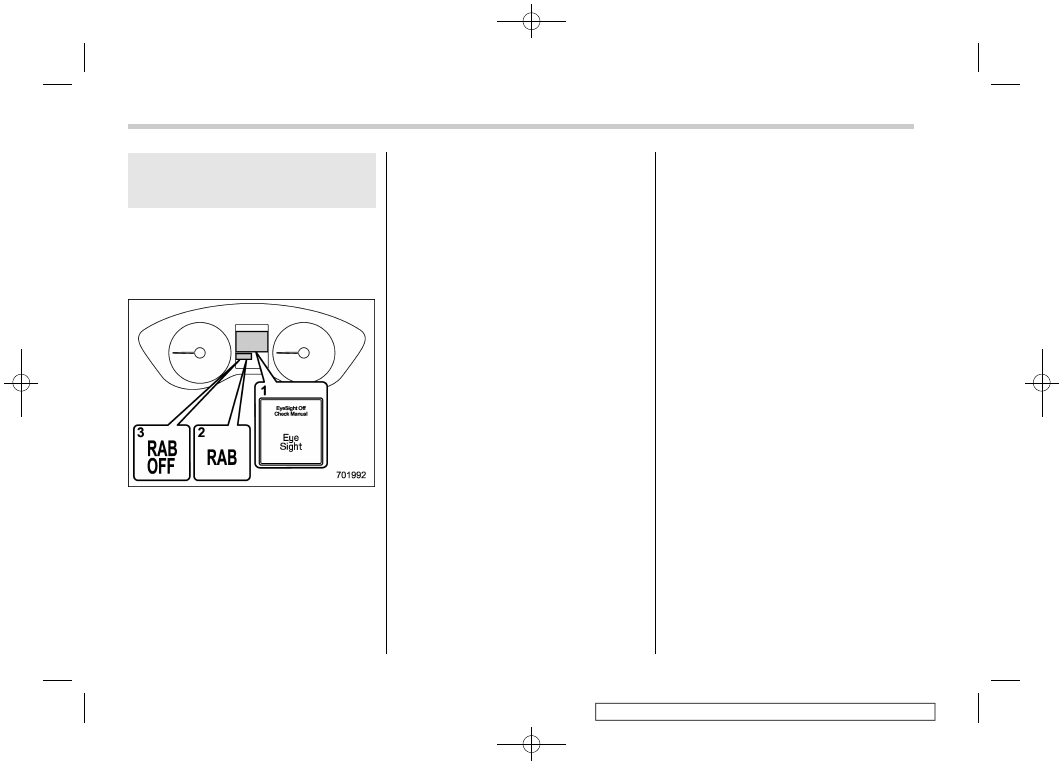

EyeSight warning indicator

RAB warning indicator

RAB OFF indicator

The ignition switch is in the “ON”

position
.

The EyeSight warning indicator is off

The RAB warning indicator is off

HALT (RAB OFF) indicator is off

The Reverse Automatic Braking sys-

tem is set to on
.

The select lever is in the “R” position

The vehicle speed is between 1 to 9

mph (1.5 to 15 km/h)

NOTE

In the following cases, the Reverse

Automatic braking system will not
operate. Promptly contact a SUBARU
dealer to have the system inspected.

– The EyeSight warning indicator
is illuminated
– The Reverse Automatic Braking
fail indicator is illuminated

When the Reverse Automatic Brak-

ing system OFF indicator is illumi-
nated, the Reverse Automatic braking
system cannot be operated.
.

In the following cases, the system

may not be able to properly detect an
obstacle. Promptly contact a SUBARU
dealer to have the system inspected.

– A sticker, paint, or a chemical is
applied to the sonar sensor or the
rear bumper near the sonar sensor
– The rear bumper is modified
– The rear bumper has been re-
moved and reattached
– The ground clearance is changed
due to the vehicle’s loading condi-
tion or modification
– Ice, snow or mud is adhered to

the rear bumper near the sonar
sensor
– The rear bumper is exposed to
strong impact, or the rear bumper is
deformed

When the 8-inch audio/navigation

system is performing a software up-
date, the Reverse Automatic Braking
System may not display the following
items on the audio/navigation screen
until the update is complete.

– Display Icon on/off Function
– Distance Indicator Image
– Warning Message

On a steep hill, the system’s auto-

matic braking ability will be reduced.
.

The system is designed to avoid

collisions by automatic hard braking
when the vehicle’s reversing speed is
less than approximately 3 mph (5 km/h).
However, the system does not guaran-
tee that the vehicle will be able to avoid
collisions in any situation.
.

If the vehicle is reversed at an

extremely slow speed, the driver’s
operation may be prioritized. In this
case, automatic braking will not oper-
ate.
.

The system may not be able to detect

the following objects

– Sharp or thin objects such as
poles, fences and ropes which may

Reverse Automatic Braking System

366

(369,1)

北米Model "A3200BE-A" EDITED: 2018/ 3/ 5

not reflect the sound wave emitted
from the sonar sensor
– Objects that are too close to the
rear bumper when the select lever is
set to the “R” position
– Objects with a surface which may
not reflect the sound wave emitted
from the sonar sensor such as a
chain link fence.

Objects the system is not designed

to detect

– Pedestrians
– Moving objects including moving
vehicles
– Objects which absorb sound
waves such as cloth or snow
– Objects whose surface has a
diagonal angle
– Objects that are low to the ground
such as parking blocks
– Objects that are high above the
ground such as objects hanging
from above

The system may not be able to

properly detect objects or may cause
a system malfunction when the follow-
ing conditions exist

High frequency sound from other
sources are nearby

– Horn sounds from other vehicles
– Engine sounds from other vehi-

cles
– Sounds of air brakes
– Vehicle detection equipment or a
sonar from other vehicles
– A sound wave with a frequency
similar to the vehicle’s system is
transmitted nearby
– A vehicle equipped with the same
system is reversing toward your
reversing direction

Weather conditions

– Extremely high or extremely low
temperatures in which the area near
the sonar sensor becomes too hot
or too cold to operate
– The sonar sensor or the rear
bumper near the sonar sensors is
exposed to heavy rain or a signifi-
cant amount of water
– Fog, snow or sandstorm, etc.
– Air is moving rapidly such as
when a strong wind is blowing

Parts attached to the rear bumper
near the sonar sensor

– Commercial electronic parts (fog
light, fender pole, radio antenna) or
commercial attachment parts (trai-
ler hitch, bicycle carrier, bumper
guard) are attached
– Parts that emit high frequency

sound, such as a horn or speaker,
are attached

Vehicle conditions

– The vehicle is significantly in-
clined
– The ground clearance is signifi-
cantly reduced due to the vehicle’s
loading condition, etc.
– When the sonar sensor is mis-
aligned due to a collision or an
accident

Surrounding environment

– A cloth banner, flag, hanging
branch or railroad crossing bars
are present in the reversing direc-
tion
– When reversing on a gravel or
grassy area
– When reversing in an area where
objects or walls are adjacent to the
vehicle such as narrow tunnels,
narrow bridges, narrow roads or
narrow garages
– Wheel tracks or a hole is present
in the ground of the reversing
direction
– When reversing over a drainage
cover (grate cover)

– CONTINUED –

Reverse Automatic Braking System

367

Starting

and

operating

(370,1)

北米Model "A3200BE-A" EDITED: 2018/ 3/ 5

– The path of the reversing direc-
tion is inclined such as on a steep
uphill
– A curb is present in the reversing
direction
– When reversing downhill

In circumstances such as the follow-

ing, it may not be possible to avoid a
collision even when the system oper-
ates normally.

– The tire air pressure is not cor-
rect.
– The tires have become worn.
– Tires which are not the desig-
nated size are installed.
– Emergency repairs were per-
formed using a puncture repair kit.
– The suspension was modified.

– Tire chains are installed.
– Vehicle driving is unstable due to
accident or malfunction.
– The brake warning light is illumi-
nated.

Reverse Automatic Braking
System operation

When the Reverse Automatic Braking
System is in operation, the range between
the vehicle and the detected object will be
indicated on the audio/navigation monitor.
Also, warning sounds will activate in 3
levels to warn the driver of a potential
collision.
While the RAB is operating, a warning
message is displayed on the audio/navi-
gation monitor and the combination meter
display (color LCD).

Reverse Automatic Braking System

368

Subaru Ascent (2019 year). Instruction - part 23
