operation, the “FULL” indicator light on
the control panel will turn off and the
“AUTO” indicator light will remain
illuminated. You can then manually
control the system as desired using
the button you operated. To change the
system back to the FULL AUTO mode,
press the AUTO button.

To turn off the climate control system,
press the ON/OFF button. Then the air
inlet selection will be set to the following.
.

When the air inlet selection is set to

auto mode: Outside air circulation
.

When the air inlet selection is set to

manual mode: No change

Sensors

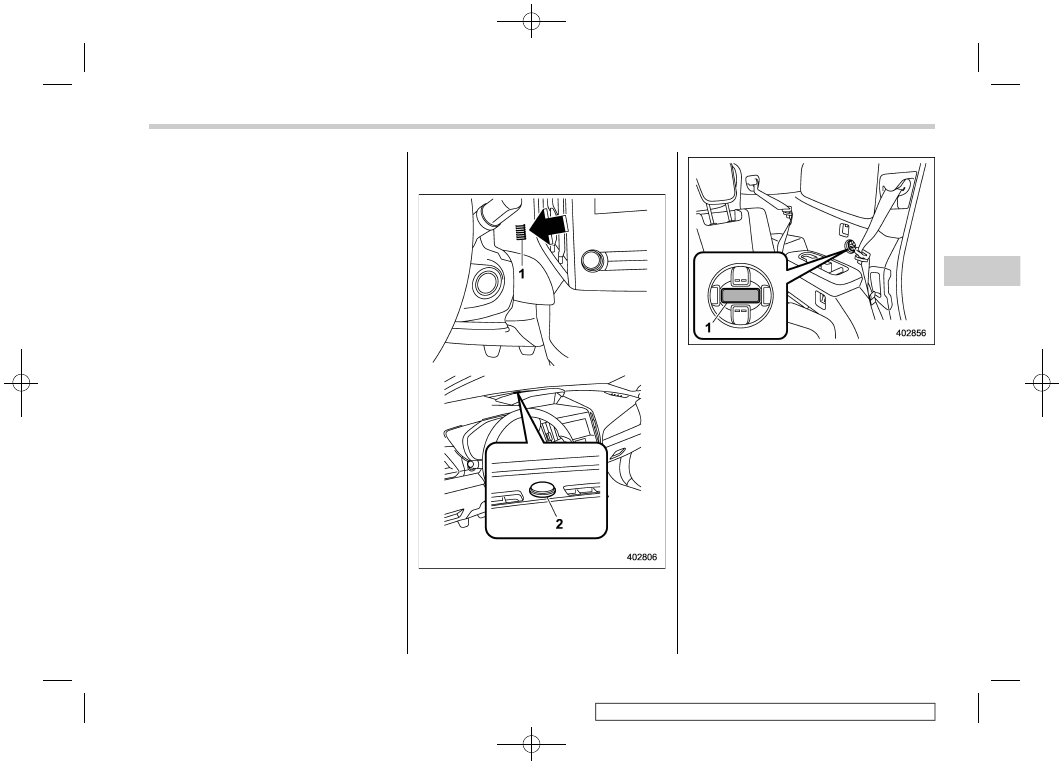

The sensors are located as follows.

Front interior air temperature sensor

Solar sensor

Rear interior air temperature sensor

The automatic climate control system
employs several sensors. These sensors
are delicate. If they are not treated properly
and become damaged, the system may
not be able to control the interior tempera-
ture correctly. To avoid damaging the
sensors, observe the following precau-
tions.
.

Do not subject the sensors to impact.

Keep water away from the sensors.

Do not cover the sensors.

Do not touch the rear interior air

temperature sensor.

Automatic climate control operation

273

Climate

control

(276,1)

北米Model "A3200BE-A" EDITED: 2018/ 3/ 5

4-4. Manual climate control
operation for front climate
control

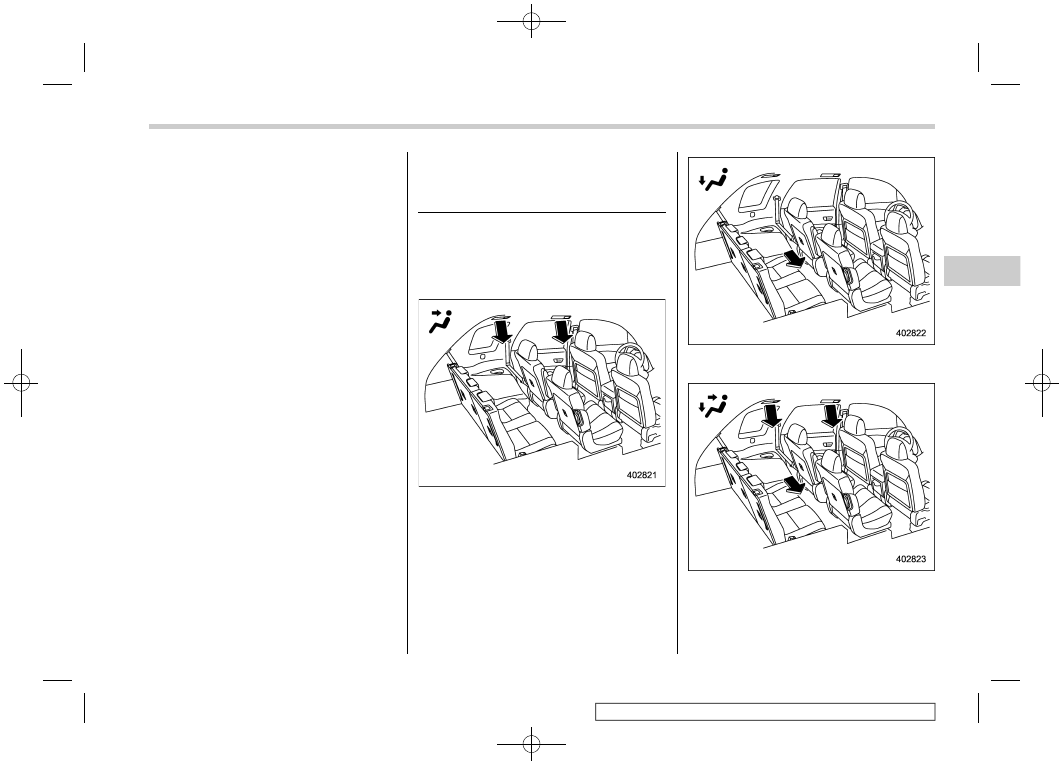

Airflow mode selection

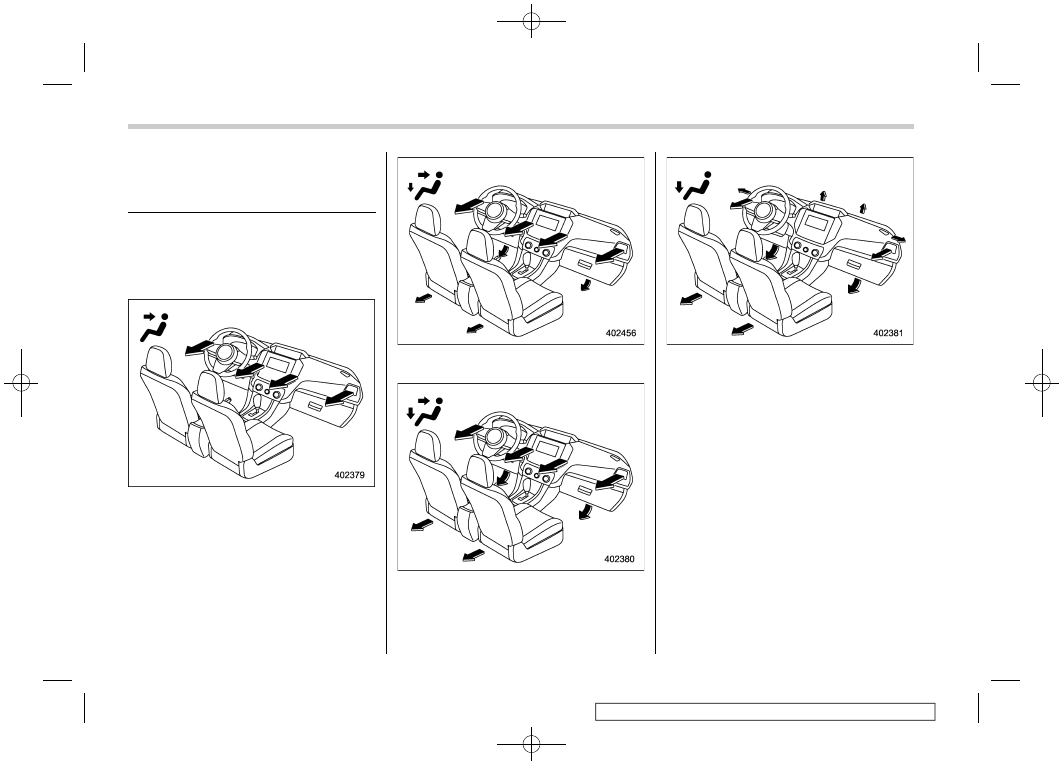

Select the airflow mode using the airflow
mode selection button.

Airflow modes are as follows.

Ventilation: Instrument panel outlets

Ventilation 2: Instrument panel outlets
and foot outlets

Bi-level: Instrument panel outlets and foot
outlets

Heat: Foot outlets, both side outlets of the
instrument panel and some through wind-
shield defroster outlets (A small amount of
air flows to the windshield and both side
windows to prevent fogging.)

Manual climate control operation for front climate control

274

(277,1)

北米Model "A3200BE-A" EDITED: 2018/ 3/ 5

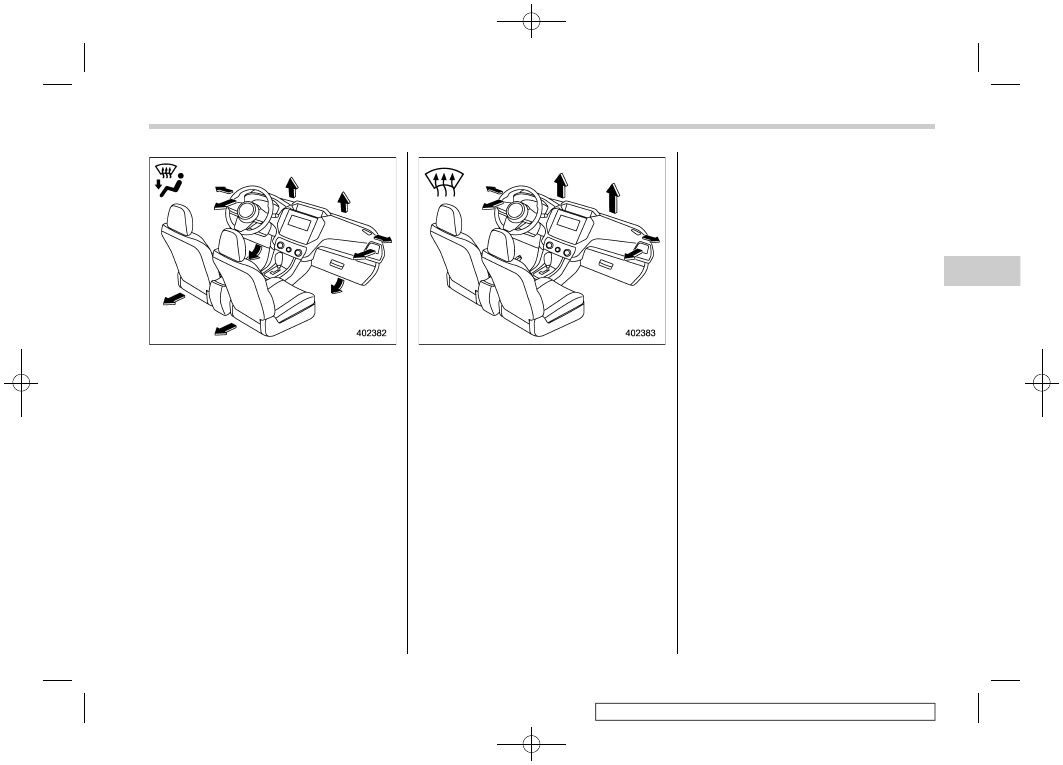

Heat-def: Windshield defroster outlets,
foot outlets and both side outlets of the
instrument panel (Refer to “Defrosting”
FP278.)

Defrost: Windshield defroster outlets and
both side outlets of the instrument panel
(Refer to “Defrosting” FP278.)

MAX A/C mode

For quicker cooling, press the MAX A/C
button.
When the MAX A/C mode is on, the
following settings will be changed auto-
matically.
.

The air conditioner will turn on.

The temperature will be set on the

lowest.
.

The fan speed will be set on the

maximum speed.
.

The air inlet will be set to recirculation.

The air flow mode setting will be set to

ventilation mode.

To turn off MAX A/C mode and return the
previous setting, press the MAX A/C
button again.

Temperature control

Turn the temperature control dial to set the
preferred interior temperature.

NOTE

The controllable temperature range
may vary depending on the regional
specifications of the vehicle.

Fan speed control

Select the preferred fan speed by turning
the fan speed control dial.

Air conditioner control

The air conditioner operates only when the
engine is running.
Press the air conditioner button while the
fan is in operation to turn on the air
conditioner. When the air conditioner is
on, the “A/C” indicator light illuminates.
To turn off the air conditioner, press the
button again.

NOTE

For efficient defogging or dehumidify-
ing in cold weather, turn on the air
conditioner. If the ambient temperature

– CONTINUED –

Manual climate control operation for front climate control

275

Climate

control

(278,1)

北米Model "A3200BE-A" EDITED: 2018/ 3/ 5

decreases to approximately 328F (08C),
the air conditioner and dehumidifica-
tion system may not operate properly.

Air inlet selection

Select the air inlet by pressing the air inlet
selection button.

Recirculation:

When the indicator light on the air inlet
selection button illuminates, interior air is
recirculated inside the vehicle. Press the
air inlet selection button to the ON position
for fast cooling with the air conditioner or
when driving on a dusty road.

Outside air circulation:

When the indicator light on the air inlet
selection button does not illuminate, out-
side air is drawn into the passenger
compartment. Press the air inlet selection
button to the OFF position when the
interior has cooled to a comfortable tem-
perature and the road is no longer dusty.

WARNING

Continued operation in the ON posi-
tion may fog up the windows. Switch
to the OFF position as soon as the
outside conditions are no longer
dusty.

SYNC mode

Press the SYNC button to turn on the
SYNC mode. The SYNC indicator on the
climate control display will illuminate.
The SYNC mode can be controlled to
synchronize the driver’s, front passenger’s
and rear passenger’s side climate control
using the front climate control panel.

Temperature control

When the SYNC mode is turned on, the
driver’s, front passenger’s and rear pas-
senger’s side (when rear climate control is
on) temperatures are synchronized using
the driver’s side temperature control dial.
Press the SYNC button again or turn the
front passenger’s control dial to cancel the
SYNC mode. Press the temperature con-
trol button on the rear climate panel to
cancel the rear climate SYNC mode only.
When the SYNC indicator(s) is/are not
illuminated, the temperature can be con-
trolled individually using the driver’s and
front passenger’s temperature control
dials, and the rear passenger’s tempera-
ture control button.

Airflow mode and fan speed control

When the SYNC mode is turned on, both
the driver’s and rear passenger’s side
airflow mode and fan speed control are
synchronized using the front climate con-

trol panel.
Press the SYNC button again or operate
the rear climate control panel to cancel the
SYNC mode. The SYNC indicator will not
illuminate. In this case, airflow mode and
fan speed control on the driver’s side and
rear passenger’s side are separated. The
airflow mode and fan speed control will be
controlled individually using the front cli-
mate control panel and rear climate control
panel.

To turn off the front climate
control system

To turn off the front climate control system:
press the ON/OFF button.

Rear climate control

To operate the rear climate control by front
climate control panel, press the rear
climate control button while the rear
climate control is on.

Rear climate control panel lock
function (if equipped)

To lock the rear climate control panel,
press and hold the rear climate control
button. When the rear climate control
panel lock mode is selected, the rear
climate control panel lock indicator “ ” on
the front and rear climate control panel is
illuminated.

Manual climate control operation for front climate control

276

(279,1)

北米Model "A3200BE-A" EDITED: 2018/ 3/ 5

To unlock the rear climate control panel,
press and hold the rear climate control
button again.

To turn off the rear climate
control system

To turn off the rear climate control system,
press the REAR ON/OFF button.

4-5. Manual climate control
operation for rear climate
control

Airflow mode selection

Select the airflow mode using the airflow
mode selection button.

Airflow modes are as follows.

Ventilation: Rear ventilator outlets

Heat: Foot outlets under the rear left side
trim

Bi-level: Rear ventilator outlets and Foot
outlets under the rear left side trim

– CONTINUED –

Manual climate control operation for rear climate control

277

Climate

control

(280,1)

北米Model "A3200BE-A" EDITED: 2018/ 3/ 5

Temperature control

Press the temperature control button to set
the preferred interior temperature.

NOTE

The controllable temperature range

may vary depending on the regional
specifications of the vehicle.
.

If the air conditioner button on the

front climate control is turned off, the
rear interior temperature may not be-
come the setting temperature.

Fan speed control

Select the preferred fan speed by pressing
the fan speed control button.

To turn off the climate control
system

To turn off the climate control system:
press the ON/OFF button.

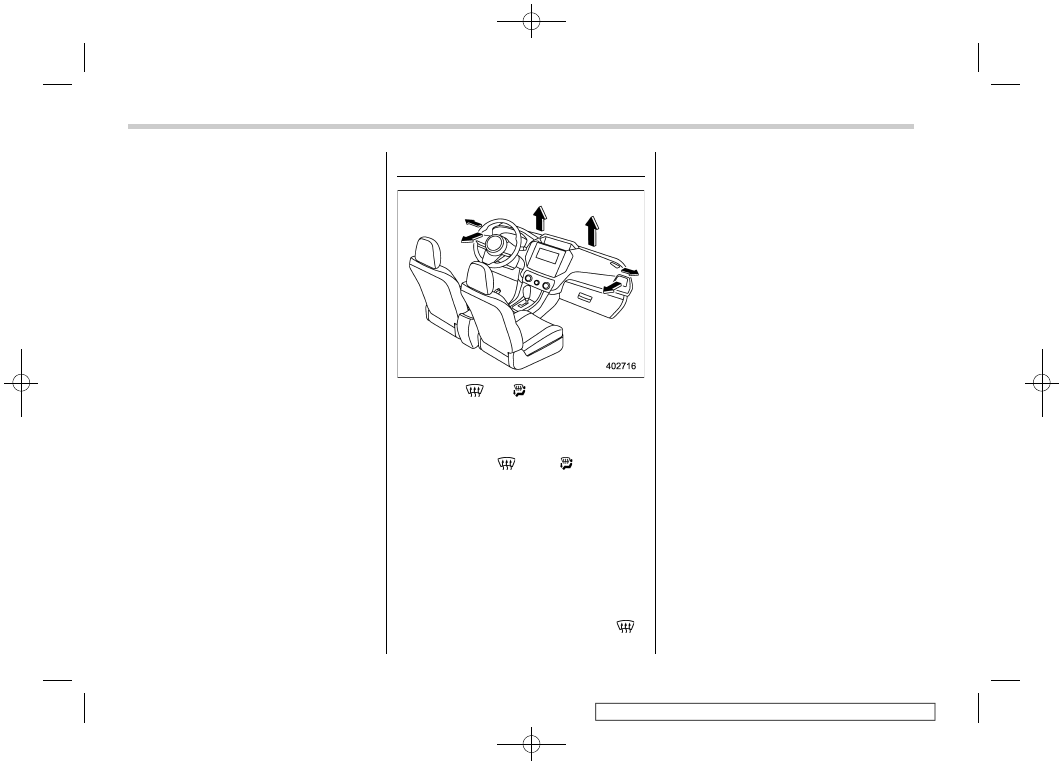

4-6. Defrosting

Select the “

” or “ ” mode to defrost or

dehumidify the windshield and front door
windows.

NOTE

When the “

” or “ ” mode is

selected, the air conditioner compres-
sor operates automatically regardless
of the position of the air conditioner
button to defrost the windshield more
quickly. However the indicator on the
air conditioner button will not illumi-
nate. At the same time, the air inlet
selection is automatically set to the
outside air mode.
.

After defrosting the windshield by

pressing the defroster button “

”,

pressing the button again returns the
system to the setting that had been
selected before the defroster was acti-
vated.

Defrosting

278

(281,1)

北米Model "A3200BE-A" EDITED: 2018/ 3/ 5

4-7. Operating tips for heater
and air conditioner

Cleaning ventilation grille

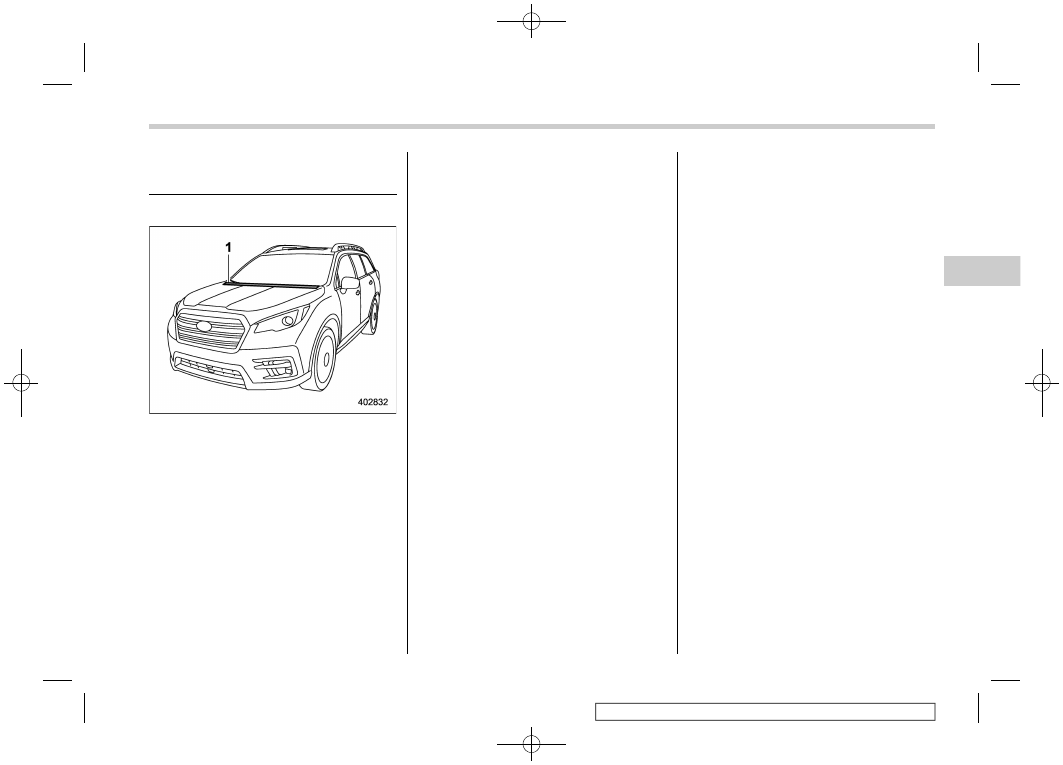

Front ventilation inlet grille

Always keep the front ventilation inlet grille
free of snow, leaves, or other obstructions
to ensure efficient heating and defrosting.
Since the condenser is located in front of
the radiator, this area should be kept clean
because cooling performance is impaired
by any accumulation of insects and leaves
on the condenser.

Efficient cooling after parking
in direct sunlight

After parking in direct sunlight, drive with
the windows open for a few minutes to
allow outside air to circulate into the
heated interior. This results in quicker
cooling by the air conditioner. Keep the
windows closed during the operation of the
air conditioner for maximum cooling effi-
ciency.

Lubrication oil circulation in
the refrigerant circuit

Operate the air conditioner compressor at
a low engine speed (at idle or low driving
speeds) a few minutes each month during
the off-season to circulate its oil.

Checking air conditioning
system before summer sea-
son

Check the air conditioner unit for refriger-
ant leaks, hose conditions, and proper
operation each spring. Have the air con-
ditioning system checked by your
SUBARU dealer.

Cooling and dehumidifying in
high humidity and low tem-
perature weather conditions

Under certain weather conditions (high
relative humidity, low temperatures, etc.) a
small amount of water vapor emission
from the air outlets may be noticed. This
condition is normal and does not indicate
any problem with the air conditioning
system.

Air conditioner compressor
shut-off when engine is
heavily loaded

To improve acceleration and gas mileage,
the air conditioner compressor is designed
to temporarily shut off during air condi-
tioner operation whenever the accelerator
is fully depressed such as during rapid
acceleration or when driving on a steep
upgrade.

– CONTINUED –

Operating tips for heater and air conditioner

279

Climate

control

(282,1)

北米Model "A3200BE-A" EDITED: 2018/ 3/ 5

Refrigerant for your climate
control system

Your air conditioner uses ozone friendly
refrigerant HFO-1234yf. Therefore, the
method of adding, changing or checking
the refrigerant is different from the method
for CFC12 (freon) or HFC134a. Consult
your SUBARU dealer for service. Repairs
needed as a result of using the wrong
refrigerant are not covered under war-
ranty.

4-8. Air filtration system

Your vehicle’s air conditioning system is
equipped with an air filtration system.
Replace the cabin air filter according to
the replacement schedule found in the
“Warranty and Maintenance Booklet.” This
schedule should be followed to maintain
the filter’s dust collection ability. Under
extremely dusty conditions, the filter
should be replaced more frequently. Have
your filter checked or replaced by your
SUBARU dealer. For replacement, use
only a genuine SUBARU air filter kit.

CAUTION

Contact your SUBARU dealer if the
following occurs, even if it is not yet
time to change the filter:

Reduction of the airflow through

the vents.

Windshield gets easily fogged or

misted.

NOTE

The filter can influence the air condi-
tioning, heating and defroster perfor-
mance if not properly maintained.

Replacing a cabin air filter

1. Remove the glove box.

NOTE

We recommend that you take measures
to protect the center console with
masking tape first, so that you avoid
scratching the center console with the
glove box.

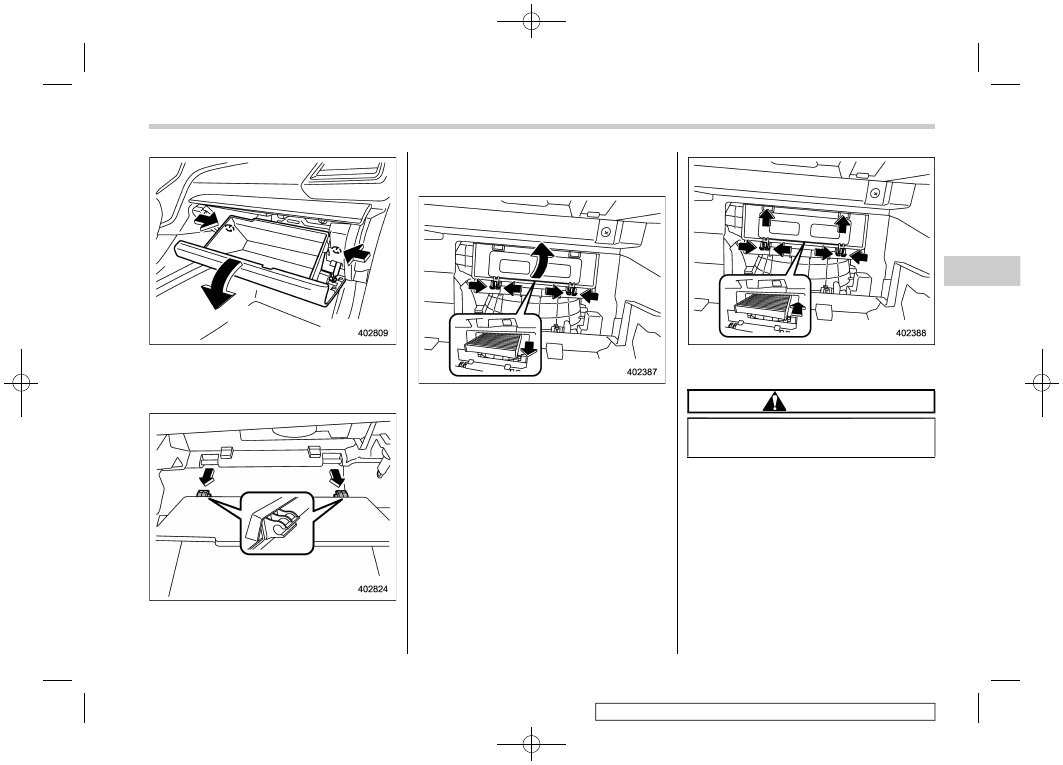

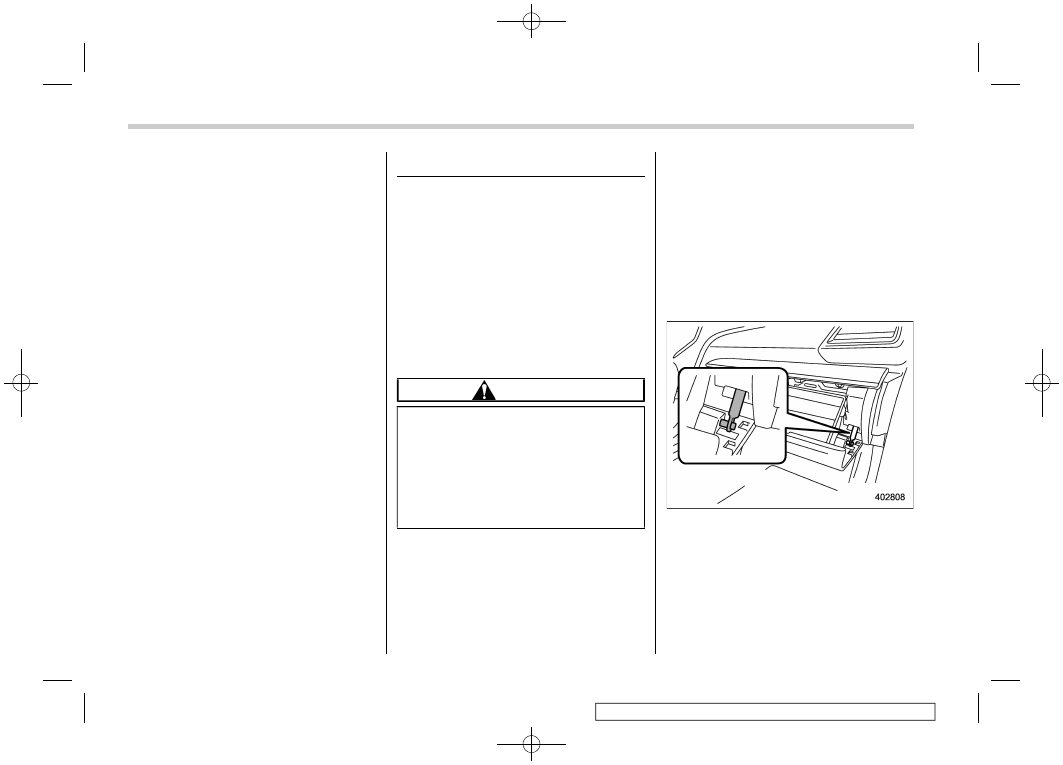

(1) Open the glove box.

(2) Remove the damper shaft from the
glove box.

Air filtration system

280

(283,1)

北米Model "A3200BE-A" EDITED: 2018/ 3/ 5

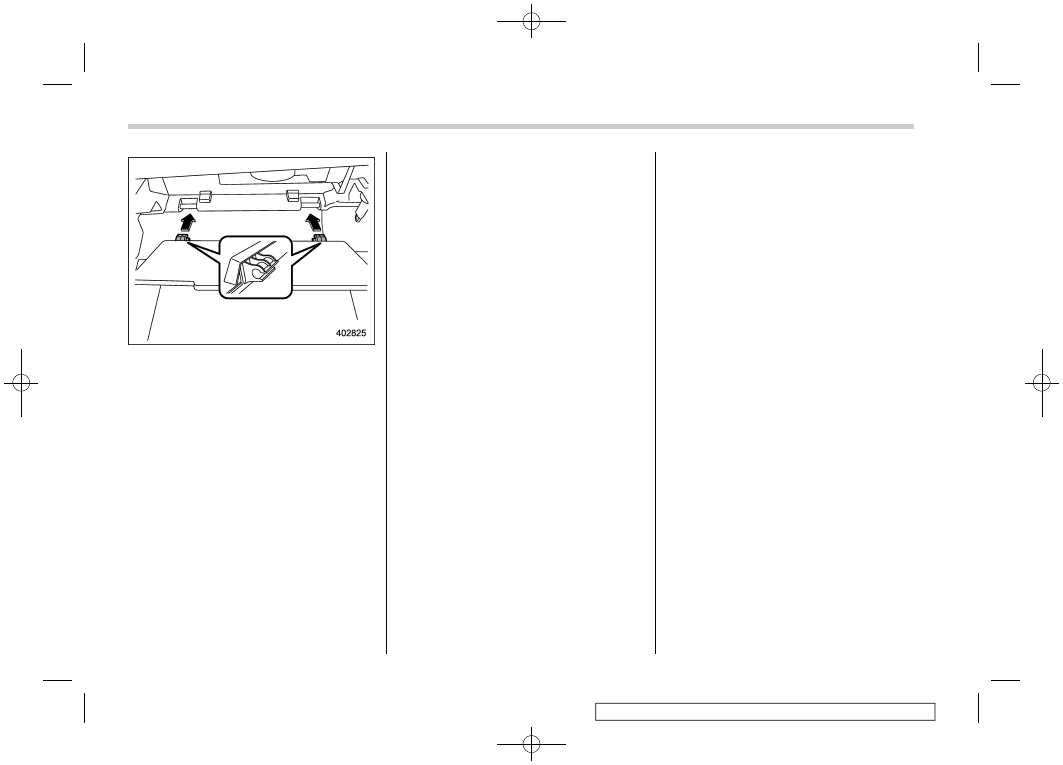

(3) Push in the stoppers located on
both sides of the glove box and then
pull down the glove box as far as it will
go.

(4) Pull out the glove box horizontally
and remove the hinge portion. When

doing this, be careful not to damage
the hinge.

2. Remove the cabin air filter according to
the following procedure in order to prevent
dust on the air cleaner from falling to the
inside of its housing.

(1) Pinch both tabs and remove the
filter cover.
(2) Gently tilt down the end of the filter
and slowly pull it out 0.4 in (1 cm).
(3) Slowly pull out the rest of the filter.

3. Replace the cabin air filter with a new
one and then reinstall the cover.

CAUTION

The arrow mark on the filter must
point UP.

– CONTINUED –

Air filtration system

281

Climate

control

(284,1)

北米Model "A3200BE-A" EDITED: 2018/ 3/ 5

4. Reinstall the glove box, and connect
the damper shaft.
5. Close the glove box.

Air filtration system

282

(285,1)

北米Model "A3200BE-A" EDITED: 2018/ 3/ 5

5-1. Antenna ........................................................... 284

Printed antenna .................................................. 284
Roof antenna ...................................................... 284

5-2. Audio set..........................................................285

Audio

(286,1)

北米Model "A3200BE-A" EDITED: 2018/ 3/ 5

5-1. Antenna

Printed antenna

CAUTION

Do not use sharp instruments or
window cleaner containing abra-
sives to clean the inner surface of
the window on which the antenna is
printed. Doing so may damage the
antenna printed on the window.

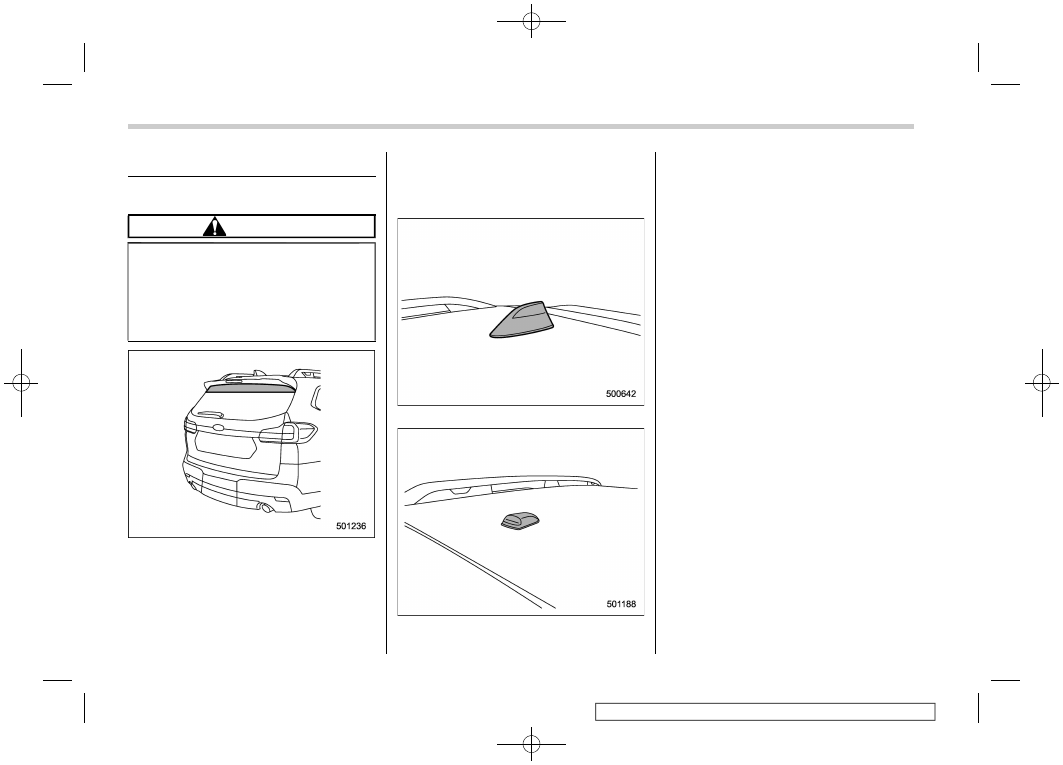

The antenna is printed on the inner surface
of the rear window glass.

NOTE

Antenna performance will deteriorate
significantly if you apply tinting film or

any other material over the antenna
portion of the rear window glass.

Roof antenna

Shark fin type

Mouse type

The roof antenna is installed on the roof.

Antenna

284

(287,1)

北米Model "A3200BE-A" EDITED: 2018/ 3/ 5

5-2. Audio set

If your vehicle is equipped with a genuine
SUBARU navigation system or audio
system, refer to the separate navigation/
audio Owner’s Manual for details.

Audio set

285

Audio

(288,1)

北米Model "A3200BE-A" EDITED: 2018/ 3/ 5

— — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —

(289,1)

北米Model "A3200BE-A" EDITED: 2018/ 3/ 5

6-1. Interior lights................................................... 288

Map lights .......................................................... 288
Reading light ...................................................... 288
Cargo area light.................................................. 289
OFF delay timer .................................................. 289

6-2. Sun visors ....................................................... 289

Vanity mirror with light ....................................... 290

6-3. Overhead console........................................... 291

Cabin view mirror ............................................... 291

6-4. Storage compartment..................................... 292

Glove box........................................................... 292
Center console ................................................... 292
Cup holders........................................................ 292
Bottle holders..................................................... 293

6-5. Power outlets .................................................. 294

12V power outlet................................................. 295
Use with the cigarette lighter (dealer option) ....... 295
120V power outlet (if equipped)........................... 296

6-6. USB power supply ..........................................297
6-7. Ashtray (dealer option) ...................................298
6-8. Floor mat..........................................................299
6-9. Coat hook.........................................................300
6-10. Shopping bag hook.......................................300
6-11. Cargo area cover (if equipped).....................301

Using the cover.................................................. 301
To remove the cover housing ............................. 301
Stowage of the cargo area cover ........................ 302
To install the cover housing ............................... 302

6-12. Cargo tie-down hooks (if equipped) ............303
6-13. Under-floor storage compartment................303
6-14. Front View Monitor (if equipped) .................304

How to access the Front View Monitor................ 305
How to cancel the Front View Monitor ................ 305
Range of image on screen.................................. 305
Guiding line ....................................................... 306
Handling of camera ............................................ 306

Interior equipment

(290,1)

北米Model "A3200BE-A" EDITED: 2018/ 3/ 5

6-1. Interior lights

CAUTION

When leaving your vehicle, make
sure the lights are turned off to
avoid battery discharge.

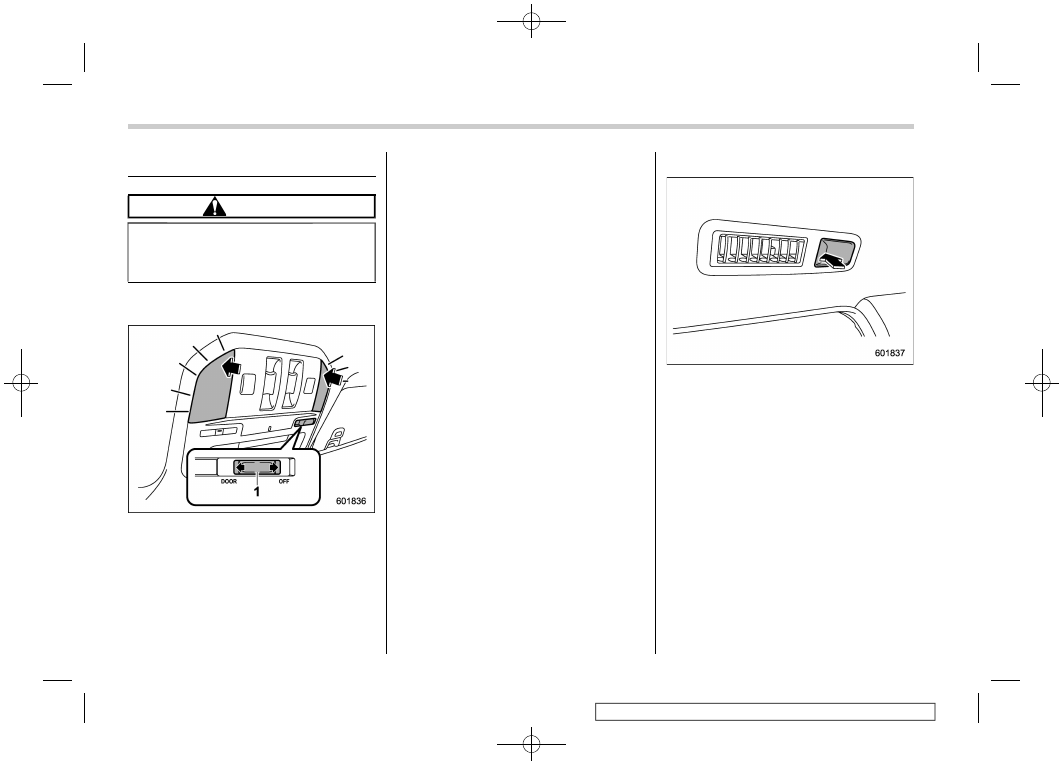

Map lights

Door interlock switch

To turn on the map light, push the lens.
To turn it off, push the lens again.

Automatic illumination

When the door interlock switch is in the
“DOOR” position, the map lights illuminate
automatically in the following cases.
.

Any of the doors other than the rear

gate is opened.
.

The doors are unlocked using the

keyless access function (if equipped).
Refer to “Locking and unlocking by holding
the access key fob” FP124.
.

The doors are unlocked using the

remote keyless entry system. Refer to
“Remote keyless entry system” FP135.
.

The ignition switch is turned from the

“ON” or “ACC” position to the “LOCK”/
“OFF” position.

Reading light

To turn on the reading light, push the lens.
To turn it off, push the lens again.

Automatic illumination

When the door interlock switch on the map
light is in the “DOOR” position, the reading
lights illuminate automatically in the follow-
ing cases.
.

Any of the doors other than the rear

gate is opened.
.

The doors are unlocked using the

keyless access function (if equipped).
Refer to “Locking and unlocking by holding
the access key fob” FP124.
.

The doors are unlocked using the

remote keyless entry system. Refer to
“Remote keyless entry system” FP135.
.

The ignition switch is turned from the

Interior lights

288

Content .. 16 17 18 19 ..
