GD(H6DO)-192

Diagnostic Trouble Code (DTC) Detecting Criteria

GENERAL DESCRIPTION

5. DIAGNOSTIC METHOD

• Abnormality Judgement

If the duration of time while the following conditions are met is longer than the time indicated, judge as NG.

Time Needed for Diagnosis: 500 ms
Malfunction Indicator Light Illumination: Illuminates as soon as a malfunction occurs.

• Normality Judgement

Judge as OK and clear the NG if the continuous time while the following conditions are established is more
than the predetermined time.

Time Needed for Diagnosis: 2000 ms

Judgement Value

Malfunction criteria

Threshold value

Motor current

> 8 A

or



Drive circuit inner temperature

> 175°C (347°F)

Judgement Value

Malfunction Criteria

Threshold Value

Motor current

d 8 A

Drive circuit inner temperature

d 175°C (347°F)

GD(H6DO)-193

Diagnostic Trouble Code (DTC) Detecting Criteria

GENERAL DESCRIPTION

EK:DTC P2102 THROTTLE ACTUATOR CONTROL MOTOR CIRCUIT LOW

1. OUTLINE OF DIAGNOSIS

Judge as NG when the electronic throttle control power is not supplied even when ECM sets the electronic
throttle control relay to ON.

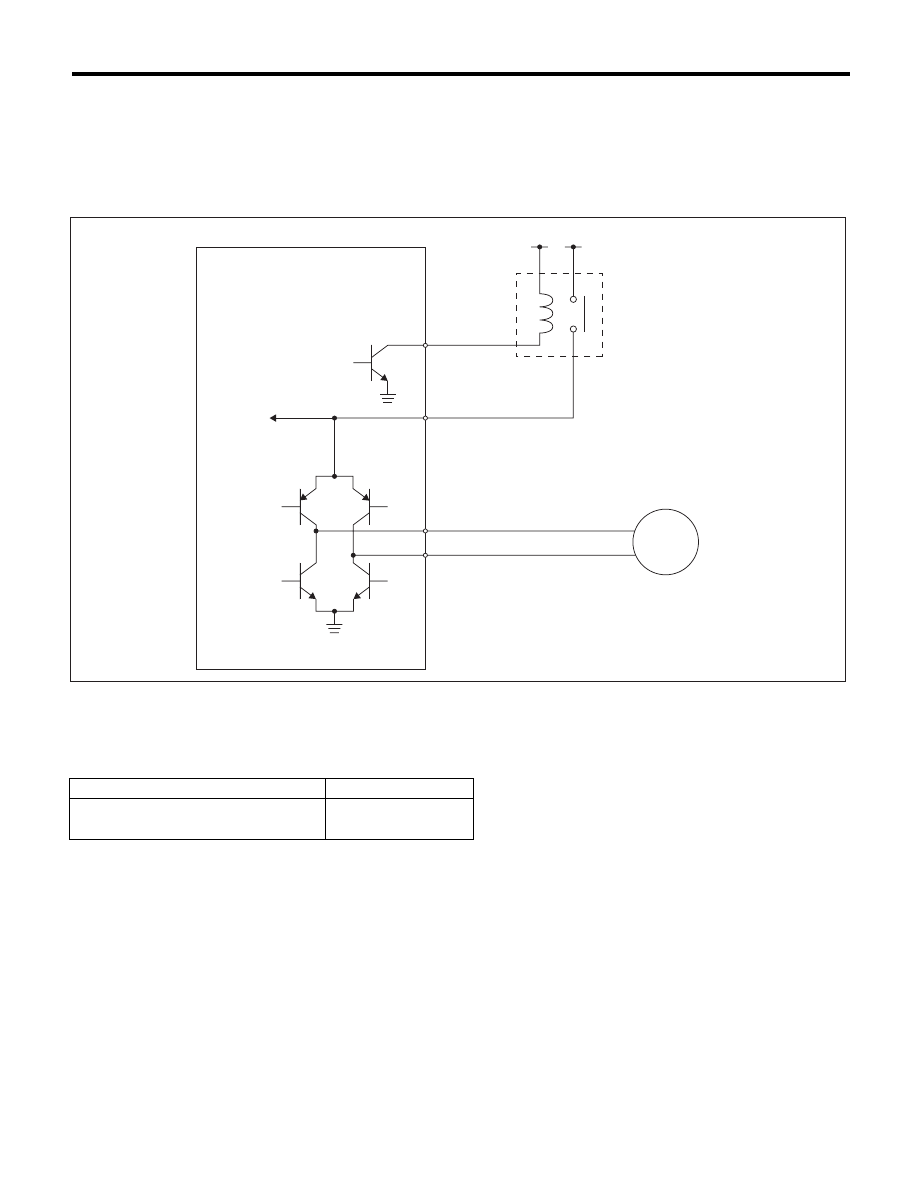

2. COMPONENT DESCRIPTION

3. ENABLE CONDITION

4. GENERAL DRIVING CYCLE

Always perform the diagnosis continuously.

(1)

Engine control module (ECM)

(3)

Drive circuit

(5)

Motor

(2)

Voltage detection circuit

(4)

Electronic throttle control relay





Secondary Parameters

Enable Conditions

Battery voltage

t 11 V

Electronic throttle control relay output

ON

EN-01868

(2)

(3)

(1)

(4)

(5)

12V

12V

GD(H6DO)-194

Diagnostic Trouble Code (DTC) Detecting Criteria

GENERAL DESCRIPTION

5. DIAGNOSTIC METHOD

• Abnormality Judgement

If the duration of time while the following conditions are met is longer than the time indicated, judge as NG.

Time Needed for Diagnosis: 400 ms
Malfunction Indicator Light Illumination: Illuminates as soon as a malfunction occurs.

• Normality Judgement

Judge as OK and clear the NG if the continuous time while the following conditions are established is more
than the predetermined time.

Time Needed for Diagnosis: 2000 ms

Judgement Value

Malfunction criteria

Threshold value

Motor power voltage

d 5 V

Judgement Value

Malfunction criteria

Threshold value

Motor power voltage

> 5 V

GD(H6DO)-195

Diagnostic Trouble Code (DTC) Detecting Criteria

GENERAL DESCRIPTION

EL:DTC P2103 THROTTLE ACTUATOR CONTROL MOTOR CIRCUIT HIGH

1. OUTLINE OF DIAGNOSIS

Judge as NG when the electronic throttle control power is supplied even when ECM sets the electronic throt-
tle control relay to OFF.

2. COMPONENT DESCRIPTION

3. ENABLE CONDITION

4. GENERAL DRIVING CYCLE

• When ignition switch ON

o OFF

• Ignition switch OFF

o ON (Only after clearing memory)

(1)

Engine control module (ECM)

(3)

Drive circuit

(5)

Motor

(2)

Voltage detection circuit

(4)

Electronic throttle control relay





Secondary Parameters

Enable Conditions

Battery voltage

t 6 V

Electronic throttle control relay output

OFF

EN-01868

(2)

(3)

(1)

(4)

(5)

12V

12V
