GD(H6DO)-188

Diagnostic Trouble Code (DTC) Detecting Criteria

GENERAL DESCRIPTION

5. DIAGNOSTIC METHOD

• Abnormality Judgement

If the duration of time while the following conditions are met is longer than the time indicated, judge as NG.

Time Needed for Diagnosis: 5 s × 1 time(s)
Malfunction Indicator Light Illumination:  Illuminates when malfunction occurs in 2 continuous driving cy-
cles.

• Normality Judgement

Judge as OK and clear the NG if the continuous time while the following conditions are established is more
than the predetermined time.

Time Needed for Diagnosis: 5 s

Judgement Value

Malfunction criteria

Threshold value

Sub feedback learning value

< –0.03

Judgement Value

Malfunction criteria

Threshold value

Sub feedback learning value

t –0.03  + 0

GD(H6DO)-189

Diagnostic Trouble Code (DTC) Detecting Criteria

GENERAL DESCRIPTION

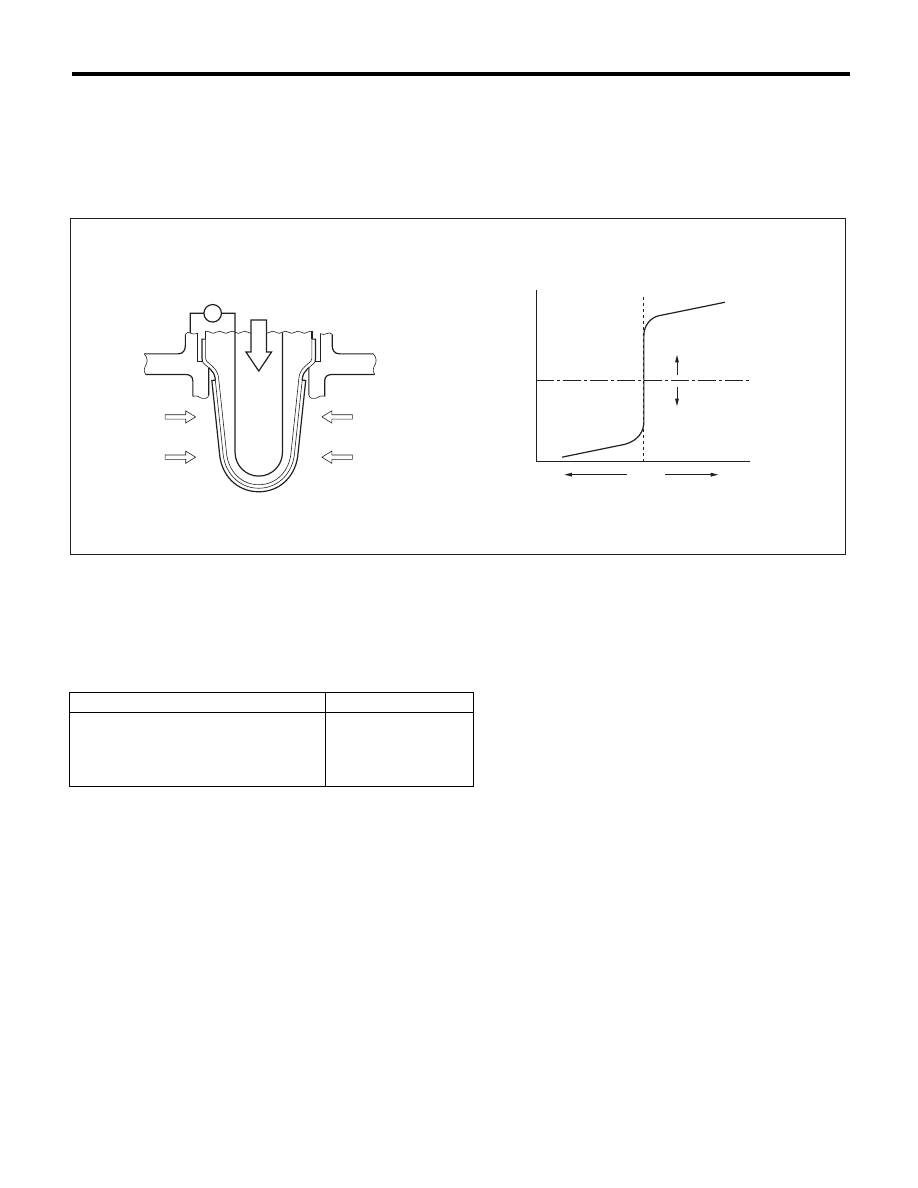

EG:DTC P2097 POST CATALYST FUEL TRIM SYSTEM TOO RICH (BANK 1)

1. OUTLINE OF DIAGNOSIS

Detect the malfunction of fuel system from the size of the sub feedback learning value.
Sub feedback learning is being performed. When the learning value goes to the rich side, judge as NG.

2. COMPONENT DESCRIPTION

3. ENABLE CONDITION

4. GENERAL DRIVING CYCLE

Perform the diagnosis continuously when the vehicle is idling or running at a constant speed of 80 km/h (50
MPH) or more.

(A)

Electromotive force

(C)

Rich

(E)

Theoretical air fuel ratio

(B)

Air fuel ratio

(D)

Lean

(F)

Comparative voltage

(1)

Atmosphere

(2)

Exhaust gas

(3)

Electromotive force

Secondary Parameters

Enable Conditions

Conditions for carrying out the sub feed-
back learning

Completed

Continuous time when all conditions are
established.

t 1 s

EN-01696

(3)

V

(1)

(2)

(2)

(E)

(F)

(C)

(B)

(D)

(A)

GD(H6DO)-190

Diagnostic Trouble Code (DTC) Detecting Criteria

GENERAL DESCRIPTION

5. DIAGNOSTIC METHOD

• Abnormality Judgement

If the duration of time while the following conditions are met is longer than the time indicated, judge as NG.

Time Needed for Diagnosis: 5 s × 1 time(s)
Malfunction Indicator Light Illumination:  Illuminates when malfunction occurs in 2 continuous driving cy-
cles.

• Normality Judgement

Judge as OK and clear the NG if the continuous time while the following conditions are established is more
than the predetermined time.

Time Needed for Diagnosis: 5 s

EH:DTC P2098 POST CATALYST FUEL TRIM SYSTEM TOO LEAN BANK 2

1. OUTLINE OF DIAGNOSIS

NOTE:
For the detection standard, refer to DTC P2096. <Ref. to GD(H6DO)-187, DTC P2096 POST CATALYST
FUEL TRIM SYSTEM TOO LEAN (BANK 1), Diagnostic Trouble Code (DTC) Detecting Criteria.>

EI: DTC P2099 POST CATALYST FUEL TRIM SYSTEM TOO RICH BANK 2

1. OUTLINE OF DIAGNOSIS

NOTE:
For the detection standard, refer to DTC P2097. <Ref. to GD(H6DO)-189, DTC P2097 POST CATALYST
FUEL TRIM SYSTEM TOO RICH (BANK 1), Diagnostic Trouble Code (DTC) Detecting Criteria.>

Judgement Value

Malfunction criteria

Threshold value

Sub feedback learning value

t 0.04

Judgement Value

Malfunction criteria

Threshold value

Sub feedback learning value

< 0.04  + 0

GD(H6DO)-191

Diagnostic Trouble Code (DTC) Detecting Criteria

GENERAL DESCRIPTION

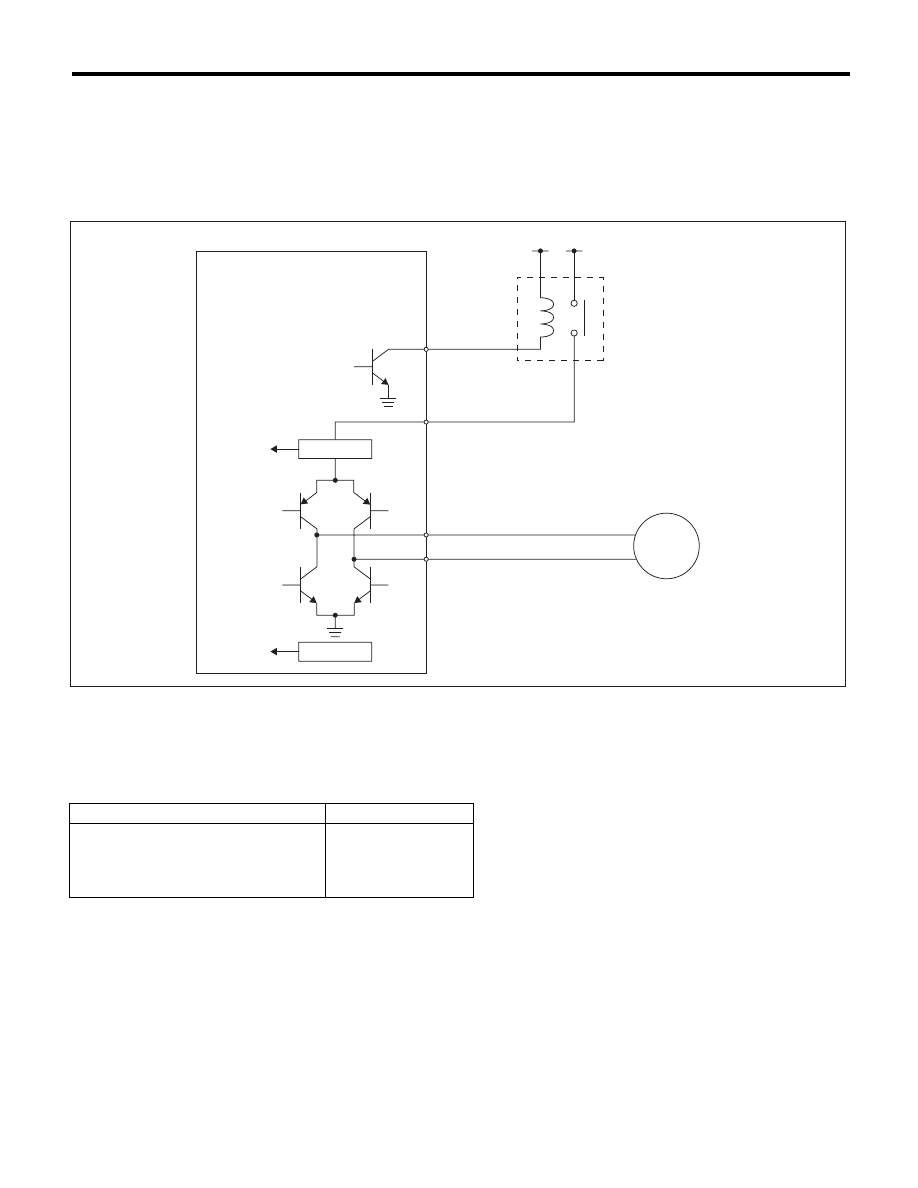

EJ:DTC P2101 THROTTLE ACTUATOR CONTROL MOTOR CIRCUIT RANGE/

PERFORMANCE

1. OUTLINE OF DIAGNOSIS

Judge as NG when the motor current becomes large or drive circuit is heated.

2. COMPONENT DESCRIPTION

3. ENABLE CONDITION

4. GENERAL DRIVING CYCLE

Always perform the diagnosis continuously.

(1)

Engine control module (ECM)

(4)

Drive circuit

(6)

Electronic throttle control relay

(2)

Detecting circuit

(5)

Temperature detection circuit

(7)

Motor

(3)

Overcurrent

detection

circuit





Secondary Parameters

Enable Conditions

Under control of electronic throttle con-
trol

ON

CPU communication line sub

o main

normal judgment

Normal

EN-01867

(3)

(2)

(5)

(2)

(4)

(1)

(6)

(7)

12V

12V
