EC(H6DO)-8

Purge Control Solenoid Valve

EMISSION CONTROL (AUX. EMISSION CONTROL DEVICES)

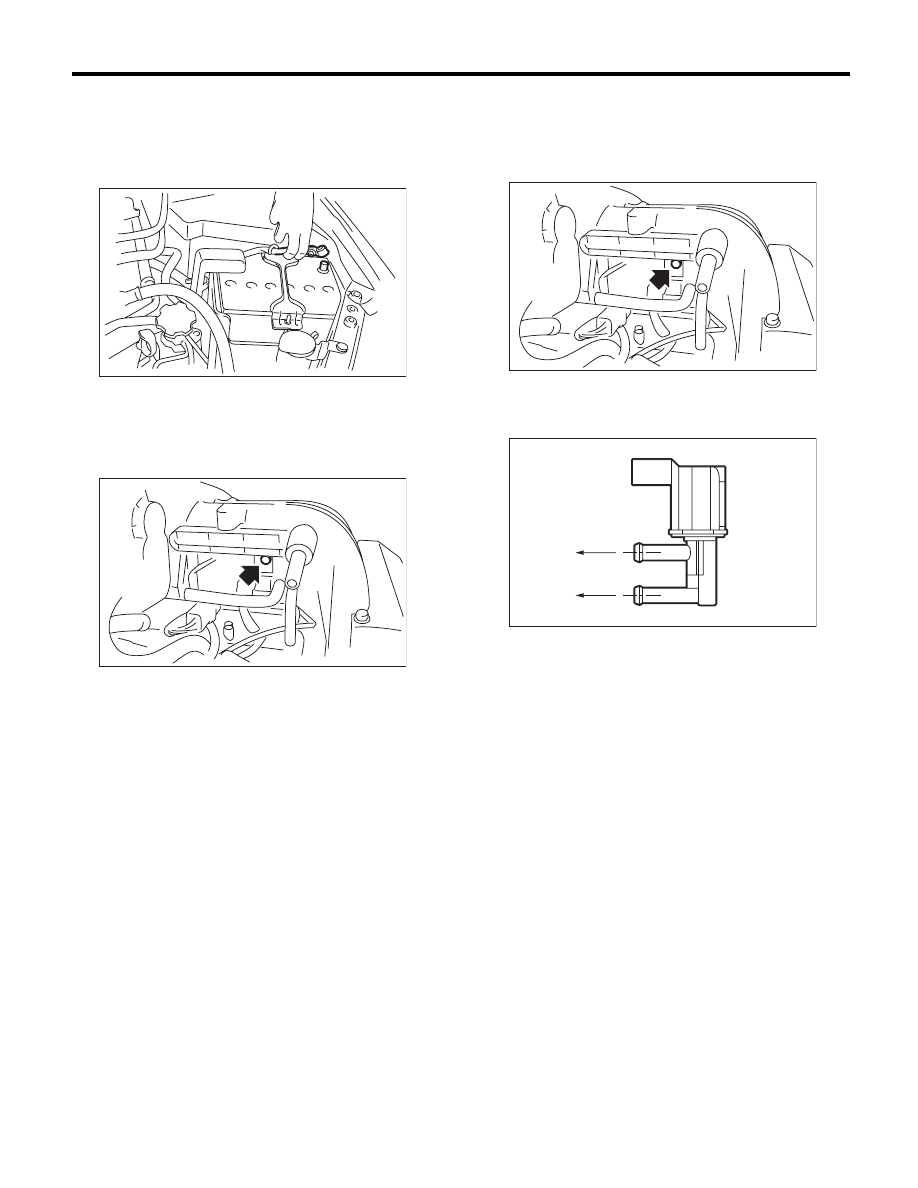

6. Purge Control Solenoid Valve

A: REMOVAL

1) Remove the collector cover.
2) Disconnect the ground cable from battery.

3) Remove the air intake chamber. <Ref. to
IN(H6DO)-7, REMOVAL, Air Intake Chamber.>
4) Disconnect the connector and hoses of purge
control solenoid valve, and then remove the purge
control solenoid valve.

B: INSTALLATION

Install in the reverse order of removal.

Tightening torque:

19 N·m (1.9 kgf-m, 14.0 ft-lb)

NOTE:
Connect the evaporation hose as shown in the fig-
ure.

C: INSPECTION

Make sure the hoses are not cracked or loose.

IN-00203

EC-02019

(A) To fuel pipe (evaporation line)

(B) To intake manifold

EC-02019

EC-02020

(B)

(A)

EC(H6DO)-9

Fuel Level Sensor

EMISSION CONTROL (AUX. EMISSION CONTROL DEVICES)

7. Fuel Level Sensor

A: REMOVAL

For removal procedure, refer to “FU(H6DO)” sec-
tion. <Ref. to FU(H6DO)-57, REMOVAL, Fuel Lev-
el Sensor.>

B: INSTALLATION

For installation procedure, refer to “FU(H6DO)”
section. <Ref. to FU(H6DO)-57, INSTALLATION,
Fuel Level Sensor.>

EC(H6DO)-10

Fuel Temperature Sensor

EMISSION CONTROL (AUX. EMISSION CONTROL DEVICES)

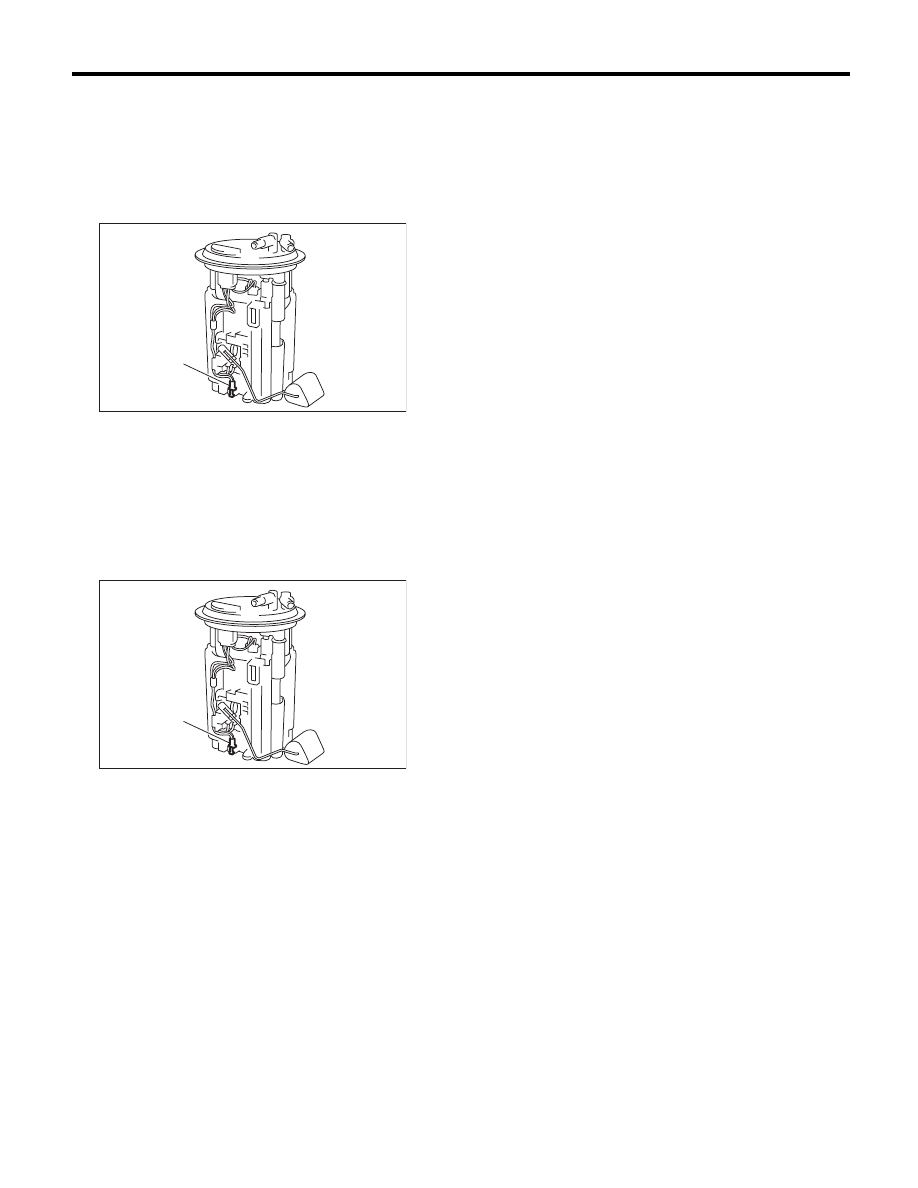

8. Fuel Temperature Sensor

A: REMOVAL

The fuel temperature sensor is integrated into fuel
level sensor as one unit; therefore, refer to “Fuel
Level Sensor” for removal procedure. <Ref. to
FU(H6DO)-57, REMOVAL, Fuel Level Sensor.>

B: INSTALLATION

The fuel temperature sensor and fuel level sensor
are integrated into one unit; therefore, refer to “Fuel
Level Sensor” for installation procedure. <Ref. to
FU(H6DO)-57, INSTALLATION, Fuel Level Sen-
sor.>

(A) Fuel temperature sensor

(A) Fuel temperature sensor

EC-02408

(A)

EC-02408

(A)

EC(H6DO)-11

Fuel Sub Level Sensor

EMISSION CONTROL (AUX. EMISSION CONTROL DEVICES)

9. Fuel Sub Level Sensor

A: REMOVAL

For removal procedure, refer to “FU(H6DO)” sec-
tion. <Ref. to FU(H6DO)-58, REMOVAL, Fuel Sub
Level Sensor.>

B: INSTALLATION

For installation procedure, refer to “FU(H6DO)”
section. <Ref. to FU(H6DO)-59, INSTALLATION,
Fuel Sub Level Sensor.>
