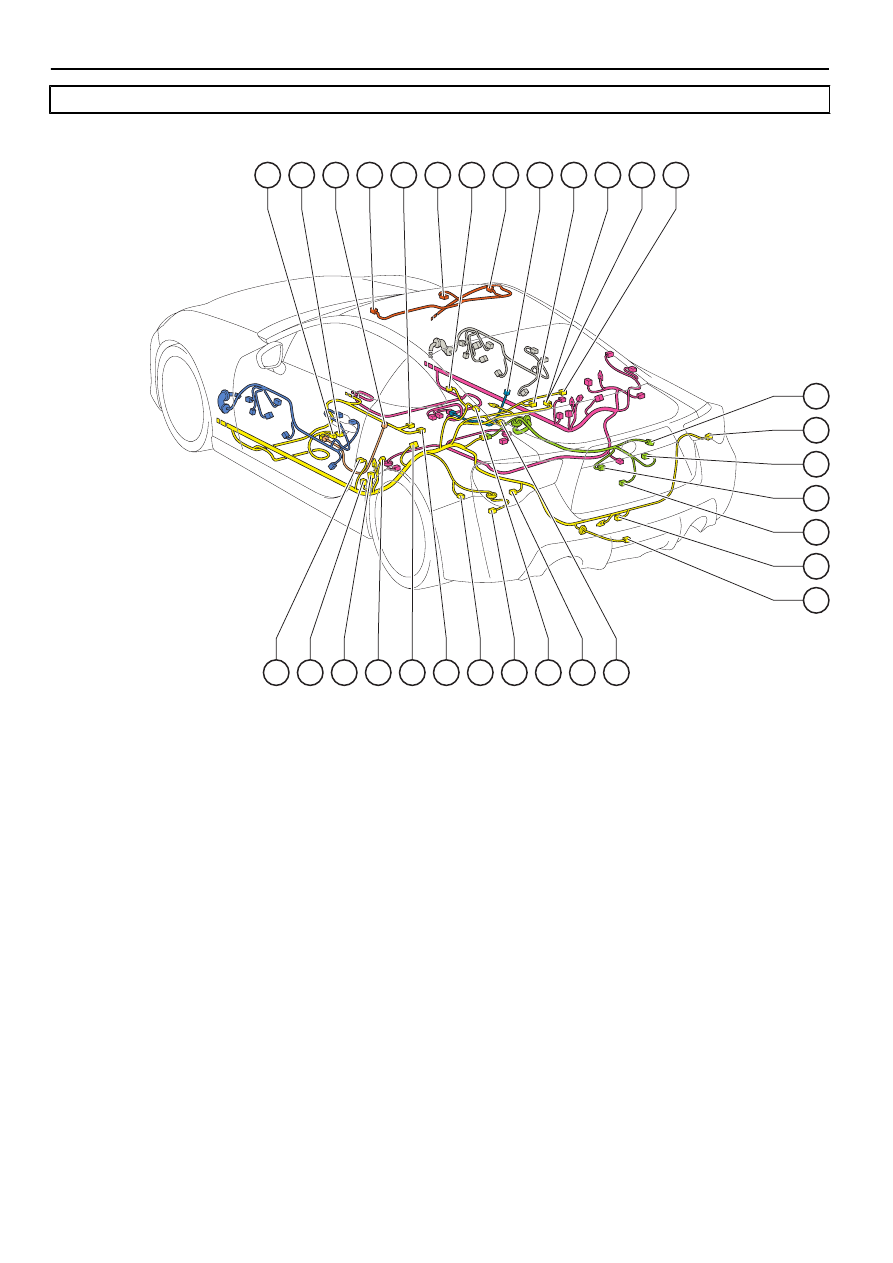

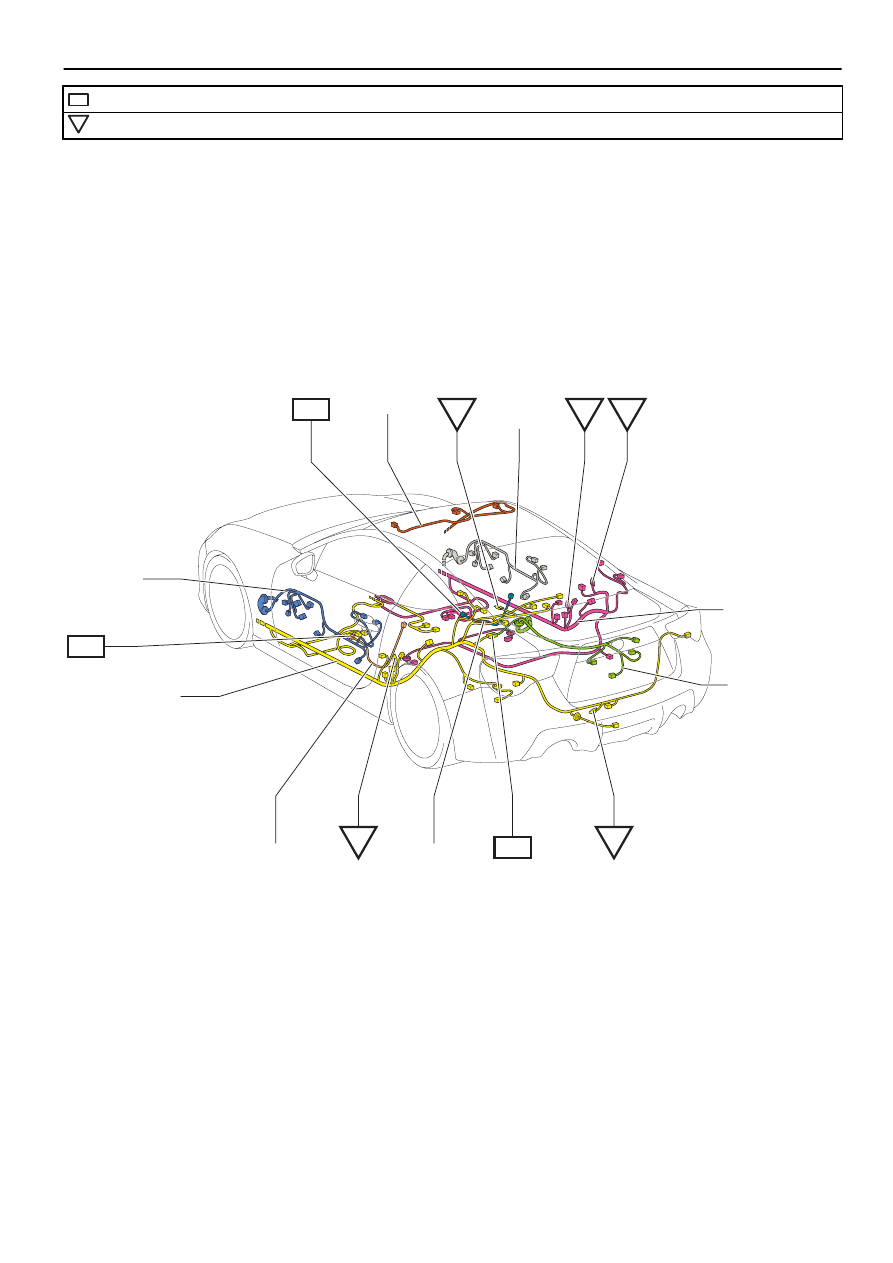

Position of Parts in Body
[RHD]
J2
H1
J3
J1
J4
H2
H3
H25
H21
K5
H16
H18
H19
b1
H22
K3
H24
H23
H8
H29
K1
H6
H30
H15
H12
H11
c1
H10
H26
H27
H9
(*1)
(*2)
* 1:w/ Entry & Start System
* 2:w/o Entry & Start System
H1
Rear Combination Light Lens and Body RH
H2
Rear Fog Light Assembly
(Back-Up Light Lens and Body)
H3
Rear Electrical Key Antenna
H6
Rear Combination Light Lens and Body LH
H8
No. 1 Luggage Compartment Light Assembly
H9
No. 2 Indoor Electrical Key Oscillator Assembly
H10
Center Stop Light Assembly
H11
Rear Height Control Sensor Sub-Assembly LH
H12
Rear Speed Sensor LH
H15
No. 3 Indoor Electrical Key Oscillator Assembly
H16
Satellite Safing Sensor
H18
Seat Heater LH
H19
Front Seat Inner Belt Assembly LH
H21
Front Door Courtesy Light Switch Assembly LH
H22
Pretensioner LH
H23
Side Airbag Sensor LH
H24
Rear Speaker Assembly LH
H25
Curtain Airbag Sensor LH
H26
Door Control Receiver
H27
Door Control Receiver
H29
Rear Window Defogger (Back Window Glass)
H30
Curtain Airbag Module LH
J1
License Plate Light Lens LH
J2
Back Door Opener Switch Assembly
J3
Luggage Compartment Door Striker Assembly
J4
License Plate Light Lens RH
K1
Vanity Light Assembly RH (Visor Assembly RH)
K3
Map Light Assembly
K5
Vanity Light Assembly LH (Visor Assembly LH)
b1
Side Airbag Module LH
c1
Side Airbag Module RH
