Subaru BRZ Electrical Manual - part 12

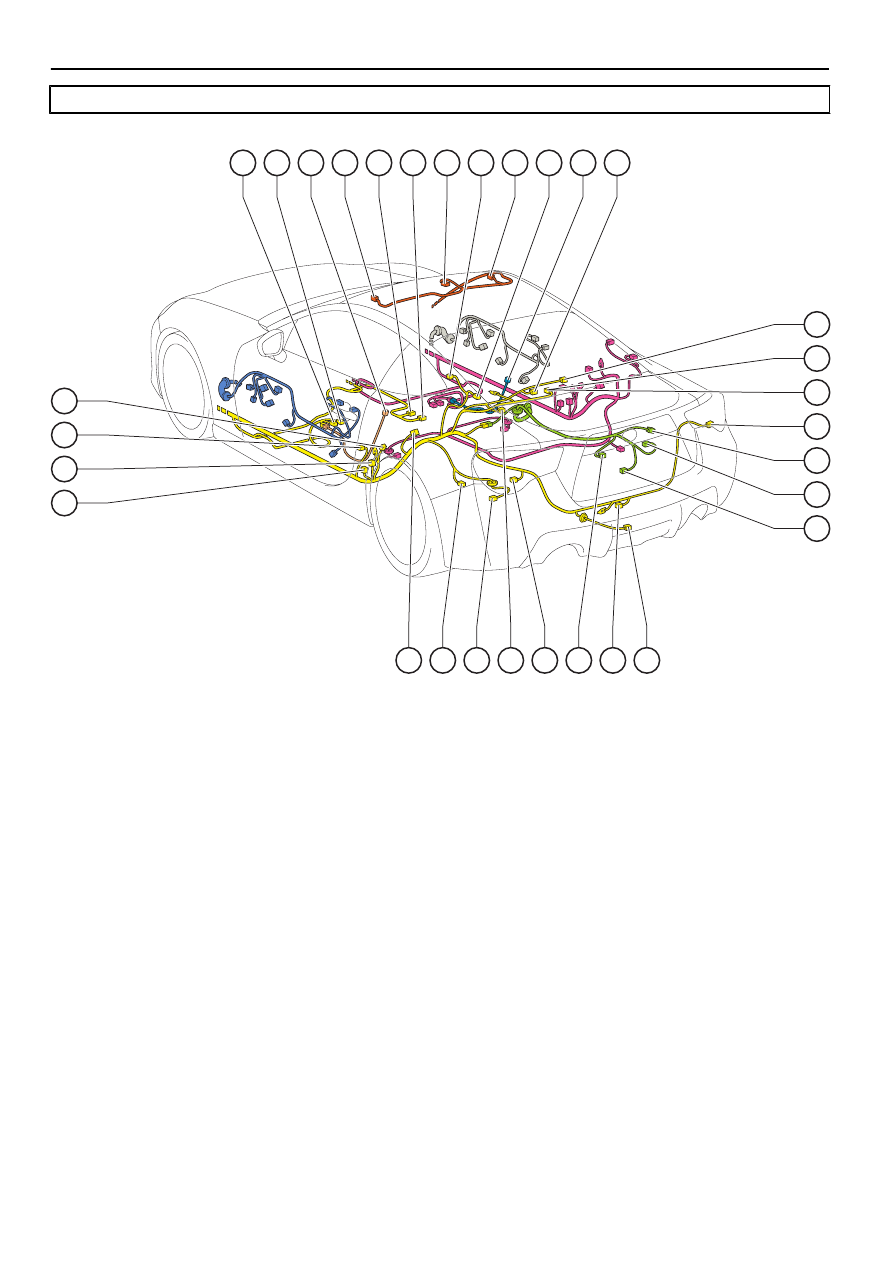

Position of Parts in Body

[LHD]

H27

H26

H19

H18

H16

H30

H15

H29

H10

H25

H12

H11

H21

H23

H24

H22

(*2)

(*1)

* 1:w/ Entry & Start System
* 2:w/o Entry & Start System

Rear Combination Light Lens and Body RH

Rear Fog Light Assembly
(Back-Up Light Lens and Body)

Rear Electrical Key Antenna

Rear Combination Light Lens and Body LH

No. 1 Luggage Compartment Light Assembly

No. 2 Indoor Electrical Key Oscillator Assembly

H10

Center Stop Light Assembly

H11

Rear Height Control Sensor Sub-Assembly LH

H12

Rear Speed Sensor LH

H15

No. 3 Indoor Electrical Key Oscillator Assembly

H16

Satellite Safing Sensor

H18

Seat Heater LH

H19

Front Seat Inner Belt Assembly LH

H21

Front Door Courtesy Light Switch Assembly LH

H22

Pretensioner LH

H23

Side Airbag Sensor LH

H24

Rear Speaker Assembly LH

H25

Curtain Airbag Sensor LH

H26

Door Control Receiver

H27

Door Control Receiver

H29

Rear Window Defogger (Back Window Glass)

H30

Curtain Airbag Module LH

License Plate Light Lens LH

Back Door Opener Switch Assembly

Luggage Compartment Door Striker Assembly

License Plate Light Lens RH

Vanity Light Assembly RH (Visor Assembly RH)

Map Light Assembly

Vanity Light Assembly LH (Visor Assembly LH)

Side Airbag Module LH

Side Airbag Module RH

BRZ (G4400GE)

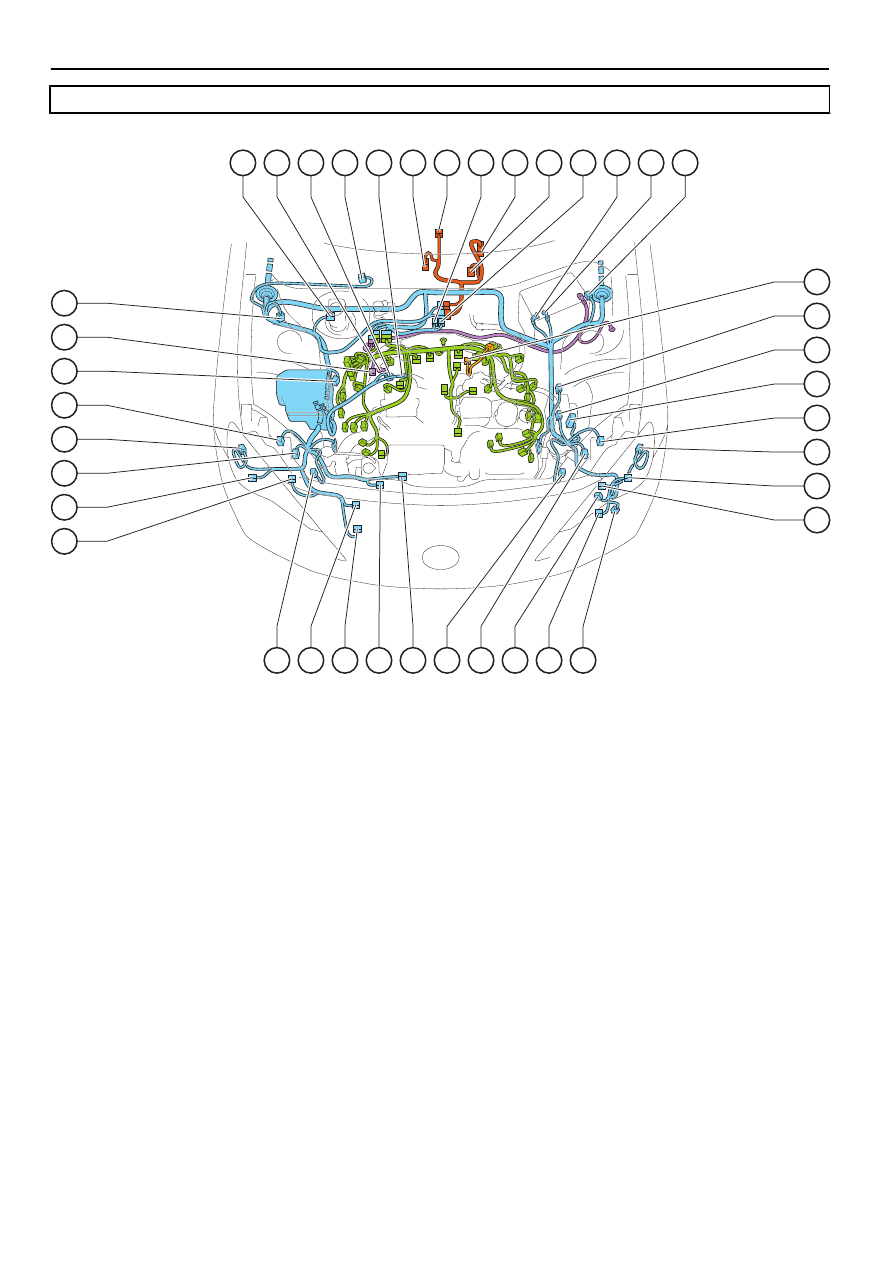

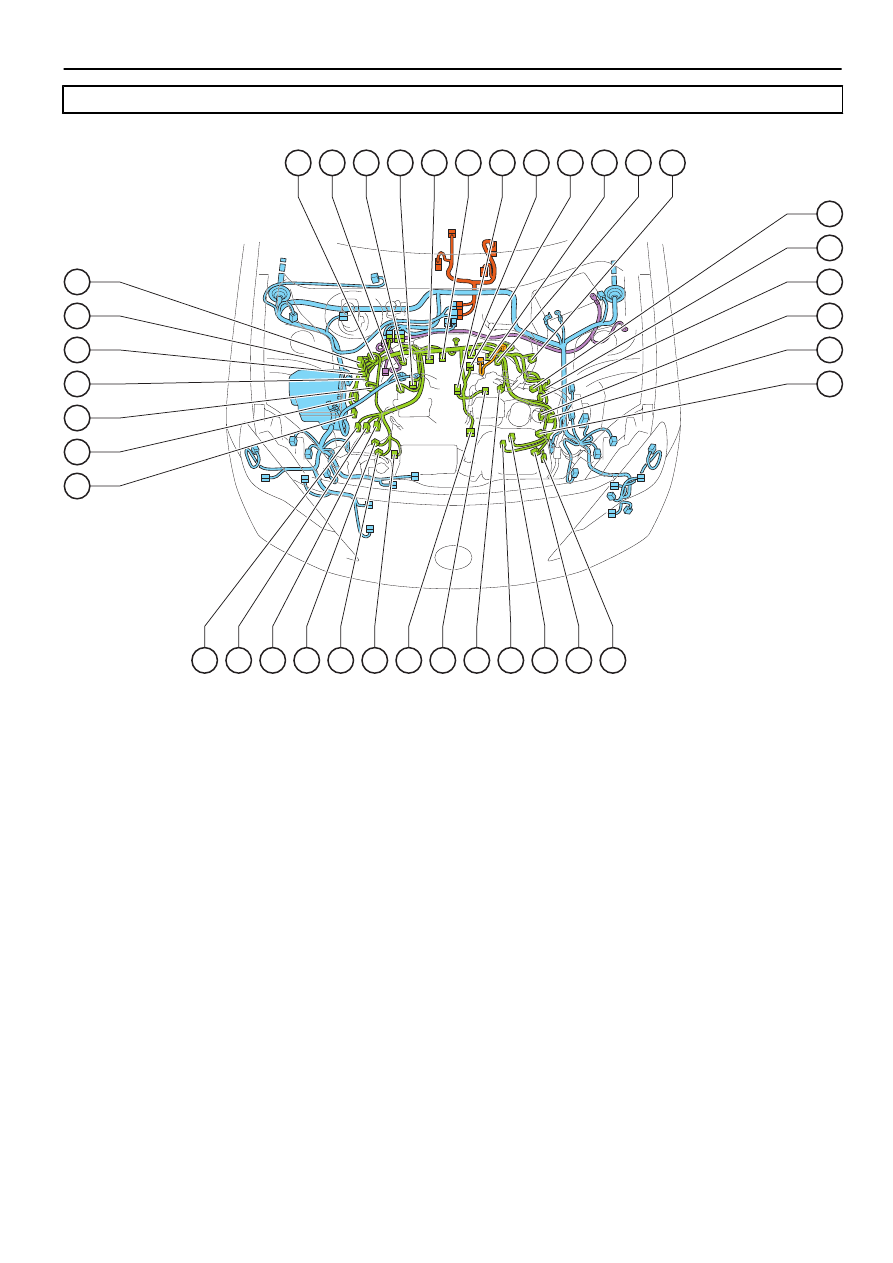

Position of Parts in Engine Compartment

[RHD]

C26

C24

C28

C29

C30

C27

C39

C38

C12

C31

C15

C13

C14

C11

C37

C10

C36

C20

C16

C17

C35

C33

C18

C22

C21

C34

C23

C19

C25

Injector Driver (EDU)

Camshaft Timing Oil Control Valve Assembly
(Bank 1 Exhaust Side)

VVT Sensor (Camshaft Position Sensor)
(Bank 1 Exhaust Side)

Camshaft Timing Oil Control Valve Assembly
(Bank 1 Intake Side)

Fuel Injector Assembly (for Port Injection No. 1)

Fuel Injector Assembly (for Port Injection No. 3)

C10

Fuel Pressure Sensor

C11

Fuel Injector Assembly (for Direct Injection No. 1)

C12

VVT Sensor (Camshaft Position Sensor)
(Bank 1 Intake Side)

C13

Heated Oxygen Sensor (Bank 1 Sensor 2)

C14

Wide Range Air Fuel Ratio Sensor (Bank 1 Sensor 1)

C15

Throttle Body with Motor Assembly

C16

Intake Mass Air Flow Meter Sub-Assembly

C17

Compressor with Magnet Clutch

C18

VSV

C19

Fuel Injector Assembly (for Direct Injection No. 4)

C20

Fuel Injector Assembly (for Direct Injection No. 2)

C21

Oil Temperature Sensor

C22

Engine Oil Pressure Switch Assembly

C23

Camshaft Timing Oil Control Valve Assembly
(Bank 2 Exhaust Side)

C24

Camshaft Timing Oil Control Valve Assembly
(Bank 2 Intake Side)

C25

VVT Sensor (Camshaft Position Sensor)
(Bank 2 Exhaust Side)

C26

VVT Sensor (Camshaft Position Sensor)
(Bank 2 Intake Side)

C27

Ignition Coil Assembly No. 4

C28

Ignition Coil Assembly No. 2

C29

Spill Control Valve (Fuel Pump Assembly)

C30

Fuel Injector Assembly (for Port Injection No. 2)

C31

Fuel Injector Assembly (for Port Injection No. 4)

C33

Crankshaft Position Sensor

C34

Knock Control Sensor (Bank 2)

C35

E.F.I. Engine Coolant Temperature Sensor

C36

Knock Control Sensor (Bank 1)

C37

Fuel Injector Assembly (for Direct Injection No. 3)

C38

Ignition Coil Assembly No. 1

C39

Ignition Coil Assembly No. 3

G ELECTRICAL WIRING ROUTING

BRZ (G4400GE)

Position of Parts in Engine Compartment

[RHD]

A42

A67

A40

A38

A44

A12

A41

A62

A52

A43

A59

A51

A55

A77

A49

A54

A53

A48

A45

A46

A58

A63

A60

A75

A76

A11

Windshield Washer Motor and Pump Assembly

Headlight Cleaner Washer Motor and Pump Assembly

Side Turn Signal Light Assembly LH

Headlight Assembly LH

VSC (VDC) Control Module

Headlight Cleaner Control Relay

Pressure Switch

A11

Battery Current Sensor Assembly

A12

Front Speed Sensor LH

A38

Headlight Assembly RH

A40

Headlight Assembly RH

A41

Headlight Assembly RH

A42

Front Speed Sensor RH

A43

Generator Assembly

A44

Side Turn Signal Light Assembly RH

A45

Cooling Fan Motor

A46

No. 2 Cooling Fan Motor

A48

Ambient Temperature Sensor (Thermistor Assembly)

A49

High Pitched Horn Assembly

A51

Front Sub Sensor RH

A52

Low Pitched Horn Assembly

A53

Back-Up Light Switch Assembly

A54

Park/Neutral Position Switch Assembly

A55

Front Wiper Motor and Link Assembly

A58

Front Sub Sensor LH

A59

Brake Fluid Level Warning Switch
(Brake Master Cylinder Sub-Assembly)

A60

Headlight Assembly LH

A62

Headlight Assembly LH

A63

Wireless Door Lock Buzzer

A67

Alarm Kit

A75

Fusible Link Block Assembly

A76

Fusible Link Block Assembly

A77

Generator Assembly

Starter Assembly

Park/Neutral Position Switch Assembly

Transmission Revolution Sensor (SP2)

Electronically Controlled Transmission Solenoid

Transmission Revolution Sensor (NT)

CPC Solenoid

BRZ (G4400GE)

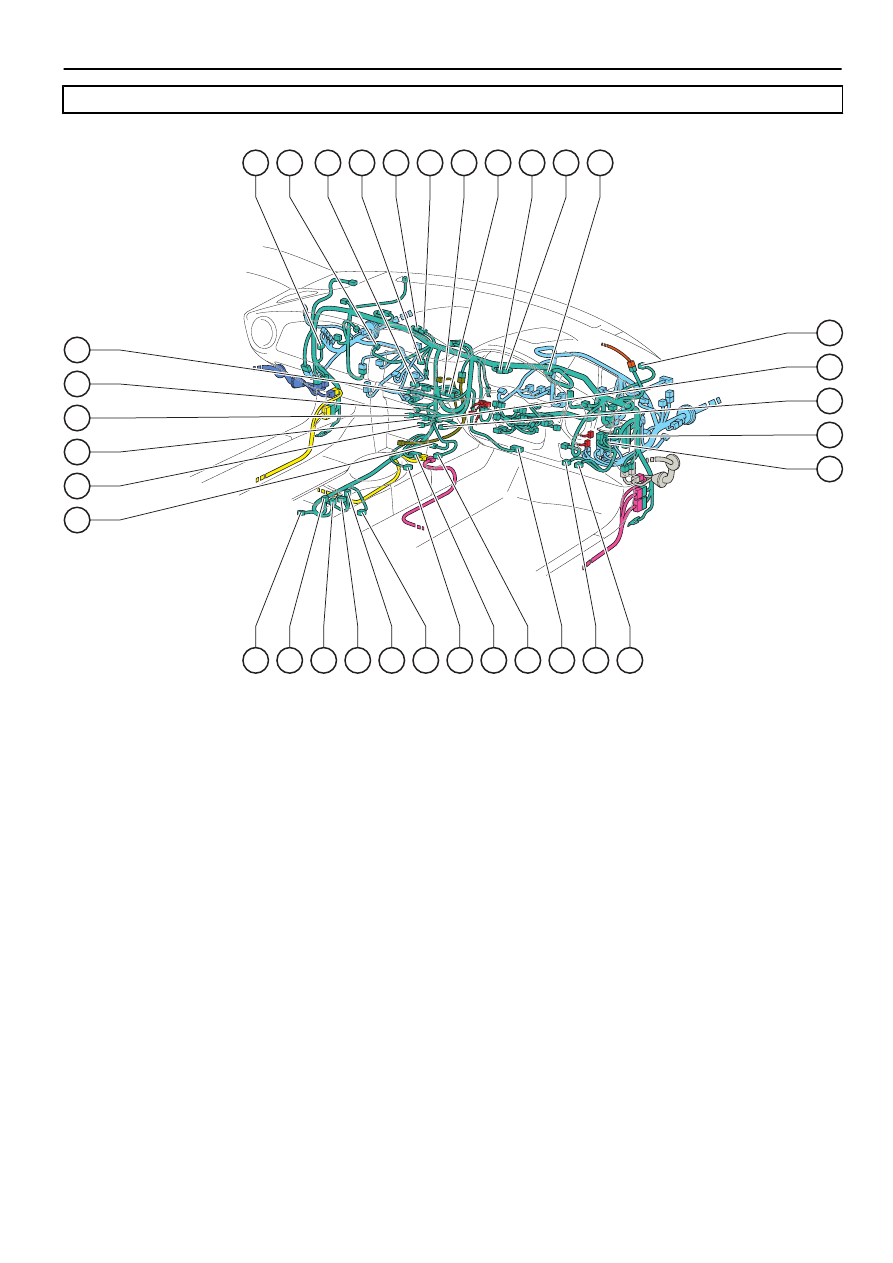

Position of Parts in Instrument Panel

[RHD]

D39

D18

D21

D24

D20

D19

D23

D22

D26

D37

D30

D34

D12

D32

D29

D33

D16

D36

D35

D31

D17

D28

D13

D27

D14

D25

D10

Light Control Rheostat

Luggage Door Opening Switch Assembly

Main Body ECU

Combination Meter Assembly

Junction Connector

D10

DLC3

D12

Radio Receiver Assembly

D13

Radio Receiver Assembly

D14

Radio Receiver Assembly

D16

Junction Connector

D17

Junction Connector

D18

Clock Assembly

D19

A/C Amplifier Assembly

D20

A/C Amplifier Assembly

D21

No. 1 Heater Control Sub-Assembly

D22

No. 3 Heater Control Sub-Assembly

D23

No. 3 Heater Control Sub-Assembly

D24

Heater Control Sub-Assembly

D25

Engine Switch

D26

Indoor Electrical Key Oscillator Assembly

D27

Airbag Control Module

D28

Shift Lever Position Sensor (Floor Shift Control Lever)

D29

Option Connector

D30

Passenger's Airbag Module

D31

Parking Brake Switch Assembly

D32

Seat Heater Switch LH

D33

Seat Heater Switch RH

D34

No. 2 Power Outlet Socket Assembly

D35

Pattern Select Switch Assembly

D36

Shift Position Indicator

D37

Airbag Cut Off Switch

D39

Front No. 2 Speaker Assembly RH

G ELECTRICAL WIRING ROUTING

BRZ (G4400GE)
