PM-61

Clutch System

PERIODIC MAINTENANCE SERVICES

12.Clutch System

A: INSPECTION AND ADJUSTMENT

1. INSPECTION

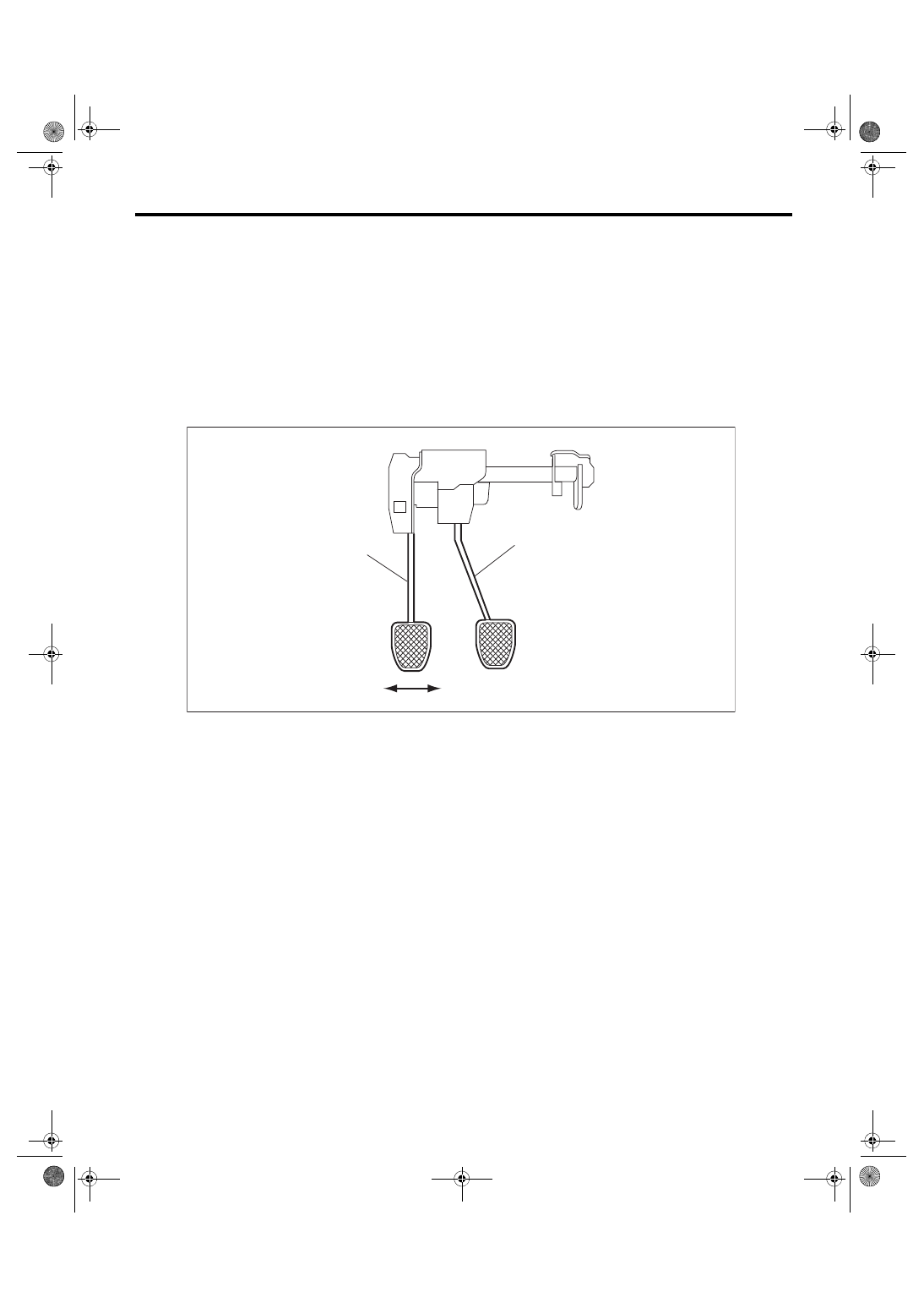

Move the clutch pedal in the lateral direction with a force of approximately 10 N (1 kgf, 2 lbf) to check that the

clutch pedal deflection is within the service limit.
CAUTION:

If it exceeds the service limit, replace the clutch pedal assembly with a new part.
Deflection of the clutch pedal:

Service limit

4.0 mm (0.157 in) or less

(A) Clutch pedal
(B) Brake pedal

PM-00719

(A)

(B)

PM-62

Clutch System

PERIODIC MAINTENANCE SERVICES

2. ADJUSTMENT

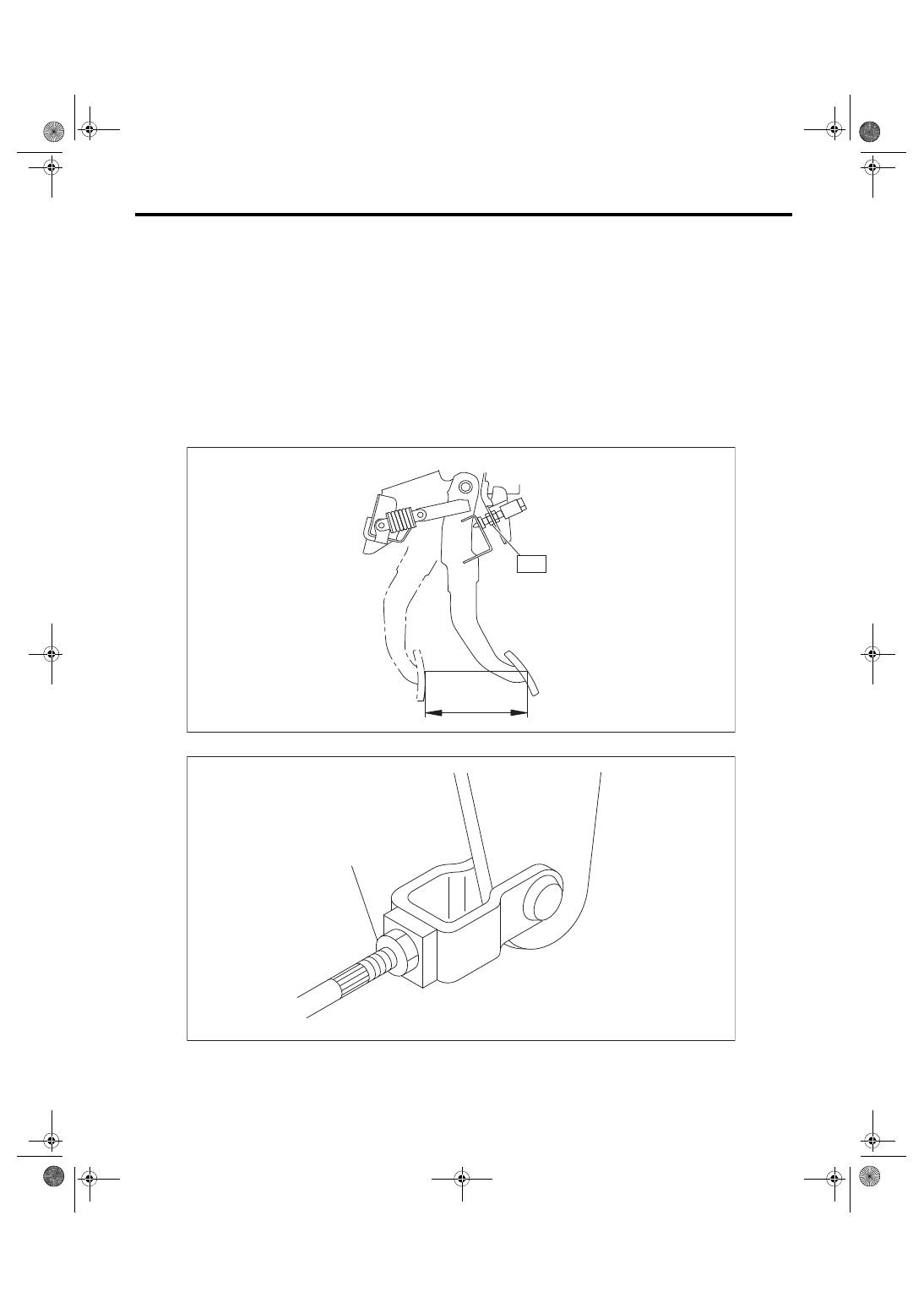

1) If the full stroke of the clutch pedal is not within the specified value, loosen the lock nuts of the clutch switch

and adjust the full stroke of the clutch pedal with the clutch switch.
CAUTION:

When adjusting the full stroke of clutch pedal, do not turn the clutch switch.
NOTE:

If the clutch switch cannot adjust the full stroke of clutch pedal to the specified value, adjust it by turning the

master cylinder push rod.
Clutch pedal full stroke A:

110 — 115 mm (4.33 — 4.53 in)

Tightening torque:

T: 8 N·m (0.8 kgf-m, 5.9 ft-lb)

2) Loosen the push rod lock nuts of the master cylinder.

(A) Push rod lock nut

PM-00720

T

A

PM-00721

(A)

PM-63

Clutch System

PERIODIC MAINTENANCE SERVICES

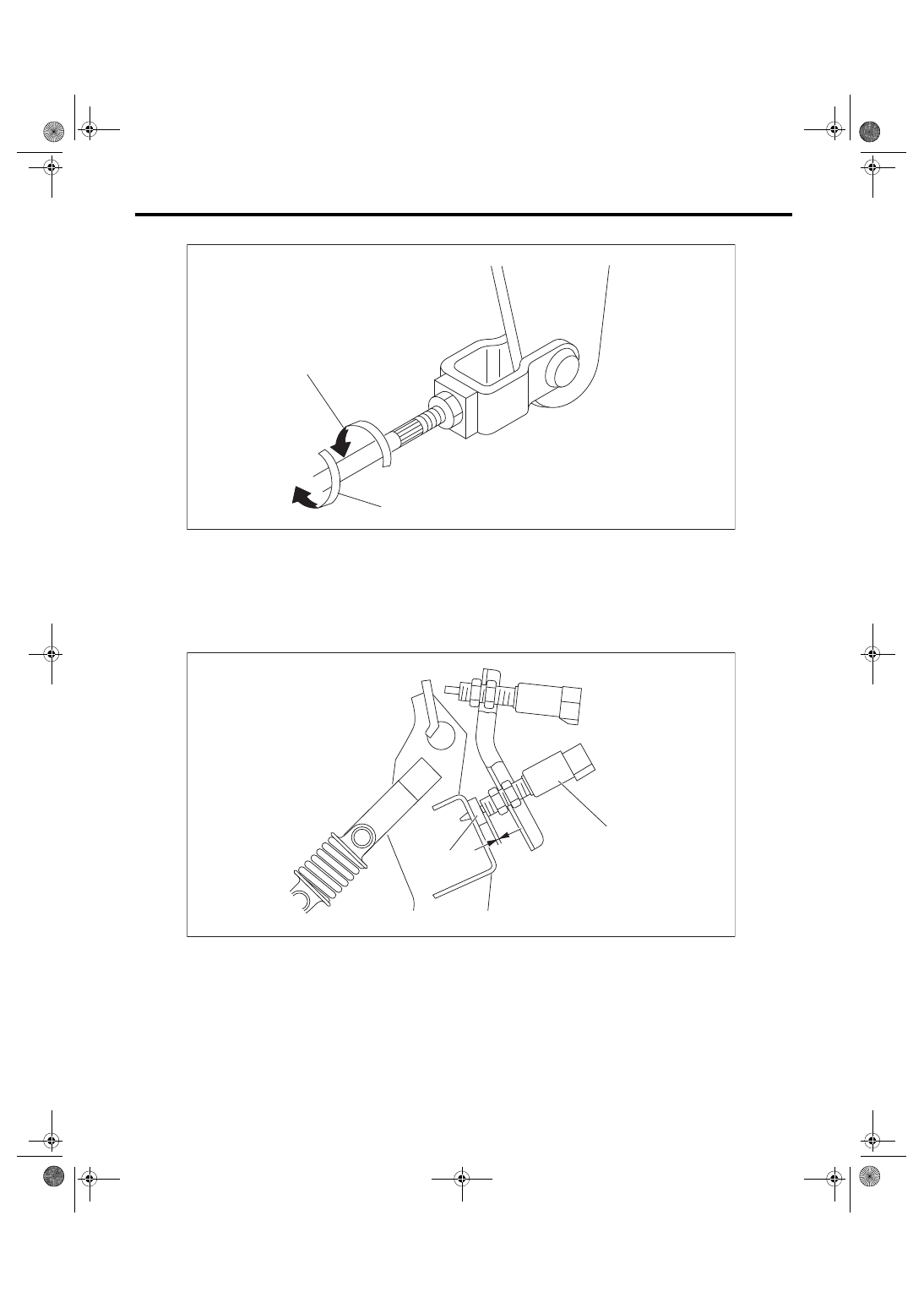

3) Rotate the push rod to adjust.

4) Make sure that the clutch pedal contacts the clutch pedal bracket stopper when the clutch pedal is at the

maximum stroke position.

5) Make sure that the clutch pedal contacts the clutch switch side when the pedal is released.

6) Turn the push rod to shorten until a clearance is gained on the clutch switch side.

7) Turn the push rod to lengthen until clutch pedal contacts the clutch switch.

(A) In the longer direction
(B) In the shorter direction

(A) Clutch switch
(B) Stopper

PM-00722

(A)

(B)

PM-00723

(A)

(B)

PM-64

Clutch System

PERIODIC MAINTENANCE SERVICES

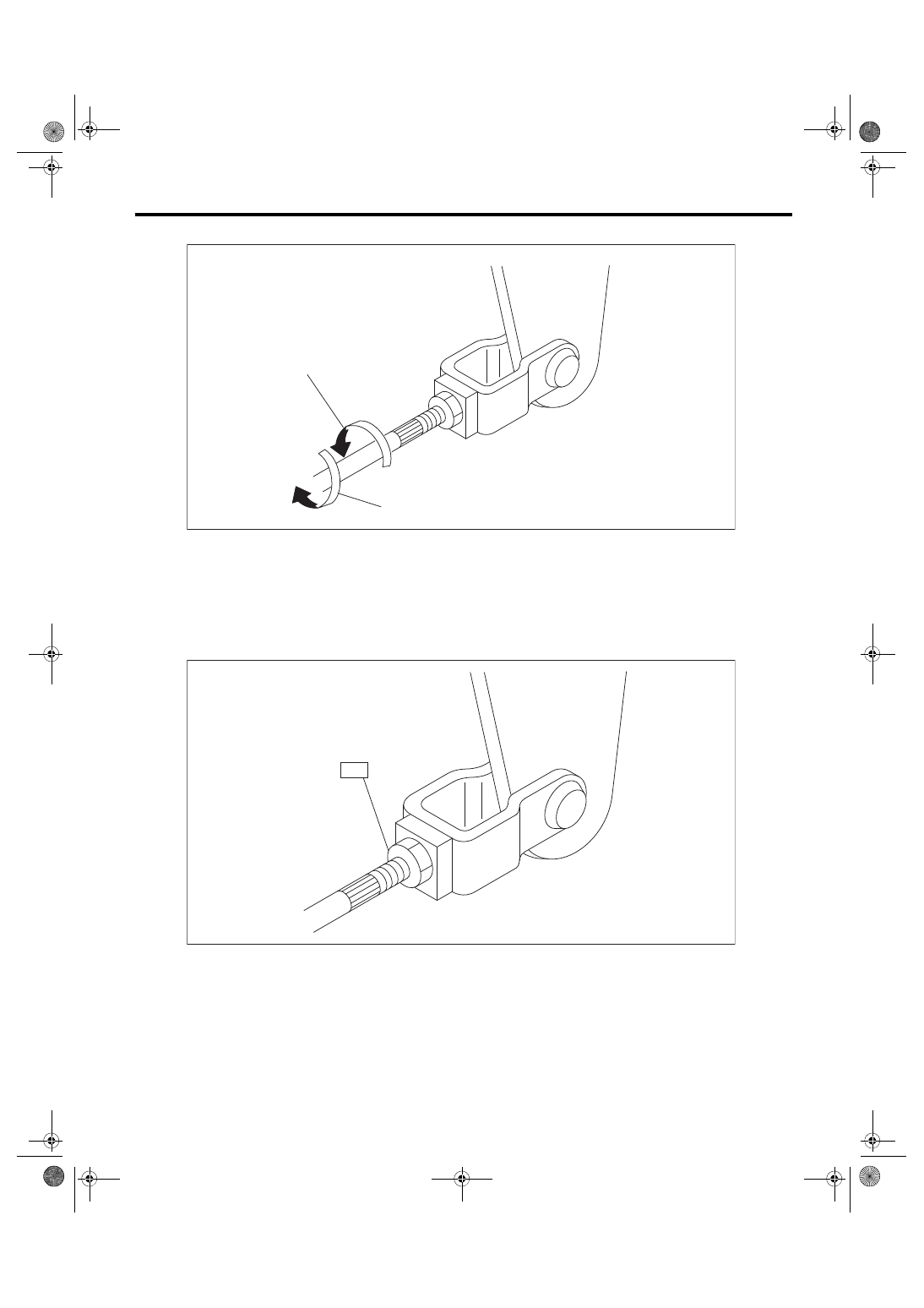

8) Turn further in the direction that will shorten the push rod by 270°.

9) Check that the clevis pin moves smoothly by moving it in the left and right directions.

10) Tighten the push rod lock nut of the master cylinder.
Tightening torque:

T: 10 N·m (1.0 kgf-m, 7.4 ft-lb)

11) Depress and release the clutch pedal two or three times to ensure that the clutch pedal and release lever

operate smoothly. If the clutch pedal and release lever do not operate smoothly, bleed air from the clutch hy-

draulic system.

12) Measure the clutch pedal full stroke length again to ensure that it is within specifications. If it is not within

specifications, repeat adjustment procedures again from the beginning.
Clutch pedal full stroke:

110 — 115 mm (4.33 — 4.53 in)

(A) In the longer direction
(B) In the shorter direction

PM-00722

(A)

(B)

PM-00724

T
