Subaru BRZ (2012 year). Manual - part 30

PM-49

Fuel Filter

PERIODIC MAINTENANCE SERVICES

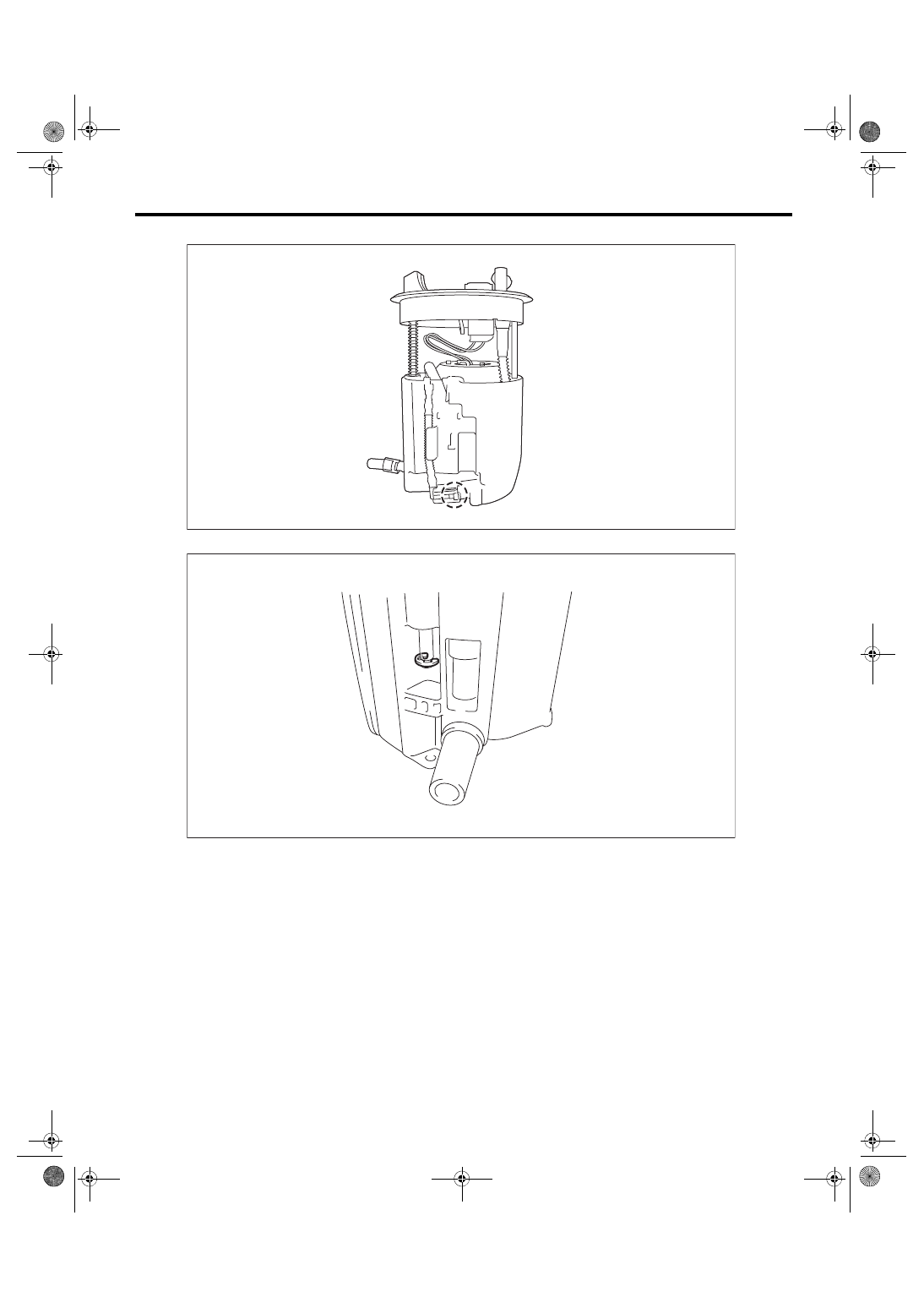

43) Engage the tab, and install the jet pump nozzle to sub tank No. 1.

44) Install the E-ring.

PM-00613

PM-00614

PM-50

Fuel Filter

PERIODIC MAINTENANCE SERVICES

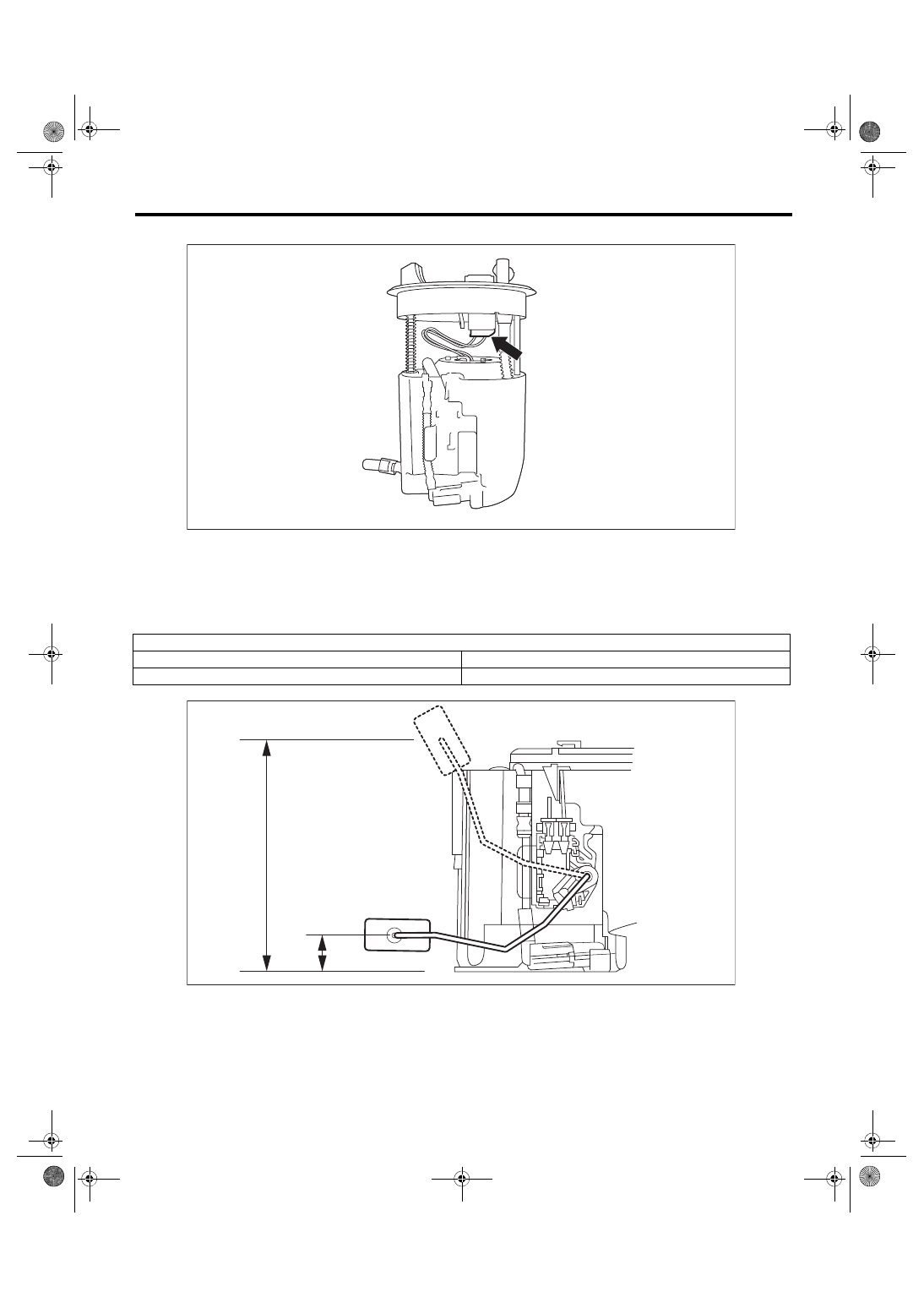

45) Connect the fuel pump harness connector and secure with the clip.

46) Engage the tab, and install the fuel sender gauge assembly No. 2 to the fuel delivery tube.

47) Connect the fuel sender gauge assembly No. 2 connector, and install the harness to the clamp.

48) Inspect the fuel level sensor.

(1) Check that the fuel sender gauge assembly is free of damage.

(2) Check the dimensions from the float positions of floats F (upper limit) and E (lower limit) to the fuel

tank seating surface.

mm (in)

Float position F (upper limit) to fuel tank seating surface

121 — 129 (4.76 — 5.08)

Float position E (lower limit) to fuel tank seating surface

14.7 — 22.7 (0.58 — 0.89)

(A) Float position F (upper limit)
(B) Float position E (lower limit)

(C) Fuel tank seating surface

PM-00600

PM-00709

(A)

(C)

(B)

PM-51

Fuel Filter

PERIODIC MAINTENANCE SERVICES

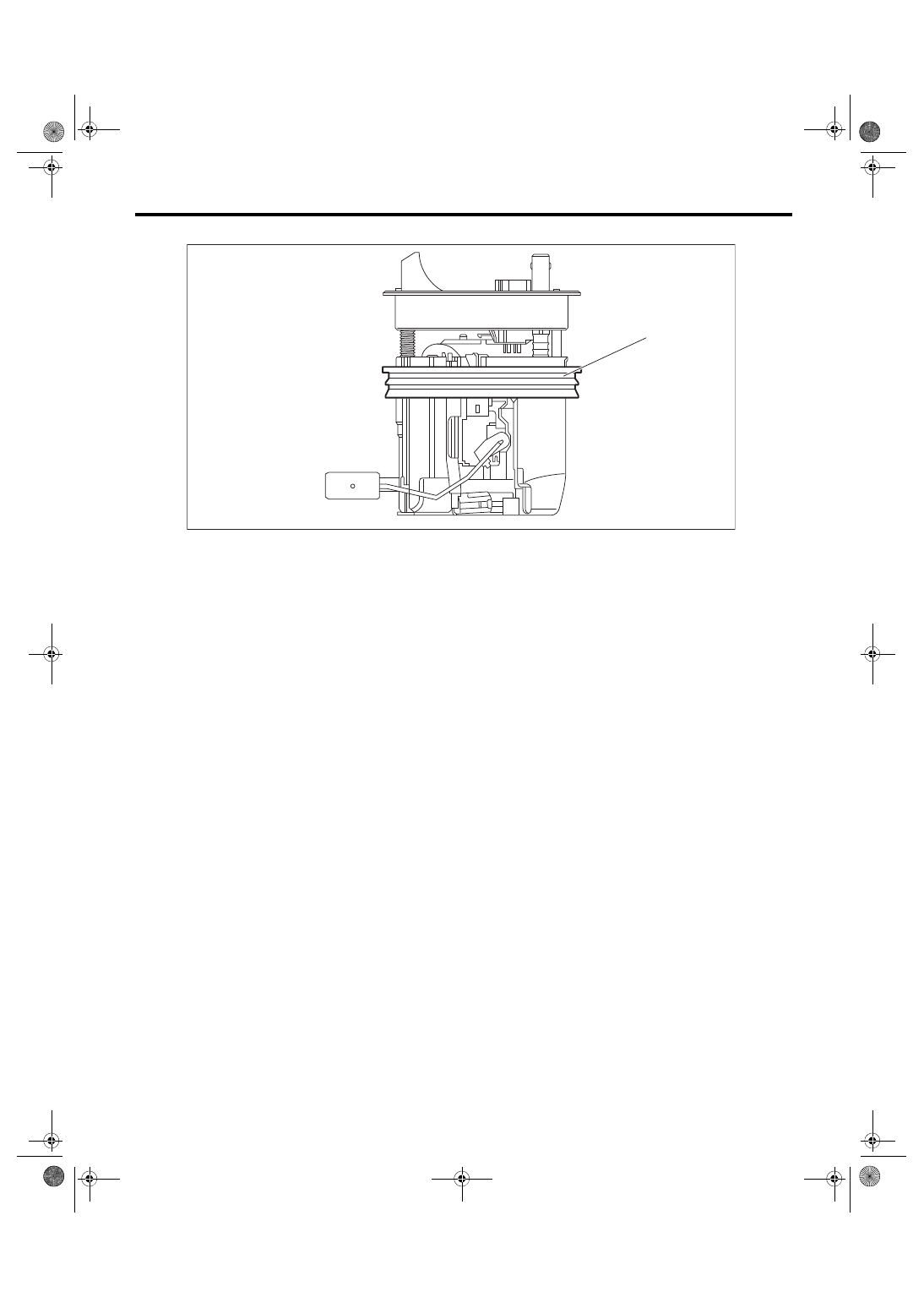

49) Install a new gasket to the fuel suction tube assembly (with pump & gauge).

(A) Gasket

PM-00710

(A)

PM-52

Fuel Filter

PERIODIC MAINTENANCE SERVICES

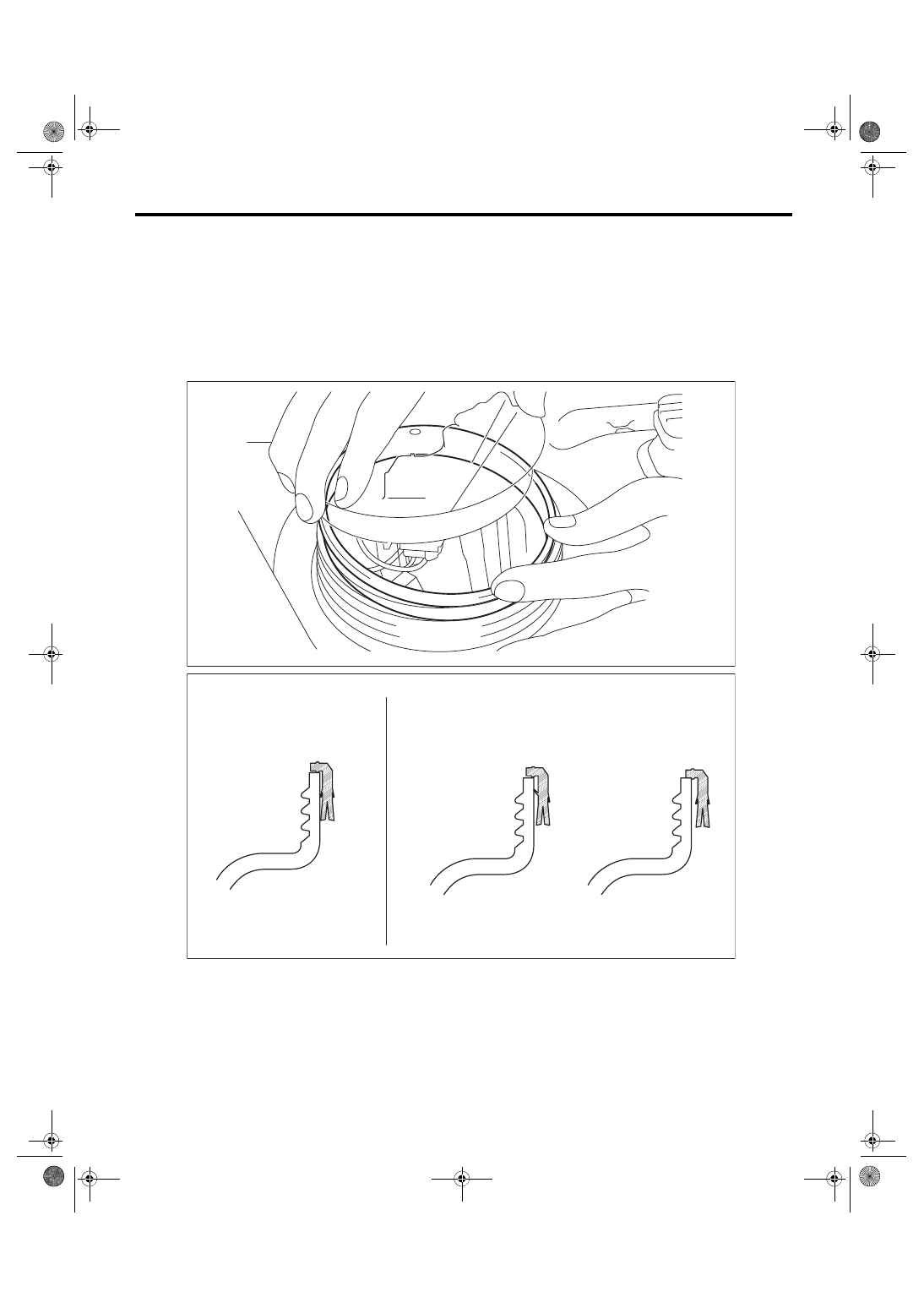

50) Connect the fuel tube connector.
CAUTION:

• Do not pull with excessive force on the tube when connecting the fuel tube connector.

• Make sure not to bend the arm of the fuel sender gauge.

51) Insert the fuel suction tube assembly (with pump & gauge) into the fuel tank, and install the fuel suction

tube assembly to which a new gasket was installed to the fuel tank.
CAUTION:

Check the entire circumference of the gasket and make sure that it is not curled or displaced when

installing the gasket to the fuel tank. Such installation defects will result in fuel leakage.

(A) OK
(B) NG

PM-00711

PM-00712

(A)

(B)
