Fuel Filter

PERIODIC MAINTENANCE SERVICES

10) If the fuel gauge indicates that two thirds or more of the fuel is remaining, drain fuel according to the fol-

lowing procedures. (Method with Subaru Select Monitor)
NOTE:

• If the fuel pump cannot be driven, refer to the procedures for draining from the fuel tank to filler pipe hose.

• Be careful not to let the battery run-out.

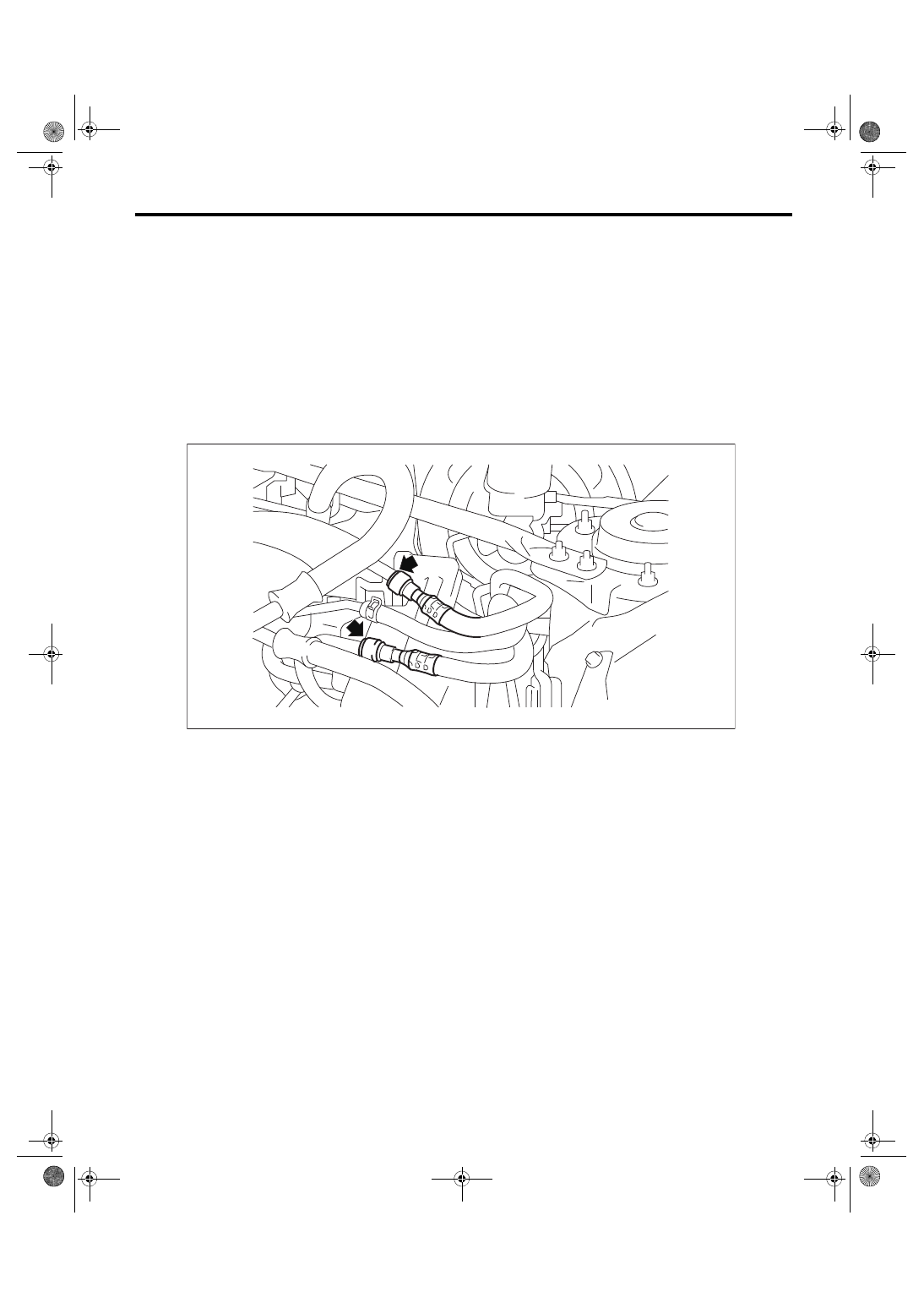

(1) Use the ST to disconnect the fuel hoses on the port injection side and on the cylinder internal injector

side.

ST 42099AE000

CAUTION:

• Before performing the procedures, remove any foreign material such as mud adhering to the fuel

hose connection parts.

• Be careful not to spill fuel.

• Catch the fuel from fuel hoses using a container.

(2) Connect the ST to the fuel hose.

ST 18471AA000

(3) Connect the gasoline-proof hose to the ST and put the end of the hose in the container.

(4) Drive the fuel pump and drain the fuel using Subaru Select Monitor.

PM-00736

PM-34

Fuel Filter

PERIODIC MAINTENANCE SERVICES

11) If the fuel gauge indicates that two thirds or more of the fuel is remaining, drain fuel according to the fol-

lowing procedures. (Method for draining from fuel tank to filler pipe hose)
WARNING:

Vehicle components are extremely hot after driving. Be wary of receiving burns from heated parts.
CAUTION:

• Be careful not to spill fuel.

• Fuel may remain in the fuel filler pipe. Drain the fuel from the fuel filler pipe through the fill opening

using a gasoline-resistant pump and hose (10 mm (0.39 in) or less) before performing the proce-

dures.

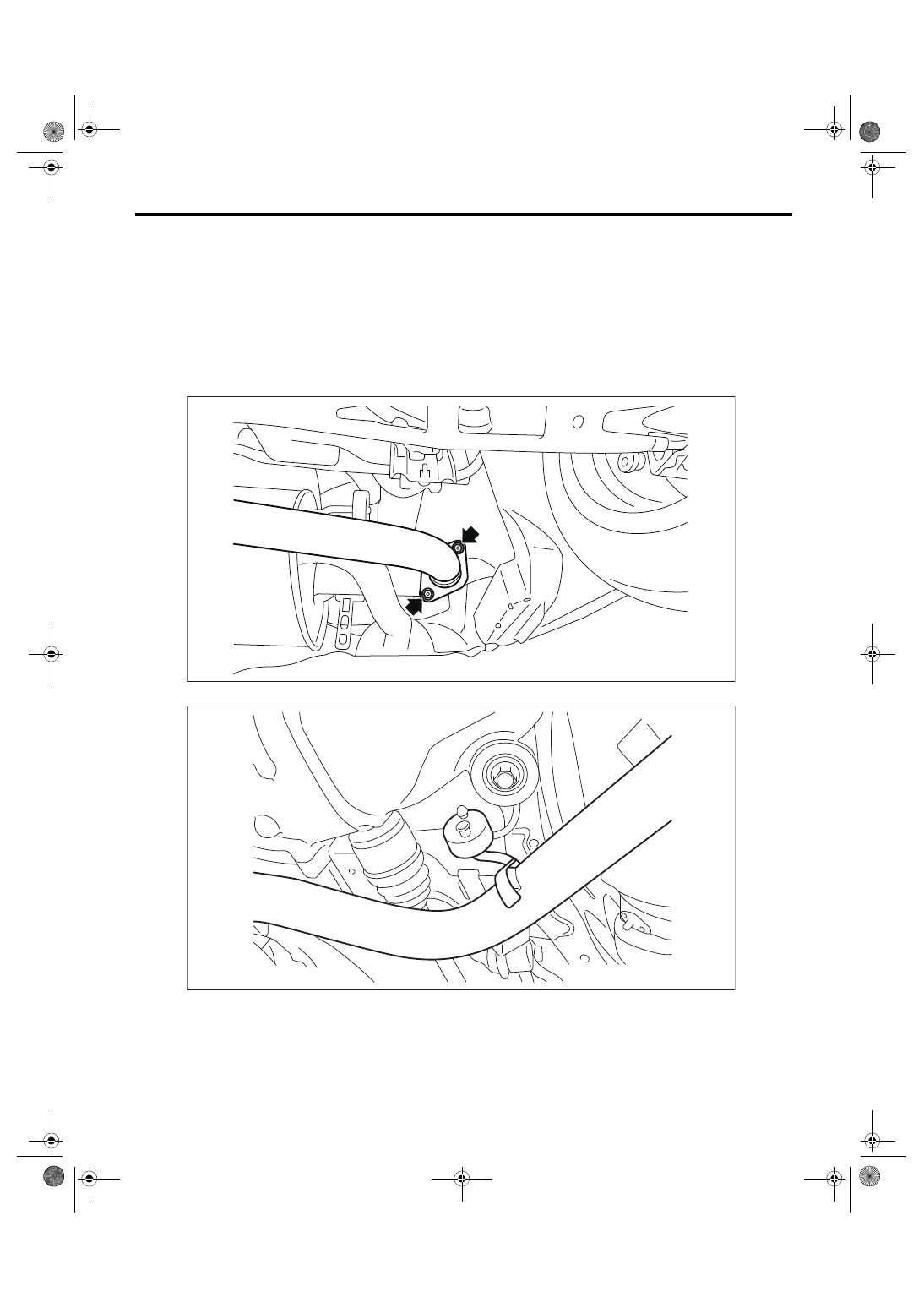

(1) Remove the two nuts and two bolts, and disconnect the exhaust tail pipe assembly.

(2) Remove the cushion rubber and the exhaust pipe assembly CTR.

(3) Remove the gasket.

PM-00716

PM-00717

PM-35

Fuel Filter

PERIODIC MAINTENANCE SERVICES

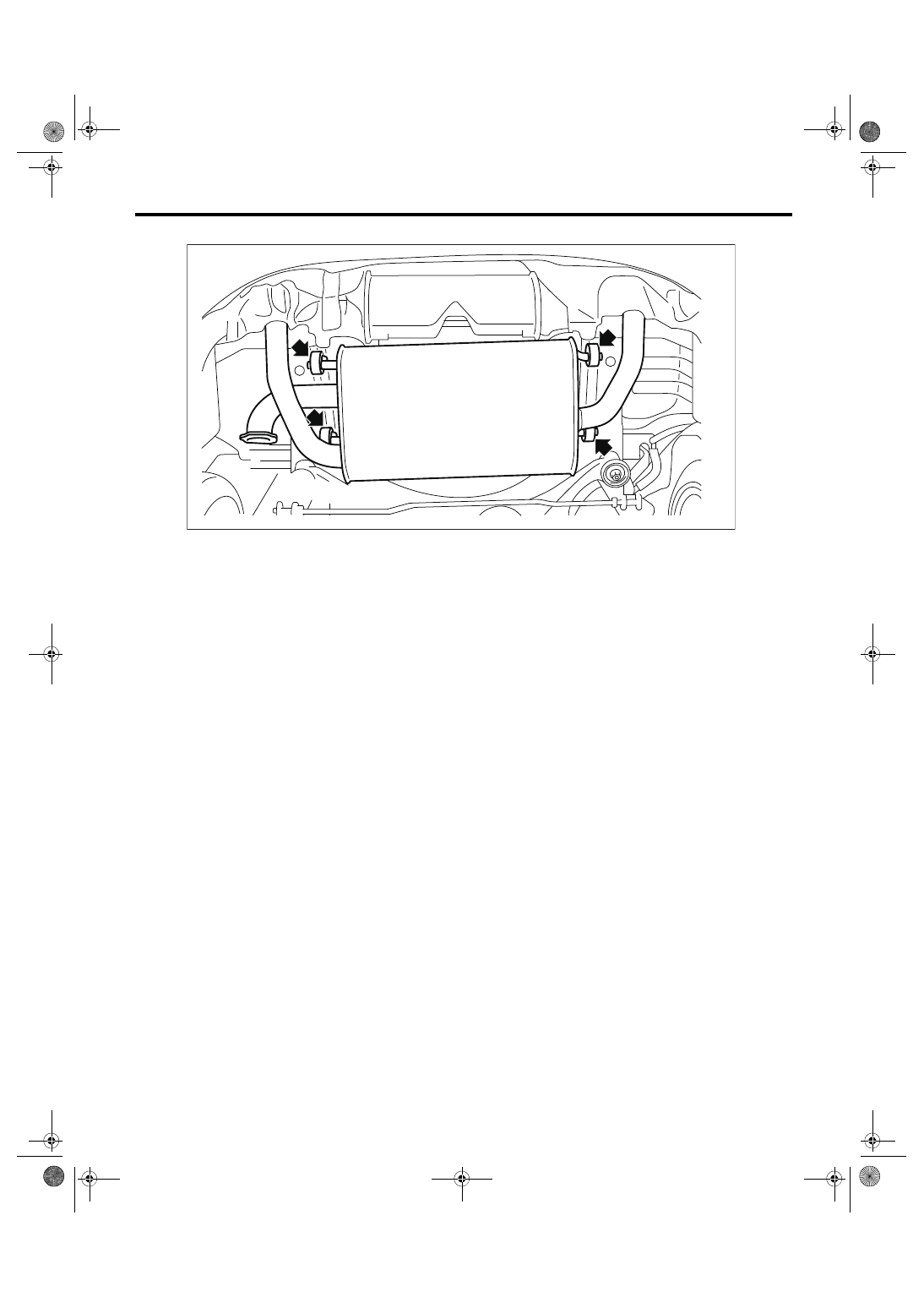

(4) Remove the four cushion rubbers and the exhaust tail pipe assembly.

(5) Loosen the hose clamp, and disconnect the fuel tank to filler pipe hose.

CAUTION:

• Before performing the procedures, remove any foreign material such as mud adhering to the con-

necting parts of the fuel tank to filler pipe hose.

• Be careful not to spill fuel.

(6) Set a steel container under the vehicle and use a gasoline-resistant hose (10 mm (0.39 in) or less) to

drain the fuel from the opening of the fuel tank to filler pipe hose.

CAUTION:

Be careful not to spill fuel.
NOTE:

Always be sure to use a steel container and ground the container as gasoline can easily become charged

with static electricity.

(7) Install the fuel tank to filler pipe hose using hose clamps.

Tightening torque:

2.0 N·m (0.2 kgf-m, 1.5 ft-lb)

12) Disconnect the ground cable from battery.

13) Remove the separator-type rear seat cushion assembly LH.

PM-00718

PM-36

Fuel Filter

PERIODIC MAINTENANCE SERVICES

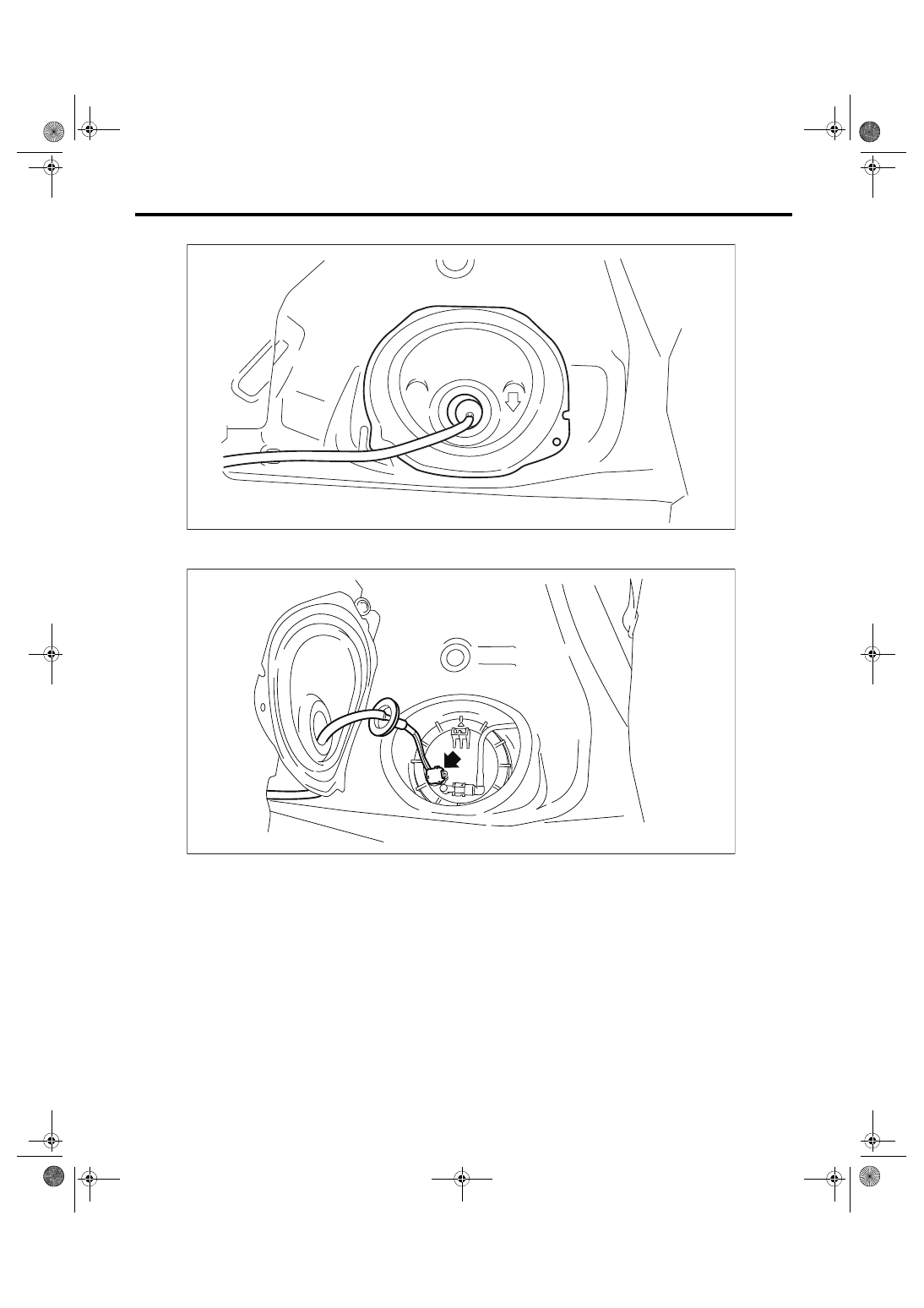

14) Press in the grommet and remove the grommet from rear floor service hole cover No. 2.

15) Peel off the butyl tape and remove rear floor service hole cover No. 2.

16) Disconnect the fuel pump connector.

PM-00683

PM-00684
