PM-29

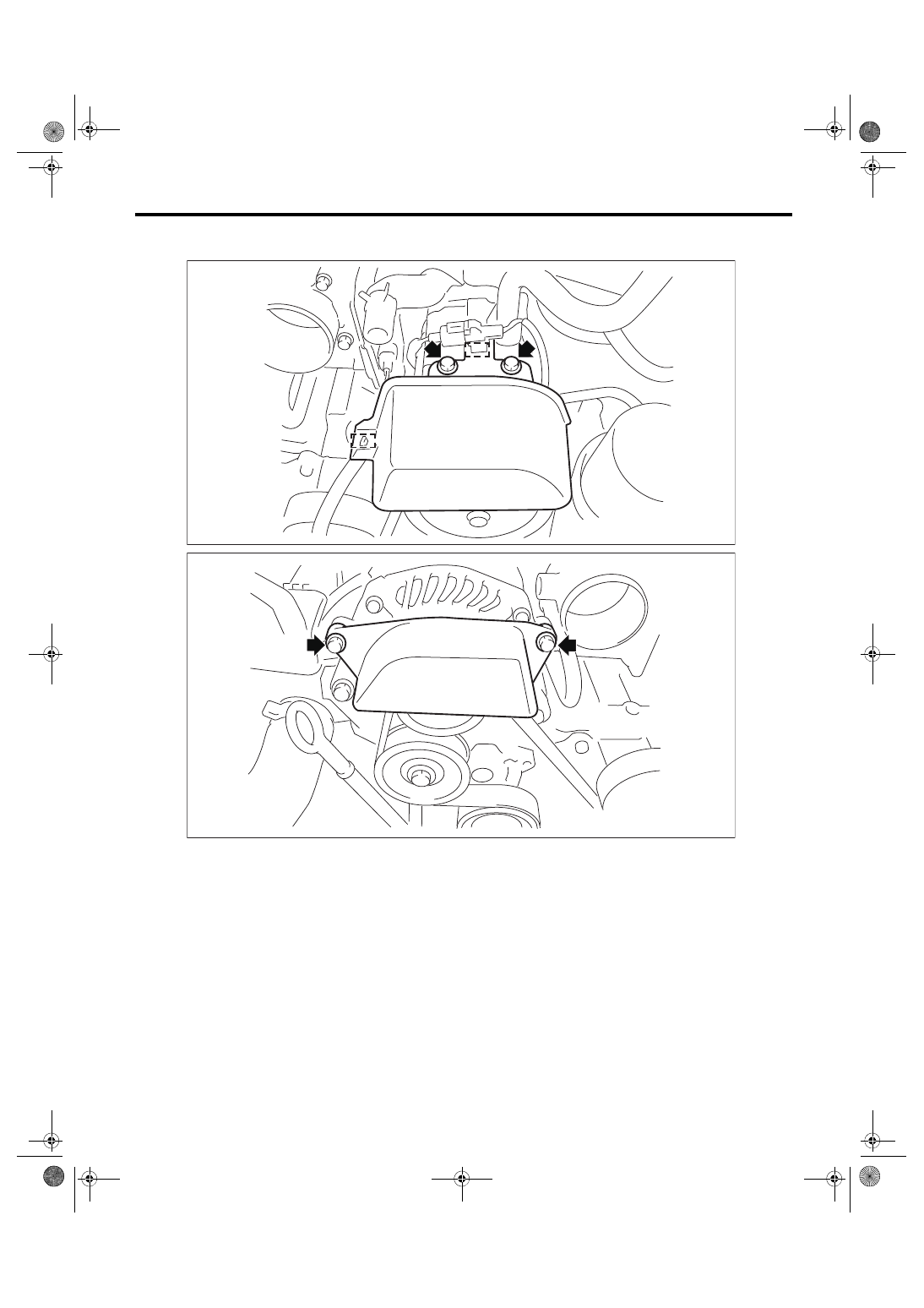

V-belt

PERIODIC MAINTENANCE SERVICES

Tightening torque:

6.4 N·m (0.7 kgf-m, 4.7 ft-lb)

PM-00591

PM-00590

PM-30

Fuel Line

PERIODIC MAINTENANCE SERVICES

7. Fuel Line

A: INSPECTION

The fuel line is located mostly internally, so check pipes, areas near pipes, and engine compartment piping

for rust, hose damage, loose bands and fuel leakage. If faulty parts are found, repair or replace them.

PM-31

Fuel Filter

PERIODIC MAINTENANCE SERVICES

8. Fuel Filter

A: REPLACEMENT

WARNING:

Place “NO OPEN FLAMES” signs near the working area.
CAUTION:

• Perform the work with the engine coolant at a temperature of 60°C (140°F) or less.

• Before removing fuel system parts, be sure to take measures to prevent fuel from flowing out.

• Prevent fuel from spilling when removing the fuel line as fuel pressure remains in the fuel line even

after performing measures to prevent fuel from flowing out.

• If the fuel gauge indicates that two thirds or more of the fuel is remaining, be sure to drain fuel be-

fore starting work to avoid the fuel to spill.

• Be careful not to drop or apply any impact to the fuel pump during work. This may deteriorate its

performance.

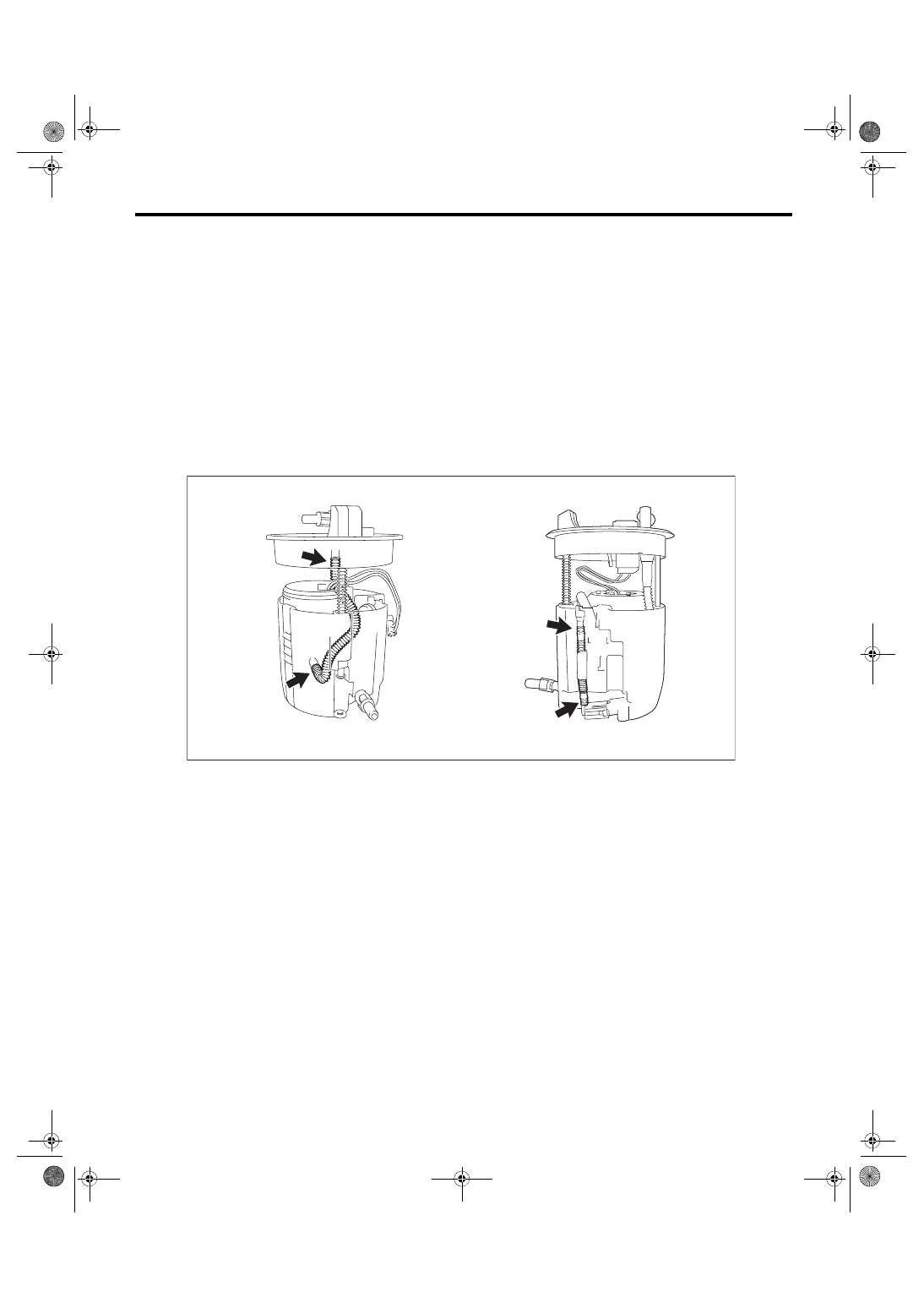

• Do not disconnect the press-fit hose of the fuel suction tube assembly indicated in the figure.

NOTE:

The fuel filter is built in fuel pump assembly.

1) Remove the relay block cover UPR.

PM-00708

PM-32

Fuel Filter

PERIODIC MAINTENANCE SERVICES

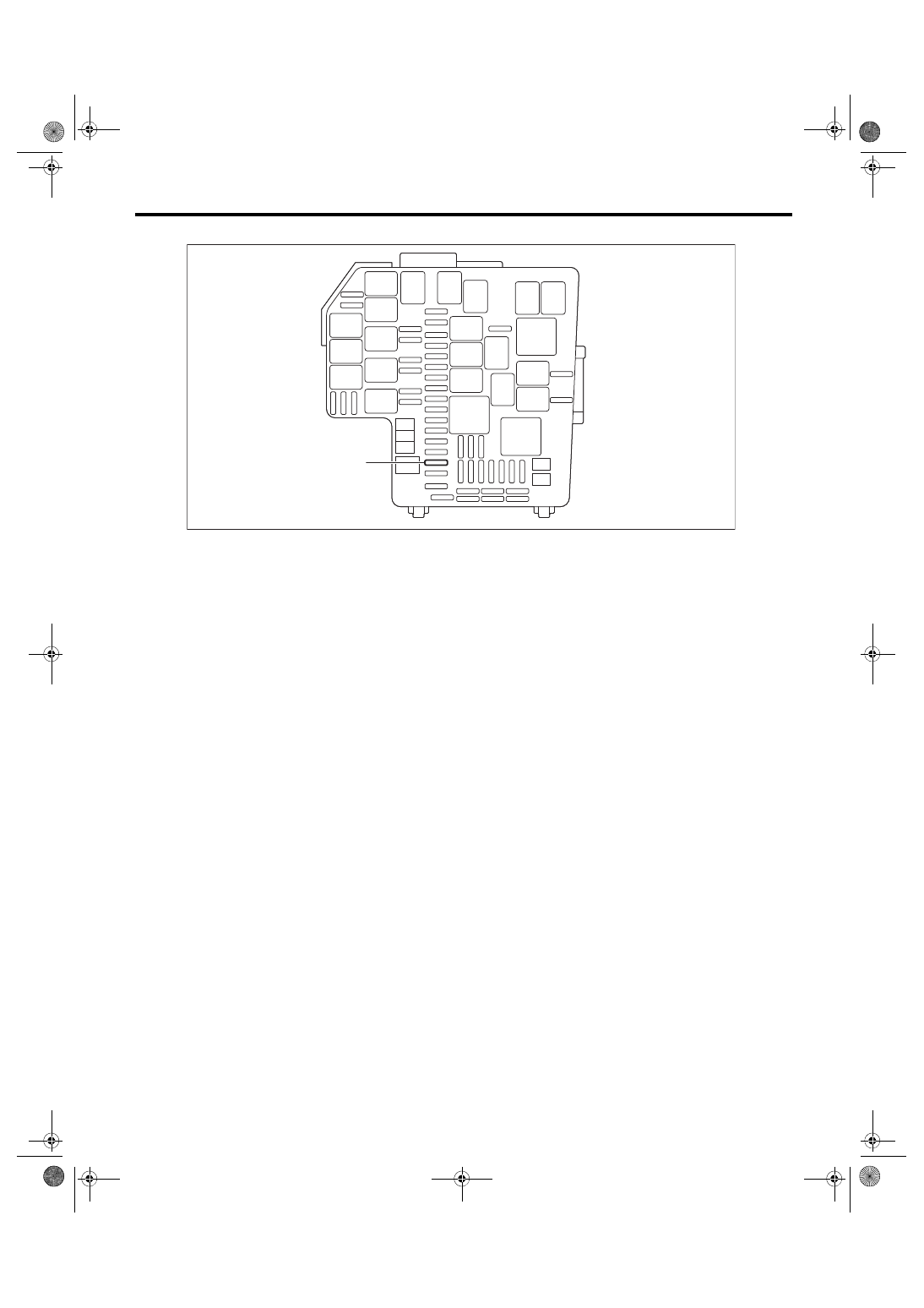

2) Remove the fuel pump fuse from the engine room relay block.

3) Start the engine.

4) After the engine stops naturally, turn the key to IG OFF.

5) Crank the engine again and check that the engine does not start.
NOTE:

Check/Delete diagnostic codes after performing procedures as some diagnostic code might have been de-

tected.

6) Remove the fuel tank cap and release pressure from the fuel tank.

7) Disconnect the ground cable from battery.

8) Install the fuel pump fuse.

9) Install the relay block cover UPR.

(A) Fuel pump fuse

PM-00680

(A)
