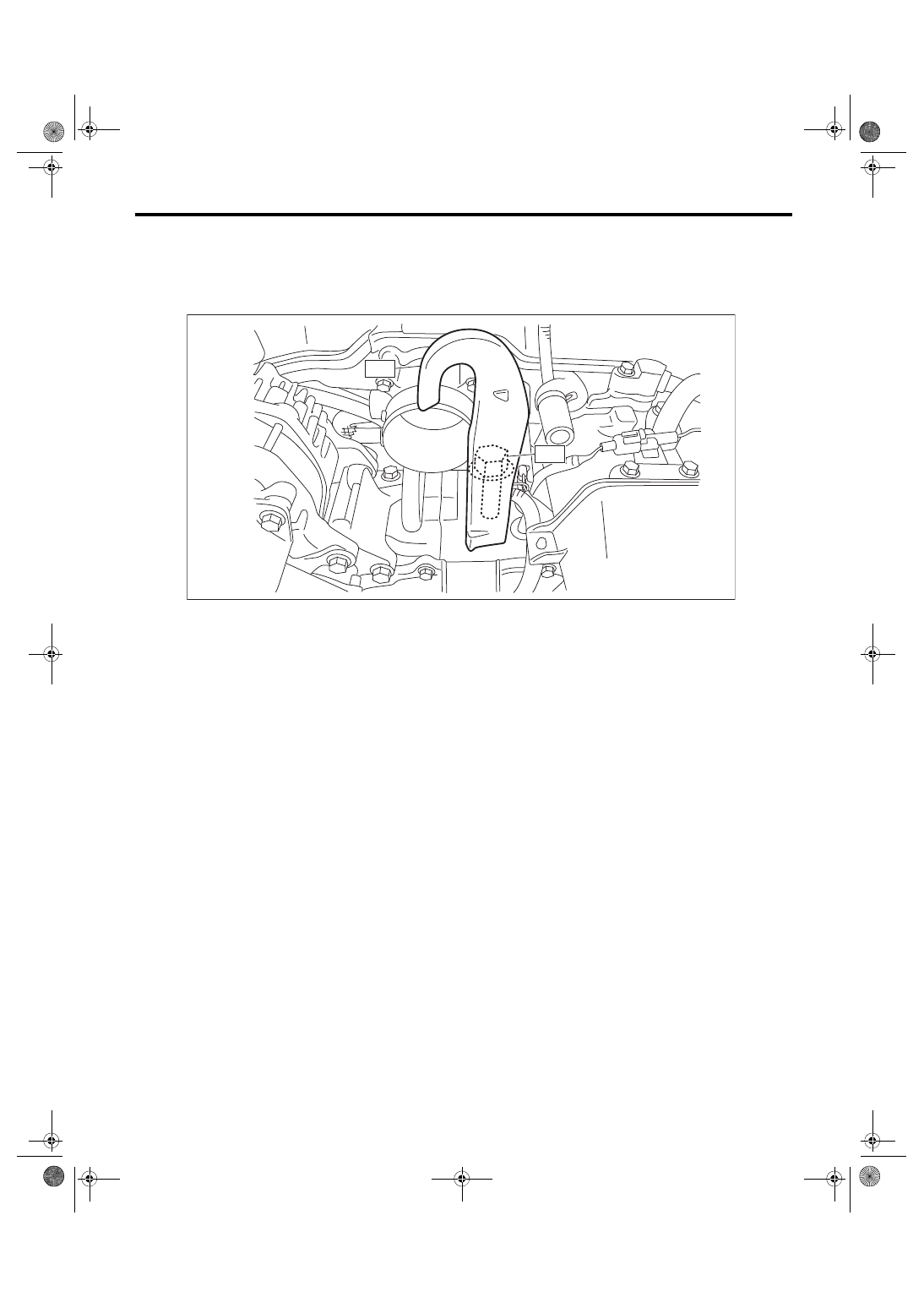

22) Install the ST1 and ST2 to the engine assembly.
Tightening torque:

43 N·m (4.4 kgf-m, 31.7 ft-lb)

ST1 12281-38150 ENGINE HANGER NO. 1

ST2 90119-14120 BOLT

PM-00652

ST1

ST2

PM-18

Spark Plug

PERIODIC MAINTENANCE SERVICES

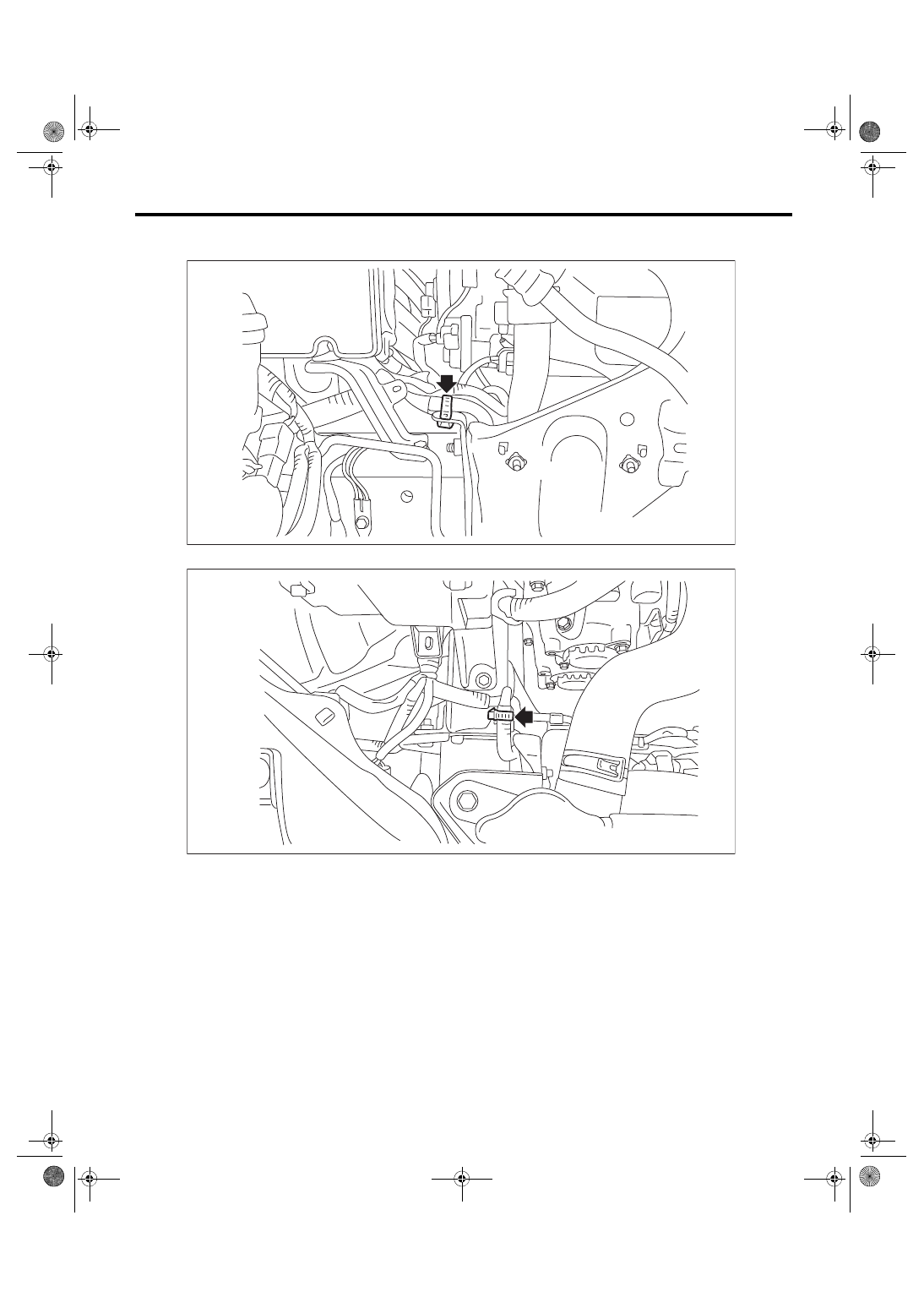

23) Remove the clip securing the bulkhead harness to the vehicle.

• Left Hand

• Right Hand

PM-00653

PM-00654

PM-19

Spark Plug

PERIODIC MAINTENANCE SERVICES

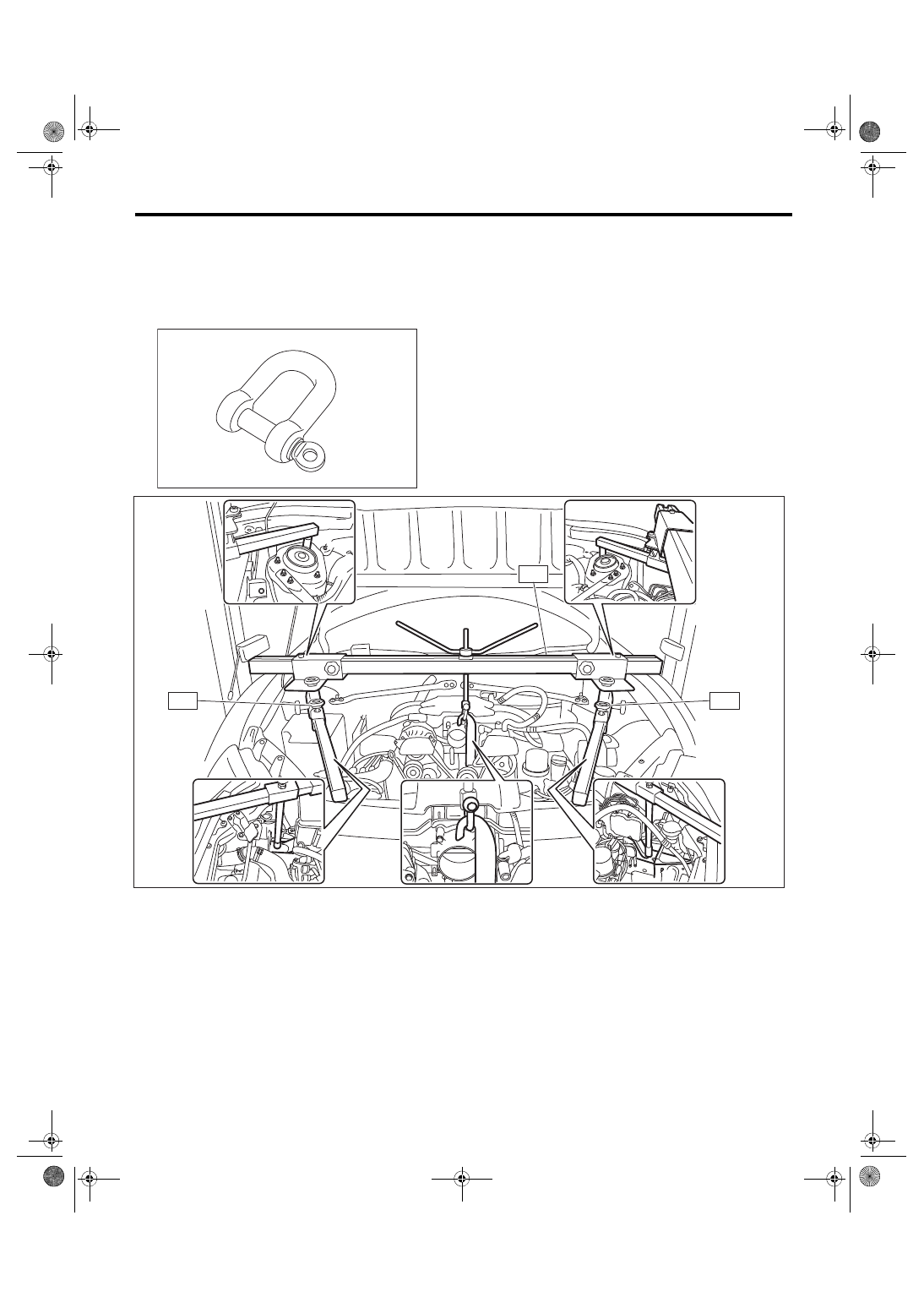

24) Set the ST1 and ST2 to vehicle in order to support the engine.

ST1 99099AJ000 ENGINE HANGER

ST2 18679AA020 ADJUSTER
CAUTION:

• Set the ST on the vehicle being careful not to pinch the harness.

• Use a shackle with the load capacity of 250 kg (551 lb) or more.

25) Turn the handle on the top of the ST clockwise, and slowly lift the engine from the crossmember engine

mount hole until it reaches the position where the engine mount stud bolts can be removed.
CAUTION:

• Apply grease or other lubricant to the ST threading before turning the handle to prevent the ST

threading from being damaged.

• Lift the engine slowly being careful of parts clearance so that parts are not damaged by touching

each other.

• Lift the engine until the intake manifold (#4) and air conditioner suction hose are slightly contact-

ing each other.

• Place soft cloth between the intake manifold (#4) and air conditioner suction hose to protect them

from damage.

26) Lift up the vehicle.

FS-00325

ST2

ST2

ST1

PM-00676

PM-20

Spark Plug

PERIODIC MAINTENANCE SERVICES

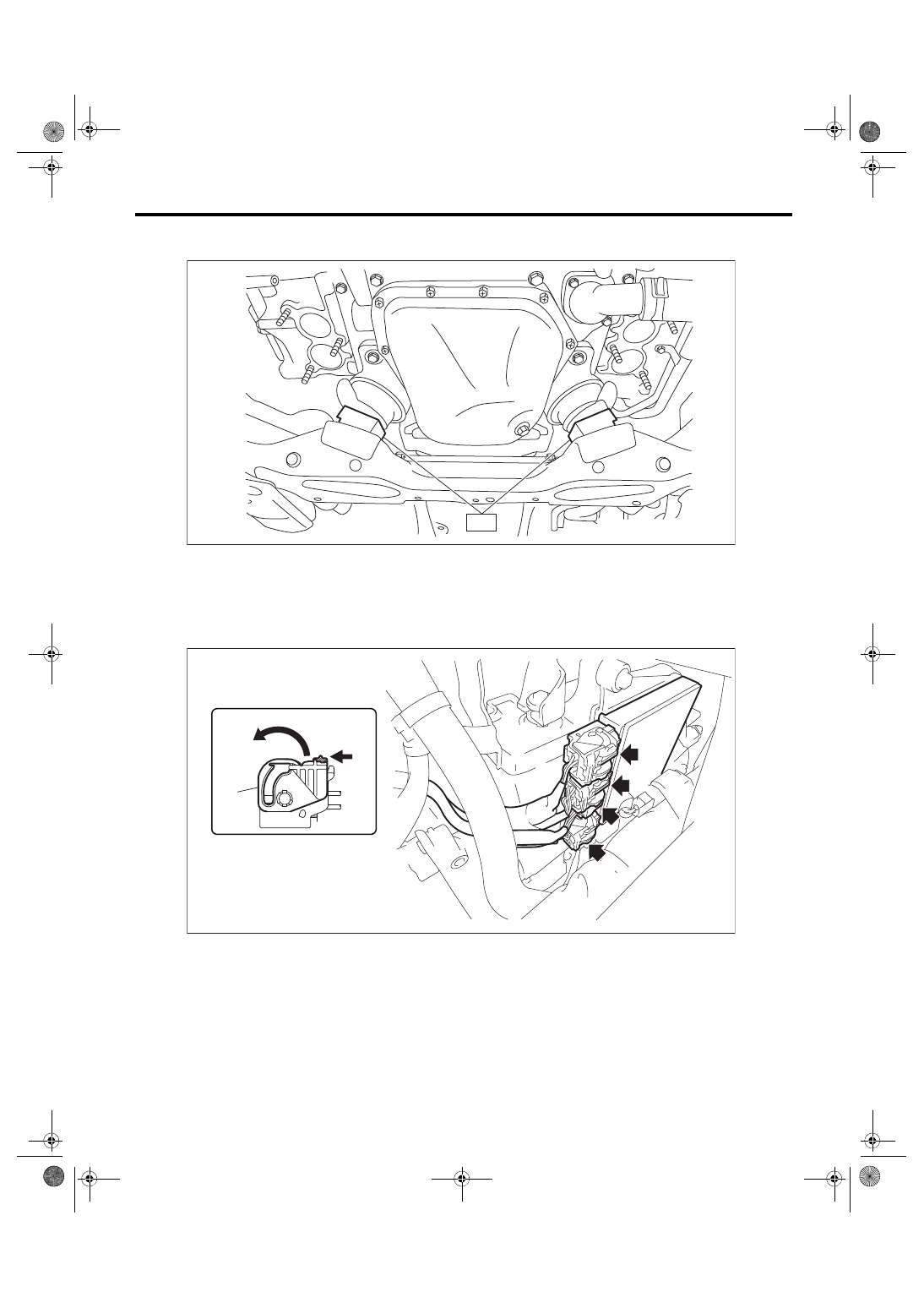

27) Install the ST between the engine mount and crossmember.

ST 18632AA020 STAND ASSY

28) Lower the vehicle.

29) Rotate the handle on the top of the ST counterclockwise to slowly lower the engine.

30) Remove the ST (ENGINE HANGER) from the vehicle.

31) Remove the RH spark plugs.

(1) Move the lock lever in the direction of the arrow to release the three connector locks.

(2) Disconnect the four connectors from the fuel injector CM.

(A) Lock lever
(B) Connector with lock

(C) Unlock

PM-00656

ST

PM-00735

(A)

(C)

(B)

(B)

(B)

(B)
