PM-9

Spark Plug

PERIODIC MAINTENANCE SERVICES

5. Spark Plug

A: REPLACEMENT

1. REMOVAL

1) Disconnect the ground cable from battery.
CAUTION:

Disconnect the ground cable from the battery with the driver’s and the passenger’s doors open (with

the glass lowered to a position where the door can be opened/closed with no problems). This is to

prevent molding damage that occurs when opening/closing a door with the glass fully closed and the

ground cable disconnected due to the power window index function that slightly opens/closes the

glass in conjunction with opening/closing doors.

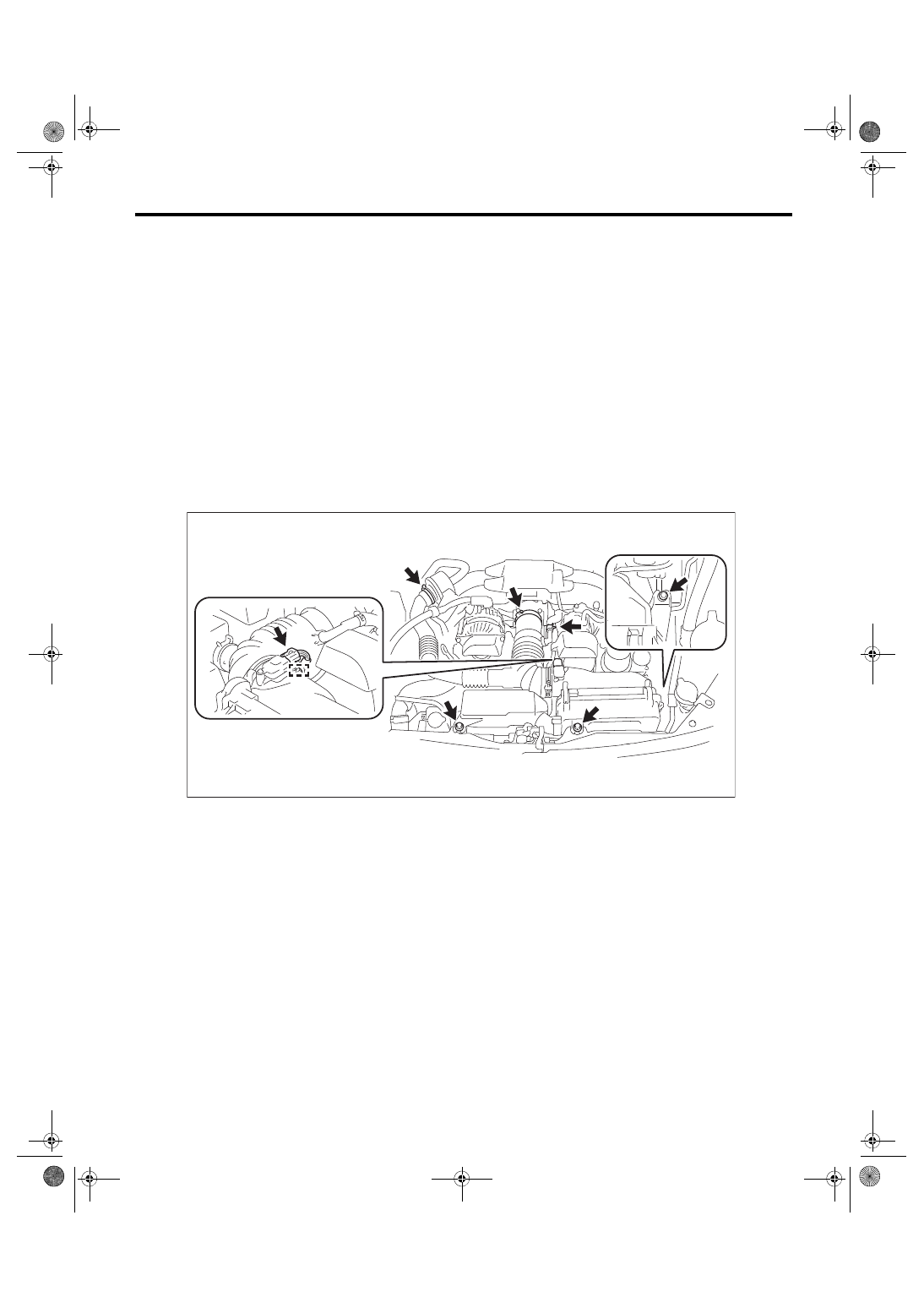

2) Remove the air cleaner assembly w/hose.

(1) Disconnect the connector of the mass air flow and intake air temperature sensor, and remove the one

clip that holds the harness.

(2) Slide the hose clip and disconnect ventilation hose No. 1.

(3) Loosen the two hose clamps.

(4) Remove the three bolts to remove the air cleaner assembly w/hose.

3) Disconnect the hose assembly from the sound creator.

4) Remove the two bolts and remove the sound creator.

PM-00589

PM-10

Spark Plug

PERIODIC MAINTENANCE SERVICES

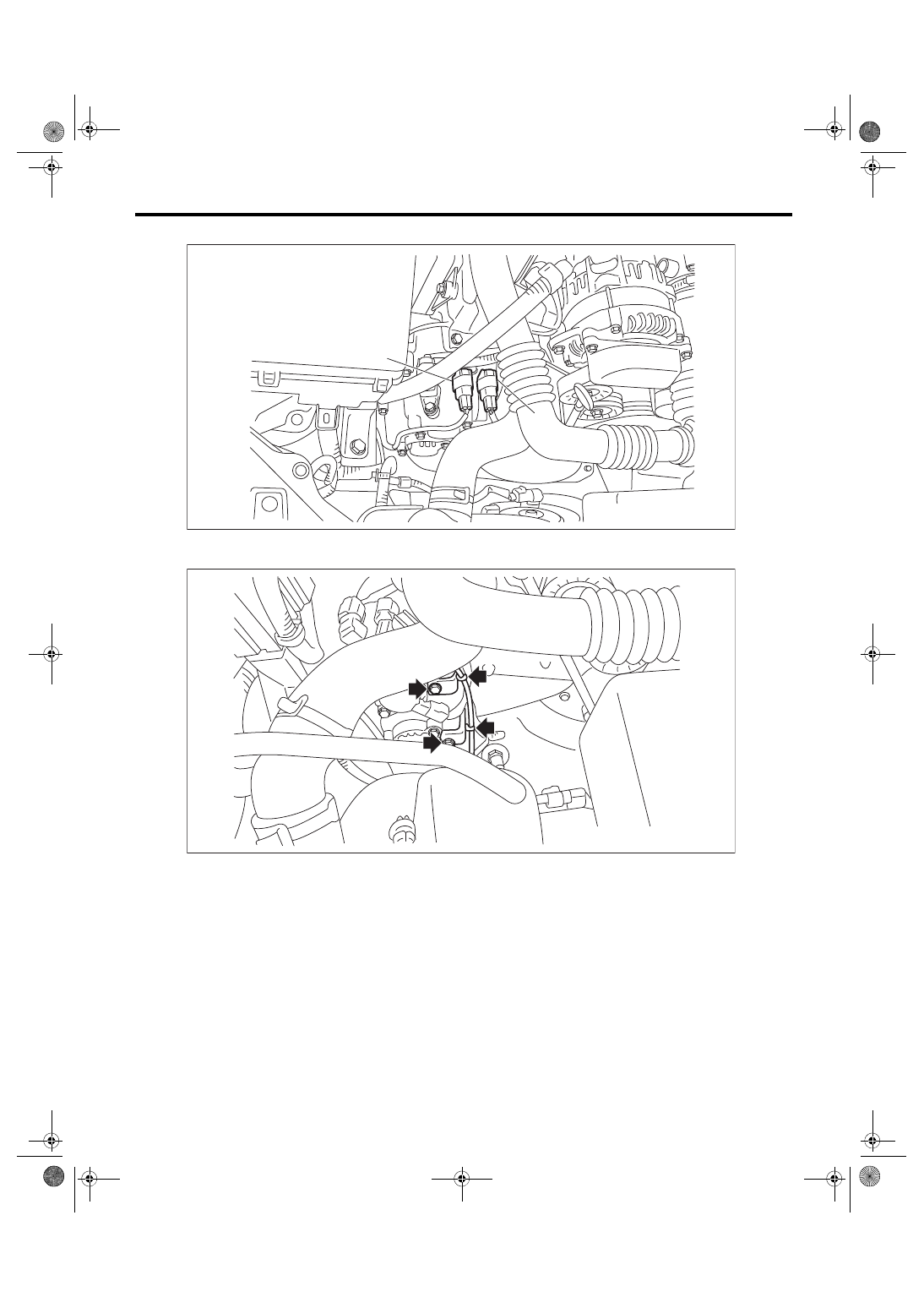

5) Disconnect the front oxygen (A/F) sensor connector (A) and rear oxygen sensor connector (B).

6) Remove the two bolts securing the harness of the front oxygen (A/F) sensor, and remove the two clips

from the stay.

7) Remove the two clips securing the rear oxygen (A/F) sensor harness.

8) Lift up the vehicle.

PM-00636

(A)

(B)

PM-00637

PM-11

Spark Plug

PERIODIC MAINTENANCE SERVICES

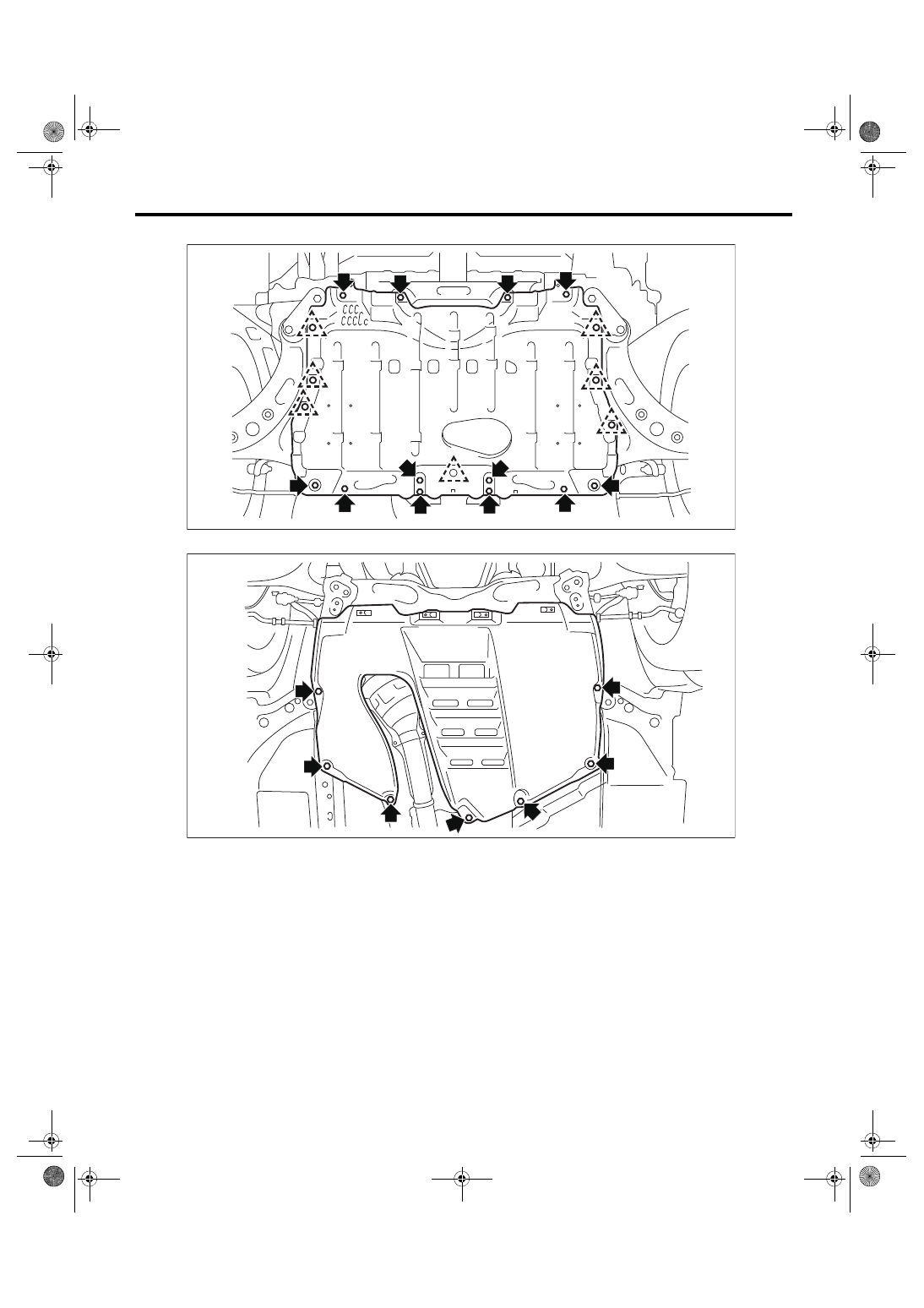

9) Remove the 12 bolts and seven clips to remove engine under cover No. 1.

10) Remove the seven bolts to remove engine under cover No. 2.

PM-00638

PM-00639

PM-12

Spark Plug

PERIODIC MAINTENANCE SERVICES

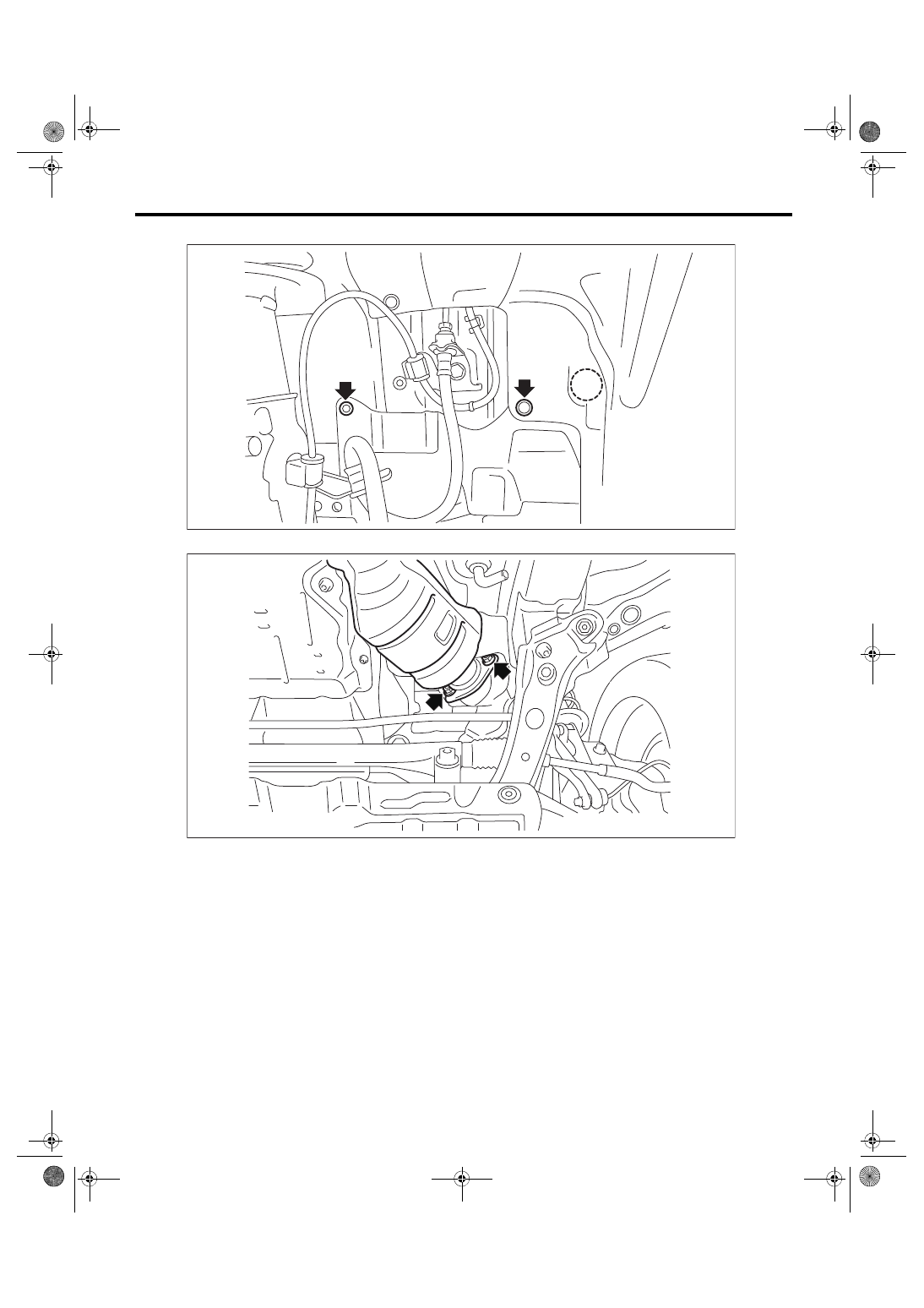

11) Remove the three clips to remove the front mat guard under RH.

12) Remove the two nuts and disconnect the joint pipe.

PM-00640

PM-00641
