Subaru Legacy III (2000-2003 year). Manual - part 996

CC-4

CRUISE CONTROL SYSTEM (DIAGNOSTICS)

GENERAL DESCRIPTION

2. General Description

A: CAUTION

1. SUPPLEMENTAL RESTRAINT SYSTEM
“AIRBAG”

Airbag system wiring harness is routed near the
cruise control module and cruise control command
switch.

CAUTION:
• All airbag system wiring harness and con-
nectors are colored yellow. Do not use electri-
cal test equipment on these circuits.
• Be careful not to damage airbag system wir-
ing harness when servicing the cruise control
module and cruise control command switch.

CC-5

CRUISE CONTROL SYSTEM (DIAGNOSTICS)

GENERAL DESCRIPTION

B: PREPARATION TOOL

1. SPECIAL TOOLS

2. GENERAL TOOLS

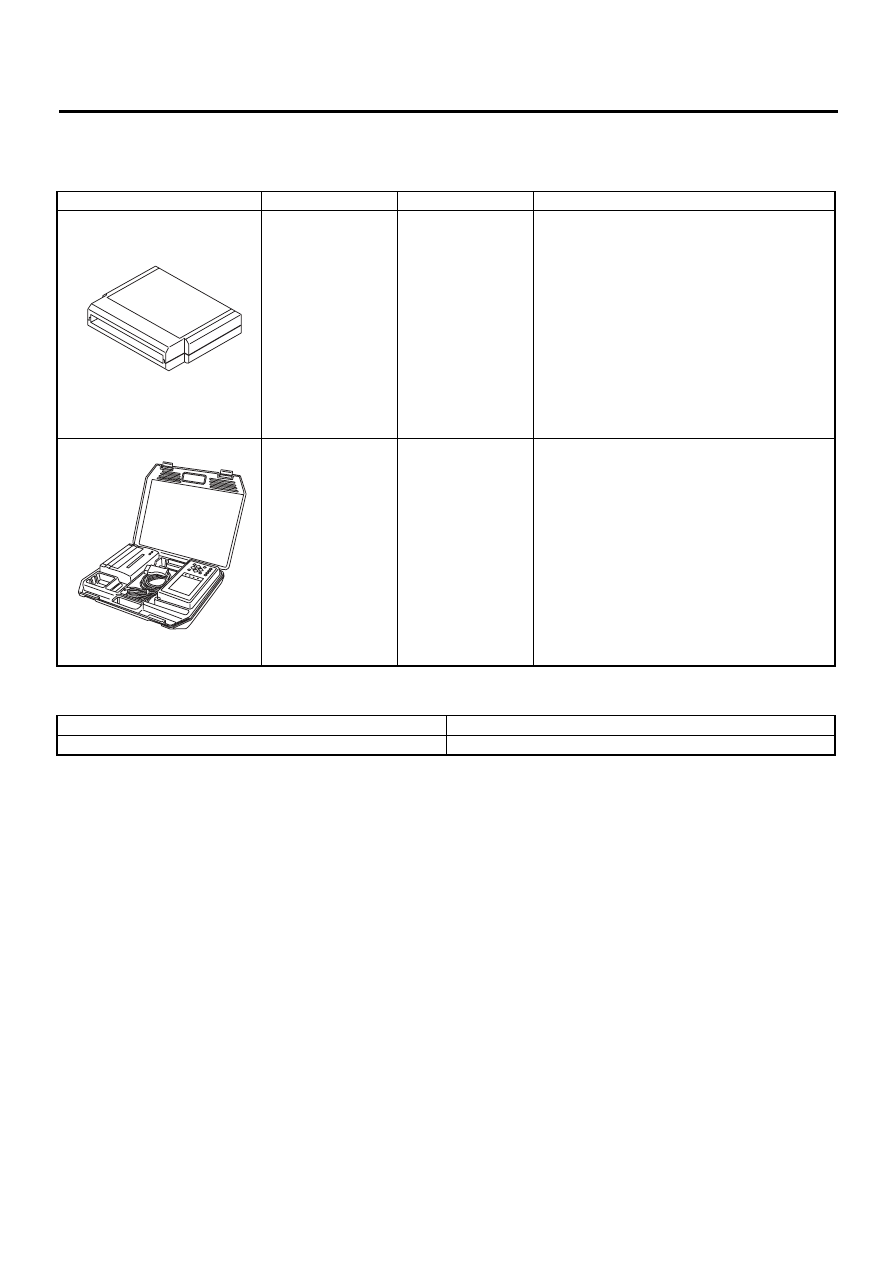

ILLUSTRATION

TOOL NUMBER

DESCRIPTION

REMARKS

24082AA210 (Newly
adopted tool)

CARTRIDGE

Troubleshooting for electrical systems.

22771AA030

SUBARU SELECT
MONITOR KIT

Troubleshooting for electrical systems.
• English:
22771AA030 (Without printer)
• German:
22771AA070 (Without printer)
• French:
22771AA080 (Without printer)
• Spanish:
22771AA090 (Without printer)

TOOL NAME

REMARKS

Circuit Tester

Used for measuring resistance, voltage and ampere.

ST24082AA210

ST22771AA030

CC-6

CRUISE CONTROL SYSTEM (DIAGNOSTICS)

GENERAL DESCRIPTION

C: INSPECTION

1. BATTERY

Measure battery voltage and specific gravity of
electrolyte.

Standard voltage:

12 V, or more

Specific gravity:

Above 1.260

2. CRUISE CONTROL CABLE

Check the cruise control cable (B) installation.
If NG, install the cable securely.

3. ACCELERATOR CABLE

Check movement of the accelerator cable (A) when
the cruise control throttle is moved by hand.
If NG, check throttle cam.

4. THROTTLE CAM

Check that the throttle cam moves smoothly.
If NG, repair throttle cam.

5. CABLE FREE PLAY

Check that the clearance (A) between throttle cam
(B) and lever or cable deflection (D) is within spec-
ifications.

Throttle cam-to-lever clearance:

0 — 1 mm (0 — 0.04 in)

Inner cable deflection:

1 — 8 mm (0.04 —  0.31 in)

If NG, adjust the clearance or the deflection with
the adjust nut.

NOTE:
Check that the cap (C) is positioned in the groove.

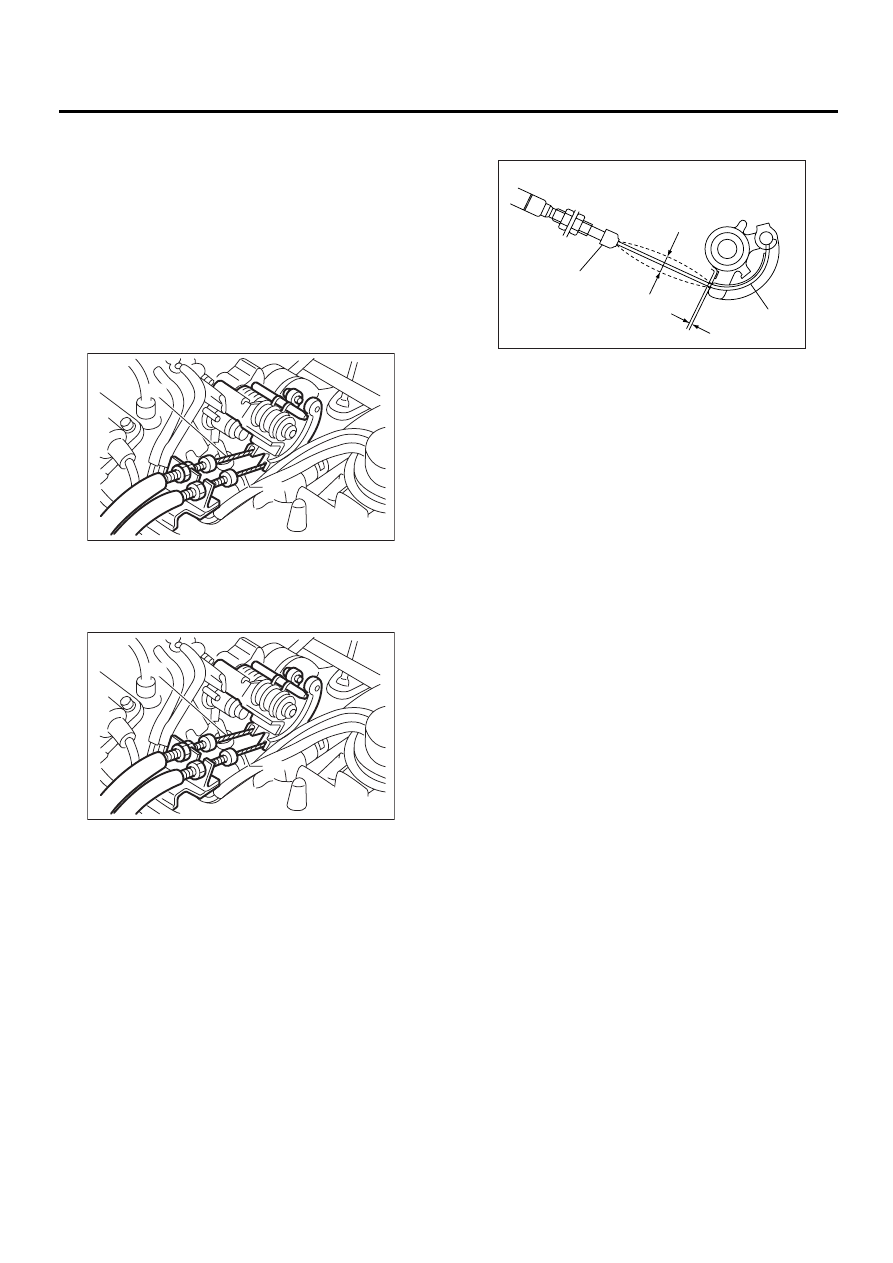

CC-00156

( A )

( B )

CC-00156

( A )

( B )

CC-00037

(B)

(A)

(D)

(C)

CC-7

CRUISE CONTROL SYSTEM (DIAGNOSTICS)

ELECTRICAL COMPONENTS LOCATION

3. Electrical Components Location

A: LOCATION

NOTE:
Electrical component locations are for LHD vehicles.
Cruise control actuator and cruise control module locations for RHD vehicles are symmetrically opposite.
Cruise control main switch location is different depending on destination.

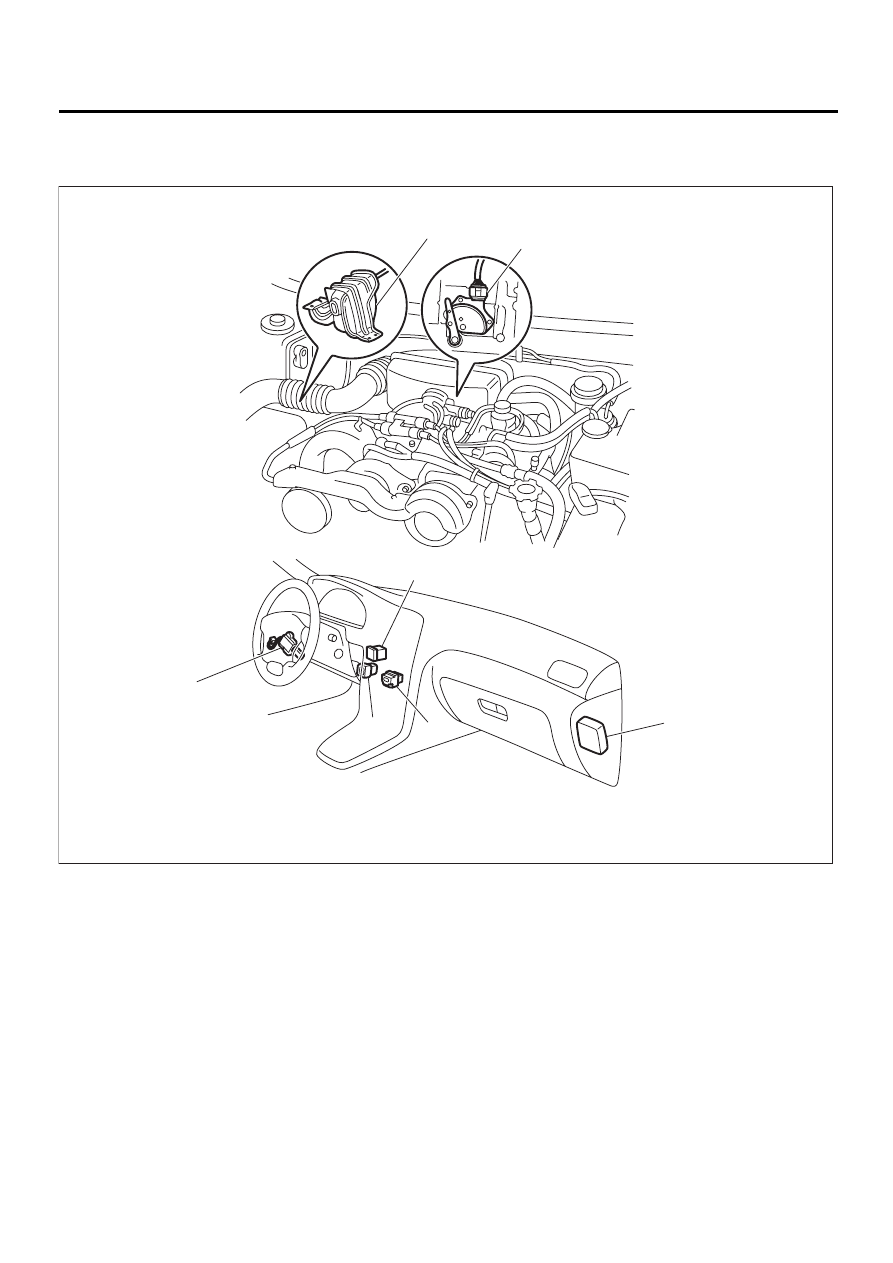

CC-00095

( 1 )

( 2 )

( 3 )

( 4 )

( 5 )

( 6 )

( 7 )

(1) Actuator

(4) Cruise control main switch

(7) Cruise control module

(2) Inhibitor switch (AT)

(5) Clutch switch (MT)

(3) Cruise control command switch

(6) Stop and brake switch
