Subaru Legacy III (2000-2003 year). Manual - part 994

CC-8

CRUISE CONTROL SYSTEM

CRUISE CONTROL COMMAND SWITCH

5. Cruise Control Command

Switch

A: REMOVAL

WARNING:
Before servicing, be sure to read the notes in
the AB section for proper handling of the driv-
er's airbag module. <Ref. to AB-3, CAUTION,
GENERAL DESCRIPTION.>

1) Set front wheels in straight ahead position.
2) Turn ignition switch OFF.
3) Disconnect ground cable from battery and wait
for at least 20 seconds before starting work.

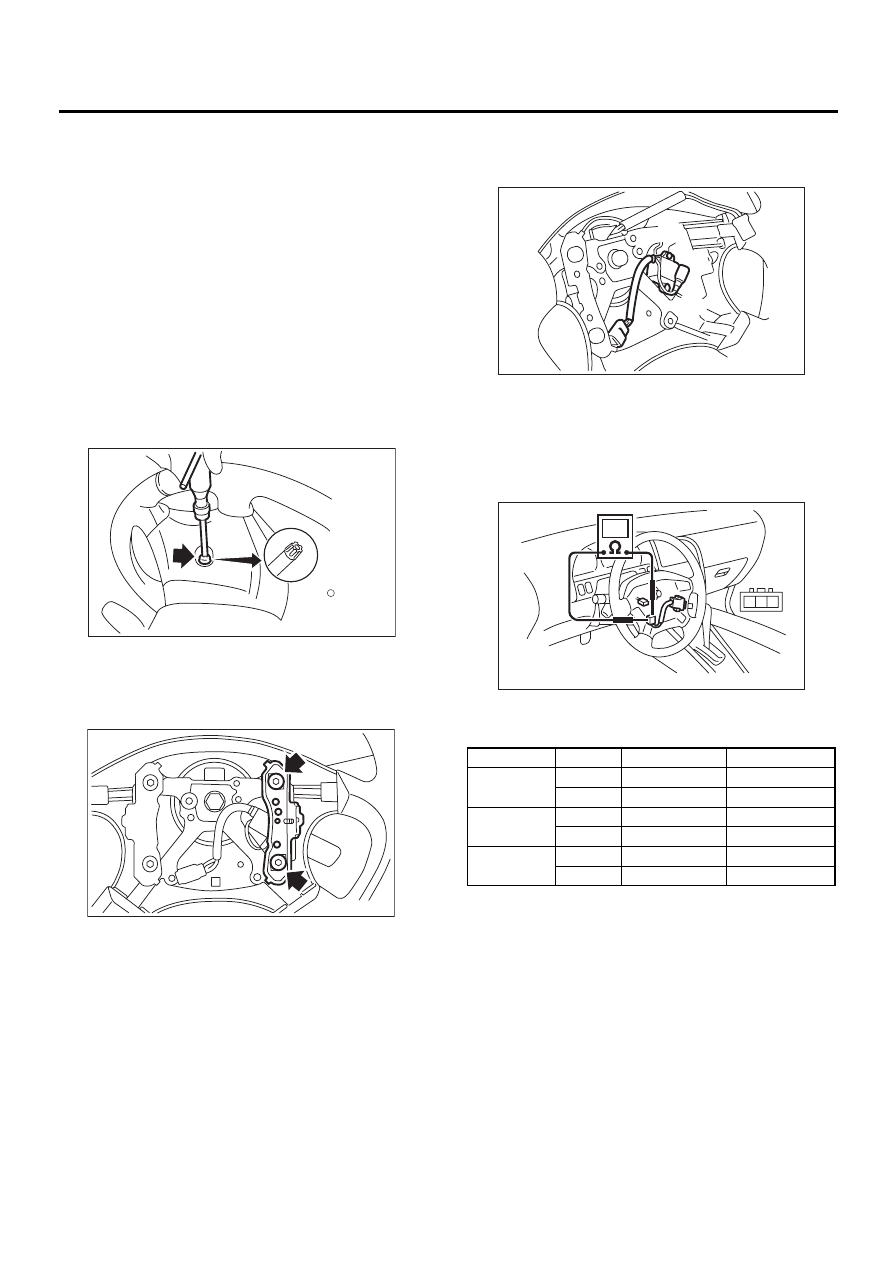

4) Using TORX

®

 BIT T30 (Tamper resistant type),

loosen two TORX

®

 bolts which secure driver's air-

bag module.

5) Disconnect airbag module connector on back of
airbag module.
6) Remove horn switch from steering wheel as
shown.

7) Disconnect horn and cruise control command
switch connector, then remove cruise control com-
mand switch.

B: INSTALLATION

Install is in the reverse order of removal.

C: INSPECTION

Measure cruise control command switch resis-
tance.

Check continuity between cruise control command
switch terminals.

If NG, replace cruise control command switch.

CC-00018

TORX   BIT T30

R

CC-00019

Switch

Position

Terminal No.

Standard

CANCEL

ON

1 (+) and 2 (

−

)

Less than 1

Ω

ON

1 (+) and 3 (

−

)

Less than 1

Ω

SET/

COAST

OFF

1 and 2

More than 1 M

Ω

ON

1 and 2

Less than 1

Ω

RESUME/

ACCEL

OFF

1 and 3

More than 1 M

Ω

ON

1 and 3

Less than 1

Ω

CC-00020

CC-00021

3 2 1

CC-9

CRUISE CONTROL SYSTEM

STOP AND BRAKE SWITCH

6. Stop and Brake Switch

A: REMOVAL

1) Disconnect ground cable from battery.
2) Disconnect connector from stop and brake
switch, and then remove the switch. <Ref. to BR-
55, REMOVAL, Stop Light Switch.>

B: INSTALLATION

Install in the reverse order of removal.

C: INSPECTION

Measure the brake switch (A) and stop light switch
(B) resistance.

If NG, replace stop and brake switch.

Switch

Pedal

Terminal No.

Standard

Brake

Released

1 and 4

Less than 1

Ω

Depressed

1 and 4

More than 1 M

Ω

Stop light

Released

2 and 3

More than 1 M

Ω

Depressed

2 and 3

Less than 1

Ω

CC-00022

( A )

1

1 2 3 4

3

2
4

( B )

CC-10

CRUISE CONTROL SYSTEM

CLUTCH SWITCH

7. Clutch Switch

A: REMOVAL

1) Disconnect ground cable from battery.
2) Disconnect the connector from the clutch switch,
and then remove the switch. <Ref. to CL-40, RE-
MOVAL, Clutch Switch.>

B: INSTALLATION

Install in the reverse order of removal.

C: INSPECTION

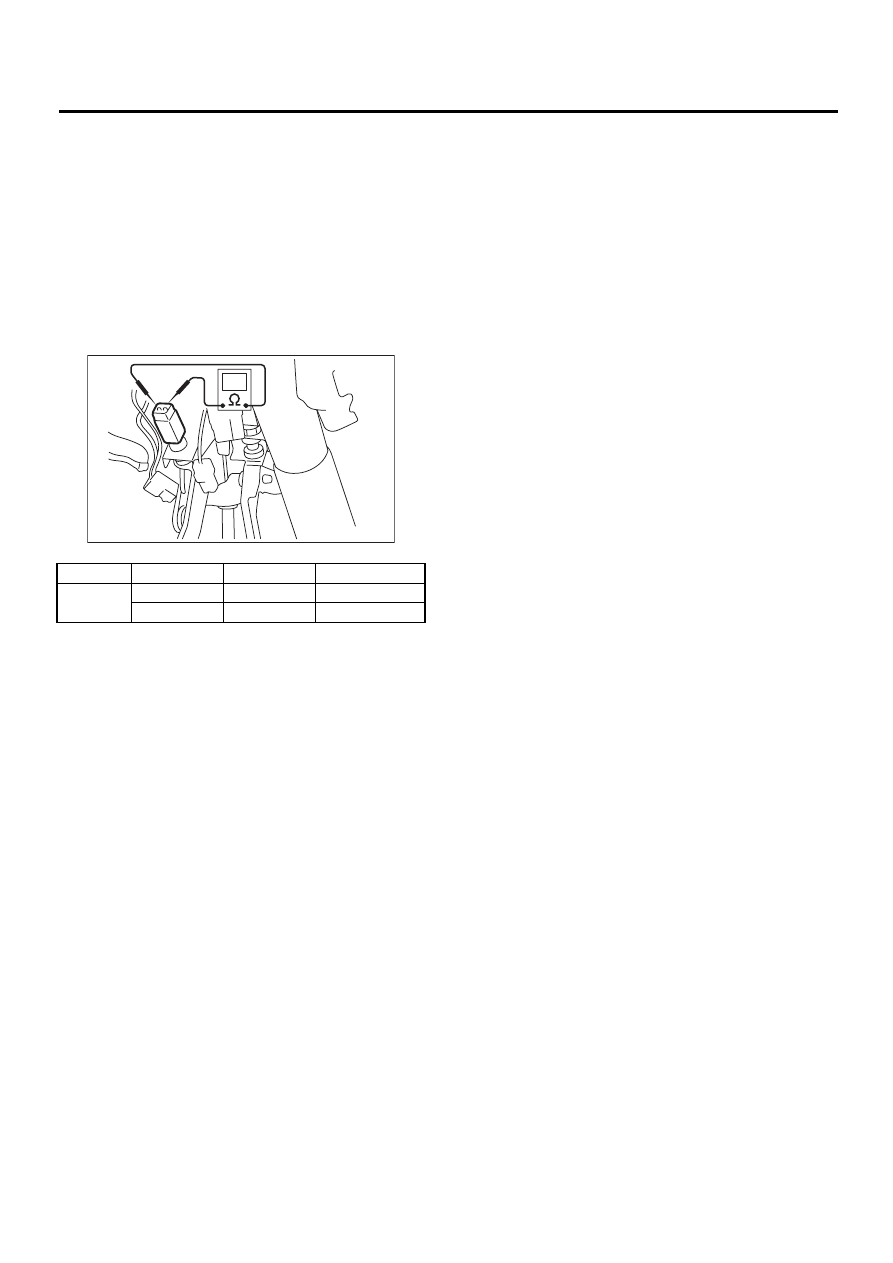

Measure clutch switch resistance.

If NG, replace the clutch switch.

Switch

Pedal

Terminal No.

Standard

Clutch

Released

1 and 2

Less than 1

Ω

Depressed

1 and 2

More than 1 M

Ω

CC-00023

CC-11

CRUISE CONTROL SYSTEM

INHIBITOR SWITCH

8. Inhibitor Switch

A: REMOVAL

1) Disconnect ground cable from battery.
2) Disconnect connector from inhibitor switch, and
then remove the switch. <Ref. to AT-50, REMOV-
AL, Inhibitor Switch.>

B: INSTALLATION

Installation is in the reverse order of removal.

C: INSPECTION

Measure inhibitor switch resistance.

If NG, replace inhibitor switch.

Selector lever position

Terminal No.

Standard

P

7 and 12

Less than 1

Ω

N

Less than 1

Ω

Except P and N

More than 1 M

Ω

CC-00024

1

2

3

4

5

6

7

8

9

10

11
