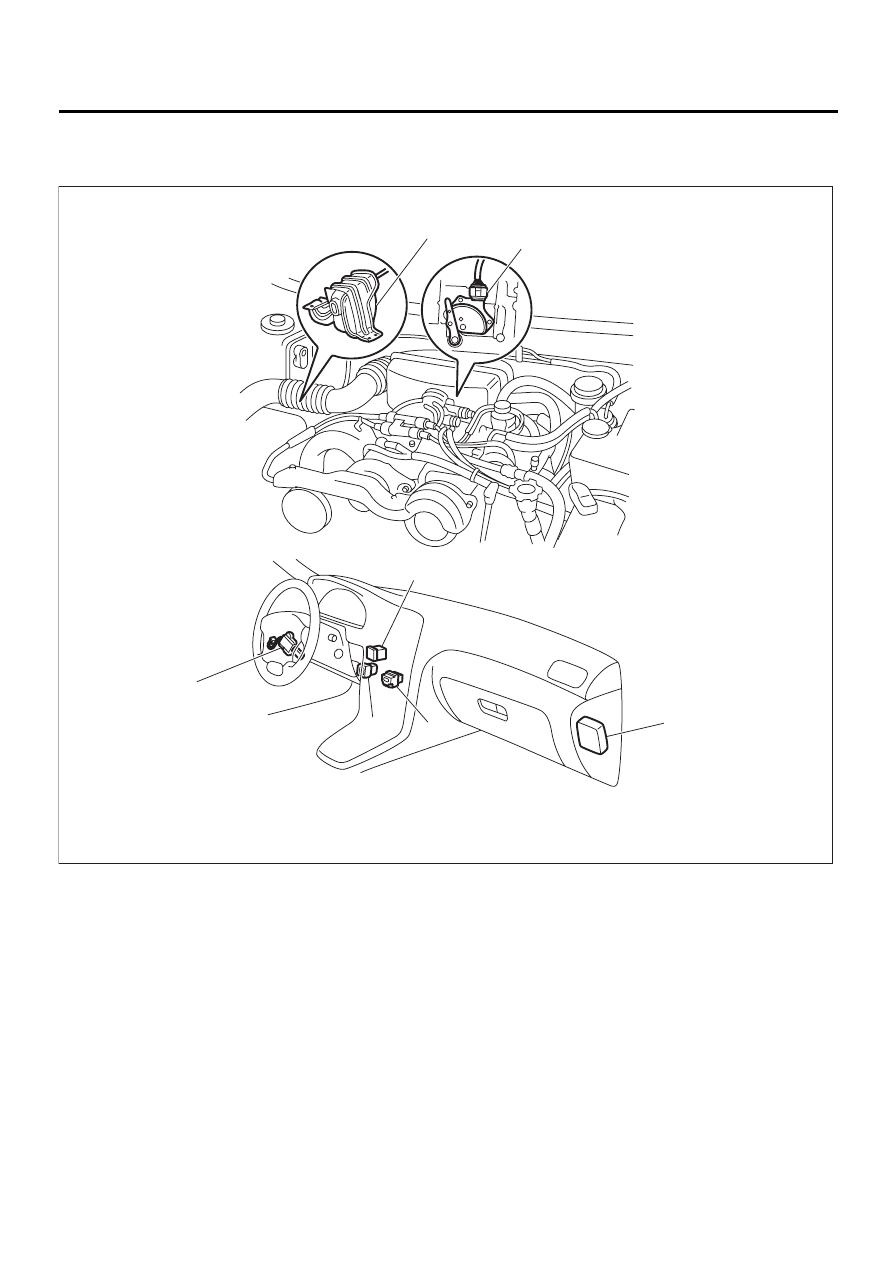

NOTE:
Electrical component location are for LHD vehicles. Cruise control actuator and cruise contorol module loca-
tion for RHD vehicles are symmetically opposite.

(1) Actuator

(4) Cruise control main switch

(7) Cruise control module

(2) Inhibitor switch (AT)

(5) Clutch switch (MT)

(3) Cruise control command switch

(6) Stop and brake switch

CC-00095

( 1 )

( 2 )

( 3 )

( 4 )

( 5 )

( 6 )

( 7 )

CC-3

CRUISE CONTROL SYSTEM

GENERAL DESCRIPTION

B: CAUTION

• Before disassembling or reassembling parts, al-
ways disconnect the battery ground cable. When
repairing the radio, control module and other parts
with memory functions, record memory contents
before disconnecting the battery ground cable.
Otherwise the memory will be erased.
• Reassemble parts in the reverse order of disas-
sembly unless otherwise indicated.
• Adjust parts to specifications specified in this
manual.
• Connect connectors and hoses securely during
reassembly.
• After reassembly, ensure functional parts oper-
ate properly.

C: PREPARATION TOOL

TOOL NAME

REMARKS

Circuit tester

Used for measuring resistance and volt-
age.
