SL-40

SECURITY AND LOCKS

KEYLESS TRANSMITTER

MEMO:

SUNROOF/T-TOP/CONVERTIBLE TOP
(SUNROOF)

SR

Page

1.

General Description ....................................................................................2

2.

Sunroof Control System ..............................................................................5

3.

Sunroof Lid..................................................................................................6

4.

Sunroof Assembly .......................................................................................7

5.

Sunroof Motor ...........................................................................................11

6.

Sunroof Switch ..........................................................................................14

SR-2

SUNROOF/T-TOP/CONVERTIBLE TOP (SUNROOF)

GENERAL DESCRIPTION

1. General Description

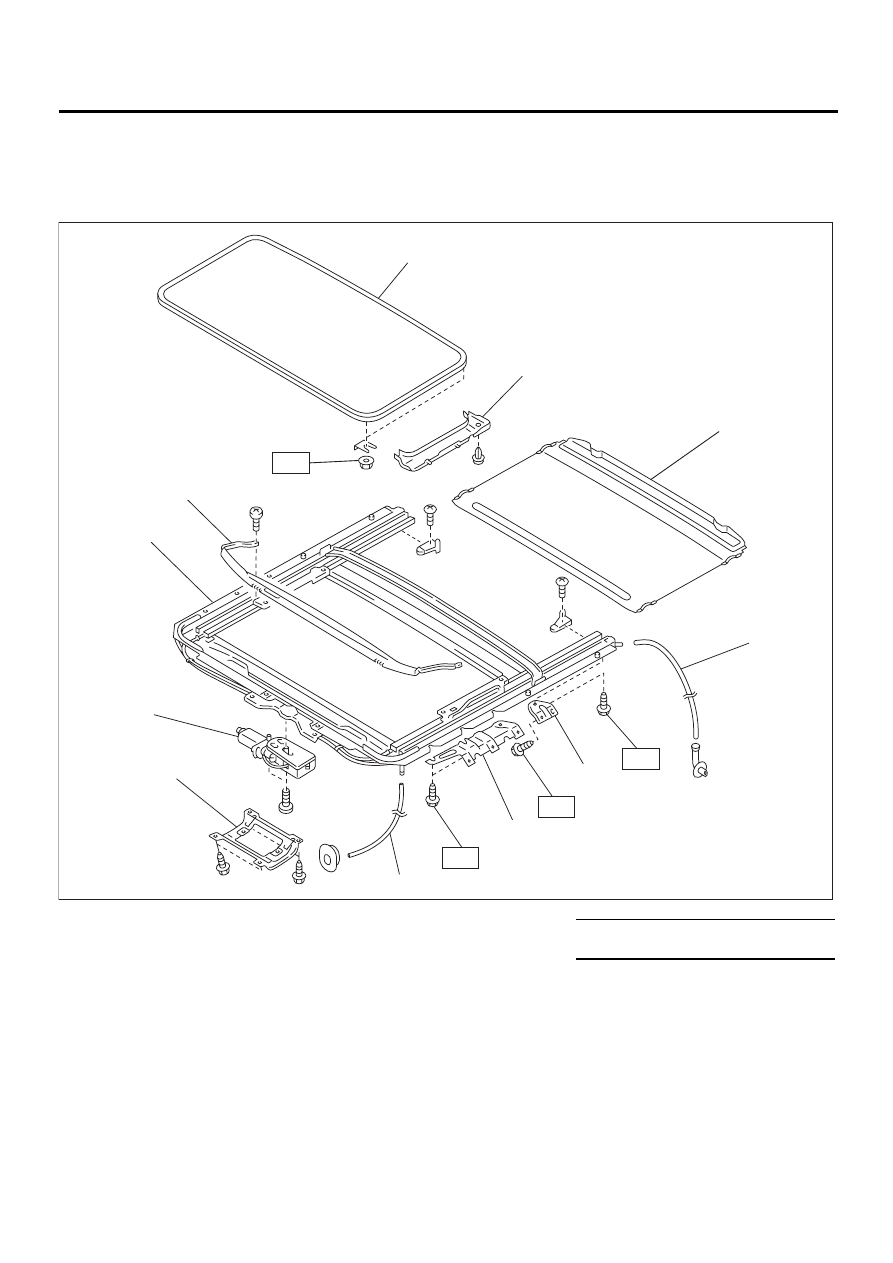

A: COMPONENT

1. SEDAN

(1) Glass lid

(6) Sunroof bracket (Front)

Tightening torque: N·m (kgf-m, ft-lb)

(2) Guide rail cover

(7) Motor cover

T: 7.4 (0.75, 5.4)

(3) Sunshade

(8) Motor ASSY

(4) Drain tube

(9) Frame ASSY

(5) Sunroof bracket (Rear)

(10) Deflector

SR-00018

( 1 )

( 2 )

( 3 )

( 4 )

( 4 )

( 5 )

( 6 )

( 7 )

( 8 )

( 9 )

T

T

T

T

(10)

SR-3

SUNROOF/T-TOP/CONVERTIBLE TOP (SUNROOF)

GENERAL DESCRIPTION

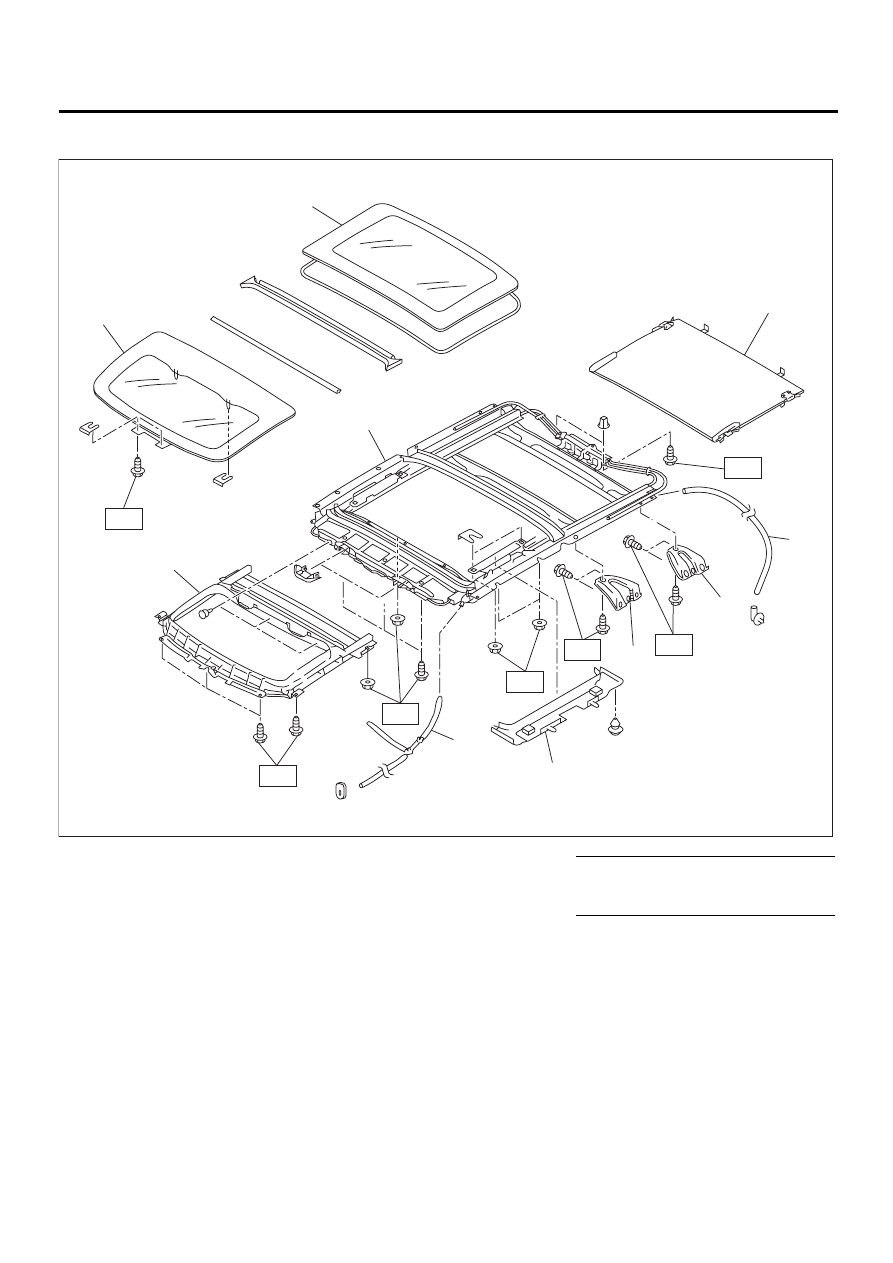

2. WAGON

(1) Glass lid (Front)

(5) Frame ASSY (Front)

Tightening torque: N·m (kgf-m, ft-lb)

(2) Glass lid (Rear)

(6) Drain tube

T1: 7.4 (0.75, 5.4)

(3) Sunshade

(7) Cover

T2: 1.5 (0.15, 1.1)

(4) Frame ASSY (Rear)

(8) Frame bracket

SR-00019

( 1 )

( 2 )

( 3 )

( 4 )

( 5 )

( 6 )

( 6 )

( 7 )

( 8 )

( 8 )

T1

T1

T1

T1

T1

T1

T2
