SL-4

SECURITY AND LOCKS

GENERAL DESCRIPTION

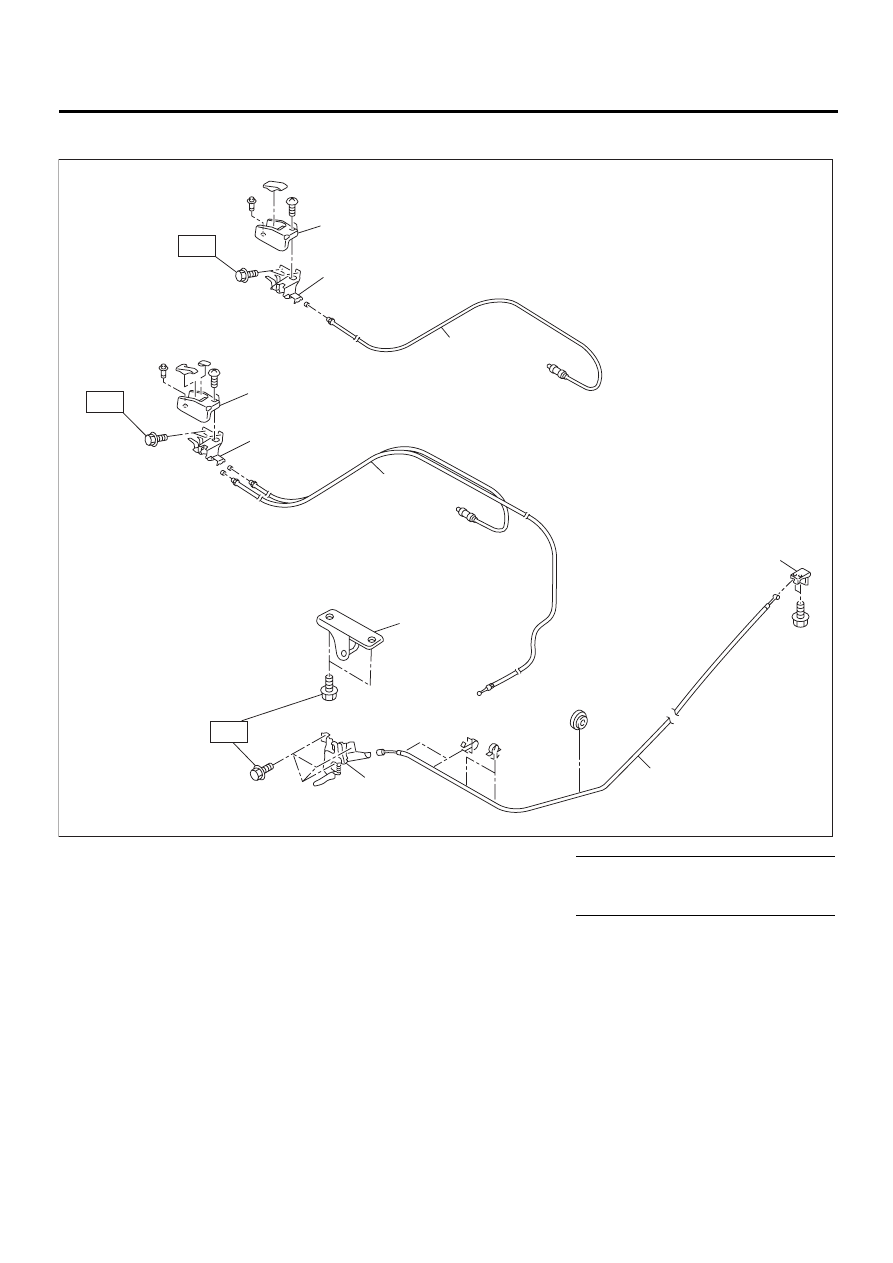

3. HOOD LOCK AND REMOTE OPENERS

(1) Hood lock ASSY

(4) Cover

Tightening torque: N·m (kgf-m, ft-lb)

(2) Lever ASSY

(5) Pull handle ASSY

T1: 6.4 (0.65, 4.7)

(3) Cable

(6) Striker

T2: 32 (3.3, 23.9)

SL-00116

HOOD

SEDAN

WAGON

( 1 )

( 2 )

( 3 )

( 3 )

( 3 )

( 4 )

( 5 )

( 4 )

( 5 )

( 6 )

T1

T2

T1

SL-5

SECURITY AND LOCKS

GENERAL DESCRIPTION

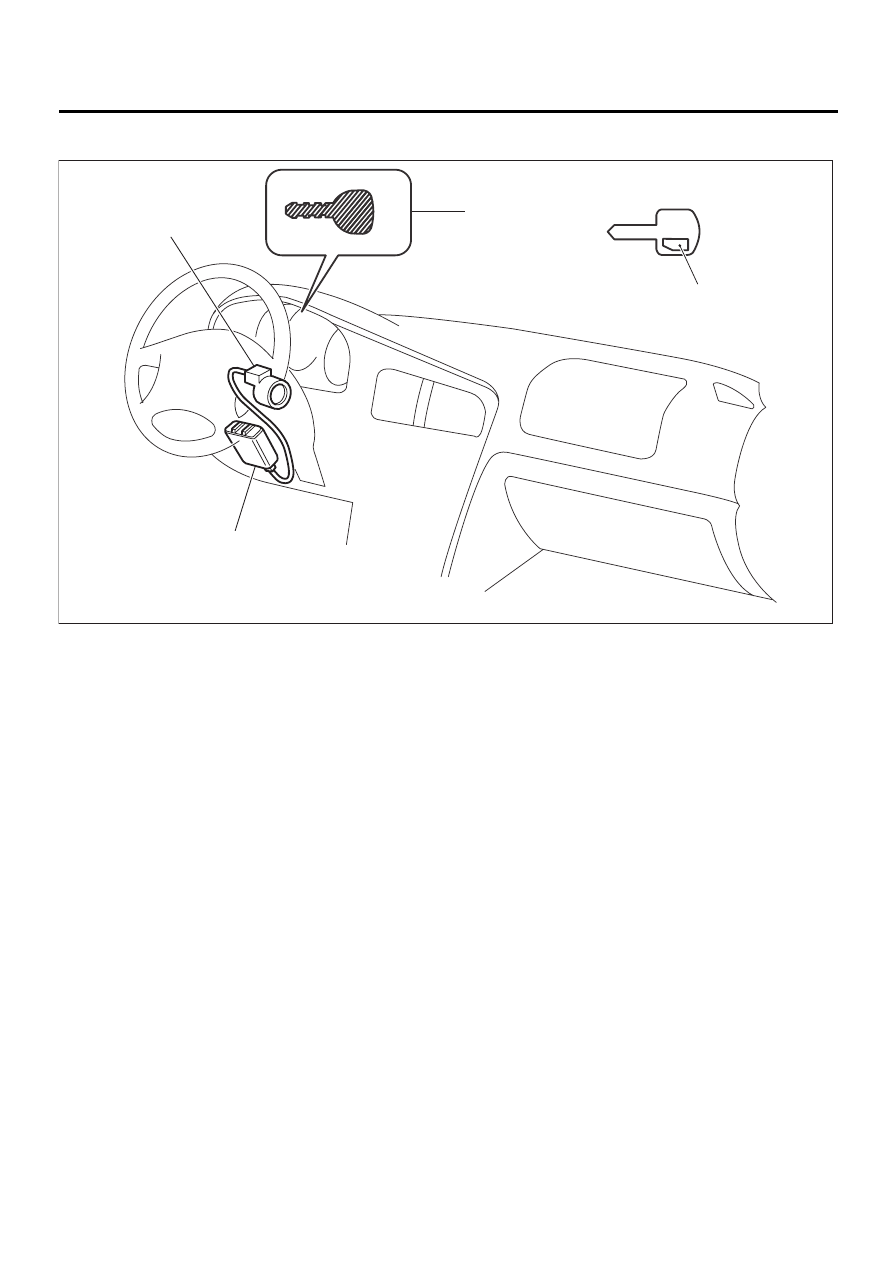

4. IMMOBILIZER SYSTEM

NOTE:
IMM ECM location for RHD model is symmetrically opposite.

(1) Antenna

(3) Immobilizer control module (IMM

ECM)

(2) Immobilizer indicator light (LED

bulb)

(4) Transponder

IM-00040

( 1 )

( 2 )

( 3 )

( 4 )





SL-6

SECURITY AND LOCKS

GENERAL DESCRIPTION

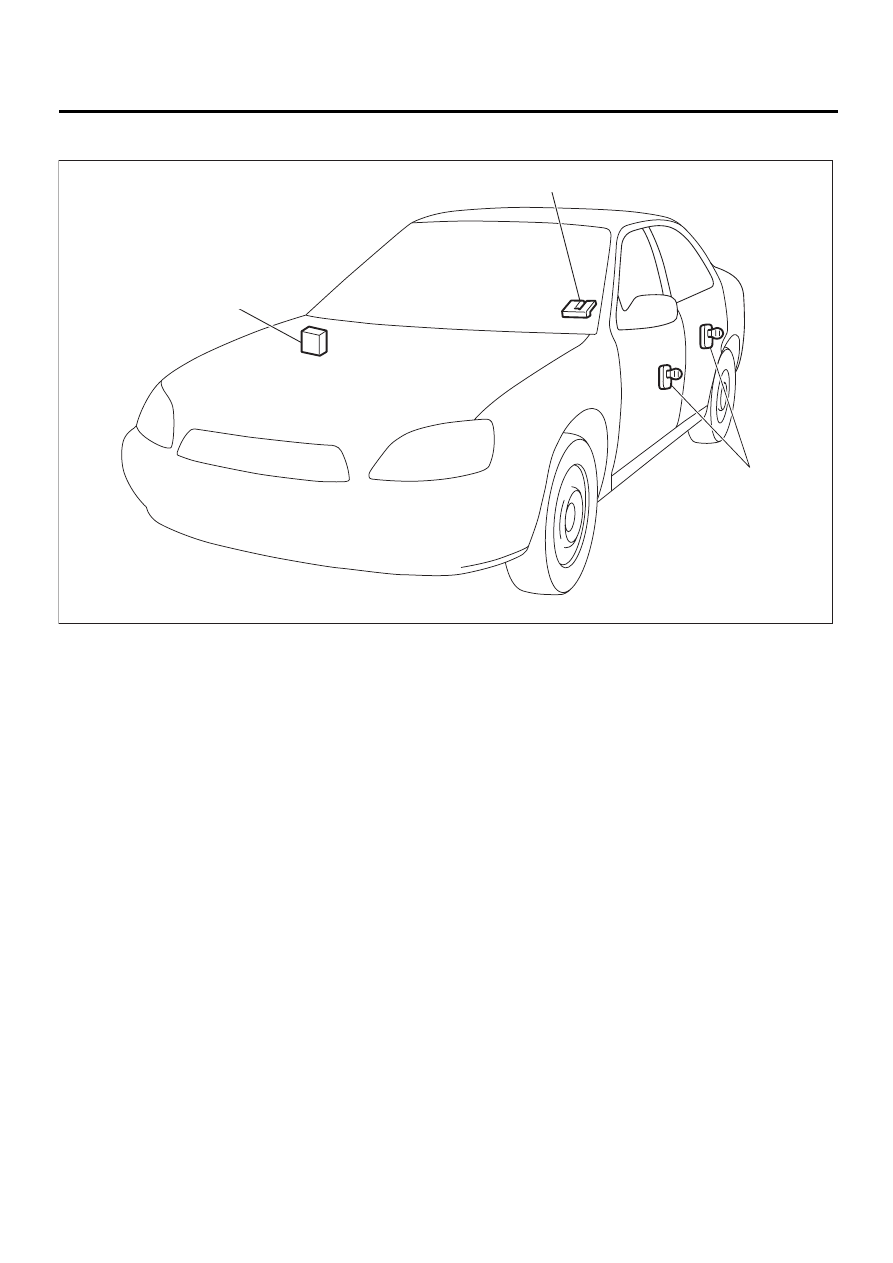

5. KEYLESS ENTRY SYSTEM

(1) Keyless entry control module

(2) Rear gate latch switch (Wagon)

(3) Door switch

SL-00117

( 1 )

( 2 )

( 3 )

SL-7

SECURITY AND LOCKS

GENERAL DESCRIPTION

C: CAUTION

• Before disassembling or reassembling parts,
always disconnect battery ground cable. When
repairing radio, control module, etc. which are
provided with memory functions, record
memory contents before disconnecting battery
ground cable. This is to prevent from memory
loss caused by disconnection of ground cable.
• Reassemble parts in reverse order of
disassembly procedure unless otherwise
indicated.
• Adjust parts to specifications contained in
this manual if so designated.

• Connect connectors and hoses securely
during reassembly.
• After reassembly, ensure all functional parts
operate smoothly.
• Airbag system wiring harness is routed near
the electrical parts and switch.
• All airbag system wiring harness and
connectors are colored yellow. Do not use
electrical test equipment on these circuits.
• Be careful not to damage airbag system
wiring harness when servicing the ignition key
cylinder.

D: PREPARATION TOOL

1. SPECIAL TOOLS

2. GENERAL TOOLS

ILLUSTRATION

TOOL NUMBER

DESCRIPTION

REMARKS

925580000

PULLER

Used for removing trim clip.

TOOL NAME

REMARKS

Circuit Tester

Used for measuring resistance and voltage.

Drill

Used for replacing ignition key lock.

ST-925580000
