SE-22

SEATS

REAR SEAT

MEMO:

SECURITY AND LOCKS

SL

Page

1.

General Description ....................................................................................2

2.

Door Lock Control System ..........................................................................8

3.

Keyless Entry System ...............................................................................11

4.

Front Inner Remote ...................................................................................19

5.

Front Outer Handle ...................................................................................20

6.

Front Door Latch Assembly.......................................................................21

7.

Front Door Lock Actuator ..........................................................................22

8.

Rear Inner Remote....................................................................................23

9.

Rear Outer Handle ....................................................................................24

10.

Rear Door Latch Assembly .......................................................................25

11.

Rear Door Lock Actuator...........................................................................26

12.

Rear Gate Outer Handle ...........................................................................27

13.

Rear Gate Latch Assembly .......................................................................28

14.

Rear Gate Latch Lock Actuator.................................................................29

15.

Trunk Lid Lock Assembly ..........................................................................30

16.

Front Hood Lock Assembly .......................................................................31

17.

Remote Openers.......................................................................................32

18.

Ignition Key Lock.......................................................................................34

19.

Key Lock Cylinders ...................................................................................35

20.

Immobilizer Control Module ......................................................................36

21.

Immobilizer Antenna .................................................................................37

22.

Keyless Entry Control Module...................................................................38

23.

Keyless Transmitter ..................................................................................39

SL-2

SECURITY AND LOCKS

GENERAL DESCRIPTION

1. General Description

A: SPECIFICATIONS

B: COMPONENT

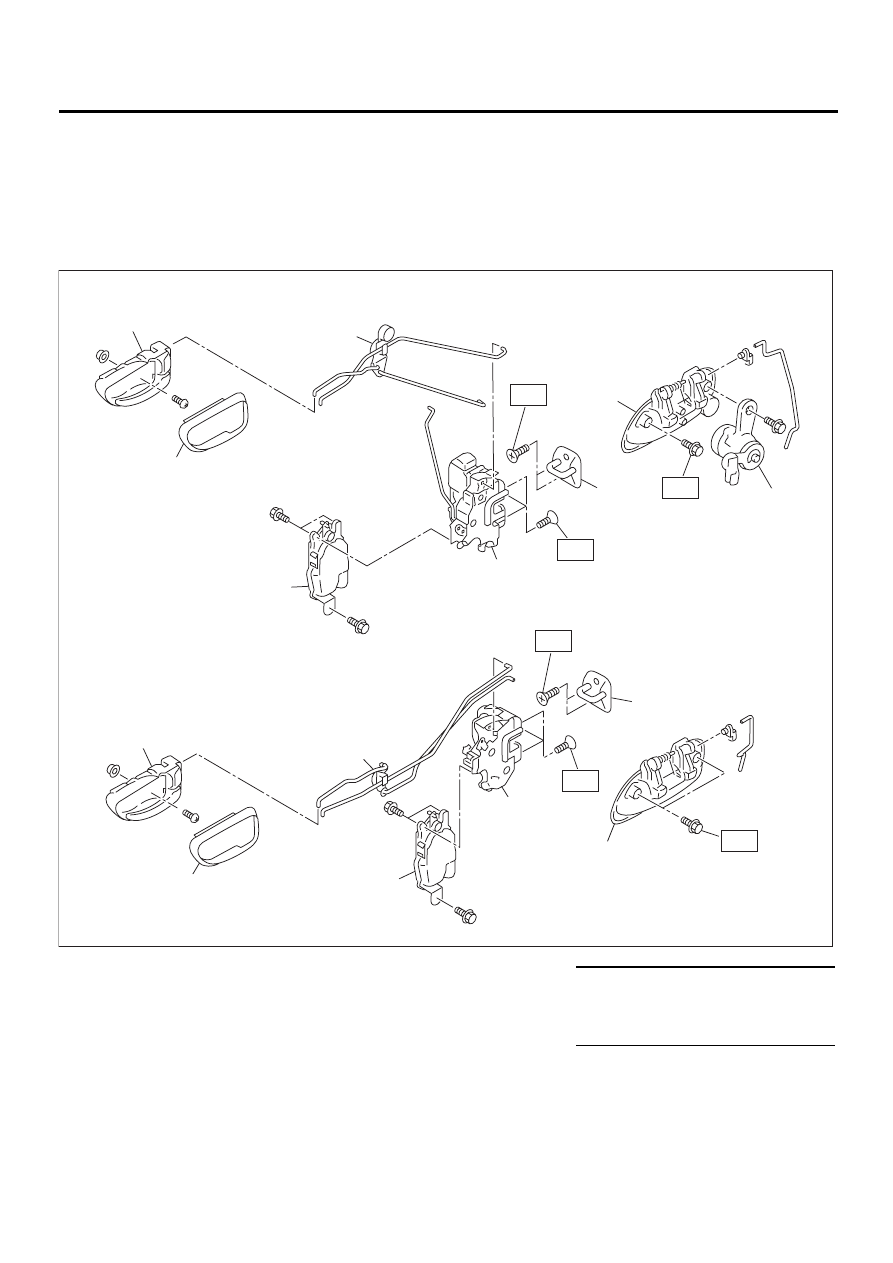

1. DOOR LOCK ASSEMBLY

(1) Inner remote ASSY

(6) Striker

Tightening torque: N·m (kgf-m, ft-lb)

(2) Inner remote cover

(7) Door outer handle

T1: 6.4 (0.65, 4.7)

(3) Bell crank

(8) Key cylinder

T2: 7.35 (0.75, 5.4)

(4) Auto-door lock actuator

T3: 18.0 (1.8, 13.0)

(5) Door latch

SL-00067

FRONT

REAR

( 1 )

( 1 )

( 2 )

( 2 )

( 3 )

( 3 )

( 4 )

( 4 )

( 5 )

( 5 )

( 6 )

( 6 )

( 7 )

( 7 )

( 8 )

T3

T3

T2

T2

T1

T1

SL-3

SECURITY AND LOCKS

GENERAL DESCRIPTION

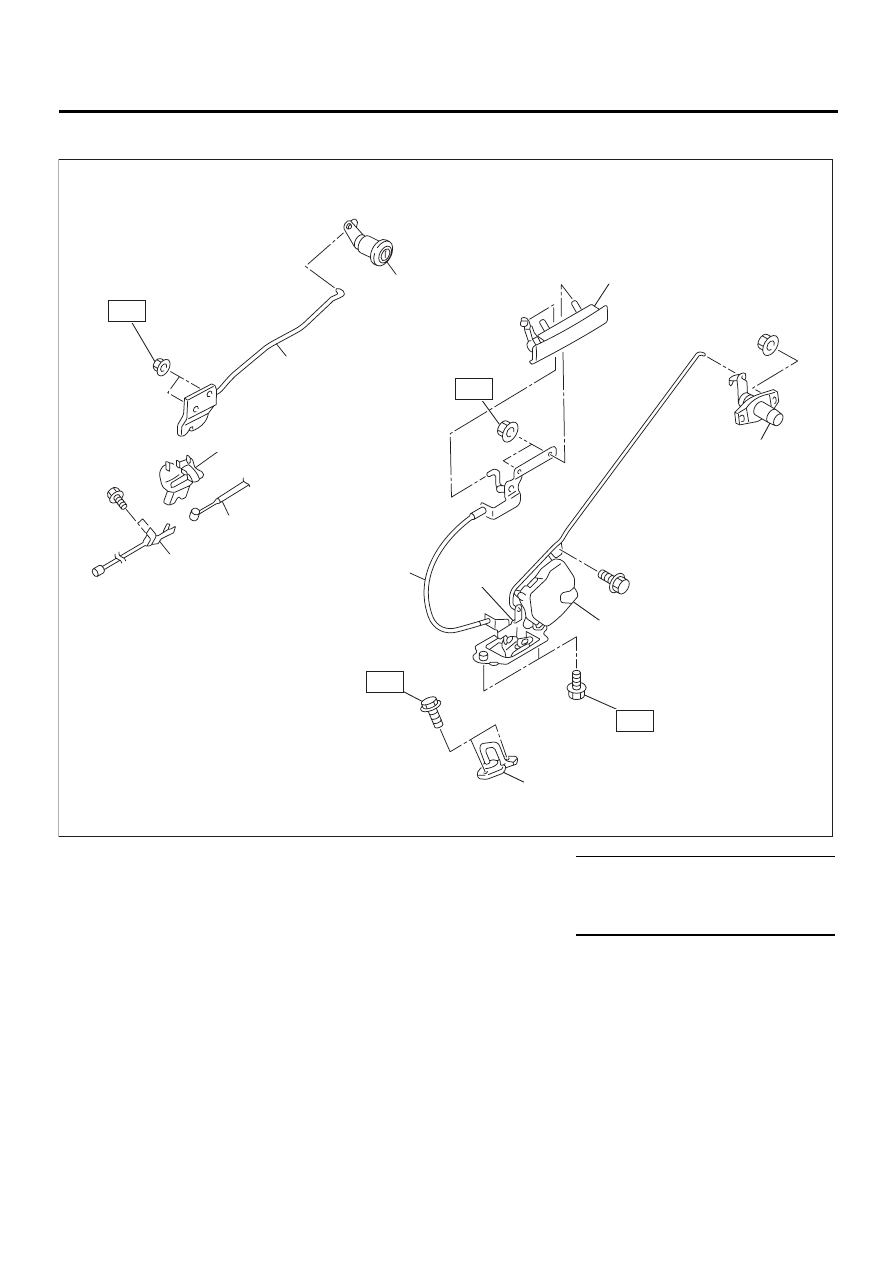

2. TRUNK LID AND REAR GATE LOCK

(1) Key cylinder

(6) Rear gate outer handle

Tightening torque: N·m (kgf-m, ft-lb)

(2) Cable

(7) Rear gate actuator

T1: 7.5 (0.76, 5.5)

(3) Striker

(8) Rear gate latch

T2: 25 (2.5, 18.1)

(4) Trunk lid lock ASSY

T3: 18 (1.8, 13.0)

(5) Trunk lid lock cover

SL-00115

TRUNK

REAR GATE

( 1 )

( 1 )

( 2 )

( 2 )

( 3 )

( 3 )

( 4 )

( 5 )

( 6 )

( 7 )

( 8 )

T2

T3

T1

T2
