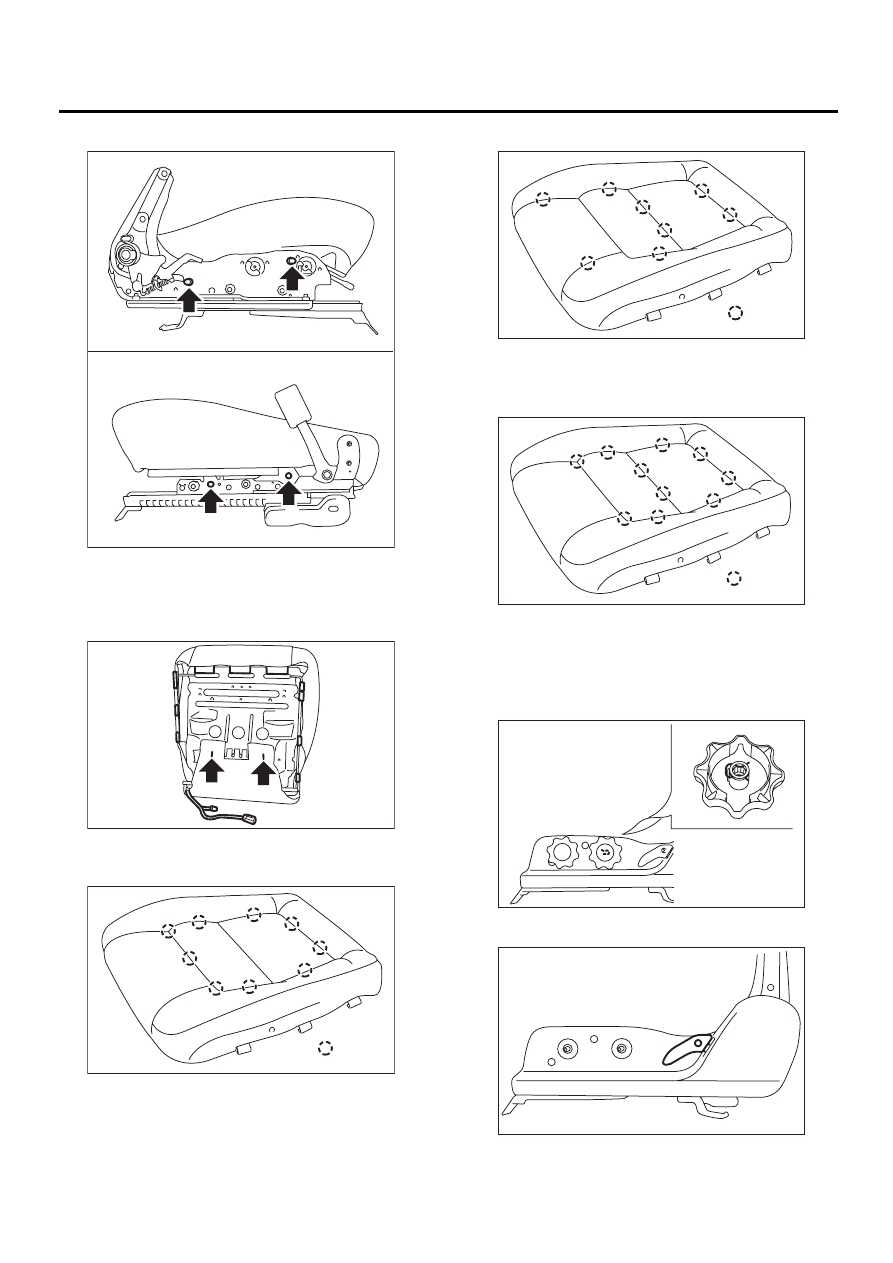

10) Remove hog ring (A) on front face of seat.

Side airbag equipped seat:

11) Remove hog rings (A), and then remove seat
heater. (Seat heater equipped seat)

12) Remove seat cover.
13) Remove backrest pad.

14) Remove clamp of airbag wire harness on back
side of seat. (Side airbag equipped seat)

15) Remove the two cap nuts, and then remove
side airbag module assembly. (Side airbag
equipped seat)

16) Remove reclining cover and hinge cover. (Non-
tilt type seat)

17) Remove the 4 bolts of seat hinge assembly,
and then remove seat cushion.
Tilt type seat:

SE-00080

: ( A )

SE-00081

: ( A )

SE-00082

SE-00083

SE-00084

SE-00085

SE-00086

SE-11

SEATS

FRONT SEAT

Non-tilt type seat:

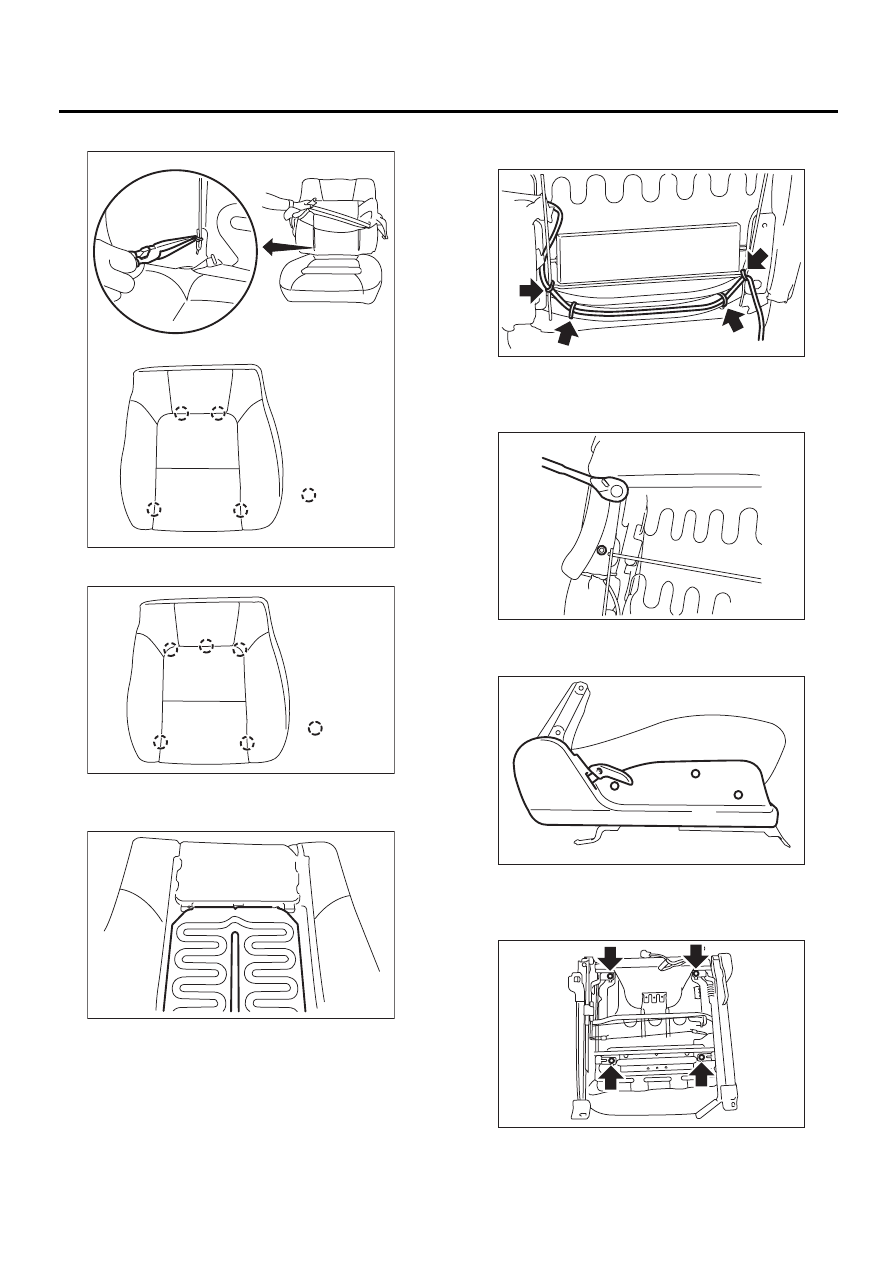

18) Remove hook clips on back side of seat cush-
ion, and remove wire rings.
19) Remove clamp of seat heater wire harness.
(Seat heater equipped seat)

20) Remove hog rings (A).
Tilt type seat:

Non-tilt type seat:

Leather type seat:

21) Remove cushion cover.
22) Remove cushion pad.
23) Remove clip pins, and remove seat lifter lever.

24) Remove reclining lever cover.

(A) Hog ring

SE-00087

SE-00088

SE-00089

: ( A )

(A) Hog ring

(A) Hog ring

SE-00090

: ( A )

SE-00091

: ( A )

SE-00092

SE-00093

SE-12

SEATS

FRONT SEAT

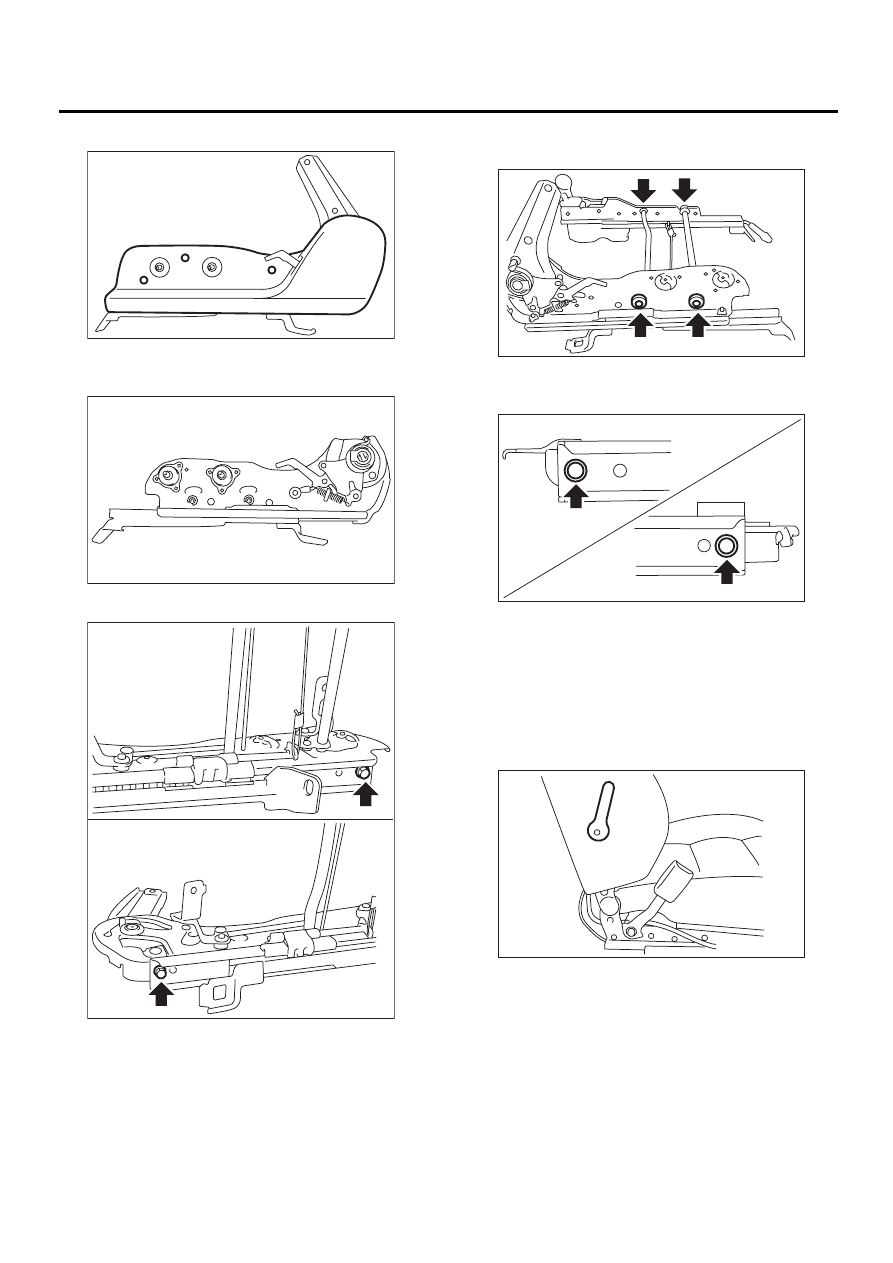

25) Remove hinge cover cap and screws.

26) Remove seat hinge cover and hinge spring
cover.

27) Remove 2 bolts, and then remove slide rail.

28) Remove 4 screws, and then remove hinge.
(Non-tilt type seat)

29) Remove 2 bolts, and then remove slide rail.
(Non-tilt type seat)

30) Remove connecting wire.

2. POWER SEAT

1) Remove seats from vehicle. <Ref. to SE-7, RE-
MOVAL, Front Seat.>
2) Remove lumber lever cover.

SE-00094

SE-00095

SE-00096

(1) Lower side of seat rail

SE-00097

SE-00098

( 1 )

SE-00073

SE-13

SEATS

FRONT SEAT

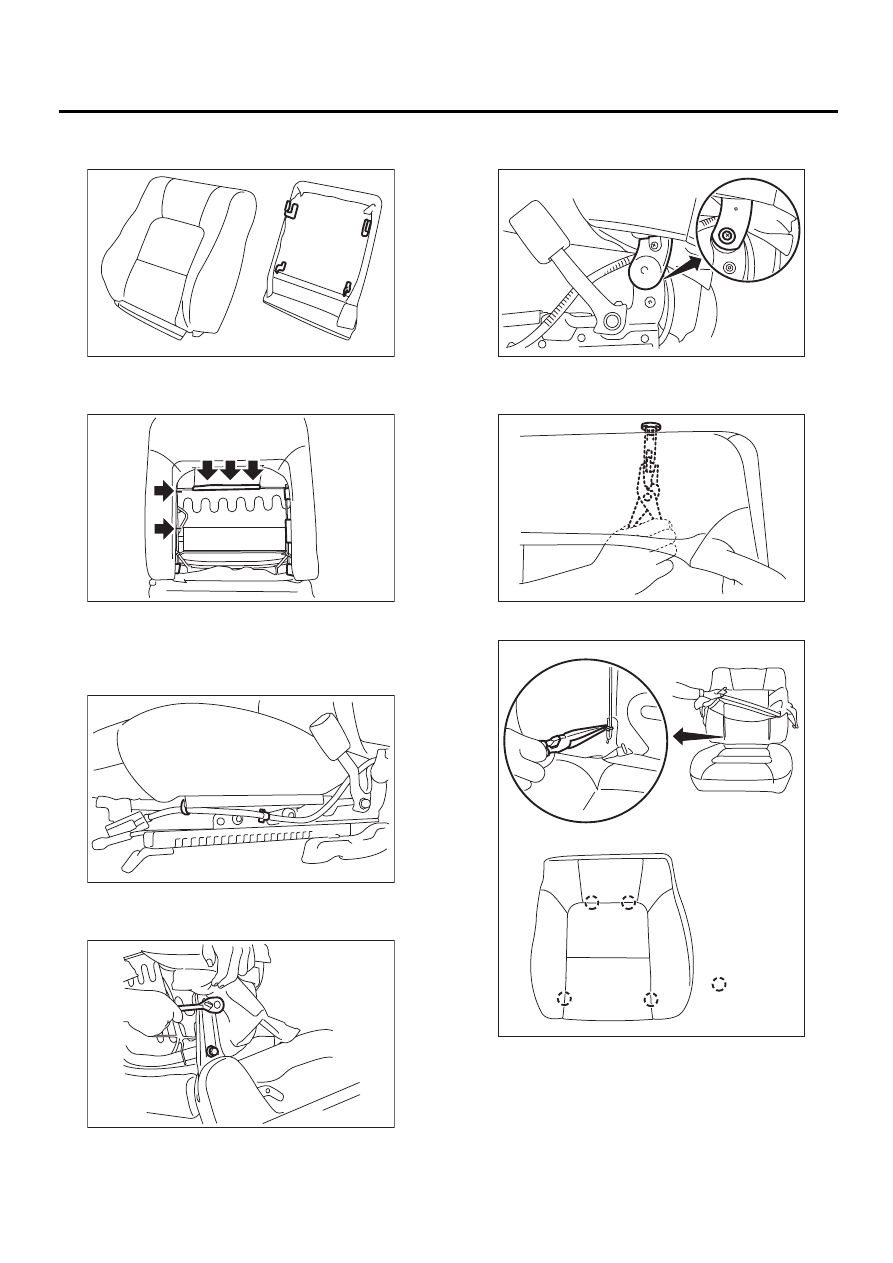

3) Remove hook at bottom, and then remove seat
back board.

4) Remove hook on back side of seat, and remove
wire rings using a plier.

5) Remove clamp of side airbag wire harness.
(Side airbag equipped seat)
6) Remove clamp of seat heater wire harness.
(Seat heater equipped seat)

7) Turn cover and cushion, and remove the two
bolts from hinge.

8) Remove hinge screw cover and screws, and re-
move seat back from hinge.

9) While picking up tip with a plier, remove head-
rest lock bushing.

10) Remove hog ring (A) on front face of seat.

SE-00074

SE-00075

SE-00076

SE-00077

(A) Hog ring

SE-00078

SE-00079

SE-00080

: ( A )
