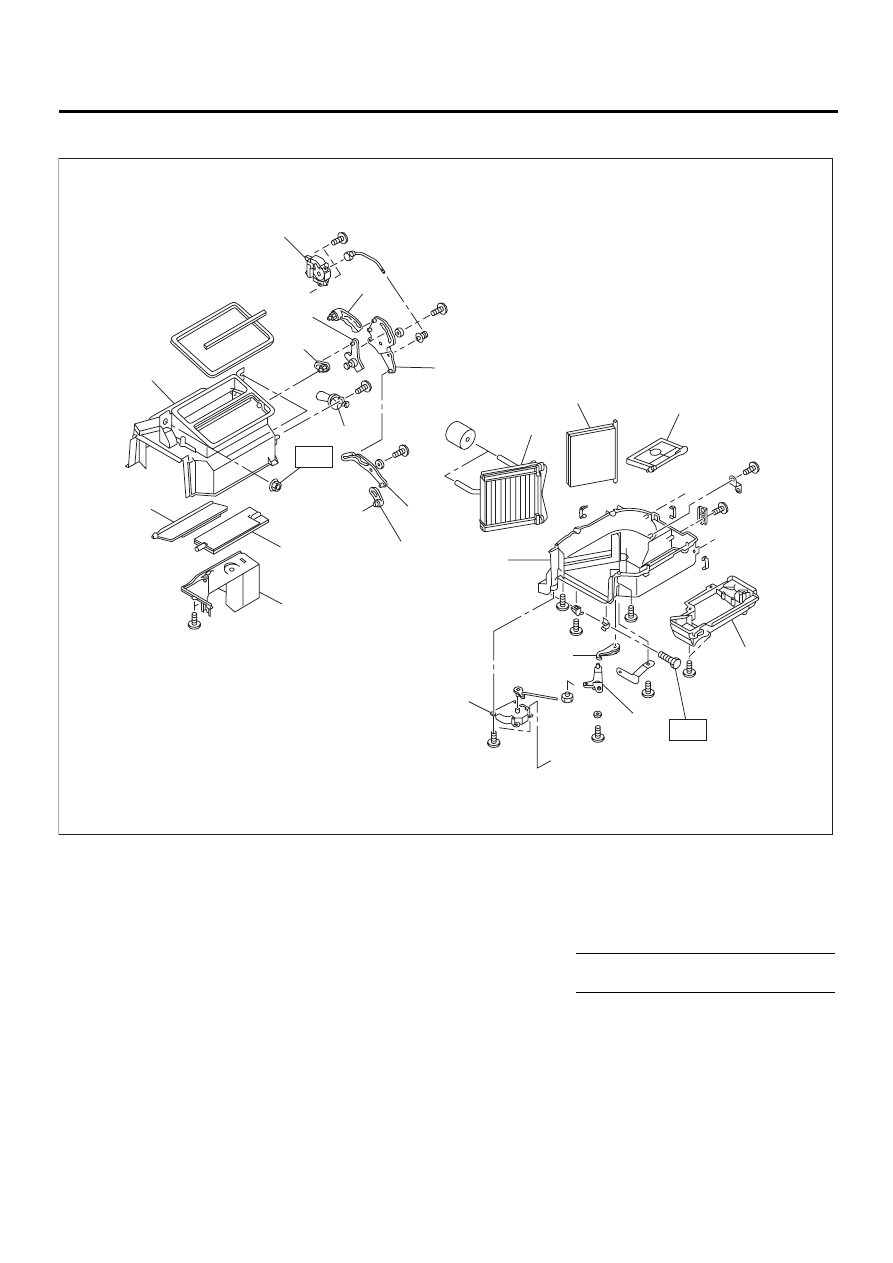

AC-8

HVAC SYSTEM (HEATER, VENTILATOR AND A/C)

GENERAL DESCRIPTION

• RHD Model

(1) Heater case upper

(10) Heater case

(18) Mix door lever B

(2) Mode actuator

(11) DEF door

(19) Heater case lower

(3) Vent door lever A

(12) Heater core

(20) Aspirator inlet

(With AUTO A/C model)

(4) Vent door lever B

(13) Mix door

(5) DEF door lever

(14) Foot door

(6) Side link A

(15) Foot duct

Tightening torque: N·m (kgf-m, ft-lb)

(7) Foot door lever

(16) Mix door lever A

T: 7.35 (0.750, 5.421)

(8) Side link B

(17) Mix door actuator

(With AUTO A/C model)

(9) Vent door

AC-00460

( 2 )

( 1 )

( 5 )

( 4 )

( 3 )

( 6 )

( 8 )

( 7 )

( 9 )

(15)

(18)

(16)

(14)

(20)

(11)

(13)

(12)

(17)

(19)

(10)

T

T

AC-9

HVAC SYSTEM (HEATER, VENTILATOR AND A/C)

GENERAL DESCRIPTION

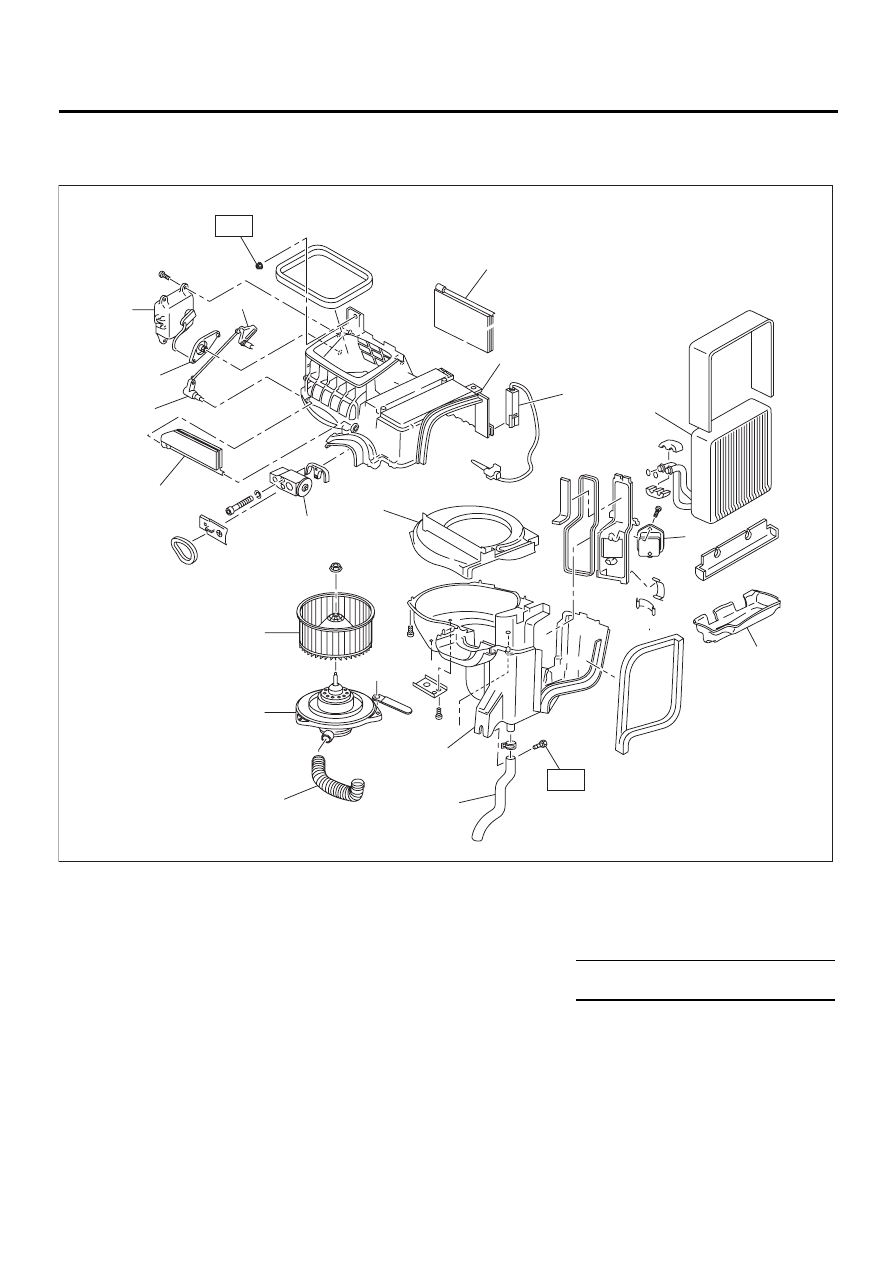

2. INTAKE UNIT WITH EVAPORATOR

• LHD Model

(1) Intake door actuator

(8) Lever (B)

(16) Aspirator pipe

(2) Lever (A)

(9) Lever (C)

(17) Blower motor

(3) Door (A)

(10) Blower plate

(18) Fan

(4) Intake unit case upper

(11) Resistor

(5) Thermistor (With A/C model)

(12) Evaporator (With A/C model)

Tightening torque: N·m (kgf-m, ft-lb)

(6) Block expansion valve

(With A/C model)

(13) Evaporator case (With A/C model)

T: 7.4 (0.75, 5.4)

(14) Drain hose

(7) Door (B)

(15) Intake unit case lower

AC-00263

( 5 )

( 4 )

( 3 )

( 2 )

( 1 )

( 9 )

( 8 )

( 7 )

( 6 )

(13)

(11)

(12)

(10)

(14)

(15)

(16)

(17)

(18)

T

T

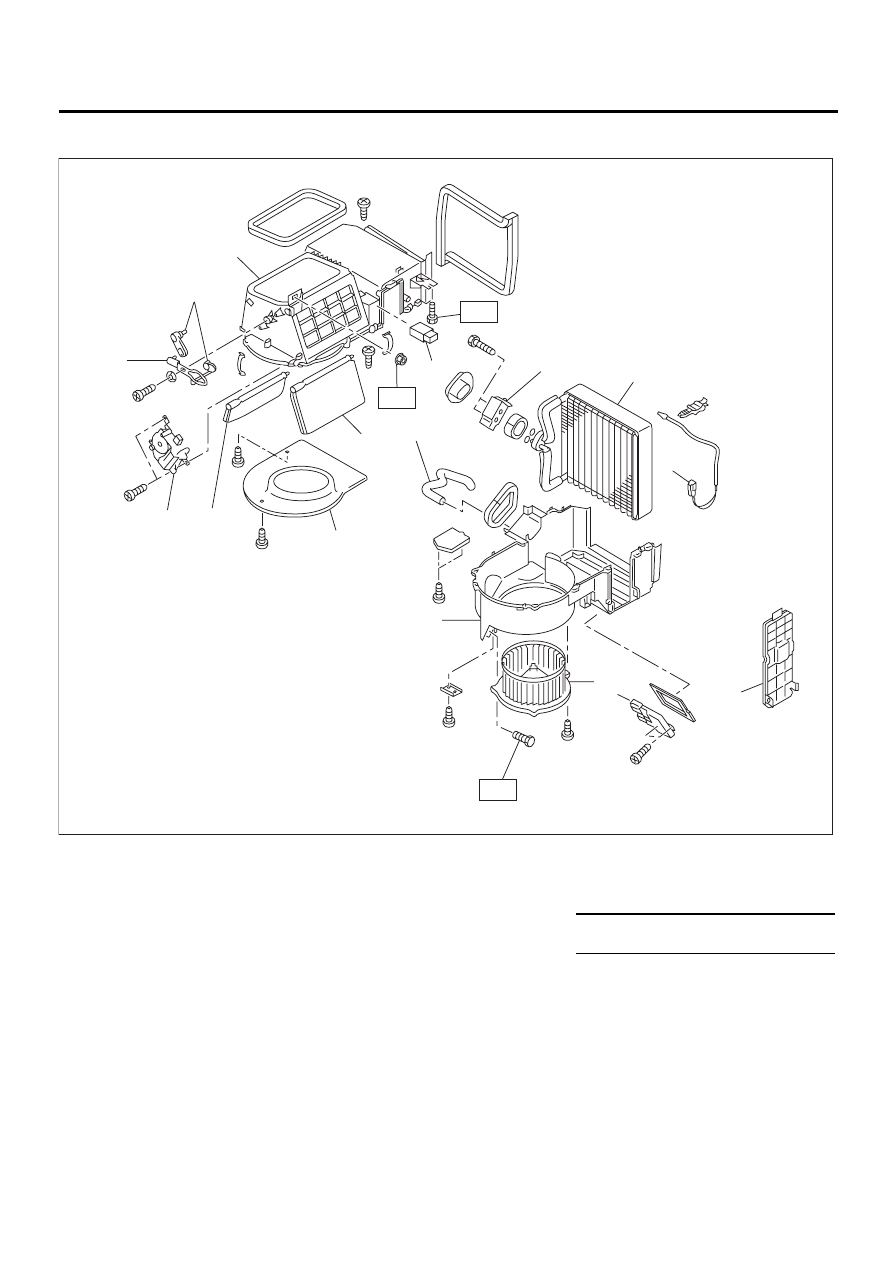

AC-10

HVAC SYSTEM (HEATER, VENTILATOR AND A/C)

GENERAL DESCRIPTION

• RHD Model

(1) Link

(8) Intake door actuator

(14) Intake unit case lower

(2) Door lever

(9) Block expansion valve

(With A/C model)

(15) Drain hose

(3) Intake unit case upper

(4) Resistor

(10) Evaporator (With A/C model)

Tightening torque: N·m (kgf-m, ft-lb)

(5) Door (A)

(11) Thermistor (With A/C model)

T: 7.4 (0.75, 5.4)

(6) Separator

(12) Cover

(7) Door (B)

(13) Blower motor ASSY

AC-00461

( 9 )

( 4 )

( 5 )

( 3 )

( 2 )

( 1 )

( 8 )

( 7 )

( 6 )

(11)

(12)

(13)

(10)

(14)

(15)

T

T

T

AC-11

HVAC SYSTEM (HEATER, VENTILATOR AND A/C)

GENERAL DESCRIPTION

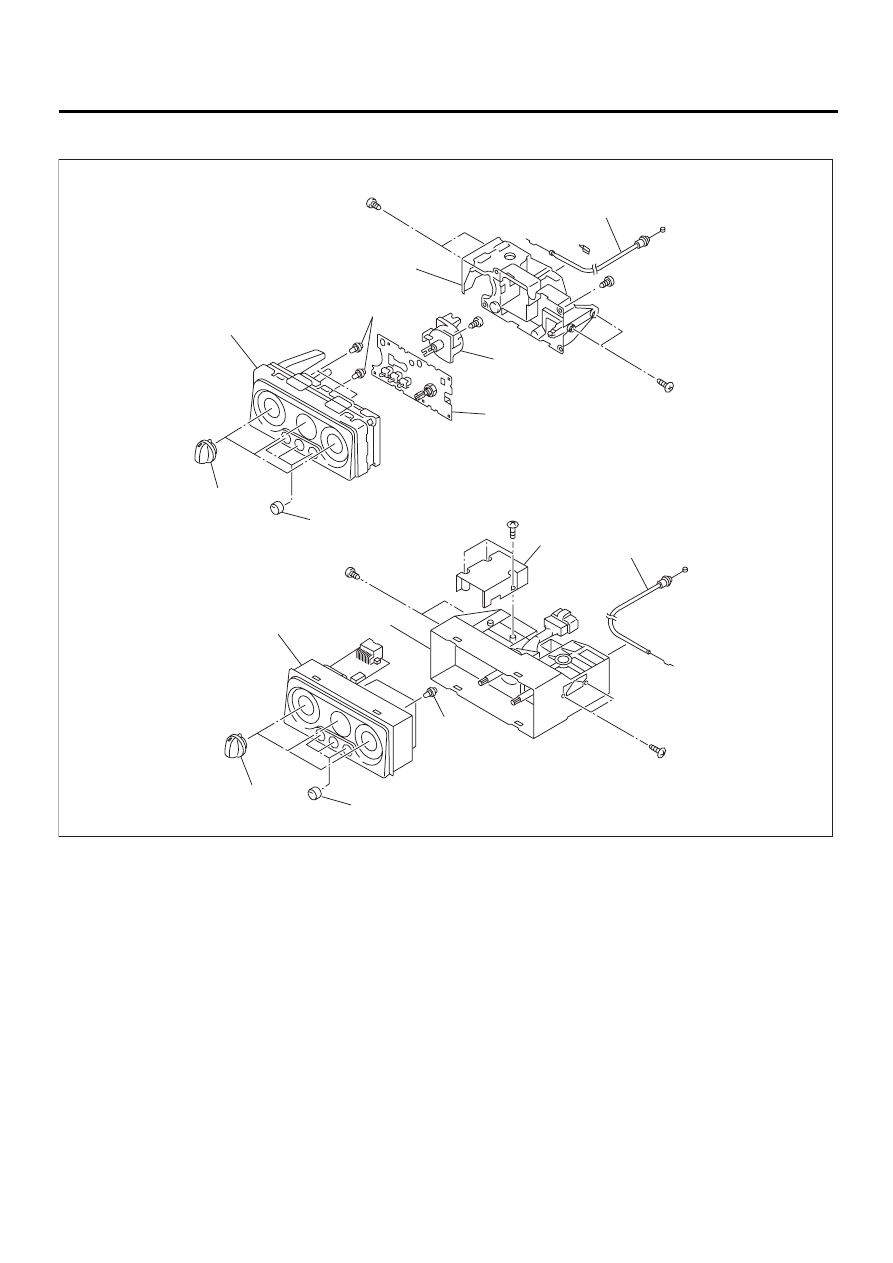

3. CONTROL UNIT (MANUAL A/C)

(A)

LHD model

(B)

RHD model

(1)

Switch

(4)

Base unit

(7)

Fan switch ASSY

(2)

Dial knob

(5)

Cover

(8)

Circuit ASSY

(3)

Control unit panel ASSY

(6)

Temperature control cable

(9)

Bulb

AC-00462

( 1 )

( 1 )

( 2 )

( 2 )

( 3 )

( 3 )

( 4 )

( 4 )

( 5 )

( 6 )

( 6 )

( 7 )

( 8 )

( 9 )

( 9 )

( A )

( B )
