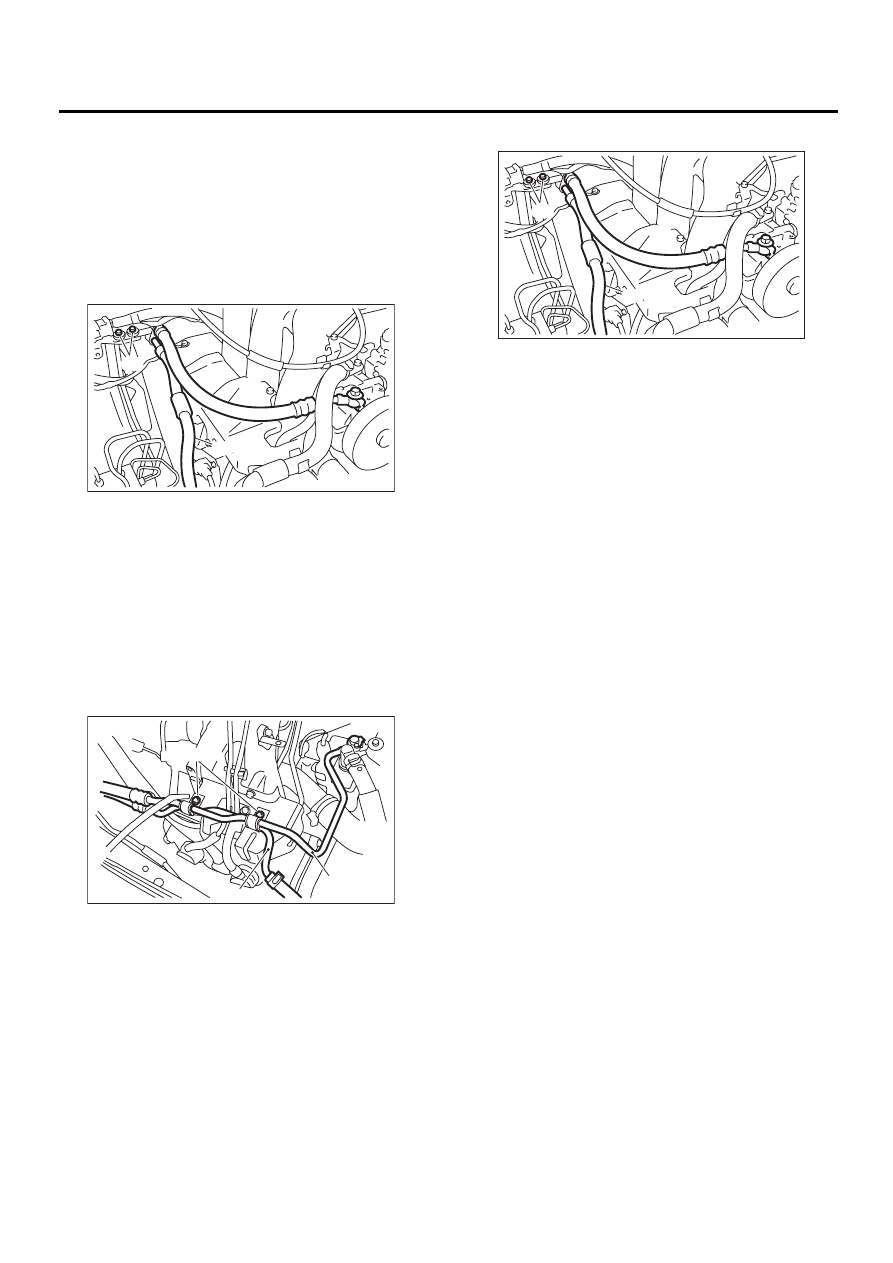

PS-72

POWER ASSISTED SYSTEM (POWER STEERING)

PIPE ASSEMBLY

3.0 L and Turbo model
Disconnect pressure hose from oil pump. Discon-
nect return hose from reservoir tank.

CAUTION:
• Do not allow fluid from the hose end to come
into contact with pulley belt.
• To prevent foreign matter from entering the
hose and pipe, cover the open ends of them
with a clean cloth.

B: INSTALLATION

1) Tighten bolt A.

CAUTION:
Visually check that hose between tank and pipe
D is free from bending or twisting.
Except 3.0 L and Turbo model

3.0 L and Turbo model

(1) Connect pipe D or return hose to oil tank.
(2) Connect pipe C or pressure hose to oil
pump.

CAUTION:
Use anew gasket.

Tightening torque:

39 N·m (4.0 kgf-m, 28.9 ft-lb)

(3) Tighten bolt A.

Tightening torque:

13 N·m (1.3 kgf-m, 9.4 ft-lb)

(1) Bolt A

(2) Pressure hose

(3) Return hose

(1) Bolt A

(2) Pipe C

(3) Pipe D

PS-00222

( 1 )

( 2 )

( 3 )

( 1 )

( 2 )

( 3 )

PS-00221

(1) Bolt A

(2) Pressure hose

(3) Return hose

PS-00222

( 1 )

( 2 )

( 3 )

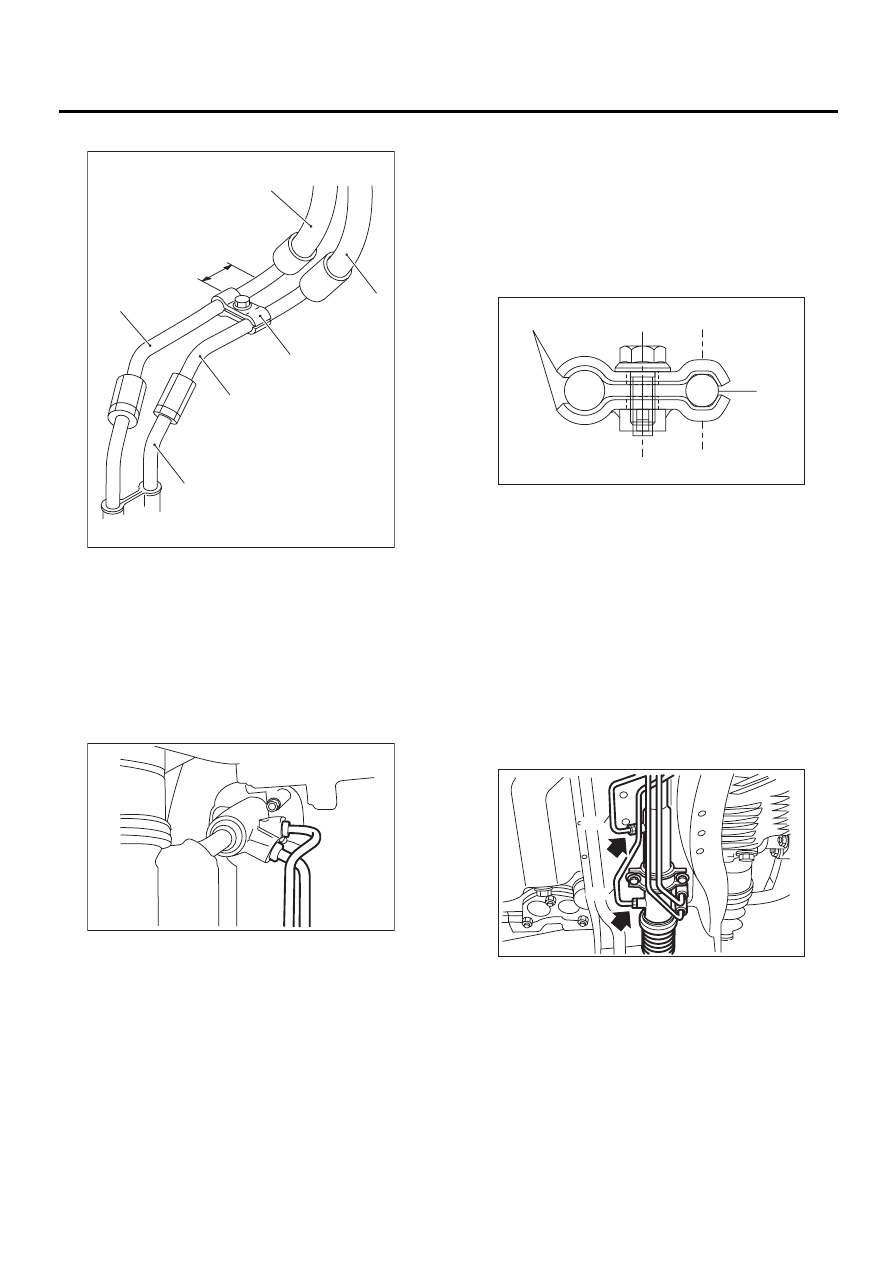

PS-73

POWER ASSISTED SYSTEM (POWER STEERING)

PIPE ASSEMBLY

2) Temporarily connect pipes C and D.

RHD model

3) Temporarily install clamp E on pipes C and D,
and tighten clamp E firmly.

CAUTION:
Ensure that the letter “8” on each clamp are di-
agonally opposite each other as shown in fig-
ure.

Tightening torque:

7.4 N·m (0.75 kgf-m, 5.4 ft-lb)

4) Tighten joint nut.

Tightening torque:

15 N·m (1.5 kgf-m, 10.8 ft-lb)

5) Connect pipe A and B.
Connect pipes A and B to four pipe joints of gear-
box. Connect upper pipe B first, and lower pipe A
second.
LHD model

Tightening torque:

13 N·m (1.3 kgf-m, 9.4 ft-lb)

(1) Return hose

(2) Pressure hose

(3) Approx. 30 mm (1.18 in)

(4) Clamp E

(5) Pipe C

(6) Pipe

(7) Pipe (on gearbox side)

PS-00178

( 1 )

( 2 )

( 3 )

( 4 )

( 5 )

( 6 )

( 7 )

PS-00288

(1) Clamp E

(2) Pipe C

(1) Pipe A

(2) Pipe B

PS-00223

letter

8

letter

8

( 1 )

( 2 )

PS-00026

( 1 )

( 2 )

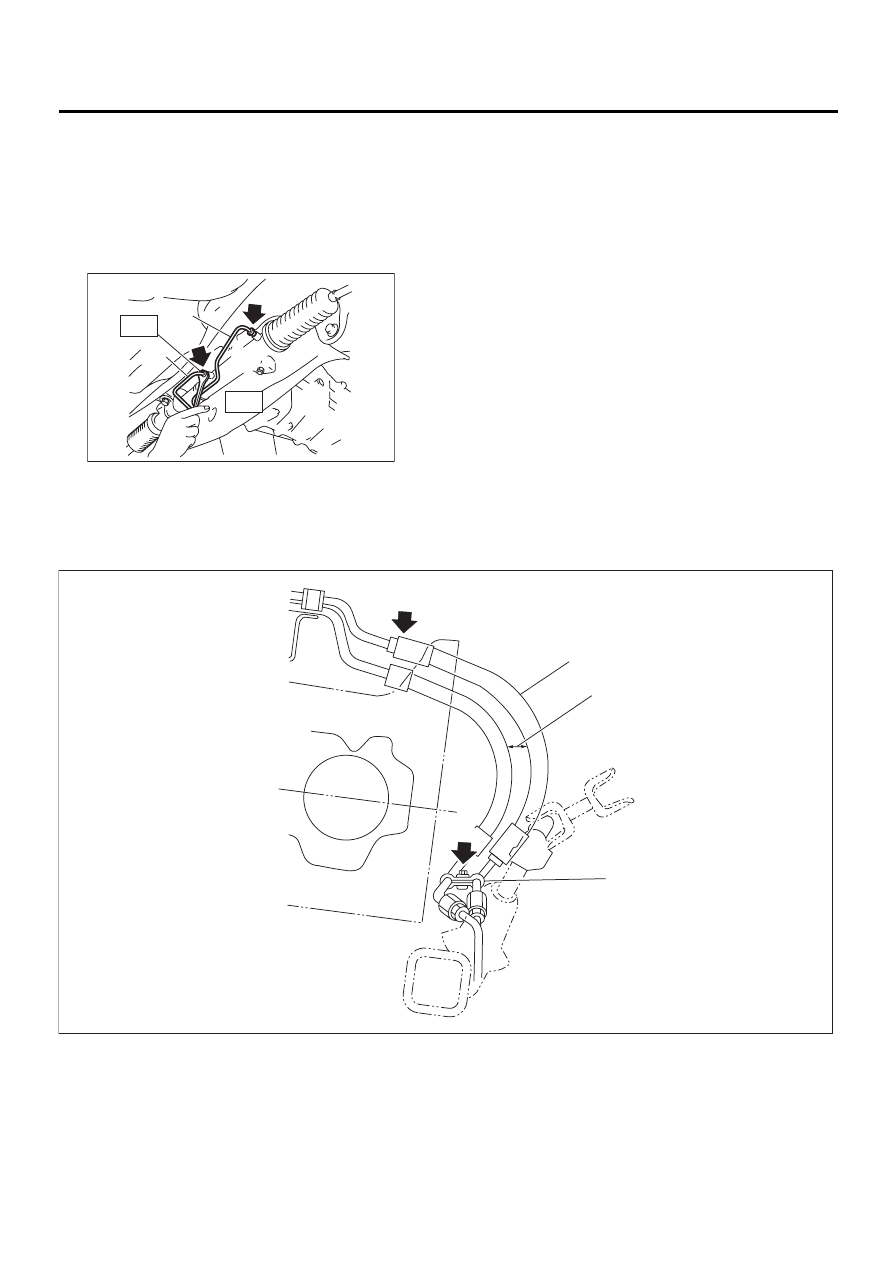

PS-74

POWER ASSISTED SYSTEM (POWER STEERING)

PIPE ASSEMBLY

RHD model
Connect pipes A and B to four pipe joints of gear-
box. Connect upper pipe A first, and lower pipe B
second.

Tightening torque:

T1: 20 N·m (2.0 kgf-m, 14.5 ft-lb)
T2: 24 N·m (2.4 kgf-m, 17.4 ft-lb)

6) Install jack-up plate.
7) Connect battery ground cable.
8) Feed the specified fluid.

NOTE:
Never start the engine before feeding the fluid; oth-
erwise vane pump might be seized up.

LHD model

(1) Pipe A

(2) Pipe B

PS-00336

( 1 )

( 2 )

T1

T2

(1) High-pressure hose

(2) No interference is allowed

between hoses.

(3) Clearance between crossmember

and pipe: 3 - 8 (0.12 - 0.31)

PS-00179

( 1 )

( 2 )

( 3 )

( A )

( B )

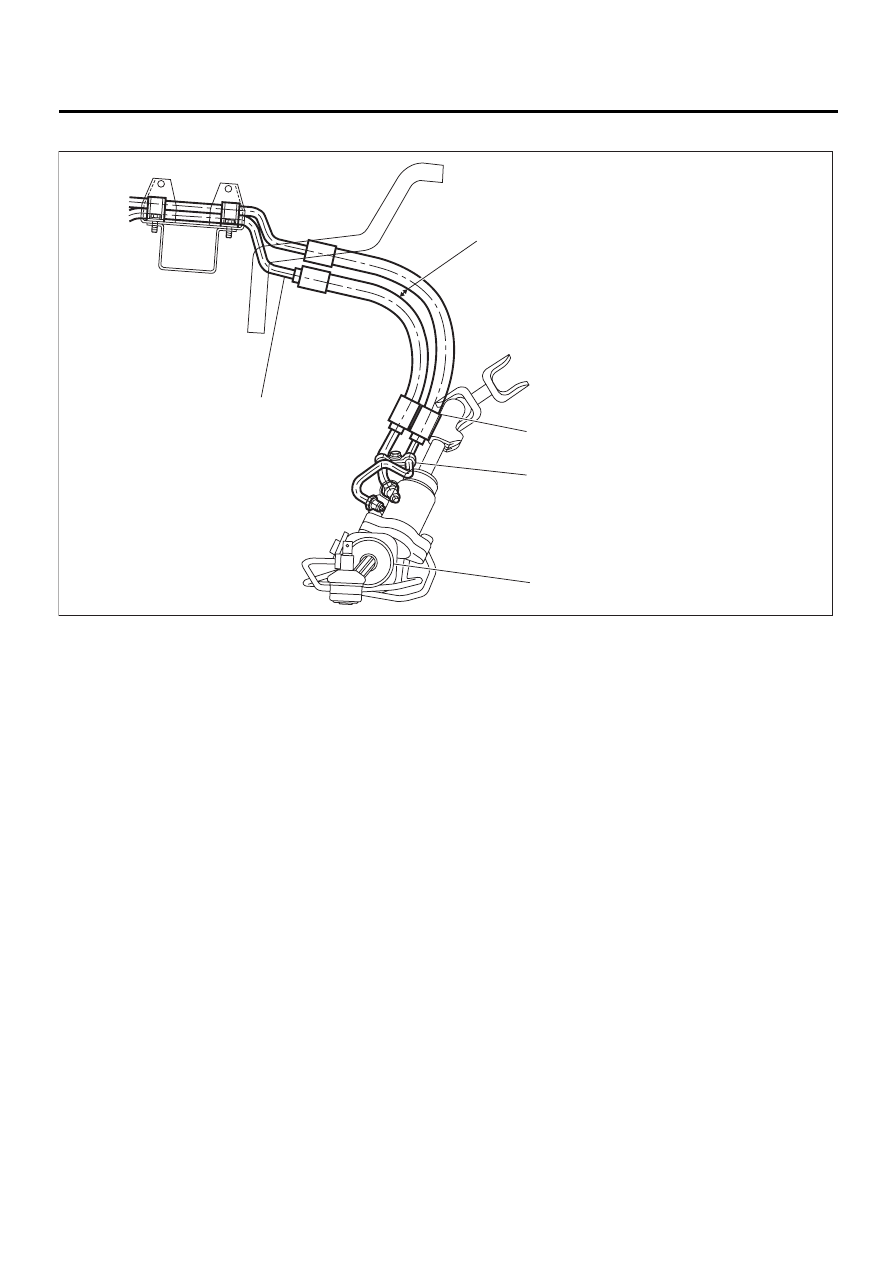

PS-75

POWER ASSISTED SYSTEM (POWER STEERING)

PIPE ASSEMBLY

RHD model

9) Finally check clearance between pipes and/or
hoses, as shown above.
If clearance between cruise control pump and pow-
er steering hose is less than 10 mm (0.39 in), pro-
ceed as follows:

(1) Move clamped section (A) (refer to figure
above.) down to a point where pipe is close to
crossmember.

Pipe-to-crossmember clearance:

10 mm (0.39 in), min.

(2) Check that clearance between cruise con-
trol pump and power steering hose is at least 10
mm (0.39 in). If it is not, bend section (B) down
until a clearance of at least 10 mm (0.39 in) is
obtained.

(1) No interference is allowed

between hoses.

(3) Clearance between side frame

and hose: 15 mm (0.59 in) or
more

(4) Clearance between crossmember

and pipe: 5 — 13 mm (0.20 —
0.51 in)

(2) Clearance between blow-by hose

and pipe: 3 — 5 mm (0.12 — 0.20
in)

(5) Steering gearbox

PS-00337

( 1 )

( 2 )

( 3 )

( 4 )

( 5 )
