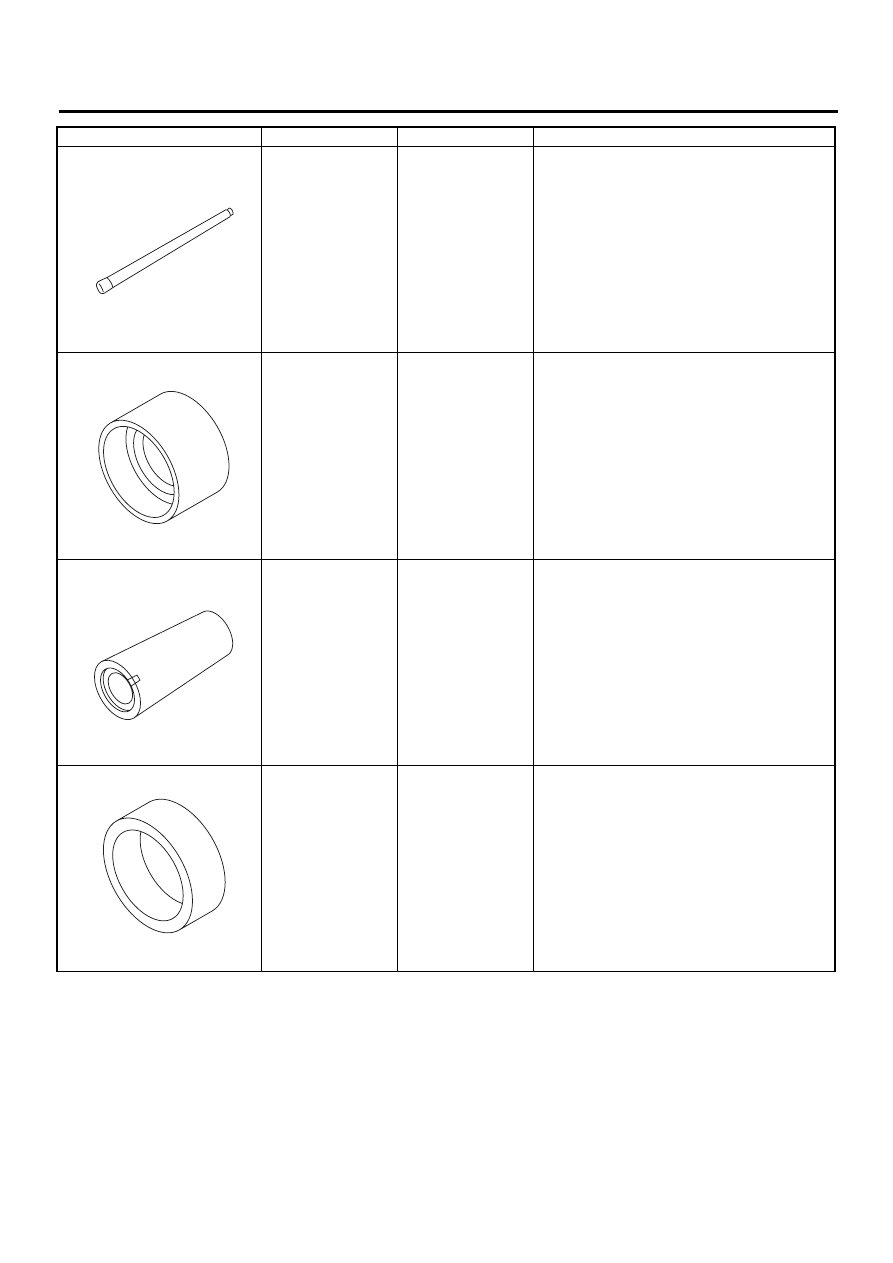

PS-20

POWER ASSISTED SYSTEM (POWER STEERING)

GENERAL DESCRIPTION

927580000

REMOVER

Used for removing back-up ring and oil seal.

927520000

INSTALLER D

Used for installing pinion bearing.

927530000

INSTALLER E

Used for installing pinion bearing.

927570000

SPACER

Used for installing pinion oil seal.

ILLUSTRATION

TOOL NUMBER

DESCRIPTION

REMARKS

ST-927580000

ST-927520000

ST-927530000

ST-927570000

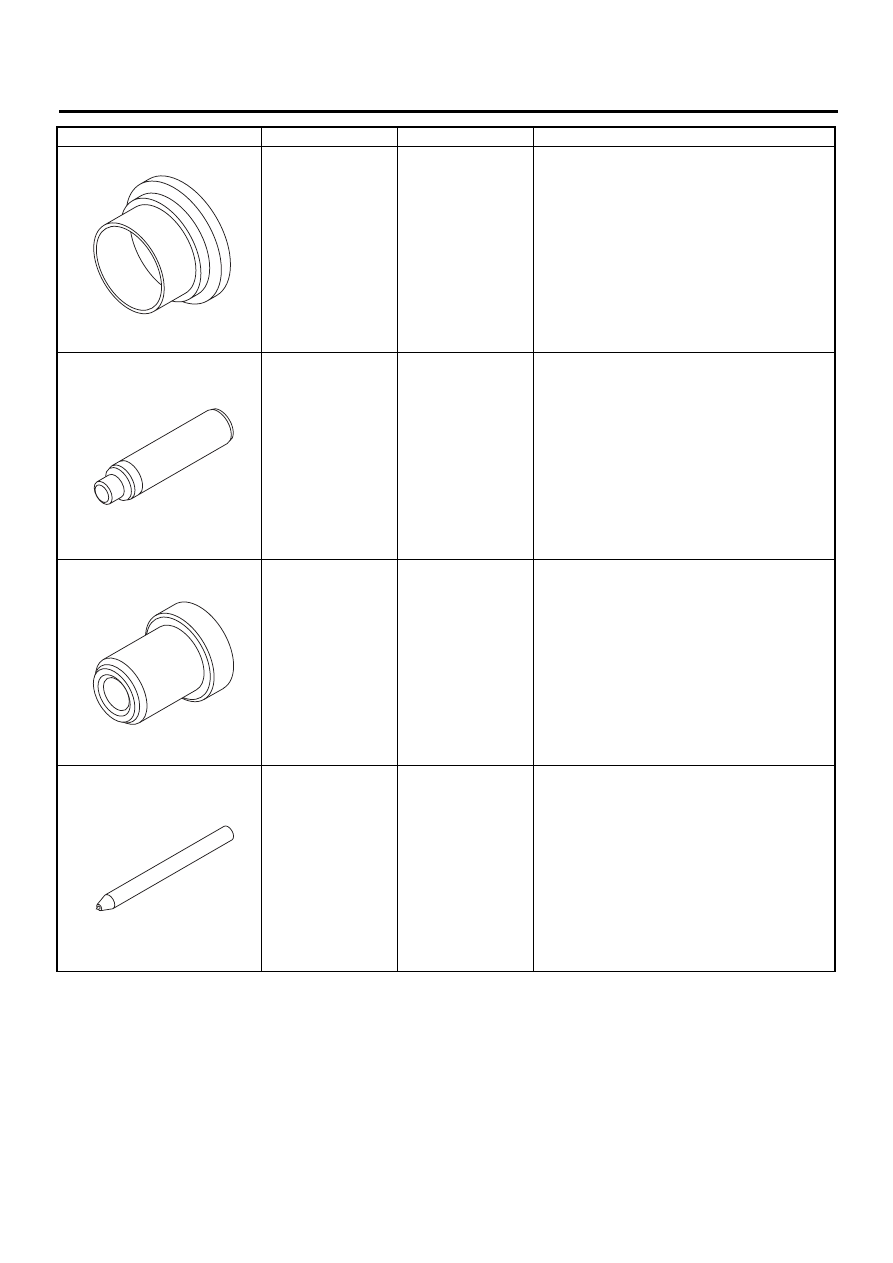

PS-21

POWER ASSISTED SYSTEM (POWER STEERING)

GENERAL DESCRIPTION

34199AE000

RACK OIL SEAL
GUIDE

Used for installing rack and seal into housing
assembly.

34099FA030

INSTALLER &
REMOVER

Used for removing and installing rack oil seal
(outer & inner).

34199AE010

INSTALLER

Used for installing rack oil seal (outer).

34099FA060

PUNCH

Used for caulking.

ILLUSTRATION

TOOL NUMBER

DESCRIPTION

REMARKS

ST34199AE000

ST34099FA030

ST34199AE010

ST34099FA060

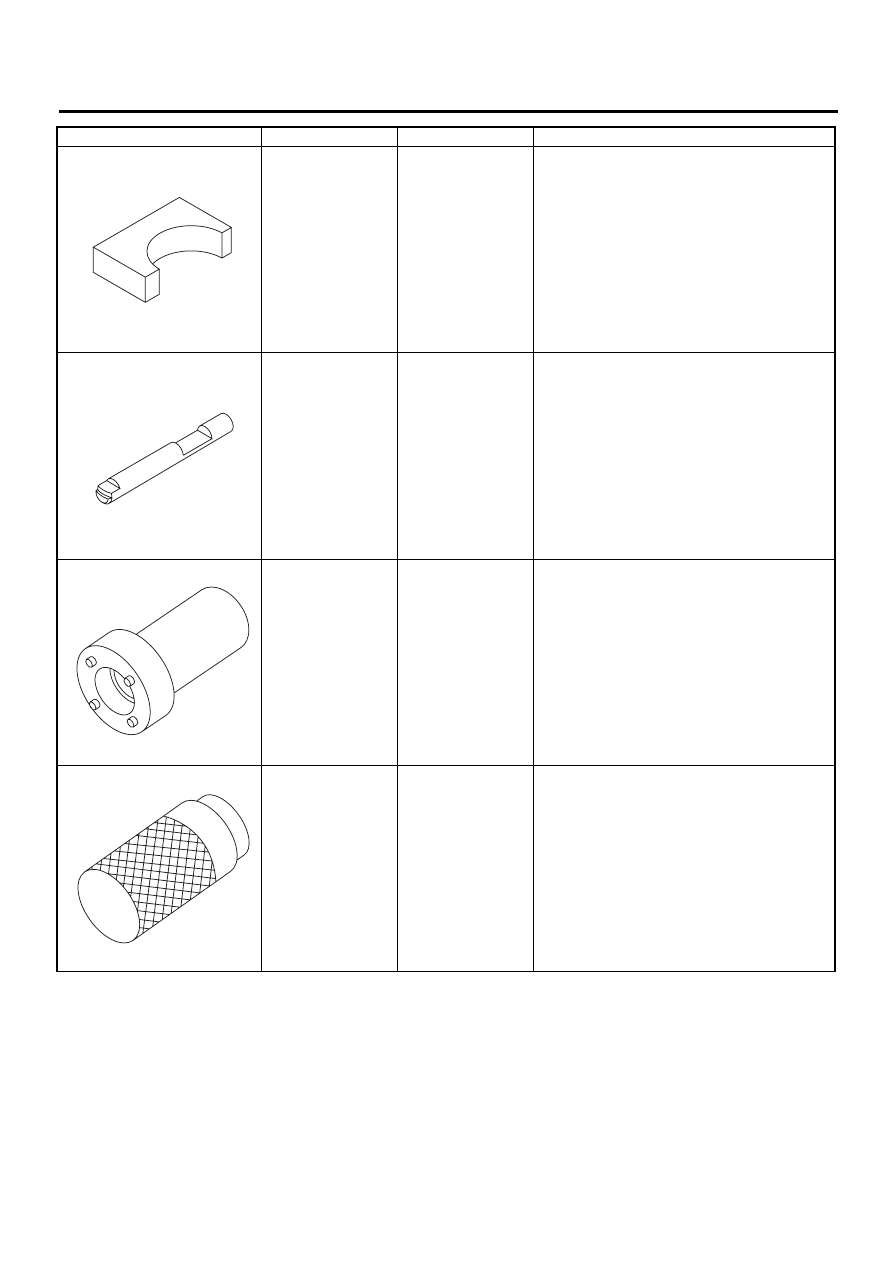

PS-22

POWER ASSISTED SYSTEM (POWER STEERING)

GENERAL DESCRIPTION

34099FA070

BASE

Used for supporting housing assembly.

34099FA080

PUNCH

Used for removing caulking.

34199AE090

PLUG WRENCH

Used for removing plug.

34199AE100

PLUG OIL SEAL
REMOVER

Used for removing plug oil seal.

ILLUSTRATION

TOOL NUMBER

DESCRIPTION

REMARKS

ST34099FA070

ST34099FA080

ST34199AE090

ST34199AE100

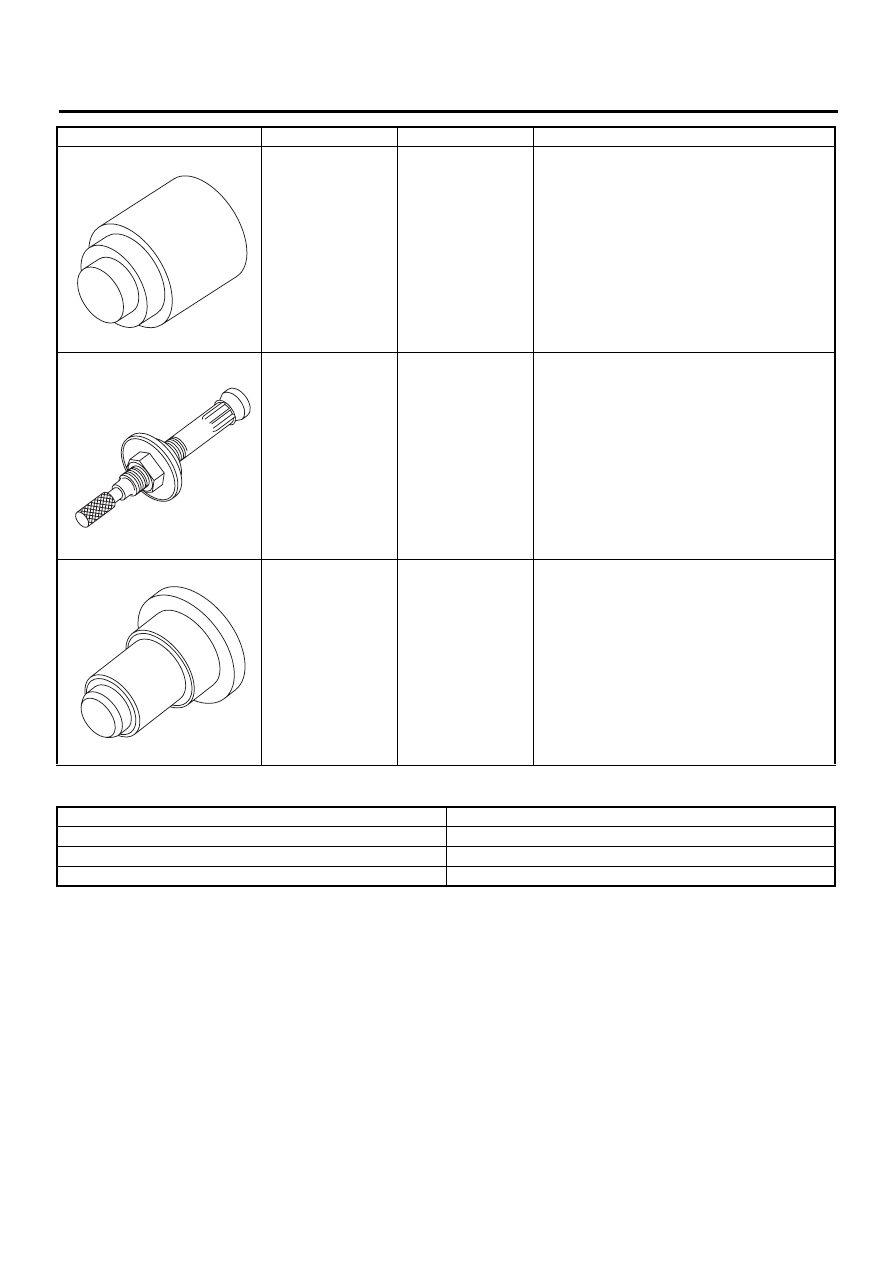

PS-23

POWER ASSISTED SYSTEM (POWER STEERING)

GENERAL DESCRIPTION

2. GENERAL PURPOSE TOOLS

34199AE110

PLUG OIL SEAL
INSTALLER

Used for installing plug oil seal.

34199AE120

GEARBOX OIL
SEAL REMOVER

Used for removing gearbox oil seal.

34199AE130

GEARBOX OIL
SEAL INSTALLER

Used for installing gearbox oil seal.

TOOL NAME

REMARKS

Spring scale

Used for measuring tightening torque.

Snap ring pliers

Used for removing and installing snap ring.

Dial gauge

Used for measuring steering gearbox.

ILLUSTRATION

TOOL NUMBER

DESCRIPTION

REMARKS

ST34199AE110

ST34199AE120

ST34199AE130
