PS-16

POWER ASSISTED SYSTEM (POWER STEERING)

GENERAL DESCRIPTION

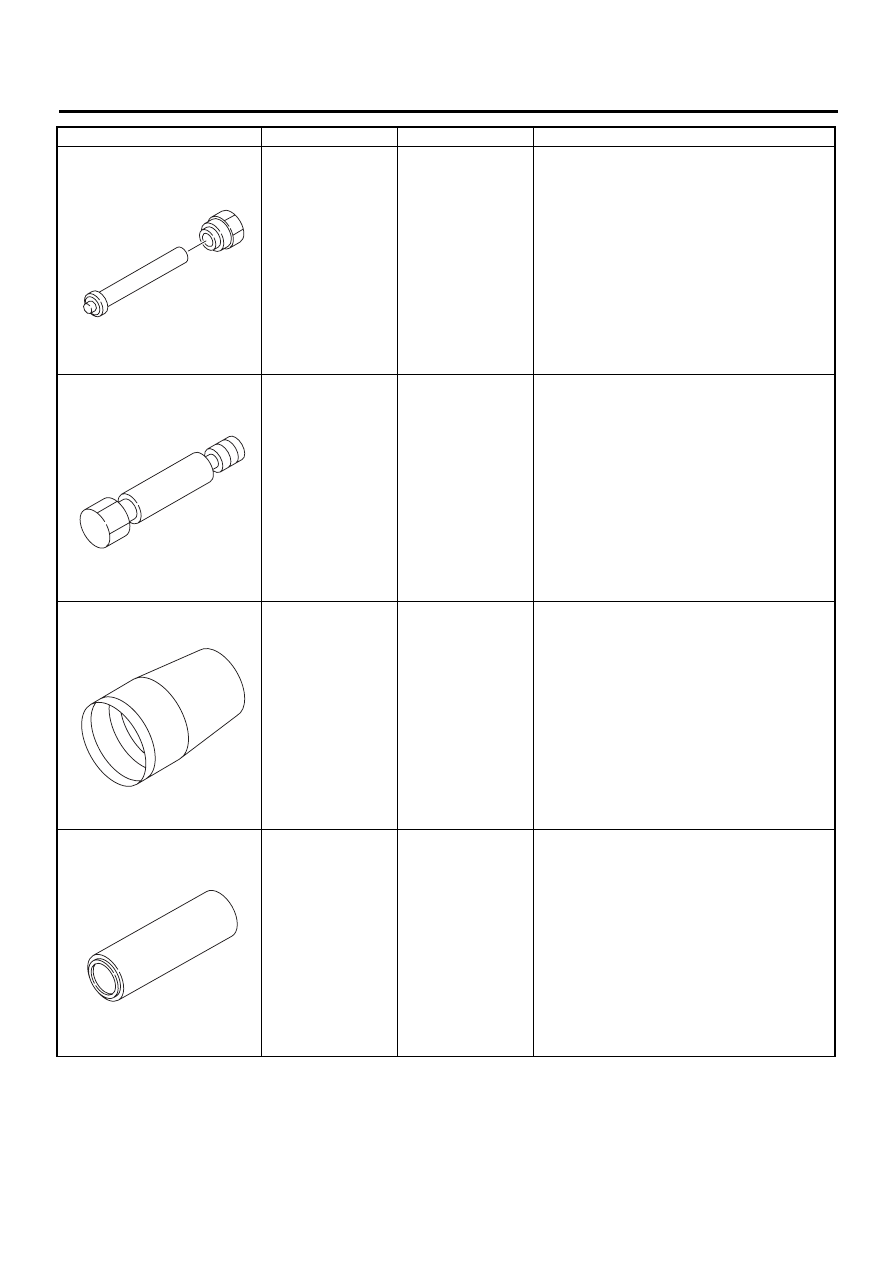

34199AE040

OIL CHARGE
GUIDE

Used for charging power steering oil.

927640000

INSTALLER B

Used for installing ball bearing into housing.

926370000

INSTALLER A

• Used for installing valve assembly into valve
housing assembly.
• Used with STAND BASE (927630000).

926390001

COVER &
REMOVER ASSY

Used for assembling rack assembly.

ILLUSTRATION

TOOL NUMBER

DESCRIPTION

REMARKS

ST34199AE040

ST-927640000

ST-926370000

ST-926390001

PS-17

POWER ASSISTED SYSTEM (POWER STEERING)

GENERAL DESCRIPTION

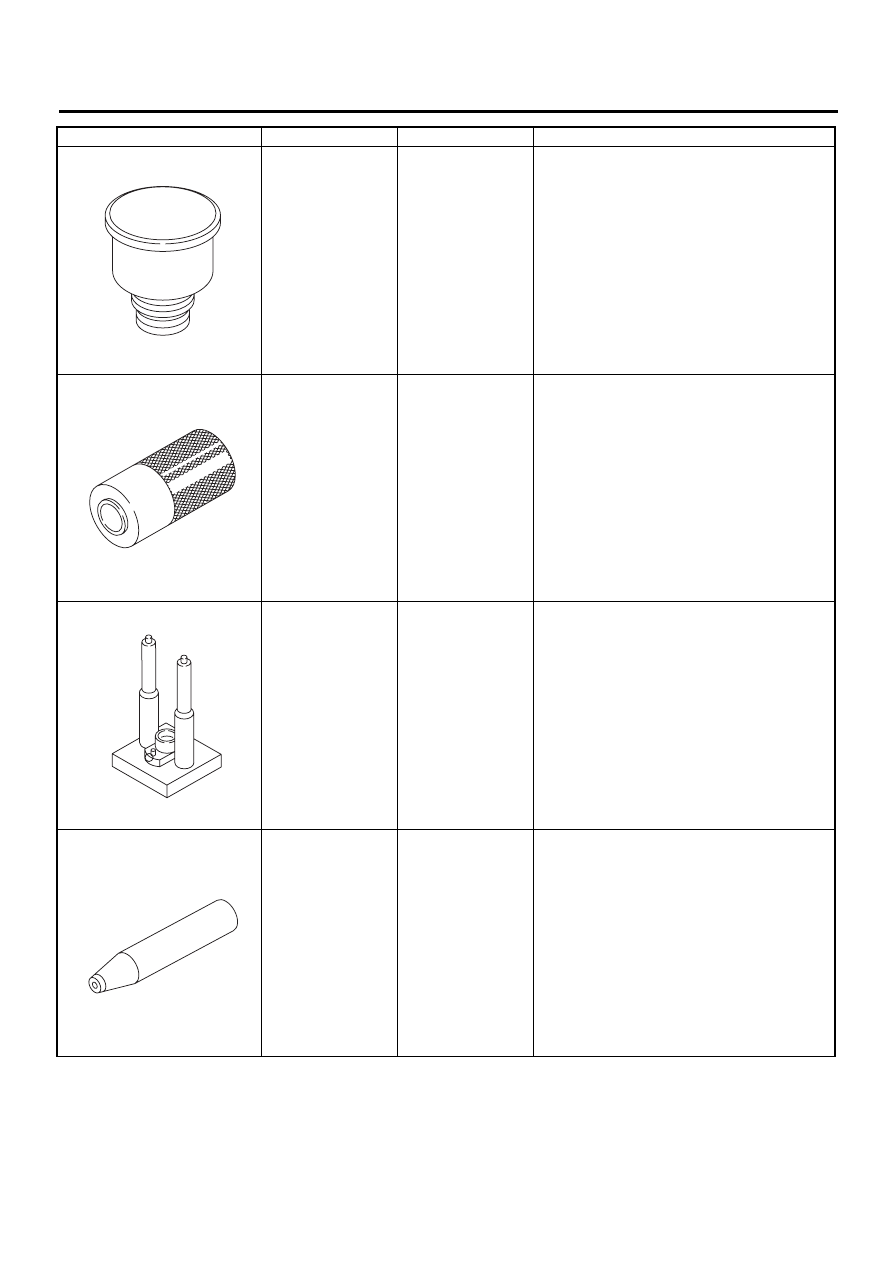

926420000

PLUG

When oil leaks from pinion side of gearbox
assembly, remove pipe B from valve housing,
attach this tool and check oil leaking points.

926400000

GUIDE

• Right side of rack when installing rack bush-
ing.
• Used with GUIDE (927660000).

927660000

GUIDE

• Right side of rack when installing rack bush-
ing.
• Used with GUIDE (926400000).

927620000

INSTALLER B

• Used for installing oil seal of valve housing.
• Used with INSTALLER A (926360000).

ILLUSTRATION

TOOL NUMBER

DESCRIPTION

REMARKS

ST-926420000

ST-926400000

ST-927660000

ST-927620000

PS-18

POWER ASSISTED SYSTEM (POWER STEERING)

GENERAL DESCRIPTION

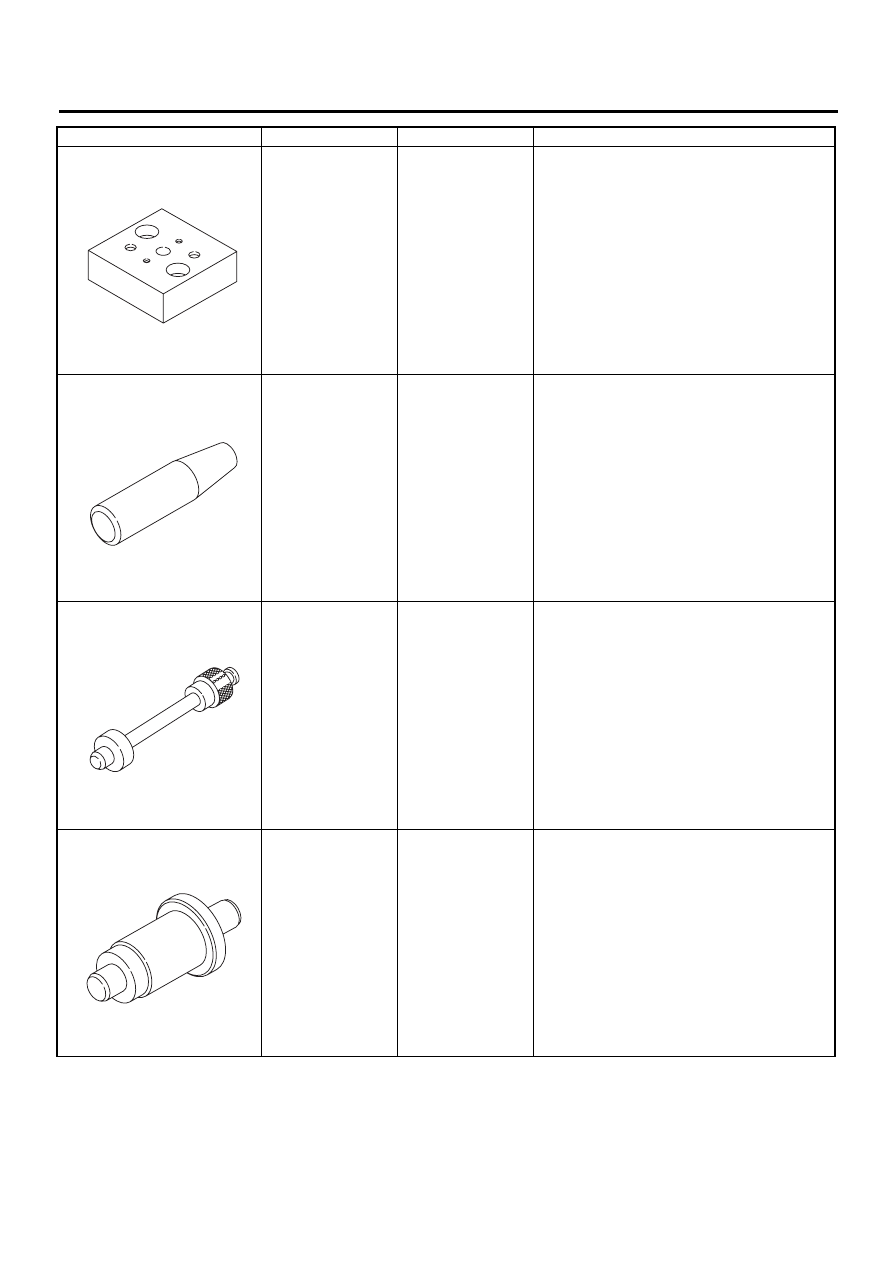

34099FA100

STAND BASE

Used for assembling power steering gearbox.

926360000

INSTALLER A

• Used as a guide to install oil seal.
• Used with INSTALLER B (927620000).

34199AE060

INSTALLER

Used for installing oil seal.

34099FA120

INSTALLER &
REMOVER SEAL

• Used for installing valve housing oil seal.
• Used with INSTALLER SEAL. (34099FA130)
• Used for installing valve housing ball bearing.
• Used for removing oil seal and ball bearing
from valve housing.

ILLUSTRATION

TOOL NUMBER

DESCRIPTION

REMARKS

ST34099FA100

ST-926360000

ST34199AE060

ST34099FA120

PS-19

POWER ASSISTED SYSTEM (POWER STEERING)

GENERAL DESCRIPTION

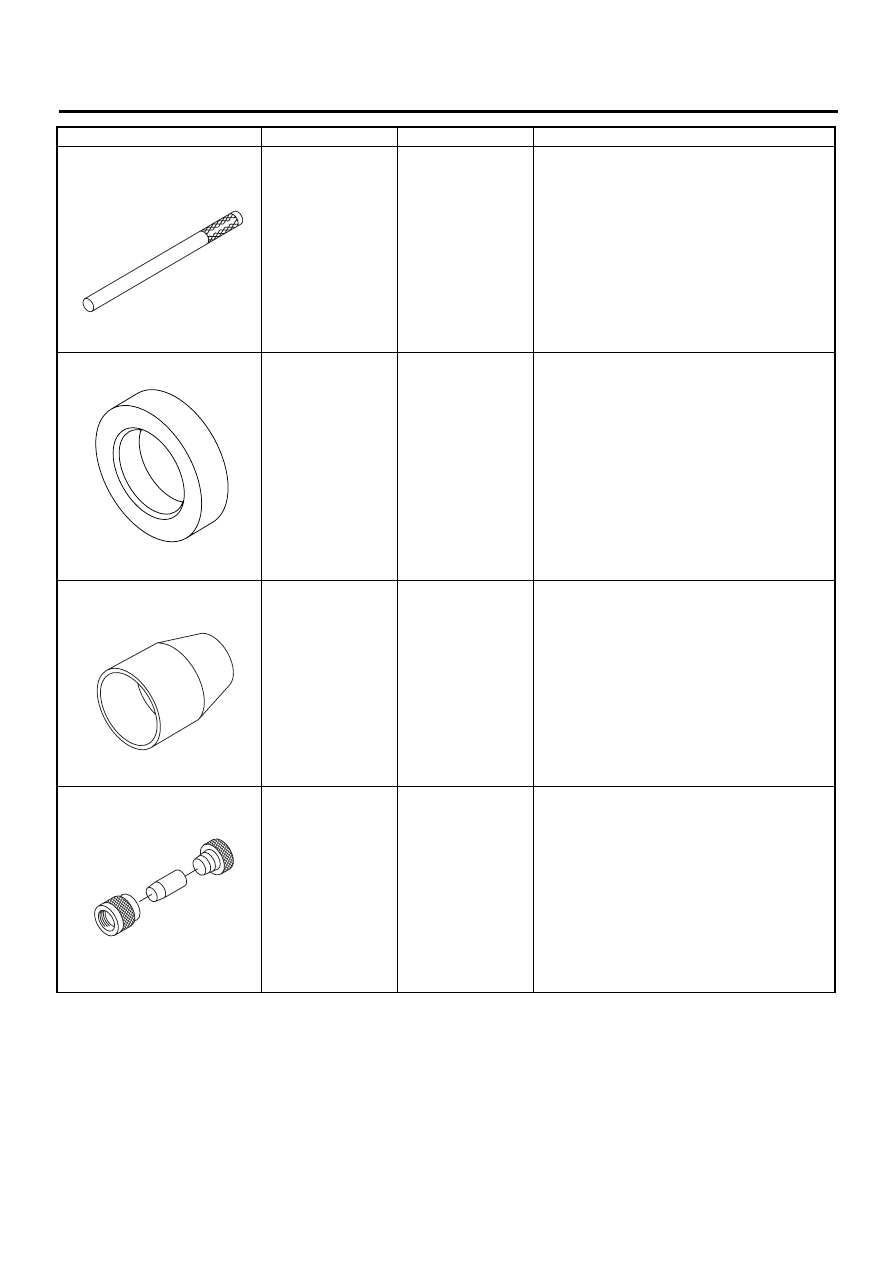

34199AE050

REMOVER OIL
SEAL

Used for removing back-up ring and oil seal.

34099FA130

INSTALLER SEAL

• Used for installing valve housing oil seal.
• Used with INSTALLER AND REMOVER
SEAL (34099FA120).

926250000

GUIDE

Used for installing holder ASSY into rack hous-
ing.

927490000

INSTALLER A, B, C

Used for installing oil seal into rack ASSY.

ILLUSTRATION

TOOL NUMBER

DESCRIPTION

REMARKS

ST34199AE050

ST34099FA130

ST-926250000

ST-927490000
