BR-14

BRAKE

GENERAL DESCRIPTION

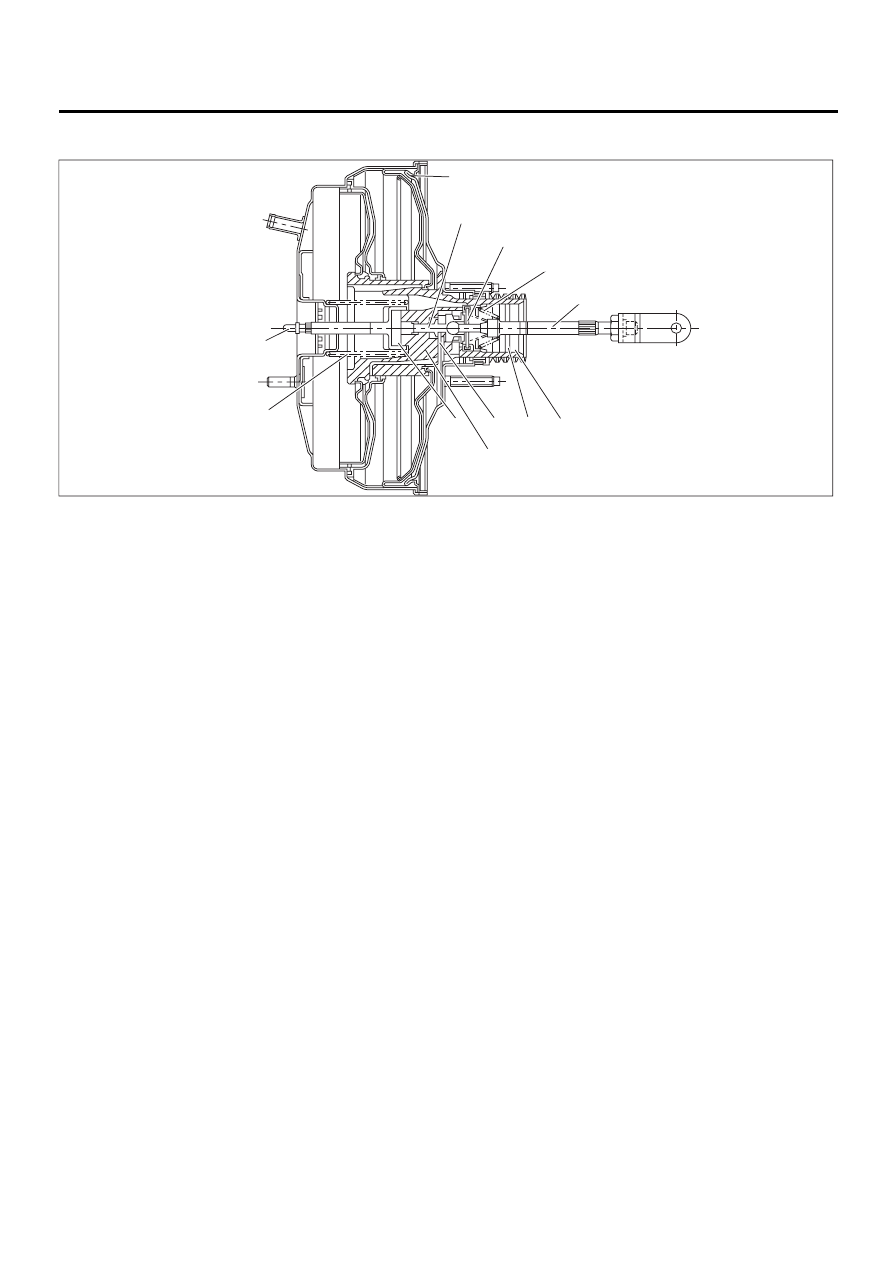

6. BRAKE BOOSTER

(1) Push rod

(5) Filter

(9) Valve body

(2) Return spring

(6) Silencer

(10) Plunger valve

(3) Reaction disc

(7) Operating rod

(11) Diaphragm plate

(4) Key

(8) Poppet valve

(12) Valve return spring

( 8 )

( 7 )

( 9 )

( 6 )

( 5 )

( 4 )

( 3 )

( 2 )

( 1 )

(11)

(10)

(12)

BR-00008

BR-15

BRAKE

GENERAL DESCRIPTION

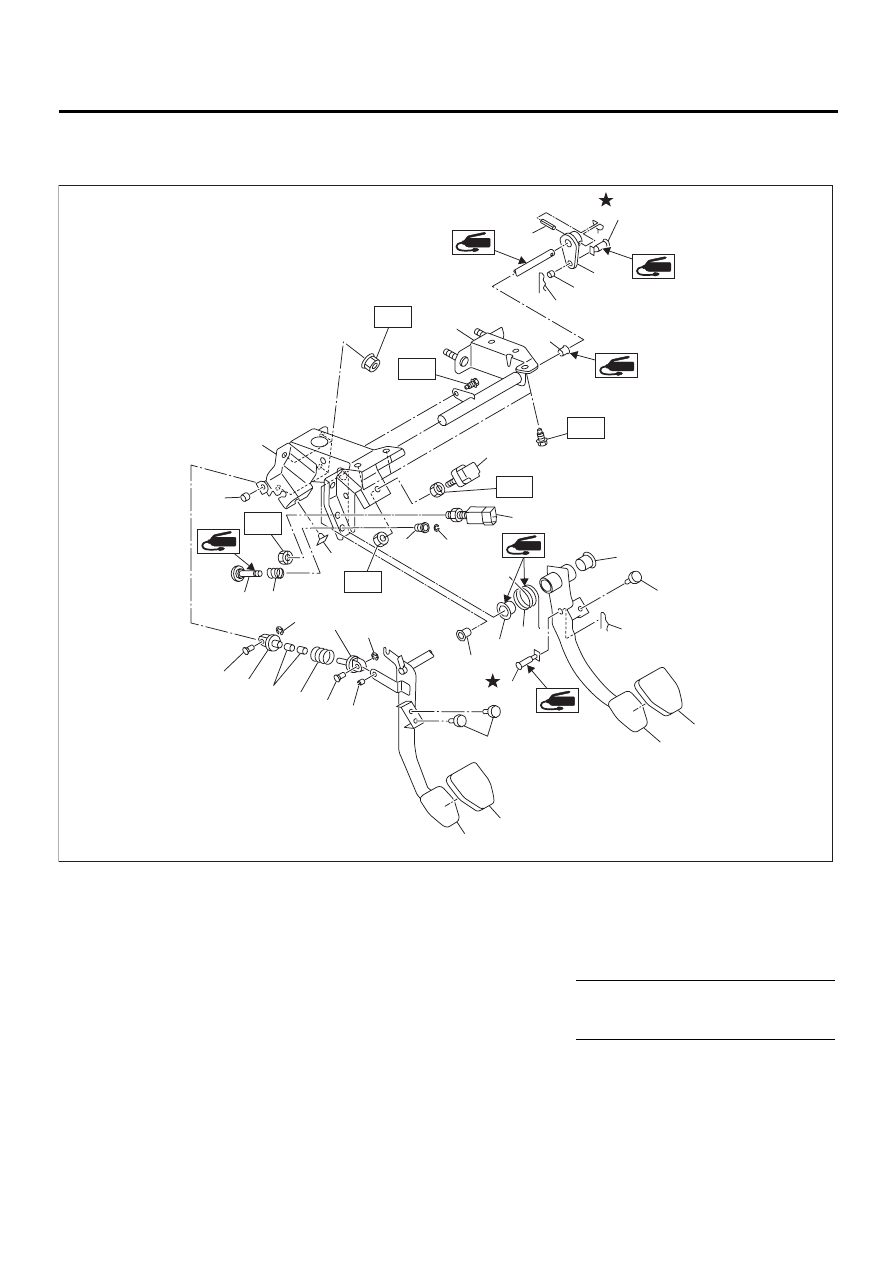

7. BRAKE PEDAL FOR MT MODEL

• LHD model

(1) Stopper

(12) Clutch clevis pin

(23) Stop light switch

(2) Bushing

(13) Assist rod A

(24) Pedal bracket

(3) Spring pin

(14) Clip

(25) Clutch master cylinder bracket

(4) Snap pin

(15) Assist spring

(26) Lever

(5) Brake pedal pad

(16) Assist bushing

(6) Brake pedal

(17) Assist rod B

Tightening torque: N·m (kgf-m, ft-lb)

(7) Clevis pin

(18) Spring S

T1: 8 (0.8, 5.8)

(8) Brake pedal spring

(19) Rod S

T2: 18 (1.8, 13.0)

(9) Clutch pedal pad

(20) Bushing S

(10) Clutch pedal

(21) Clip

(11) Bushing C

(22) Clutch switch (With cruise control)

BR-00211

( 2 )

( 3 )

( 7 )

( 4 )

( 6 )

( 5 )

( 9 )

( 4 )

( 1 )

( 2 )

( 8 )

( 2 )

( 2 )

( 7 )

( 1 )

( 1 )

(25)

(26)

(11)

(10)

(11)

(24)

(23)

(22)

(21)

(20)

(11)

(12)

(15)

(16)

(17)

(12)

(14)

(13)

(14)

(18)

(19)

T1

T1

T2

T2

T2

T1

BR-16

BRAKE

GENERAL DESCRIPTION

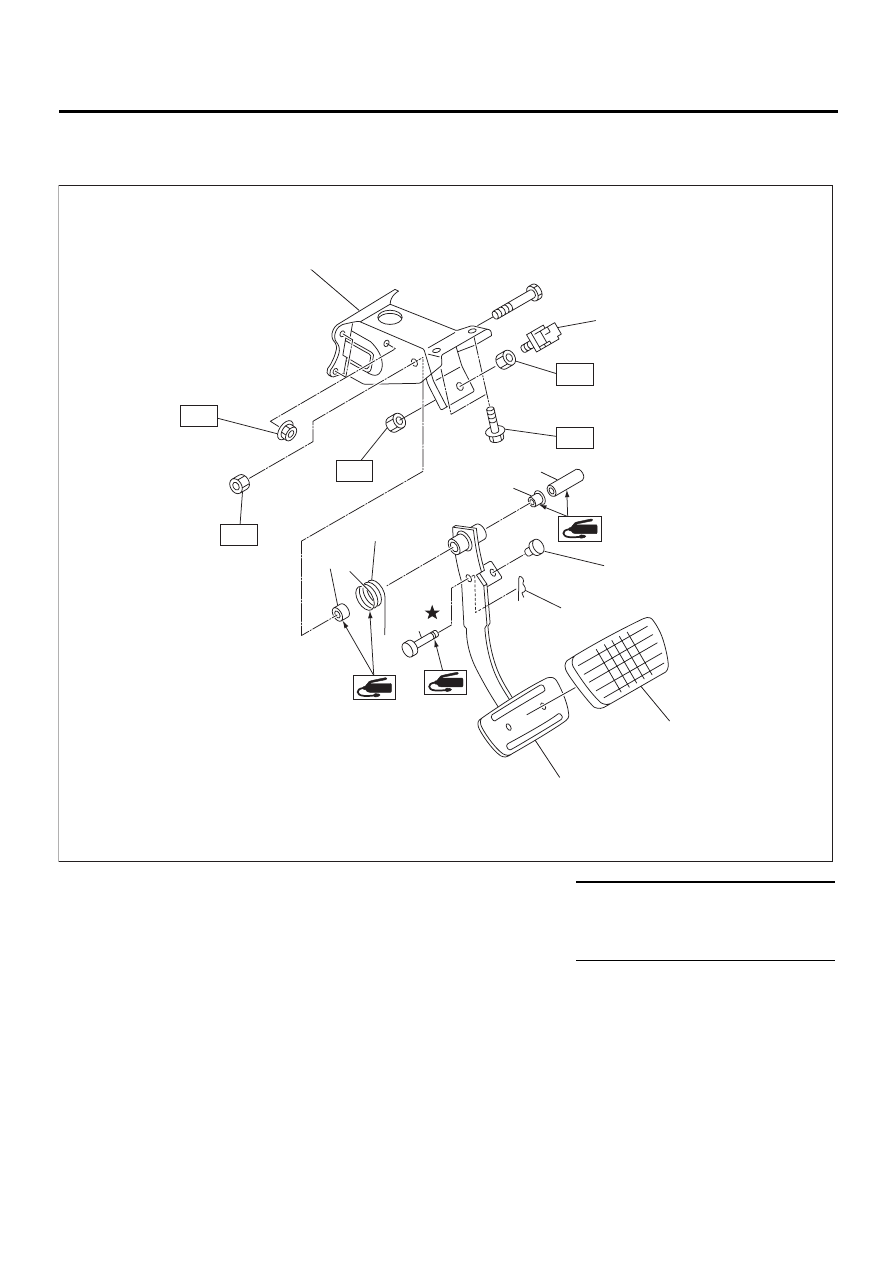

• RHD model

(1)

Stop light switch

(6)

Stopper

Tightening torque: N·m (kgf-m, ft-lb)

(2)

Pedal bracket

(7)

Snap pin

T1: 8 (0.8, 5.8)

(3)

Spacer

(8)

Brake pedal spring

T2: 18 (1.8, 13.0)

(4)

Bushing

(9)

Brake pedal pad

T3: 29 (3.0, 21.7)

(5)

Clevis pin

(10)

Brake pedal

( 2 )

( 1 )

( 4 )

( 8 )

( 7 )

( 9 )

( 6 )

( 5 )

( 4 )

( 3 )

(10)

T2

T1

T2

T1

T3

BR-00212

BR-17

BRAKE

GENERAL DESCRIPTION

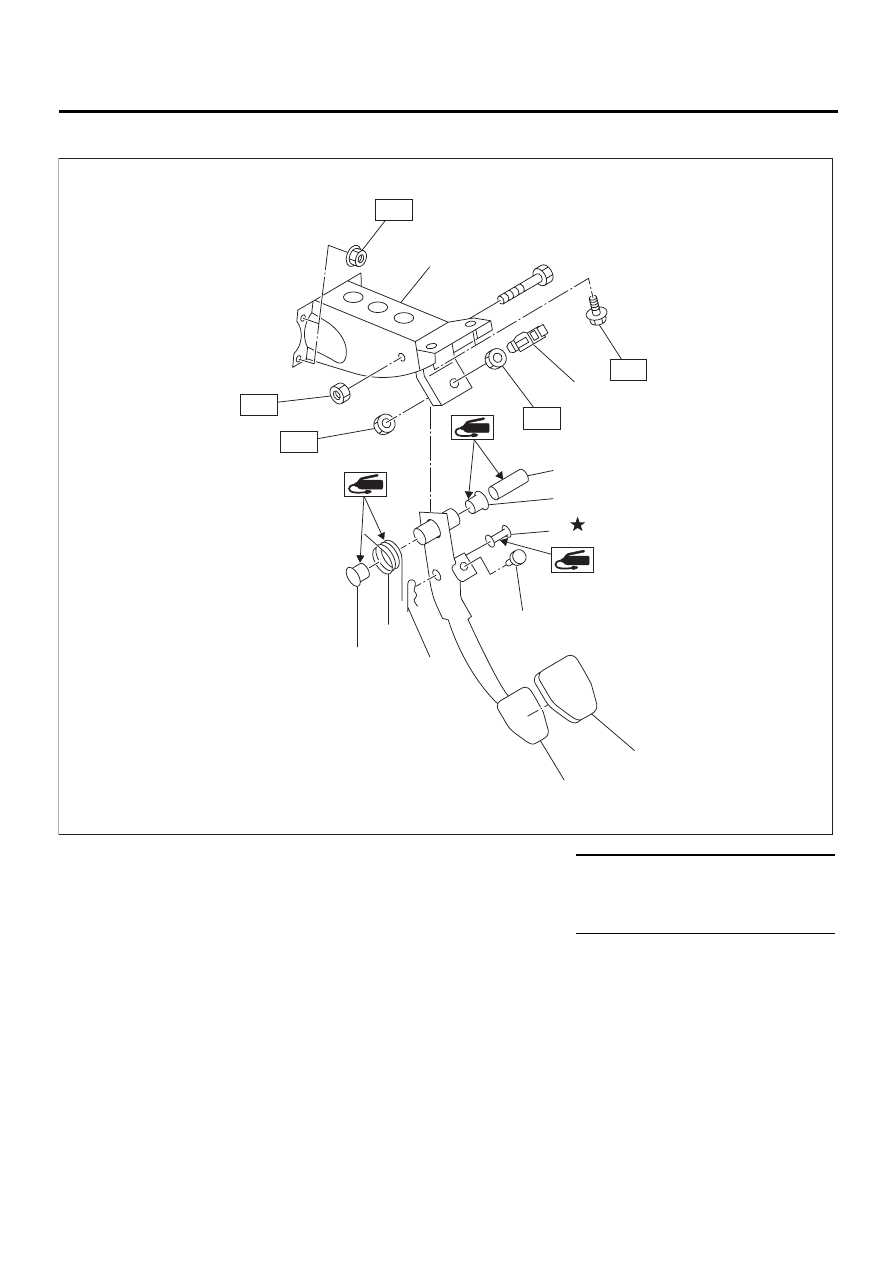

8. BRAKE PEDAL FOR AT MODEL

• LHD model

(1) Stopper

(7) Brake pedal pad

Tightening torque: N·m (kgf-m, ft-lb)

(2) Bushing

(8) Brake pedal

T1: 8 (0.8, 5.8)

(3) Pedal bracket

(9) Clevis pin

T2: 18 (1.8, 13.0)

(4) Stop light switch

(10) Brake pedal spring

T3: 30 (3.1, 22.4)

(5) Spacer

(6) Snap pin

BR-00162

T2

T2

T3

T1

T1

( 1 )

( 2 )

( 2 )

( 3 )

( 4 )

( 5 )

( 6 )

( 7 )

( 8 )

( 9 )

(10)
