Subaru Legacy III (2000-2003 year). Manual - part 812

BR-6

BRAKE

GENERAL DESCRIPTION

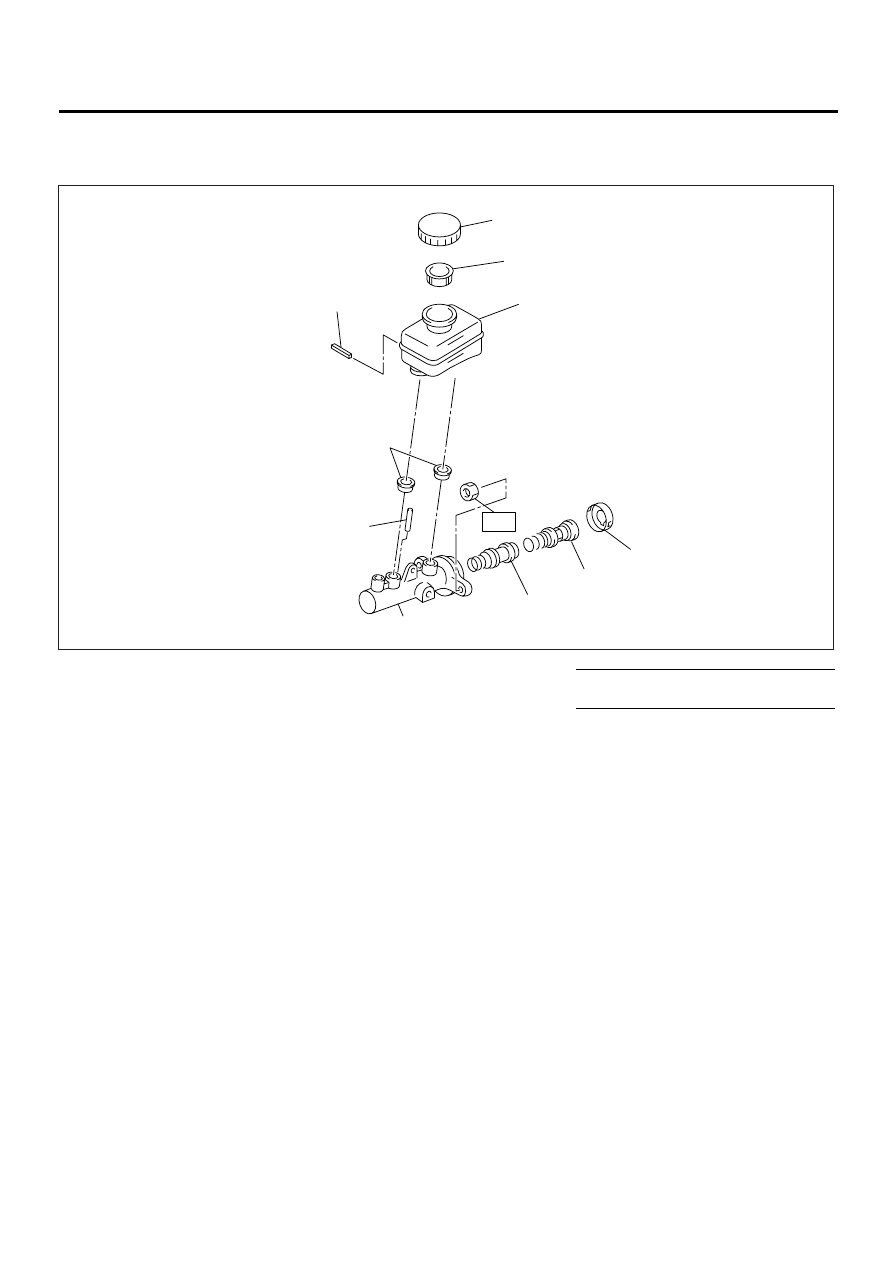

3. MASTER CYLINDER

• LHD models without VDC

(1) Cap

(6) Secondary piston

Tightening torque: N·m (kgf-m, ft-lb)

(2) Filter

(7) Cylinder body

T: 14 (1.4, 10.1)

(3) Reservoir tank

(8) Cylinder pin (With ABS)

(4) Piston retainer

(9) Seal

(5) Primary piston

(10) Pin

BR-00153

T

(1)

(2)

(3)

(4)

(5)

(6)

(7)

(8)

(9)

(10)

BR-7

BRAKE

GENERAL DESCRIPTION

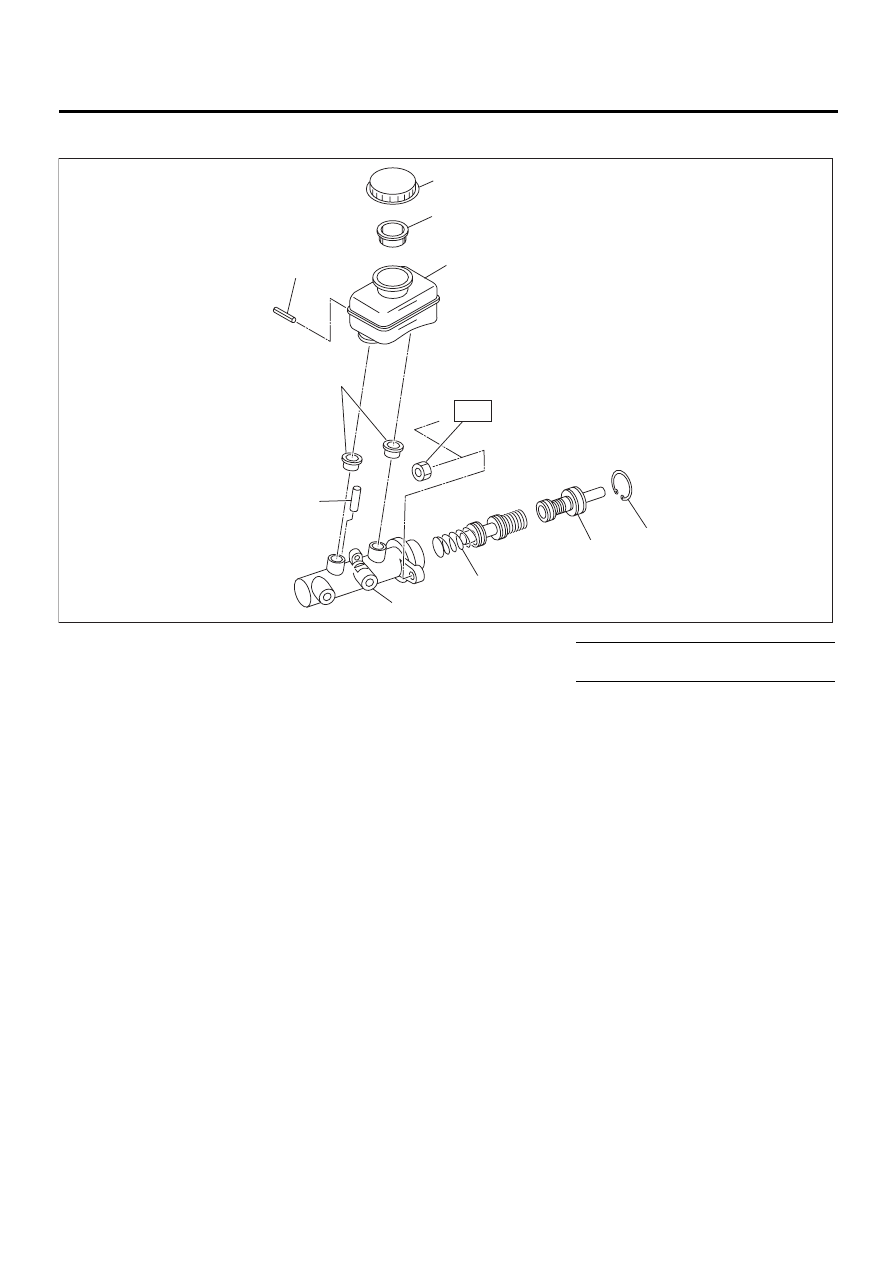

• LHD model with VDC

(1) Cap

(6) Secondary piston

Tightening torque: N·m (kgf-m, ft-lb)

(2) Filter

(7) Cylinder body

T: 14 (1.4, 10.1)

(3) Reservoir tank

(8) Cylinder pin

(4) C-ring

(9) Seal

(5) Primary piston

(10) Pin

BR-00206

( 1 )

( 2 )

( 3 )

( 4 )

( 5 )

( 6 )

( 7 )

( 8 )

( 9 )

(10)

T

BR-8

BRAKE

GENERAL DESCRIPTION

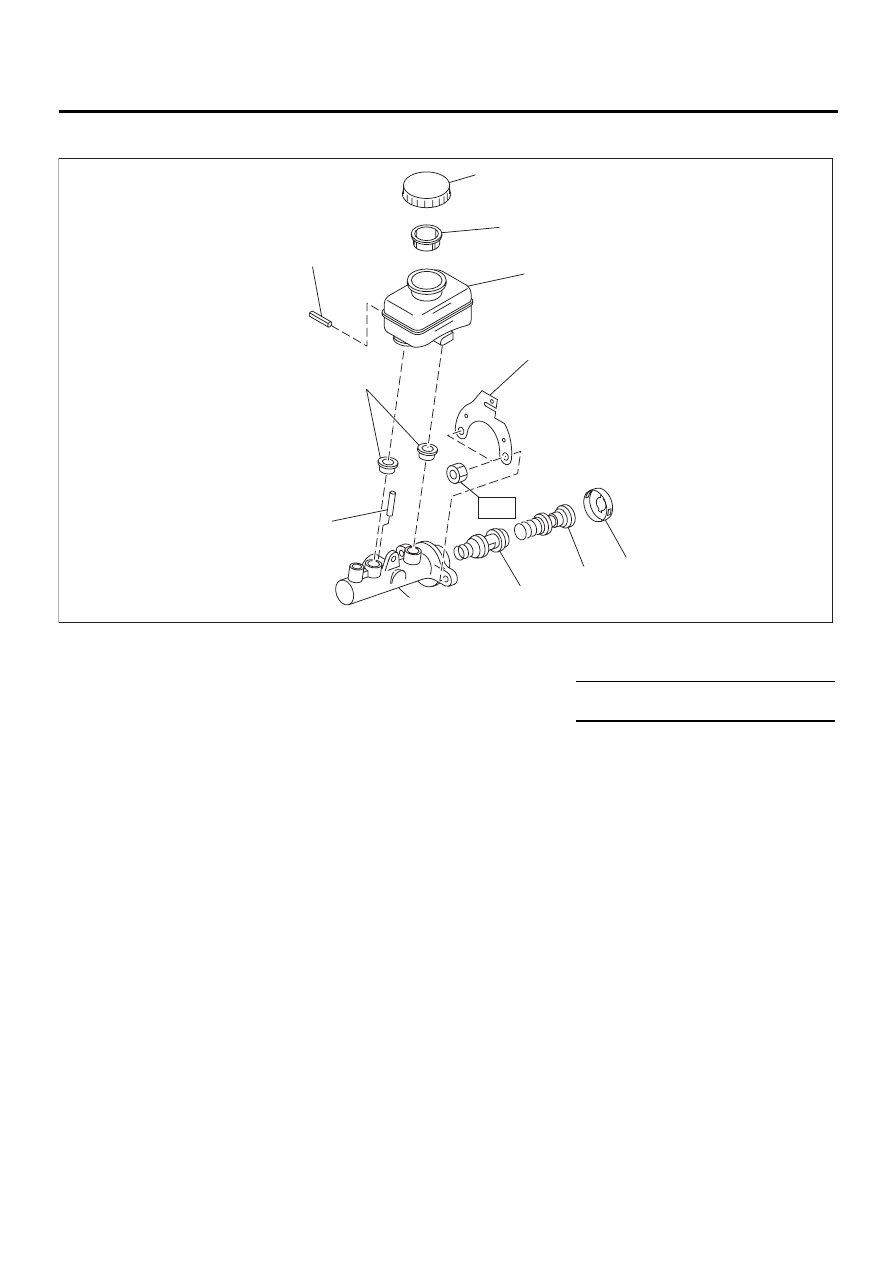

• RHD model

(1) Cap

(6) Primary piston

(11) Pin

(2) Filter

(7) Secondary piston

(3) Reservoir tank

(8) Cylinder body

Tightening torque: N·m (kgf-m, ft-lb)

(4) Bracket

(9) Cylinder pin (With ABS)

T: 14 (1.4, 10.1)

(5) Piston retainer

(10) Seal

BR-00207

( 1 )

( 2 )

( 3 )

( 4 )

( 5 )

( 6 )

( 7 )

( 8 )

( 9 )

(10)

(11)

T

BR-9

BRAKE

GENERAL DESCRIPTION

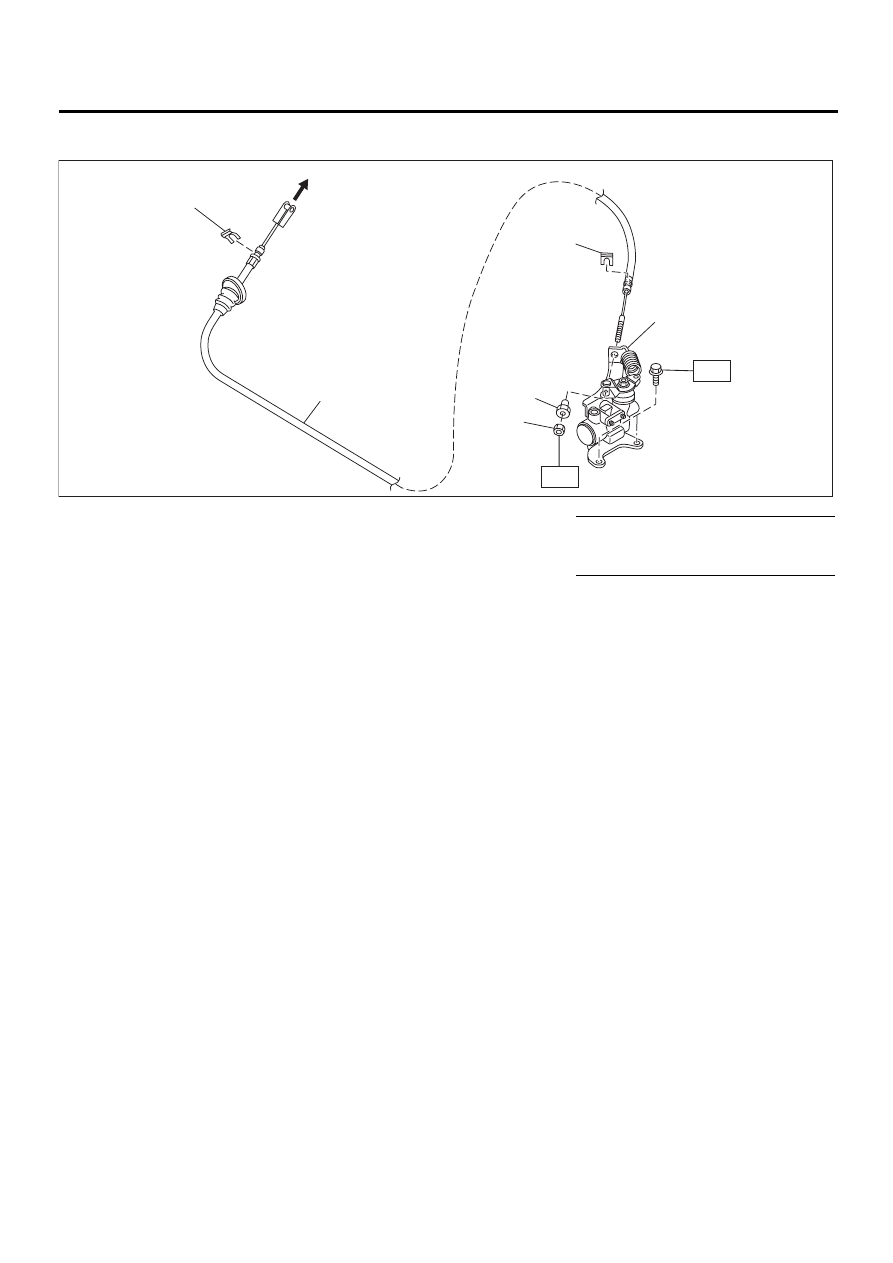

4. HILL HOLDER

(1) Clamp

(4) Adjusting nut

Tightening torque: N·m (kgf-m, ft-lb)

(2) PHV cable

(5) Lock nut

T1: 3.5 (0.35, 2.5)

(3) PHV (Pressure hold valve)

(6) To clutch pedal

T2: 18 (1.8, 13.0)

BR-00121

( 1 )

( 1 )

( 2 )

( 3 )

( 4 )

( 5 )

T1

T2

( 6 )
