Subaru Legacy III (2000-2003 year). Manual - part 710

ABS-58

ABS (DIAGNOSTICS)

DIAGNOSTICS CHART WITH DIAGNOSIS CONNECTOR

Q: DTC 32 ABNORMAL OUTLET SOLENOID VALVE CIRCUIT(S) IN ABSCM&H/

U (FRONT RH)

NOTE:
For the diagnostic procedure, refer to DTC 38. <Ref. to ABS-60, DTC 38 ABNORMAL OUTLET SOLENOID
VALVE CIRCUIT(S) IN ABSCM&H/U (REAR LH), Diagnostics Chart with Diagnosis Connector.>

R: DTC 34 ABNORMAL OUTLET SOLENOID VALVE CIRCUIT(S) IN ABSCM&H/

U (FRONT LH)

NOTE:
For the diagnostic procedure, refer to DTC 38. <Ref. to ABS-60, DTC 38 ABNORMAL OUTLET SOLENOID
VALVE CIRCUIT(S) IN ABSCM&H/U (REAR LH), Diagnostics Chart with Diagnosis Connector.>

S: DTC 36 ABNORMAL OUTLET SOLENOID VALVE CIRCUIT(S) IN ABSCM&H/

U (REAR RH)

NOTE:
For the diagnostic procedure, refer to DTC 38. <Ref. to ABS-60, DTC 38 ABNORMAL OUTLET SOLENOID
VALVE CIRCUIT(S) IN ABSCM&H/U (REAR LH), Diagnostics Chart with Diagnosis Connector.>

ABS-59

ABS (DIAGNOSTICS)

DIAGNOSTICS CHART WITH DIAGNOSIS CONNECTOR

MEMO:

ABS-60

ABS (DIAGNOSTICS)

DIAGNOSTICS CHART WITH DIAGNOSIS CONNECTOR

T: DTC 38 ABNORMAL OUTLET SOLENOID VALVE CIRCUIT(S) IN ABSCM&H/

U (REAR LH)

DIAGNOSIS:
• Faulty harness/connector
• Faulty outlet solenoid valve in ABSCM&H/U
TROUBLE SYMPTOM:
• ABS does not operate.

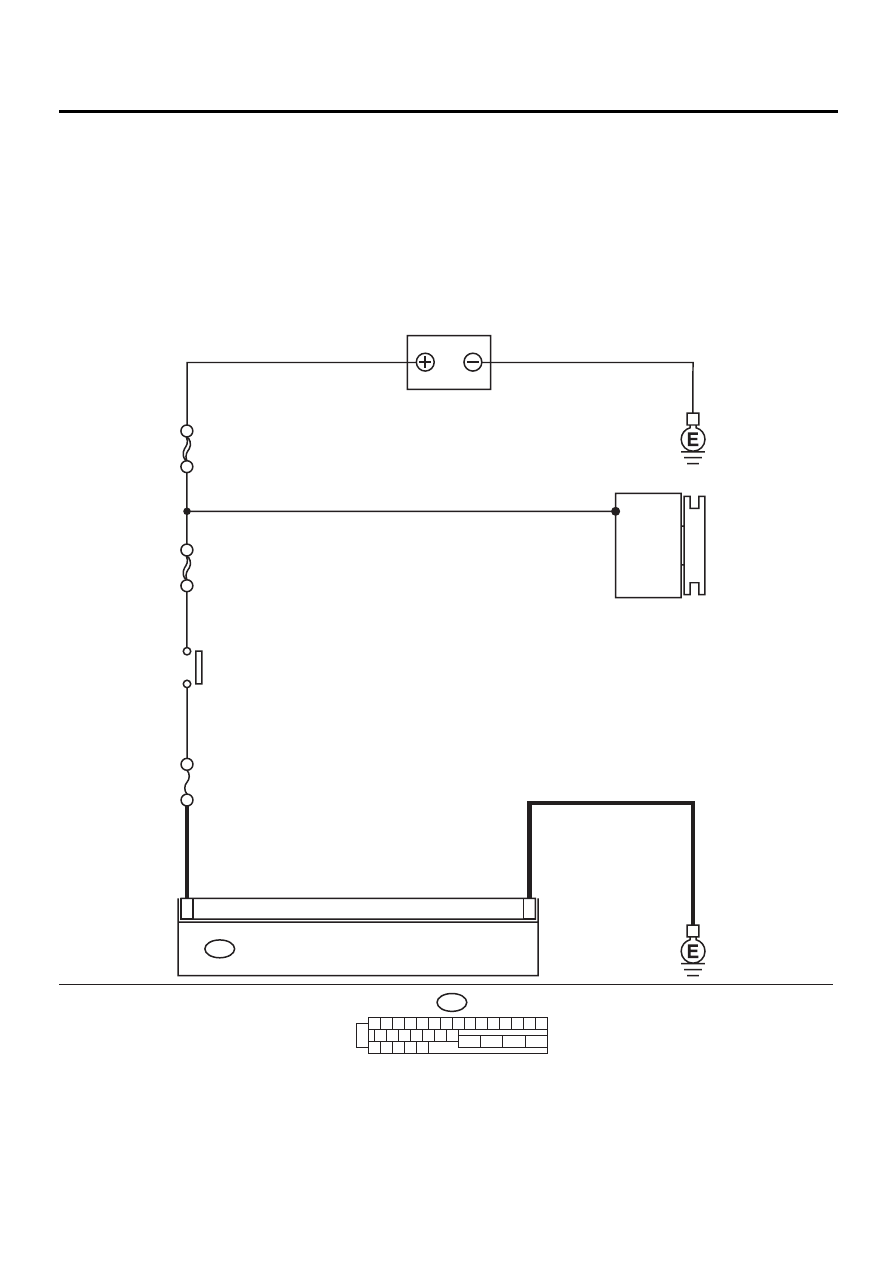

WIRING DIAGRAM:

ABS00294

1

23

ABS CONTROL MODULE AND HYDRAULIC CONTROL UNIT

F49

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15

16 17 18 19 20 21 22

27 28 29 30 31

23

24

25

26

F49

BATTERY

NO

. 18 15A

SBF-4 50A

SBF-1 100A

GENERATOR

IGNITION
SWITCH

ABS-61

ABS (DIAGNOSTICS)

DIAGNOSTICS CHART WITH DIAGNOSIS CONNECTOR

Step

Value

Yes

No

1

CHECK INPUT VOLTAGE OF ABSCM&H/U.
1) Disconnect connector from ABSCM&H/U.
2) Run the engine at idle.
3) Measure voltage between ABSCM&H/U

connector and chassis ground.

Connector & terminal

(F49) No. 1 (+) — Chassis ground (

−−−−

):

Is the measured value within the specified
range?

10 - 15 V

Go to step 2.

Repair harness
connector
between battery,
ignition switch and
ABSCM&H/U.

2

CHECK GROUND CIRCUIT OF ABSCM&H/U.
1) Turn ignition switch to OFF.
2) Measure resistance between ABSCM&H/U

connector and chassis ground.

Connector & terminal

(F49) No. 23 — Chassis ground:

Is the measured value less than the speci-
fied value?

0.5

Ω

Go to step 3.

Repair
ABSCM&H/U
ground harness.

3

CHECK POOR CONTACT IN CONNECTORS.
Is there poor contact in connectors between
generator, battery and ABSCM&H/U?

There is no poor contact.

Go to step 4.

Repair connector.

4

CHECK ABSCM&H/U.
1) Connect all connectors.
2) Erase the memory.
3) Perform inspection mode.
4) Read out the DTC.

Is the same DTC still being output?

Same DTC is not indicated.

Go to step 5.

Replace
ABSCM&H/U.
<Ref. to ABS-6,
ABS Control Mod-
ule and Hydraulic
Control Unit
(ABSCM&H/U).>

5

CHECK ANY OTHER DTC APPEARANCE.
Are other DTC being output?

Other DTC is not indicated.

A temporary poor
contact.

Proceed with the
diagnosis corre-
sponding to the
DTC.
