DI-18

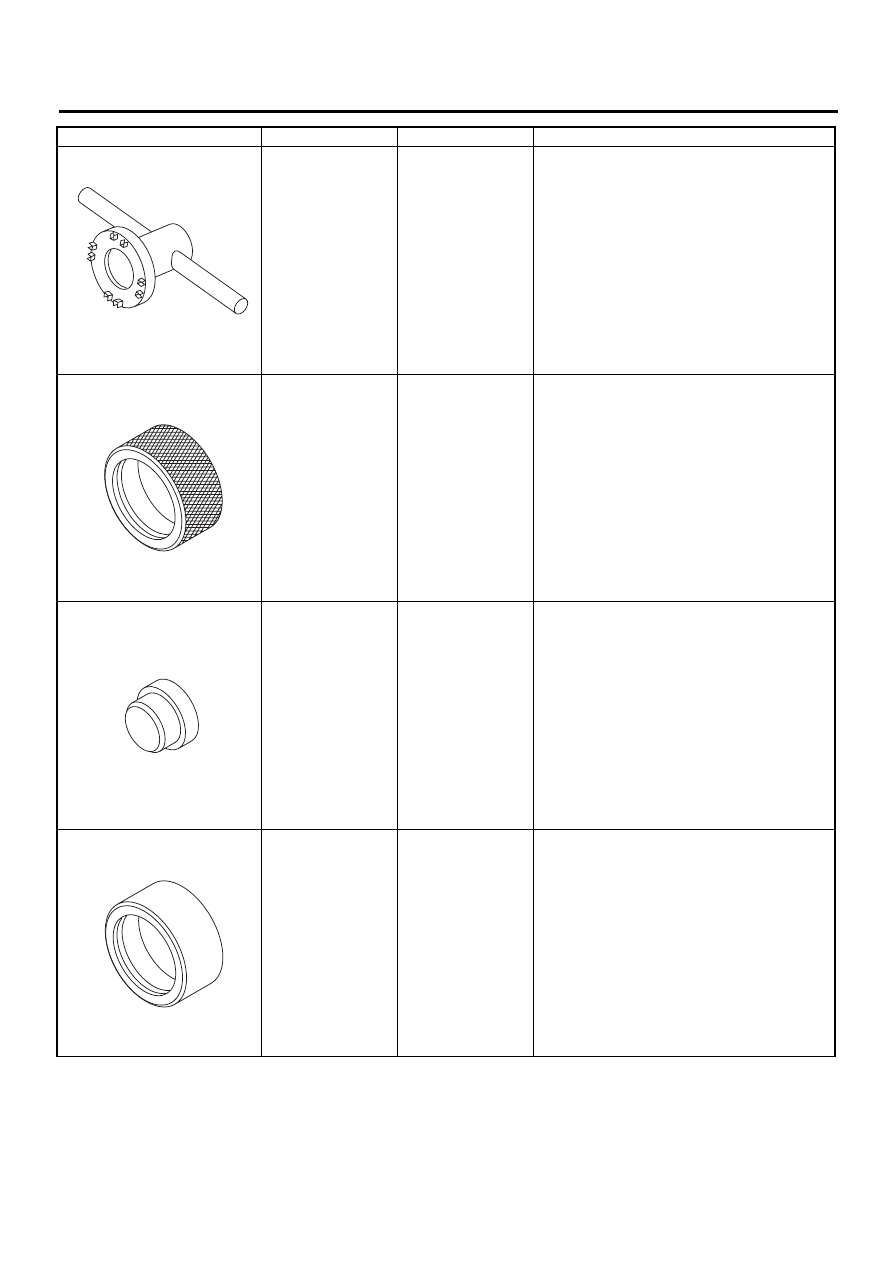

DIFFERENTIALS

GENERAL DESCRIPTION

499785500

WRENCH ASSY

• Used for removing and installing side oil seal
holder.
• For VA-type.

498447100

INSTALLER

• Used for installing oil seal.
• For VA-type.

399520105

SEAT

• Used for removing side bearing cone.
• Used with PULLER SET (899524100).
• For VA-type.

498485400

DRIFT

• Used for installing side bearing cone.
• For VA-type.

ILLUSTRATION

TOOL NUMBER

DESCRIPTION

REMARKS

ST-499785500

ST-498447100

ST-399520105

ST-498485400

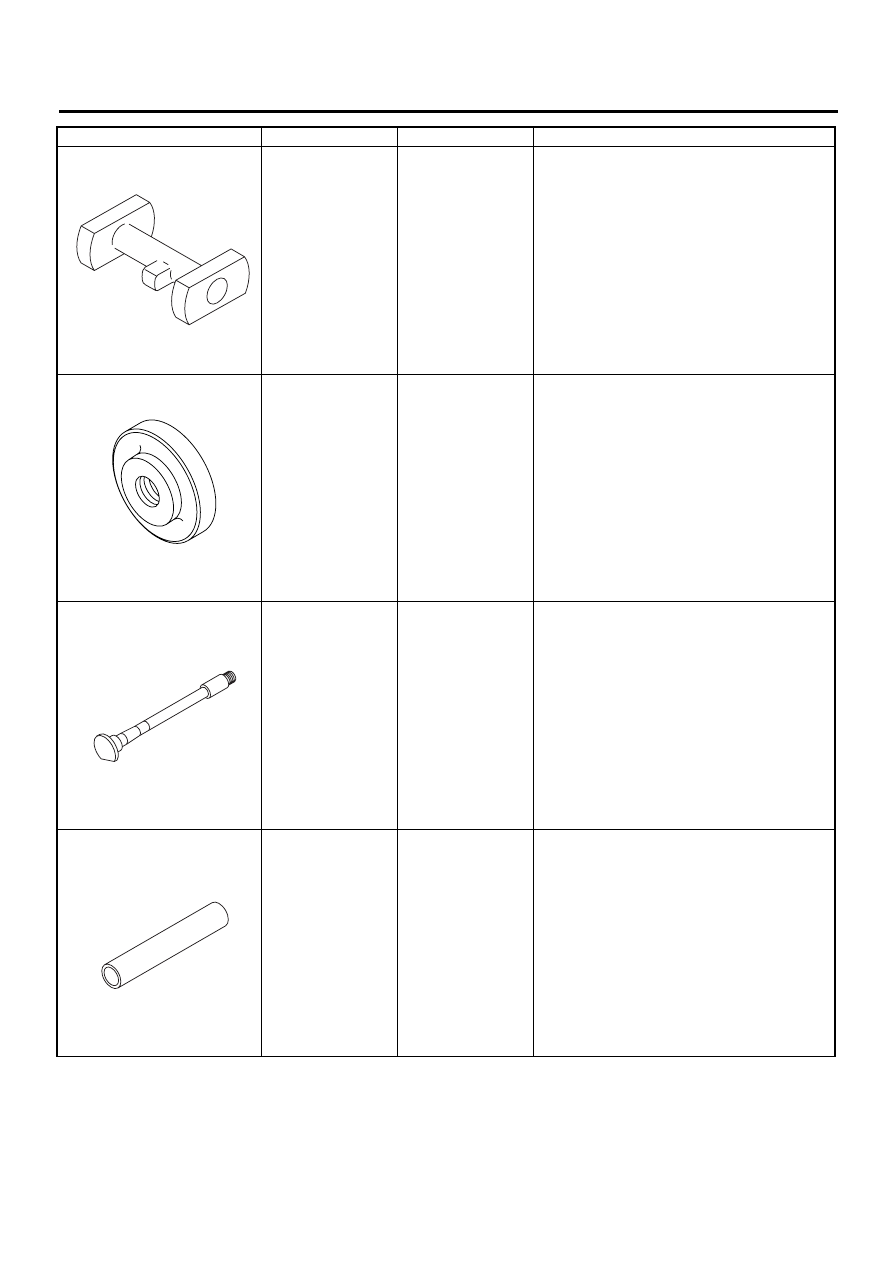

DI-19

DIFFERENTIALS

GENERAL DESCRIPTION

498505501

GAUGE

• Used for adjusting pinion height.
• For VA-type.

498447110

BEARING OUTER
RACE DRIFT

• Used for press-fitting the bearing race (front)
of differential carrier.
• For VA-type.

498447150

DUMMY SHAFT

• Used for adjusting pinion height and pre-load.
• For VA-type.

32285AA000

DUMMY COLLAR

• Used for adjusting pinion height and pre-load.
• For VA-type.

ILLUSTRATION

TOOL NUMBER

DESCRIPTION

REMARKS

ST-498505501

ST-498447110

ST-498447150

ST32285AA000

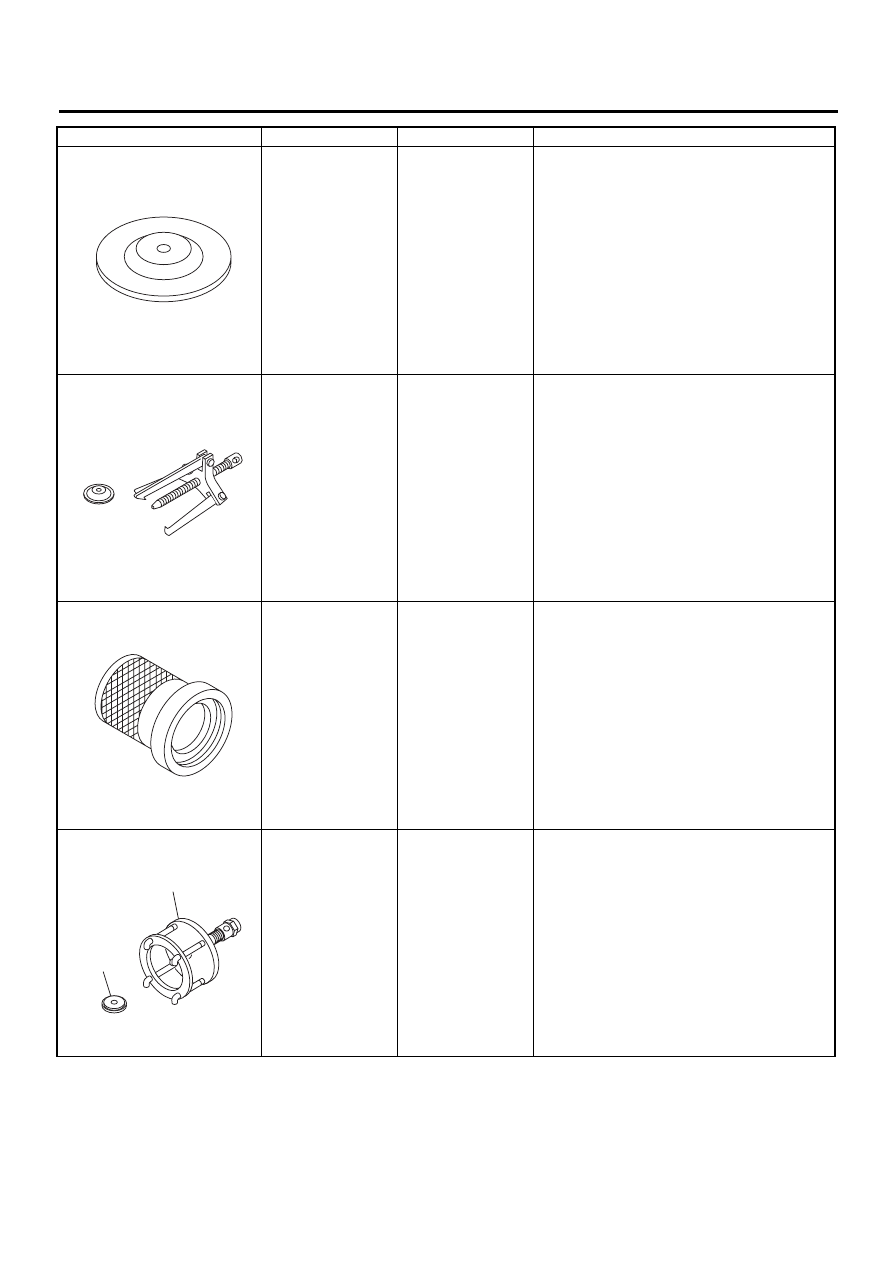

DI-20

DIFFERENTIALS

GENERAL DESCRIPTION

499705404

SEAT

• Used for removing side bearing race.
• Used with PULLEY ASSY (499705401).
•  For VA-type.

499705401

PULLER ASSY

• Used for removing side bearing race.
• Used with SEAT (499705404).
• For VA-type.

899874100

INSTALLER

• Used for installing companion flange.
• For VA-type.

899524100

DIFFERENTIAL
BEARING PULLER
SET

• Used for removing side bearing cone of differ-
ential.
• For VA-type.
(1) Puller
(2) Cap

ILLUSTRATION

TOOL NUMBER

DESCRIPTION

REMARKS

ST-499705404

ST-499705401

ST-899874100

ST-899524100

( 1 )

( 2 )

DI-21

DIFFERENTIALS

GENERAL DESCRIPTION

2. GENERAL PURPOSE TOOLS

TOOL NAME

REMARKS

Transmission Jack

Used for assembly/disassembly of rear differential.

Puller

Used for removal of side bearing retainer. (T-type)

Thickness Gauge

Used for measuring clearance.

Tire Lever

Used for removal of rear drive shaft. (VA-type)
