MT-28

MANUAL TRANSMISSION AND DIFFERENTIAL

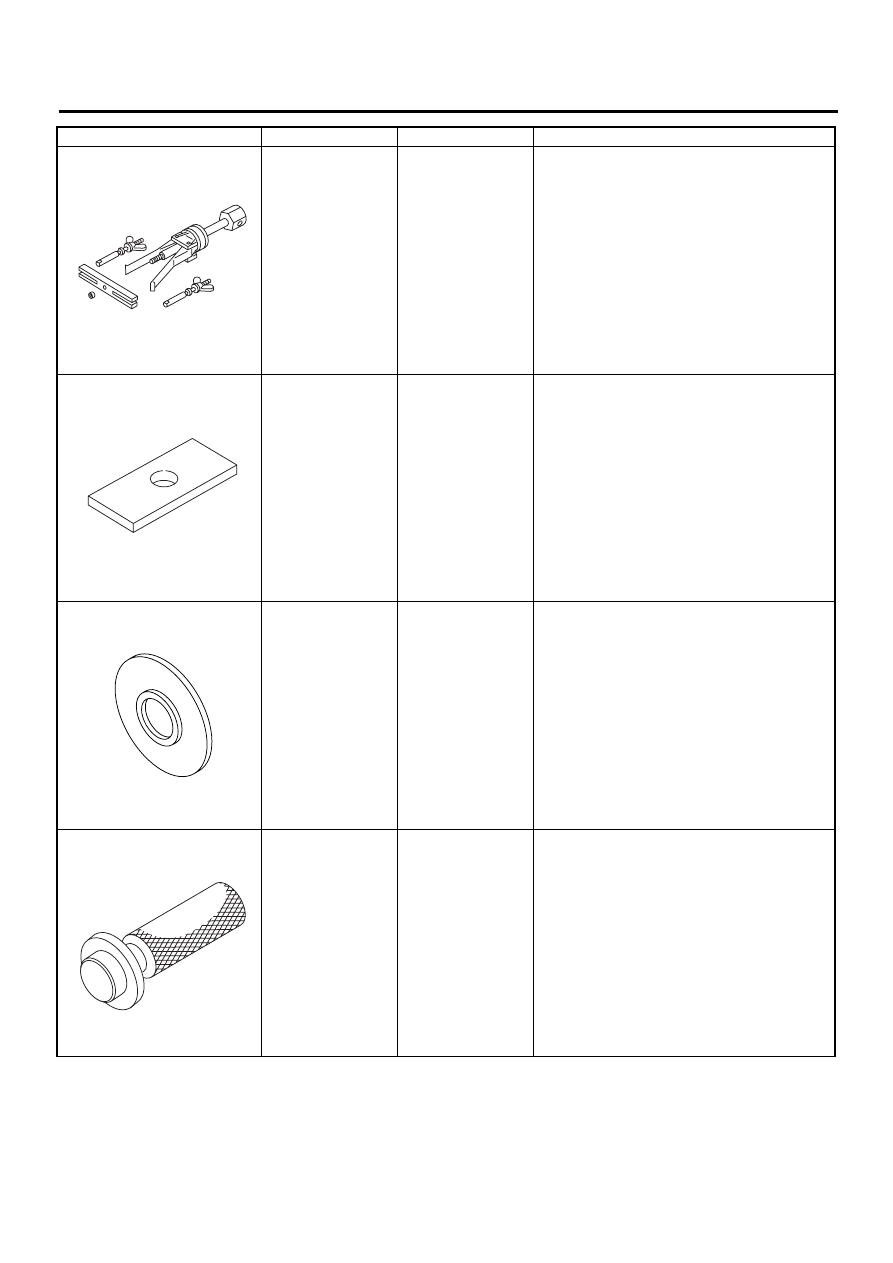

GENERAL DESCRIPTION

398527700

PULLER ASSY

• Used for removing and extension case roller
bearing.
• Used for removing front idfferential side
retainer Bearing outer race.

398643600

GAUGE

Used for measuring total end play, extension
end play and drive pinion height.

398177700

INSTALLER

Used for installing bearing cone of transfer
driven gear (transfer case side).

499797000

INSTALLER

Used for installing differential side retainer oil
seal.

ILLUSTRATION

TOOL NUMBER

DESCRIPTION

REMARKS

ST-398527700

ST-398643600

 ST-398177700

ST-499797000

MT-29

MANUAL TRANSMISSION AND DIFFERENTIAL

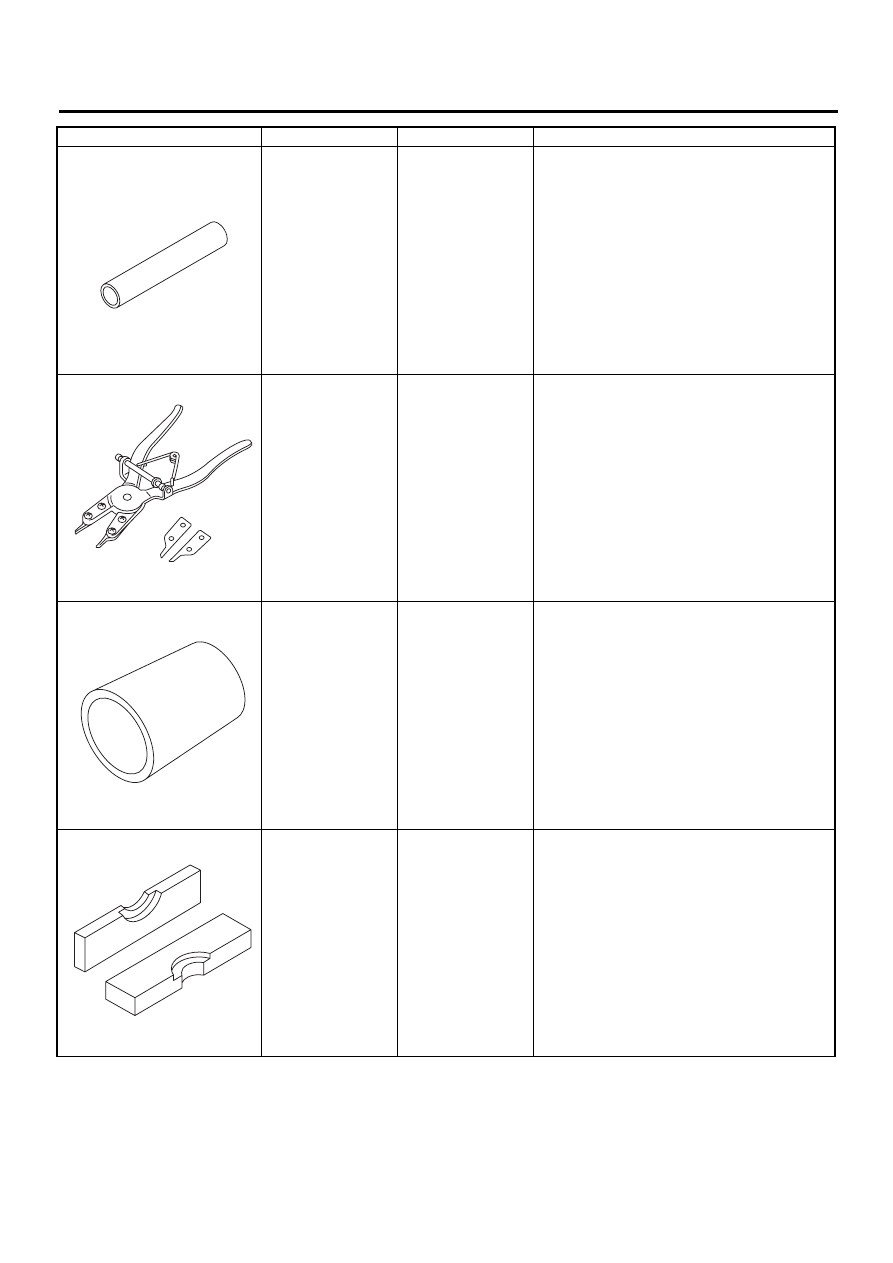

GENERAL DESCRIPTION

398507703

DUMMY COLLAR

• Used for installing input shaft holder oil seal.
• For dual-range model.

398663600

PLIERS

• Used for removing and installing input shaft
snap ring.
• For dual-range model.

499757001

SNAP RING GUIDE

• Used for installing snap ring (OUT 25).
• For dual-range model.

899858600

RETAINER II

• Used for removing ball bearing.
• For dual-range model.

ILLUSTRATION

TOOL NUMBER

DESCRIPTION

REMARKS

ST-398507703

ST-398663600

ST-499757001

ST-899858600

MT-30

MANUAL TRANSMISSION AND DIFFERENTIAL

GENERAL DESCRIPTION

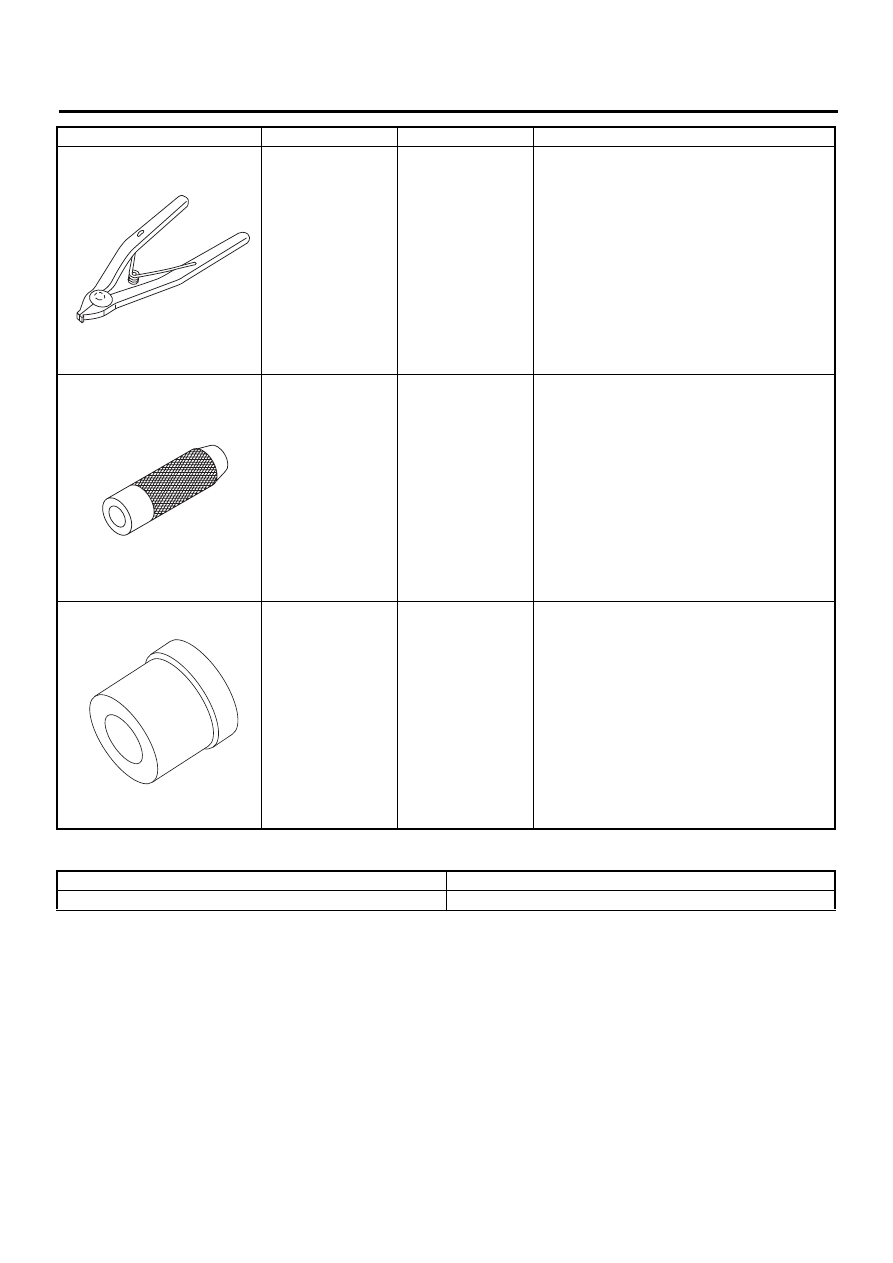

2. GENERAL PURPOSE TOOLS

899474100

EXPANDER

• Used for removing and installing snap ring.
• For dual-range model.

899580100

INSTALLER

• Used when pressing ball bearings into input
shaft.
• For dual-range model.

399513600

INSTALLER

• Used when pressing ball bearings into input
shaft.
• For dual-range model.

TOOL NAME

REMARKS

Circuit Tester

Used for measuring resistance, voltage and ampere.

ILLUSTRATION

TOOL NUMBER

DESCRIPTION

REMARKS

ST-899474100

ST-899580100

ST-399513600

MT-31

MANUAL TRANSMISSION AND DIFFERENTIAL

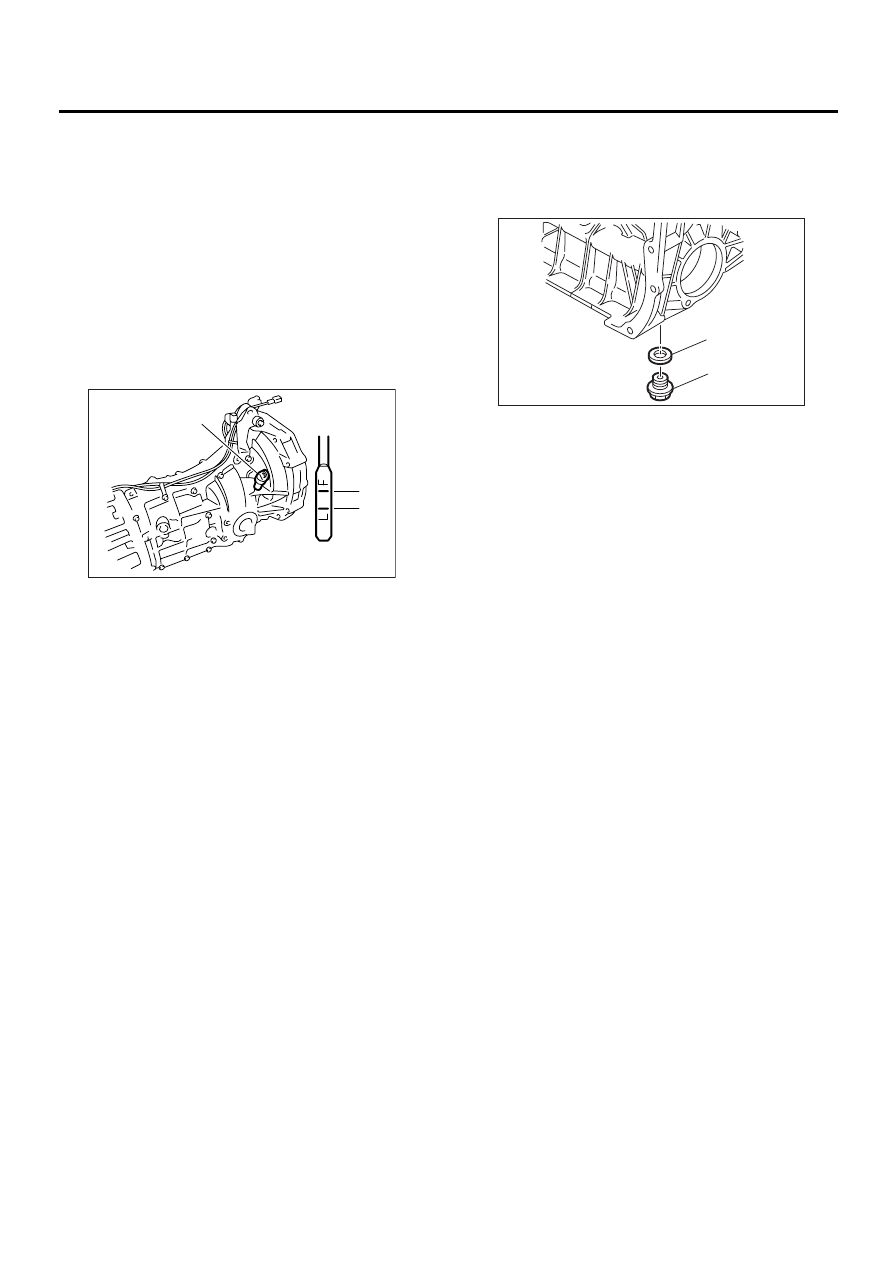

TRANSMISSION GEAR OIL

2. Transmission Gear Oil

A: INSPECTION

1) Park vehicle on a level surface.
2) Turn ignition switch to OFF.
3) Remove oil level gauge and wipe it clean.
4) Reinsert the level gauge all the way.  Be sure
that the level gauge is correctly inserted and in the
proper direction.
5) Pull out the oil level gauge again and check the
oil level is between lower and upper levels.  If it is
below the lower level, check oil leakage and add oil
through the oil level gauge hole to bring the level up
to the upper level.

B: REPLACEMENT

1) Pull out oil level gauge.
2) Lift-up the vehicle.
3) Drain transmission gear oil completely.

CAUTION:
• Directly after the engine has been running,
the transmission gear oil is hot. Be careful not
to burn yourself.
• Be careful not to splash transmission gear oil
on exhaust pipe; it may cause smoke or fire. If
transmission gear oil splashes to exhaust
pipes, wipe clean them.

4) Tighten transmission gear oil drain plug with new
gasket.

Tightening torque:

44 N·m (4.5 kgf-m, 32.5 ft-lb)

5) Lower the vehicle.
6) Pour gear oil into the gauge hole.

Recommended gear oil:

Use GL-5 (75W-90) or equivalent.

Gear oil capacity:

Single-range model;

3.5

2

 (3.7 US qt, 3.1 Imp qt)

Dual-range model;

4.0

2

 (4.2 US qt, 3.5 Imp qt)

7) Check the level of the transmission gear oil, and
confirm that the level is within the specified range
marked on the gauge.

NOTE:
When inserting the level gauge into transmission
gear, align the protrusion on the side of the top part
of the level gauge with the notch in the gauge hole.

(A) OIl level gauge

(B) Upper level

(C) Lower level

PM-00030

(B)

(C)

(A)

(A) Drain plug

(B) Gasket

MT-00061

( A )

( B )
