Subaru Legacy III (2000-2003 year). Manual - part 614

MT-24

MANUAL TRANSMISSION AND DIFFERENTIAL

GENERAL DESCRIPTION

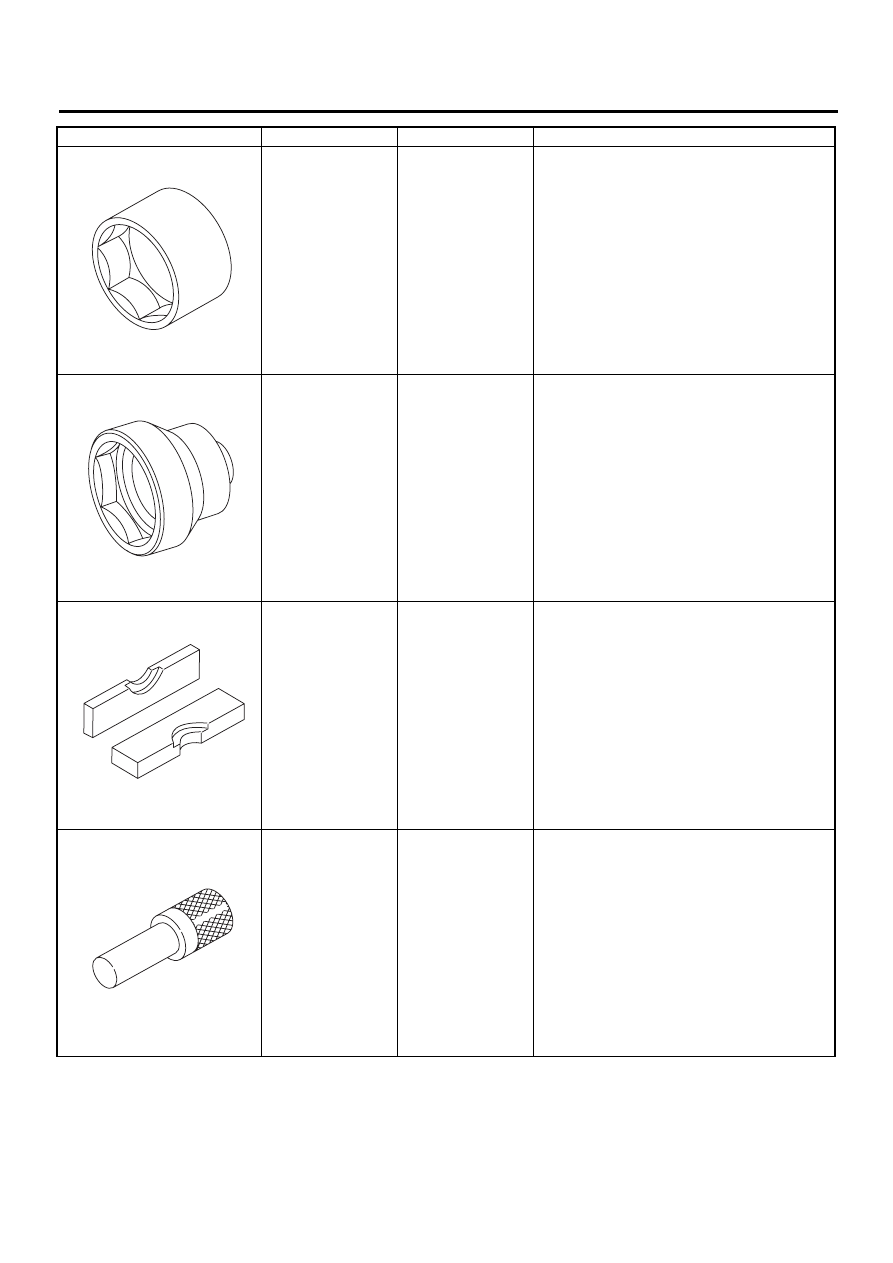

499987003

SOCKET WRENCH
(35)

Used for removing and installing driven pinion
lock nut and main shaft lock nut.

499987300

SOCKET WRENCH
(50)

Used for removing and installing driven gear
assembly lock nut.

899714110

REMOVER

Used for fixing transmission main shaft, drive
pinion, rear drive shaft.

899864100

REMOVER

Used for removing parts on transmission main
shaft and drive pinion.

ILLUSTRATION

TOOL NUMBER

DESCRIPTION

REMARKS

ST-499987003

ST-499987300

ST-899714110

ST-899864100

MT-25

MANUAL TRANSMISSION AND DIFFERENTIAL

GENERAL DESCRIPTION

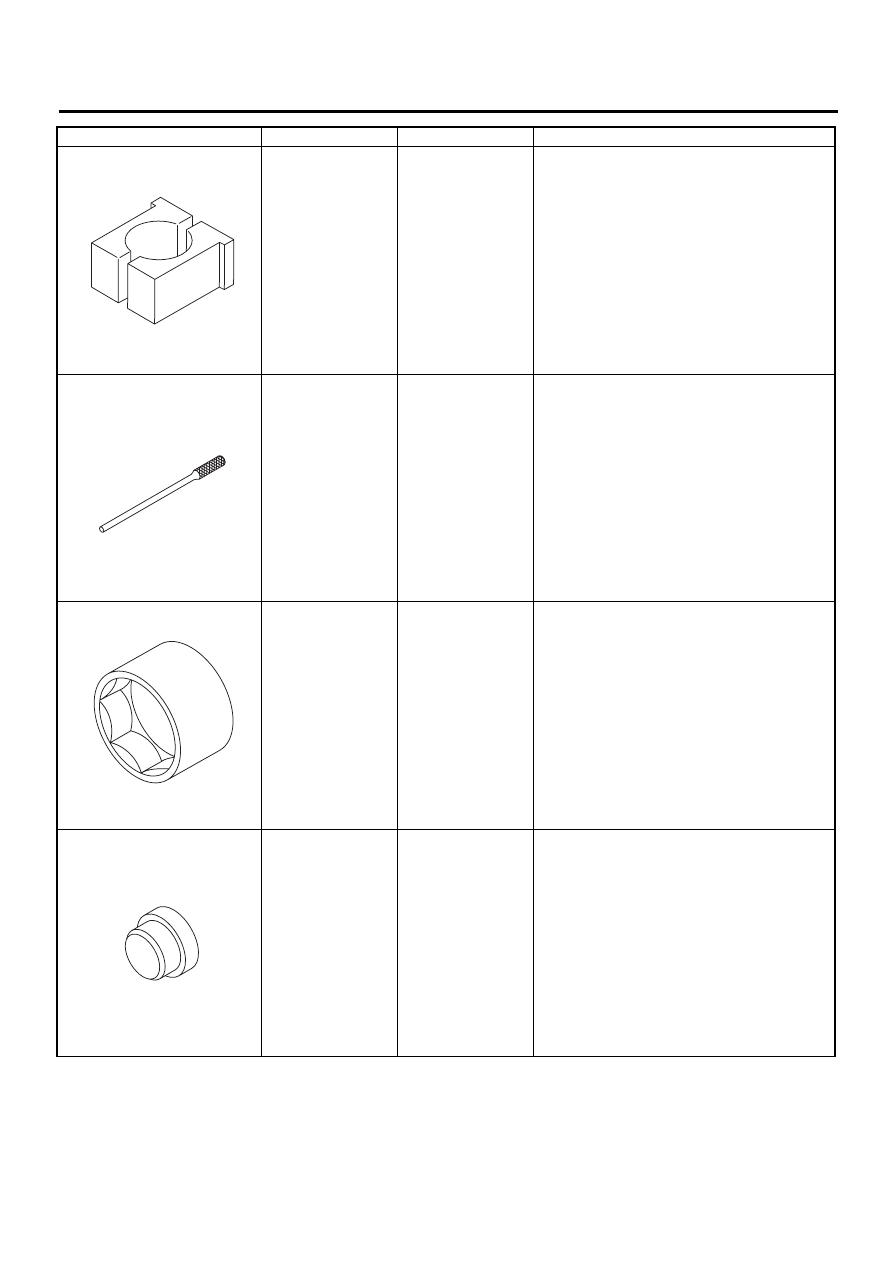

899884100

HOLDER

Used for tightening lock nut on sleeve.

899904100

REMOVER

Used for removing and installing straight pin.

899988608

SOCKET WRENCH
(27)

Used for removing and installing drive pinion
lock nut.

398497701

ADAPTER

• Used for installing roller bearing onto differen-
tial case.
• Used with INSTALLER (499277100).

ILLUSTRATION

TOOL NUMBER

DESCRIPTION

REMARKS

ST-899884100

ST-899904100

ST-899988608

ST-398497701

MT-26

MANUAL TRANSMISSION AND DIFFERENTIAL

GENERAL DESCRIPTION

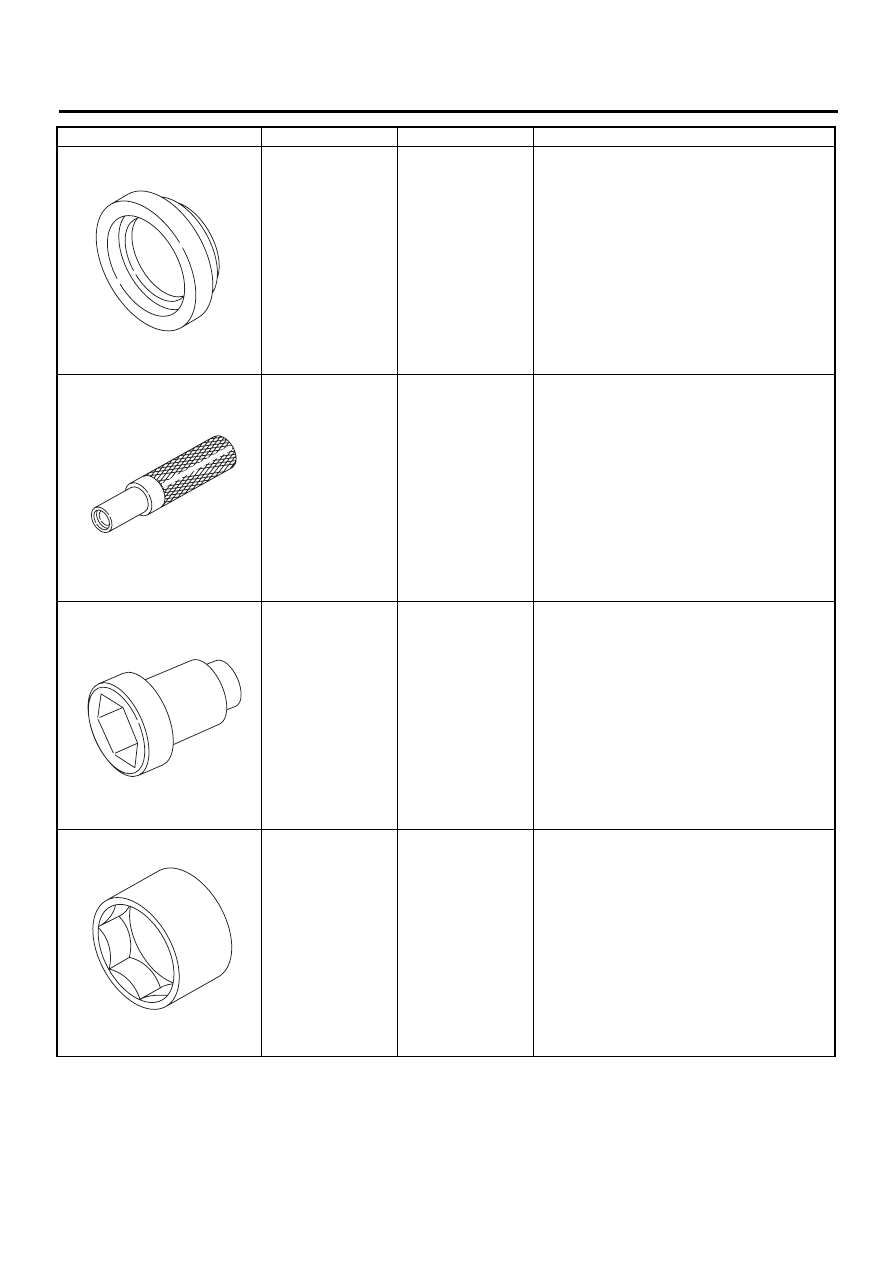

499587000

INSTALLER

Used for installing driven gears to driven shaft.

899824100

PRESS

Used for installing speedometer shaft oil seal.

499987100

SOCKET WRENCH
(35)

Used for removing and installing drive pinion
lock nut.

899984103

SOCKET WRENCH
(35)

Used for removing and installing drive pinion
lock nut.

ILLUSTRATION

TOOL NUMBER

DESCRIPTION

REMARKS

ST-499587000

ST-899824100

ST-499987100

ST-899984103

MT-27

MANUAL TRANSMISSION AND DIFFERENTIAL

GENERAL DESCRIPTION

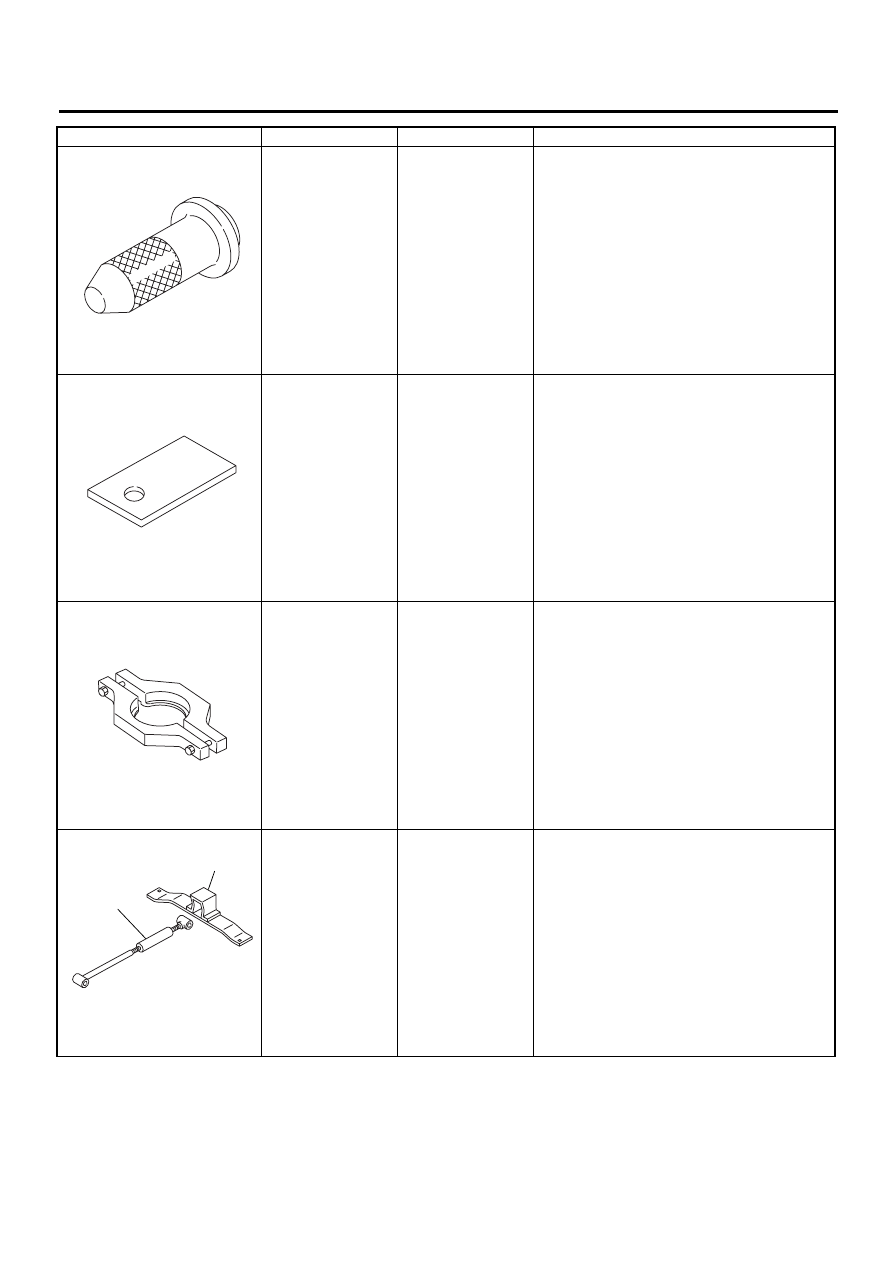

498057300

INSTALLER

Used for installing extension oil seal.

498255400

PLATE

Used for measuring backlash.

498077400

REMOVER

• Used for removing synchronizer cone of main
shaft.
• Used for removing 5th driven gear of drive pin-
ion shaft.

41099AA000

ENGINE SUPPORT
BRACKET

Used for supporting engine.
(1) ENGINE SUPPORT BRACKET
(41099AA010)
(2) ENGINE SUPPORT (41099AA020)

ILLUSTRATION

TOOL NUMBER

DESCRIPTION

REMARKS

ST-498057300

ST-498255400

ST-498077400

ST41099AA000

(2)

(1)
