EN(H4DOSTC)-30
ENGINE (DIAGNOSTICS)

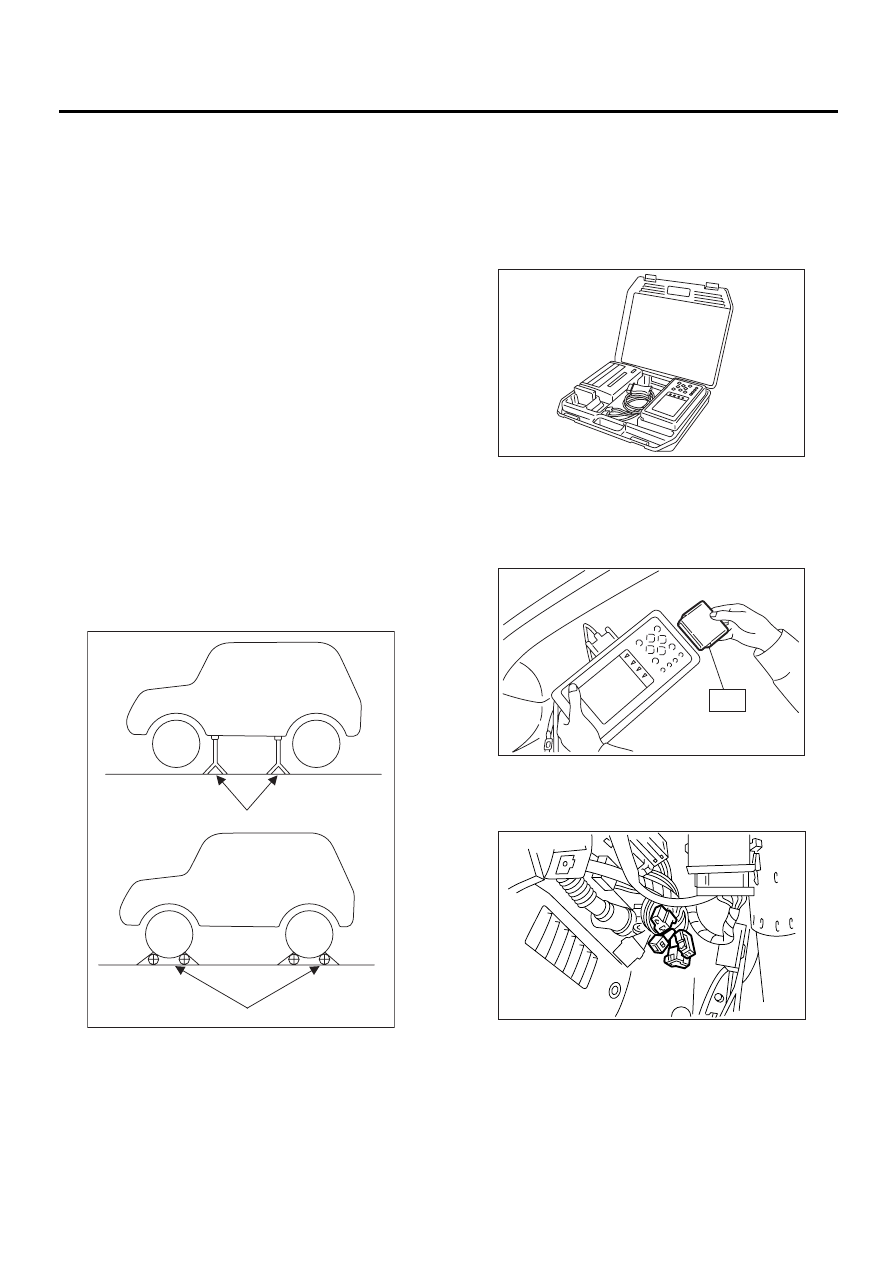

SUBARU SELECT MONITOR
NOTE:
For detailed operation procedure, refer to the SUBARU SELECT MONITOR OPERATION MANUAL.
8. READ CURRENT DATA FOR AT.
1) On the «Main Menu» display screen, select the {Each System Check} and press the [YES] key.
2) On the «System Selection Menu» display screen, select the {Transmission Control System} and press the
[YES] key.
3) Press the [YES] key after displayed the information of transmission type.
4) On the «Transmission Diagnosis» display screen, select the {Current Data Display & Save} and press the
[YES] key.
5) On the «Data Display Menu» display screen, select the {Data Display} and press the [YES] key.
6) Using the scroll key, move the display screen up or down until the desired data is shown.
• A list of the support data is shown in the following table.
Camshaft position sensor signal
Camshaft Position Sig.
ON or OFF
When camshaft position sensor signal is
entered.
Power steering switch signal
P/S SW
ON or OFF
When power steering switch is entered.
Rear defogger switch signal
Rear Defogger SW
ON or OFF
When rear defogger switch is turned ON.
Blower fan switch signal
Blower Fan SW
ON or OFF
When blower fan switch is turned ON.
Light switch signal
Light SW
ON or OFF
When small light switch is turned ON.
Contents
Display
Unit of measure
Battery voltage
Battery Voltage
V
Rear vehicle speed sensor signal
Vehicle Speed #1
km/h or MPH
Front vehicle speed sensor signal
Vehicle Speed #2
km/h or MPH
Engine speed signal
Engine Speed
rpm
Automatic transmission fluid temperature signal
ATF Temp.
°
C or
°
F
Throttle position signal
Throttle Sensor Voltage
V
Gear position
Gear Position
—
Line pressure control duty ratio
Line Pressure Duty Ratio
%
Lock up clutch control duty ratio
Lock Up Duty Ratio
%
Transfer clutch control duty ratio
Transfer Duty Ratio
%
Power supply for throttle position sensor
Throttle Sensor Power
V
Torque converter turbine speed signal
AT Turbine Speed
rpm
2-4 brake timing pressure control duty ratio
2-4B Duty Ratio
%
Intake manifold pressure sensor voltage
Mani. Pressure Voltage
V
2 wheel drive switch signal
2WD Switch
ON or OFF
Stop lamp switch signal
Stop Lamp Switch
ON or OFF
Anti lock brake system signal
ABS Signal
ON or OFF
Cruise control system signal
Cruise Control Signal
ON or OFF
Neutral/Parking range signal
N/P Range Signal
ON or OFF
Reverse range signal
R Range Signal
ON or OFF
Drive range signal
D Range Signal
ON or OFF
3rd range signal
3rd Range Signal
ON or OFF
2nd range signal
2nd Range Signal
ON or OFF
1st range signal
1st Range Signal
ON or OFF
Shift control solenoid A
Shift Solenoid #1
ON or OFF
Shift control solenoid B
Shift Solenoid #2
ON or OFF
Torque control output signal #1
Torque Control Signal #1
ON or OFF
Torque control output signal #2
Torque Control Signal #2
ON or OFF
Torque control cut signal
Torque Control Cut Sig.
ON or OFF
2-4 brake timing control solenoid valve
2-4 Brake Timing Sol.
ON or OFF
Low clutch timing control solenoid valve
Low Clutch Timing Sol.
ON or OFF
Contents
Display
Message
LED “ON” requirements
