CO(H4DOSTC)-22

COOLING

THERMOSTAT

C: INSPECTION

Replace the thermostat if the valve does not close
completely at an ambient temperature or if the fol-
lowing test shows unsatisfactory results.

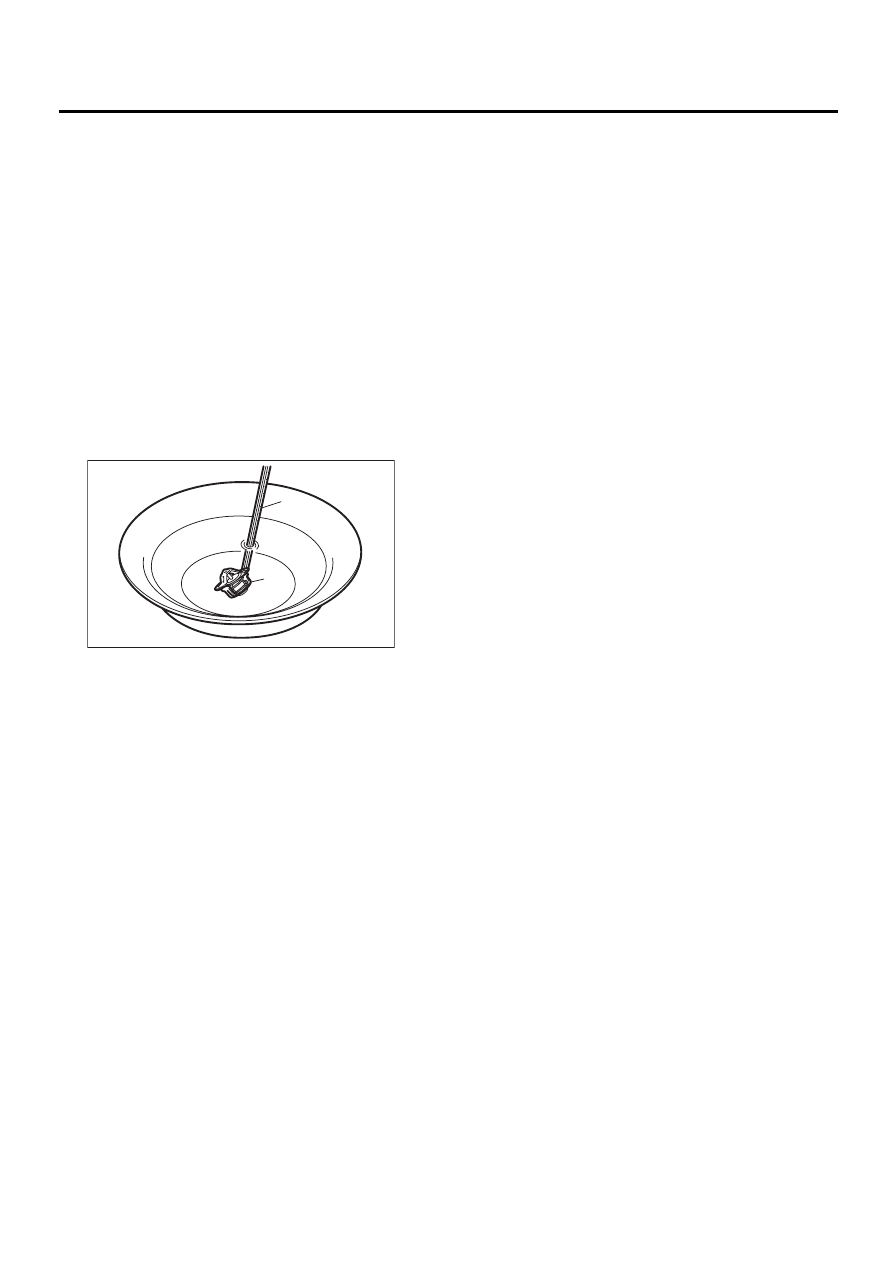

Immerse the thermostat and a thermometer in wa-
ter. Raise water temperature gradually, and mea-
sure the temperature and valve lift when the valve
begins to open and when the valve is fully opened.
During the test, agitate the water for even temper-
ature distribution. If the measured temperature is
within the specified range, the condition of thermo-
stat is normal.

Specified value:

Starts to open:

76.0 — 80.0

°°°°

C (169 — 176

°°°°

F)

Fully opens:

91

°°°°

C (196

°°°°

F)

(A) Thermometer

(B) Thermostat

CO-00033

( A )

( B )

CO(H4DOSTC)-23

COOLING

RADIATOR

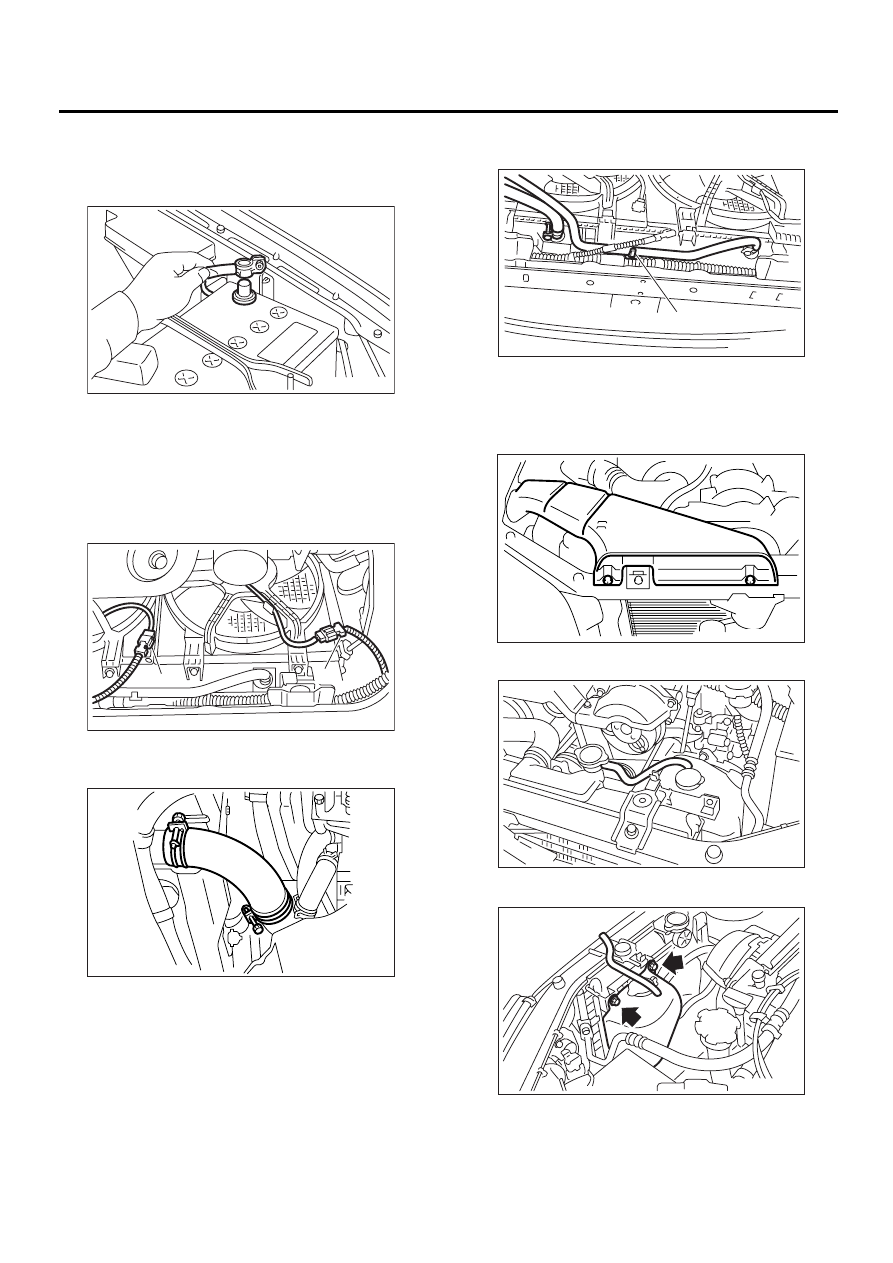

7. Radiator

A: REMOVAL

1) Disconnect battery ground cable.

2) Lift-up the vehicle.
3) Remove under cover.
4) Drain engine coolant completely. <Ref. to
CO(H4DOSTC)-15, DRAINING LOF ENGINE
COOLANT, REPLACEMENT, Engine Coolant.>
5) Disconnect connectors of radiator main fan (A)
and sub fan (B) motor.

6) Disconnect radiator outlet hose from thermostat
cover.

7) Disconnect ATF cooler hoses from radiator. (AT
vehicles only)

8) Lower the vehicle.
9) Remove air intake duct.

10) Disconnect overflow hose.

11) Remove reservoir tank.

12) Remove V-belt cover.

FU-00009

( A )

( B )

CO-00084

CO-00153

(A) Clip

CO-00088

( A )

CO-00156

CO-00086

CO-00087

CO(H4DOSTC)-24

COOLING

RADIATOR

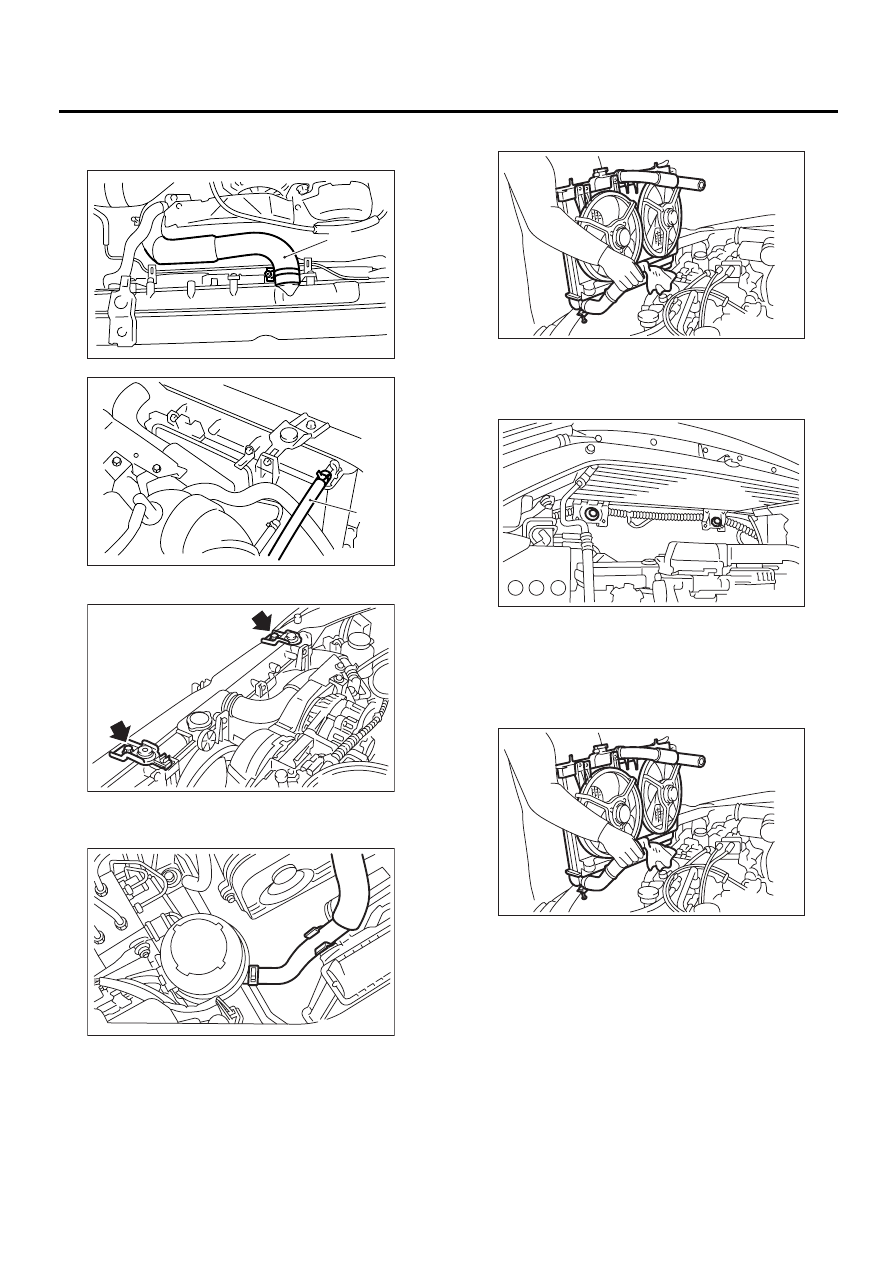

13) Disconnect radiator inlet hose (A) and engine
coolant filler tank hose (B) from radiator.

14) Remove radiator upper brackets.

15) Detach power steering hose from the clip on
the radiator.

16) While slightly lifting radiator, slide it to left.

17) Lift radiator up and away from vehicle.

B: INSTALLATION

1) Attach radiator mounting cushions to holes on
the vehicle.

2) Install radiator while fitting radiator pins to cush-
ions.

NOTE:
Fit pins on lower side of radiator into cushions on
body side.

3) Install radiator brackets and tighten bolts.

CO-00157

(A)

(B)

CO-00158

CO-00090

CO-00091

CO-00092

CO-00093

CO-00092

CO(H4DOSTC)-25

COOLING

RADIATOR

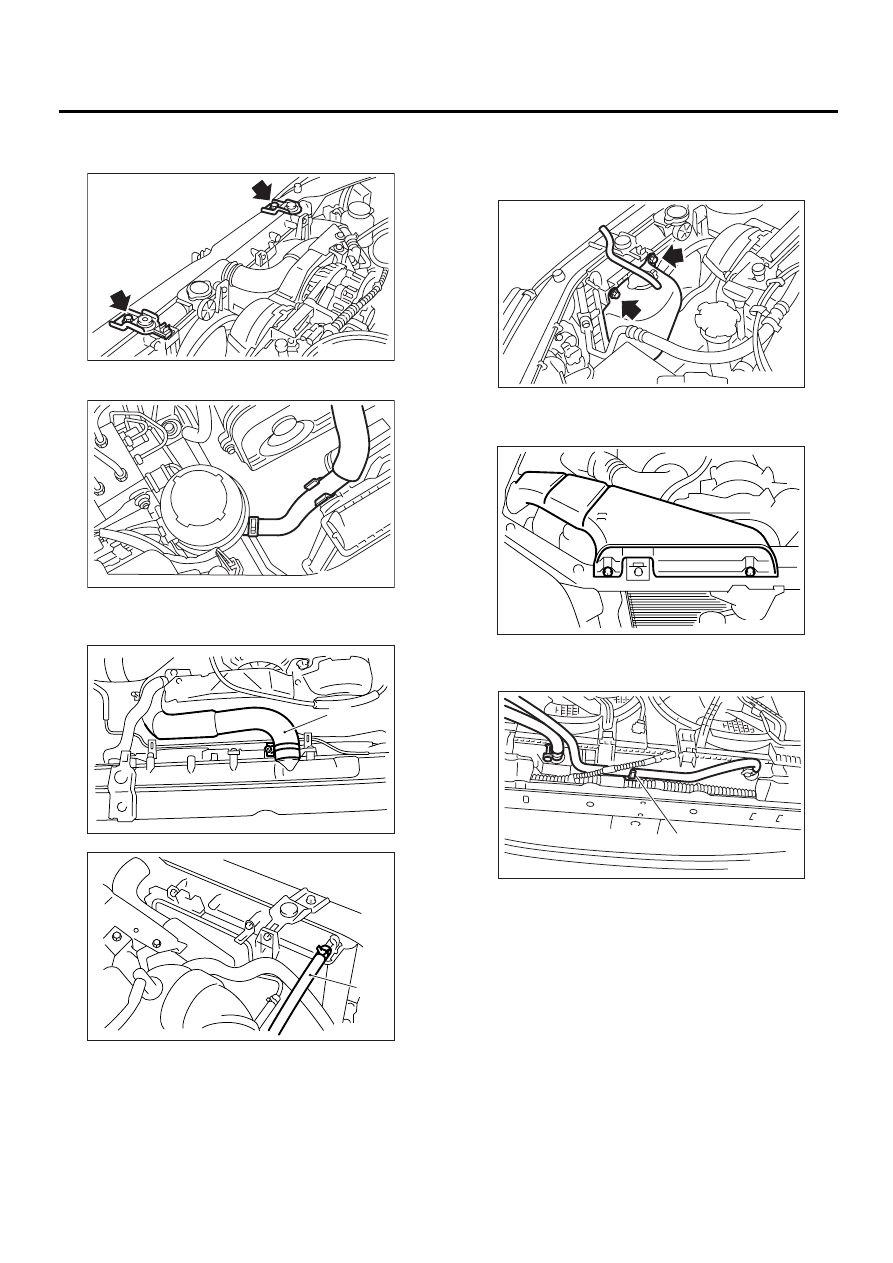

Tightening torque:

18 N·m (1.8 kgf-m, 13.0 ft-lb)

4) Attach power steering hose to the radiator.

5) Connect radiator inlet hose (A) and  engine cool-
ant filler tank hose (B) to radiator.

6) Install reservoir tank.

Tightening torque:

4.9 N·m (0.50 kgf-m, 3.6 ft-lb)

7) Connect overflow hose.
8) Install air intake duct.

9) Lift-up the vehicle.
10) Connect ATF cooler hoses. (AT vehicles only)

CO-00090

CO-00091

CO-00157

(A)

(B)

CO-00158

(A) Clip

CO-00087

CO-00156

CO-00088

( A )
