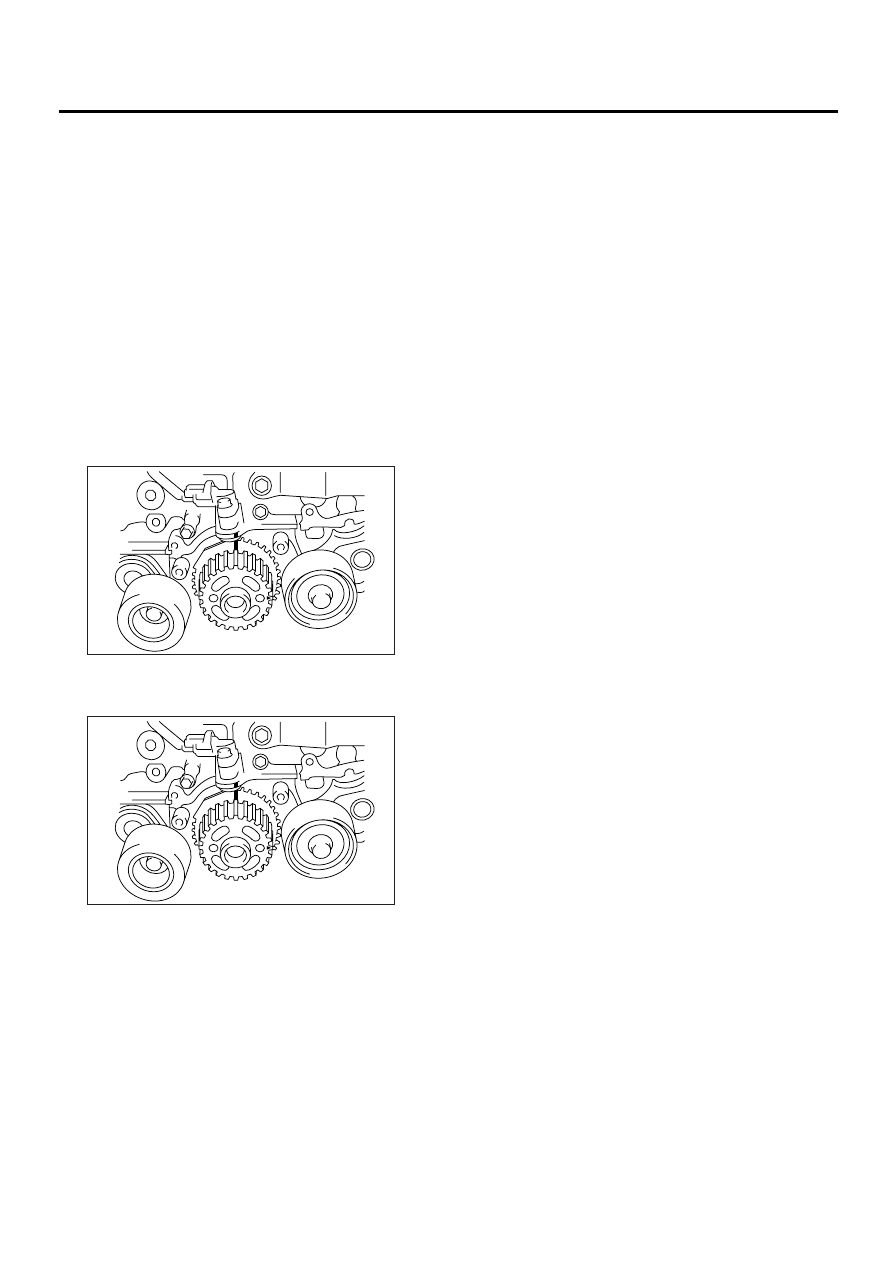

ME(H4DOSTC)-56

MECHANICAL

CRANKSHAFT SPROCKET

17.Crankshaft Sprocket

A: REMOVAL

1) Remove the V-belt.
<Ref. to ME(H4DOSTC)-42, REMOVAL, V-belt.>
2) Remove the crankshaft pulley.
<Ref. to ME(H4DOSTC)-44, REMOVAL, Crank-
shaft Pulley.>
3) Remove the belt cover.
<Ref. to ME(H4DOSTC)-46, REMOVAL, Belt Cov-
er.>
4) Remove the timing belt assembly.
<Ref. to ME(H4DOSTC)-47, REMOVAL, Timing
Belt Assembly.>
5) Remove the camshaft sprocket.
<Ref. to ME(H4DOSTC)-55, REMOVAL, Camshaft
Sprocket.>
6) Remove the crankshaft sprocket.

B: INSTALLATION

1) Install the crankshaft sprocket.

2) Install the camshaft sprocket.
<Ref. to ME(H4DOSTC)-55, INSTALLATION,
Camshaft Sprocket.>
3) Install the timing belt assembly.
<Ref. to ME(H4DOSTC)-49, INSTALLATION, Tim-
ing Belt Assembly.>
4) Install the belt cover.
<Ref. to ME(H4DOSTC)-46, INSTALLATION, Belt
Cover.>
5) Install the crankshaft pulley.
<Ref. to ME(H4DOSTC)-44, INSTALLATION,
Crankshaft Pulley.>

6) Install the V-belt.
<Ref. to ME(H4DOSTC)-42, INSTALLATION, V-
belt.>

C: INSPECTION

1) Check the sprocket teeth for abnormal wear and
scratches.
2) Make sure there is no free play between sprock-
et and key.
3) Check the crankshaft sprocket notch used for
sensor for damage and contamination of foreign
matter.

ME-00103

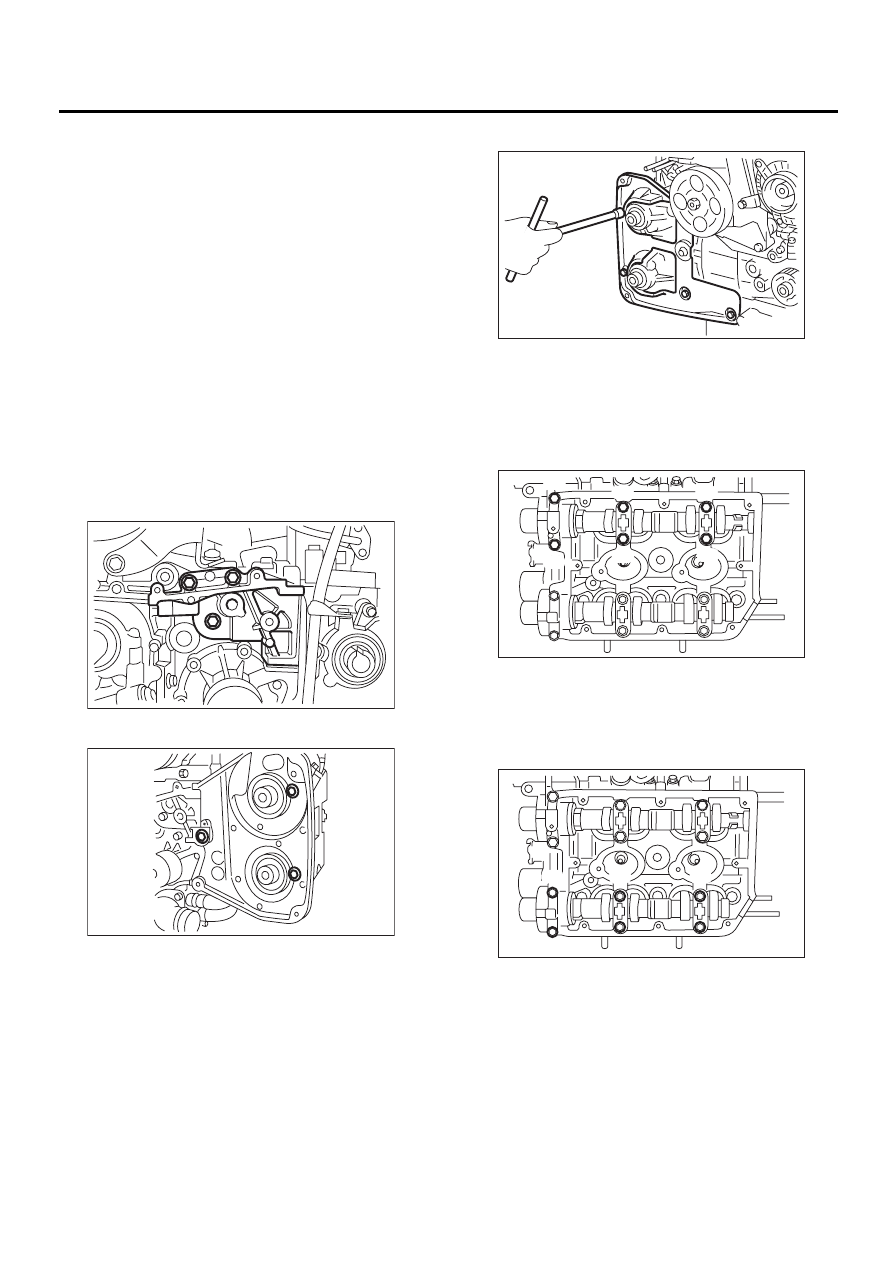

ME(H4DOSTC)-57

MECHANICAL

CAMSHAFT

18.Camshaft

A: REMOVAL

8) Remove the belt cover No. 2 (LH).

9) Remove the belt cover No. 2 (RH).

10) Disconnect the ignition coil connector.
11) Remove the ignition coil.
12) Remove the rocker cover and gasket.
13) Loosen the intake camshaft cap bolts equally, a
little at a time in alphabetical sequence shown in
the figure.

14) Remove the camshaft cap and intake cam-
shaft.
15) Loosen the exhaust camshaft cap bolts equal-
ly, a little at a time in alphabetical sequence shown
in the figure.

16) Remove the camshaft caps and exhaust cam-
shaft.

NOTE:
Arrange the camshaft caps in order so that they
can be installed in their original positions.
17) Similarly, remove the camshafts (RH) and re-
lated parts.

ME-00105

ME-00106

ME-00107

( A )

( B )

( C )

( D )

( E )

( F )

ME-00369

( A )

( B )

( C )

( D )

( E )

( F )

ME-00370

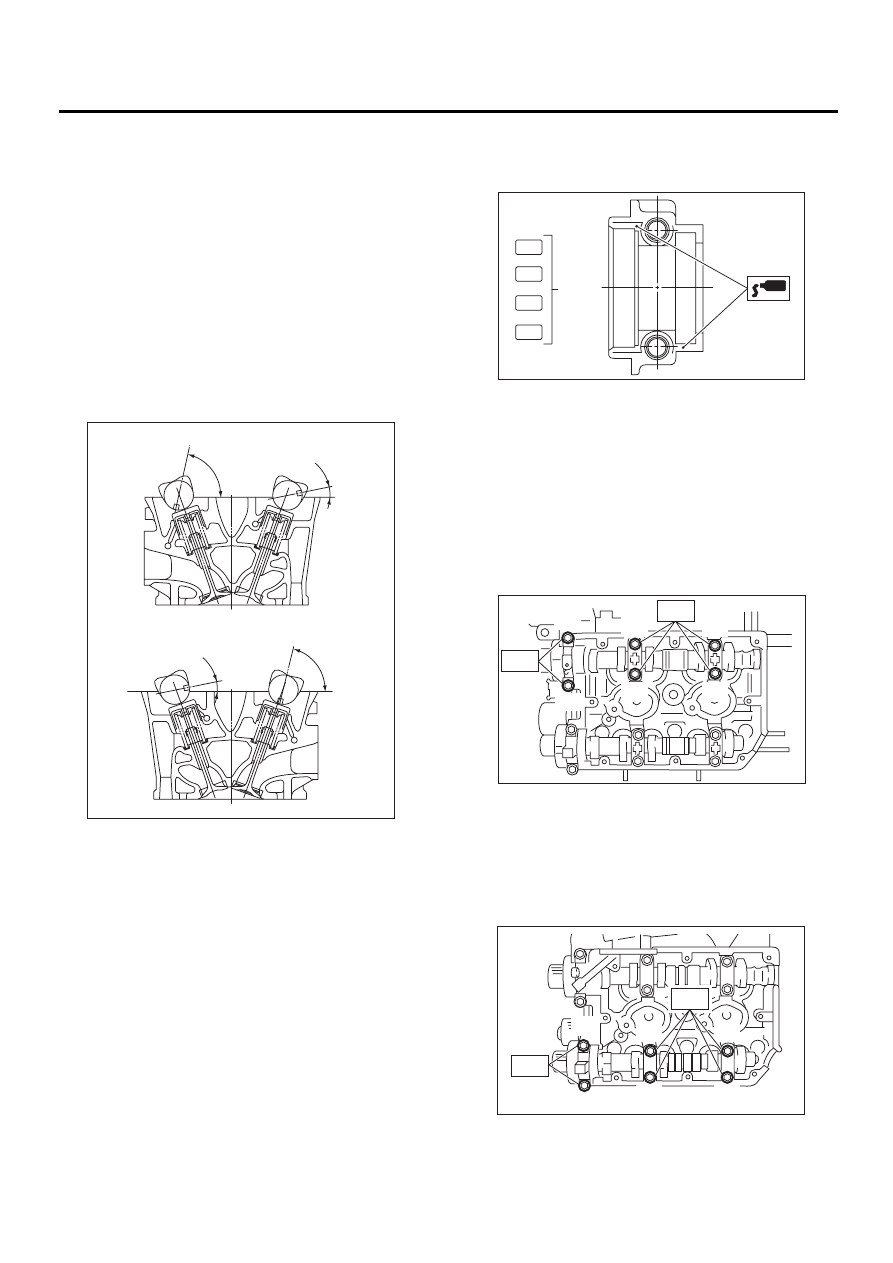

ME(H4DOSTC)-58

MECHANICAL

CAMSHAFT

B: INSTALLATION

1) Camshaft installation:
Apply engine oil to the cylinder head at camshaft
bearing location before installing the camshaft. In-
stall the camshaft so that each valves is close to or
in contact with “base circle” of cam lobe.

NOTE:
• When the camshafts are positioned as shown in
the figure, camshafts need to be rotated at a mini-
mum to align with the timing belt during installation.
• Camshaft (RH) need not be rotated when set at
the position shown in the figure.
Intake camshaft (LH): Rotate 80

clockwise.

Exhaust camshaft (LH): Rotate 45

counterclock-

wise.

2) Camshaft cap installation:

(1) Apply fluid packing sparingly to the cap mat-
ing surface.

NOTE:
Do not apply fluid packing excessively. Failure to
do so may cause excess packing to come out and
flow toward oil seal, resulting in oil leaks.

Fluid packing:

Part No. 004403007

THREE BOND 1215 or equivalent

(2) Apply engine oil to cap bearing surface and
install the cap on camshaft as shown by identifi-
cation mark (A).
(3) Gradually tighten the camshaft cap in at
least two stages in alphabetical sequence
shown in the figure, and then tighten to specified
torque.

Tightening torque:

T1: 10 N·m (1.0 kgf-m, 7.2 ft-lb)
T2: 20 N·m (2.0 kgf-m, 14.5 ft-lb)

(4) Similarly, tighten the cap on exhaust side.
After tightening the cap, ensure the camshaft ro-
tates only slightly while holding it at “base” circle.

Tightening torque:

T1: 10 N·m (1.0 kgf-m, 7.2 ft-lb)
T2: 20 N·m (2.0 kgf-m, 14.5 ft-lb)

A Left side cylinder head

B Right side cylinder head

(a) Intake camshaft

(b) Exhaust camshaft

ME-00111

77.5

(a)

(b)

(a)

(b)

L E

L I

ME-00112

( A )

ME-00371

(F)

(D)

(C)

(A)

(E)

(B)

ME-00115

(B)

(A)

(E)

(F)

(D)

(C)

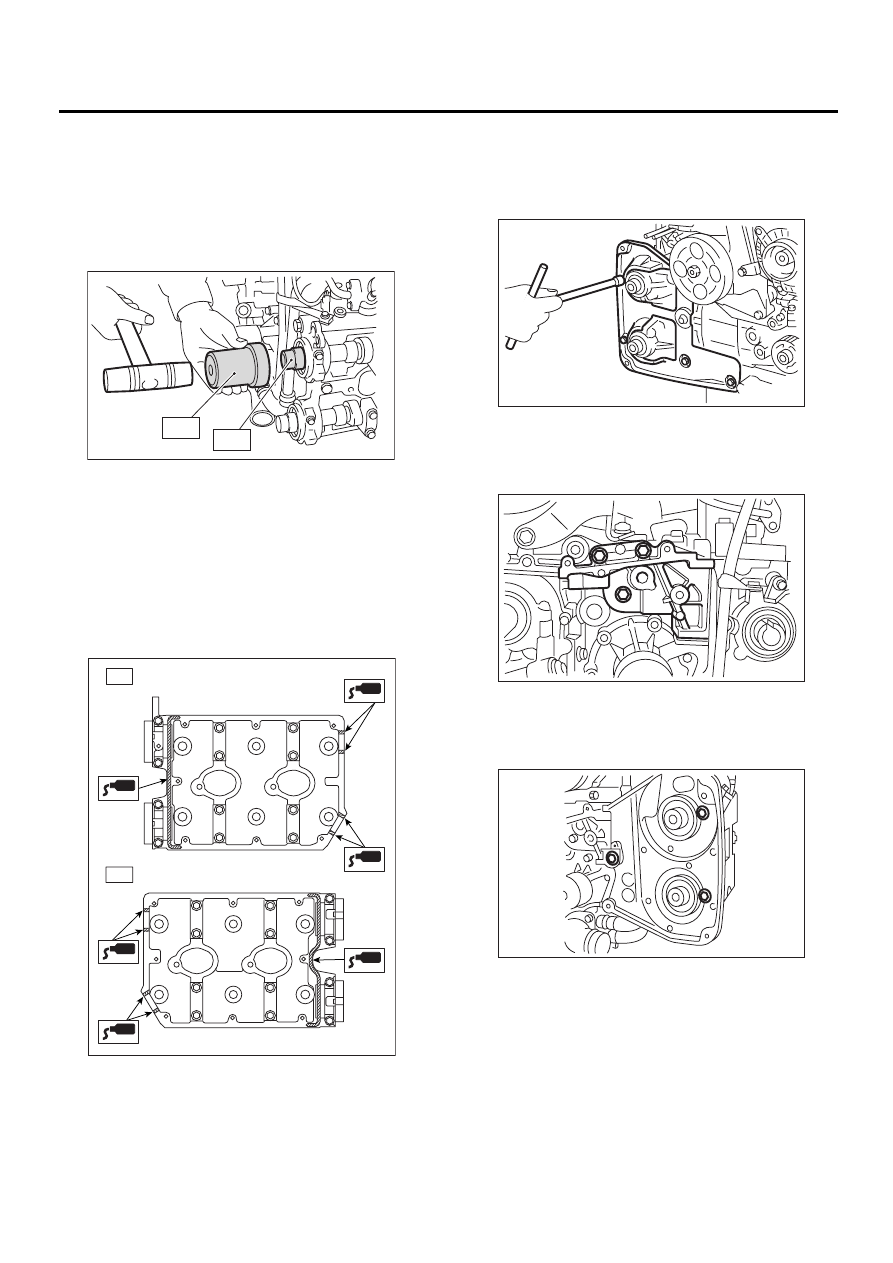

ME(H4DOSTC)-59

MECHANICAL

CAMSHAFT

3) Camshaft oil seal installation:
Apply grease to the new oil seal lips and press onto
the front end of camshaft by using ST1 and ST2.

NOTE:
Use a new oil seal.
ST1

499587600

OIL SEAL INSTALLER

ST2

499597200

OIL SEAL GUIDE

4) Rocker cover installation:

(1) Install the gasket on rocker cover.
Install the peripheral gasket and ignition coil
gasket.
(2) Apply fluid packing to the indicated portion
on rocker cover.

Fluid packing:

Part No. 004403007

THREE BOND 1215 or equivalent

(3) Install the rocker cover on cylinder head.
Ensure the gasket is properly positioned during
installation.

5) Install the ignition coil.
6) Connect the ignition coil connector.

7) Similarly, install the parts on right-hand side.
8) Install the belt cover No. 2 (RH).

Tightening torque:

5 N·m (0.5 kgf-m, 3.6 ft-lb)

9) Install the tensioner bracket.

Tightening torque:

25 N·m (2.5 kgf-m, 18.1 ft-lb)

10) Install the belt cover No. 2 (LH).

Tightening torque:

5 N·m (0.5 kgf-m, 3.6 ft-lb)

11) Install the crankshaft sprockets.
<Ref. to ME(H4DOSTC)-56, INSTALLATION,
Crankshaft Sprocket.>
12) Install the camshaft sprocket.
<Ref. to ME(H4DOSTC)-55, INSTALLATION,
Camshaft Sprocket.>
13) Install the timing belt assembly.
<Ref. to ME(H4DOSTC)-49, INSTALLATION, Tim-
ing Belt Assembly.>
14) Install the belt cover.

ST1

ST2

ME-00116

ME-00604

ME-00107

ME-00105

ME-00106
