ME(H4DOSTC)-52

MECHANICAL

TIMING BELT ASSEMBLY

4) Install the belt idlers.

Tightening torque:

39 N·m (4.0 kgf-m, 28.9 ft-lb)

NOTE:

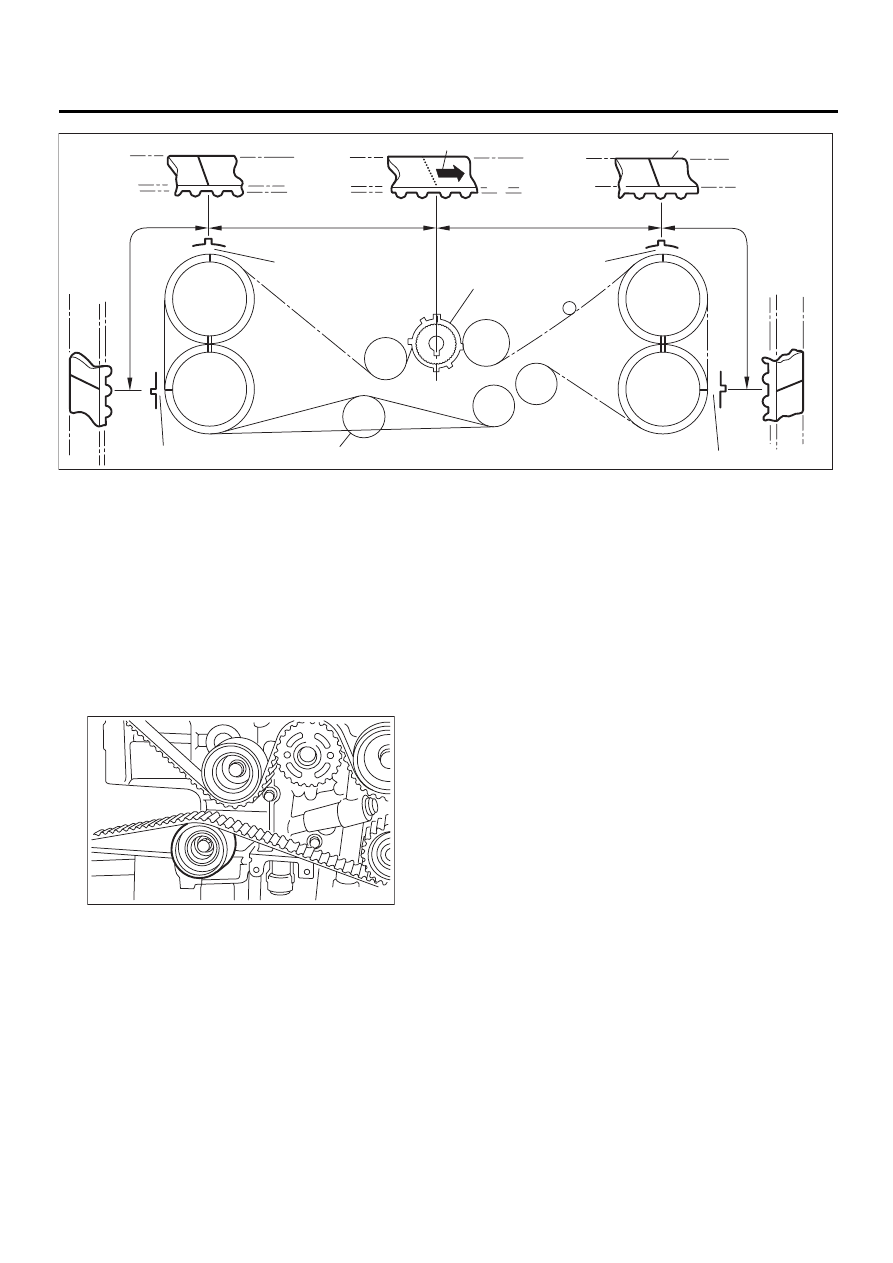

Make sure that the marks on the timing belt and
sprockets are aligned.

5) After ensuring that the marks on the timing belt
and sprockets are aligned, remove the stopper pin
from tensioner adjuster.

(1) Arrow mark

(4) 54.5 tooth length

(7) Install it in the end

(2) Timing belt

(5) 51 tooth length

(3) 28 tooth length

(6) 28 tooth length

( 1 )

( 2 )

( 3 )

( 4 )

( 5 )

( 6 )

( A )

( B )

( C )

( D )

( E )

( 7 )

RH-IN

RH-EX

LH-IN

LH-EX

ME-00089

ME-00090

ME(H4DOSTC)-53

MECHANICAL

TIMING BELT ASSEMBLY

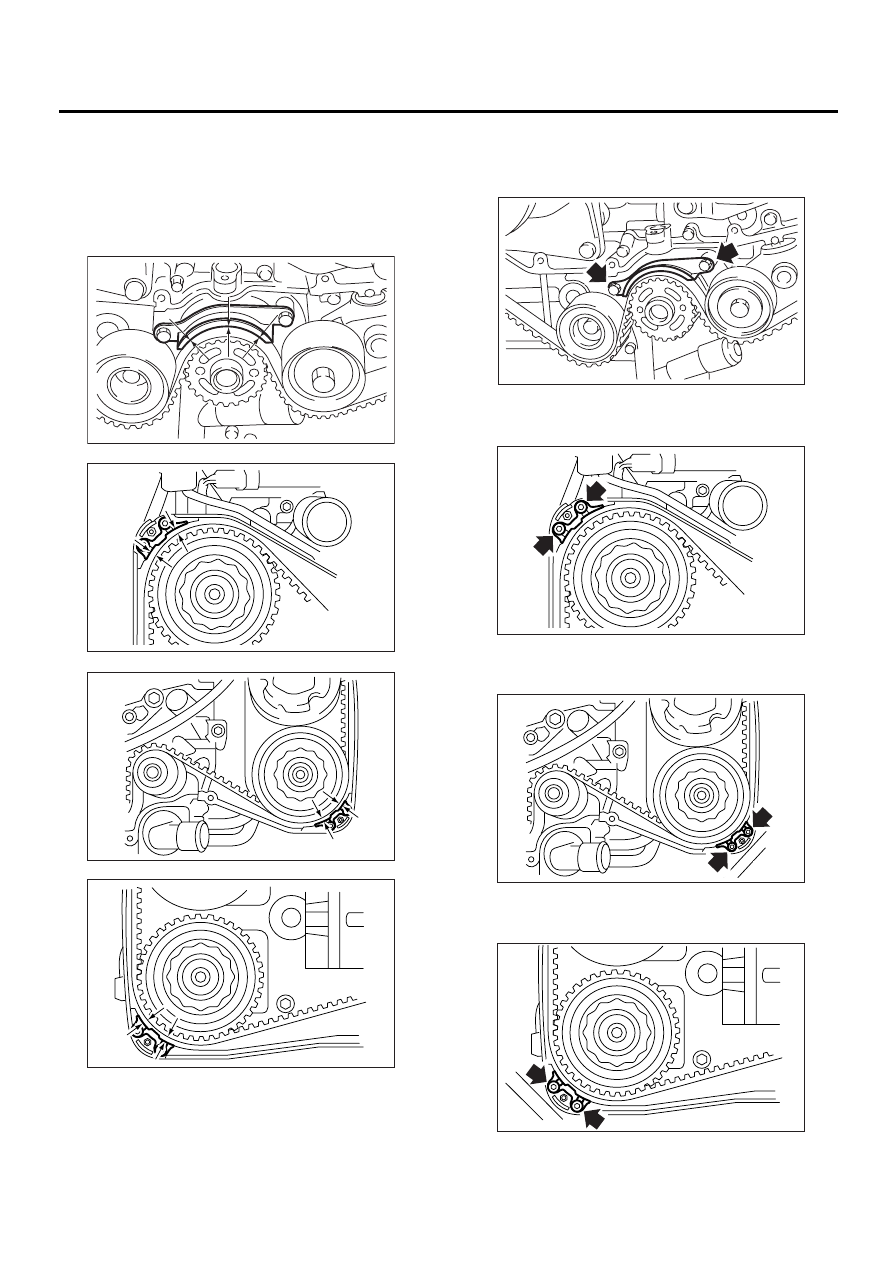

6) Install the timing belt guide. (MT vehicles)

(1) Temporarily tighten the bolts.
(2) Check and adjust the clearance between
timing belt and timing belt guide.

Clearance:

1.0

±±±±

0.5 mm (0.039

±±±±

0.020 in)

(3) Tighten the bolts.

Tightening torque:

10 N·m (1.0 kgf-m, 7.2 ft-lb)

Tightening torque:

6.4 N·m (0.7 kgf-m, 5.1 ft-lb)

Tightening torque:

6.4 N·m (0.7 kgf-m, 5.1 ft-lb)

Tightening torque:

6.4 N·m (0.7 kgf-m, 5.1 ft-lb)

ME-00091

ME-00367

ME-00093

ME-00094

ME-00095

ME-00366

ME-00097

ME-00098

ME(H4DOSTC)-54

MECHANICAL

TIMING BELT ASSEMBLY

7) Install the belt cover.
<Ref. to ME(H4DOSTC)-46, INSTALLATION, Belt
Cover.>
8) Install the crankshaft pulley.
<Ref. to ME(H4DOSTC)-44, INSTALLATION,
Crankshaft Pulley.>
9) Install the V-belt.
<Ref. to ME(H4DOSTC)-42, INSTALLATION, V-
belt.>

C: INSPECTION

1. TIMING BELT

1) Check the timing belt teeth for breaks, cracks,
and wear. If any fault is found, replace the belt.
2) Check the condition of back side of belt; if any
crack is found, replace the belt.

NOTE:
• Be careful not to let oil, grease or coolant contact
the belt. Remove quickly and thoroughly if this hap-
pens.

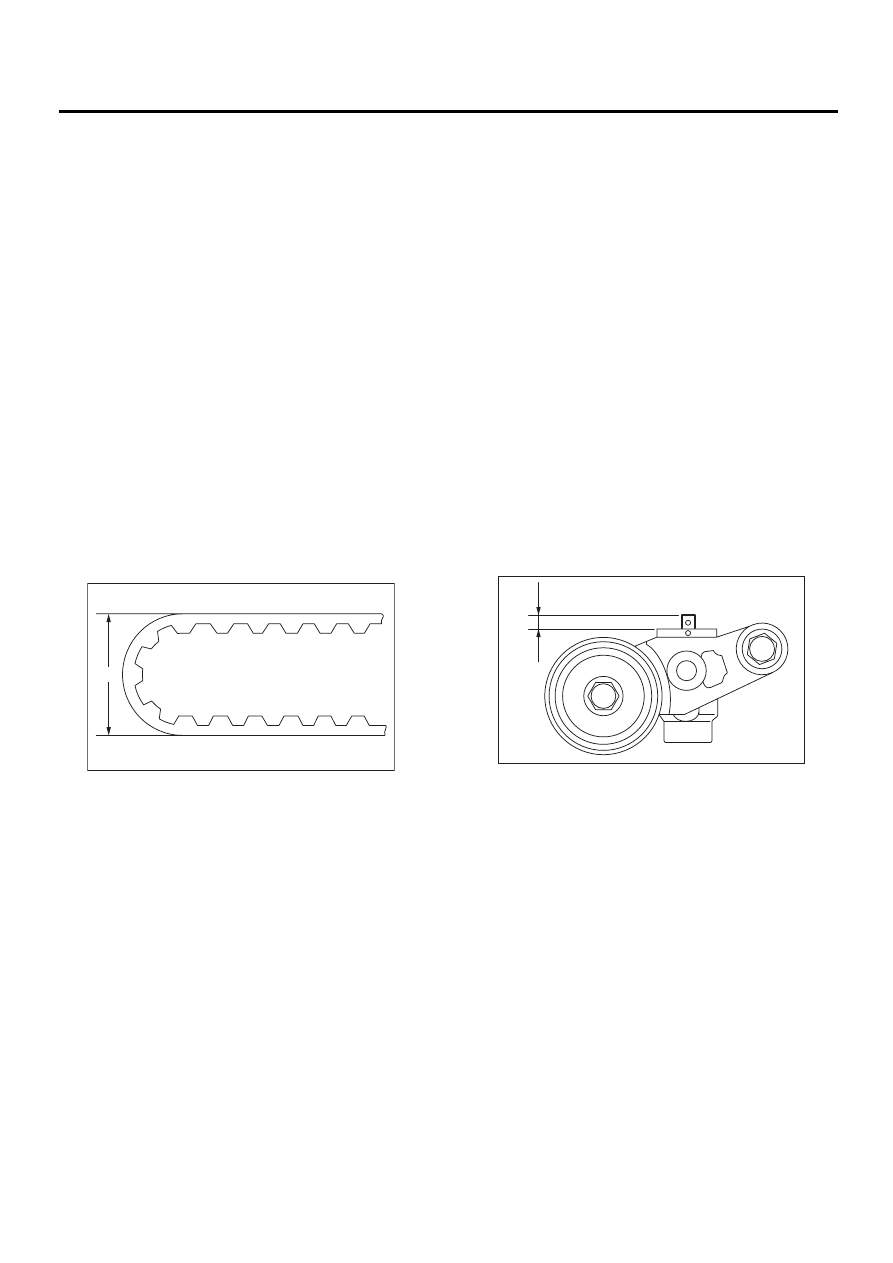

• Do not bend the belt sharply.

Bending radius: h

60 mm (2.36 in) or more

2. AUTOMATIC BELT TENSION ADJUST-
ER

1) Visually check the oil seals for leaks, and rod
ends for abnormal wear or scratches. If necessary,
replace the automatic belt tension adjuster assem-
bly.

NOTE:
Slight traces of oil at rod's oil seal does not indicate
a problem.
2) Check that the adjuster rod does not move when
a pressure of 294 N (30 kgf, 66 lb) is applied to it.
This is to check adjuster rod stiffness.
3) If the adjuster rod is not stiff and moves freely
when applying 294 N (30 kgf, 66 lb), check it using
the following procedures:

(1) Slowly press the adjuster rod down to the
end surface of the cylinder. Repeat this motion 2
or 3 times.

(2) With the adjuster rod moved all the way up,
apply a pressure of 294 N (30 kgf, 66 lb) to it.
Check the adjuster rod stiffness.
(3) If the the adjuster rod is not stiff and moves
down, replace the automatic belt tension adjust-
er assembly with a new one.

NOTE:
• Always use a vertical type pressing tool to move
the adjuster rod down.
• Do not use a lateral type vise.
• Push the adjuster rod vertically.
• Press-in the push adjuster rod gradually taking
more than 3 minutes.
• Do not allow press pressure to exceed 9,807 N
(1,000 kgf, 2,205 lb).
• Press the adjuster rod as far as the end surface
of the cylinder. Do not press the adjuster rod into
the cylinder. Doing so may damage the cylinder.
4) Measure the extension of rod beyond the body.
If it is not within specifications, replace with a new
one.

Rod extension: H

5.7

±±±±

0.5 mm (0.224

±±±±

0.020 in)

3. BELT TENSION PULLEY

1) Check the mating surfaces of timing belt and
contact point of adjuster rod for abnormal wear or
scratches. Replace the belt tension pulley if faulty.
2) Check the belt tension pulley for smooth rota-
tion. Replace if noise or excessive play is noted.
3) Check the belt tension pulley for grease leakage.

4. BELT IDLER

1) Check the idler for smooth rotation. Replace if
noise or excessive play is noted.
2) Check the outer contacting surfaces of idler pul-
ley for abnormal wear and scratches.
3) Check the idler for grease leakage.

ME-00099

h

ME-00100

H

ME(H4DOSTC)-55

MECHANICAL

CAMSHAFT SPROCKET

16.Camshaft Sprocket

A: REMOVAL

1) Remove the V-belt.
<Ref. to ME(H4DOSTC)-42, REMOVAL, V-belt.>
2) Remove the crankshaft pulley.
<Ref. to ME(H4DOSTC)-44, REMOVAL, Crank-
shaft Pulley.>
3) Remove the belt cover.
<Ref. to ME(H4DOSTC)-46, REMOVAL, Belt Cov-
er.>
4) Remove the timing belt assembly.
<Ref. to ME(H4DOSTC)-47, REMOVAL, Timing
Belt Assembly.>
5) Remove the camshaft position sensor.
<Ref. to FU(H4DOSTC)-30, REMOVAL, Camshaft
Position Sensor.>

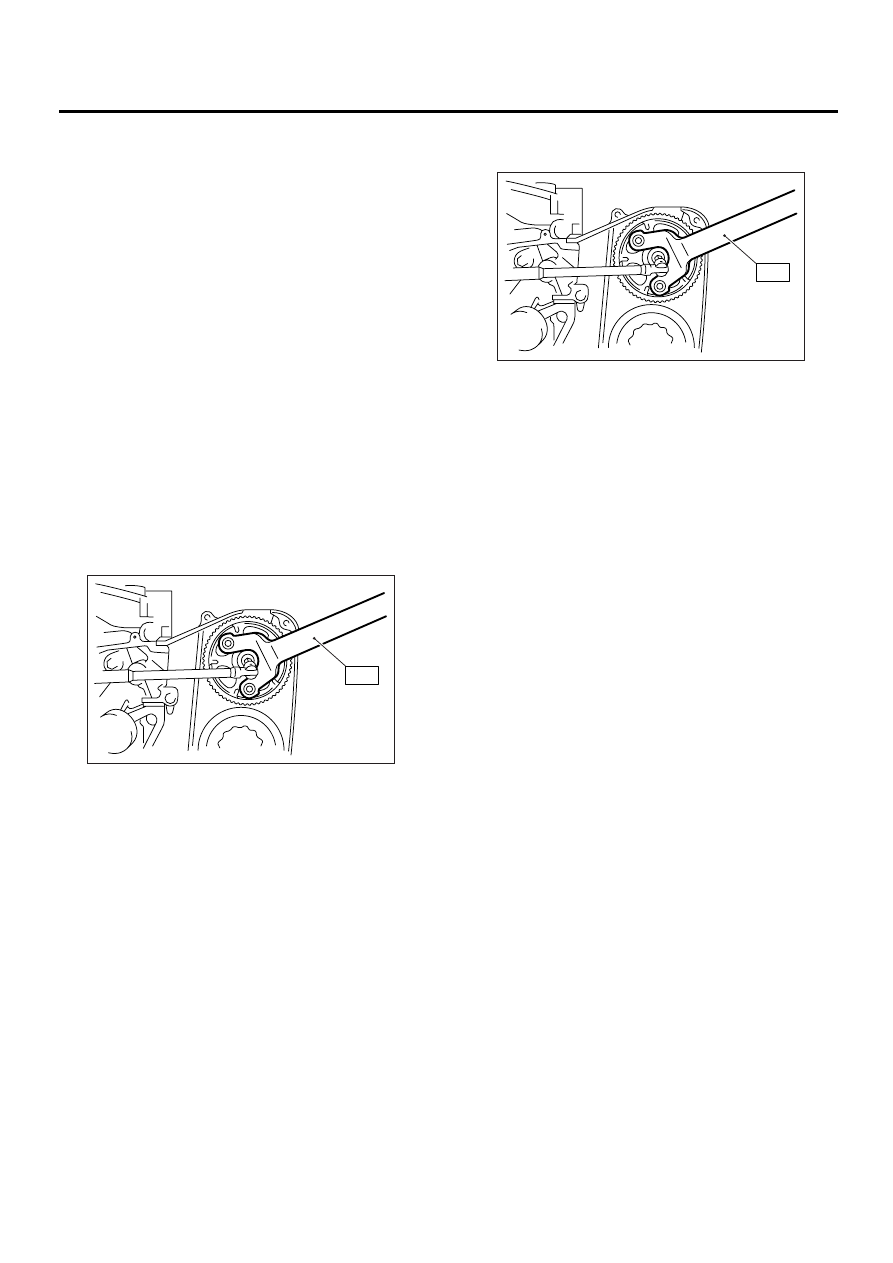

6) Remove the camshaft sprockets. To lock the
camshaft, use ST.
ST

18231AA010

CAMSHAFT SPROCKET
WRENCH (INTAKE LH)

ST

499207400

CAMSHAFT SPROCKET
WRENCH (Except INTAKE
LH)

B: INSTALLATION

1) Install the camshaft sprocket. To lock the cam-
shaft, use ST.
ST

18231AA010

CAMSHAFT SPROCKET
WRENCH (INTAKE LH)

ST

499207400

CAMSHAFT SPROCKET
WRENCH (Except INTAKE
LH)

Tightening torque:

98 N·m (10 kgf-m, 72.4 ft-lb)

NOTE:
Do not confuse the right and left side camshaft
sprockets intake side during installation. The cam-

shaft sprocket LH is identified by a projection used
to monitor camshaft position sensor.

2) Install the camshaft position sensor.
<Ref. to FU(H4DOSTC)-30, INSTALLATION,
Camshaft Position Sensor.>
3) Install the timing belt assembly.
<Ref. to ME(H4DOSTC)-49, INSTALLATION, Tim-
ing Belt Assembly.>
4) Install the belt cover.
<Ref. to ME(H4DOSTC)-46, INSTALLATION, Belt
Cover.>
5) Install the crankshaft pulley.
<Ref. to ME(H4DOSTC)-44, INSTALLATION,
Crankshaft Pulley.>
6) Install the V-belt.
<Ref. to ME(H4DOSTC)-42, INSTALLATION, V-
belt.>

C: INSPECTION

1) Check the sprocket teeth for abnormal wear and
scratches.
2) Make sure there is no free play between sprock-
et and key.
3) Check the crankshaft sprocket notch used for
sensor for damage and contamination of foreign
matter.

ME-00368

ST

ME-00368

ST
