Subaru Legacy III (2000-2003 year). Manual - part 395

FU(H4DOSTC)-46

FUEL INJECTION (FUEL SYSTEMS)

FUEL

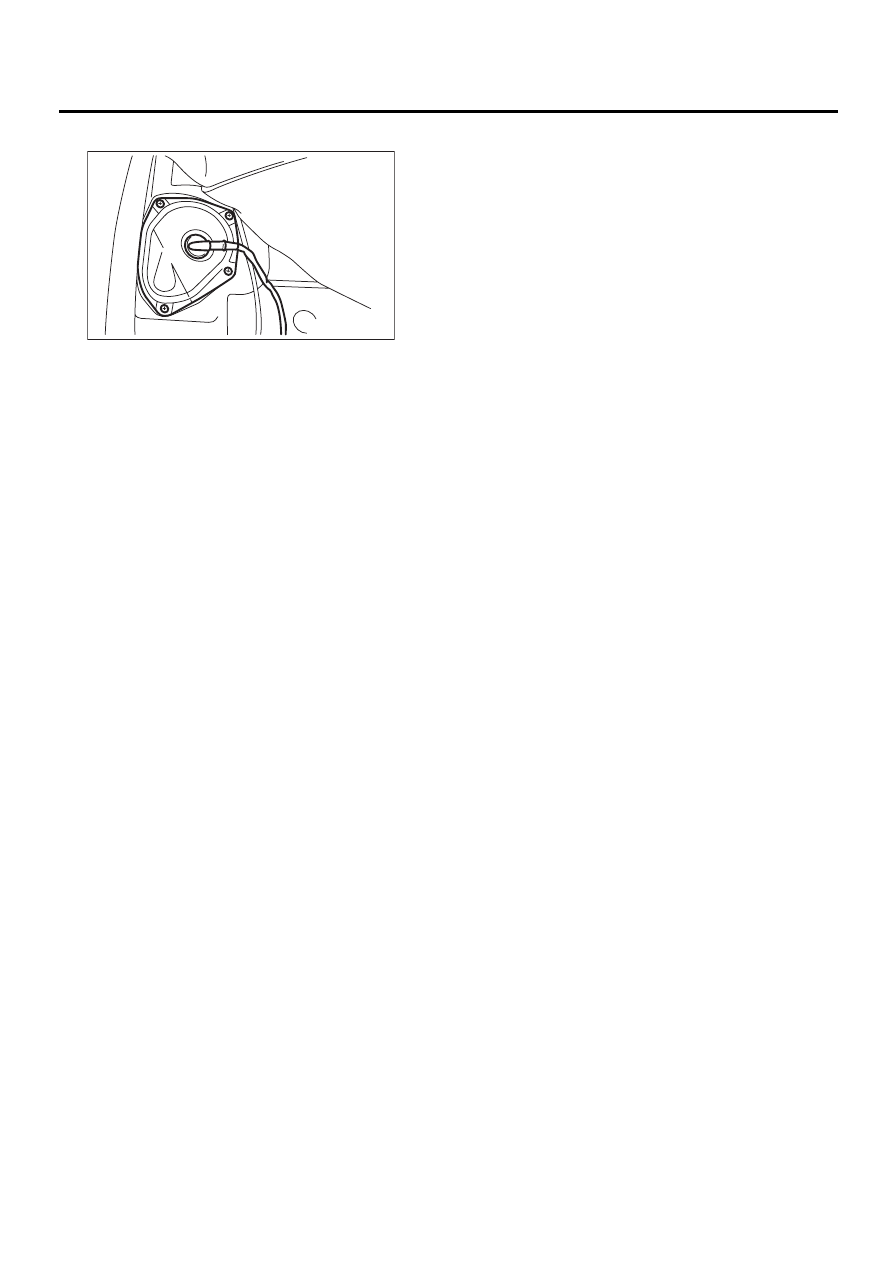

(3) Install the sub service hole cover.

(4) Set the rear seat and floor mat.

FU-00445

FU(H4DOSTC)-47

FUEL INJECTION (FUEL SYSTEMS)

FUEL TANK

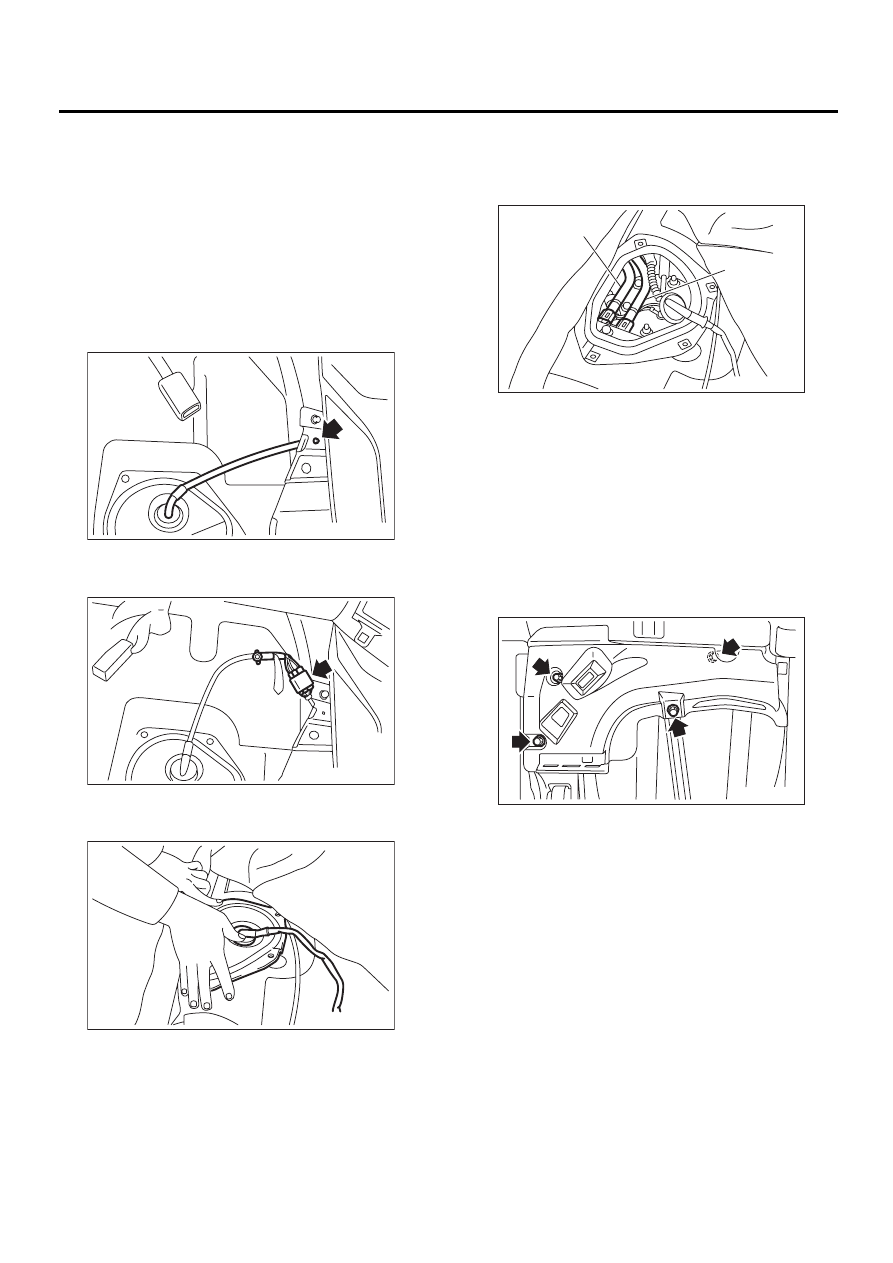

20.Fuel Tank

A: REMOVAL

1) Set the vehicle on the lift.
2) Release the fuel pressure. <Ref. to
FU(H4DOSTC)-44, RELEASING OF FUEL PRES-
SURE, OPERATION, Fuel.>
3) Drain the fuel from fuel tank. <Ref. to
FU(H4DOSTC)-44, DRAINING FUEL, OPERA-
TION, Fuel.>
4) Remove the holder clip which secures fuel tank
cord on bracket.

5) Disconnect the connector of fuel tank cord to
rear harness.

6) Push the grommet which holds fuel tank cord on
service hole cover into body side.

7) Separate the quick connector of fuel delivery (A)
and return hose (B).<Ref. to FU(H4DOSTC)-67,
REMOVAL, Fuel Delivery, Return and Evaporation
Lines.>

8) Remove the parking brake cable.

(1) Remove the console box. <Ref. to EI-34,
REMOVAL, Console Box.>
(2) Remove the parking brake bracket, and
then disconnect the parking brake cable from
equalizer. <Ref. to PB-7, REMOVAL, Parking
Brake Cable.>

9) Remove the wheel nuts from rear wheels.
10) Lift-up the vehicle.
11) Remove the rear wheel.
12) Remove the front side protector.

FU-00449

FU-00450

FU-00451

FU-00452

( A )

( B )

FU-00443

FU(H4DOSTC)-48

FUEL INJECTION (FUEL SYSTEMS)

FUEL TANK

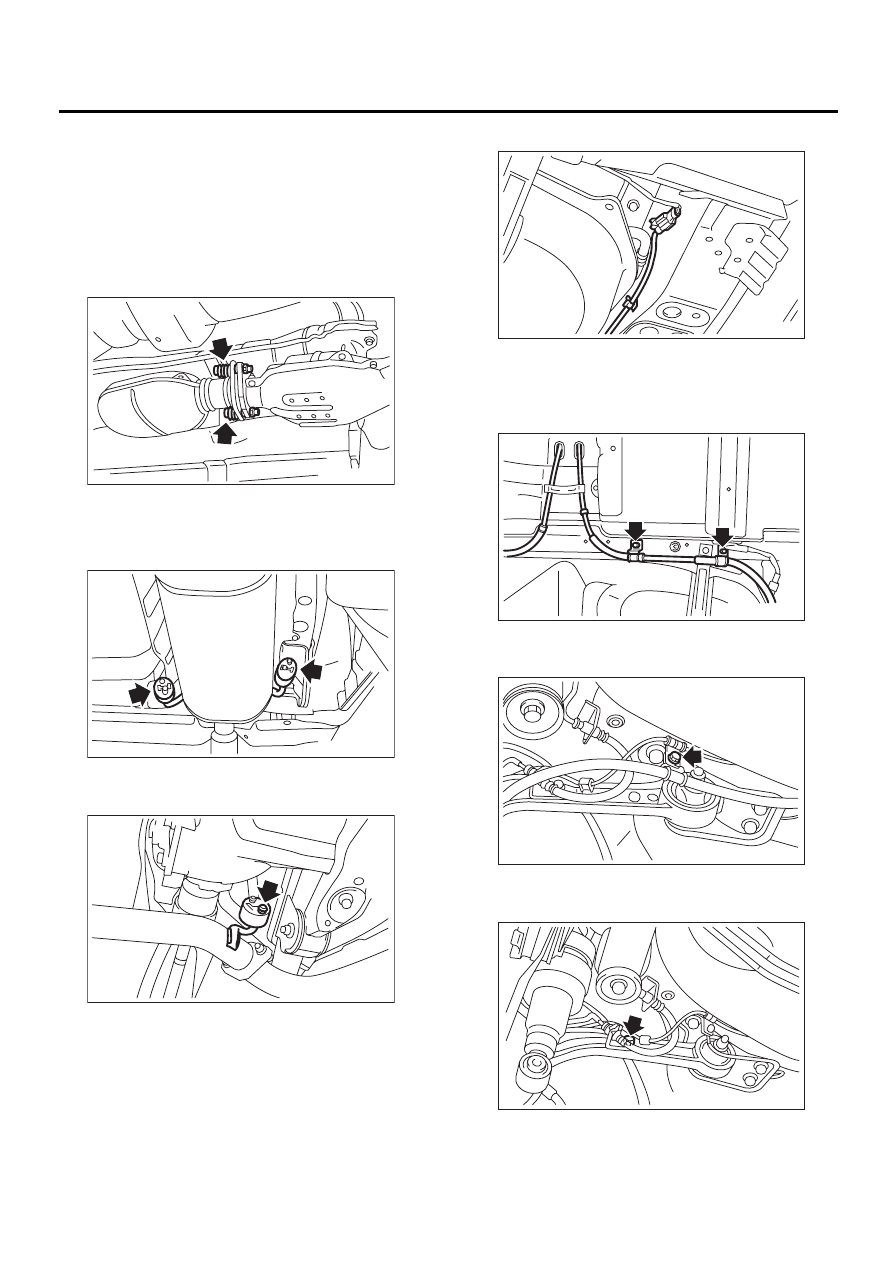

13) Remove the rear exhaust pipe and muffler.

NOTE:
To facilitate the removal, apply a coat of SUBARU
CRC to matching area of rubber cushions in ad-
vance.

SUBARU CRC (Part No. 004301003)

(1) Separate the rear exhaust pipe from center
exhaust pipe.

(2) Remove the right and left rubber cushions.

NOTE:
Be careful not to pull down the muffler.

(3) Remove the front rubber cushion, and then
detach the muffler assembly.

14) Remove the propeller shaft. <Ref. to DS-14,
REMOVAL, Propeller Shaft.>

15) Disconnect the connector from ABS sensor.

16) Remove the bolts which hold parking brake ca-
ble holding bracket.
17) Remove the parking brake cable from cabin by
forcibly pulling it backward.

18) Remove the bolt which holds parking brake ca-
ble holding bracket.

19) Remove the bolt which holds rear brake hoses
holding bracket.

FU-00455

FU-00456

FU-00457

FU-00458

FU-00459

FU-00460

FU-00461

FU(H4DOSTC)-49

FUEL INJECTION (FUEL SYSTEMS)

FUEL TANK

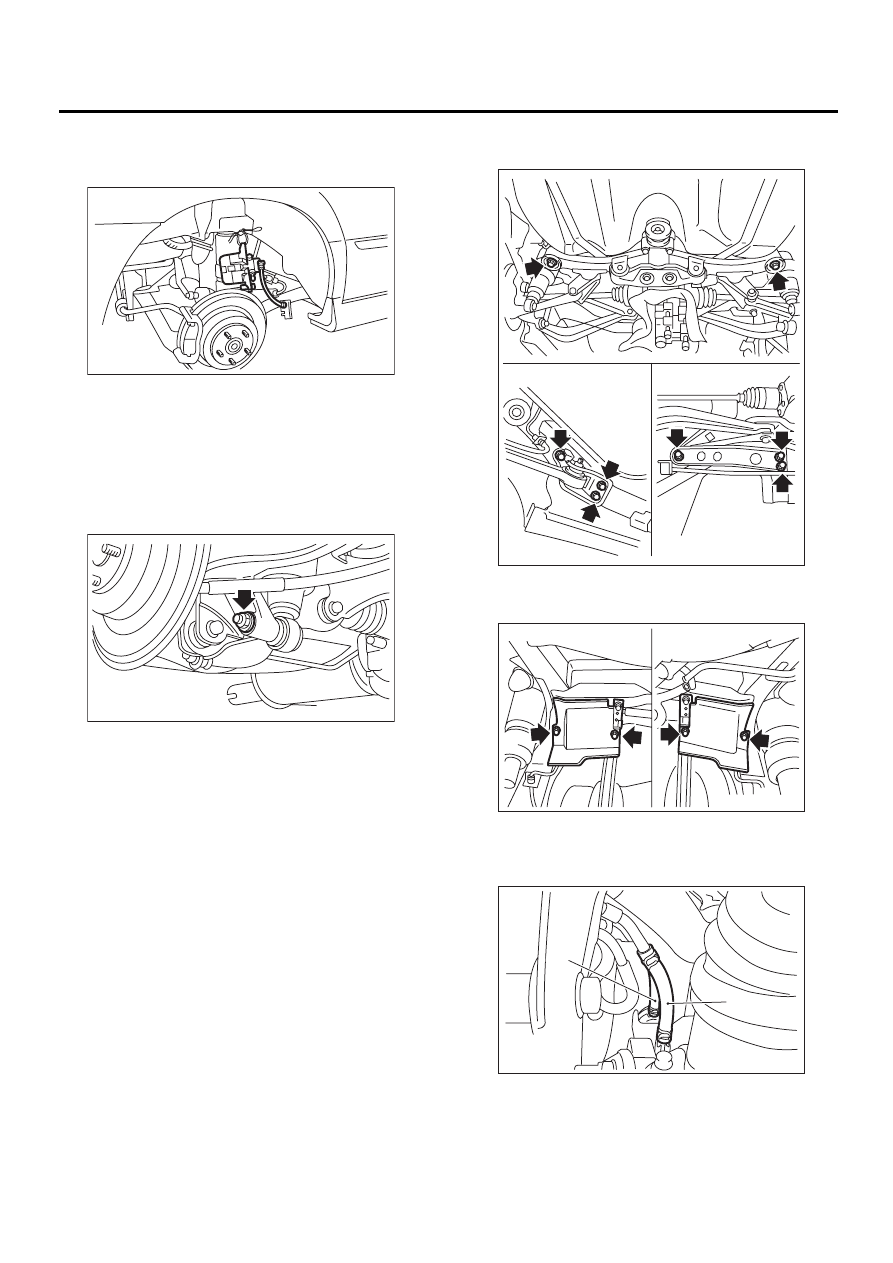

20) Remove the rear brake caliper, and then tie it
up to the body side of vehicle as shown in the fig-
ure.

21) Remove the rear suspension assembly.

CAUTION:
A helper is required to perform this work.

(1) Support the rear differential with transmis-
sion jack.
(2) Remove the bolt which holds rear shock ab-
sorber to rear suspension arm.

(3) Remove the bolts which secure rear sus-
pension assembly to body.

(4) Remove the rear suspension assembly.

22) Remove the rear side protector.

23) Disconnect the two-way vlave hose (A) from
two-way valve, and then disconnect the evapora-
tion hose (B) from evaporation pipe.

FU-00462

FU-00463

FU-00464

LH side

RH side

FU-00465

FU-00674

( A )

( B )
