FU(H4DOSTC)-6

FUEL INJECTION (FUEL SYSTEMS)

GENERAL DESCRIPTION

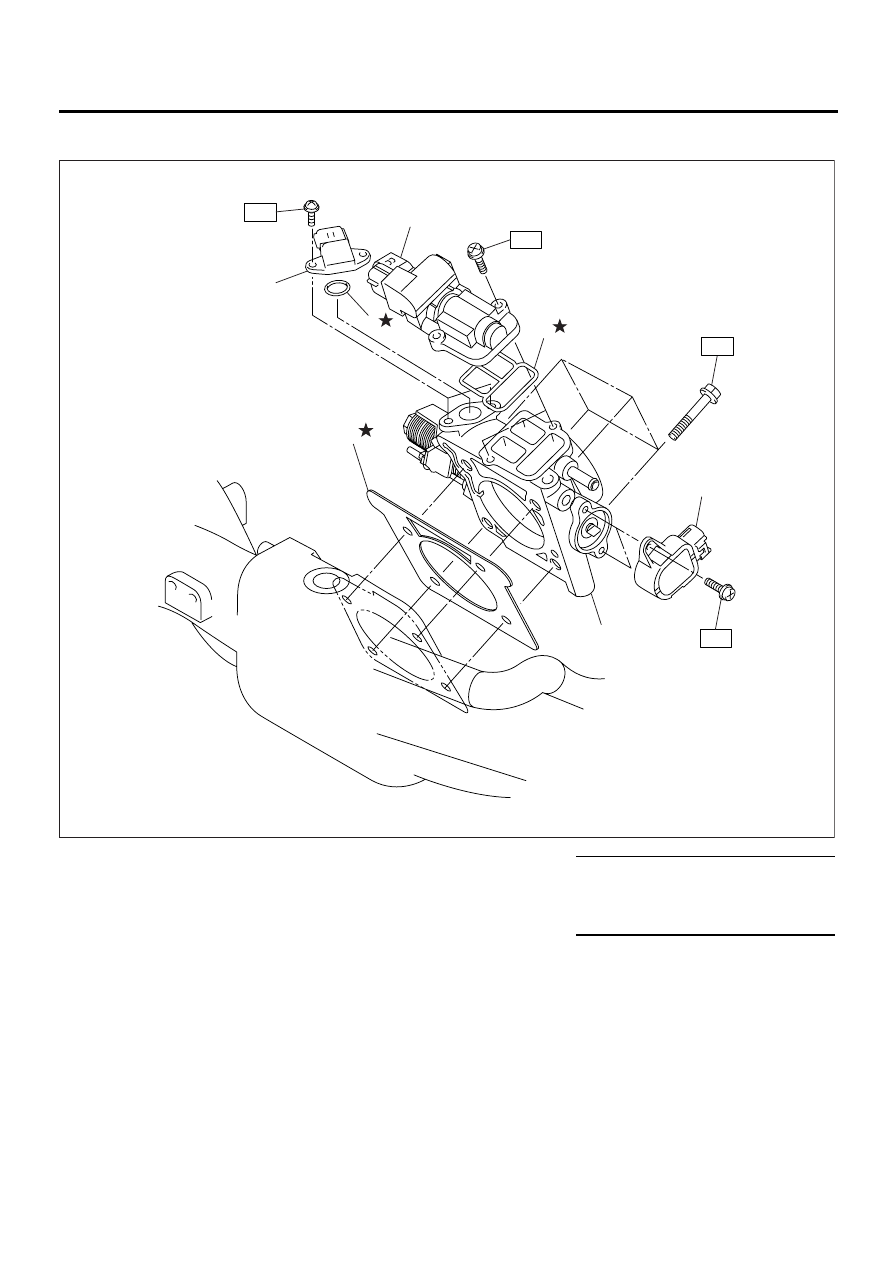

2. AIR INTAKE SYSTEM

(1) Gasket

(5) Pressure sensor

Tightening torque: N·m (kgf-m, ft-lb)

(2) Throttle position sensor

(6) Gasket

T1: 1.6 (0.16, 1.2)

(3) Idle air control solenoid valve

(7) O-ring

T2: 2.8 (0.29, 2.1)

(4) Throttle body

T3: 22 (2.2, 15.9)

FU-00002

(1)

(5)

(7)

(2)

(4)

T1

T1

T3

(3)

(6)

T2

FU(H4DOSTC)-7

FUEL INJECTION (FUEL SYSTEMS)

GENERAL DESCRIPTION

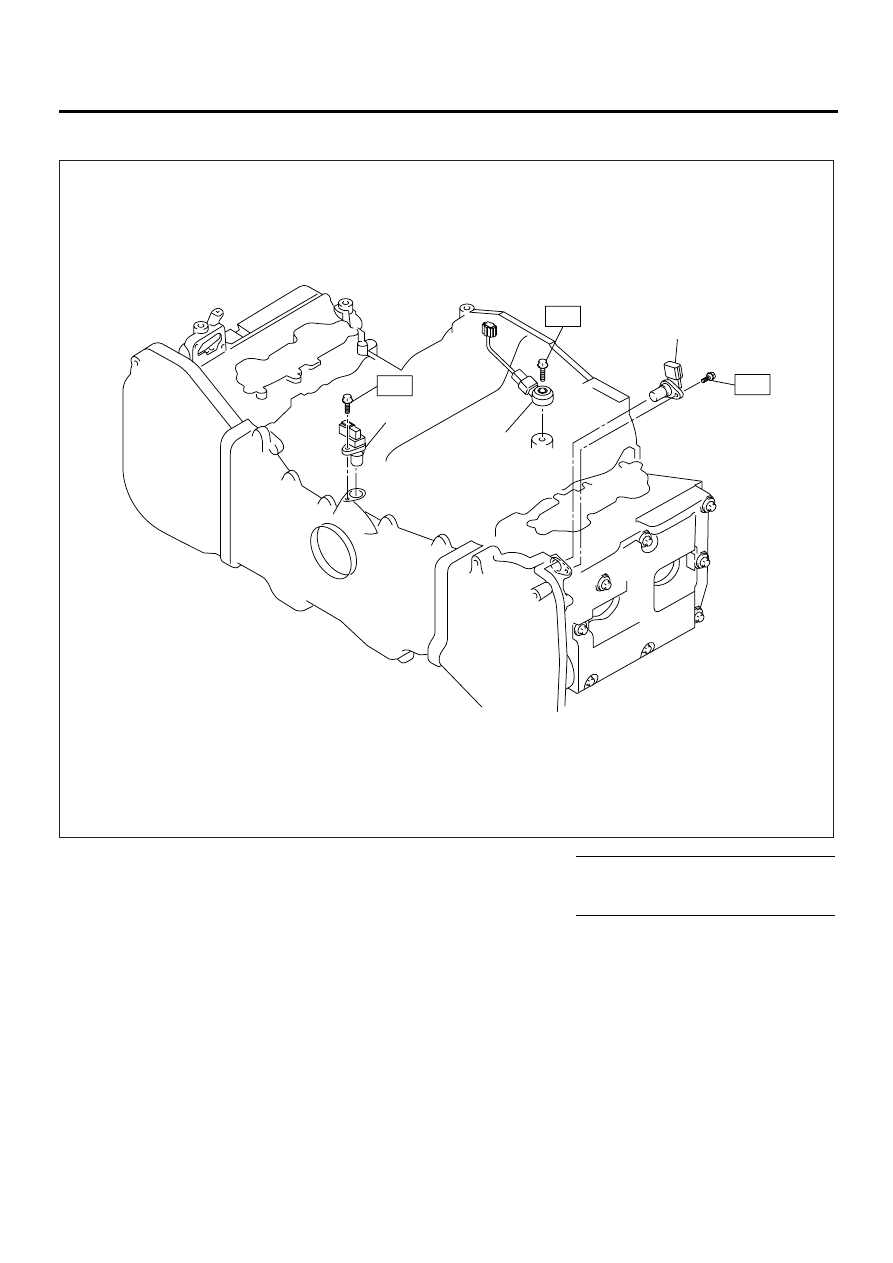

3. CRANKSHAFT POSITIOM, CAMSHAFT POSITION AND KNOCK SENSORS

(1) Crankshaft position sensor

(3) Camshaft position sensor

Tightening torque: N·m (kgf-m, ft-lb)

(2) Knock sensor

T1: 6.4 (0.65, 4.7)

T2: 24 (2.4, 17.4)

T1

T2

T1

(3)

(2)

(1)

FU-00363

FU(H4DOSTC)-8

FUEL INJECTION (FUEL SYSTEMS)

GENERAL DESCRIPTION

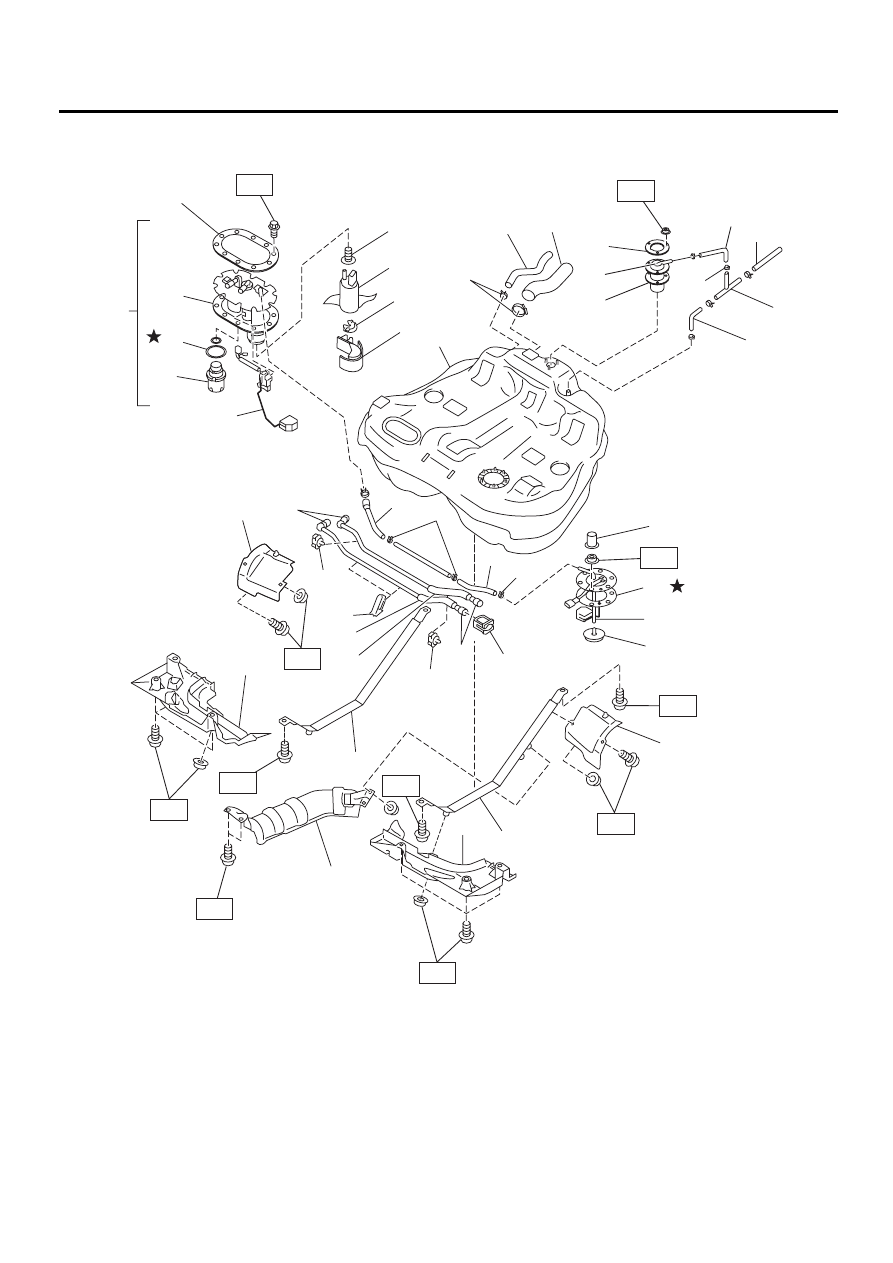

4. FUEL TANK

FU-00626

( 1 )

( 2 )

( 2 )

( 3 )

( 4 )

( 5 )

( 6 )

( 7 )

( 8 )

( 9 )

(31)

(33)

(37)

(38)

(36)

(30)

(34)

(11)

(10)

(12)

(13)

(14)

(14)

(14)

(15)

(16)

(17)

(18)

(19)

(20)

(26)

(24)

(25)

(23)

(32)

(21)

(22)

(21)

(27)

(30)

(30)

(30)

(35)

(29)

(28)

T3

T3

T3

T3

T1

T1

T4

T2

T2

T2

T2

FU(H4DOSTC)-9

FUEL INJECTION (FUEL SYSTEMS)

GENERAL DESCRIPTION

(1) Heat shield cover

(16) Joint pipe

(31) Gasket

(2) Fuel tank band

(17) Evaporation hose B

(32) Cap

(3) Protector LH (Front)

(18) Jet pump hose A

(33) Gasket

(4) Protector RH (Front)

(19) Fuel return tube

(34) Fuel cut valve plate

(5) Fuel tank

(20) Retainer

(35) Fuel delivery tube

(6) Fuel pump plate

(21) Quick connector

(36) Seal

(7) Fuel pump ASSY

(22) Jet pump hose B

(37) Fuel pump holder

(8) Fuel level sensor

(23) Fuel sub level sensor gasket

(38) Grommet

(9) Fuel filter

(24) Jet pump filter

(10) Fuel pump

(25) Fuel sub level sensor

Tightening torque: N·m (kgf-m, ft-lb)

(11) Fuel cut valve gasket

(26) Protector LH (Rear)

T1: 4.4 (0.45, 3.3)

(12) Fuel cut valve

(27) Protector RH (Rear)

T2: 18 (1.8, 13.0)

(13) Evaporation hose A

(28) Fuel filler hose

T3: 33 (3.4, 25)

(14) Clip

(29) Vent hose

T4: 5.9 (0.6, 4.3)

(15) Evaporation hose C

(30) Clamp
