FU(H4DOSTC)-2

FUEL INJECTION (FUEL SYSTEMS)

GENERAL DESCRIPTION

1. General Description

A: SPECIFICATIONS

Fuel tank

Capacity

64

2

 (16.9 US gal, 14.1 Imp gal)

Location

Under rear seat

Fuel pump

Type

Impeller

Shutoff discharge pressure

450 — 677 kPa (4.59 — 6.9 kg/cm

2

, 65.27 — 98.2 psi)

Discharge flow

More than 130

2

 (34.3 US gal, 28.6 Imp gal)/h

[12 V at 300 kPa (3.06 kg/cm

2

, 43.5 psi)]

Fuel filter

Cartridge type

FU(H4DOSTC)-3

FUEL INJECTION (FUEL SYSTEMS)

GENERAL DESCRIPTION

MEMO:

FU(H4DOSTC)-4

FUEL INJECTION (FUEL SYSTEMS)

GENERAL DESCRIPTION

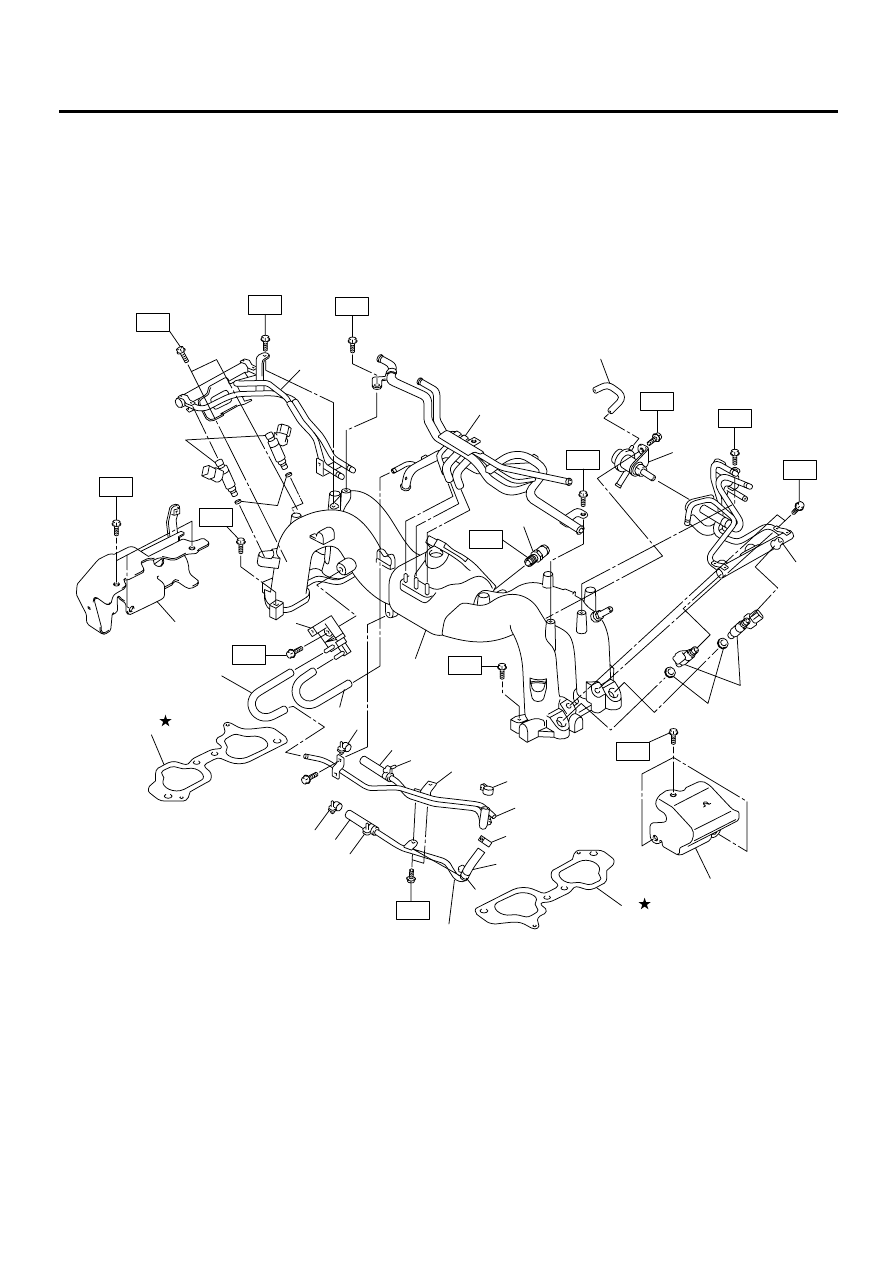

B: COMPONENT

1. INTAKE MANIFOLD

FU-00625

(16)

(10)

(18)

(6)

(9)

(14)

T1

T1

T2

T4

T4

T2

T4

T3

(3)

(3)

(12)

(13)

(17)

(3)

(3)

(3)

(3)

(4)

(2)

(2)

(2)

(10)

(11)

(9)

T1

T1

T1

T3

T3

T3

(5)

(15)

(1)

(8)

(2)

(3)

(7)

(5)

(6)

FU(H4DOSTC)-5

FUEL INJECTION (FUEL SYSTEMS)

GENERAL DESCRIPTION

(1) Fuel pipe ASSY

(10) Fuel injector

(18) Fuel pipe protector RH

(2) Hose

(11) Fuel injector pipe LH

(3) Clamp

(12) Pressure regulator

Tightening torque: N·m (kgf-m, ft-lb)

(4) Evaporation and fuel pipe ASSY

(13) Hose

T1: 5.0 (0.51, 3.7)

(5) Gasket

(14) Evaporation and coolant pipe

ASSY

T2: 19 (1.94, 13.7)

(6) Purge hose

T3: 19 (1.94, 13.7)

(7) Purge control solenoid valve

(15) Intake manifold

T4: 25 (2.5, 18.1)

(8) Fuel pipe protector LH

(16) Fuel injector pipe RH

(9) Insulator

(17) PCV valve
