IG(H6DO)-8

IGNITION

IGNITION COIL AND IGNITOR ASSEMBLY

MEMO:

STARTING/CHARGING SYSTEMS

SC(H6DO)

Page

1.

General Description ....................................................................................2

2.

Starter .........................................................................................................6

3.

Generator ..................................................................................................14

4.

Battery.......................................................................................................20

SC(H6DO)-2

STARTING/CHARGING SYSTEMS

GENERAL DESCRIPTION

1. General Description

A: SPECIFICATIONS

Item

Designation

Starter

Type

Reduction type

Model

M001T86481

Manufacturer

Mitsubishi Electric

Voltage and output

12 V — 1.4 kW

Direction of rotation

Counterclockwise (when observed from pinion)

Number of pinion teeth

9

No-load characteristics

Voltage

11 V

Current

90 A or less

Rotating speed

2,400 rpm or more

Load characteristics

Voltage

7.7 V

Current

400 A or less

Torque

16.0 N·m (1.63 kgf-m, 11.8 ft-lb)

Rotating speed

740 rpm or more

Lock characteristics

Voltage

3.5 V

Current

940 A or less

Torque

28.9 N·m (2.95 kgf-m, 21.3 ft-lb) or more

Generator

Type

Rotating-field three-phase type

Model

A3TB1891

Manufacturer

Mitubishi Electric

Voltage and output

12 V — 100 A

Polarity on ground side

Negative

Rotating direction

Clockwise (when observed from pulley side.)

Armature connection

3-phase Y-type

Output current

1,500 rpm — 43 A or more
2,500 rpm — 76 A or more

5,000 rpm — 100 A or more

Regulated voltage

14.1 — 14.8 V [20

°

C (68

°

F)]

Battery

Type and capacity

For Europe/Latin Amer-
ica

12 V — 52 AH (75D23L)

Others

12 V — 48 AH (55D23L)

SC(H6DO)-3

STARTING/CHARGING SYSTEMS

GENERAL DESCRIPTION

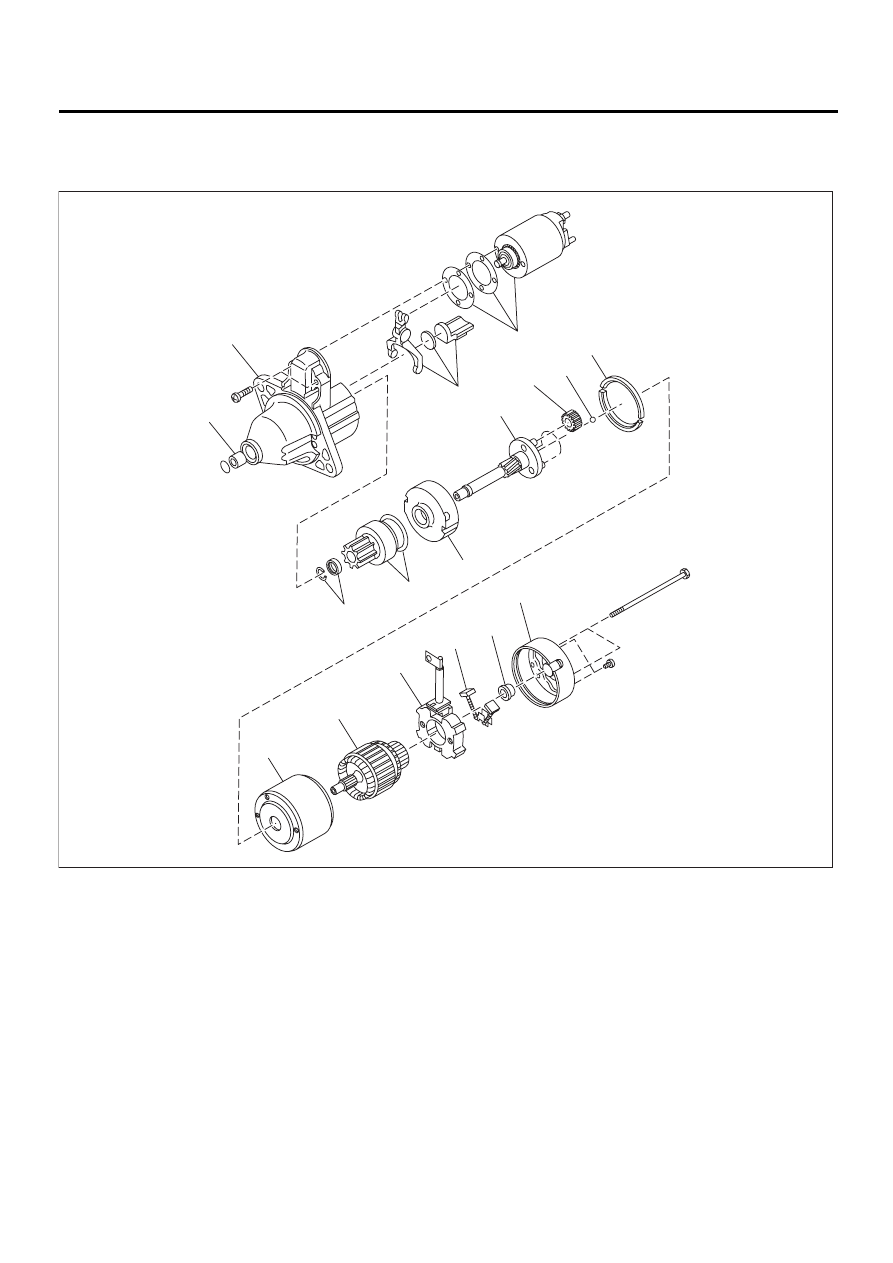

B: COMPONENT

1. STARTER

(1) Sleeve bearing

(7) Internal gear ASSY

(13) Armature

(2) Front bracket

(8) Shaft ASSY

(14) Brush holder

(3) Lever set

(9) Gear ASSY

(15) Brush

(4) Magnet switch ASSY

(10) Ball

(16) Sleeve bearing

(5) Stopper set

(11) Packing

(17) Rear bracket

(6) Over running clutch

(12) Yoke

SC-00146

( 1 )

( 2 )

( 3 )

( 4 )

( 5 )

( 6 )

( 7 )

( 8 )

( 9 )

(10)

(11)

(12)

(13)

(14)

(15)

(16)

(17)
