SP(H6DO)-8
SPEED CONTROL SYSTEMS
ACCELERATOR CONTROL CABLE
3. Accelerator Control Cable
A: REMOVAL
1) Remove accelerator pedal. <Ref. to SP(H6DO)-
4, REMOVAL, Accelerator Pedal.>
2) Separate accelerator cable and accelerator ped-
al.
B: INSTALLATION
1) Install in the reverse order of removal.
2) Apply grease to engine side accelerator cable
end.
Grease:
Part No. 004404002
Slicolube G-30M
NOTE:
• If cable clamp is damaged, replace it with a new
one.
• Never fail to cover outer cable end with boot.
• Be careful not to kink accelerator cable.
• Do not apply grease to the throttle cable on the
engine side.
3) Adjustment after pedal installation <Ref. to
SP(H6DO)-7, ADJUSTMENT, Accelerator Pedal.>
C: INSPECTION
1) Make sure the inner cable is not twisted or
frayed.
2) Make sure the outer cable is not cracked.

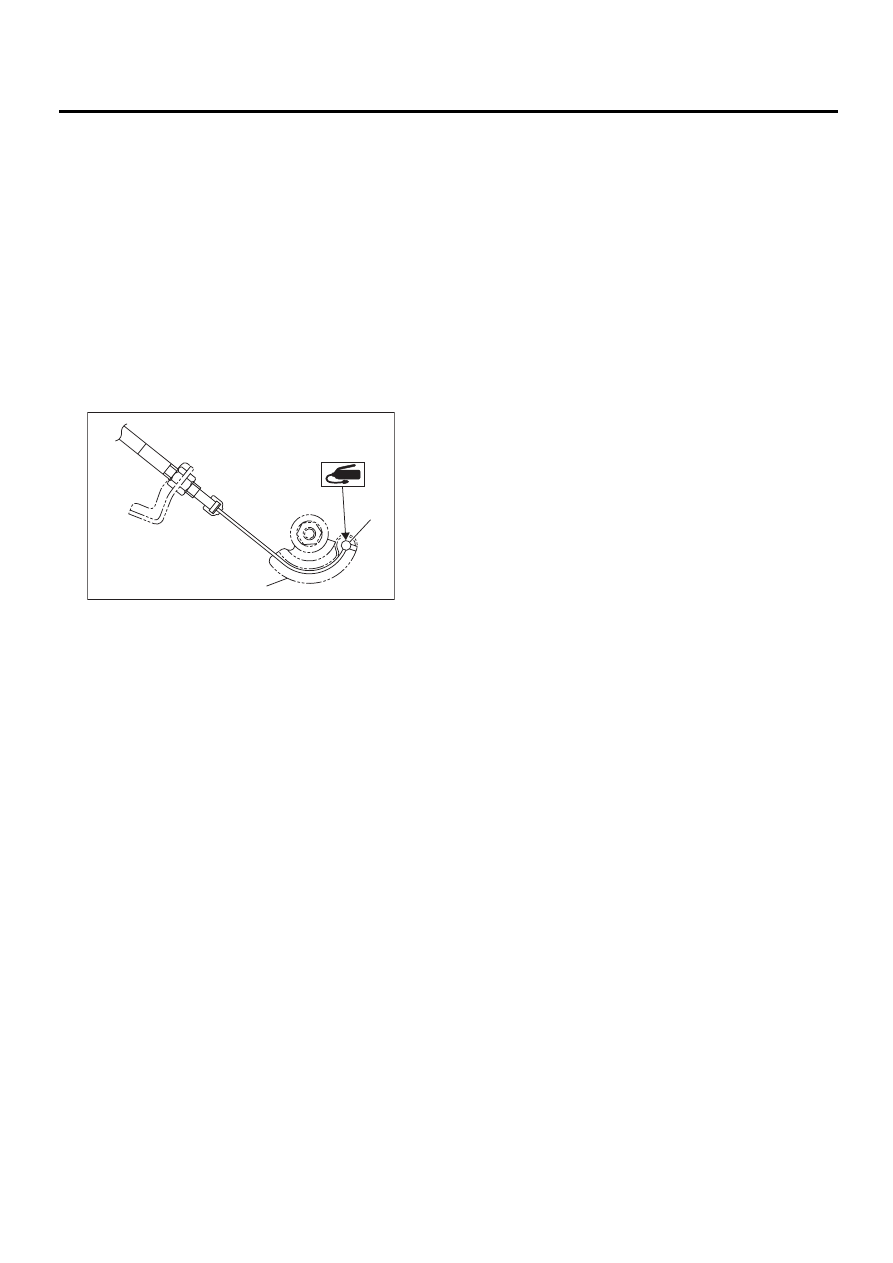

(A) Grease application area
(B) Throttle cam
SP-00042
( A )
( B )
