LU(H6DO)-20

LUBRICATION

ENGINE LUBRICATION SYSTEM TROUBLE IN GENERAL

10.Engine Lubrication System Trouble in General

A: INSPECTION

Before performing diagnostics, make sure that the engine oil level is correct and no oil leakage exists.

Trouble

Possible cause

Corrective action

1. Warning light remains ON.

1) Oil pressure
switch failure

Cracked diaphragm or pressure leakage
within switch

Replace.

Broken spring or seized contacts

Replace.

2) Low oil pressure

Clogged oil filter

Replace.

Malfunction of oil by-pass valve of oil filter

Clean or replace.

Malfunction of oil relief valve of oil pump

Clean or replace.

Clogged oil passage

Clean.

Tip clearance and side clearance of oil
pump rotor and gear

Replace.

Clogged oil strainer or broken pipe

Clean or replace.

3) No oil pressure

Insufficient engine oil

Replenish.

Broken pipe of oil strainer

Replace.

Oil pump rotor does not rotate.

Replace.

2. Warning light does not go on.

1) Broken line related to bulb

Replace.

2) Poor contact of switch contact points

Replace.

3) Disconnection of wiring

Repair.

3. Warning light flickers momen-
tarily.

1) Poor contact at terminals

Repair.

2) Defective wiring harness

Repair.

3) Low oil pressure

Check for the same possi-
ble causes as listed in
1.—2).

SP(H6DO)-2

SPEED CONTROL SYSTEMS

GENERAL DESCRIPTION

1. General Description

A: SPECIFICATION

B: COMPONENT

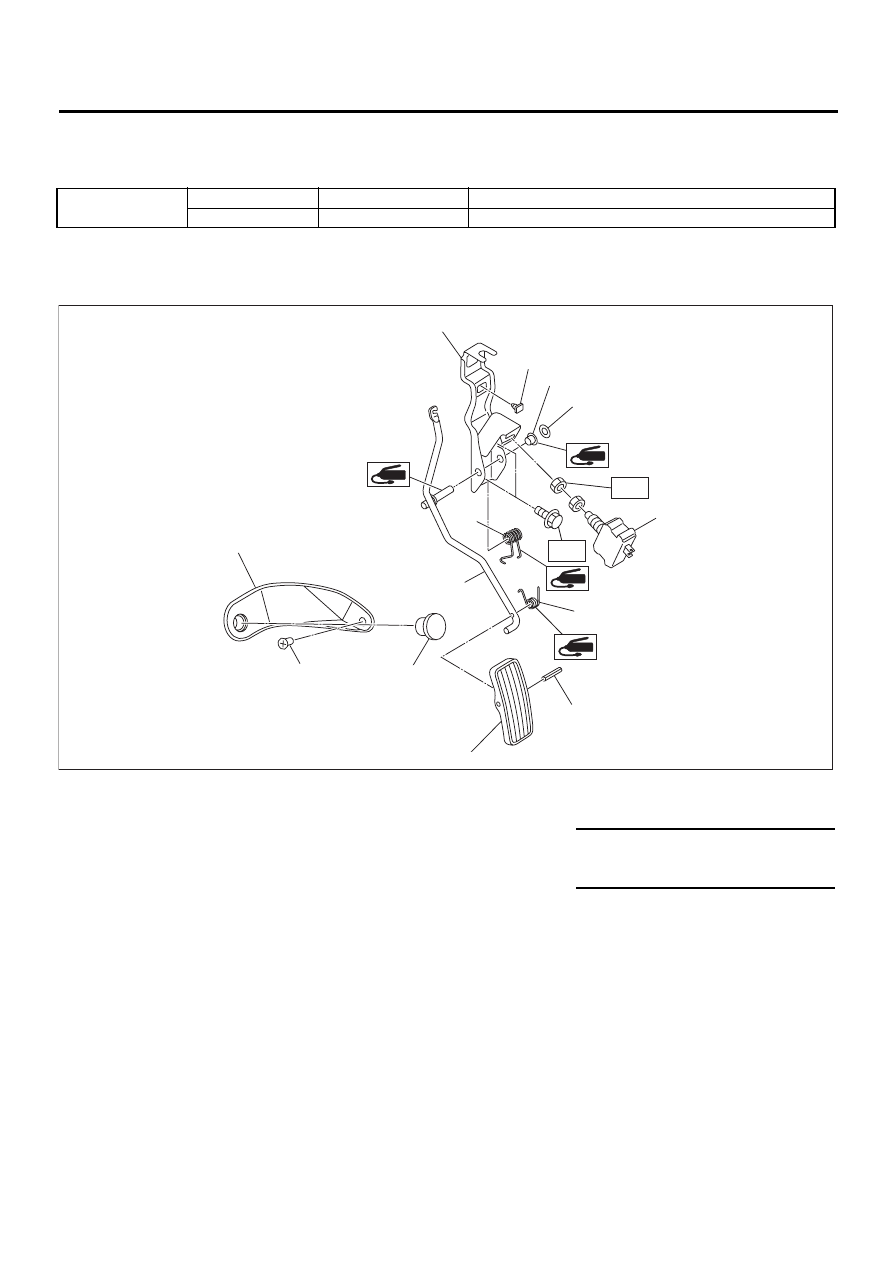

1. LHD MODEL

Accelerator pedal

Free play

At pedal pad

0 — 4 mm (0 — 0.16 in)

Stroke

At pedal pad

50 — 55 mm (1.97 — 2.17 in)

(1) Accelerator bracket

(7) Accelerator pedal lever

(13) Kick-down switch

(2) Stopper

(8) Spring pin

(3) Bushing

(9) Accelerator pedal

Tightening torque: N·m (kgf-m, ft-lb)

(4) Clip

(10) Accelerator stopper

T1: 12 (1.2, 8.7)

(5) Accelerator spring

(11) Accelerator plate

T2: 18 (1.8, 13.0)

(6) Accelerator pedal spring

(12) Clip

( 1 )

( 2 )

( 3 )

( 4 )

( 5 )

( 6 )

( 7 )

( 8 )

( 9 )

(10)

(11)

(12)

(13)

T2

SP-00021

T1

SP(H6DO)-3

SPEED CONTROL SYSTEMS

GENERAL DESCRIPTION

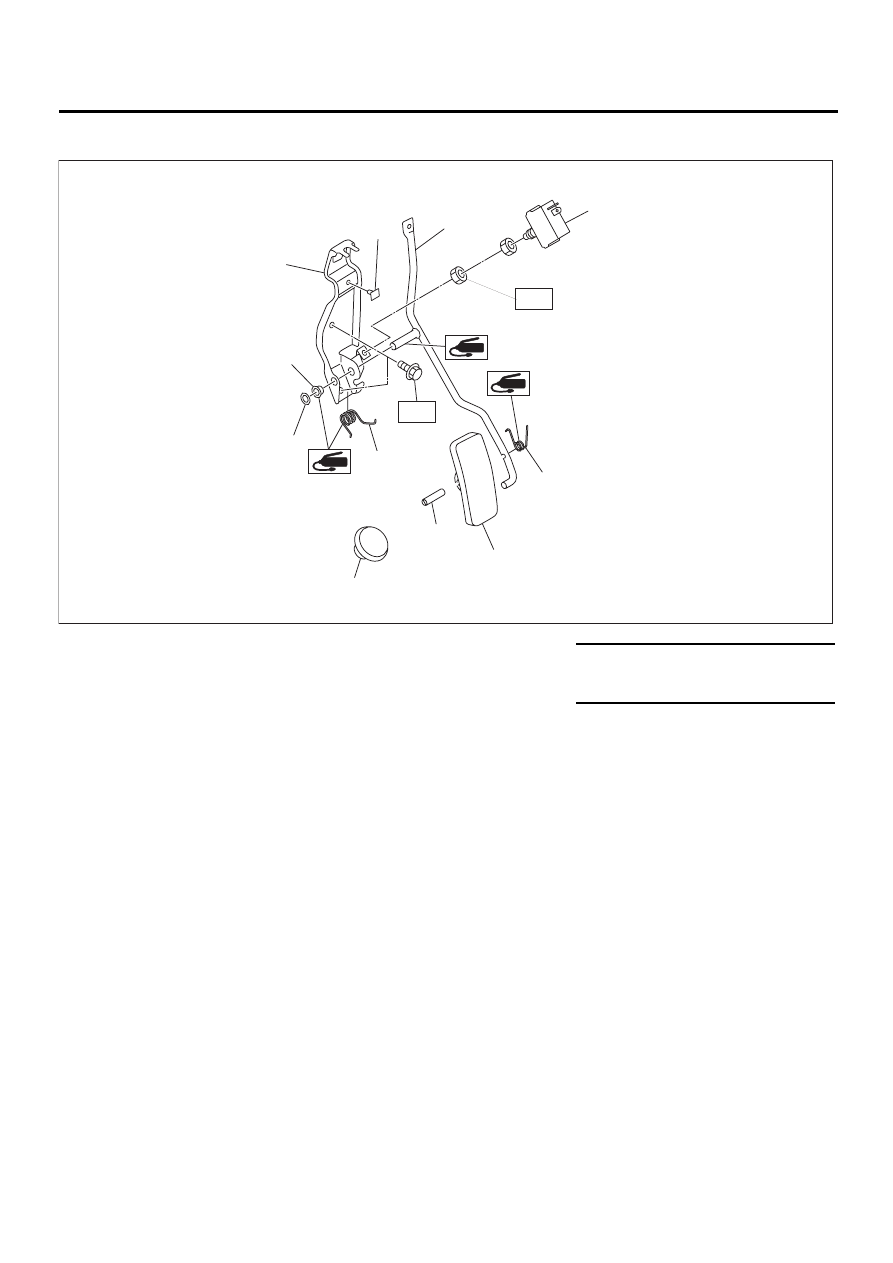

2. RHD MODEL

C: CAUTION

• Wear work clothing, including a cap, protective
goggles, and protective shoes during operation.
• Remove contamination, including dirt and corro-
sion, before removal, installation or disassembly.
• Keep the disassembled parts in order and pro-
tect them from dust and dirt.
• Before removal, installation or disassembly, be
sure to clarify the failure. Avoid unnecessary re-
moval, installation, disassembly, and replacement.
• Be careful not to burn your hands, because each
part in the vehicle is hot after running.
• Be sure to tighten fasteners including bolts and
nuts to the specified torque.
• Place shop jacks or safety stands at the specified
points.
• Before disconnecting electrical connectors of
sensors or units, be sure to disconnect ground ca-
ble from battery.

(1) Accelerator bracket

(7) Accelerator spring

Tightening torque: N·m (kgf-m, ft-lb)

(2) Stopper

(8) Bushing

T1: 12 (1.2, 8.7)

(3) Accelerator pedal lever

(9) Clip

T2: 18 (1.8, 13.0)

(4) Accelerator pedal spring

(10) Accelerator stopper

(5) Accelerator pedal

(11) Kick-down switch

(6) Spring pin

SP-00022

T2

T1

( 1 )

( 2 )

( 3 )

( 4 )

( 5 )

( 6 )

( 7 )

( 8 )

( 9 )

(10)

(11)
