Subaru Legacy III (2000-2003 year). Manual - part 209
EN(H4SOw/oOBD)-26
ENGINE (DIAGNOSTICS)
INSPECTION MODE
8. Inspection Mode
A: OPERATION
1. PREPARATIONS FOR THE INSPECTION
MODE
Raise the vehicle using a garage jack and place on
safety stands or drive the vehicle onto free rollers.
WARNING:
• Before raising the vehicle, ensure parking
brakes are applied.
• Do not use a pantograph jack in place of a
safety stand.
• Secure a rope or wire to the front and rear
towing or tie-down hooks to prevent the lateral
runout of front wheels.
• Do not abruptly depress/release clutch pedal
or accelerator pedal during works even when
engine is operating at low speeds since this
may cause vehicle to jump off free rollers.
• In order to prevent the vehicle from slipping
due to vibration, do not place any wooden
blocks or similar items between the safety
stands and the vehicle.
• Since the rear wheels will also rotate, do not
place anything near them. Also, make sure that
nobody goes in front of the vehicle.
2. WITH SUBARU SELECT MONITOR
After performing diagnostics and clearing the mem-
ory, check for any remaining unresolved trouble da-
ta.
1) Connect test mode connector (green).
2) Connect Subaru select monitor to data link con-
nector. <Ref. to EN(H4SOw/oOBD)-9, LOCATION,
Electrical Components Location.>
3) Turn ignition switch to ON (engine OFF) and
Subaru select monitor switch to ON.
4) On the «Main Menu» display screen, select the
{2. Each System Check} and press the [YES] key.
5) On the «System Selection Menu» display
screen, select the {Engine Control System} and
press the [YES] key.
6) Press the [YES] key after displayed the informa-
tion of engine type.
7) On the «Engine Diagnosis» display screen, se-
lect the {6. Dealer Check Mode Procedure} and
press the [YES] key.
8) When the “Perform Inspection (Dealer Check)
Mode?” is shown on the display screen, press the
[YES] key.
9) Perform subsequent procedures as instructed
on the display screen.

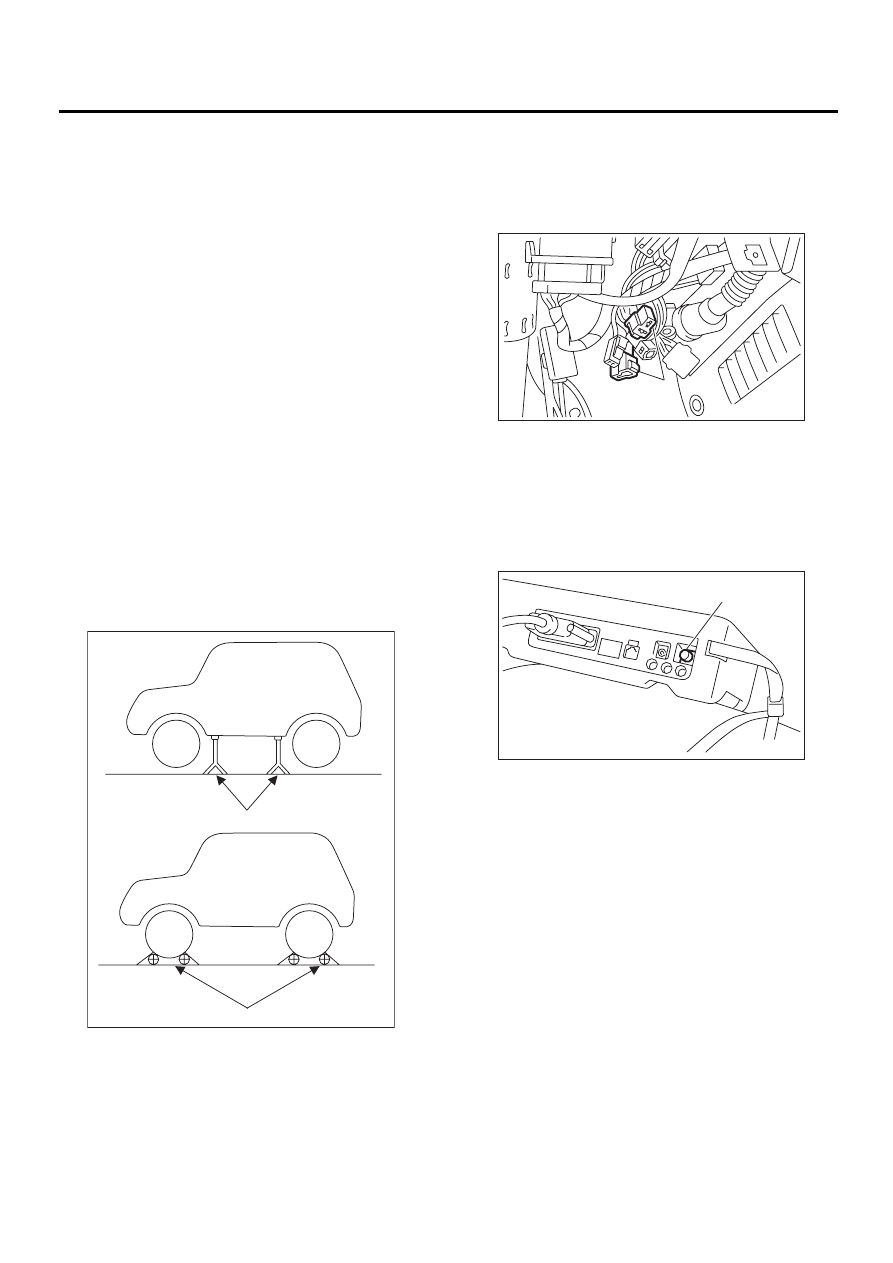

(A) Safety stand
(B) Free rollers
EN-00041
( A )
( B )

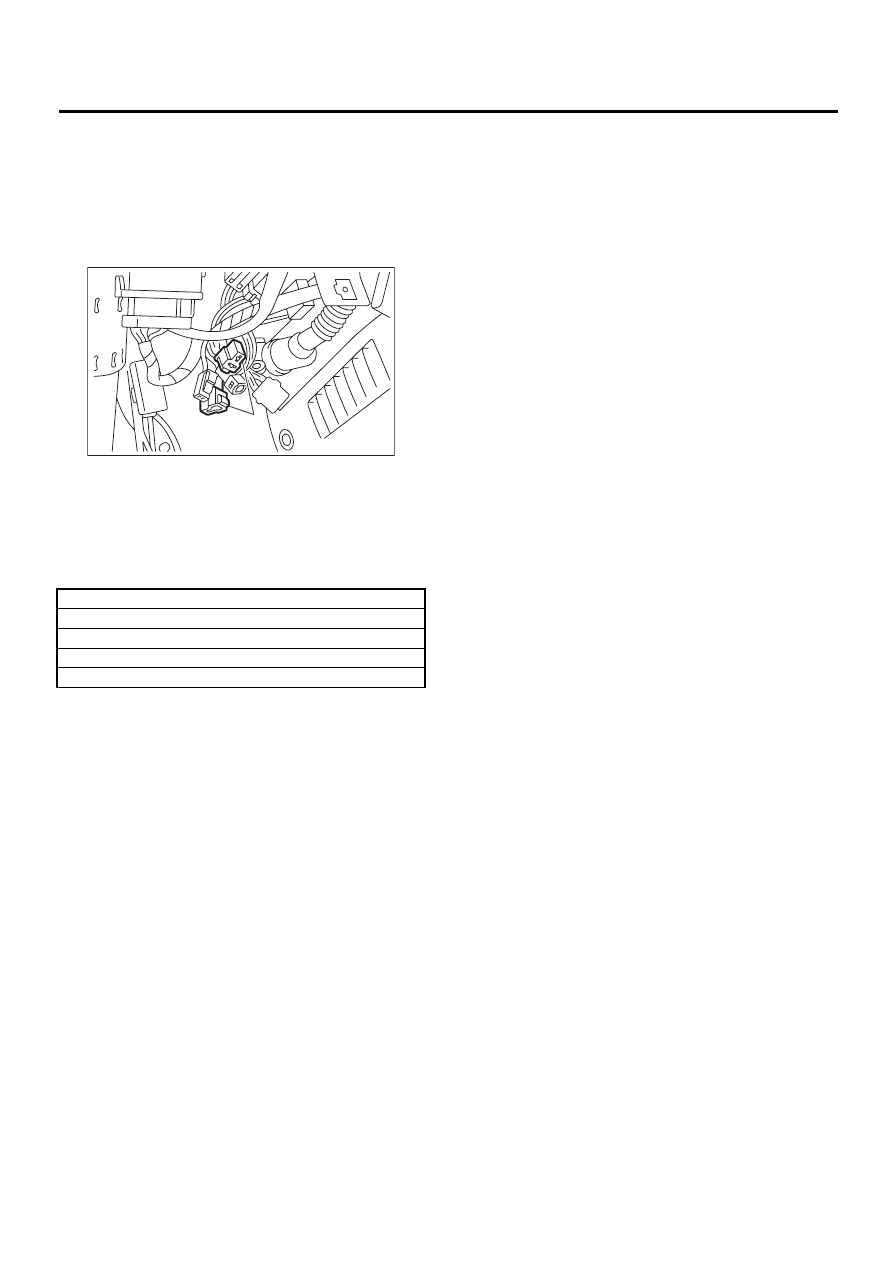

(A) Test mode connector
(A) Power mode
EN-01040
( A )
EN-00040
( A )
